Model Whirlpool EL05CCXRQ00 REFRIGERATOR – Common Parts & Diagrams

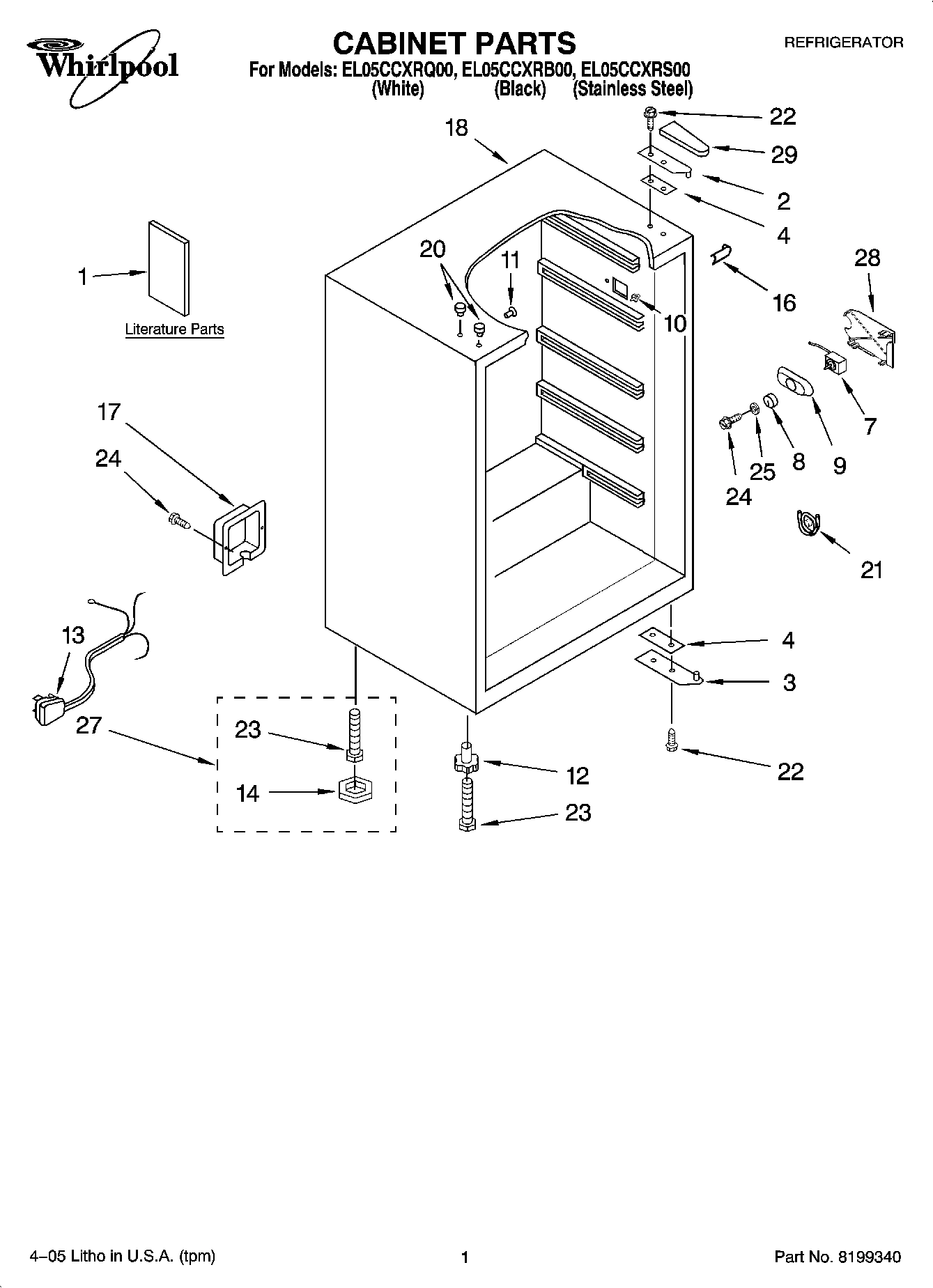

01 - CABINET PARTS

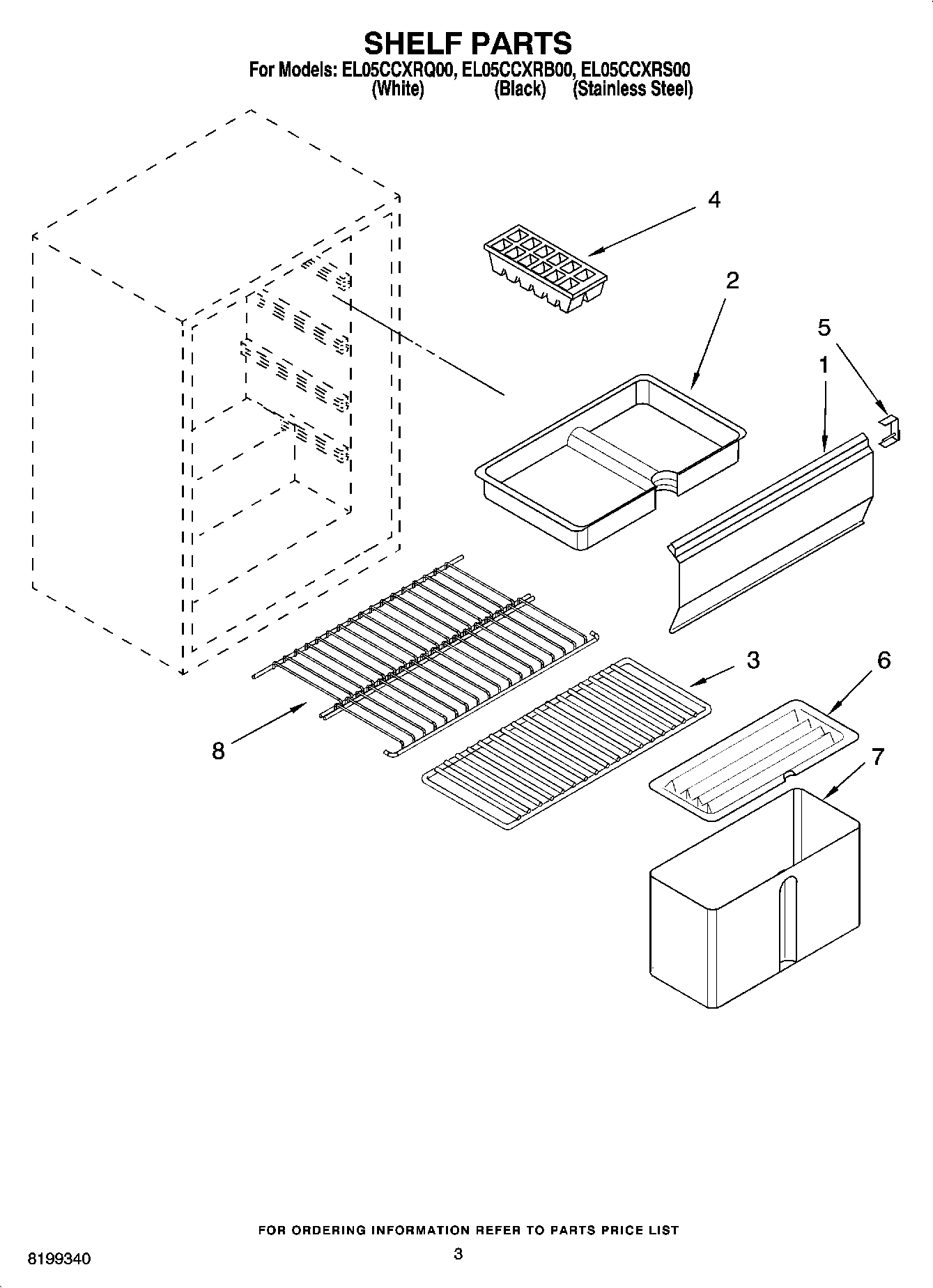

03 - SHELF PARTS

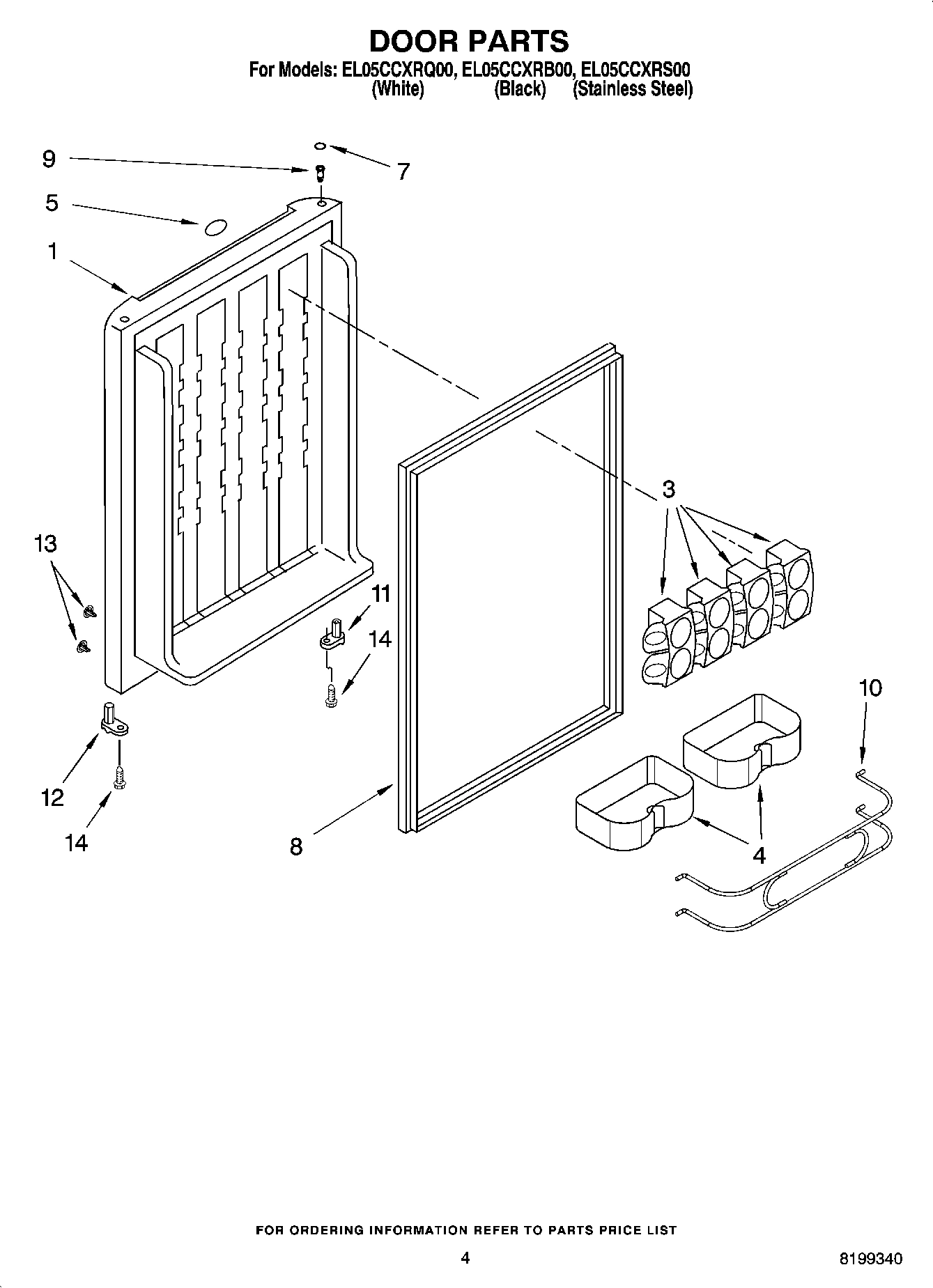

04 - DOOR PARTS

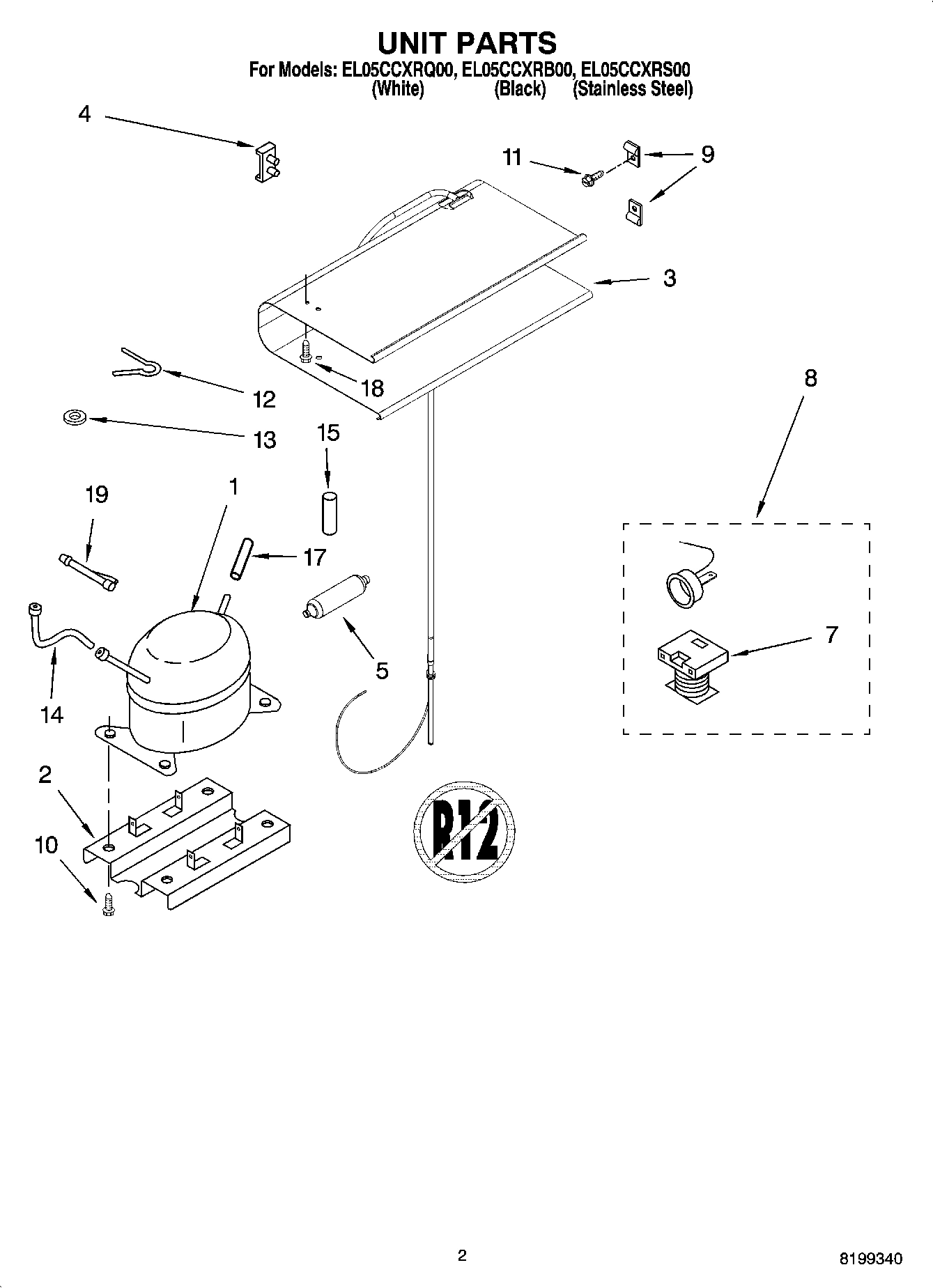

02 - UNIT PARTS
Common parts from model Whirlpool EL05CCXRQ00 REFRIGERATOR
1
Door, Freezer WPL 8209308 Contact Us For Availability
1
Door (Black) WPL 4312784 Contact Us For Availability
1
Door (White) WPL 8209314 Contact Us For Availability
1
Door (Stainless) WPL 8209315 Contact Us For Availability
1
Compressor WPL 4312766 Contact Us For Availability
2
Tray, Freezer WPL 4312775 Contact Us For Availability
2
Base, Compressor WPL 4312457 Contact Us For Availability
3
Hinge, Bottom (Black) WPL 4312750 Contact Us For Availability
3
Shelf, Wire WPL 4312777 Contact Us For Availability
3
Can Rack (4) WPL 4312788 Contact Us For Availability
3
Evaporator Assy. WPL 8209307 Contact Us For Availability
4
Shim, Hinge WPL 4312438 Contact Us For Availability
4
Tray, Ice Cube WPL 4312778 Contact Us For Availability
4
Door Bin (2) WPL 4312789 Contact Us For Availability
4
Retainer, Evaporator WPL 4312459 Contact Us For Availability
5
Hinge, Freezer Door (2) WPL 4312471 Contact Us For Availability
5
Nameplate WPL 8209178 Contact Us For Availability
6
Cover, Crisper WPL 4312779 Contact Us For Availability
7
Thermostat WPL 4312752 Contact Us For Availability
7
Pan, Crisper WPL 4312780 Contact Us For Availability
7
Cover (Black) WPL 8209175 Contact Us For Availability
7
Cover (White) WPL 8209310 Contact Us For Availability
7
Relay (See Overload) WPL ARI39518A9 Contact Us For Availability
8
Overload (Includes Relay) WPL 4312582 Contact Us For Availability
8
Gasket, Door (White) WPL 4312796 Contact Us For Availability
8
Knob, Thermostat WPL 4312753 Contact Us For Availability
8
Shelf WPL 8209166 Contact Us For Availability
8
Gasket, Door (Black) WPL 4312797 Contact Us For Availability
9
Control Box WPL 4312754 Contact Us For Availability
9
Bushing, Upper (Black) WPL 8209152 Contact Us For Availability
9
Bushing, Upper (White) WPL 8209311 Contact Us For Availability
9
Support, Evaporator WPL 4312768 Contact Us For Availability
10
Stud WPL 4312443 Contact Us For Availability
10
Door Bin WPL 4312791 Contact Us For Availability
11
Stud WPL 4312765 Contact Us For Availability
11
Door Closer (LH) (White) WPL 4312792 Contact Us For Availability
11
Door Closer (LH) (Black) WPL 4312793 Contact Us For Availability
11
Screw WPL 4312771 Contact Us For Availability
12
Foot, Front (White-Left) WPL 8209160 Contact Us For Availability
12
Foot, Front (Black-Left) WPL 8209161 Contact Us For Availability
12
Foot, Front (White-Right) WPL 8209162 Contact Us For Availability
12
Foot, Front (Black-Right) WPL 8209163 Contact Us For Availability
12
Door Closer (RH) (White) WPL 4312798 Contact Us For Availability
12
Door Closer (RH) (Black) WPL 4312799 Contact Us For Availability
12
Pin, Cotter WPL 4312465 Contact Us For Availability
13
Power Cord WPL 4312688 Contact Us For Availability
13
Bushing WPL 4312440 Contact Us For Availability
13
Washer WPL 4312466 Contact Us For Availability
14
Cap, Leveler WPL 4312406 Contact Us For Availability
14
Screw WPL 8209153 Contact Us For Availability
14
Tube, Connector WPL 4312580 Contact Us For Availability
15
Gasket WPL 4312530 Contact Us For Availability
16
Filler, Wrapper (Black) WPL 4312575 Contact Us For Availability
16
Filler, Wrapper (White) WPL 8209283 Contact Us For Availability
17
Box, Junction WPL 4312514 Contact Us For Availability
17
Tube, Service WPL 4312770 Contact Us For Availability
18
Cabinet (Not A Serviceable Part) WPL ARI39517A8 Contact Us For Availability
19
Connector, Suction Line WPL 4312577 Contact Us For Availability
19
REFRIGERANT CHARGE 1.94 oz. (R-134A) WPL ARI39519A8 Contact Us For Availability
20
Hole Plug (Black) WPL 4312574 Contact Us For Availability
20
Hole Plug (White) WPL 8209282 Contact Us For Availability
21
Bulb, Thermostat WPL 4312579 Contact Us For Availability
22
Screw WPL 4312453 Contact Us For Availability
23
Leveler WPL 4312405 Contact Us For Availability
24
Screw WPL 4312454 Contact Us For Availability
25
Washer WPL 4312455 Contact Us For Availability
27
Kit, Leg Leveler WPL 4312407 Contact Us For Availability
28
Shield, Control Box WPL 4312755 Contact Us For Availability
29
Cover, Hinge (Black) WPL 8209159 Contact Us For Availability
29
Cover, Hinge (White) WPL 8209306 Contact Us For Availability
× ![]()
