Model Whirlpool EL05CCXLB REFRIGERATOR – Common Parts & Diagrams
03 - SHELF
04 - DOOR

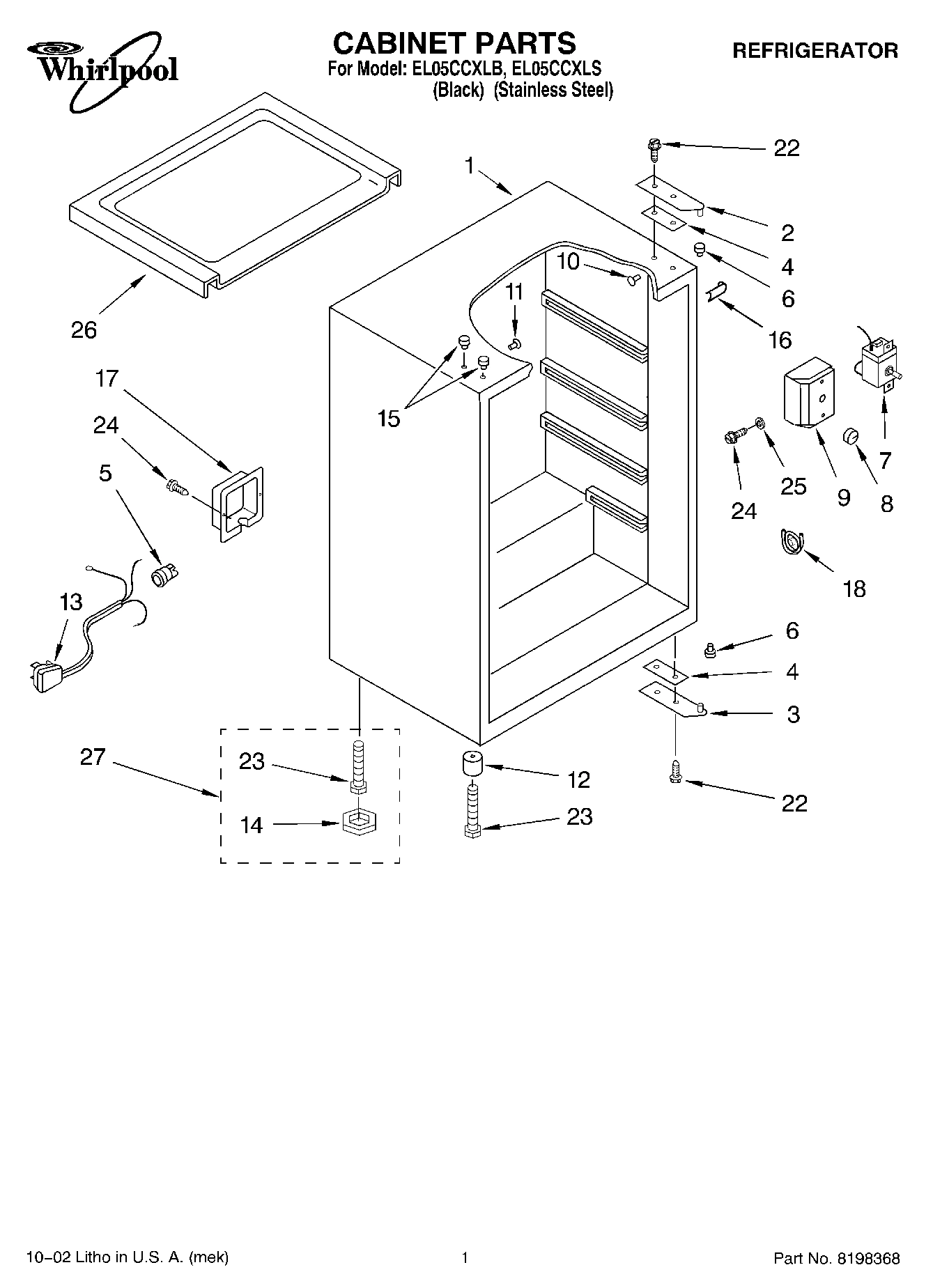

01 - CABINET

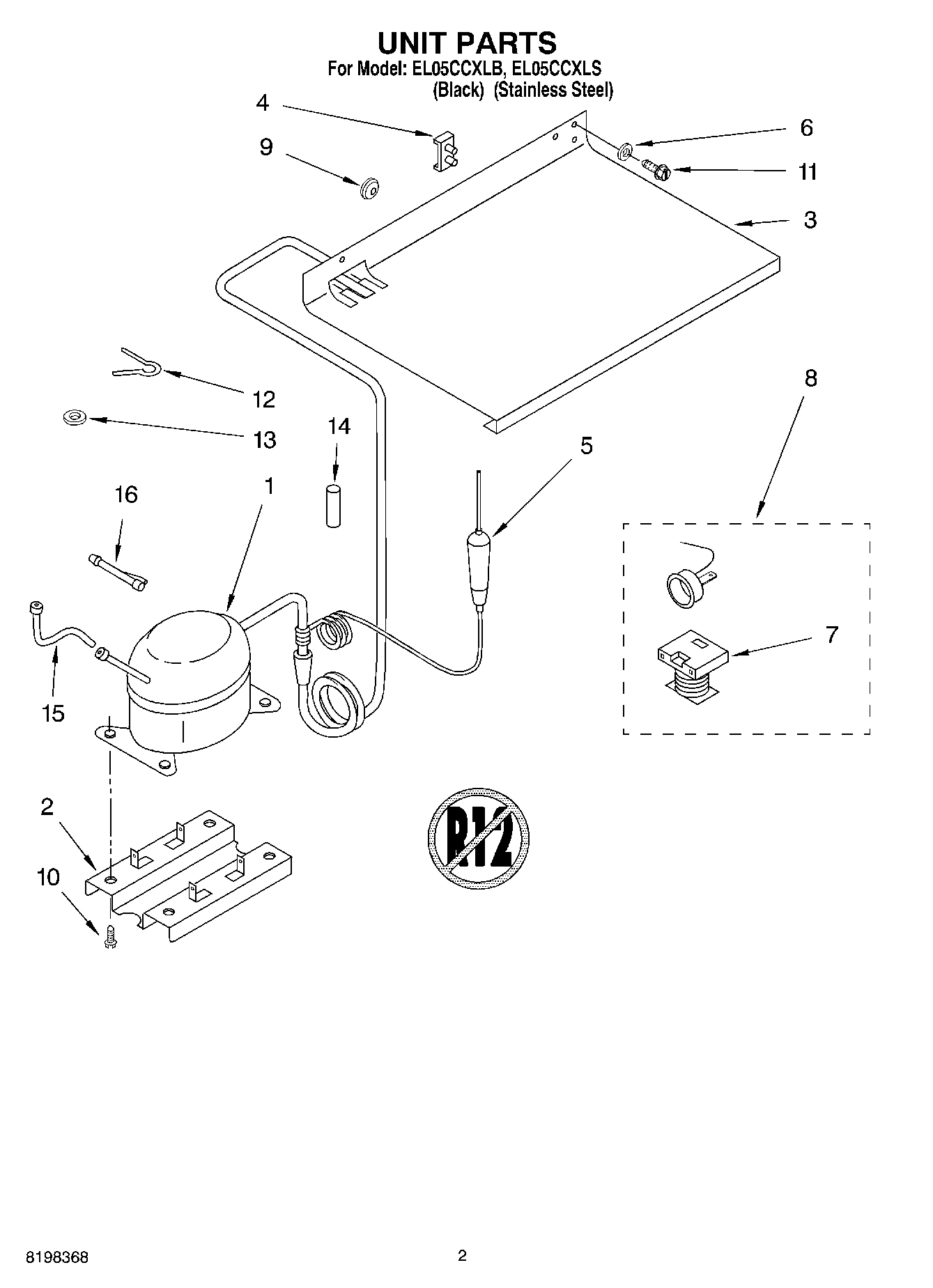

02 - UNIT
Common parts from model Whirlpool EL05CCXLB REFRIGERATOR
1
Panel, Exterior Door (Black) WPL 4312588 Contact Us For Availability
1
Panel, Exterior Door (Stainless Steel) WPL 4312589 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI39501A2 Contact Us For Availability
1
Compressor WPL 4312510 Contact Us For Availability
2
Panel, Interior Door WPL 4312533 Contact Us For Availability
2
Hinge, Top WPL 4312568 Contact Us For Availability
2
Base, Compressor WPL 4312457 Contact Us For Availability
3
Shelf, Wire Upper WPL 4312531 Contact Us For Availability
3
Trim, Door (Short) WPL 4312525 Contact Us For Availability
3
Hinge, Bottom WPL 4312569 Contact Us For Availability
3
Evaporator WPL 4312529 Contact Us For Availability
4
Tray, Ice Cube WPL 4312585 Contact Us For Availability
4
Trim, Door (Long) WPL 4312526 Contact Us For Availability
4
Shim, Hinge WPL 4312438 Contact Us For Availability
4
Retainer, Evaporator WPL 4312459 Contact Us For Availability
5
Hinge, Freezer Door (2) WPL 4312471 Contact Us For Availability
5
NAMEPLATE WPL 4312593 Contact Us For Availability
5
Strain Relief WPL 4312439 Contact Us For Availability
6
Cover, Crisper WPL 4312583 Contact Us For Availability
6
Bushing, Hinge WPL 4312570 Contact Us For Availability
6
Washer WPL 4312461 Contact Us For Availability
7
Pan, Crisper WPL 4312584 Contact Us For Availability
7
Thermostat WPL 4312399 Contact Us For Availability
7
Relay (See Overload) WPL ARI39502A4 Contact Us For Availability
8
Overload (Includes Relay) WPL 4312582 Contact Us For Availability
8
Gasket, Door WPL 4312592 Contact Us For Availability
8
Knob, Thermostat WPL 4312571 Contact Us For Availability
9
Hole Plug WPL 4312594 Contact Us For Availability
9
Control Box WPL 4312573 Contact Us For Availability
9
Stud, Evaporator WPL 4312463 Contact Us For Availability
10
Trim, Door (Long) WPL 4312527 Contact Us For Availability
10
Stud WPL 4312443 Contact Us For Availability
11
Stud WPL 4312444 Contact Us For Availability
12
Pin, Cotter WPL 4312465 Contact Us For Availability
13
Power Cord WPL 4312446 Contact Us For Availability
13
Washer WPL 4312466 Contact Us For Availability
14
Cap, Leveler WPL 4312406 Contact Us For Availability
14
Gasket WPL 4312530 Contact Us For Availability
15
Hole Plug WPL 4312574 Contact Us For Availability
15
Tube, Connector WPL 4312580 Contact Us For Availability
16
Filler, Wrapper WPL 4312575 Contact Us For Availability
16
Connector, Suction Line WPL 4312577 Contact Us For Availability
17
Box, Junction WPL 4312514 Contact Us For Availability
18
Bulb, Thermostat WPL 4312579 Contact Us For Availability
22
Screw WPL 4312453 Contact Us For Availability
23
Leveler WPL 4312405 Contact Us For Availability
24
Screw WPL 4312454 Contact Us For Availability
25
Washer WPL 4312455 Contact Us For Availability
26
Cover, Cabinet WPL 4312576 Contact Us For Availability
27
Kit, Leg Leveler WPL 4312407 Contact Us For Availability
× ![]()
