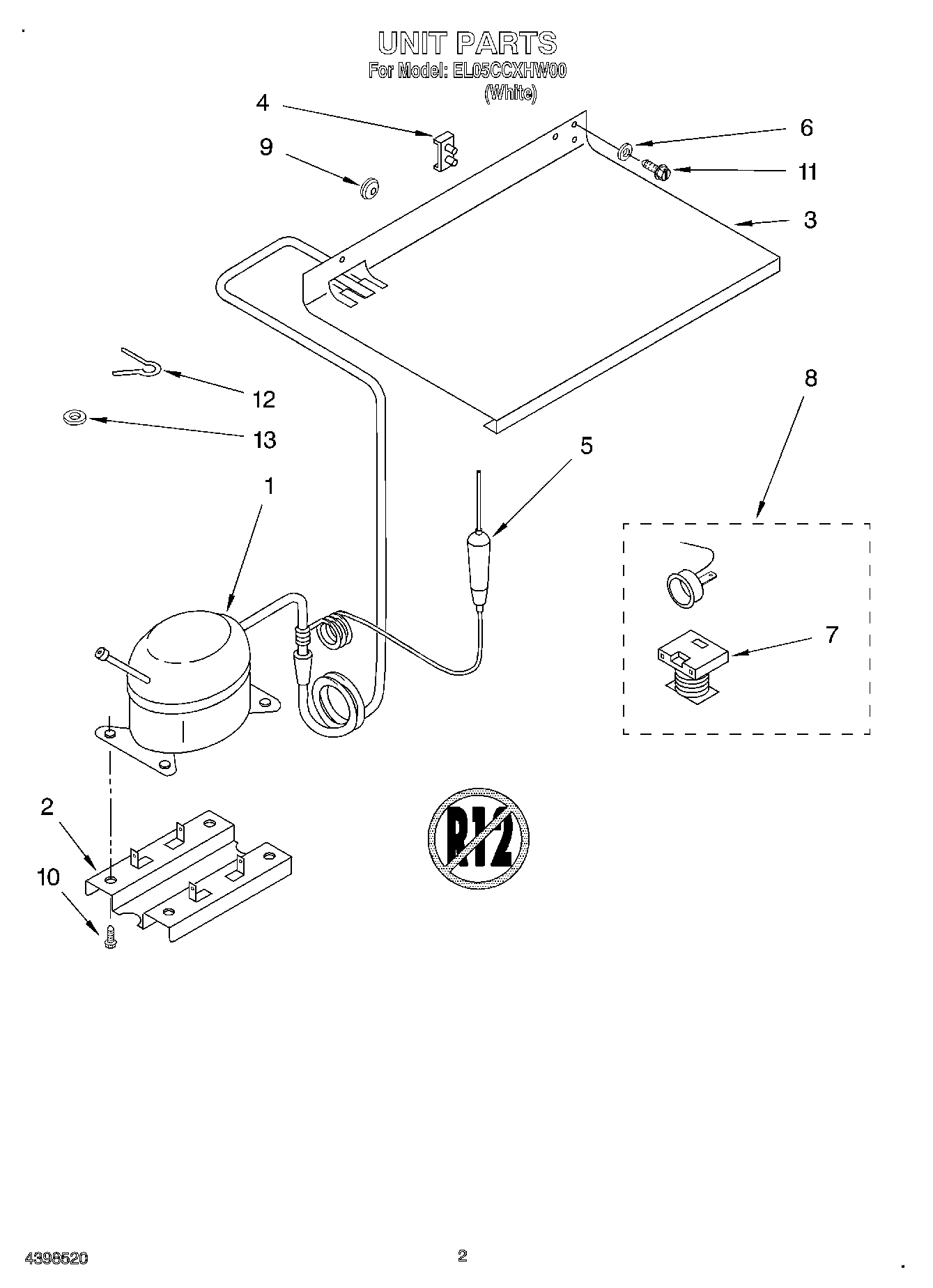

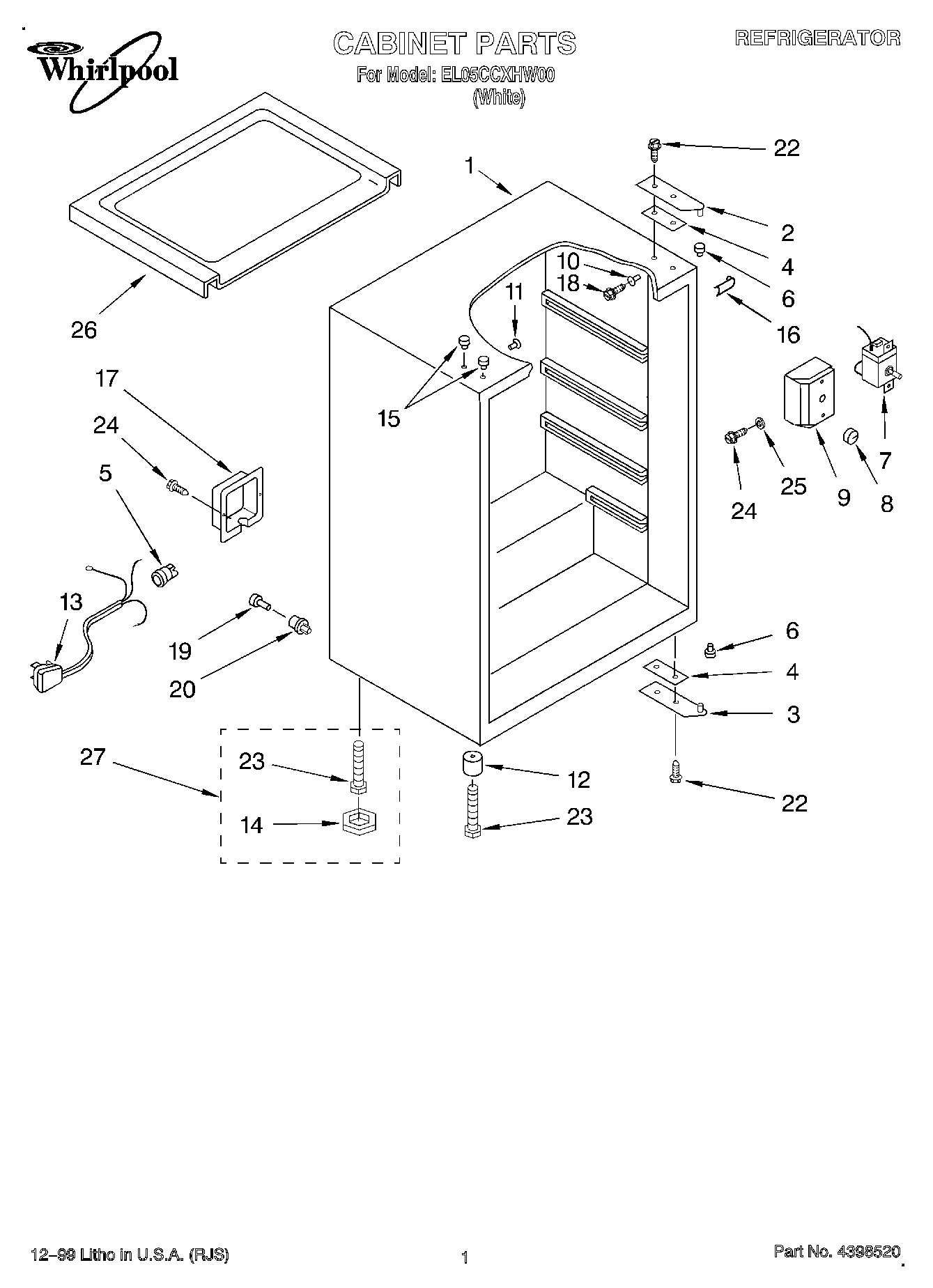

Model Whirlpool EL05CCXHW00 REFRIGERATOR – Common Parts & Diagrams

1
Compressor
Compressor WPL 4312510 Contact Us For Availability
View on Model
1
Door, Freezer
Door, Freezer WPL 4312467 Contact Us For Availability
View on Model
1
Panel, Exterior Door
Panel, Exterior Door WPL 4312493 Contact Us For Availability
View on Model
2
Base, Compressor
Base, Compressor WPL 4312457 Contact Us For Availability
View on Model
2
Tray, Freezer
Tray, Freezer WPL 4312468 Contact Us For Availability
View on Model
2
Panel, Interior Door
Panel, Interior Door WPL 4312489 Contact Us For Availability
View on Model
3
Evaporator
Evaporator WPL 4312507 Contact Us For Availability
View on Model
3
Shelf, Wire Upper
Shelf, Wire Upper WPL 4312485 Contact Us For Availability
View on Model
3
Trim, Door (Short)
Trim, Door (Short) WPL 4312508 Contact Us For Availability
View on Model
4
Shim, Hinge
Shim, Hinge WPL 4312438 Contact Us For Availability
View on Model
4
Retainer, Evaporator
Retainer, Evaporator WPL 4312459 Contact Us For Availability
View on Model
4
Tray, Ice Cube
Tray, Ice Cube WPL 4312470 Contact Us For Availability
View on Model
4
Trim, Door (Long)
Trim, Door (Long) WPL 4312509 Contact Us For Availability
View on Model
5
Strain Relief
Strain Relief WPL 4312439 Contact Us For Availability
View on Model
5
Hinge, Freezer Door (2)
Hinge, Freezer Door (2) WPL 4312471 Contact Us For Availability
View on Model
5
Nameplate
Nameplate WPL 4312476 Contact Us For Availability
View on Model
6
Bushing, Hinge
Bushing, Hinge WPL 4312440 Contact Us For Availability
View on Model
6
Screw
Screw WPL 4312454 Contact Us For Availability
View on Model
6
Washer
Washer WPL 4312461 Contact Us For Availability
View on Model
6
Cover, Crisper
Cover, Crisper WPL 4312486 Contact Us For Availability
View on Model
7
Thermostat
Thermostat WPL 4312399 Contact Us For Availability
View on Model
7
Relay (See Overload)
Relay (See Overload) WPL ARI39498A5 Contact Us For Availability
View on Model
7
Pan, Crisper
Pan, Crisper WPL 4312487 Contact Us For Availability
View on Model
7
Endcap, Door Trim
Endcap, Door Trim WPL 4312477 Contact Us For Availability
View on Model
8
Knob, Thermostat
Knob, Thermostat WPL 4312441 Contact Us For Availability
View on Model
8
Overload (Includes Relay)
Overload (Includes Relay) WPL 4312483 Contact Us For Availability
View on Model
8
Gasket, Door
Gasket, Door WPL 4312511 Contact Us For Availability
View on Model
9
Control Box
Control Box WPL 4312442 Contact Us For Availability
View on Model
9
Stud, Evaporator
Stud, Evaporator WPL 4312463 Contact Us For Availability
View on Model
9
Hole Plug
Hole Plug WPL 4312479 Contact Us For Availability
View on Model
10
Stud
Stud WPL 4312443 Contact Us For Availability
View on Model
11
Stud
Stud WPL 4312444 Contact Us For Availability
View on Model
12
Pin, Cotter
Pin, Cotter WPL 4312465 Contact Us For Availability
View on Model
13
Power Cord
Power Cord WPL 4312446 Contact Us For Availability
View on Model
13
Washer
Washer WPL 4312466 Contact Us For Availability
View on Model
14
Cap, Leveler
Cap, Leveler WPL 4312406 Contact Us For Availability
View on Model
15
Hole Plug
Hole Plug WPL 4312447 Contact Us For Availability
View on Model
16
Filler, Wrapper
Filler, Wrapper WPL 4312448 Contact Us For Availability
View on Model
17
Box, Junction
Box, Junction WPL 4312449 Contact Us For Availability
View on Model
19
Pin
Pin WPL 4312451 Contact Us For Availability
View on Model
20
Grommet
Grommet WPL 4312452 Contact Us For Availability
View on Model
22
Screw
Screw WPL 4312453 Contact Us For Availability
View on Model
23
Leveler
Leveler WPL 4312405 Contact Us For Availability
View on Model
25
Washer
Washer WPL 4312455 Contact Us For Availability
View on Model
26
Cover, Cabinet
Cover, Cabinet WPL 4312482 Contact Us For Availability
View on Model
27
Kit, Leg Leveler
Kit, Leg Leveler WPL 4312407 Contact Us For Availability
View on Model
