Model Whirlpool EL03PPXML00 REFRIGERATOR – Common Parts & Diagrams
03 - SHELF PARTS
01 - CABINET PARTS
04 - DOOR PARTS

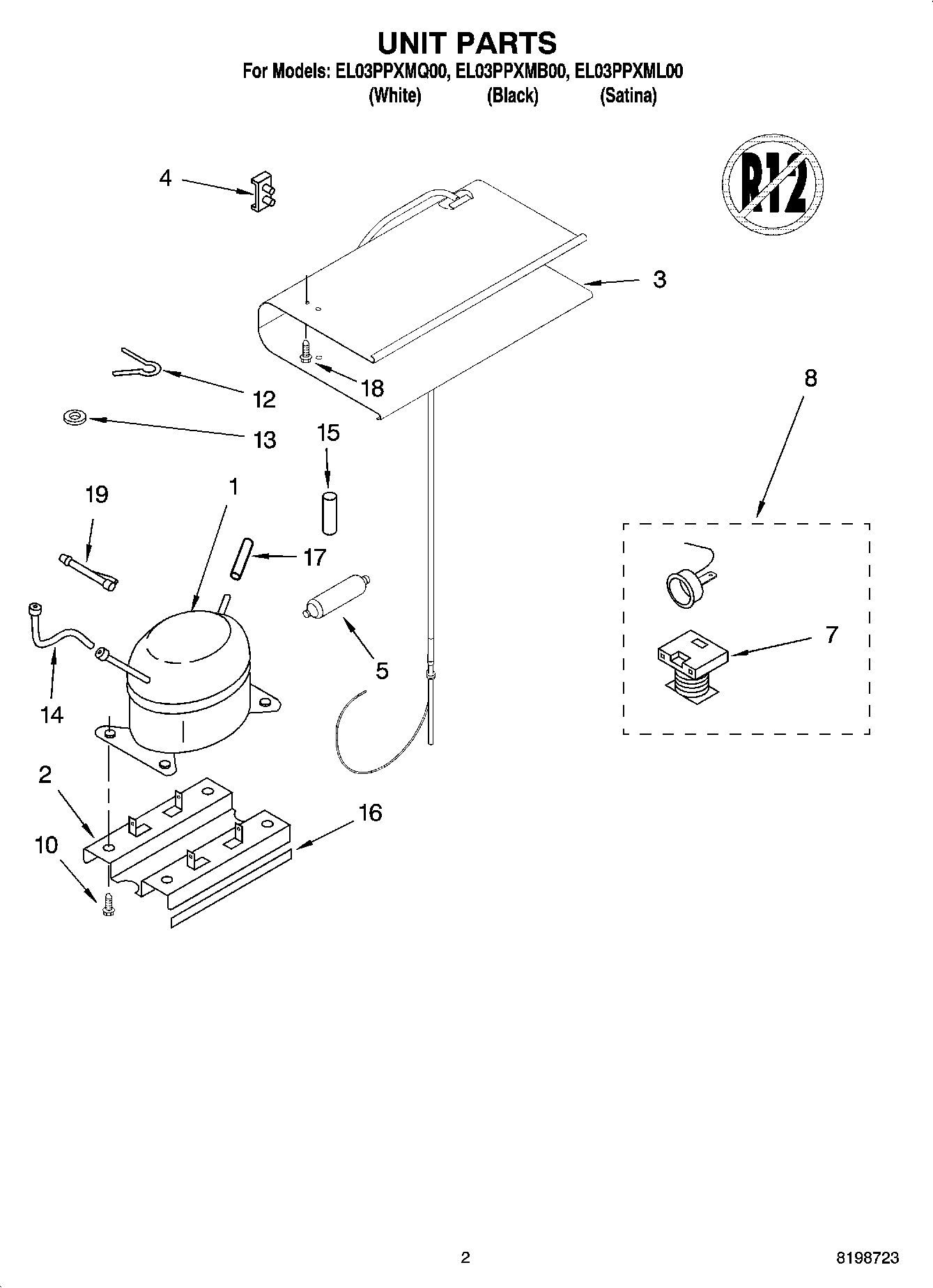

02 - UNIT PARTS
Common parts from model Whirlpool EL03PPXML00 REFRIGERATOR
1
Compressor WPL 4312506 Contact Us For Availability
1
Owners Manual WPL 8209155 Contact Us For Availability
1
Door (White) WPL 4312782 Contact Us For Availability
1
Door (Satina) WPL 8209280 Contact Us For Availability
1
Door (Black) WPL 8209313 Contact Us For Availability
2
Hinge, Top (White) WPL 4312747 Contact Us For Availability
2
Hinge, Top (Black) WPL 4312748 Contact Us For Availability
2
Cover, Bushing (White) WPL 4312786 Contact Us For Availability
2
Cover, Bushing (Black) WPL 8209175 Contact Us For Availability
2
Base, Compressor WPL 4312457 Contact Us For Availability
3
Hinge, Bottom (White) WPL 4312749 Contact Us For Availability
3
Hinge, Bottom (Black) WPL 4312750 Contact Us For Availability
3
Can Rack (4) WPL 4312788 Contact Us For Availability
3
Evaporator WPL 4312767 Contact Us For Availability
4
Tray, Ice Cube WPL 4312778 Contact Us For Availability
4
Shim, Hinge WPL 4312438 Contact Us For Availability
4
Door Bin (2) WPL 4312789 Contact Us For Availability
4
Retainer, Evaporator WPL 4312459 Contact Us For Availability
5
Hinge, Freezer Door (2) WPL 4312471 Contact Us For Availability
5
Strain Relief WPL 4312439 Contact Us For Availability
5
Nameplate WPL 4312726 Contact Us For Availability
6
Cover, Crisper WPL 4312779 Contact Us For Availability
6
Screw WPL 4312454 Contact Us For Availability
7
Thermostat WPL 4312752 Contact Us For Availability
7
Pan, Crisper WPL 4312780 Contact Us For Availability
7
Relay (See Overload) WPL ARI39487A6 Contact Us For Availability
8
Knob, Thermostat WPL 4312753 Contact Us For Availability
8
Gasket, Door (White) WPL 4312795 Contact Us For Availability
8
Gasket, Door (Black) WPL 8209177 Contact Us For Availability
8
Overload (Includes Relay) WPL 4312581 Contact Us For Availability
9
Control Box WPL 4312754 Contact Us For Availability
9
Bushing, Upper (White) WPL 4312727 Contact Us For Availability
10
Stud WPL 4312443 Contact Us For Availability
10
Door Rack WPL 4312791 Contact Us For Availability
11
Stud WPL 4312765 Contact Us For Availability
11
Door Closer (LH) (White) WPL 4312792 Contact Us For Availability
11
Door Closer (LH) (Black) WPL 4312793 Contact Us For Availability
12
Screw WPL 4312405 Contact Us For Availability
12
Door Closer (RH) (Black) WPL 8209152 Contact Us For Availability
12
Door Closer (RH) (White) WPL 4312798 Contact Us For Availability
12
Pin, Cotter WPL 4312465 Contact Us For Availability
13
Bushing WPL 4312440 Contact Us For Availability
13
Power Cord WPL 4312756 Contact Us For Availability
13
Washer WPL 4312466 Contact Us For Availability
14
Screw WPL 8209153 Contact Us For Availability
14
Tube, Connector WPL 4312580 Contact Us For Availability
15
Plug, Hole (White) WPL 4312447 Contact Us For Availability
15
Plug, Hole (Black) WPL 4312574 Contact Us For Availability
15
Gasket WPL 4312515 Contact Us For Availability
16
Filler, Wrapper (Black) WPL 4312575 Contact Us For Availability
16
Filler, Wrapper (White) WPL 8209151 Contact Us For Availability
16
Trim, Base WPL 4312769 Contact Us For Availability
17
Box, Junction WPL 4312514 Contact Us For Availability
17
Tube, Service WPL 4312770 Contact Us For Availability
18
Cabinet (Not A Serviceable Part) WPL ARI39486A6 Contact Us For Availability
19
Connector, Suction Line WPL 4312577 Contact Us For Availability
19
REFRIGERANT CHARGE 2.12 oz. (R-134) WPL ARI39488A7 Contact Us For Availability
21
Bulb, Thermostat WPL 4312579 Contact Us For Availability
22
Screw WPL 4312453 Contact Us For Availability
23
Leveler (White (Left)) WPL 8209160 Contact Us For Availability
23
Leveler (Black (Left)) WPL 8209161 Contact Us For Availability
23
Leveler (White (Right)) WPL 8209162 Contact Us For Availability
23
Leveler (Black (Right)) WPL 8209163 Contact Us For Availability
25
Washer WPL 4312455 Contact Us For Availability
28
Shield, Control Box WPL 4312755 Contact Us For Availability
29
Cover, Hinge (White) WPL 4312757 Contact Us For Availability
29
Cover, Hinge (Black) WPL 8209159 Contact Us For Availability
× ![]()
