Model Whirlpool EL03CCXJW REFRIGERATOR – Common Parts & Diagrams

1

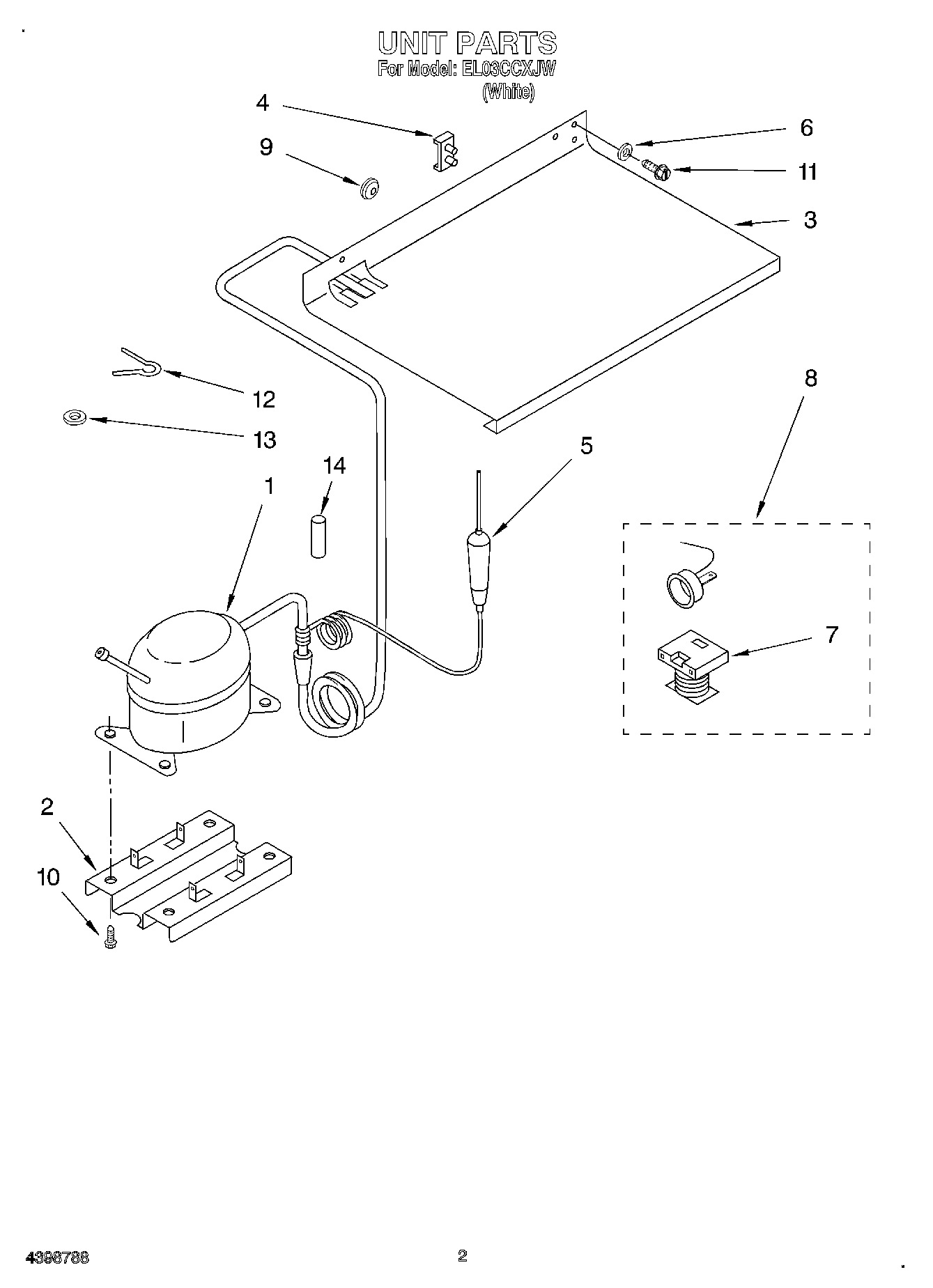

Compressor
Compressor WPL 4312506 Contact Us For Availability
View on Model
1

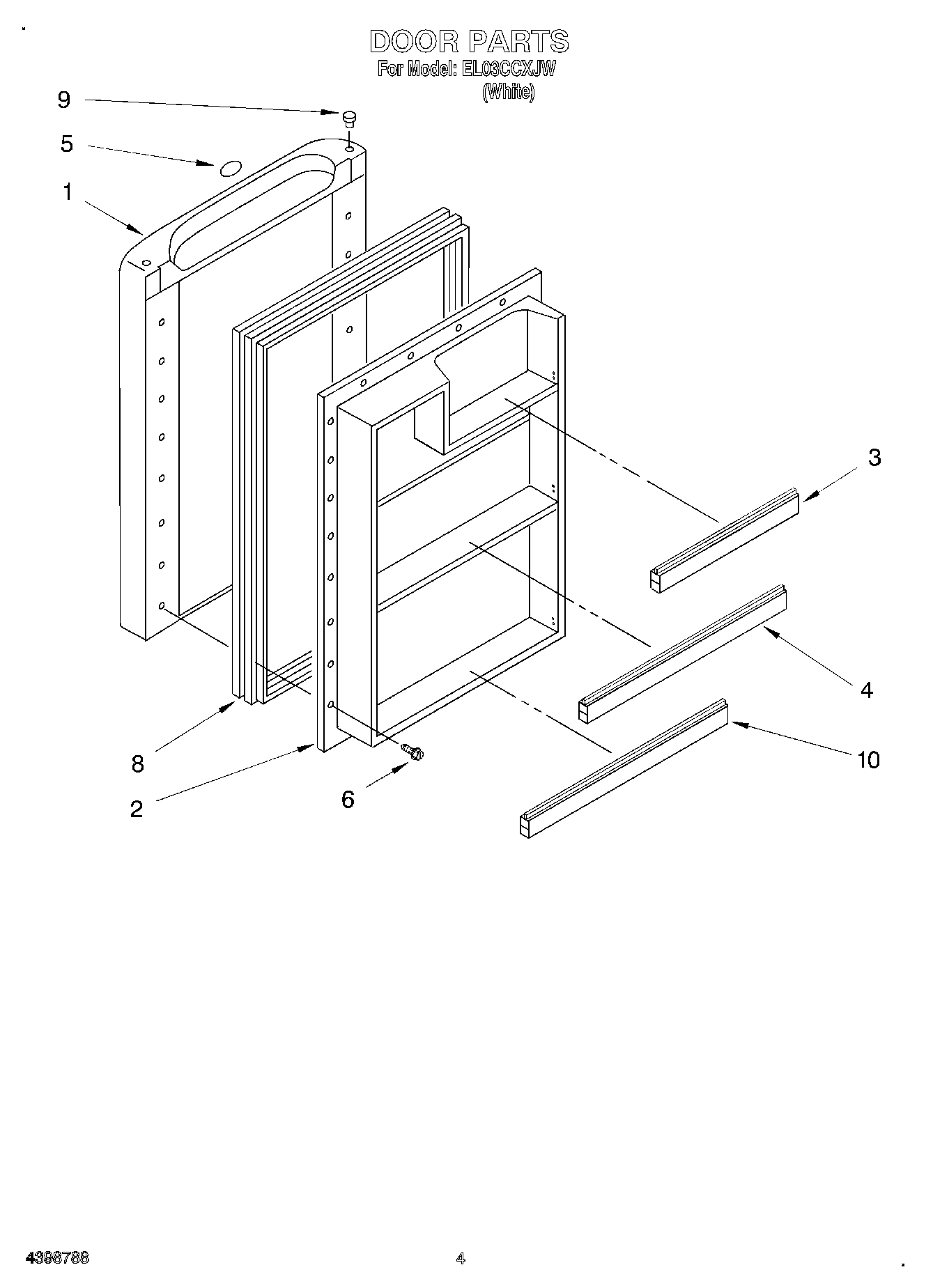

Panel, Exterior Door
Panel, Exterior Door WPL 4312523 Contact Us For Availability
View on Model
1
Door, Freezer
Door, Freezer WPL 4312522 Contact Us For Availability
View on Model
1

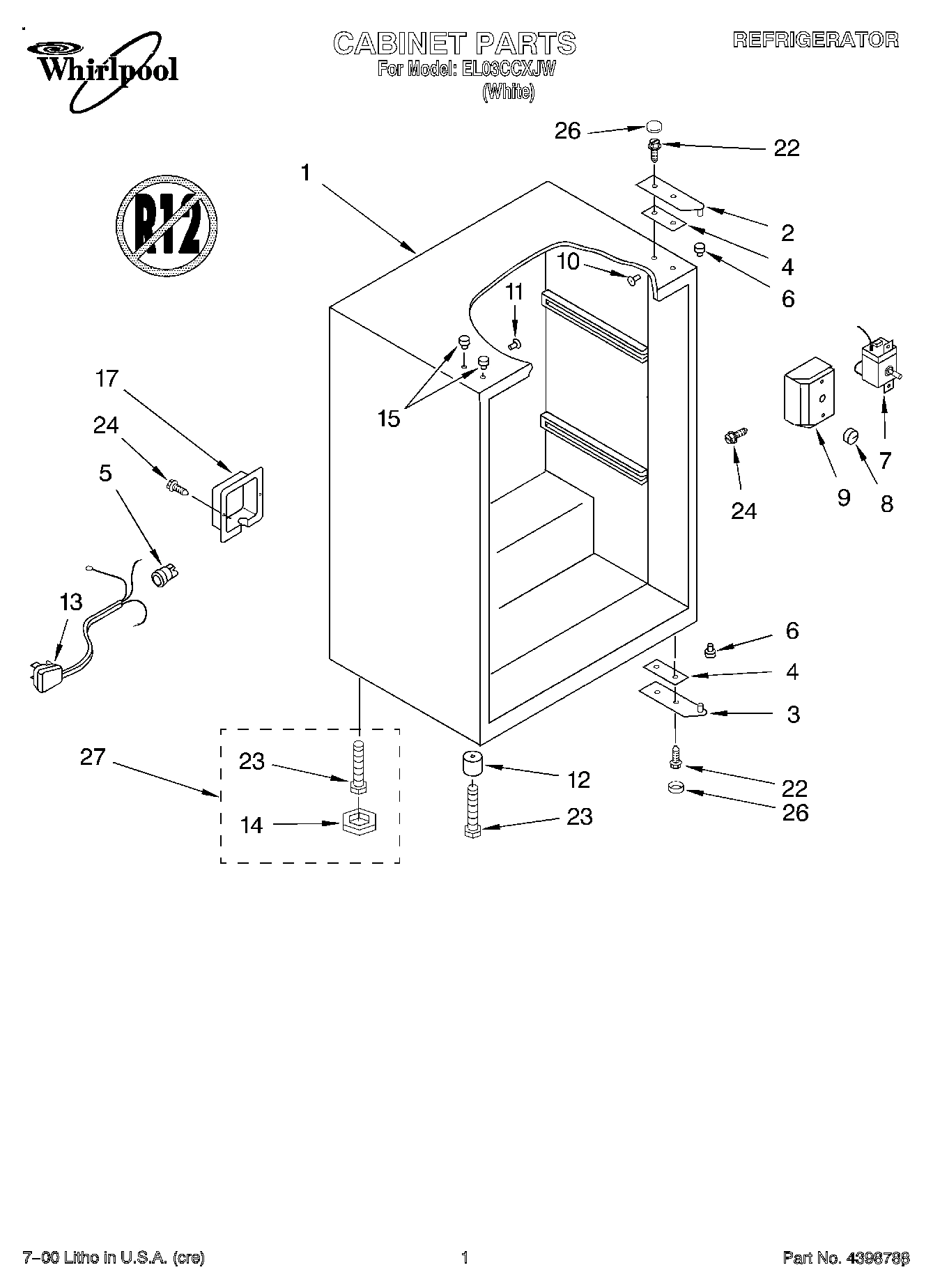

Cabinet (Not A Serviceable Part)
Cabinet (Not A Serviceable Part) WPL ARI39464A1 Contact Us For Availability
View on Model
2
Panel, Interior Door
Panel, Interior Door WPL 4312524 Contact Us For Availability
View on Model
2

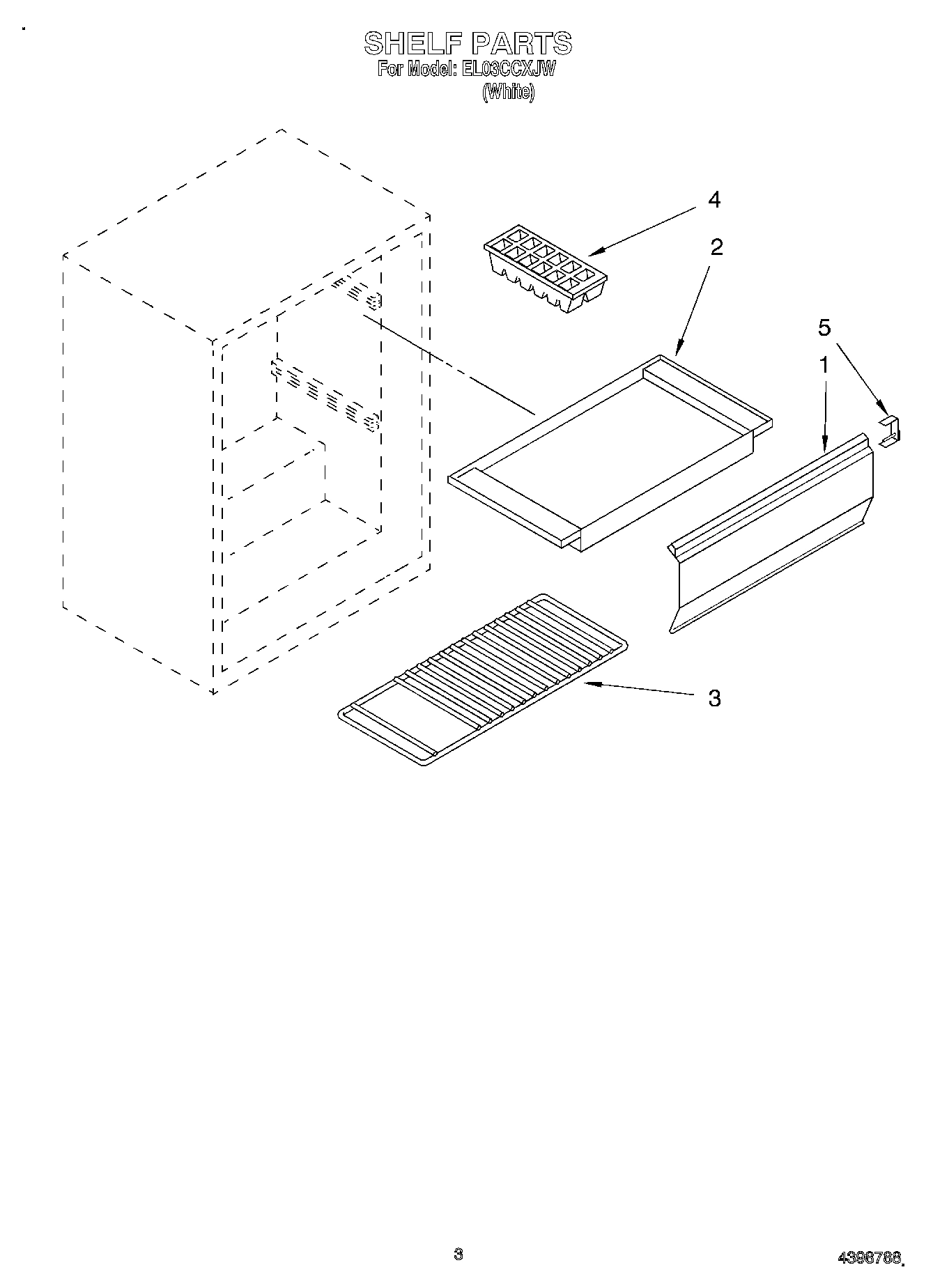

Tray, Freezer
Tray, Freezer WPL 4312468 Contact Us For Availability
View on Model
3
Trim, Door (Short)
Trim, Door (Short) WPL 4312525 Contact Us For Availability
View on Model
3
Shelf, Wire
Shelf, Wire WPL 4312469 Contact Us For Availability
View on Model
4
Trim, Door (Long)
Trim, Door (Long) WPL 4312526 Contact Us For Availability
View on Model
4
Tray, Ice Cube
Tray, Ice Cube WPL 4312470 Contact Us For Availability
View on Model
4
Shim, Hinge
Shim, Hinge WPL 4312438 Contact Us For Availability
View on Model
5
Nameplate
Nameplate WPL 4312520 Contact Us For Availability
View on Model
5
Hinge, Freezer Door (2)
Hinge, Freezer Door (2) WPL 4312471 Contact Us For Availability
View on Model
5
Strain Relief
Strain Relief WPL 4312439 Contact Us For Availability
View on Model
6
Washer
Washer WPL 4312461 Contact Us For Availability
View on Model
6
Bushing, Hinge
Bushing, Hinge WPL 4312440 Contact Us For Availability
View on Model
7
Relay (See Overload)
Relay (See Overload) WPL ARI39465A5 Contact Us For Availability
View on Model
7
Thermostat
Thermostat WPL 4312399 Contact Us For Availability
View on Model
8
Gasket, Door
Gasket, Door WPL 4312528 Contact Us For Availability
View on Model
8
Knob, Thermostat
Knob, Thermostat WPL 4312441 Contact Us For Availability
View on Model
9
Stud, Evaporator
Stud, Evaporator WPL 4312463 Contact Us For Availability
View on Model
9
Hole Plug
Hole Plug WPL 4312479 Contact Us For Availability
View on Model
9
Control Box
Control Box WPL 4312442 Contact Us For Availability
View on Model
10
Trim, Door (Long)
Trim, Door (Long) WPL 4312527 Contact Us For Availability
View on Model
10
Stud
Stud WPL 4312443 Contact Us For Availability
View on Model
11
Stud
Stud WPL 4312444 Contact Us For Availability
View on Model
12
Pin, Cotter
Pin, Cotter WPL 4312465 Contact Us For Availability
View on Model
13
Washer
Washer WPL 4312466 Contact Us For Availability
View on Model
13
Power Cord
Power Cord WPL 4312446 Contact Us For Availability
View on Model
14
Gasket
Gasket WPL 4312515 Contact Us For Availability
View on Model
14
Cap, Leveler
Cap, Leveler WPL 4312406 Contact Us For Availability
View on Model
15
Hole Plug
Hole Plug WPL 4312447 Contact Us For Availability
View on Model
17
Box, Junction
Box, Junction WPL 4312514 Contact Us For Availability
View on Model
22
Screw
Screw WPL 4312453 Contact Us For Availability
View on Model
23
Leveler
Leveler WPL 4312405 Contact Us For Availability
View on Model
24
Screw
Screw WPL 4312454 Contact Us For Availability
View on Model
26
Cover, Screw
Cover, Screw WPL 4312456 Contact Us For Availability
View on Model
27
Kit, Leg Leveler
Kit, Leg Leveler WPL 4312407 Contact Us For Availability
View on Model
