Model Whirlpool EL02PPXMQ00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - UNIT PARTS

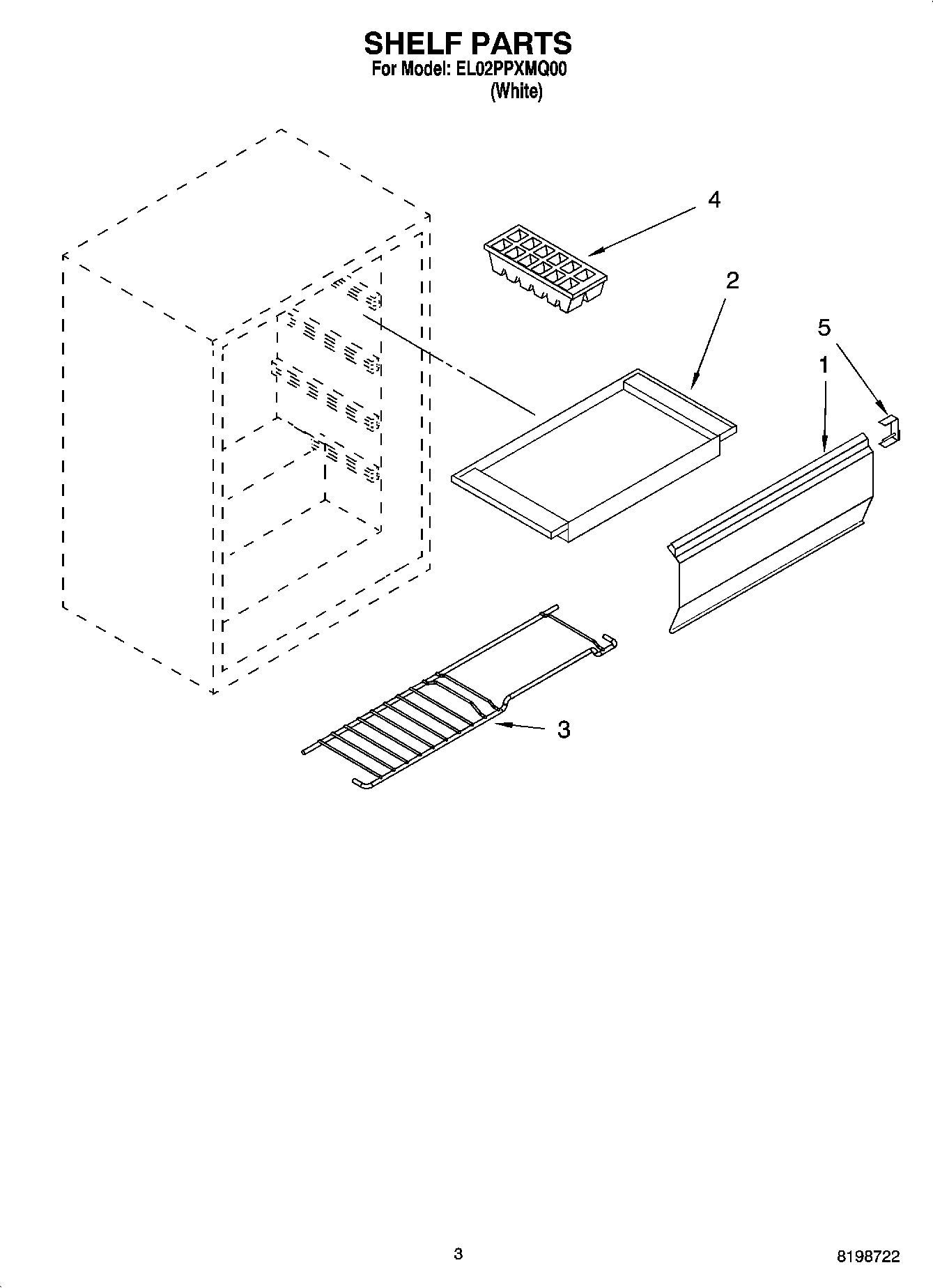

03 - SHELF PARTS

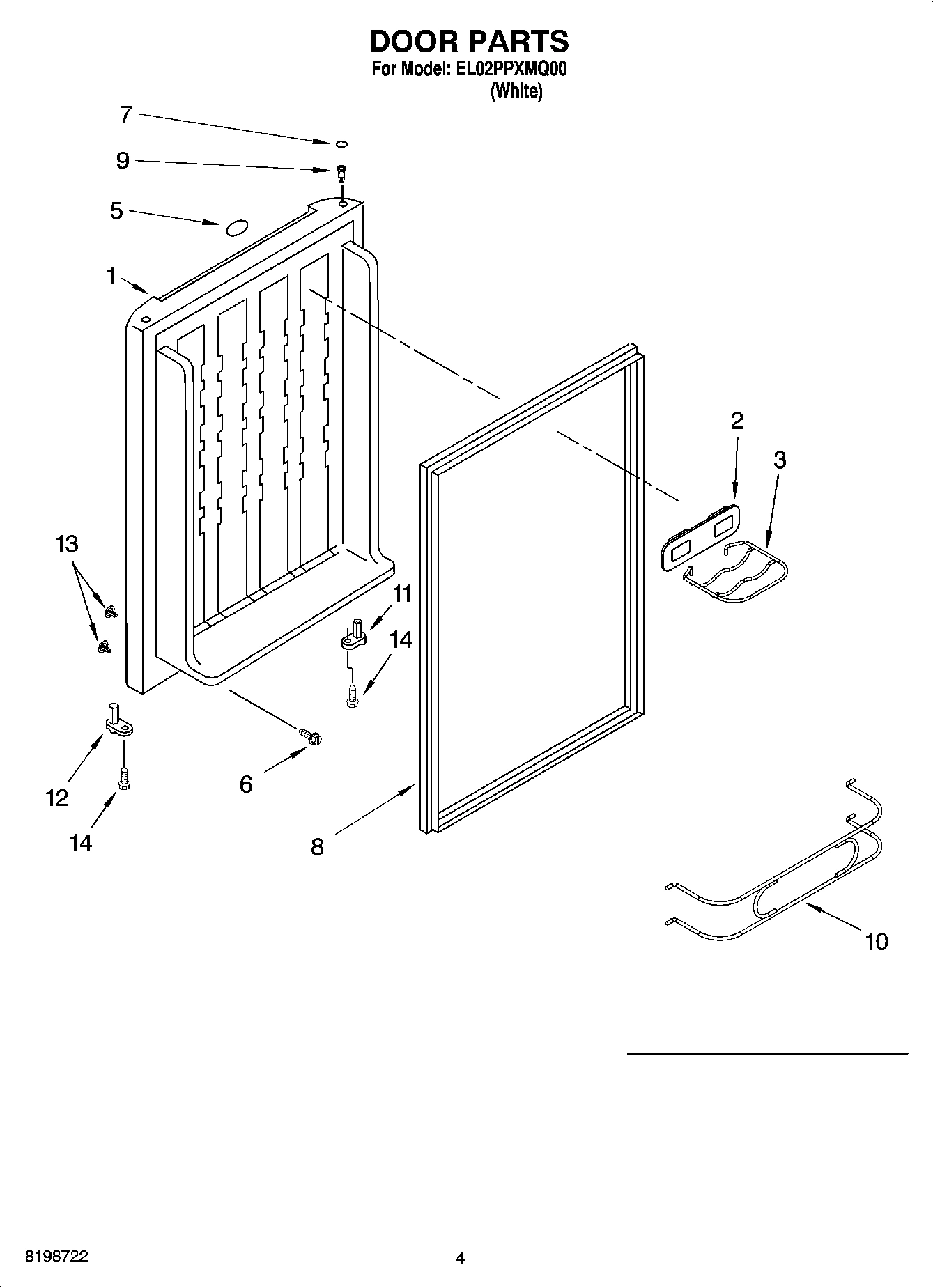

04 - DOOR PARTS
Common parts from model Whirlpool EL02PPXMQ00 REFRIGERATOR
1
Compressor WPL 8209156 Contact Us For Availability
1
Door, Freezer WPL 4312773 Contact Us For Availability
1
Door (White) WPL 4312781 Contact Us For Availability
2
Base, Compressor WPL 4312457 Contact Us For Availability
2
Tray, Freezer WPL 4312498 Contact Us For Availability
2
Support WPL 8209154 Contact Us For Availability
3
Hinge, Bottom (White) WPL 4312749 Contact Us For Availability
3
Evaporator WPL 4312495 Contact Us For Availability
3
Shelf, Wire WPL 4312776 Contact Us For Availability
3
Can Rack (2) WPL 4312787 Contact Us For Availability
4
Shim, Hinge WPL 4312438 Contact Us For Availability
4
Retainer, Evaporator WPL 4312459 Contact Us For Availability
4
Tray, Ice Cube WPL 4312778 Contact Us For Availability
5
Strain Relief WPL 4312439 Contact Us For Availability
5
Hinge, Freezer Door (2) WPL 4312471 Contact Us For Availability
5
Nameplate WPL 4312726 Contact Us For Availability
6
Screw WPL 4312454 Contact Us For Availability
7
THERMOSTAT WPL 4312751 Contact Us For Availability
7
Relay (See Overload) WPL ARI39456A2 Contact Us For Availability
7
Cover WPL 4312786 Contact Us For Availability
8
Knob, Thermostat WPL 4312753 Contact Us For Availability
8
Overload (Includes Relay) WPL 4312418 Contact Us For Availability
8
Gasket, Door (White) WPL 4312794 Contact Us For Availability
9
Control Box WPL 4312754 Contact Us For Availability
9
Bushing, Upper (White) WPL 4312727 Contact Us For Availability
10
Stud WPL 4312443 Contact Us For Availability
10
Door Rack WPL 4312790 Contact Us For Availability
11
Stud WPL 4312765 Contact Us For Availability
11
Door Closer (LH) (White) WPL 4312792 Contact Us For Availability
12
Pin, Cotter WPL 4312465 Contact Us For Availability
12
Door Closer (RH) (White) WPL 4312798 Contact Us For Availability
13
Bushing WPL 4312440 Contact Us For Availability
13
Power Cord WPL 4312756 Contact Us For Availability
13
Washer WPL 4312466 Contact Us For Availability
14
Cap, Leveler WPL 4312406 Contact Us For Availability
14
Tube, Connector WPL 4312580 Contact Us For Availability
14
Screw WPL 8209153 Contact Us For Availability
15
Gasket WPL 4312515 Contact Us For Availability
16
Filler, Wrapper (White) WPL 8209151 Contact Us For Availability
16
Trim, Base WPL 4312769 Contact Us For Availability
17
Box, Junction WPL 4312514 Contact Us For Availability
17
Tube, Service WPL 4312770 Contact Us For Availability
18
Cabinet (Not A Serviceable Part) WPL ARI39455A4 Contact Us For Availability
19
Connector, Suction Line WPL 4312577 Contact Us For Availability
19
REFRIGERANT CHARGE 1.59 oz. (R-134) WPL ARI39457A8 Contact Us For Availability
21
Bulb, Thermostat WPL 4312759 Contact Us For Availability
22
Screw WPL 4312453 Contact Us For Availability
23
Leveler WPL 4312405 Contact Us For Availability
25
Washer WPL 4312455 Contact Us For Availability
27
Kit, Leg Leveler WPL 4312407 Contact Us For Availability
28
Shield, Control Box WPL 4312755 Contact Us For Availability
29
Cover, Hinge (White) WPL 4312757 Contact Us For Availability
32
Washer WPL 4312764 Contact Us For Availability
× ![]()
