Model Whirlpool EHN3892WW ELECTRIC RANGE – Common Parts & Diagrams
01 - BACKGUARD ASSY
05 - OVEN COMPONENTS

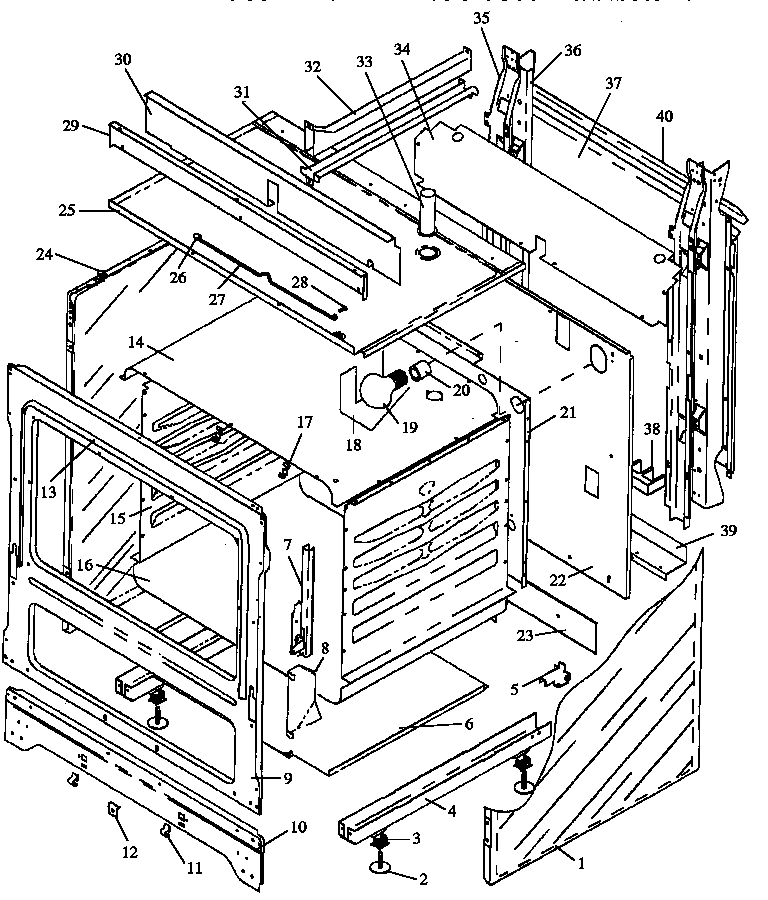

02 - CABINET SECTION

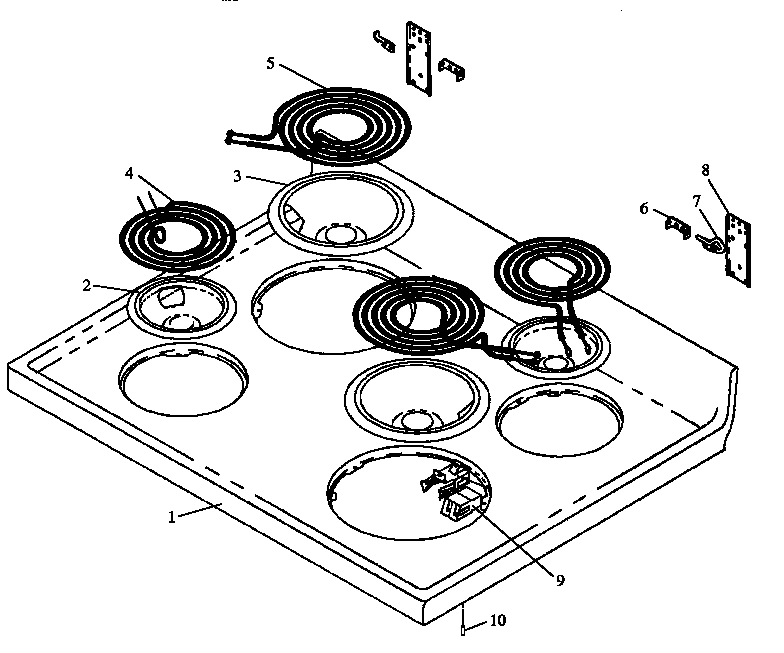

04 - MAINTOP ASSY

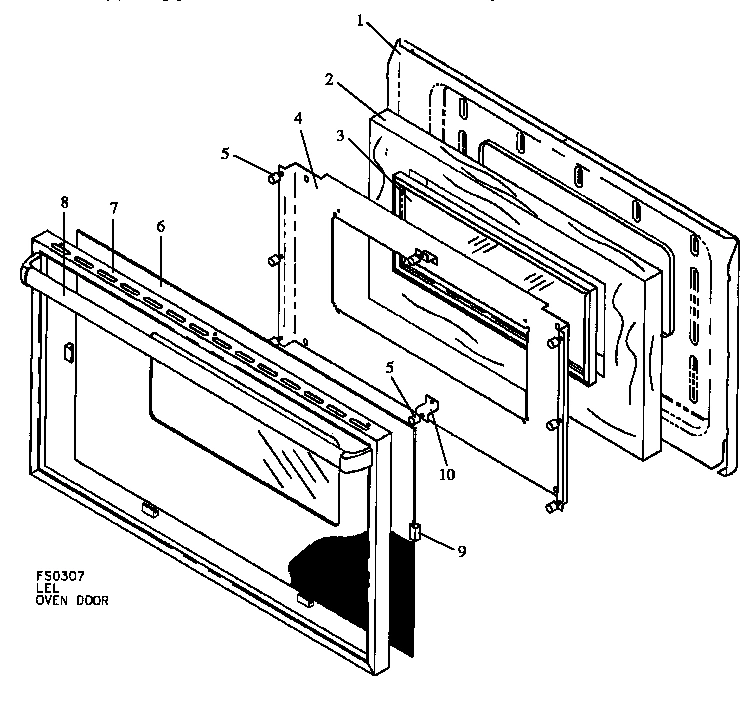

06 - OVEN DOOR ASSY

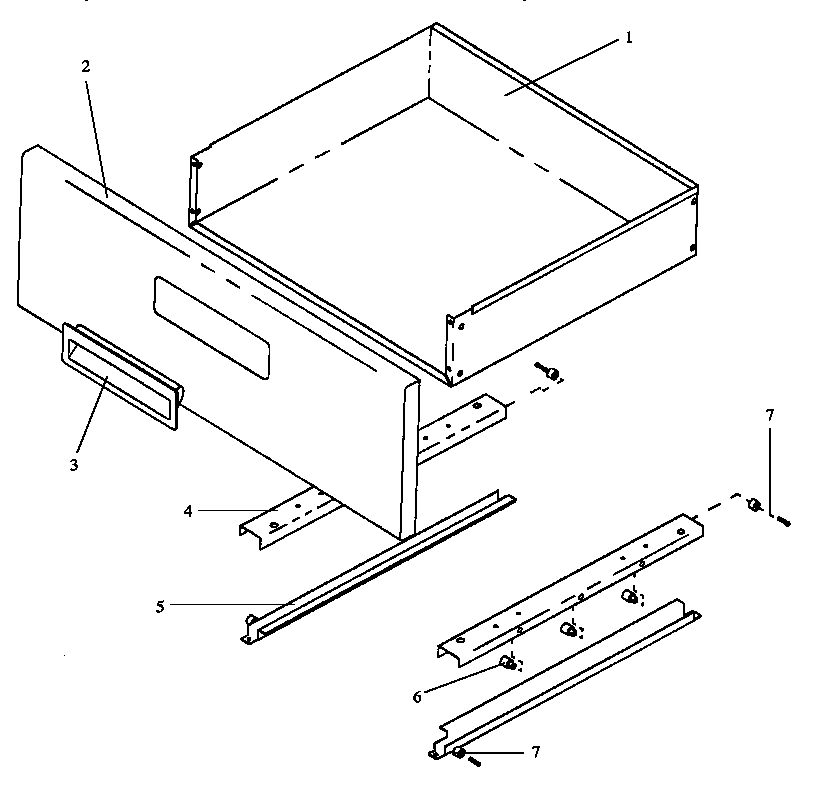

03 - FIXED PANEL & STORAGE DRAWER ASSY
Common parts from model Whirlpool EHN3892WW ELECTRIC RANGE
1
CLOCK (GRAY) WPL Y07707901 Contact Us For Availability
1
SIDE, BODY (ALMOND) WPL 06559000L Contact Us For Availability
1
SIDE, BODY (WHITE) WPL 06559000W Contact Us For Availability
1
MAIN TOP-ELECTRIC UPSWEPT WPL 306899W Contact Us For Availability
1
DOOR, OVEN WPL Y06565300E Contact Us For Availability
1
STORAGE DRAWER WPL Y0310537 Contact Us For Availability
2
LIGHT, INDICATOR (OVEN) WPL Y07606700 Contact Us For Availability
2
PAN, BROILER WPL 87722CG Contact Us For Availability
2
LEG, LEVELING WPL Y0062362 Contact Us For Availability
2
INSULATION,WRAPPER WPL Y0041966 Contact Us For Availability
2
DRAWER, STORAGE (WHITE) WPL 06564700W Contact Us For Availability
2
DRAWER, STORAGE (ALMOND) WPL Y06564700L Contact Us For Availability
3
THERMOSTAT, OVEN WPL Y0311775 Contact Us For Availability
3
SNAP-IN TEE NUT WPL Y0088571 Contact Us For Availability
3
WINDOW, OV.DR.(2)PANE WPL Y0086785 Contact Us For Availability
3
HANDLE (ALMOND) WPL 07707201 Contact Us For Availability
3
HANDLE- DR, INSERT (WHITE) WPL Y07707200 Contact Us For Availability
4
SWITCH, INFINITE WPL 0057312 Contact Us For Availability
4
CLIP, T-STAT BULB WPL Y0088822 Contact Us For Availability
4
RAIL, BASE WPL 06554900 Contact Us For Availability
4
ELEMENT, 6``1250W. 4 TURN WPL Y07683200 Contact Us For Availability
4
BAFFLE, OVEN DOOR WPL 06511800 Contact Us For Availability
4
TRACK, UPPER L.H. (ELEC) WPL 0310518 Contact Us For Availability
4
TRACK, UPPER R.H. (ELEC) WPL 0310519 Contact Us For Availability
5
LIGHT, INDICATOR WPL Y07606704 Contact Us For Availability
5
BROIL ELEMENT WPL Y0088867 Contact Us For Availability
5
KIT, ANTI-TIP WPL 07687600 Contact Us For Availability
5
TRACK, LOWER L.H. WPL 0310522 Contact Us For Availability
5
TRACK, LOWER R.H. WPL Y0310523 Contact Us For Availability
6
COVER, BKGD REAR 11`` WPL Y06559601 Contact Us For Availability
6
RACK, OVEN, 30`` WPL Y0312237 Contact Us For Availability
6
SUPPORT, OVEN BOTTOM INSUL. WPL Y0088820 Contact Us For Availability
6
BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability
6
GLASS, DOOR WPL 07707601 Contact Us For Availability
6
GLIDE, DRAWER (WHT) WPL Y07674900 Contact Us For Availability
7
PANEL, BKGD (WHITE) WPL 07708902 Contact Us For Availability
7
DISC, THERMO WPL 0053357 Contact Us For Availability
7
HINGE, OVEN DOOR WPL 0311802 Contact Us For Availability
7
HINGE ARM, RIGHT HAND WPL 07712804 Contact Us For Availability
7
HINGE ARM, LEFT HAND WPL 07712805 Contact Us For Availability
7
FRAME, DOOR WPL 07708001 Contact Us For Availability
7
SEE NOTE ROLLER AND RIVET - PART OF REF. NO. WPL Y00000000 Contact Us For Availability
8
ENDCAP, BKGD 11`` L.H. WPL Y06567003 Contact Us For Availability
8
SHIELD, INSULATION {J} WPL 0310053 Contact Us For Availability
8
BRACKET, HINGE WPL 06565500 Contact Us For Availability
8
HANDLE, DOOR (GRAY) WPL Y07708101 Contact Us For Availability
9
ENDCAP, BKGD 11`` R.H. WPL Y06567002 Contact Us For Availability
9
FRONT FRAME, ELECTRIC WPL Y0312154 Contact Us For Availability
9
BUMPER ``L`` SHAPED WPL Y0312836 Contact Us For Availability
10
KNOB INFINITE SWITCH WPL Y07708503 Contact Us For Availability
10
TOE PANEL (J) WPL 0052744 Contact Us For Availability
10
SCREW, STUD WPL Y0310036 Contact Us For Availability
10
BRACKET, BUMPER MOUNT {J} WPL Y0311752 Contact Us For Availability
11
KNOB THERMOSTAT WPL Y07708502 Contact Us For Availability
12
SWITCH, LIGHT (LT GREY) WPL Y07634802 Contact Us For Availability
13
TRIM, LOWER WPL Y06559101W Contact Us For Availability
13
SEAL, OVEN DOOR WPL Y0311770 Contact Us For Availability
14
TOP, OVEN LINER WPL Y06470002E Contact Us For Availability
15
LINER,OVEN SIDE WPL 0311807 Contact Us For Availability
16
LINER, OVEN BOTTOM WPL 88898CG Contact Us For Availability
17
CLIP, CAPILLARY WPL 0310802 Contact Us For Availability
18
CAGE, OVEN LIGHT WPL Y0088635 Contact Us For Availability
19
BULB, LIGHT WPL Y0042175 Contact Us For Availability
20
SOCKET, OVEN LIGHT WPL Y0088674 Contact Us For Availability
21
LINER, OVEN BACK WPL 88893CG Contact Us For Availability
22
BACK, MAIN ELECTRIC 30`` WPL Y06478202 Contact Us For Availability
23
EXTENSION, MAIN BACK WPL 0311757 Contact Us For Availability
24
BUMPER, OVEN DOOR WPL Y0063661 Contact Us For Availability
25
BOX, BURNER ELEC WPL 06559700 Contact Us For Availability
26
SUPPORT ROD WPL 07712200 Contact Us For Availability
27
SUPPORT ROD WPL 07712100 Contact Us For Availability
28
SHOULDER SCREW WPL 0088779 Contact Us For Availability
29
EXTENSION, BURNER BOX WPL Y0312152 Contact Us For Availability
33
TUBE, VENT WPL Y0311771 Contact Us For Availability
34
COVER, REAR B.B. (30``) WPL Y06492418 Contact Us For Availability
35
SUPT. MAIN BACK (VERT) WPL Y06565600 Contact Us For Availability
36
SUPPORT, REAR, VERTICAL {J} WPL 0056477 Contact Us For Availability
37
COVER WIRE WPL Y0088833 Contact Us For Availability
39
SUPPORT, BOTTOM WIRE WPL 0312153 Contact Us For Availability
NI
SCREW WPL 0055047 Contact Us For Availability
NI
SCREW, INFINITE, SWITCH MTG. WPL 0311874 Contact Us For Availability
NI
SCREW, No.10 X 3/8`` WPL Y07712300 Contact Us For Availability
NI
SCREW, No.10 X3/8`` (BLACK) WPL Y07712301 Contact Us For Availability
NI
SCR- WPL 0310820 Contact Us For Availability
NI
SCREW (J) WPL 0310233 Contact Us For Availability
NI
SCREW {J} WPL Y0056088 Contact Us For Availability
NI
SUPPORT GLASS WPL Y0310407 Contact Us For Availability
NI
CLIP, SPEED (DOZ) {J} WPL 0310033 Contact Us For Availability
NI
CLIP, ELEMENT RETAINER WPL Y0307930 Contact Us For Availability
NI
SCREW No.10X1/2 BLUNT WPL Y0310363 Contact Us For Availability
NI
BUMPER-RUBBER 1/4`` WPL Y0088788 Contact Us For Availability
NI
SCREW CAD PLATE No.6 X 3/8`` WPL Y0310409 Contact Us For Availability
NI
SCREW No.10 X 1/2`` WPL Y07691400 Contact Us For Availability
NI
GLIDE, DRAWER (WHT) WPL Y0311078 Contact Us For Availability
× ![]()
