Model Whirlpool EHN3802L ELECTRIC RANGE – Common Parts & Diagrams

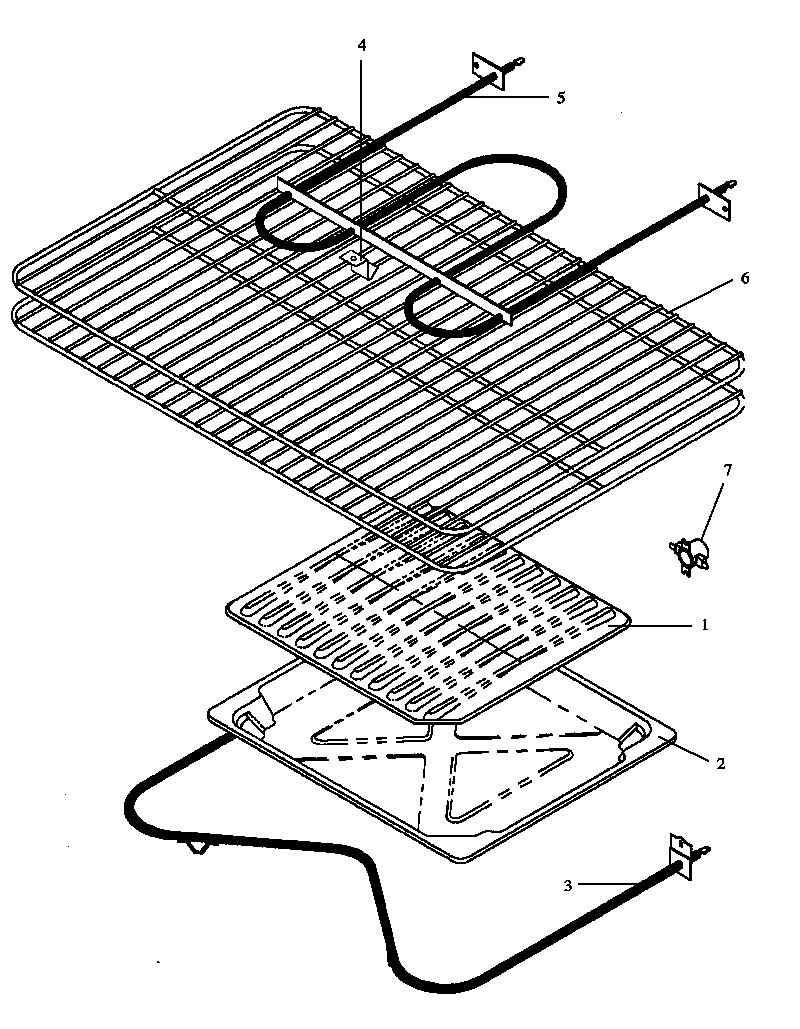

04 - OVEN COMPONENTS

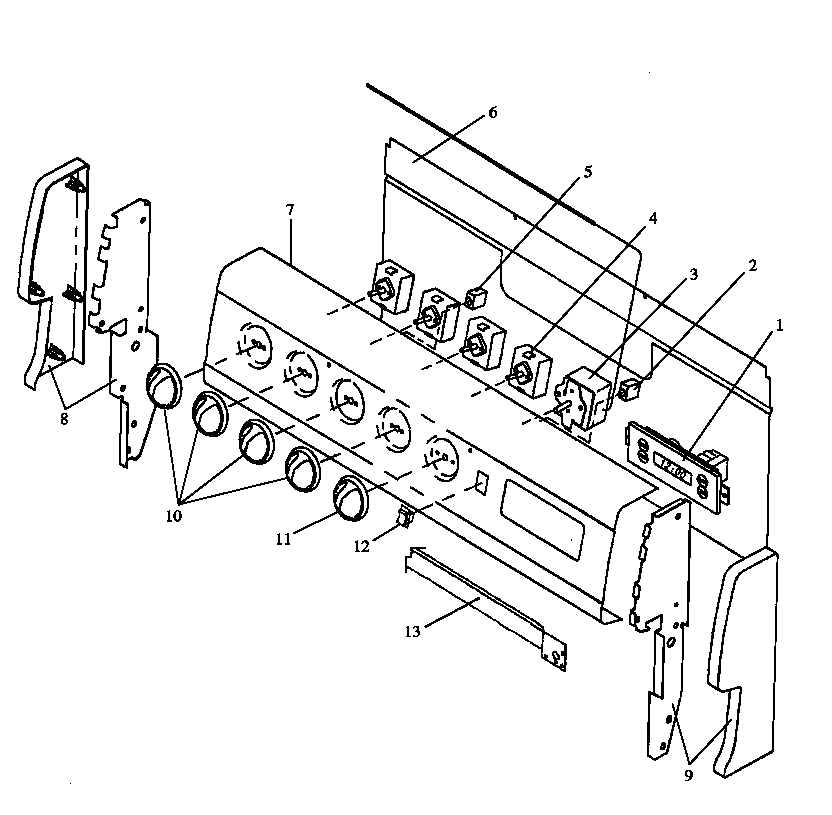

01 - BACKGUARD, EHN380/389

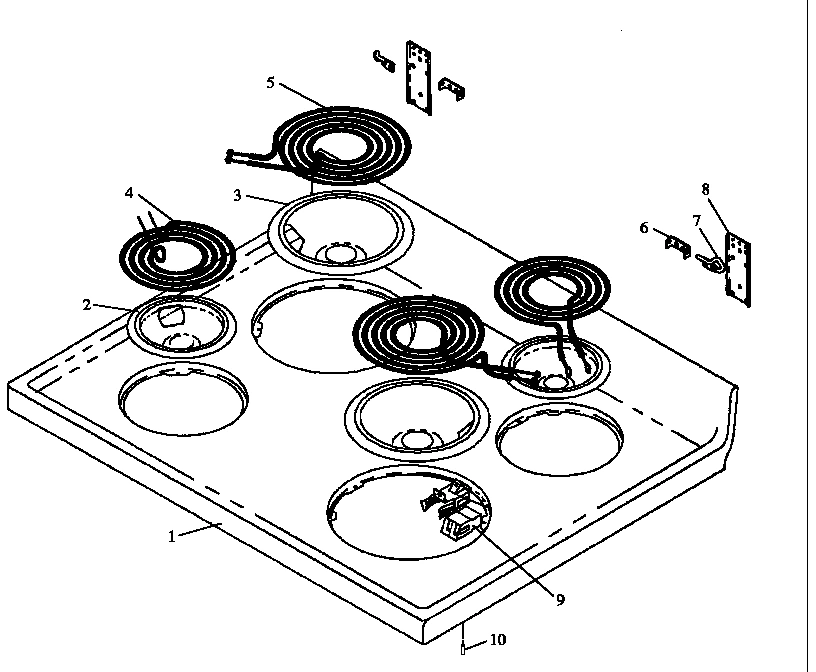

03 - MAIN TOP

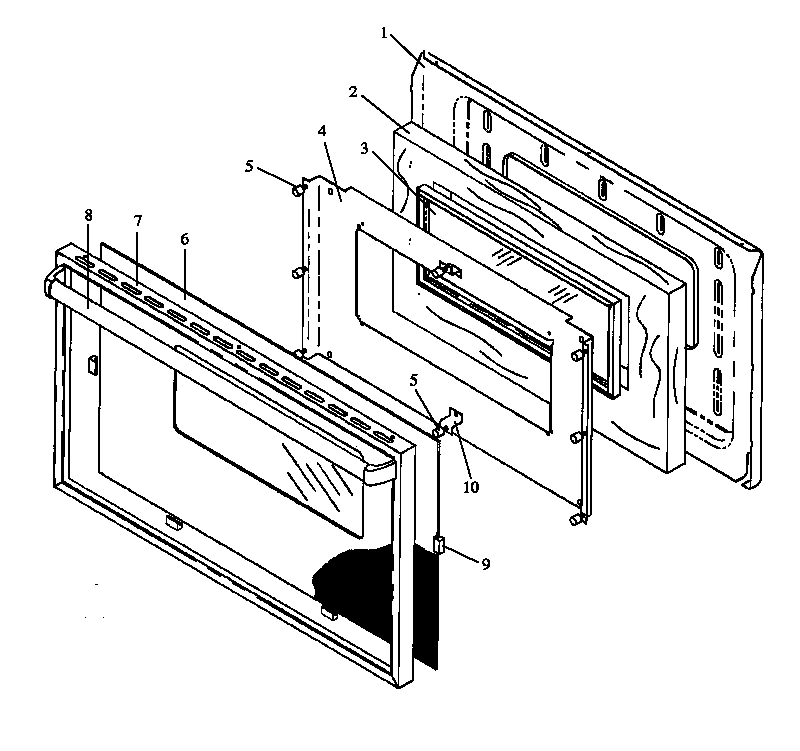

05 - OVEN DOOR, GLASS, EHN380/389

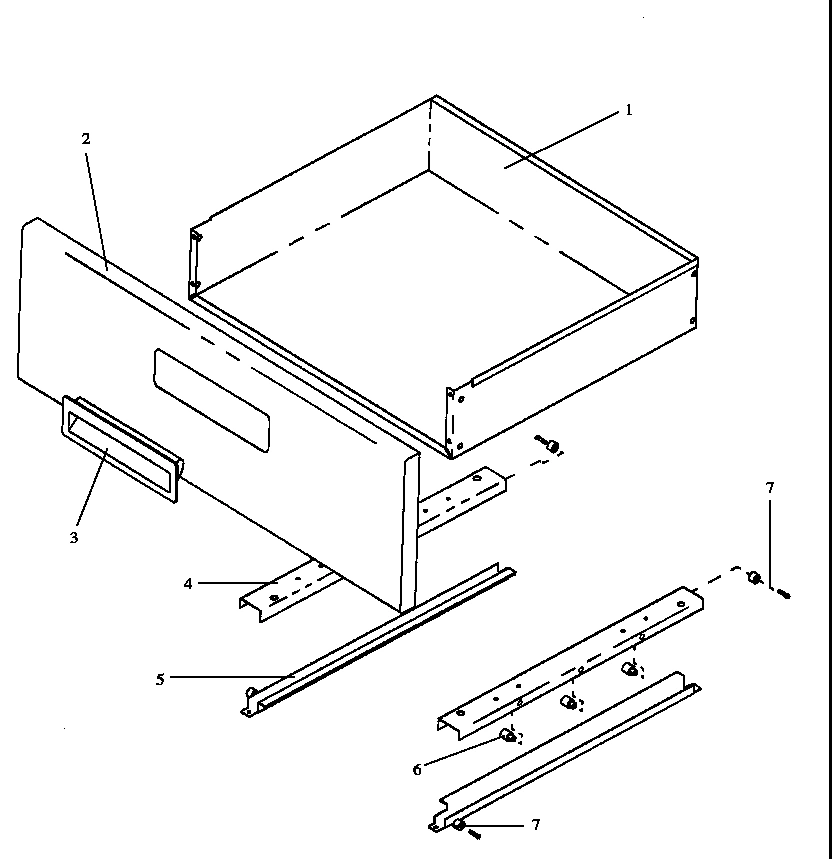

06 - STORAGE DRAWER

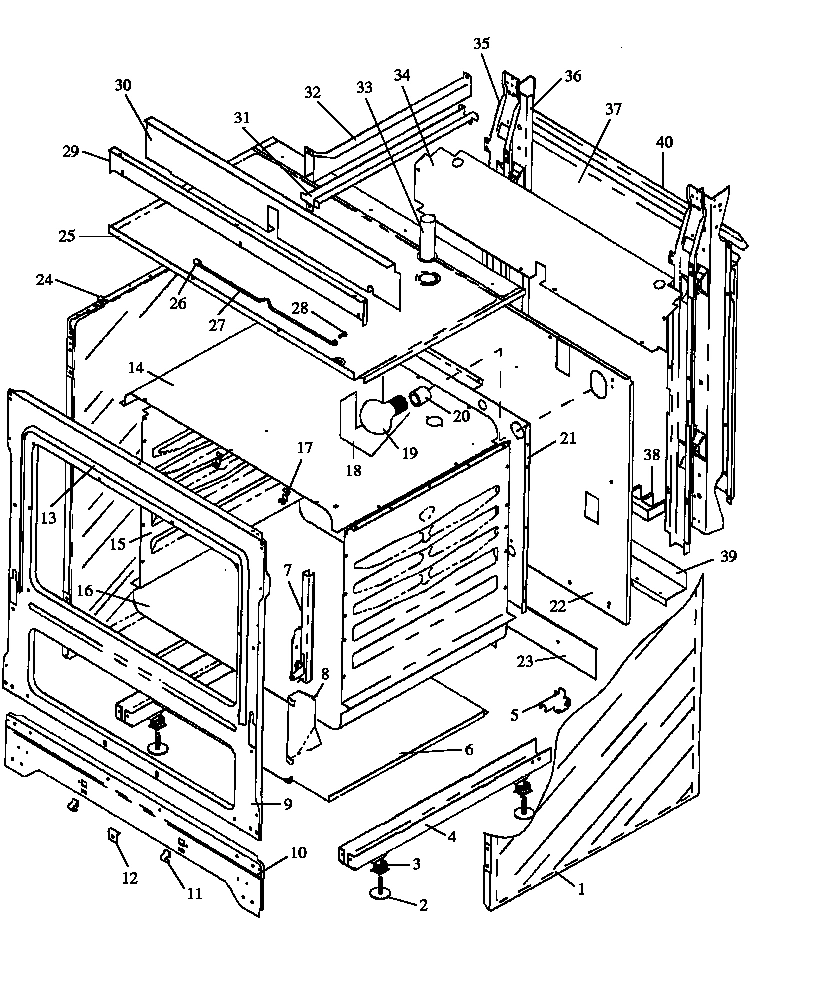

02 - CABINET
Common parts from model Whirlpool EHN3802L ELECTRIC RANGE
1
TOP, MAIN 3+1 WPL 308117L Contact Us For Availability
1
DOOR, OVEN WPL Y06565200E Contact Us For Availability
1
STORAGE DRAWER WPL Y0310537 Contact Us For Availability
1
SIDE, BODY (ALMOND) WPL 06559000L Contact Us For Availability
2
PAN, BROILER WPL Y087722CG Contact Us For Availability
2
LIGHT-IND, OV, ELEC WPL 31638409 Contact Us For Availability
2
INSULATION,WRAPPER WPL Y0095197 Contact Us For Availability
2
PNL, STROAGE DWR, 30`` WPL Y06561500L Contact Us For Availability
3
THERMOSTAT, OVEN WPL Y07648601 Contact Us For Availability
3
HANDLE (ALMOND) WPL 07707201 Contact Us For Availability
3
SNAP-IN TEE NUT WPL Y0088571 Contact Us For Availability
4
CLIP, T-STAT BULB WPL Y0088822 Contact Us For Availability
4
BAFFLE, OVEN DOOR WPL 06511801 Contact Us For Availability
4
TRACK, UPPER L.H. (ELEC) WPL 0310518 Contact Us For Availability
4
TRACK, UPPER R.H. (ELEC) WPL 0310519 Contact Us For Availability
4
RAIL, BASE WPL 06555001 Contact Us For Availability
5
BROIL ELEMENT WPL Y0088867 Contact Us For Availability
5
LIGHT, INDICATOR WPL Y07606704 Contact Us For Availability
5
BUMPER-RUBBER 1/4`` WPL Y02068200 Contact Us For Availability
5
TRACK, LOWER L.H. WPL 0310522 Contact Us For Availability
5
TRACK, LOWER R.H. WPL Y0310523 Contact Us For Availability
5
KIT, ANTI-TIP WPL 07687600 Contact Us For Availability
6
RACK, OVEN, 30`` WPL Y0312237 Contact Us For Availability
6
COVER, BKGD REAR 11`` WPL Y06559601 Contact Us For Availability
6
BUSHING, HINGE WIRE WPL Y07730700 Contact Us For Availability
6
GLASS, DOOR (BLACK) WPL 07707700 Contact Us For Availability
6
GLIDE, DRAWER (WHT) WPL Y07674900 Contact Us For Availability
6
SUPPORT, OVEN BOTTOM INSUL. WPL Y0088820 Contact Us For Availability
7
DISC, THERMO WPL 0053357 Contact Us For Availability
7
PANEL, BACKGUARD WPL 07708901 Contact Us For Availability
7
WIRE, HINGE (RIGHT) WPL 07730600 Contact Us For Availability
7
WIRE, HINGE (LEFT) WPL 07730601 Contact Us For Availability
7
FRAME, DOOR (BLACK) WPL 07708000 Contact Us For Availability
7
HINGE, OVEN DOOR WPL 0311802 Contact Us For Availability
8
ENDCAP, BKGD 11`` L.H. WPL Y06567001 Contact Us For Availability
8
BRACKET, HINGE WPL 06565500 Contact Us For Availability
8
HANDLE, DOOR (BLACK) WPL Y07708100 Contact Us For Availability
8
SHIELD, INSULATION {J} WPL 0310053 Contact Us For Availability
9
END CAP, BKGD 11`` R.H. WPL Y06567000 Contact Us For Availability
9
SCREW No.10X1/2 BLUNT WPL Y0310363 Contact Us For Availability
9
BUMPER ``L`` SHAPED WPL Y0312836 Contact Us For Availability
9
MN FRNT-ELEC, `2`,ENAM WPL Y06491600E Contact Us For Availability
10
KNOB, INFINITE SWITCH WPL Y07708501 Contact Us For Availability
10
SCREW, STUD WPL Y0310036 Contact Us For Availability
10
BRACKET, BUMPER MOUNT {J} WPL Y0311752 Contact Us For Availability
10
PANEL, TOE 30`` (BLACK) WPL Y06451602 Contact Us For Availability
11
KNOB THERMOSTAT WPL Y07708500 Contact Us For Availability
13
TIM, LOWER BKGD (BLACK) WPL Y06559120B Contact Us For Availability
13
SEAL, OVEN DOOR WPL Y0311770 Contact Us For Availability
14
TOP, OVEN LINER WPL Y06470002E Contact Us For Availability
15
LINER,OVEN SIDE WPL 0311807 Contact Us For Availability
16
LINER, OVEN BOTTOM WPL 88898CG Contact Us For Availability
17
CLIP, CAPILLARY WPL 0310802 Contact Us For Availability
21
LINER, OVEN BACK WPL 88893CG Contact Us For Availability
22
BACK, MAIN ELECTRIC 30`` WPL Y06478202 Contact Us For Availability
23
EXTENSION, MAIN BACK WPL 0311757 Contact Us For Availability
24
BUMPER, OVEN DOOR WPL Y0063661 Contact Us For Availability
25
BOX, BURNER ELEC WPL 06559700 Contact Us For Availability
26
SUPPORT ROD WPL 07712200 Contact Us For Availability
27
SUPPORT ROD WPL 07712100 Contact Us For Availability
28
SHOULDER SCREW WPL 0088779 Contact Us For Availability
29
EXTEN-B.B., FRT, ELEC WPL Y06491402 Contact Us For Availability
33
TUBE, VENT WPL Y0311771 Contact Us For Availability
34
COVER, WIRE WPL Y06434908 Contact Us For Availability
35
SUPT. MAIN BACK (VERT) WPL Y06565600 Contact Us For Availability
36
SUPPORT, REAR, VERTICAL {J} WPL 0056477 Contact Us For Availability
37
COVER WIRE WPL Y0088833 Contact Us For Availability
39
SUPPORT, BOTTOM WIRE WPL 0312153 Contact Us For Availability
NI
SCREW-No.10X9/16 DECR,BL WPL Y01001303 Contact Us For Availability
NI
SCREW No.10-16X1`` PAN HD WPL Y07697600 Contact Us For Availability
NI
SCREW WPL 0055047 Contact Us For Availability
NI
NUT,ZIP TWIST WPL Y07660700 Contact Us For Availability
NI
SCREW, No.10 X3/8`` (BLACK) WPL Y07712301 Contact Us For Availability
NI
SCREW WPL 0087709 Contact Us For Availability
NI
CLIP, ELEMENT RETAINER WPL Y0307930 Contact Us For Availability
NI
SCREW, No.6-32 X .250 PAN HD PH WPL Y04178501 Contact Us For Availability
NI
BUMPER-RUBBER 1/4`` WPL Y02068100 Contact Us For Availability
NI
SCREW No.10 WPL 07596600 Contact Us For Availability
NI
SCREW CAD PLATE No.6 X 3/8`` WPL Y0310409 Contact Us For Availability
NI
SCREW, No.10-12 X 50 WPL Y0311900 Contact Us For Availability
NI
CLIP, SPEED (DOZ) {J} WPL 0310033 Contact Us For Availability
NI
INSULATION BACK (J) WPL 0310038 Contact Us For Availability
NI
SUPPORT, SIDE LINER {J} WPL 0310054 Contact Us For Availability
NI
BLOCK, TERMINAL WPL 0312161 Contact Us For Availability
NI
SCREW {J} WPL Y0056088 Contact Us For Availability
NI
SCREW, 10 X 1-1/2 WPL Y01000300 Contact Us For Availability
NI
SCREW-6X 3/8 TRS HD WPL Y01021001 Contact Us For Availability
NI
INSULATION,WRAPPER WPL Y0310039 Contact Us For Availability
NI
SUPPORT GLASS WPL Y0310407 Contact Us For Availability
NI
SCREW No.10 X 1/2`` WPL Y0310804 Contact Us For Availability
× ![]()
