Model Whirlpool EHN3402W ELECTRIC RANGE – Common Parts & Diagrams

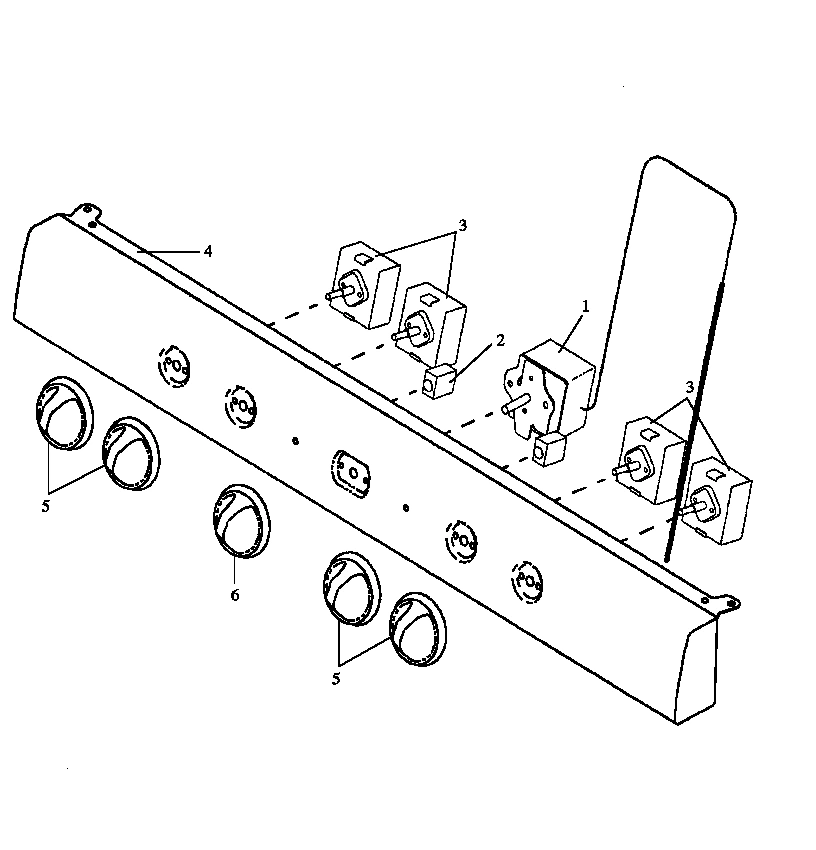

03 - FRONT CONTROL PANEL, EHN330/340

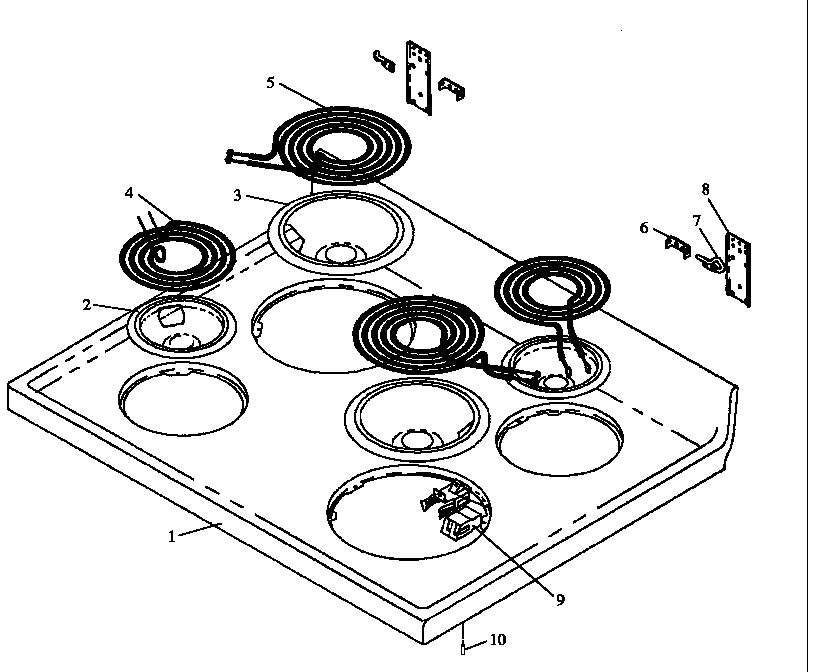

04 - MAIN TOP

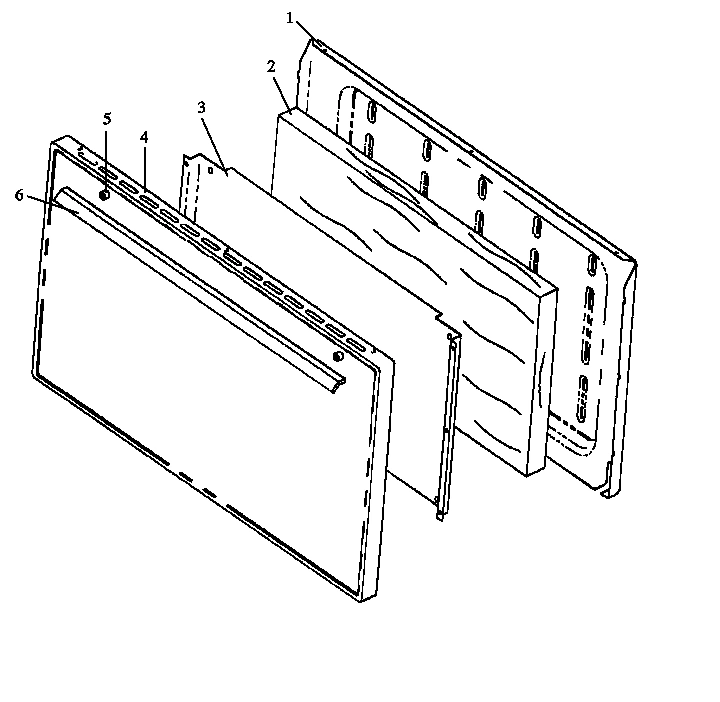

06 - OVEN DOOR, SOLID PANEL EHN330/340
01 - BACKGUARD, EHN330/340
02 - CABINET

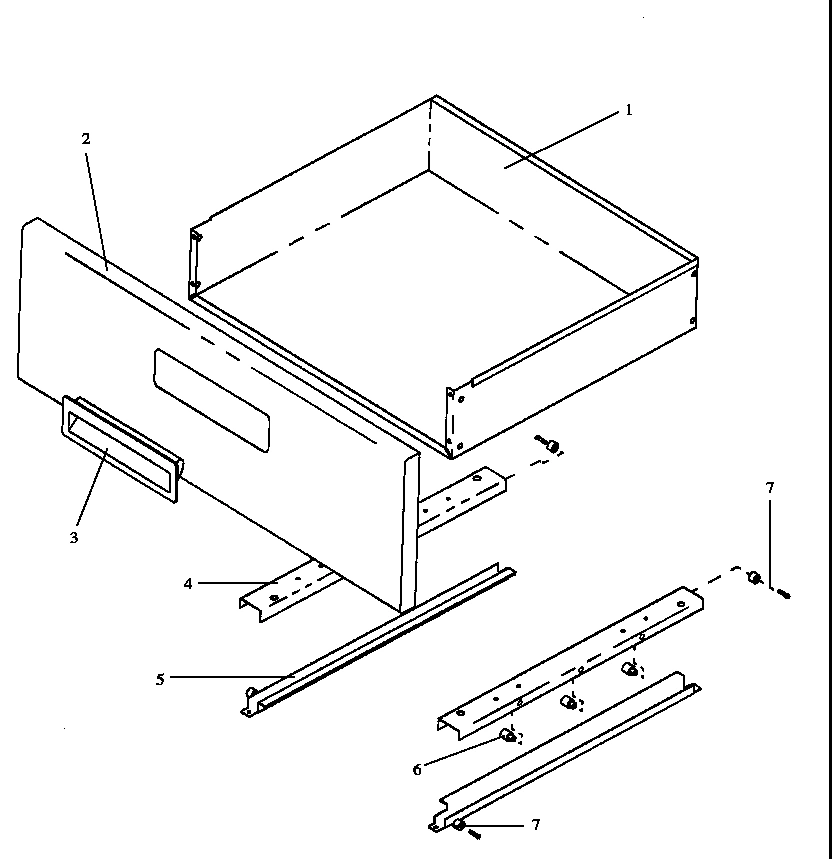

07 - STORAGE DRAWER

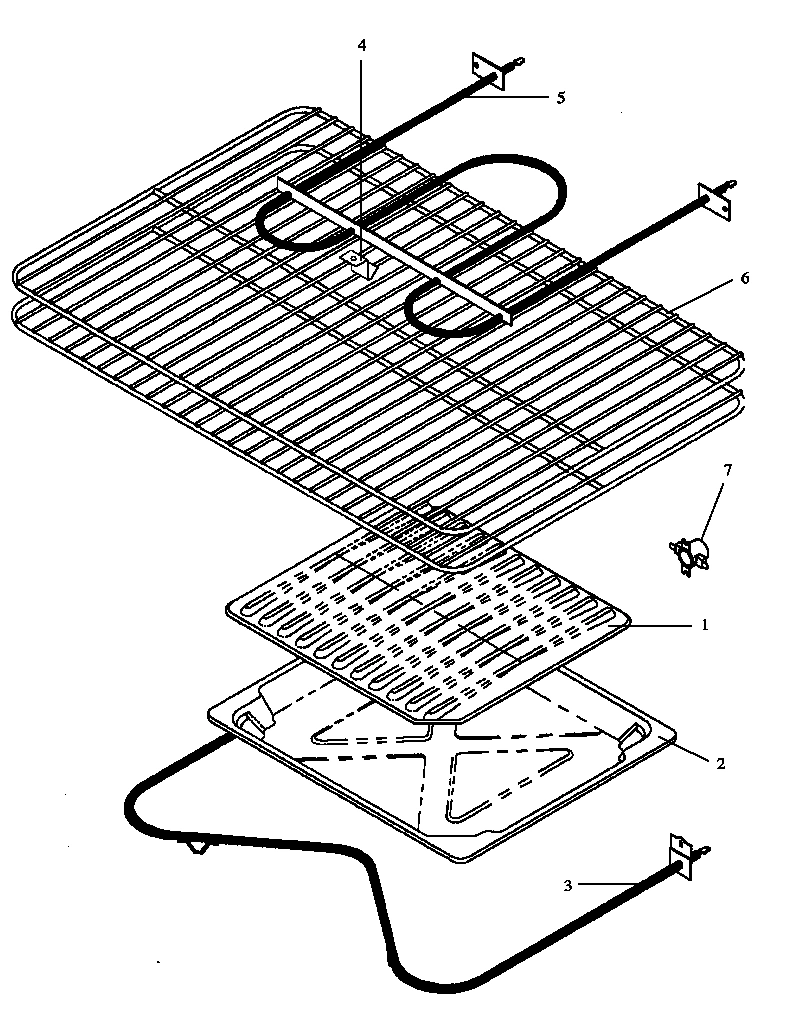

05 - OVEN COMPONENTS
Common parts from model Whirlpool EHN3402W ELECTRIC RANGE
1
THERMO-ELECT. WPL 0088758 Contact Us For Availability
1
MAINTOP (WHITE) WPL 06558300W Contact Us For Availability
1
LINER, OVEN DOOR WPL Y06565000E Contact Us For Availability
1
PNL, FILLER 4X30 WPL 06565712B Contact Us For Availability
1
SIDE, BODY (WHITE) WPL 06559000W Contact Us For Availability
2
LIGHT, INDICATOR (OVEN) WPL Y07606700 Contact Us For Availability
2
LIGHT, INDICATOR WPL Y07606704 Contact Us For Availability
2
INSULATION,WRAPPER WPL Y0095197 Contact Us For Availability
2
END CAP, BKGD 4`` R.H. WPL Y07712604 Contact Us For Availability
2
PANEL, FIXED (WHITE) WPL Y06539000W Contact Us For Availability
2
PAN, BROILER WPL Y087722CG Contact Us For Availability
3
BAFFLE, OVEN DOOR WPL 06511801 Contact Us For Availability
3
END CAP, BKGD 4`` L.H. WPL Y07712605 Contact Us For Availability
3
SNAP-IN TEE NUT WPL Y0088571 Contact Us For Availability
4
PANEL, MANIFOLD WPL 07710300 Contact Us For Availability
4
PANEL, DOOR (WHITE) WPL 06561300W Contact Us For Availability
4
RAIL, BASE WPL 06555001 Contact Us For Availability
4
CLIP, T-STAT BULB WPL Y0088822 Contact Us For Availability
5
KNOB, INFINITE SWITCH WPL 07708601 Contact Us For Availability
5
HANDLE SPACER, PLASTIC (J) WPL Y0310818 Contact Us For Availability
5
KIT, ANTI-TIP WPL 07687600 Contact Us For Availability
5
BROIL ELEMENT WPL Y0088867 Contact Us For Availability
6
KNOB, THERMOSTAT WPL Y07708600 Contact Us For Availability
6
BUSHING, HINGE WIRE WPL Y07730700 Contact Us For Availability
6
HANDLE, OVEN DOOR (J) WPL Y0052776 Contact Us For Availability
6
SUPPORT, OVEN BOTTOM INSUL. WPL Y0088820 Contact Us For Availability
6
RACK, OVEN, 30`` WPL Y0312237 Contact Us For Availability
7
WIRE, HINGE (RIGHT) WPL 07730600 Contact Us For Availability
7
WIRE, HINGE (LEFT) WPL 07730601 Contact Us For Availability
7
HINGE, OVEN DOOR WPL Y0086789 Contact Us For Availability
7
DISC, THERMO WPL 0053357 Contact Us For Availability
8
SHIELD, INSULATION {J} WPL 0310053 Contact Us For Availability
9
SCREW No.10X1/2 BLUNT WPL Y0310363 Contact Us For Availability
9
FRAME, FRONT (ENAMEL) WPL 06567101E Contact Us For Availability
10
SCREW, STUD WPL Y0310036 Contact Us For Availability
10
PANEL, TOE 30`` (BLACK) WPL Y06451602 Contact Us For Availability
11
SPRING CLIP WPL Y0088664 Contact Us For Availability
12
CLIP, BRACKET WPL Y06538700 Contact Us For Availability
13
SEAL, OVEN DOOR WPL Y0311770 Contact Us For Availability
14
TOP, OVEN LINER WPL Y06470002E Contact Us For Availability
15
LINER,OVEN SIDE WPL 0311807 Contact Us For Availability
16
LINER, OVEN BOTTOM WPL 88898CG Contact Us For Availability
17
CLIP, CAPILLARY WPL 0310802 Contact Us For Availability
21
LINER, OVEN BACK WPL 88893CG Contact Us For Availability
22
BACK, MAIN ELECTRIC 30`` WPL Y06478202 Contact Us For Availability
24
BUMPER, OVEN DOOR WPL Y0063661 Contact Us For Availability
25
BOX, BURNER ELEC WPL 06559700 Contact Us For Availability
29
EXTENSION, BURNER BOX WPL Y06559901 Contact Us For Availability
30
COVER, SWITCH WPL Y06560200 Contact Us For Availability
31
SUPPORT WIRE WPL Y06565900 Contact Us For Availability
32
CHANNEL WIRE WPL Y06566000 Contact Us For Availability
33
TUBE, OVEN VENT WPL Y0056015 Contact Us For Availability
34
COVER, WIRE WPL Y06434908 Contact Us For Availability
35
SUPT. MAIN BACK (VERT) WPL Y06565600 Contact Us For Availability
36
SUPPORT, REAR, VERTICAL {J} WPL 0056477 Contact Us For Availability
37
COVER WIRE WPL Y0088833 Contact Us For Availability
39
SUPPORT, BOTTOM WIRE WPL 0312153 Contact Us For Availability
40
EXTENSION, REAR COVER WPL 06568600 Contact Us For Availability
NI
SCREW WPL 0055047 Contact Us For Availability
NI
COUNTERWEIGHT WPL Y06567900 Contact Us For Availability
NI
SCREW WPL 0087709 Contact Us For Availability
NI
CLIP, ELEMENT RETAINER WPL Y0307930 Contact Us For Availability
NI
SCREW, No.6-32 X .250 PAN HD PH WPL Y04178501 Contact Us For Availability
NI
SCREW No.10 WPL 07596600 Contact Us For Availability
NI
SCREW No.10 X 1/2`` WPL Y0310804 Contact Us For Availability
NI
SCREW, DOOR HANDLE WPL Y0311884 Contact Us For Availability
NI
SCREW, No.10 X3/8`` (BLACK) WPL Y07712301 Contact Us For Availability
NI
CLIP, SPEED (DOZ) {J} WPL 0310033 Contact Us For Availability
NI
INSULATION BACK (J) WPL 0310038 Contact Us For Availability
NI
SUPPORT, SIDE LINER {J} WPL 0310054 Contact Us For Availability
NI
BLOCK, TERMINAL WPL 0312161 Contact Us For Availability
NI
SCREW {J} WPL Y0056088 Contact Us For Availability
NI
SCREW, 10 X 1-1/2 WPL Y01000300 Contact Us For Availability
NI
SCREW-No.10X9/16 DECR,BL WPL Y01001303 Contact Us For Availability
NI
SCREW-6X 3/8 TRS HD WPL Y01021001 Contact Us For Availability
NI
INSULATION,WRAPPER WPL Y0310039 Contact Us For Availability
NI
SUPPORT GLASS WPL Y0310407 Contact Us For Availability
NI
SCREW, No.10-12 X 50 WPL Y0311900 Contact Us For Availability
NI
SCREW No.10-16X1`` PAN HD WPL Y07697600 Contact Us For Availability
× ![]()
