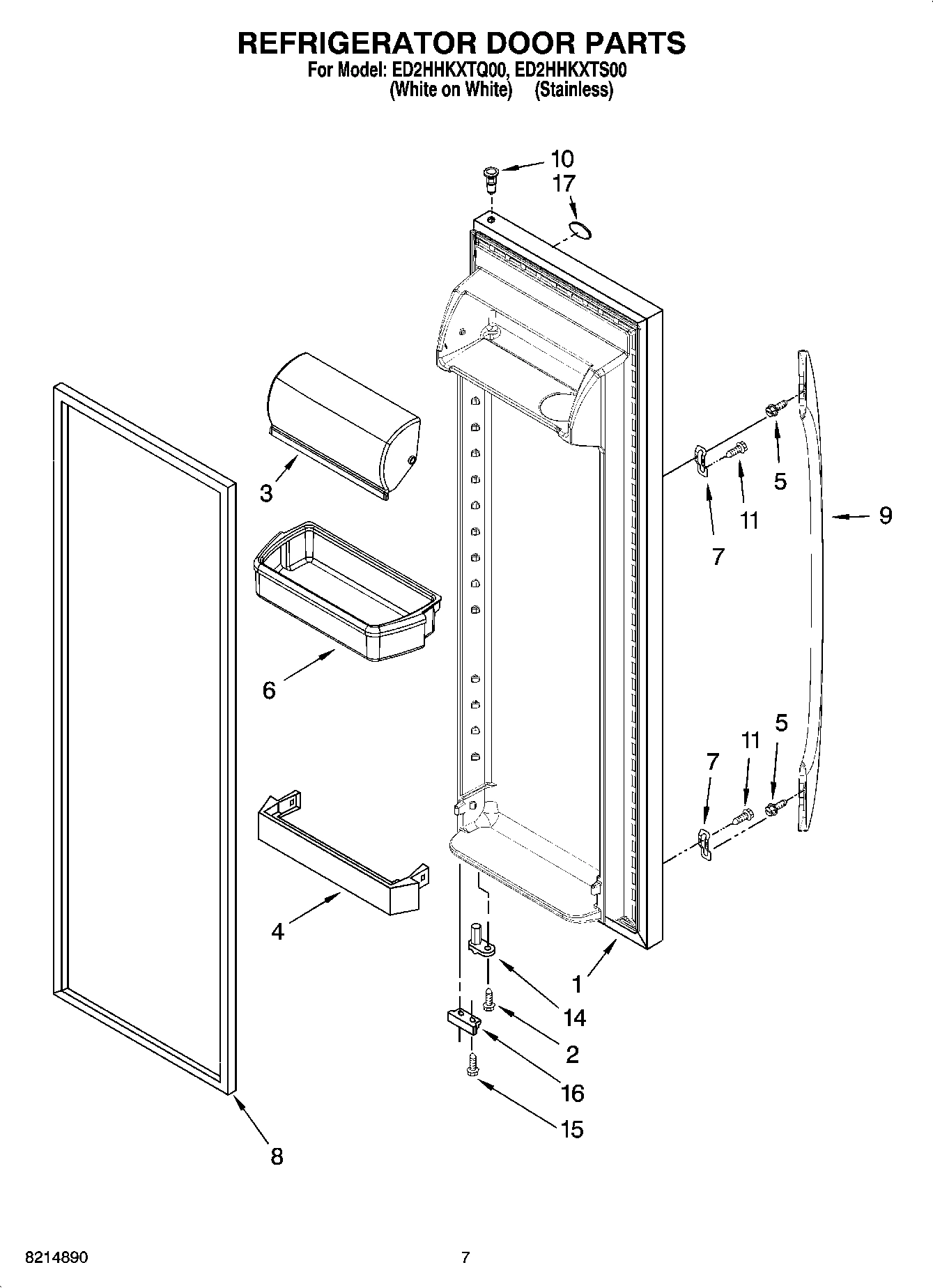

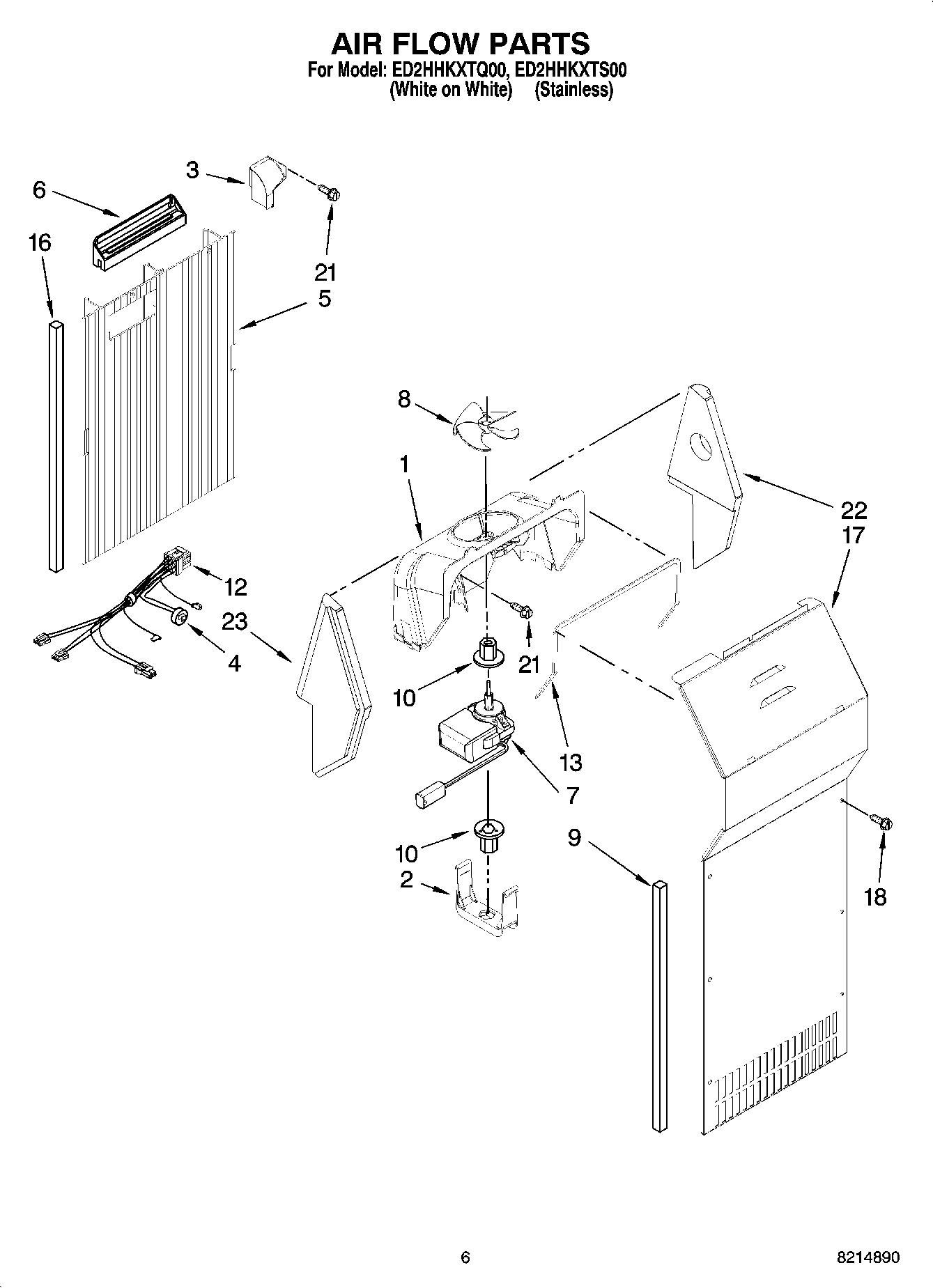

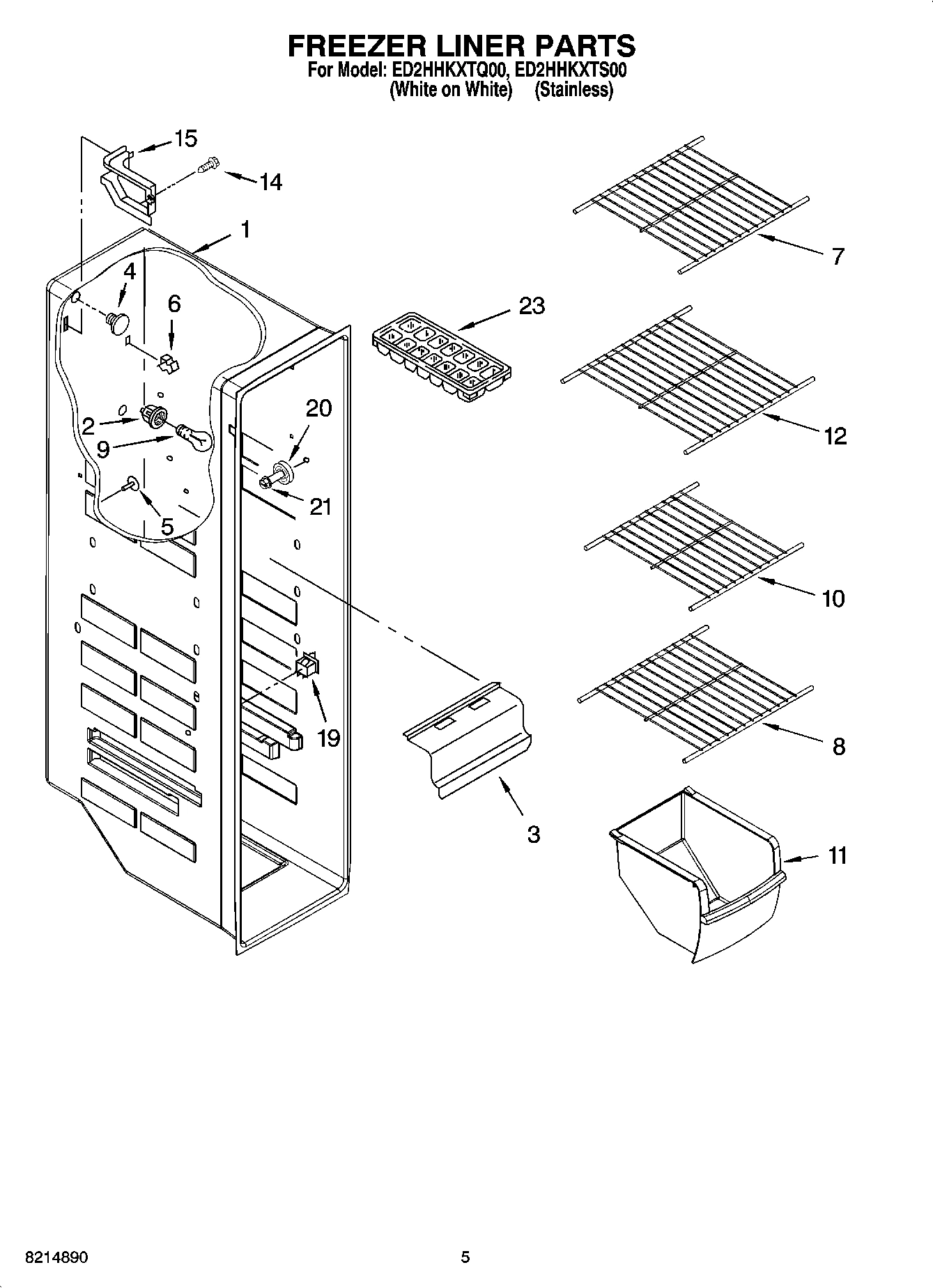

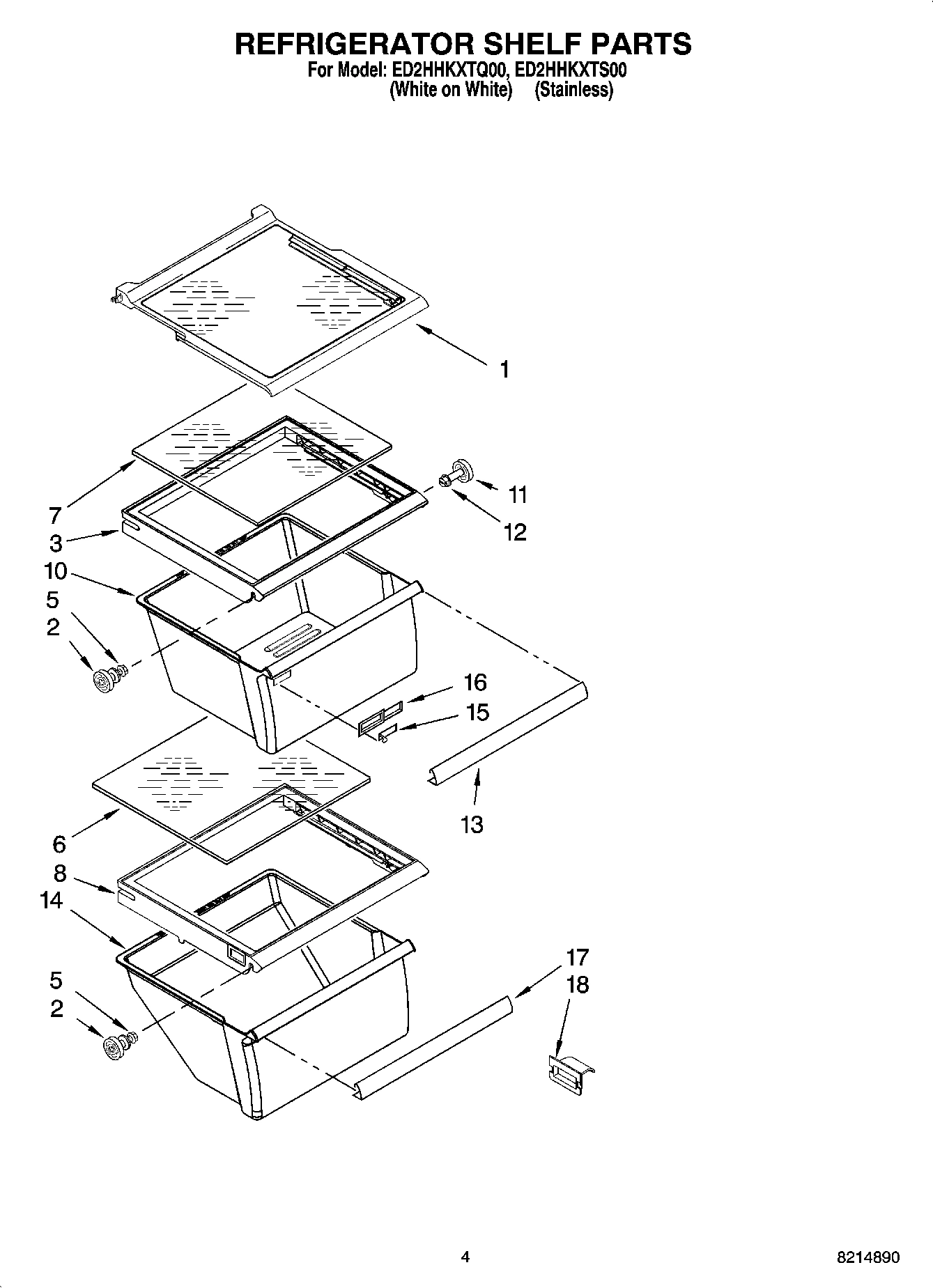

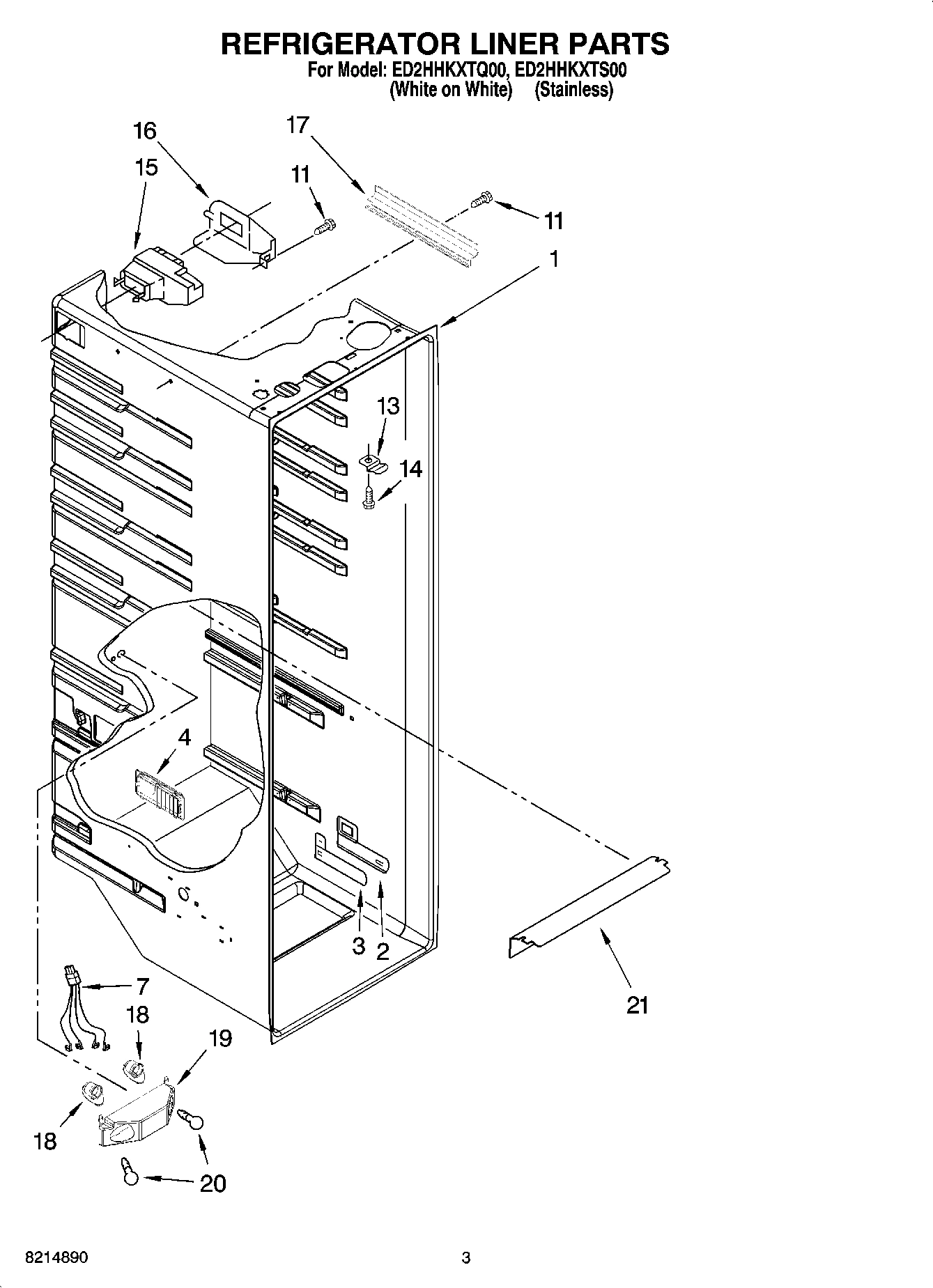

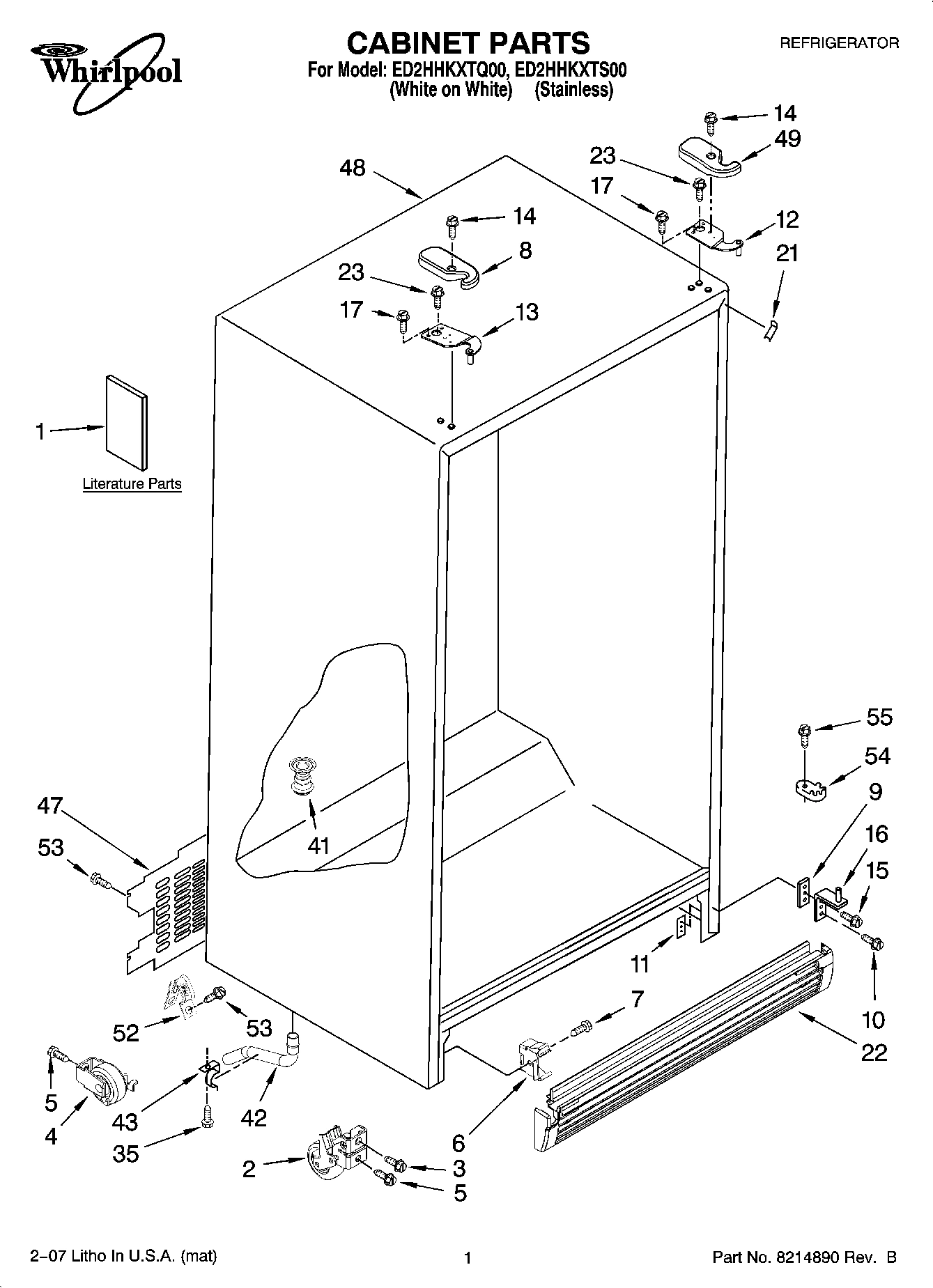

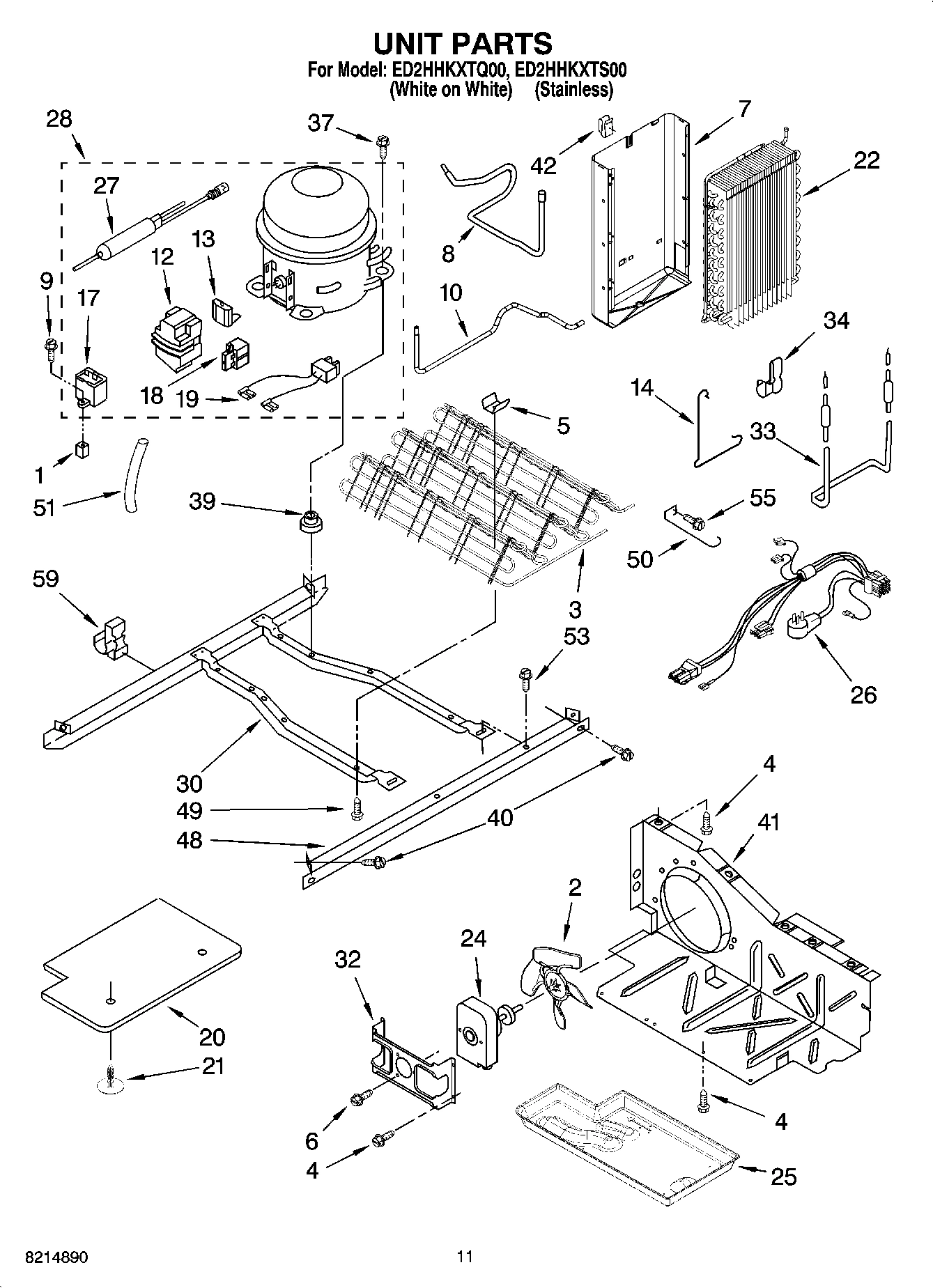

Model Whirlpool ED2HHKXTQ00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $92.31

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CLEANER, (STAINLESS STEEL) WPL 2217192 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Important: The spray paint is not to be used WPL ARI30840A7 Contact Us For Availability

Miscellaneous WPL ARI30841A6 Contact Us For Availability

ACCESSORIES WPL ARI30842A1 Contact Us For Availability

TORX SCREW WRENCH WPL ARI30843A4 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

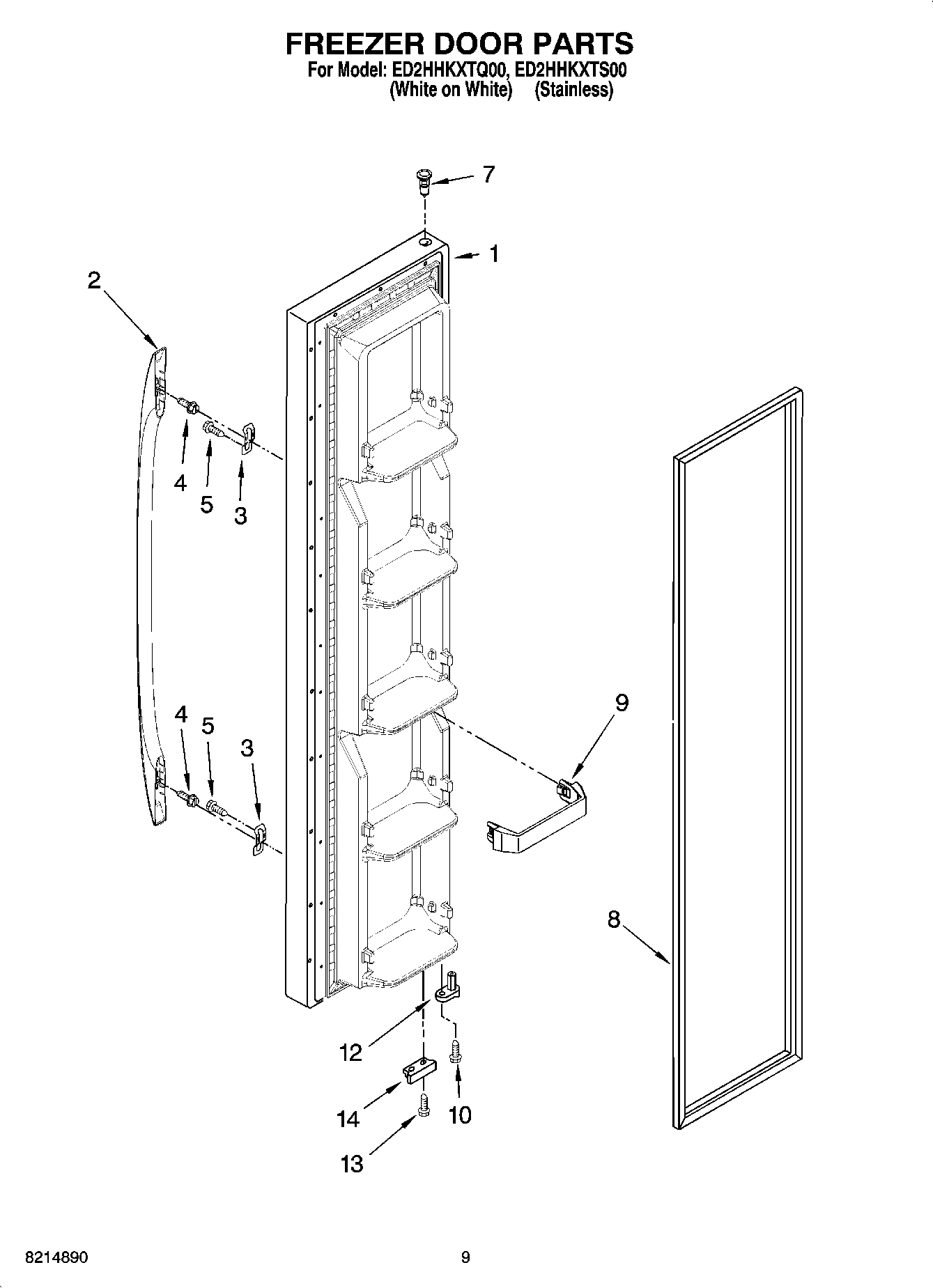

Freezer Door (Includes Item 8) (Stainless) WPL 2311661S Contact Us For Availability

1

Freezer Door (Includes Item 8) (White) WPL 2311661W Contact Us For Availability

1

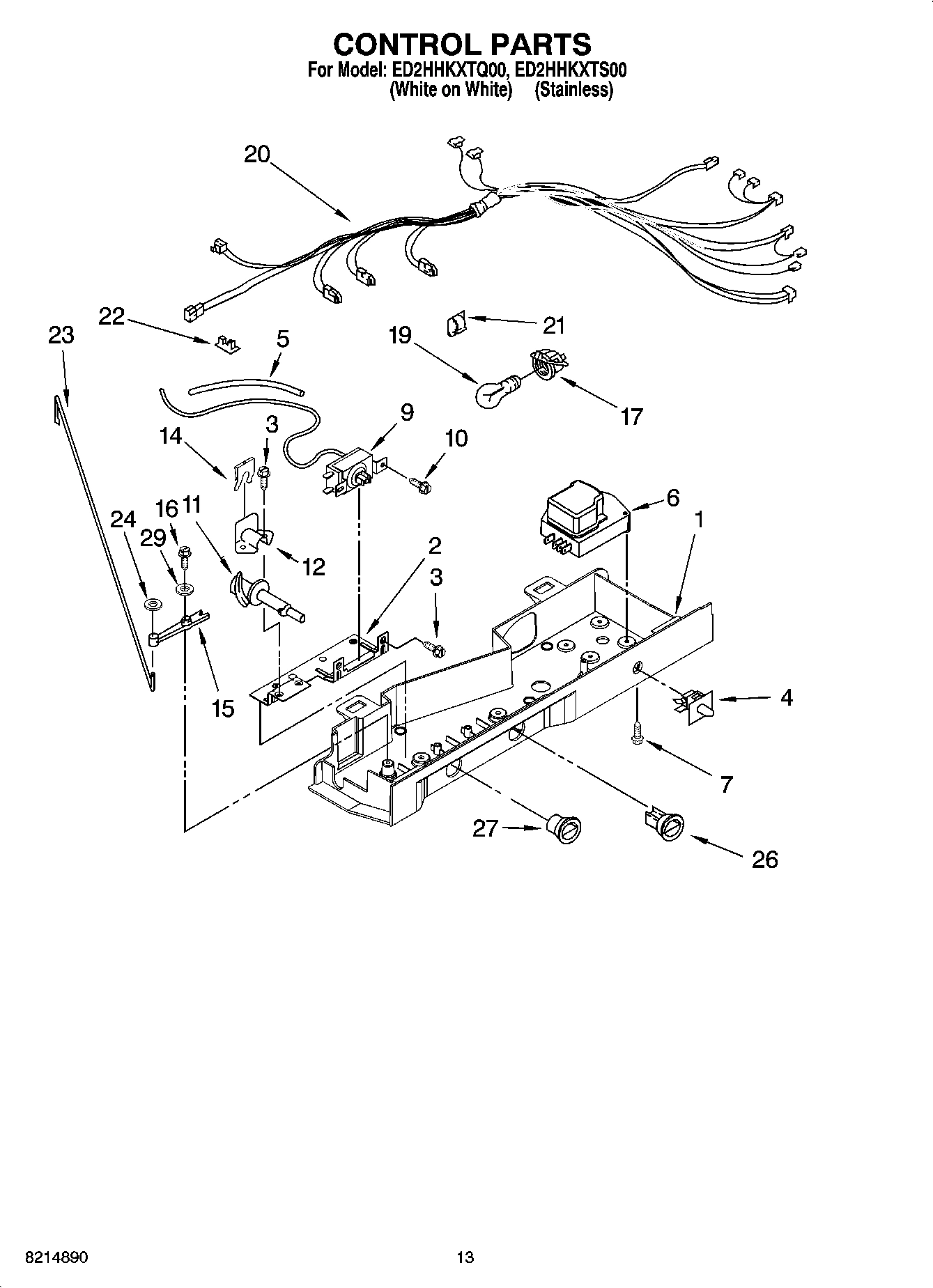

Control Box WPL 2311619 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

2311611 Whirlpool Refrigerator Bracket Backorder WPL 2311611 $8.73

2

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

Handle (Includes 4) (White) WPL 2313345W Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

3

Air Scoop WPL 2161231 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

SCREW WPL 8533920 Contact Us For Availability

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

5

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

5

Air Duct Freezer WPL 2203592 Contact Us For Availability

6

W10822278 Whirlpool Defrost Timer In Stock WPL W10822278 $17.41

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2187172 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2187172 $24.03

6

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $50.91

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

7

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

8

2159072 Whirlpool Refrigerator FIP Gasket Backorder WPL 2159072 $87.71

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $139.96

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

8

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $26.21

9

WP2309717 Whirlpool Refrigerator Door Trim Backorder WPL WP2309717 $34.72

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $125.38

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

WP2309758 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2309758 $56.13

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $57.59

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

2311612 Whirlpool Refrigerator Clip Backorder WPL 2311612 $28.79

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $52.08

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

14

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

14

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

15

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

15

Pivot Arm WPL 1110559 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

4388357 Whirlpool Refrigerator Evaporator Cov Backorder WPL 4388357 $93.63

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

18

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

18

4389654 Whirlpool Screw Backorder WPL 4389654 $9.59

19

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

20

2311636 Whirlpool Refrigerator Wire Harness Backorder WPL 2311636 $130.51

20

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

20

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

22

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

22

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

22

CLIP, WIRING WPL 1115375 Contact Us For Availability

23

2311631 Whirlpool Refrigerator Rod Backorder WPL 2311631 $9.81

23

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

24

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

24

Fastener, Push-On WPL 489285 Contact Us For Availability

26

W10723843 Whirlpool Refrigerator Thermostat K Backorder WPL W10723843 $11.14

27

2311615 Whirlpool Refrigerator Knob Backorder WPL 2311615 $30.73

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

34

Clip WPL 2161324 Contact Us For Availability

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
