Model Whirlpool ED25RQXYW02 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

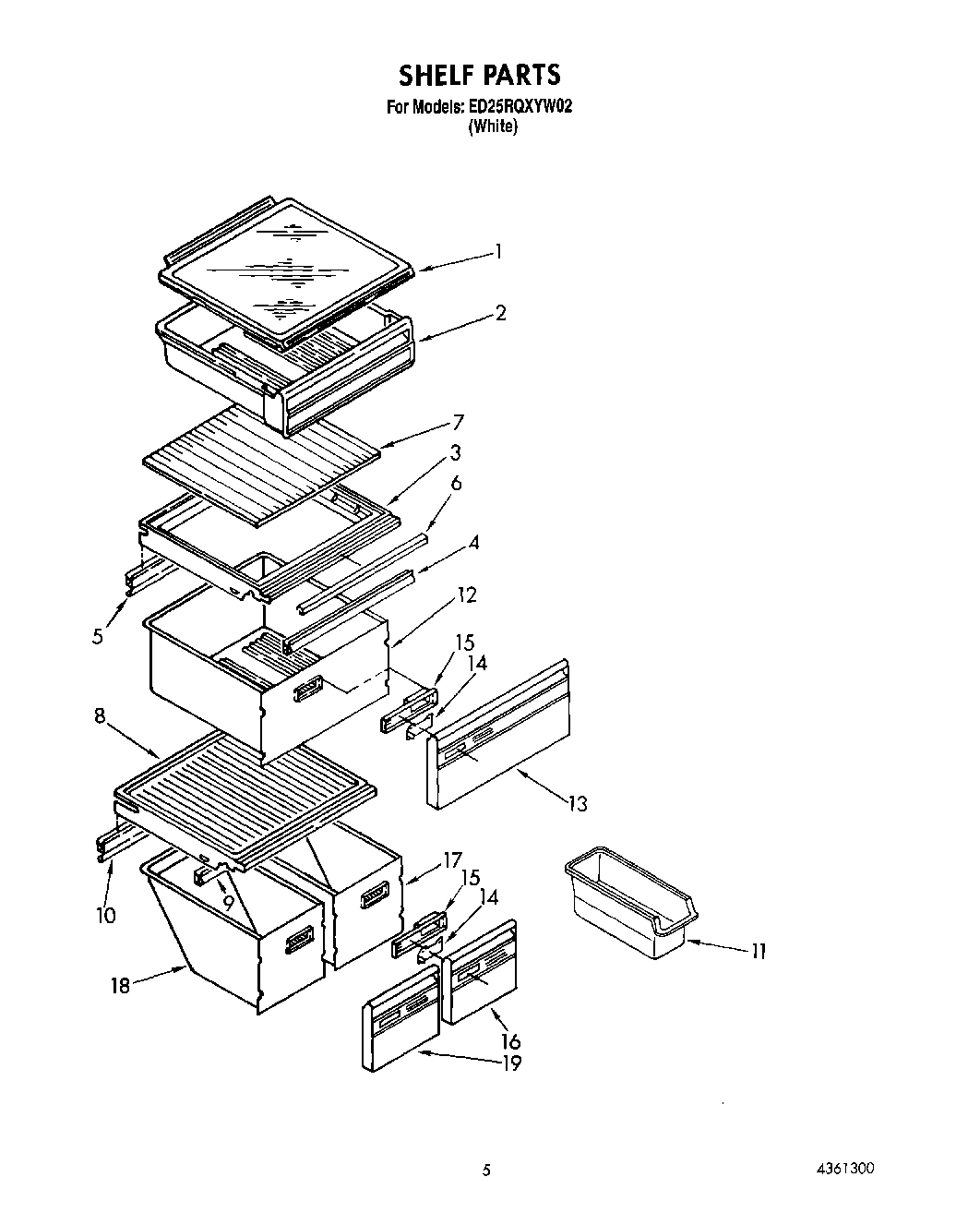

04 - SHELF

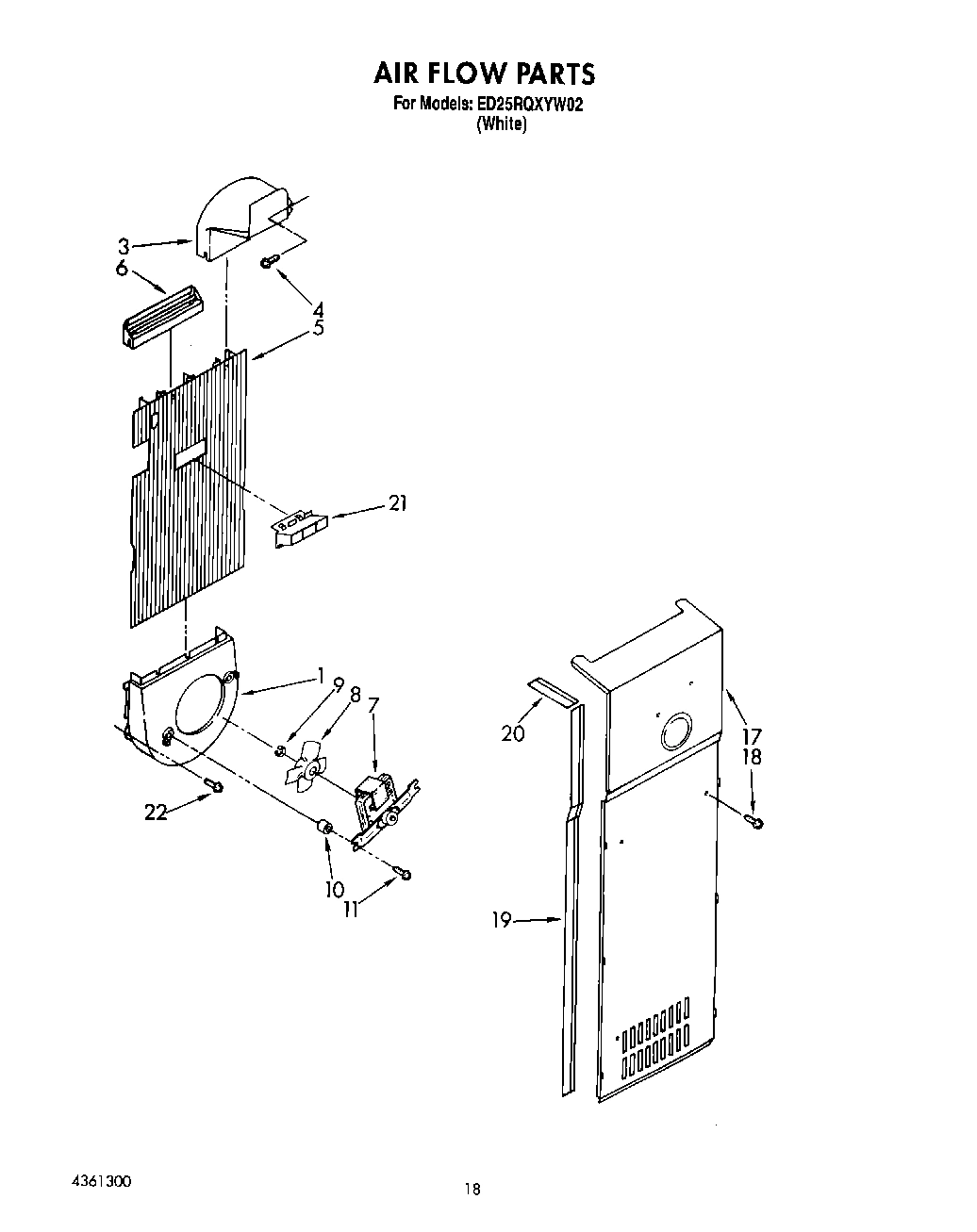

11 - AIRFLOW

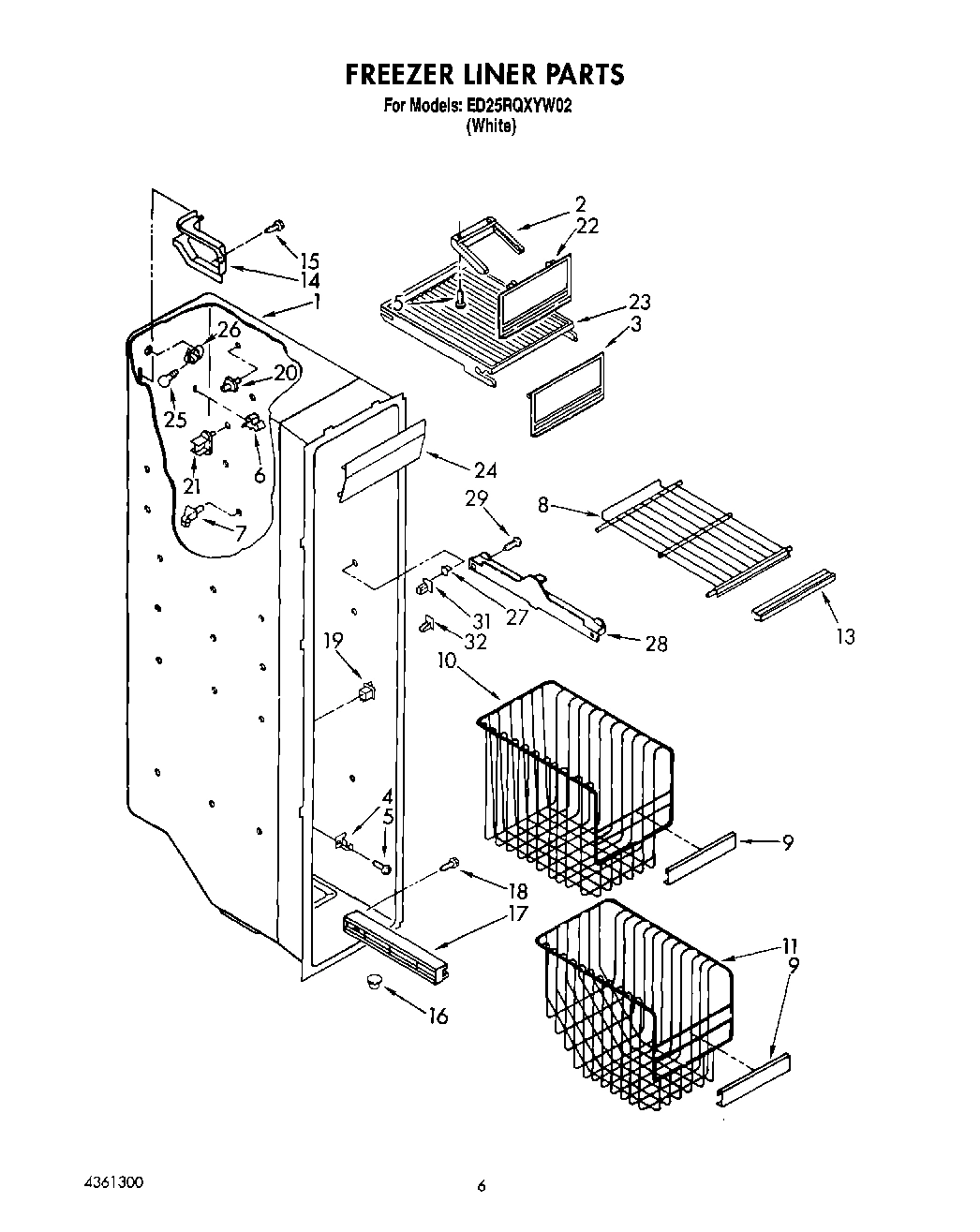

05 - FREEZER LINER

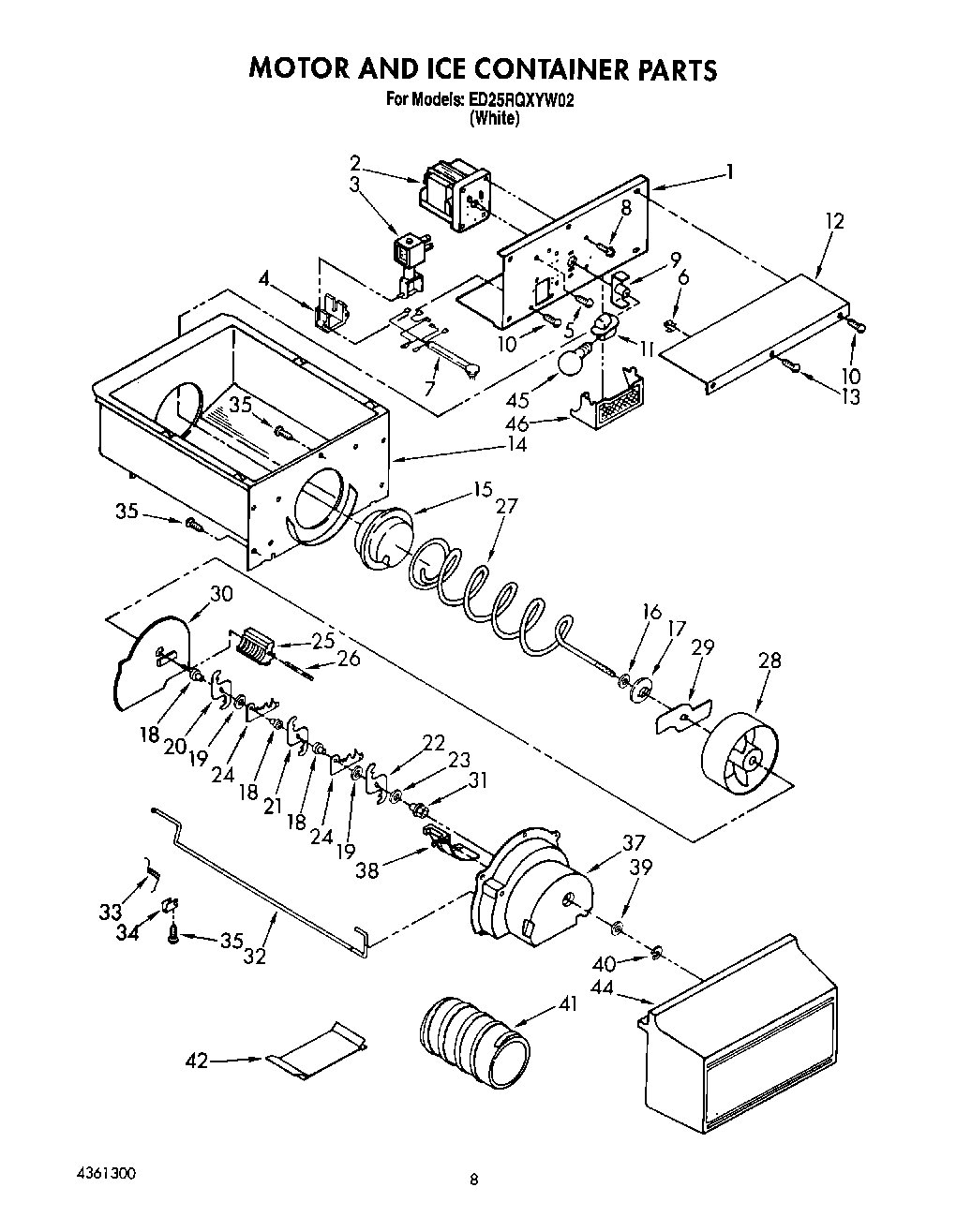

06 - MOTOR AND ICE CONTAINER

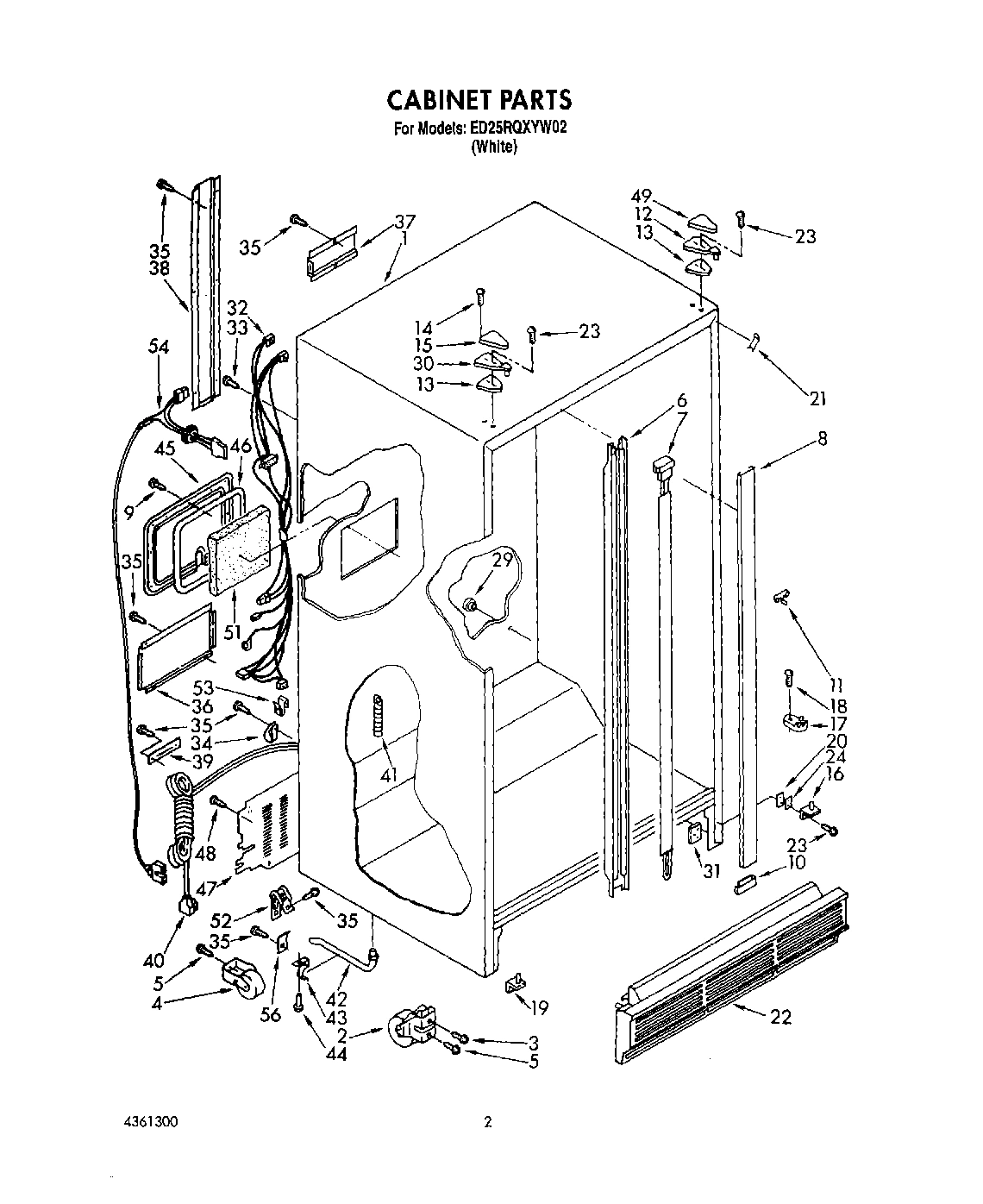

02 - CABINET

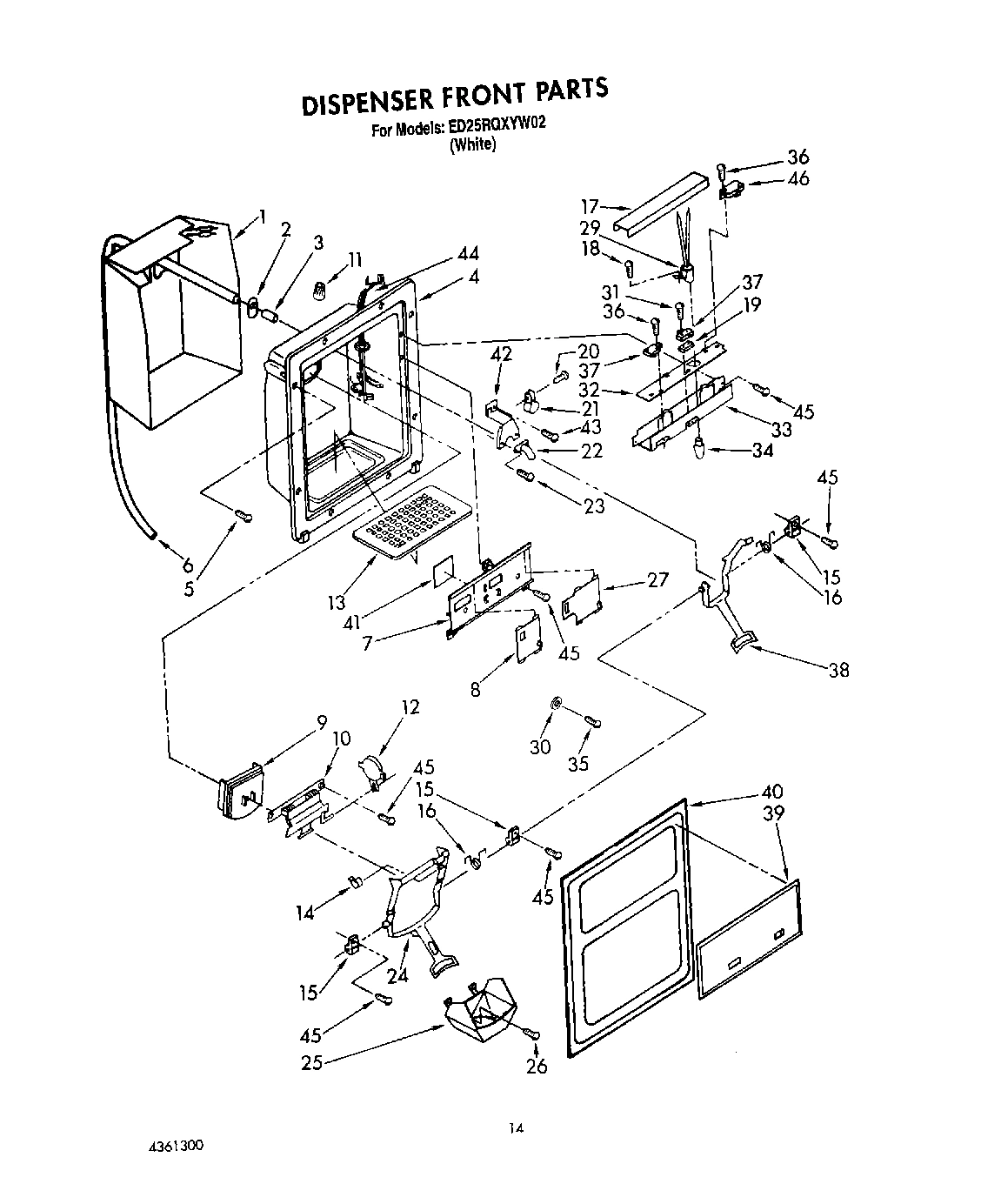

09 - DISPENSER FRONT

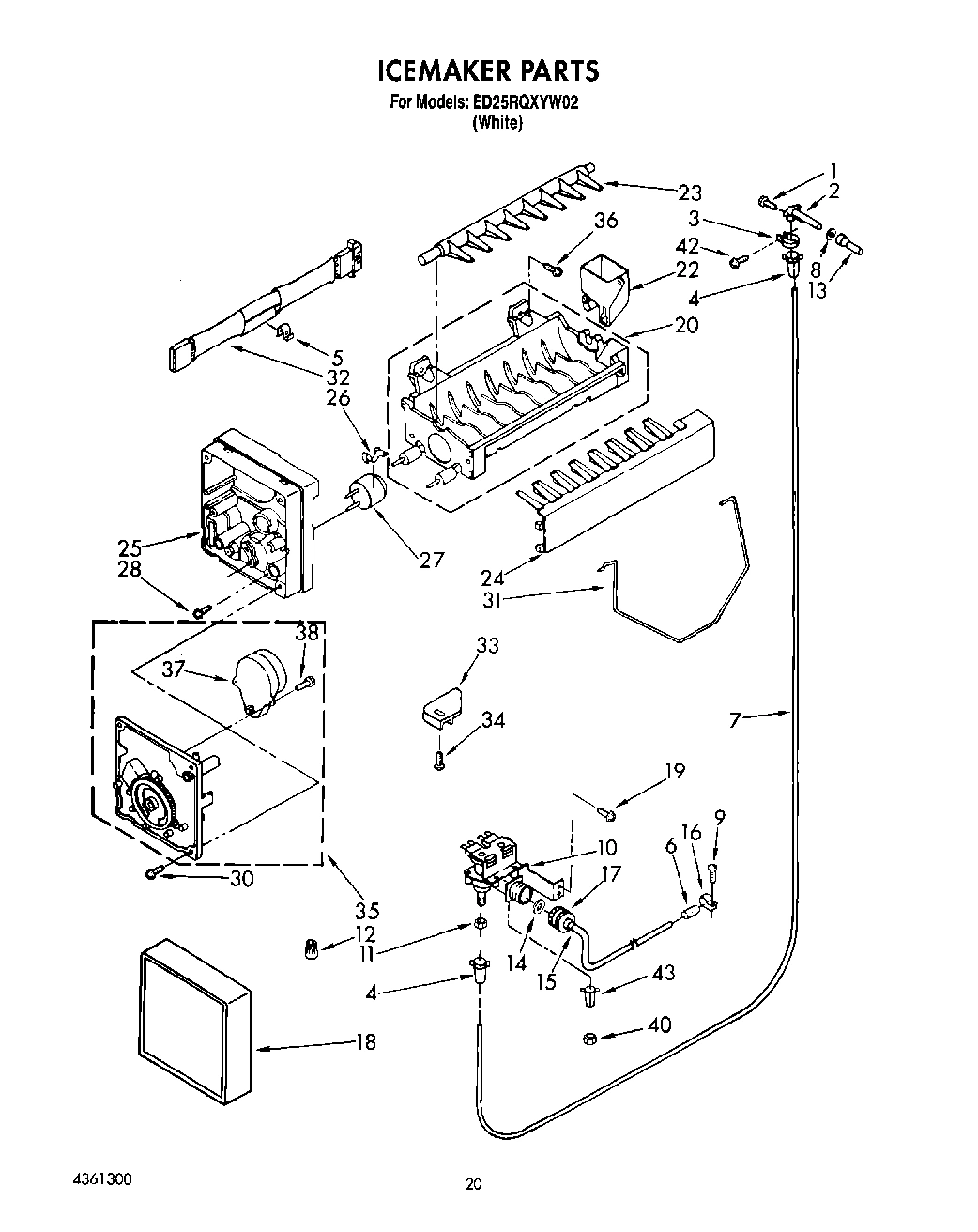

13 - ICEMAKER, LIT/OPTIONAL

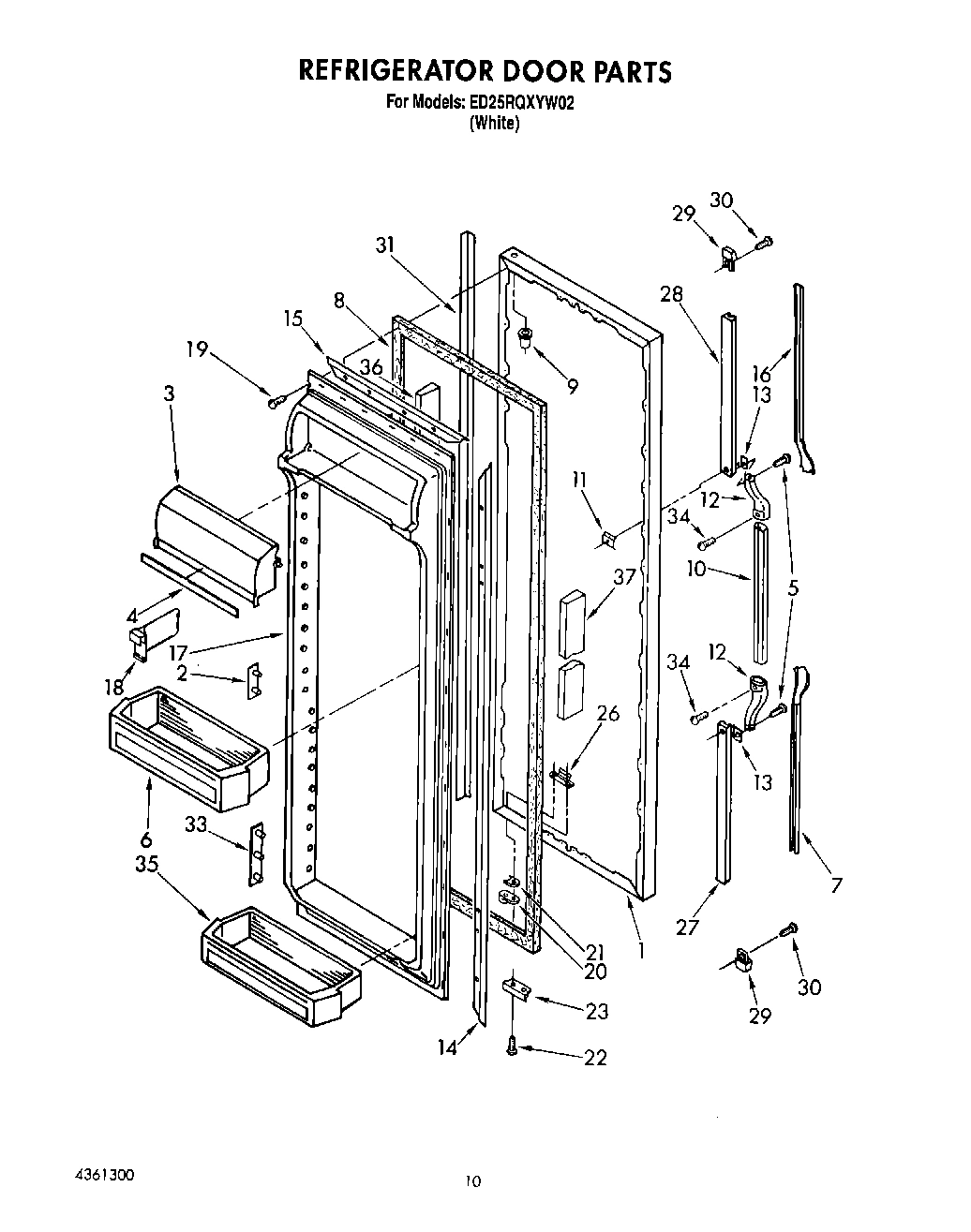

07 - REFRIGERATOR DOOR

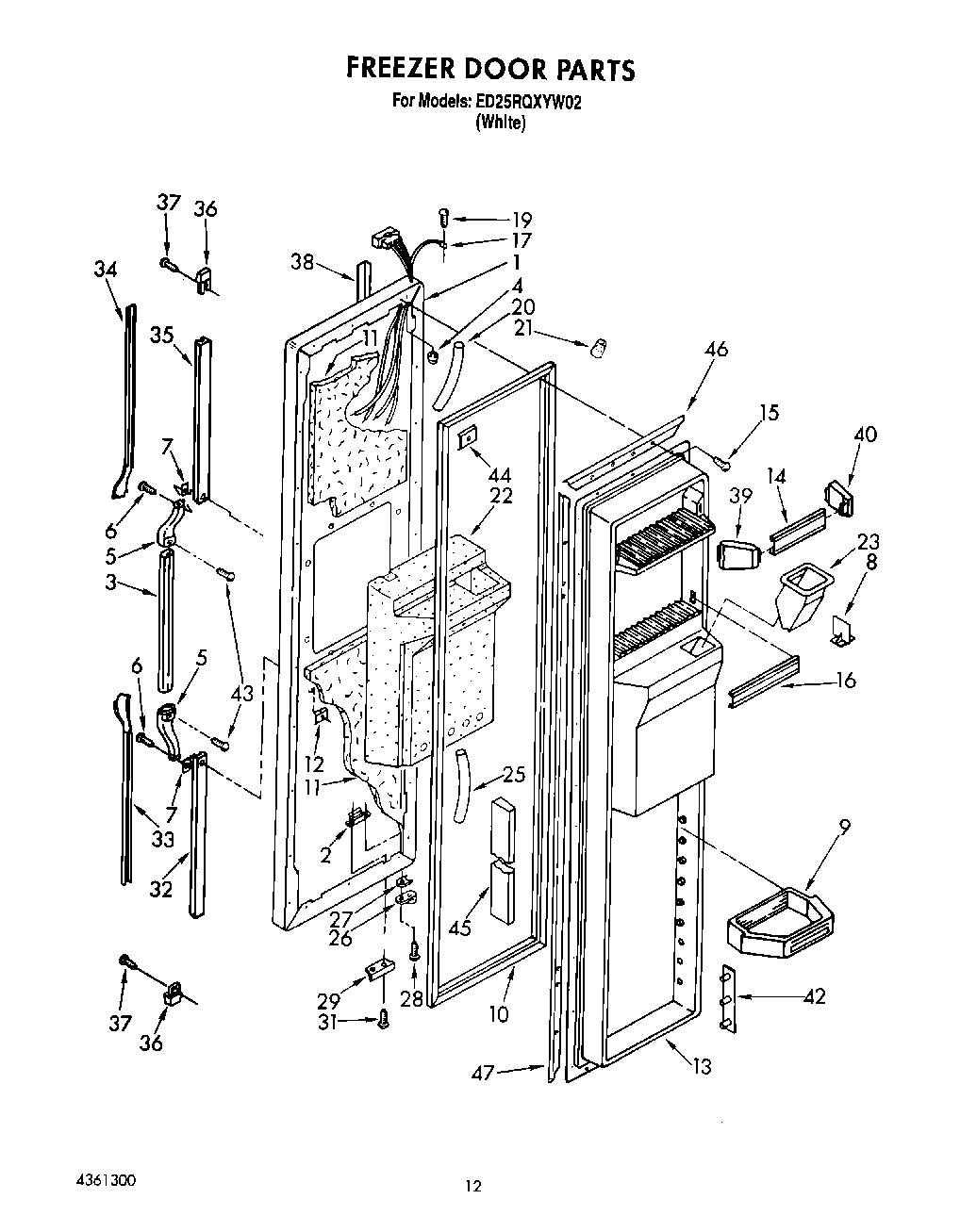

08 - FREEZER DOOR

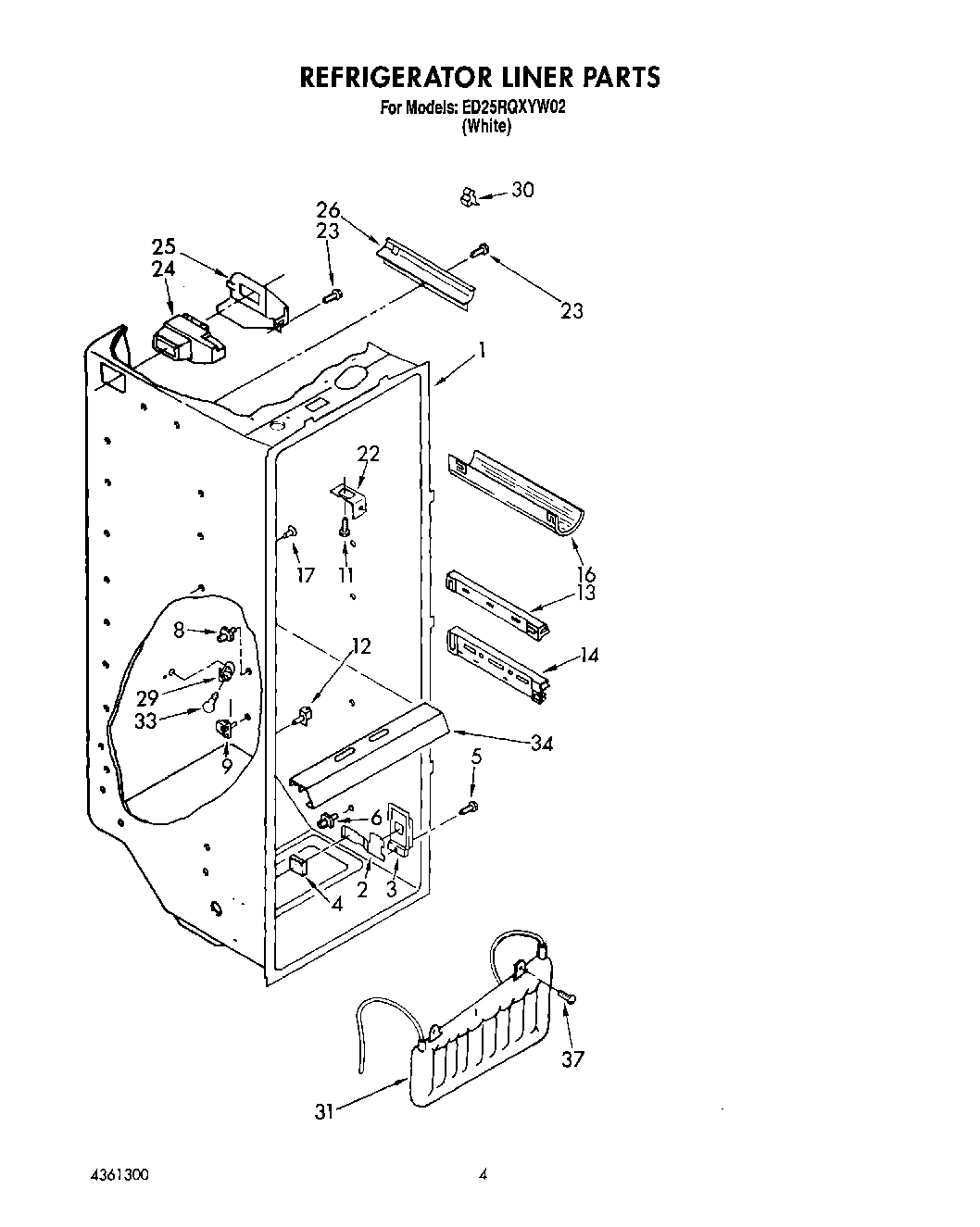

03 - REFRIGERATOR LINER

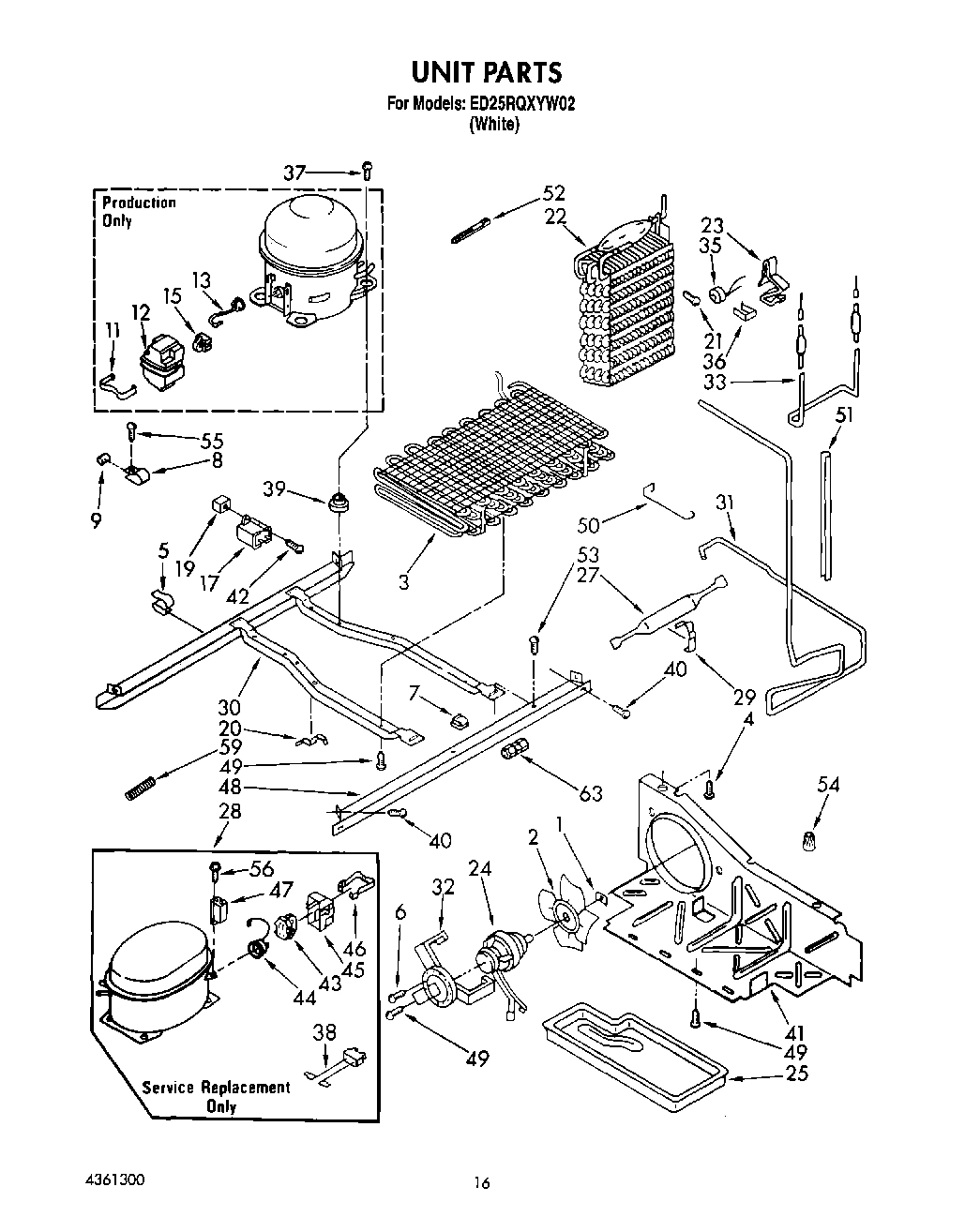

10 - UNIT

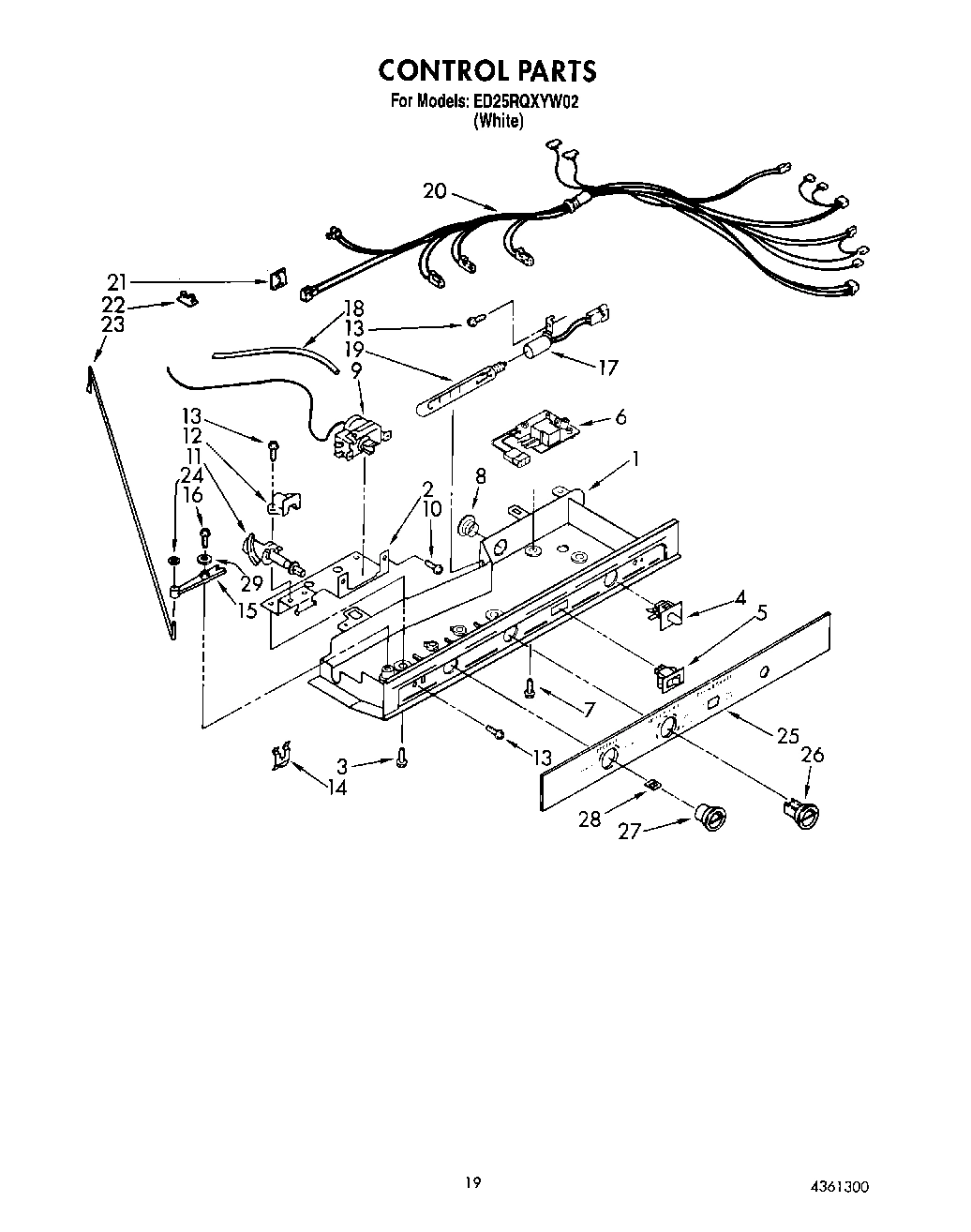

12 - CONTROL
Common parts from model Whirlpool ED25RQXYW02 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2148840 WPL LIT2148840 Contact Us For Availability
WPL LIT2154764 WPL LIT2154764 Contact Us For Availability
WPL LIT2160065 WPL LIT2160065 Contact Us For Availability
WPL LIT4361300 WPL LIT4361300 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI28007A6 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Refrigerator Door WPL 1110642 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) WPL 1110652 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI28008A7 Contact Us For Availability
1
Control Box WPL 2157448 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Pin Plate (4) WPL 1118048 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Door, Compartment WPL 2148847 Contact Us For Availability
3
Handle, Center WPL 1124713 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Condenser Assembly WPL 1105640 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
4
Housing, Dispenser WPL 1124715 Contact Us For Availability
4
Trim, Compartment Door WPL 1118208 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
Screw (4) WPL 488454 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
6
Shelf Bin (2) WPL 1124846 Contact Us For Availability
6
Mullion Rail WPL 2155016 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Heater Mullion WPL 1110606 Contact Us For Availability
7
Frame, Slides WPL 2152717 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
7
Clip, Water Line (3) WPL 934011 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Front Mullion Rail WPL 1123972 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152720 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125929 Contact Us For Availability
8
Divider, Shelf WPL 1123293 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Stud, Left Rear WPL 1115290 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Shelf Bin (3) WPL 1124854 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Filler Bottom Mullion WPL 1118361 Contact Us For Availability
10
Door Gasket, Magnetic WPL 1125928 Contact Us For Availability
11
Foam Insulation WPL 876029 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Cam Assembly WPL 1110566 Contact Us For Availability
12
Hinge, Top WPL 1123514 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
13
Track, Shelf (Right Side (3)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (3)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Tube, Water Inlet WPL 2155064 Contact Us For Availability
13
Panel, Interior Door WPL 2150326 Contact Us For Availability
13
Overload WPL 2154794 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Trim, Door Shelf WPL 1124851 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
15
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
15
Relay (Order Overload To Obtain Relay Key No. WPL ARI28010A7 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2151629 Contact Us For Availability
16
Trim, Door Shelf WPL 1124852 Contact Us For Availability
16
Wine Rack WPL 1124828 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Panel, Interior Door WPL 1124842 Contact Us For Availability
17
Harness, Door (Includes Illustration 18) WPL 1119212 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Divider, Shelf WPL 2152335 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2151630 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Tube, Door Wiring WPL 1119060 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Control Box Harness WPL 2154763 Contact Us For Availability
21
Filler, Wrapper WPL 1110708 Contact Us For Availability
22
Grille WPL 1125715 Contact Us For Availability
22
Insulation, Dispenser WPL 1119038 Contact Us For Availability
22
Evaporator WPL 1110668 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Screw WPL 489284 Contact Us For Availability
23
Chute, Ice WPL 1119036 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Shim WPL 836196 Contact Us For Availability
24
Lever Assembly, Ice Dispenser WPL 1124718 Contact Us For Availability
25
Guide, Ice WPL 1124730 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, Control Box WPL 2148238 Contact Us For Availability
26
Screw, 4-24 x 3/8 WPL 488892 Contact Us For Availability
27
Slide, Light Switch WPL 2152726 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Compressor (Includes Items 38, 43, 44, 45, 46 WPL 4317962 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Grommet WPL 1129178 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Bracket, Door Stop WPL 988420 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
30
Washer WPL 489336 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Screw (2) WPL 488361 Contact Us For Availability
31
Exchanger, Heat WPL 1114662 Contact Us For Availability
32
Cabinet Harness WPL 2155233 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
32
Bracket, Fan Motor WPL 2162062 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
33
Insert, Handle WPL 1119361 Contact Us For Availability
33
Heater, Defrost WPL 2154543 Contact Us For Availability
34
Clamp WPL 937357 Contact Us For Availability
34
Screw, WPL 489365 Contact Us For Availability
34
Insert, Handle WPL 1119373 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
35
Screw WPL 489360 Contact Us For Availability
35
Retainer, Insert WPL 1119372 Contact Us For Availability
35
Shelf Bin (2) WPL 1124847 Contact Us For Availability
36
Cover, Wiring WPL 1129193 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
36
End Cap (2) WPL 2156220 Contact Us For Availability
36
Door Dike, Hinge Side WPL 1115379 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
37
Wiring Shield, Short WPL 1108440 Contact Us For Availability
37
Screw, 10-32 x 5/8 (2) WPL 489075 Contact Us For Availability
37
Door Dike, Handle Side WPL 1119055 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Wiring Shield, Long WPL 1119063 Contact Us For Availability
38
Lever Assembly, Water Dispenser WPL 1124721 Contact Us For Availability
38
Trim, Door WPL 1119062 Contact Us For Availability
39
Tube Clamp (2) WPL 1105607 Contact Us For Availability
39
Plaque, Front Cover WPL 2150318 Contact Us For Availability
39
End Cap, Trim WPL 1115333 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2150313 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
End Cap, Trim WPL 1115364 Contact Us For Availability
41
Drain Ferrule WPL 2155556 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Pin Plate (6) WPL 1116986 Contact Us For Availability
43
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Screw, 6-20 x 3/8 (4) WPL 489022 Contact Us For Availability
43
Relay (Order Overload, No.44, To Obtain Relay WPL ARI28011A6 Contact Us For Availability
44
Front Cover, Ice Container WPL 1124836 Contact Us For Availability
44
Wiring Harness, Door WPL 2147166 Contact Us For Availability
45
Cover, Plug WPL 1110625 Contact Us For Availability
45
Door Dike (2) WPL 1115378 Contact Us For Availability
45
Cover WPL 1108115 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
46
Sealing Gasket WPL 1115322 Contact Us For Availability
46
Switch WPL 841336 Contact Us For Availability
46
Gasket Retainer, Top & Bottom WPL 1118306 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
47
Cover, Unit WPL 2147323 Contact Us For Availability
47
Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
51
Insulation WPL 1118237 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
56
Clamp, Water Line (2) WPL 836472 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
× ![]()
