Model Whirlpool ED22ZRXXN01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

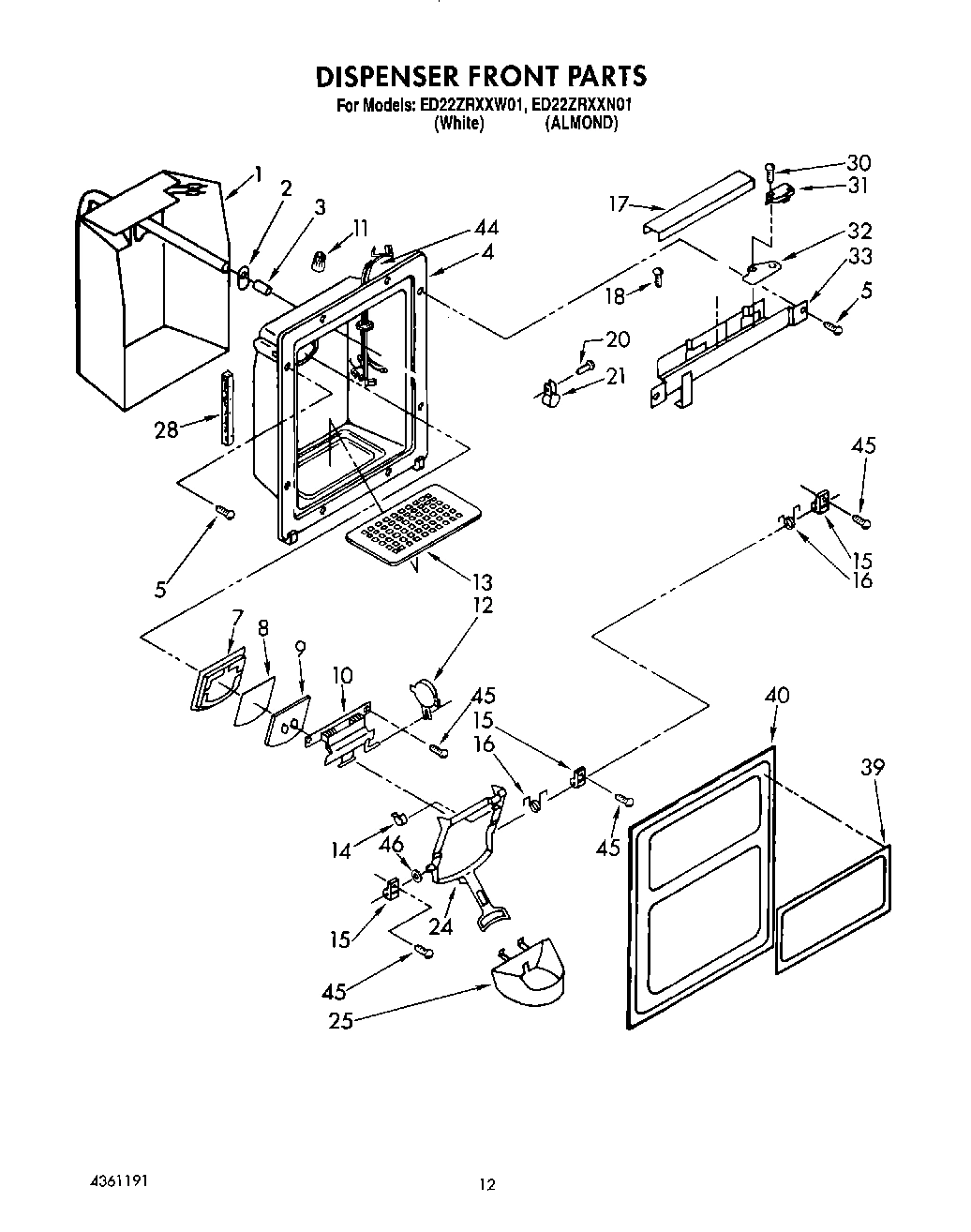

09 - DISPENSER FRONT

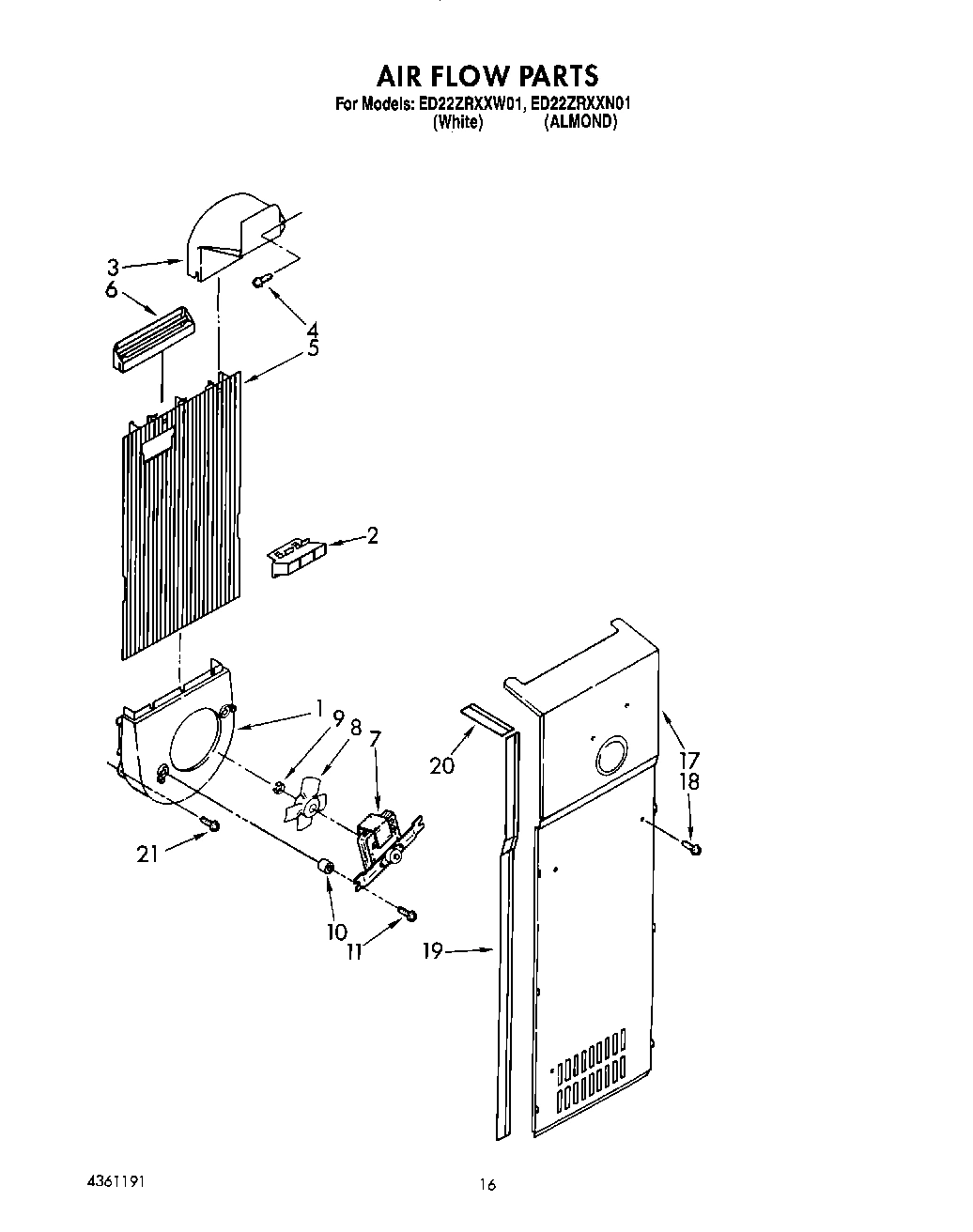

11 - AIRFLOW
06 - FREEZER INTERIOR
13 - ICEMAKER, LIT/OPTIONAL
08 - FREEZER DOOR
10 - UNIT
12 - CONTROL
02 - CABINET
03 - REFRIGERATOR LINER
04 - REFRIGERATOR SHELF
05 - FREEZER LINER
07 - REFRIGERATOR DOOR
Common parts from model Whirlpool ED22ZRXXN01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 1115235 Contact Us For Availability
1
freezer, door panel (almond (also order item WPL 1115238 Contact Us For Availability
1
Control Box WPL 2152113 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI145651A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI145652A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI145653A Contact Us For Availability
1
refrigerator door (white) WPL 1115273 Contact Us For Availability
1
Refrigerator Door (Almond (Also Order Item 18 WPL 1115276 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Condenser Assembly WPL 1105640 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
3
Screw WPL 489333 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Ice Compartment WPL 2148696 Contact Us For Availability
3
Door, Compartment WPL 2148218 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
4
Trim, Compartment Door WPL 1110717 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
6
Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability
6
Mullion Rail WPL 2155015 Contact Us For Availability
6
Trim, Crisper Cover WPL 1110795 Contact Us For Availability
6
Trim, Door Shelf WPL 2148180 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Insert, Handle (White) WPL 1119361 Contact Us For Availability
7
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
7
Heater, Mullion WPL 1106997 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Front Mullion Rail (White) WPL 1123966 Contact Us For Availability
8
Front Mullion Rail (Almond) WPL 1123969 Contact Us For Availability
8
Stud, Rear (6) WPL 946356 Contact Us For Availability
8
Shelf, F.C. WPL 1114609 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Retainer, Gasket WPL 1117767 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
9
Stud (4) WPL 1106982 Contact Us For Availability
9
Trim Shelf WPL 1110782 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
10
Handle, Center WPL 1118417 Contact Us For Availability
10
Filler Bottom Mullion (White) WPL 1118361 Contact Us For Availability
10
Filler Bottom Mullion (Almond) WPL 1118362 Contact Us For Availability
10
Ladder, Shelf WPL 1108433 Contact Us For Availability
11
Screw Anchor (2) WPL 941242 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Cam Assembly WPL 1110566 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
11
Bin, Freezer WPL 2148194 Contact Us For Availability
12
End Cap, Center Handle WPL 1119359 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Hinge, Top WPL 1123514 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Shim WPL 935075 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
13
Overload WPL 2149967 Contact Us For Availability
13
Shelf, Cantilever WPL 1116890 Contact Us For Availability
14
Overload Spring WPL 943320 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Screw, Bind WPL 489284 Contact Us For Availability
14
Trim, Shelf WPL 1114302 Contact Us For Availability
14
Wiring Cover WPL 1114607 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay WPL 945507 Contact Us For Availability
15
Tape Strip WPL 991259 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Trim, Door Shelf WPL 2148252 Contact Us For Availability
16
Insert, Handle (White) WPL 1119367 Contact Us For Availability
16
Insert, Handle (Almond) WPL 1119369 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2151619 Contact Us For Availability
16
Fitting, Drain WPL 942768 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Harness, Door (Includes Illustration 18) WPL 1118032 Contact Us For Availability
17
Support, Stud (24) WPL 946355 Contact Us For Availability
17
Pan, Meat WPL 2148192 Contact Us For Availability
17
Slide, Freezer Bin WPL 1115383 Contact Us For Availability
17
Panel, Interior Door WPL 1124961 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
hinge Bottom (L.H.) WPL 2151620 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Control Box Harness WPL 2154837 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Shim .030 WPL 836196 Contact Us For Availability
20
screw WPL 487979 Contact Us For Availability
21
Clip WPL 652604 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Insulation, Dispenser WPL 1116821 Contact Us For Availability
22
Evaporator WPL 1106987 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille WPL 1129001 Contact Us For Availability
23
Chute, Ice WPL 1109488 Contact Us For Availability
23
Bracket, Door Stop WPL 1115906 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Shim WPL 988421 Contact Us For Availability
25
Tray, Evaporator WPL 1105524 Contact Us For Availability
25
Escutcheon, Control Box WPL 2148232 Contact Us For Availability
25
Divider, Shelf WPL 1114380 Contact Us For Availability
26
Tap Plate WPL 988402 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
28
Retainer, Insert WPL 1119366 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
End Cap (2) WPL 2156220 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Grommet WPL 1110779 Contact Us For Availability
30
Screw, 10-32 x 5/8 (2) WPL 489075 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
31
Exchanger, Heat WPL 1106990 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Hole Plug (2) WPL 534927 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Cabinet Harness WPL 2149746 Contact Us For Availability
33
Heater, Defrost WPL 2154542 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Clamp WPL 937357 Contact Us For Availability
34
Light Lens WPL 1114624 Contact Us For Availability
35
Trim, Door Shelf WPL 2148181 Contact Us For Availability
36
Screw, 6-20 x 3/8 (4) WPL 489022 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
36
Cover, Wiring WPL 1129193 Contact Us For Availability
37
Wiring Shield, Short WPL 1108440 Contact Us For Availability
38
Wiring Shield, Long WPL 1108441 Contact Us For Availability
38
Door Dike, Handle Side WPL 2152266 Contact Us For Availability
39
Retainer, Gasket WPL 1117766 Contact Us For Availability
39
Tube Clamp (2) WPL 1105607 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Retainer, Gasket WPL 1118301 Contact Us For Availability
41
Door, Shelf WPL 2148265 Contact Us For Availability
41
Baffle, Air WPL 1105530 Contact Us For Availability
41
Drain Ferrule WPL 2155556 Contact Us For Availability
42
WPL 876029 WPL 876029 Contact Us For Availability
42
TAPE, WPL 479502 Contact Us For Availability
42
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
42
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
42
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
42
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
42
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
42
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
42
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
42
WPL 515393 WPL 515393 Contact Us For Availability
42
WPL 542639 WPL 542639 Contact Us For Availability
42
WPL 72112 WPL 72112 Contact Us For Availability
42
WPL 799340 WPL 799340 Contact Us For Availability
42
WPL 799833 WPL 799833 Contact Us For Availability
42
WPL 978883 WPL 978883 Contact Us For Availability
45
Cover, Plug WPL 1108443 Contact Us For Availability
46
Sealing Gasket WPL 1115321 Contact Us For Availability
47
Cover, Unit WPL 1105617 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1105614 Contact Us For Availability
51
Insulation WPL 1118236 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
53
Clip, Wire WPL 548745 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
62
``O`` Ring Seal (4) WPL 488794 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388006 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
