Model Whirlpool ED22RQXXW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

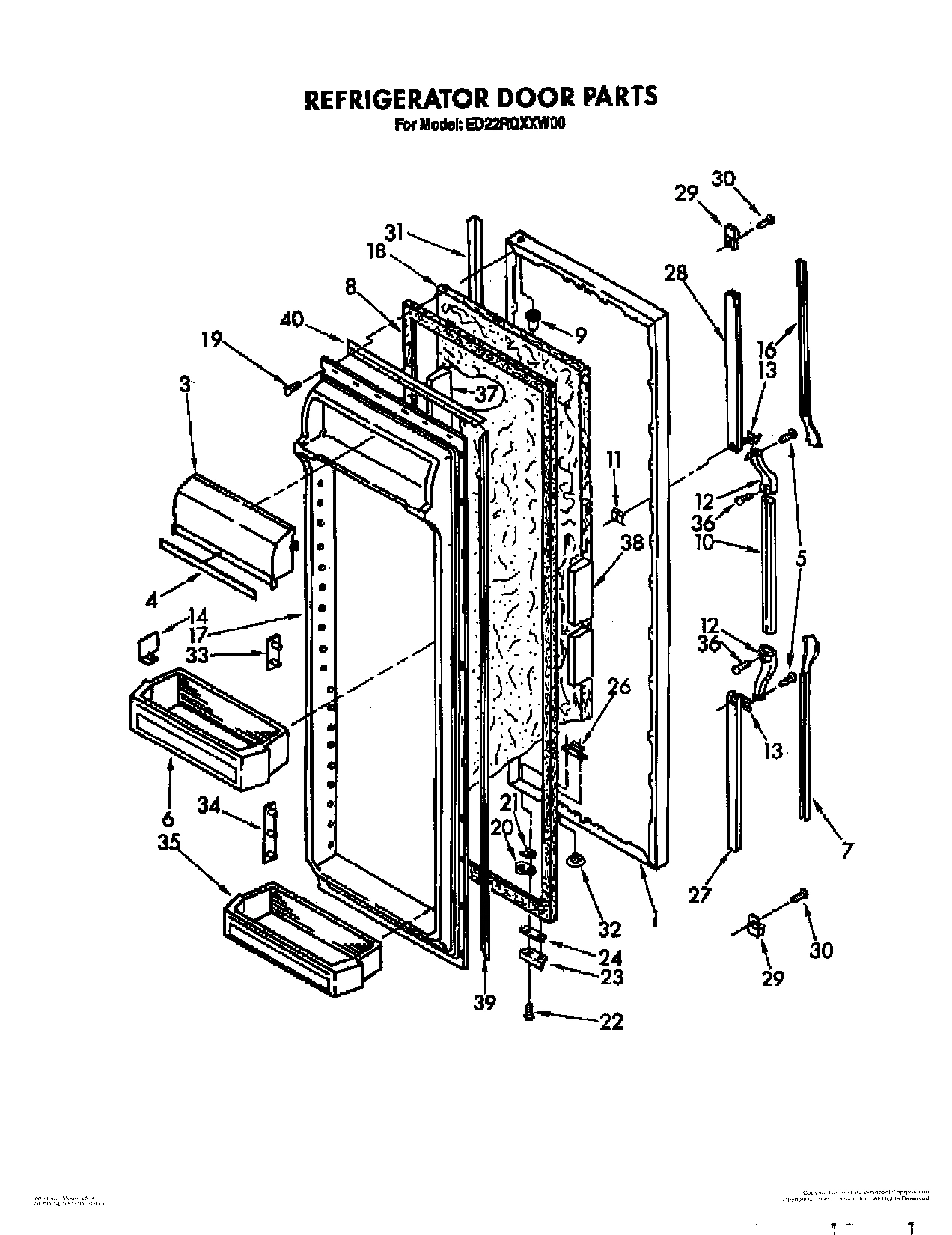

07 - REFRIGERATOR DOOR

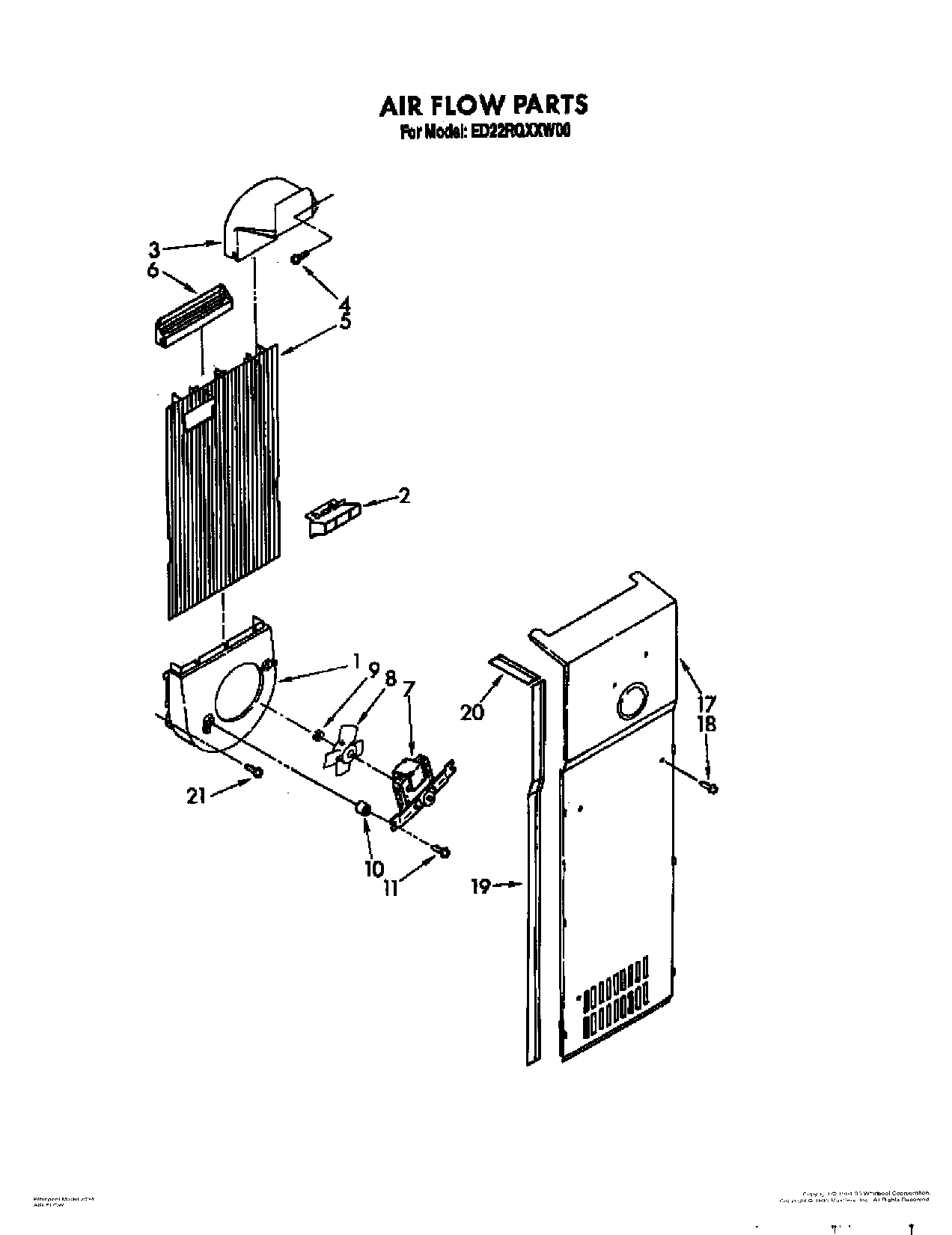

11 - AIR FLOW
13 - ICEMAKER, LIT/OPTIONAL
03 - REFRIGERATOR LINER
04 - REFRIGERATOR SHELF
12 - CONTROL
02 - CABINET
09 - DISPENSER FRONT
05 - FREEZER LINER
06 - MOTOR AND ICE CONTAINER
08 - FREEZER DOOR
10 - UNIT
Common parts from model Whirlpool ED22RQXXW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI27002A5 Contact Us For Availability
1
Shelf Assembly, Glass Sliding (3) WPL 1124826 Contact Us For Availability
1
Control Box WPL 1129413 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI27001A4 Contact Us For Availability
1
Heater, Dispenser WPL 2149097 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI27003A7 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) WPL 1115235 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Snack Bin WPL 1124829 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Fan, Blade WPL 989524 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability
3
Door, Ice Compartment WPL 2149091 Contact Us For Availability
3
Handle, Center WPL 1124713 Contact Us For Availability
3
Condenser Assembly WPL 1105640 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
4
Housing, Dispenser WPL 1124715 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
5
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
Screw (2) WPL 487523 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
6
Shelf Bin (2) WPL 1124846 Contact Us For Availability
6
Trim, Crisper Cover WPL 1119190 Contact Us For Availability
6
Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability
6
Mullion Rail WPL 1118354 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Heater, Mullion WPL 1106997 Contact Us For Availability
7
Frame, Slides WPL 2152717 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149943 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
7
Clip (3) WPL 934011 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Cover, Meat Pan WPL 1124812 Contact Us For Availability
8
Front Mullion Rail WPL 1123966 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152720 Contact Us For Availability
8
Grommet (2) WPL 1110779 Contact Us For Availability
8
Pin Plate (6) WPL 1116986 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Stud (4) WPL 1115290 Contact Us For Availability
9
Gasket (Front) WPL 1115292 Contact Us For Availability
9
Trim, Basket WPL 2149088 Contact Us For Availability
9
Shelf Bin (3) WPL 2149085 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Gasket (Rear) WPL 1121384 Contact Us For Availability
10
Filler Bottom Mullion WPL 1118361 Contact Us For Availability
10
Basket, Tall WPL 2152087 Contact Us For Availability
11
Foam Insulation WPL 876029 Contact Us For Availability
11
Cam Assembly WPL 1110566 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
11
Basket, Slope WPL 2152089 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
12
Hinge, Top WPL 1123514 Contact Us For Availability
12
Support Stud (4) WPL 946355 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
13
Track, Shelf (Right Side (2)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (2)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Front, Crisper Pan WPL 1124825 Contact Us For Availability
13
Panel, Interior Door WPL 2149009 Contact Us For Availability
13
Overload WPL 945586 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Slide, Humidity Control WPL 1124819 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Screw, Bind WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Wiring Cover WPL 1114607 Contact Us For Availability
14
Trim, Door Shelf WPL 2149084 Contact Us For Availability
14
Overload Spring WPL 943320 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Stud, Spacer (2) WPL 1115399 Contact Us For Availability
15
Housing, Humidity Control WPL 1124820 Contact Us For Availability
15
Bearing, Level (3) WPL 983697 Contact Us For Availability
15
Relay WPL 945507 Contact Us For Availability
16
Spring, Level (2) WPL 983696 Contact Us For Availability
16
Wine Rack WPL 1124828 Contact Us For Availability
16
Front, Meat Pan WPL 1124817 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2151629 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Trim, Door Shelf WPL 2149083 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
17
Meat Pan WPL 1114690 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Shelf Track (Right Side (2)) WPL 1113678 Contact Us For Availability
17
Shelf Track (Left Side (2)) WPL 1113679 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Harness, Door (Includes Item 18) WPL 1119212 Contact Us For Availability
18
Meat Pan WPL 1114691 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Insert, Plastic Tube WPL 1129177 Contact Us For Availability
19
Front, Meat Pan WPL 1124814 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2151630 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Control Box Harness WPL 2149750 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Shim .030 WPL 836196 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
21
Nut, Compression WPL 1129179 Contact Us For Availability
21
Filler, Wrapper WPL 1110708 Contact Us For Availability
21
Stud, Front (2) WPL 946356 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille WPL 2147467 Contact Us For Availability
22
Stud, Rear (2) WPL 1106982 Contact Us For Availability
22
Insulation, Dispenser WPL 2149014 Contact Us For Availability
22
Evaporator WPL 1106987 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
23
Chute, Ice WPL 1119036 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever Assembly, Ice Dispenser WPL 1124718 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Hole Plug (2) WPL 534927 Contact Us For Availability
25
Guide, Ice WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2148238 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Tray, Evaporator WPL 1105524 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Shelf (2) WPL 1118165 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Slide, Light Switch WPL 2152726 Contact Us For Availability
27
Trim, Shelf WPL 2149090 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
29
Grommet WPL 1129178 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Bracket, Door Stop WPL 988420 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
30
Washer WPL 489336 Contact Us For Availability
30
Shim WPL 988421 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Screw (2) WPL 488361 Contact Us For Availability
31
Exchanger, Heat WPL 1106990 Contact Us For Availability
32
Tube WPL 1129175 Contact Us For Availability
32
Cabinet Harness WPL 2149745 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Control Arm WPL 2147138 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
33
Insert, Handle WPL 1119361 Contact Us For Availability
33
Heater, Defrost WPL 2154542 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
34
Clamp WPL 937357 Contact Us For Availability
34
Insert, Handle WPL 1119367 Contact Us For Availability
35
Screw (2) WPL 489362 Contact Us For Availability
35
Retainer, Insert WPL 1119366 Contact Us For Availability
36
Cover, Wiring WPL 1129193 Contact Us For Availability
36
Screw 4-40 x 9/16 (6) WPL 489155 Contact Us For Availability
36
End Cap (2) WPL 2156220 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Wiring Shield, Short WPL 1108440 Contact Us For Availability
37
Screw, 10-32 x 5/8 (2) WPL 489075 Contact Us For Availability
38
Wiring Shield, Long WPL 1108441 Contact Us For Availability
38
Lever Assembly, Water Dispensor WPL 1124721 Contact Us For Availability
38
Trim, Door WPL 1119061 Contact Us For Availability
39
Tube Clamp (2) WPL 1105607 Contact Us For Availability
39
Plaque, Front Cover WPL 2150318 Contact Us For Availability
39
End Cap, Trim WPL 1115333 Contact Us For Availability
40
Nut, Compression WPL 488795 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2150314 Contact Us For Availability
40
End Cap, Trim WPL 1115364 Contact Us For Availability
41
``O`` Ring WPL 488794 Contact Us For Availability
41
Drain Ferrule WPL 842258 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
41
Housing Filler WPL 2152700 Contact Us For Availability
41
Baffle, Air WPL 1105530 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Screw, 6-20 x 3/8 (4) WPL 489022 Contact Us For Availability
43
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
43
Deflector, Ice Container WPL 1127233 Contact Us For Availability
44
Wiring Harness, Door WPL 2147166 Contact Us For Availability
44
Front Cover, Ice Containter WPL 2149005 Contact Us For Availability
44
Door Dike (2) WPL 1115378 Contact Us For Availability
45
Cover, Plug WPL 1108443 Contact Us For Availability
45
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
46
Sealing Gasket WPL 1115321 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
46
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
47
Cover, Unit WPL 2147329 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1105614 Contact Us For Availability
51
Insulation WPL 1118236 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
56
Clamp, Water Line (2) WPL 836472 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
62
``O`` Ring Seal (4) WPL 488819 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
× ![]()
