Model Whirlpool ED22PMXSW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
05 - REFRIGERATOR DOOR
07 - UNIT

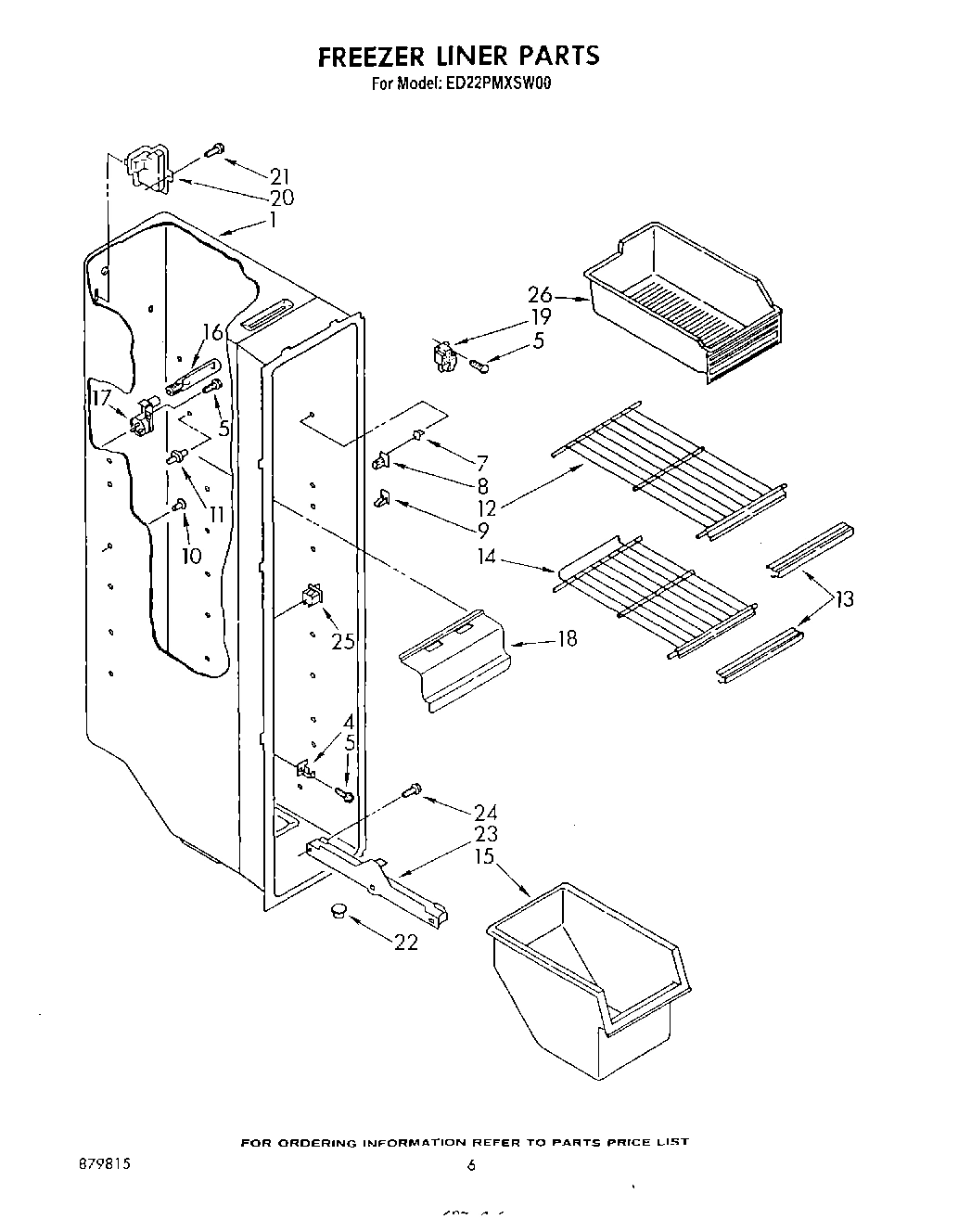

04 - FREEZER LINER

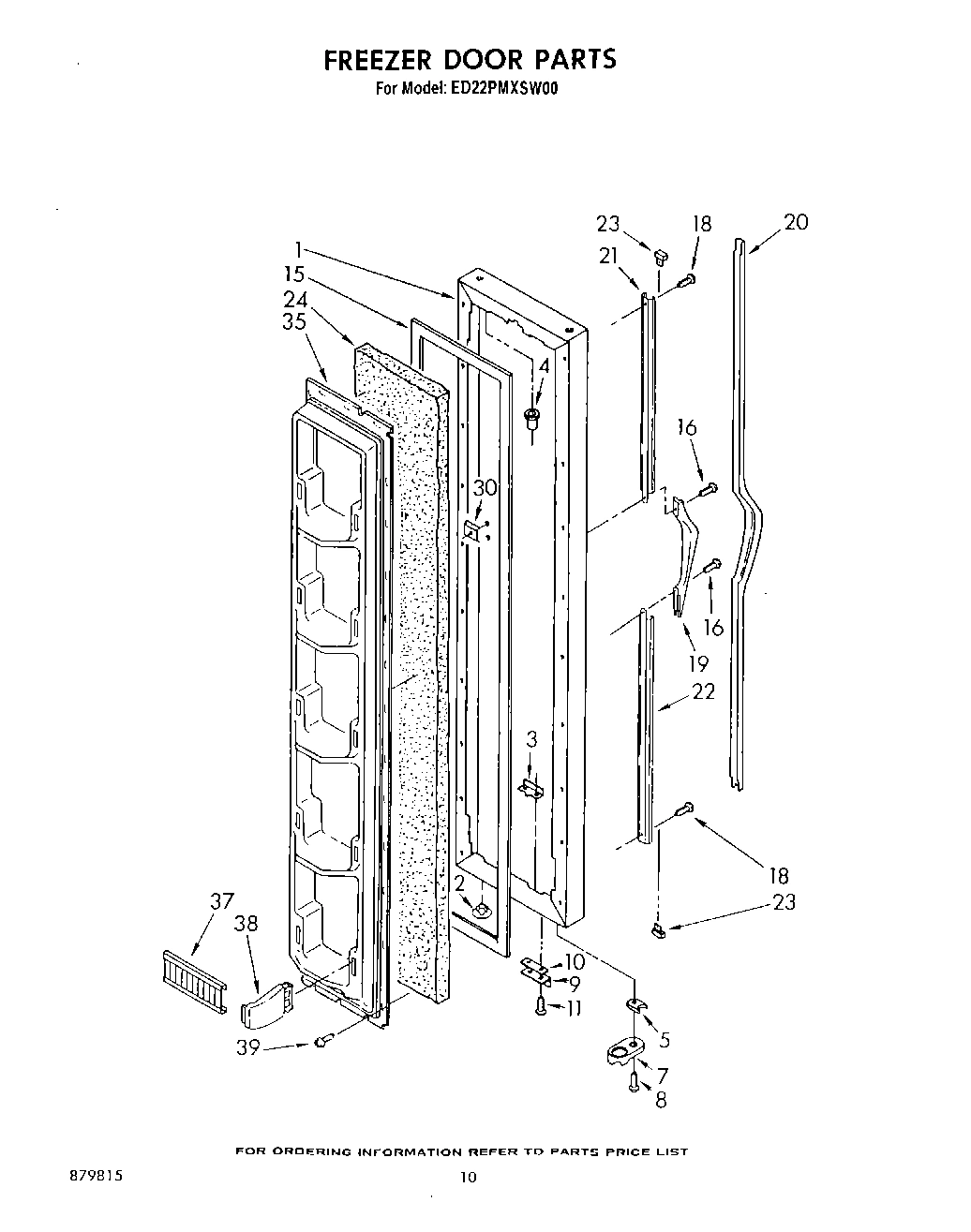

06 - FREEZER DOOR

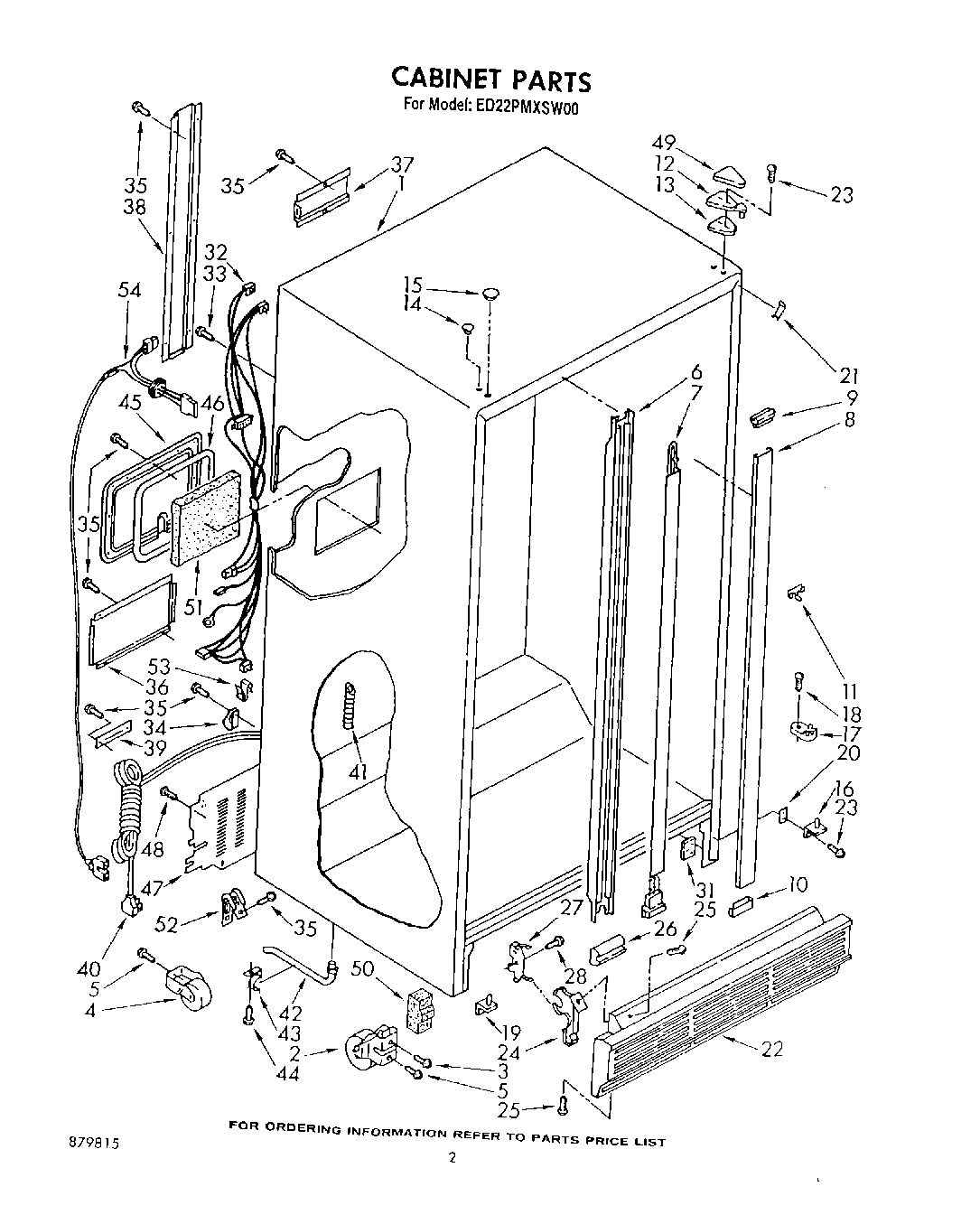

02 - CABINET

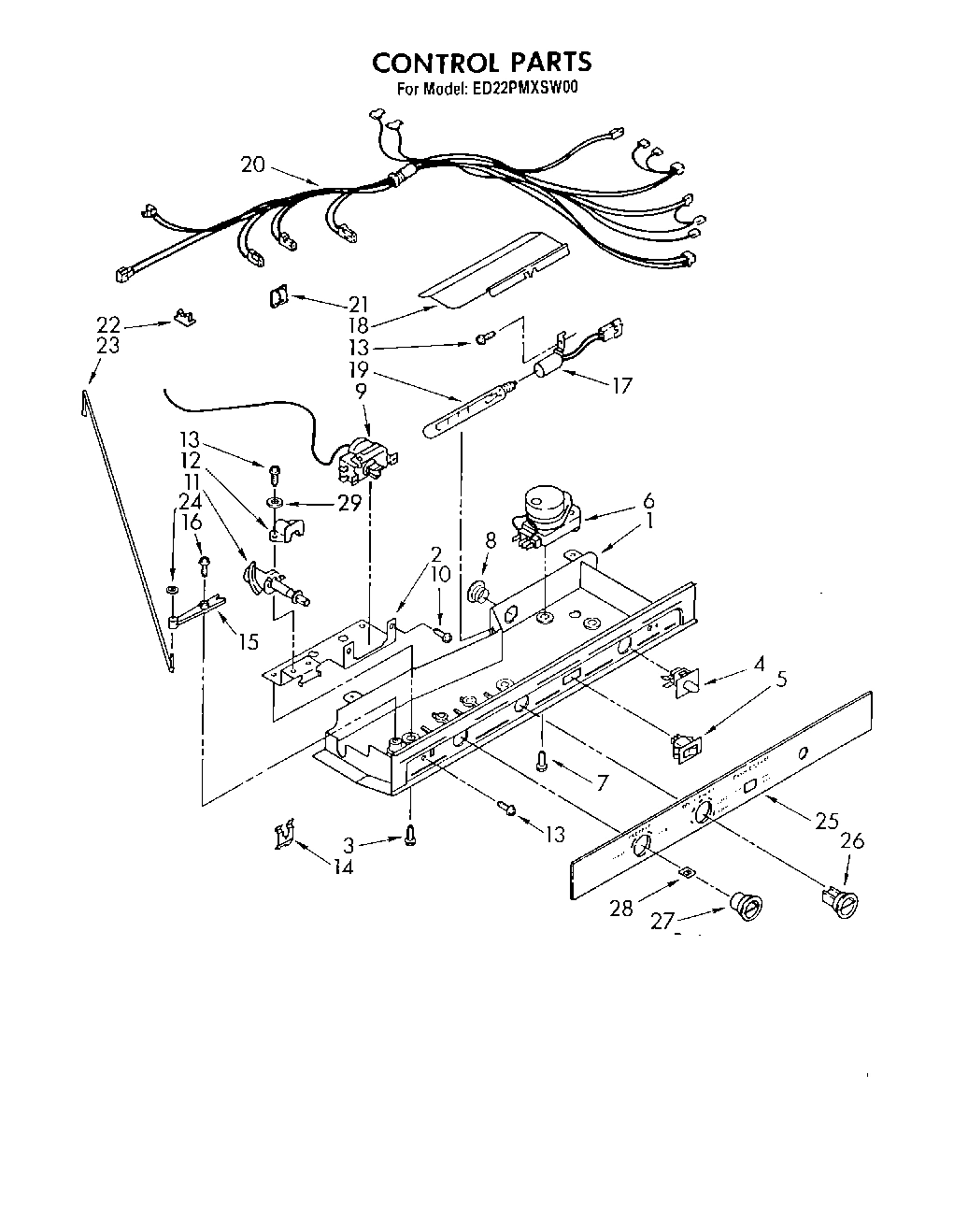

09 - CONTROL

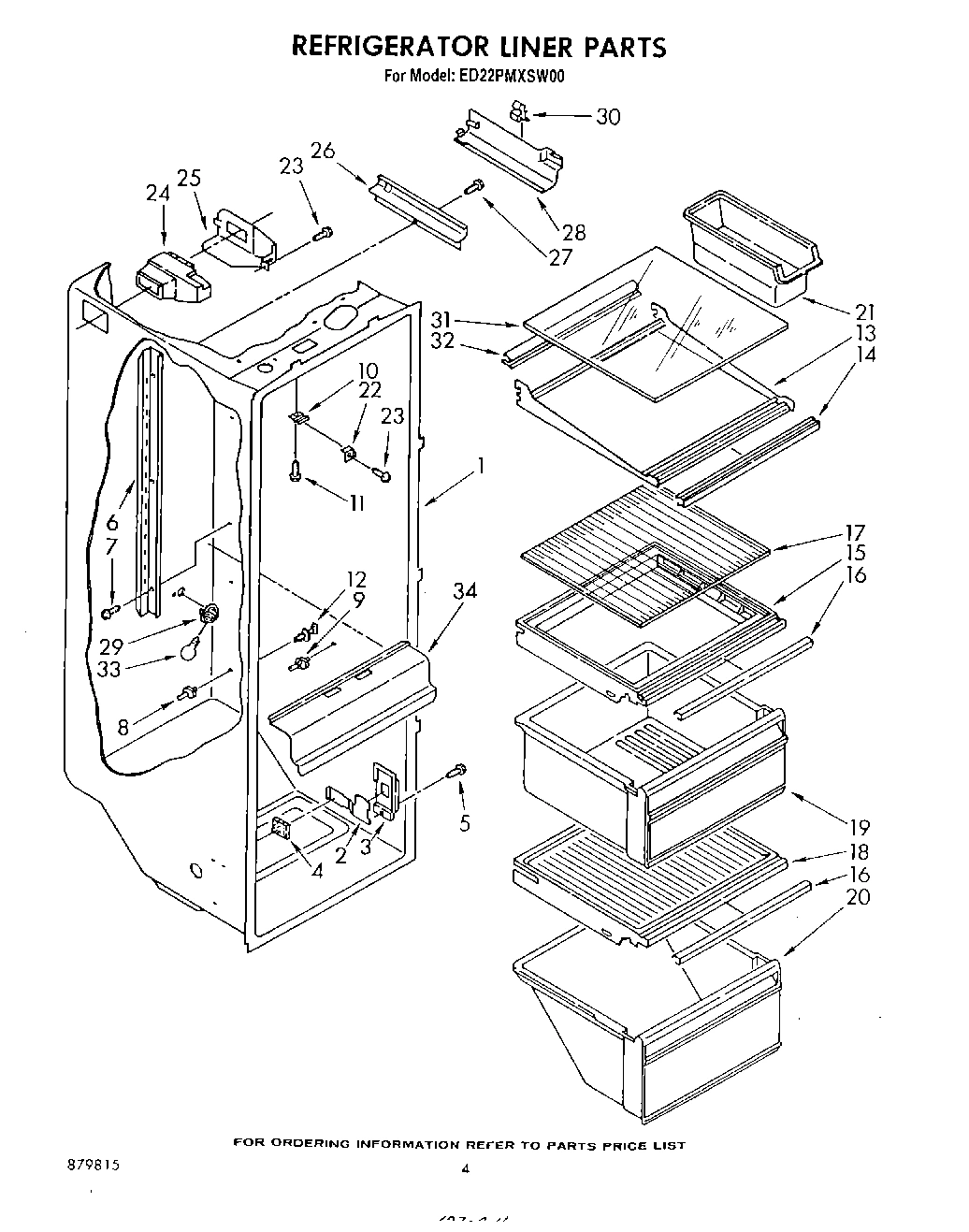

03 - REFRIGERATOR LINER

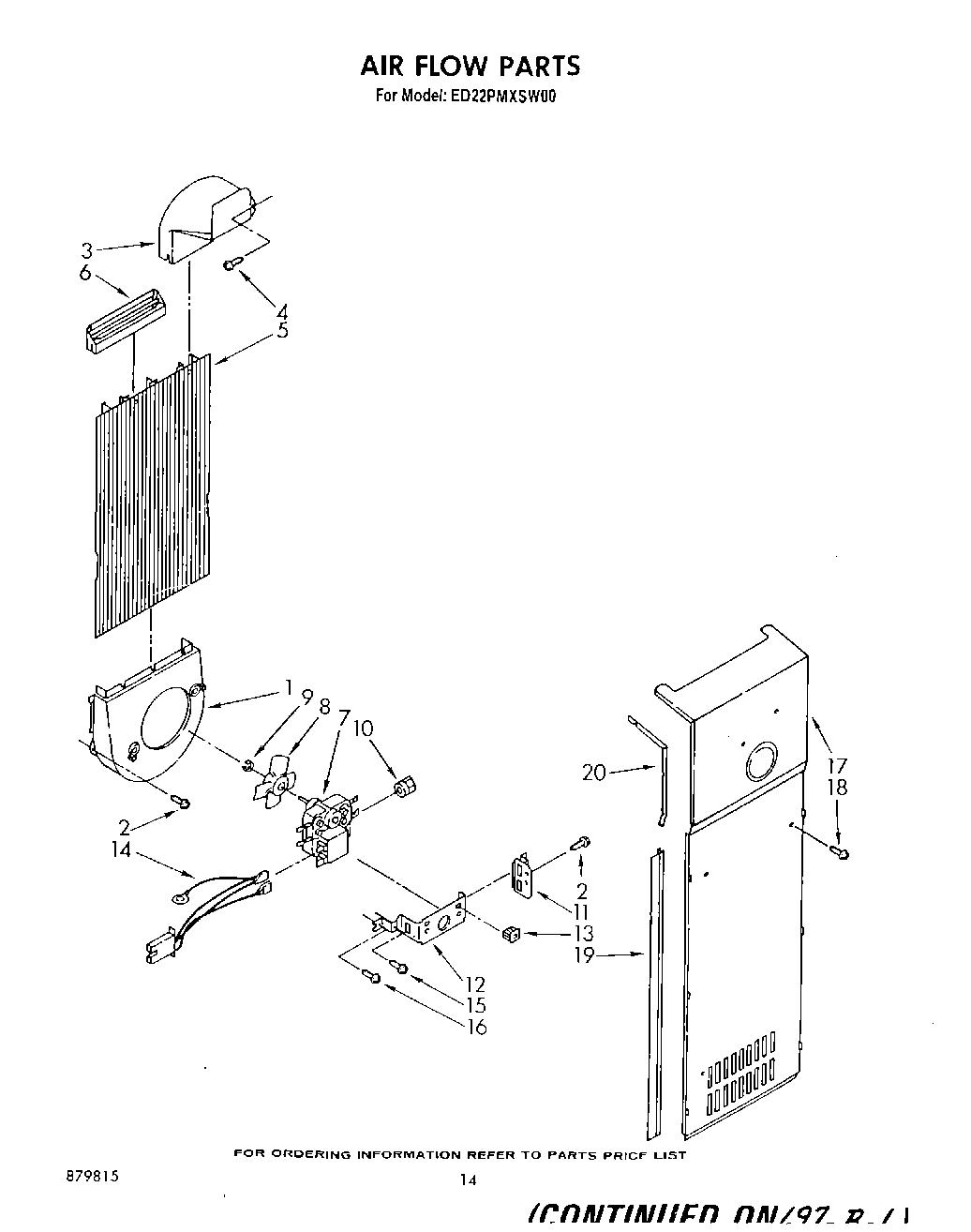

08 - AIR FLOW

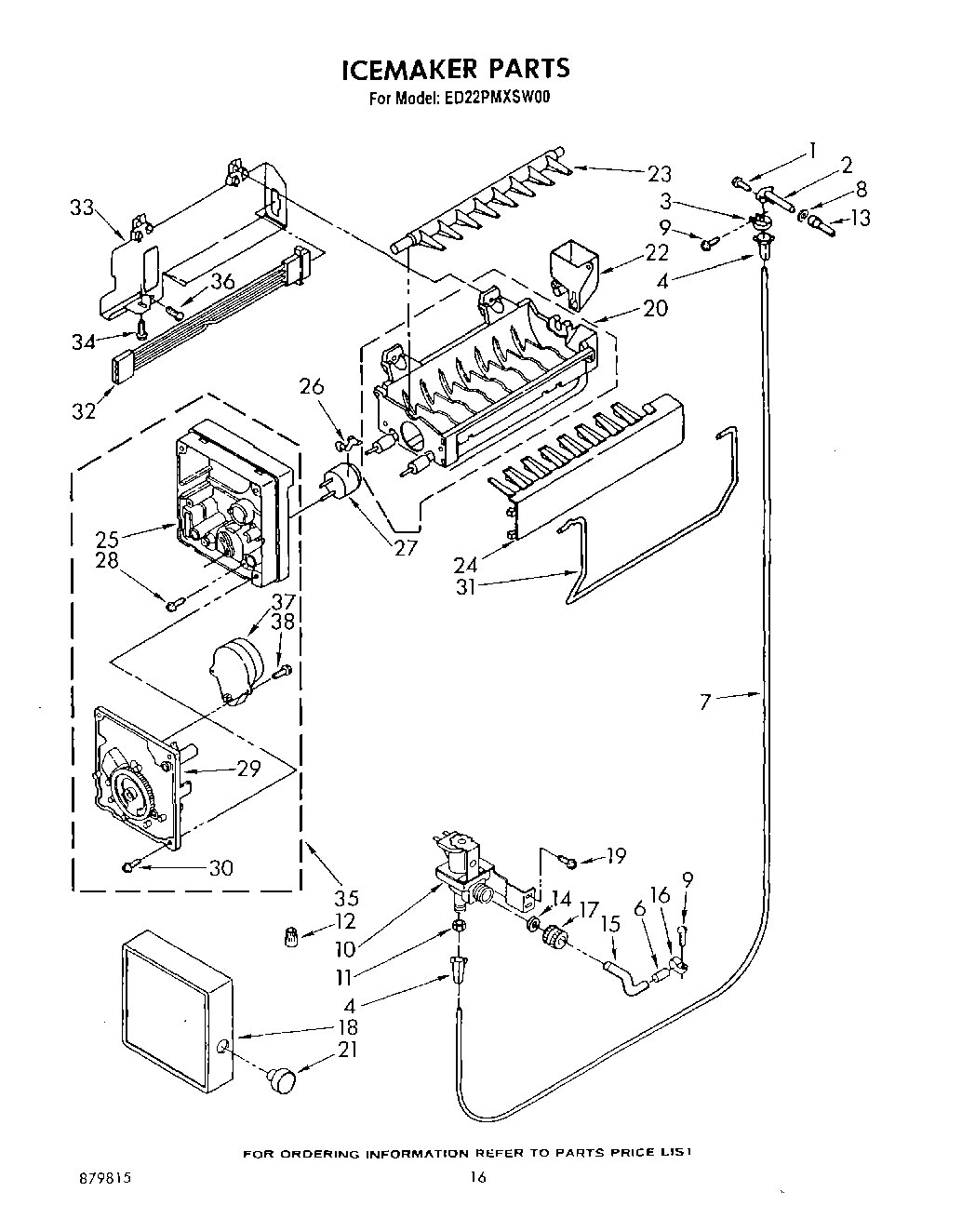

10 - ICE MAKER , NOT ILLUSTRATED AND OPTIONAL
Common parts from model Whirlpool ED22PMXSW00 SIDE BY SIDE REFRIGERATOR
WPL 261886 WPL 261886 Contact Us For Availability
WPL 261890 WPL 261890 Contact Us For Availability
WPL 285365 WPL 285365 Contact Us For Availability
WPL 285366 WPL 285366 Contact Us For Availability
WPL 350941 WPL 350941 Contact Us For Availability
WPL LIT1114084 WPL LIT1114084 Contact Us For Availability
WPL LIT1115304 WPL LIT1115304 Contact Us For Availability
WPL LIT1118223 WPL LIT1118223 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
WPL LIT879815 WPL LIT879815 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26700A9 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 1106922 Contact Us For Availability
1
Freezer, Door Panel (Golden Harvest) WPL 1108469 Contact Us For Availability
1
Freezer, Door Panel (Almond) WPL 1108470 Contact Us For Availability
1
Freezer, Door Panel (Toast) WPL 1108471 Contact Us For Availability
1
Freezer, Door Panel (Platinum (Also Order Ite WPL 1108472 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI26698A8 Contact Us For Availability
1
Control Box WPL 1108446 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26699A5 Contact Us For Availability
1
Fan Scroll WPL 1108414 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Hole Plug (Toast) WPL 1100196 Contact Us For Availability
2
Hole Plug (Platinum) WPL 1100197 Contact Us For Availability
2
Hole Plug (White) WPL 534927 Contact Us For Availability
2
Hole Plug (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (Golden Harvest) WPL 989879 Contact Us For Availability
2
Front Roller (2) WPL 981128 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
3
Tap Plate WPL 988402 Contact Us For Availability
3
Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
Screw, (4) 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
5
Air Duct Freezer WPL 1108434 Contact Us For Availability
6
Mullion Rail WPL 1106999 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 945486 Contact Us For Availability
6
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
6
Diffuser Air Duct WPL 1118245 Contact Us For Availability
7
Support, Stud (16) WPL 946355 Contact Us For Availability
7
Heater, Mullion WPL 1106997 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Stud (5) WPL 946356 Contact Us For Availability
8
Front Mullion Rail (White) WPL 1108400 Contact Us For Availability
8
Front Mullion Rail (Golden Harvest) WPL 1108402 Contact Us For Availability
8
Front Mullion Rail (Almond) WPL 1108403 Contact Us For Availability
8
Front Mullion Rail (Toast) WPL 1108404 Contact Us For Availability
8
Front Mullion Rail (Platinum) WPL 1108405 Contact Us For Availability
9
Stud, Front (4) WPL 1115290 No Longer Available
9
Stud (5) WPL 1106982 Contact Us For Availability
9
Bracket, Door Stop WPL 988420 Contact Us For Availability
9
Filler Top Mullion (White) WPL 1114646 Contact Us For Availability
9
Filler Top Mullion (Almond) WPL 1114648 Contact Us For Availability
9
Filler Top Mullion (Golden Harvest) WPL 1114650 Contact Us For Availability
9
Filler Top Mullion (Toast) WPL 1114652 Contact Us For Availability
9
Filler Top Mullion (Platinum) WPL 1114654 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
10
Grommet (16) WPL 1110779 Contact Us For Availability
10
Shim WPL 988421 Contact Us For Availability
10
Filler Bottom Mullion (White) WPL 1114647 Contact Us For Availability
10
Filler Bottom Mullion (Almond) WPL 1114649 Contact Us For Availability
10
Filler Bottom Mullion (Golden Harvest) WPL 1114651 Contact Us For Availability
10
Filler Bottom Mullion (Toast) WPL 1114653 Contact Us For Availability
10
Filler Bottom Mullion (Platinum) WPL 1114655 Contact Us For Availability
10
Clip (2) WPL 1110706 Contact Us For Availability
10
Fan Grommet (3) WPL 548268 Contact Us For Availability
11
Screw, 8 x 5/8 WPL 488549 Contact Us For Availability
11
Screw (Repair) WPL 488930 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
11
Cam Assembly WPL 1110566 Contact Us For Availability
11
Fan, Bracket Double WPL 548263 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Shelf (2) WPL 1114608 Contact Us For Availability
12
Shim, Hinge Top WPL 1100513 Contact Us For Availability
12
Fan, Bracket Single WPL 548264 Contact Us For Availability
13
Trim Shelf WPL 1110782 Contact Us For Availability
13
Shim, Top Hinge WPL 1100509 Contact Us For Availability
13
Shelf Cantilever WPL 1114304 Contact Us For Availability
13
Screw Grommet WPL 538449 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
14
Shelf (3) WPL 1114609 Contact Us For Availability
14
Hole, Plug (Toast) WPL 1101314 Contact Us For Availability
14
Hole, Plug (Platinum) WPL 1101315 Contact Us For Availability
14
Hole, Plug (White) WPL 849391 Contact Us For Availability
14
Hole, Plug (Golden Harvest) WPL 989957 Contact Us For Availability
14
Hole Plug (Almond) WPL 989958 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Trim, Shelf (3) WPL 1114302 Contact Us For Availability
14
Fan Motor, Harness WPL 1110749 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Freezer Bin WPL 1114617 Contact Us For Availability
15
Hole Plug (White) WPL 1115352 Contact Us For Availability
15
Hole Plug (Golden Harvest) WPL 1115353 Contact Us For Availability
15
Hole Plug (Almond) WPL 1115354 Contact Us For Availability
15
Hole Plug (Toast) WPL 1115355 Contact Us For Availability
15
Hole Plug (Platinum) WPL 1115356 Contact Us For Availability
15
Tube, Inlet Valve WPL 627854 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 986763 Contact Us For Availability
16
Trim, Cover WPL 1110795 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
17
Socket Assembly WPL 1108630 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Glass, Shelf WPL 1110794 Contact Us For Availability
17
Cover, Evaporator WPL 1108435 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
18
Lens, Light WPL 1108445 Contact Us For Availability
18
Screw, 10-32 x 5/8 WPL 489075 Contact Us For Availability
18
Heat Shield WPL 1110689 Contact Us For Availability
19
Terminal Block WPL 942842 Contact Us For Availability
19
Handle WPL 987009 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 986764 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1110675 Contact Us For Availability
20
Cover, Wiring WPL 1114615 Contact Us For Availability
20
Insert, Handle WPL 1108722 Contact Us For Availability
20
Insert, Handle (Black) (For Platinum Model On WPL 1111550 Contact Us For Availability
20
Spacer, Hinge WPL 1105474 Contact Us For Availability
20
Control Box Harness WPL 1115200 Contact Us For Availability
20
Meat Pan WPL 1114619 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
21
Insert Retainer (Top) WPL 987008 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Golde WPL 1110710 Contact Us For Availability
21
WPL 1110711 WPL 1110711 Contact Us For Availability
21
WPL 1110712 WPL 1110712 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
22
Fitting, Drain WPL 942768 Contact Us For Availability
22
Insert Retainer (Bottom) WPL 987010 Contact Us For Availability
22
WPL 1106806 WPL 1106806 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Bracket Retainer WPL 1110705 Contact Us For Availability
23
Slide, Freezer Bin (2) WPL 982321 Contact Us For Availability
23
End Cap (2) WPL 987006 Contact Us For Availability
23
WPL 488949 WPL 488949 Contact Us For Availability
23
Connecting Rod WPL 1115246 Contact Us For Availability
24
Screw (4) WPL 487979 Contact Us For Availability
24
Fastener, Push-On WPL 489187 Contact Us For Availability
25
WPL 489173 WPL 489173 Contact Us For Availability
25
Escutcheon, Control WPL 1110707 Contact Us For Availability
26
WPL 546131 WPL 546131 Contact Us For Availability
26
Cover, Conduit WPL 1114658 Contact Us For Availability
27
WPL 989068 WPL 989068 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Cover, Wiring WPL 1114659 Contact Us For Availability
28
Screw, 10-32 x 43/64 WPL 489163 Contact Us For Availability
29
Retainer, Door Trim WPL 1110713 Contact Us For Availability
30
Guard, Fan WPL 1105614 Contact Us For Availability
31
Evaporator WPL 1106987 Contact Us For Availability
31
WPL 836162 WPL 836162 Contact Us For Availability
31
Glass, Shelf WPL 1114307 Contact Us For Availability
32
Clamp WPL 513584 Contact Us For Availability
32
WPL 1110750 WPL 1110750 Contact Us For Availability
32
Reflector WPL 1114306 Contact Us For Availability
33
Shield, Heat WPL 627751 Contact Us For Availability
34
Heater, Defrost WPL 1106969 Contact Us For Availability
34
WPL 937357 WPL 937357 Contact Us For Availability
34
Light Lens WPL 1114624 Contact Us For Availability
35
Interior, Door Panel WPL 1108462 Contact Us For Availability
36
WPL 1108442 WPL 1108442 Contact Us For Availability
36
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
37
Blade, Fan WPL 989524 Contact Us For Availability
37
Trim, Door Shelf WPL 1110720 Contact Us For Availability
37
WPL 1108440 WPL 1108440 Contact Us For Availability
38
WPL 876029 WPL 876029 Contact Us For Availability
38
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
38
WPL 799344 WPL 799344 Contact Us For Availability
38
WPL 1108441 WPL 1108441 Contact Us For Availability
38
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
38
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
38
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
38
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
38
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
38
WPL 72112 WPL 72112 Contact Us For Availability
38
WPL 799340 WPL 799340 Contact Us For Availability
38
WPL 799832 WPL 799832 Contact Us For Availability
38
WPL 799833 WPL 799833 Contact Us For Availability
38
WPL 799908 WPL 799908 Contact Us For Availability
38
WPL 978883 WPL 978883 Contact Us For Availability
39
Receptacle, Housing WPL 943647 Contact Us For Availability
39
WPL 1105607 WPL 1105607 Contact Us For Availability
40
WPL 937360 WPL 937360 Contact Us For Availability
41
WPL 842258 WPL 842258 Contact Us For Availability
44
WPL 488978 WPL 488978 Contact Us For Availability
45
Rail, Front WPL 1105525 Contact Us For Availability
45
WPL 1108443 WPL 1108443 Contact Us For Availability
46
WPL 1115321 WPL 1115321 Contact Us For Availability
47
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
47
WPL 1105617 WPL 1105617 Contact Us For Availability
48
Bracket, Fan Motor WPL 548695 Contact Us For Availability
49
Baffle, Air WPL 1105530 Contact Us For Availability
49
WPL 1100172 WPL 1100172 Contact Us For Availability
49
WPL 989896 WPL 989896 Contact Us For Availability
50
WPL 836372 WPL 836372 Contact Us For Availability
51
WPL 1118236 WPL 1118236 Contact Us For Availability
52
Overload WPL 483054 Contact Us For Availability
53
Cover, Terminal WPL 1105015 Contact Us For Availability
53
WPL 548745 WPL 548745 Contact Us For Availability
54
Terminal Strap WPL 938384 Contact Us For Availability
55
Capacitor WPL 482996 Contact Us For Availability
57
Nut WPL 489142 Contact Us For Availability
59
Washer WPL 489143 Contact Us For Availability
61
Overload Spring WPL 1114190 Contact Us For Availability
68
Tray, Evaporator WPL 1105524 Contact Us For Availability
81
Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability
83
Clamp, Drier WPL 548508 Contact Us For Availability
96
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
96
Clamp (4) WPL 1108431 Contact Us For Availability
96
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
