Model Whirlpool ED22PKXBN10 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
09 - CONTROL, LIT/OPTIONAL

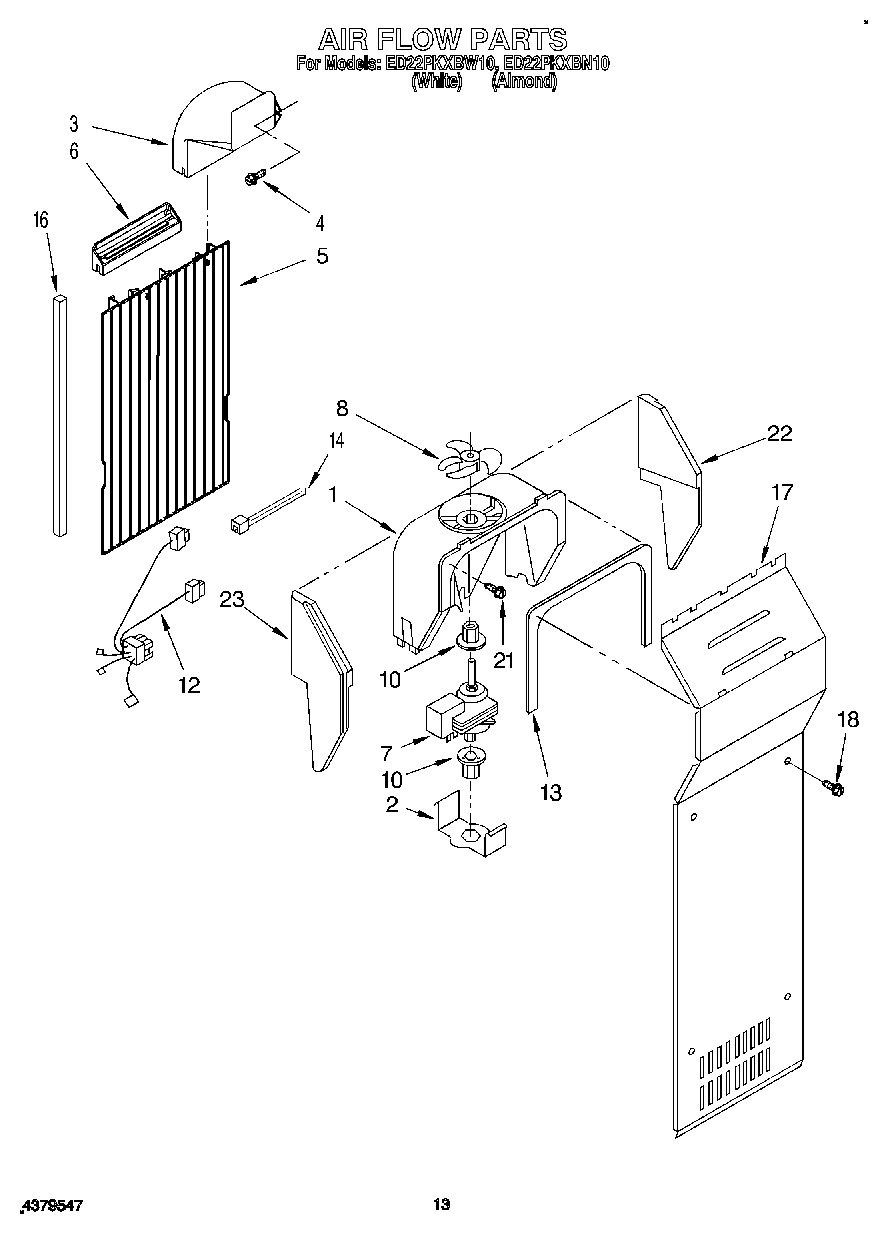

08 - AIR FLOW

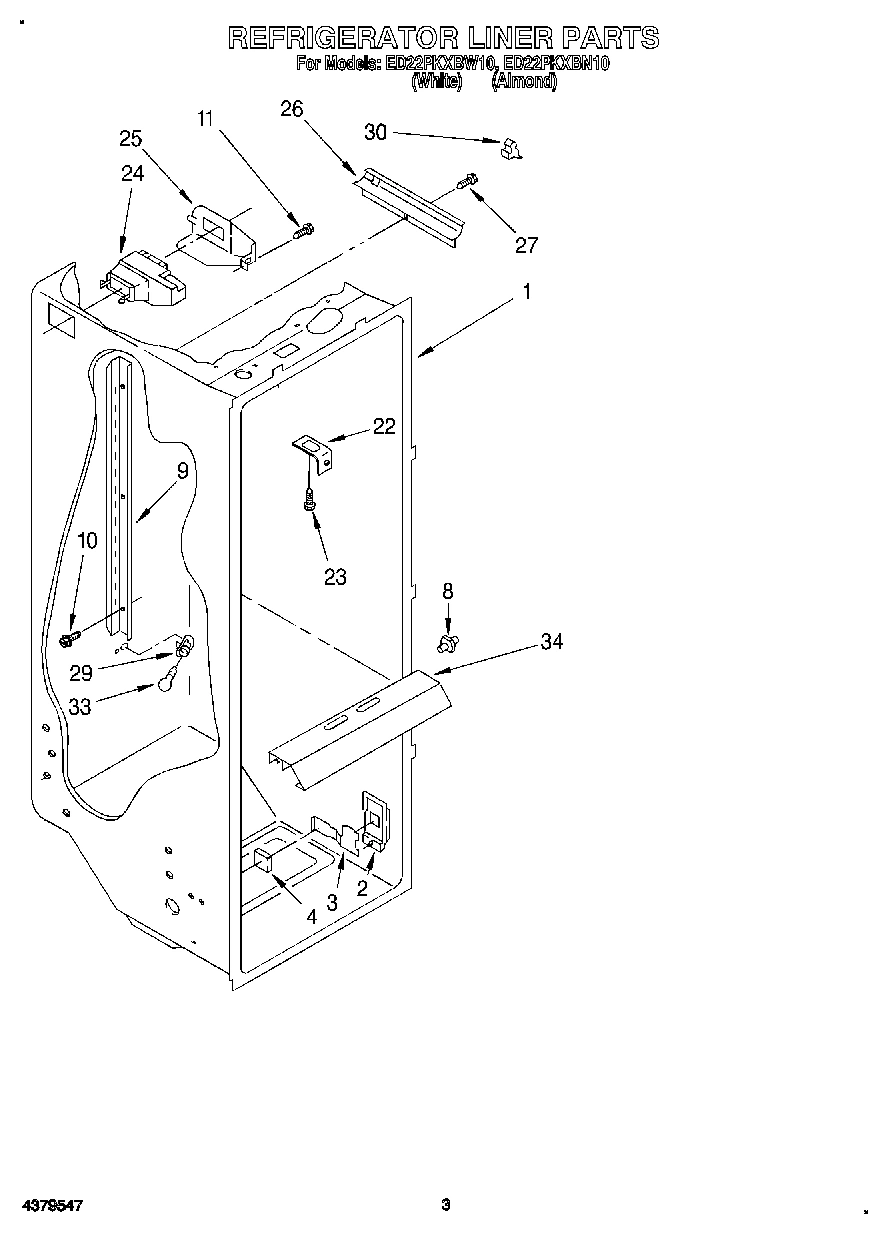

02 - REFRIGERATOR LINER

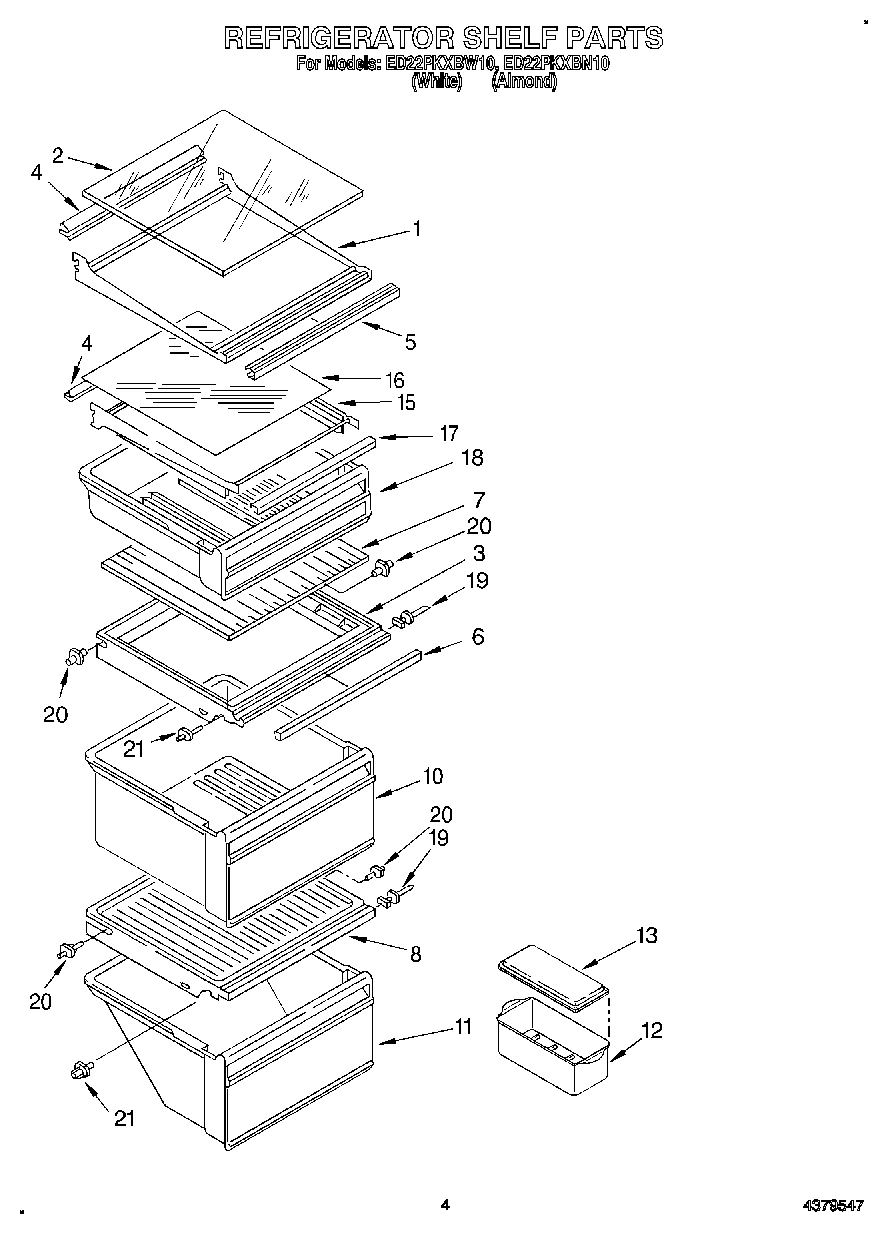

03 - REFRIGERATOR SHELF

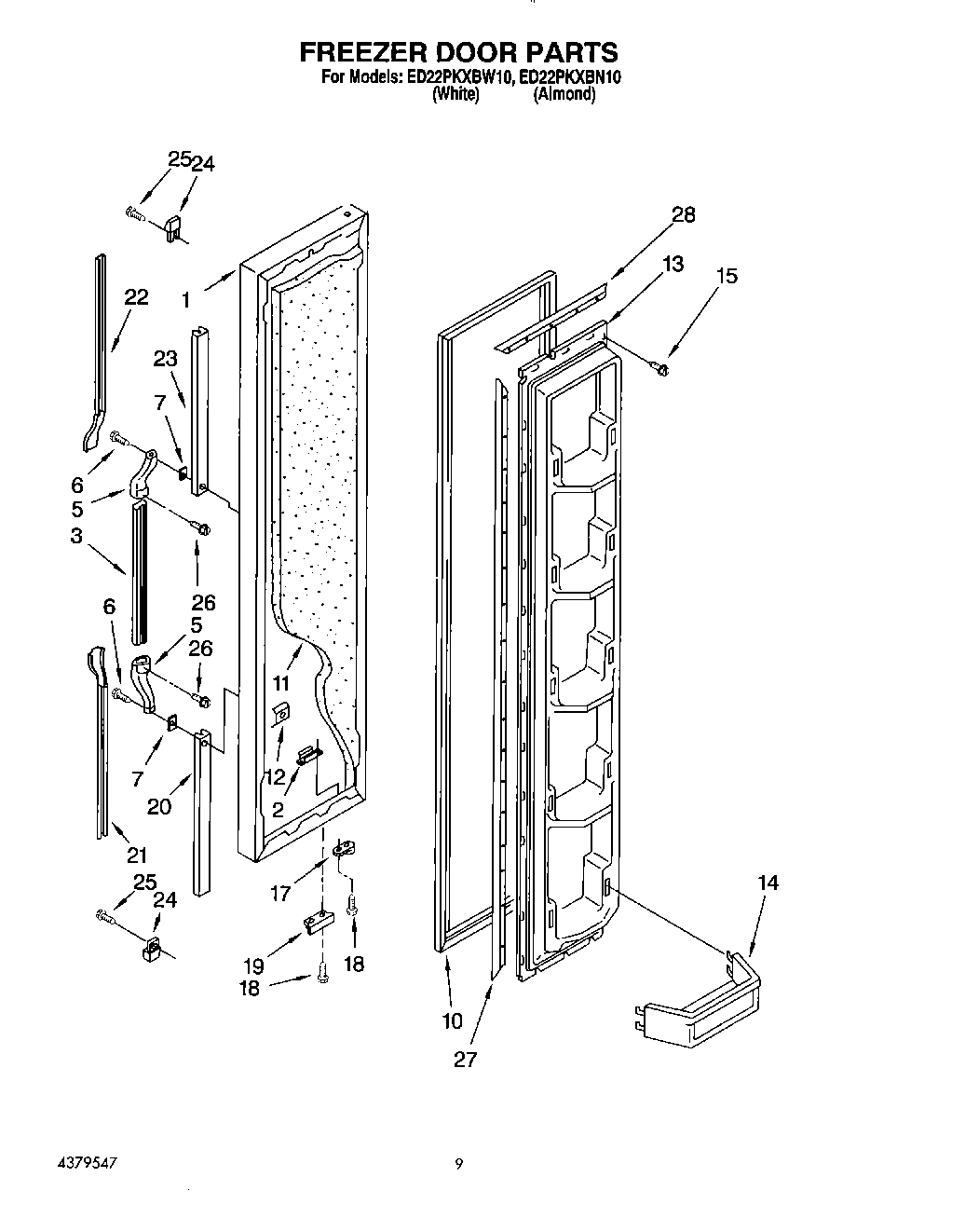

06 - FREEZER DOOR

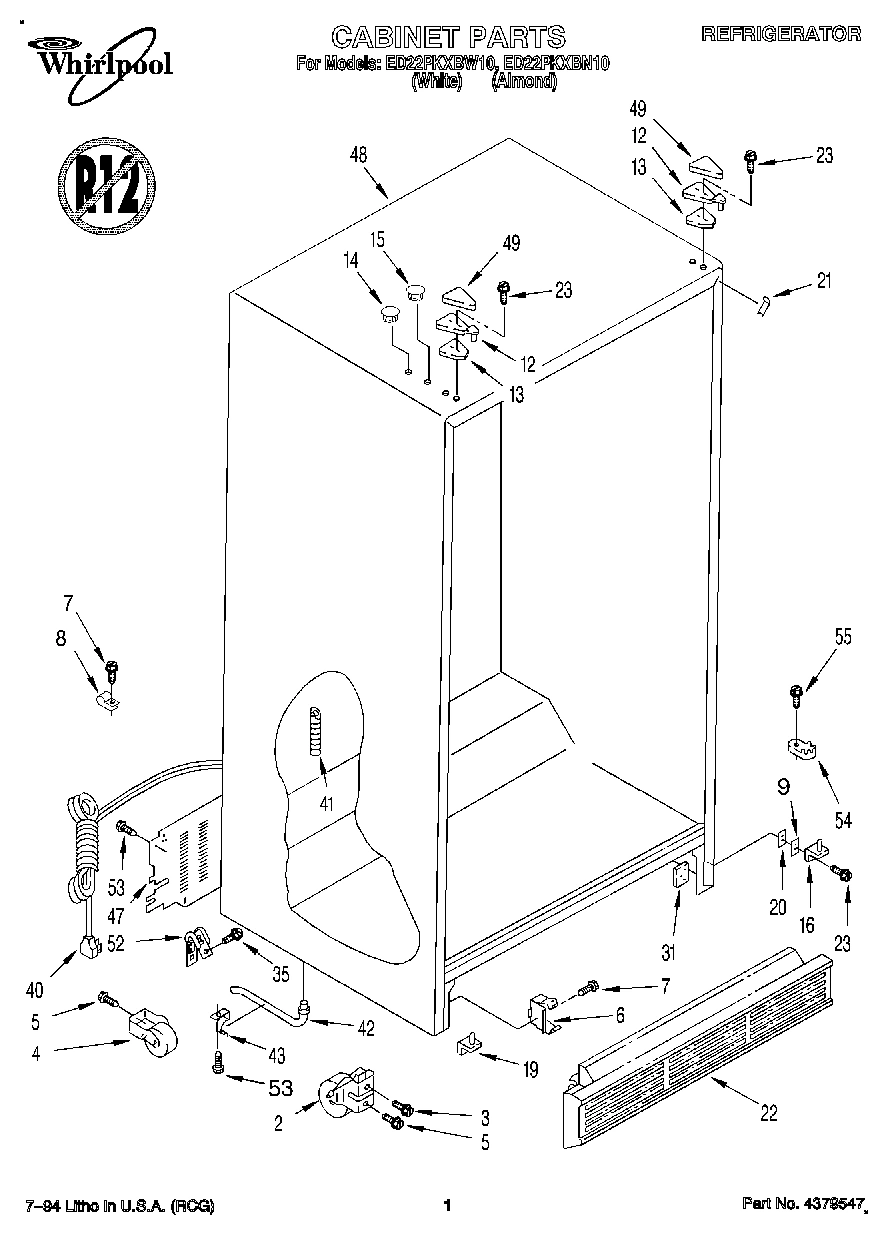

01 - CABINET

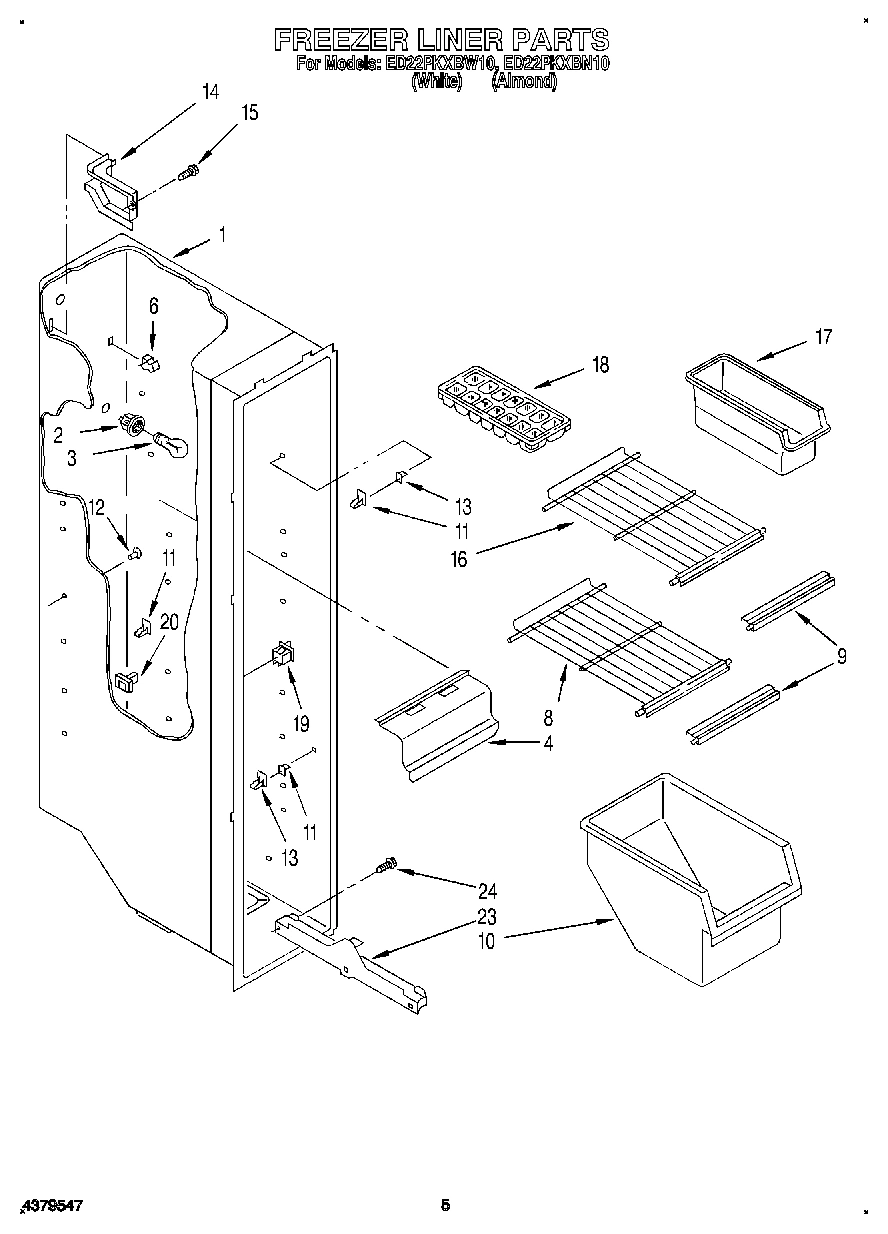

04 - FREEZER LINER

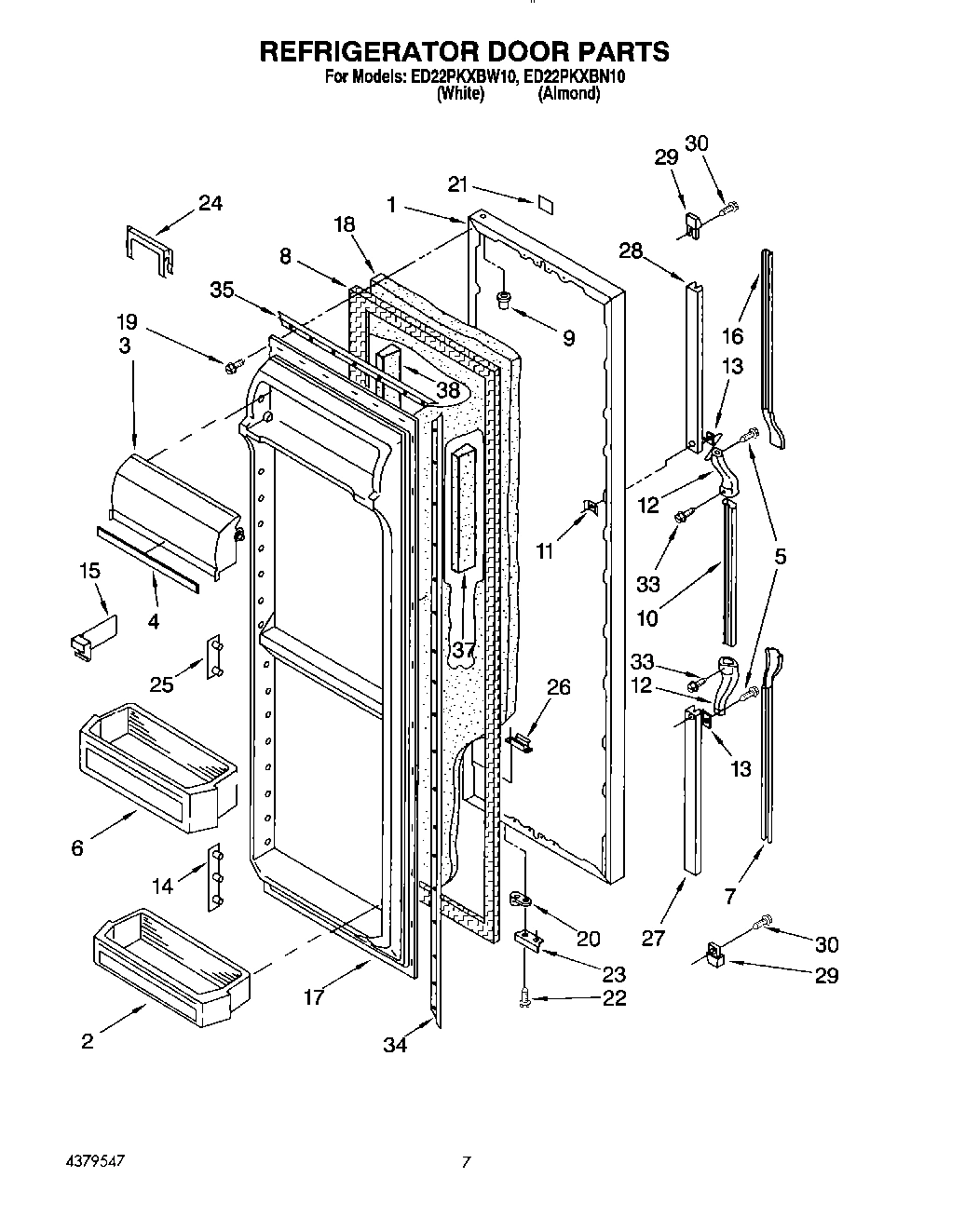

05 - REFRIGERATOR DOOR

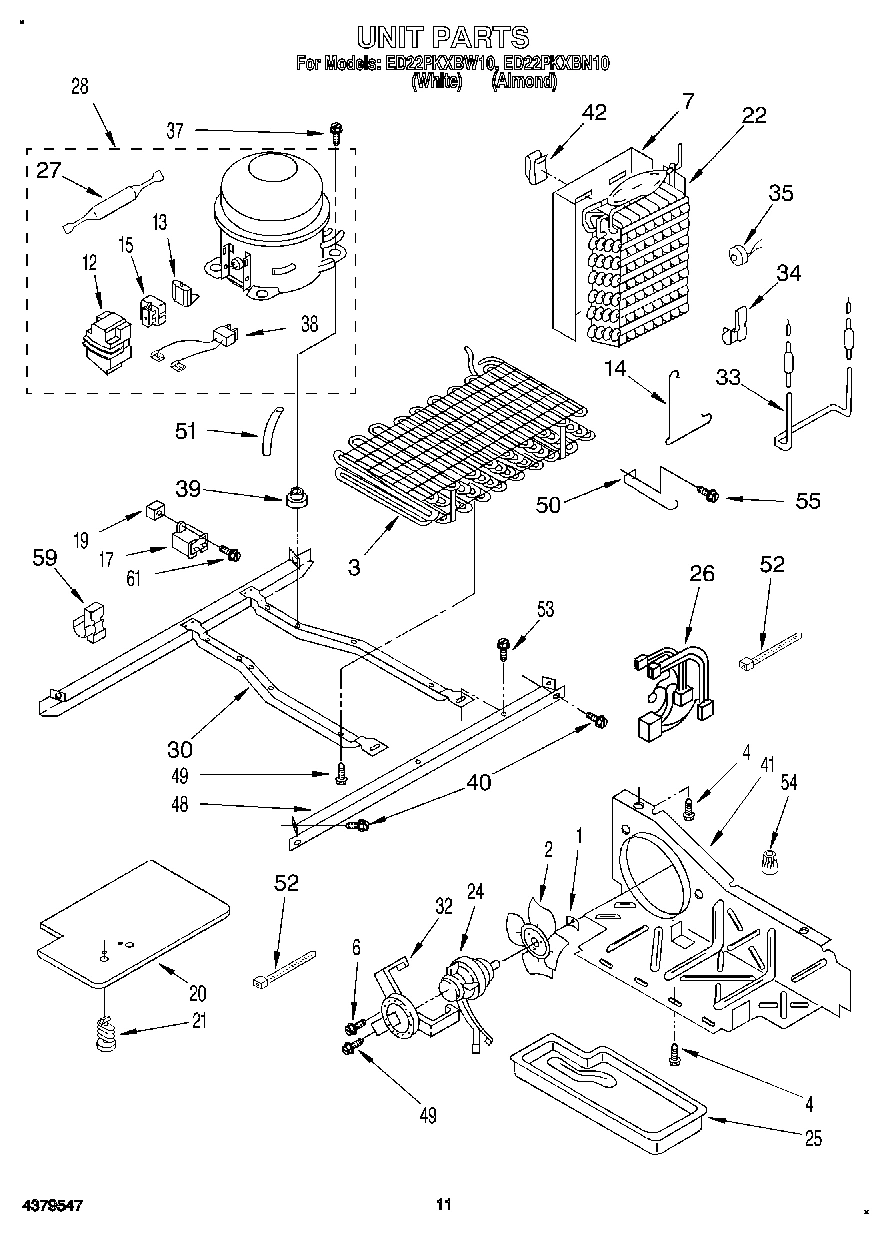

07 - UNIT
Common parts from model Whirlpool ED22PKXBN10 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI145547A Contact Us For Availability
1
Shelf, Cantilever (3) WPL 1118413 Contact Us For Availability
1
Freezer Door Panel (Also Order Item No.11) (W WPL 4362049 Contact Us For Availability
1
Freezer Door Panel (Also Order Item No.11) (A WPL 4362050 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI145548A Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item No.1 WPL 4362040 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item No.1 WPL 4362041 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Glass, Shelf WPL 2148237 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Shelf Bin (2) WPL 2170613 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Door, Compartment WPL 2170966 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Reflector, Shelf WPL 2170621 Contact Us For Availability
4
Trim, Compartment Door WPL 2162896 Contact Us For Availability
5
Trim, Shelf WPL 2170597 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
6
Trim, Crisper Cover WPL 2170835 Contact Us For Availability
6
Shelf Bin (2) WPL 2170614 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Insert, Handle (White) WPL 1119361 Contact Us For Availability
7
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
8
Shelf (Long) WPL 1114609 Contact Us For Availability
8
Shelf (Short) WPL 1118165 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Trim, Shelf WPL 2162938 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
10
Handle, Center WPL 1118417 Contact Us For Availability
10
Bin, Freezer WPL 2148194 Contact Us For Availability
11
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
11
Meat Pan WPL 2170961 Contact Us For Availability
11
Screw Anchor (2) WPL 941242 Contact Us For Availability
11
support stud (8) WPL 946355 Contact Us For Availability
12
End Cap, Center Handle WPL 1119359 Contact Us For Availability
12
Grommet (8) WPL 1110779 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Cover WPL 2170969 Contact Us For Availability
13
Shim WPL 935075 Contact Us For Availability
13
Panel, Interior Door WPL 1129244 Contact Us For Availability
13
Stud-Front (3) R.S. WPL 946356 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Trim, Door Shelf (4) WPL 2170705 Contact Us For Availability
14
Hole, Plug (White) WPL 849391 Contact Us For Availability
14
Hole Plug (Almond) WPL 989958 Contact Us For Availability
14
Cover, Wiring WPL 2155401 Contact Us For Availability
14
Pin Plate WPL 1116986 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Pan Shelf & Slide WPL 2148122 Contact Us For Availability
15
Hole Plug (White) WPL 1115352 Contact Us For Availability
15
Hole Plug (Almond) WPL 1115354 Contact Us For Availability
15
Divider, Bin WPL 2152335 Contact Us For Availability
15
Relay (See Overload) WPL ARI145549A Contact Us For Availability
16
Glass WPL 2148300 Contact Us For Availability
16
Insert, Handle (White) WPL 1119367 Contact Us For Availability
16
Insert, Handle (Almond) WPL 1119369 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2155320 Contact Us For Availability
16
Shelf WPL 1114608 Contact Us For Availability
17
Trim, Front WPL 2170594 Contact Us For Availability
17
Panel, Interior Door WPL 1129278 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
18
Snack Bin WPL 2170964 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2155322 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Stud-Rear (3) R.S. WPL 1106982 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Nameplate WPL 2162781 Contact Us For Availability
22
Grille WPL 2155476 Contact Us For Availability
23
Bracket, Door Stop WPL 2155334 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Retainer, Bottle WPL 2163566 Contact Us For Availability
25
Pin Plate WPL 1118048 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Tap, Plate WPL 2155335 Contact Us For Availability
26
Harness, Intermediate WPL 2153994 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
28
Retainer, Insert WPL 1119366 Contact Us For Availability
28
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
End Cap (2) WPL 2156220 Contact Us For Availability
30
Screw WPL 489075 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Bracket, Fan Motor WPL 2162062 Contact Us For Availability
33
Heater, Defrost WPL 2161322 Contact Us For Availability
33
Screw WPL 489022 Contact Us For Availability
34
Light Lens WPL 1114624 Contact Us For Availability
34
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
35
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
37
Reinforcement, Shelf WPL 1115379 Contact Us For Availability
38
Reinforcement, Shelf WPL 1119055 Contact Us For Availability
38
woodgrain handle insert WPL 4210445 Contact Us For Availability
38
Trimless Black Decor Panel WPL 4318948 Contact Us For Availability
38
Black Handle Insert WPL 4319080 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI145546A Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
61
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
61
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
