Model Whirlpool ED22GWXXN01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

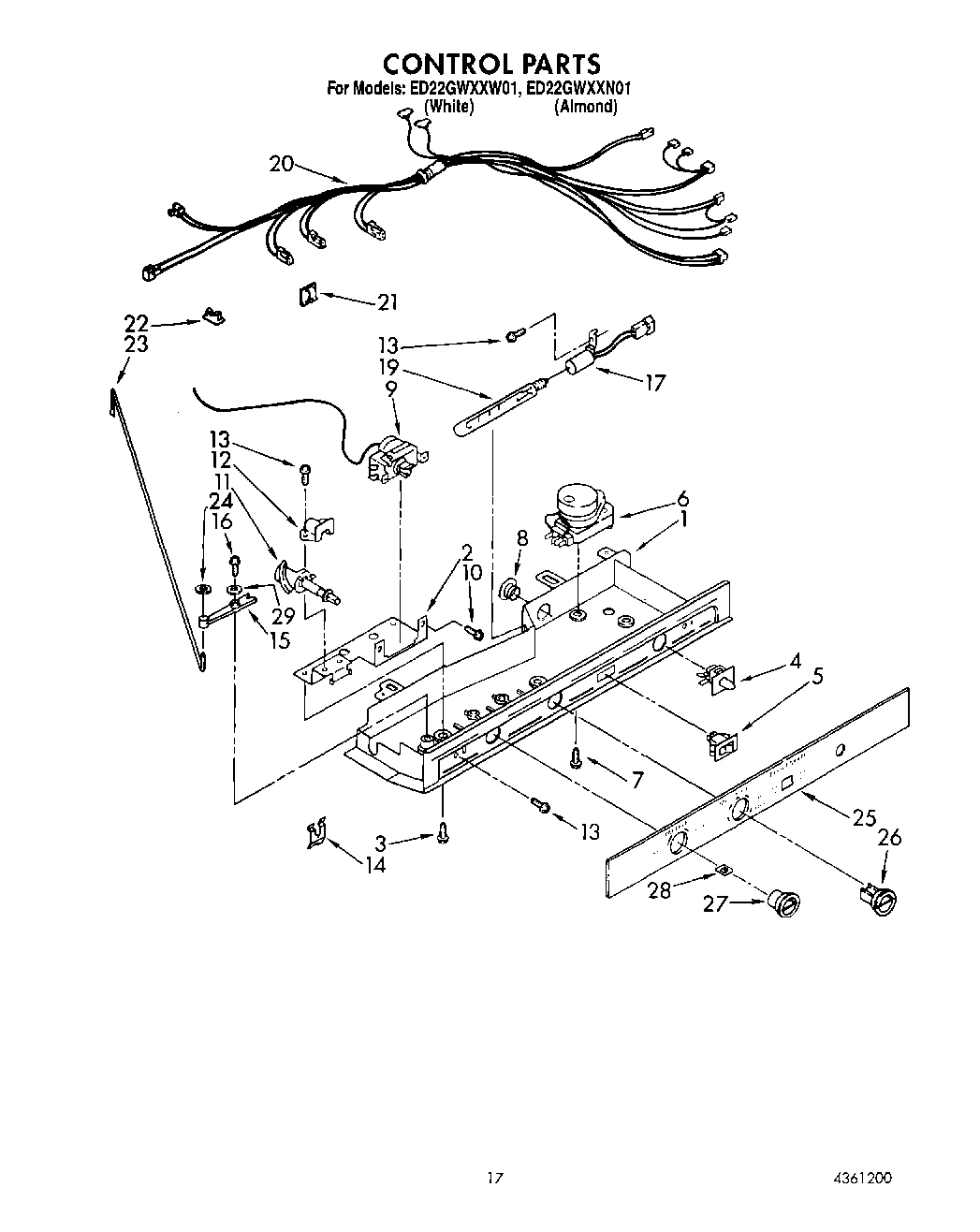

12 - CONTROL

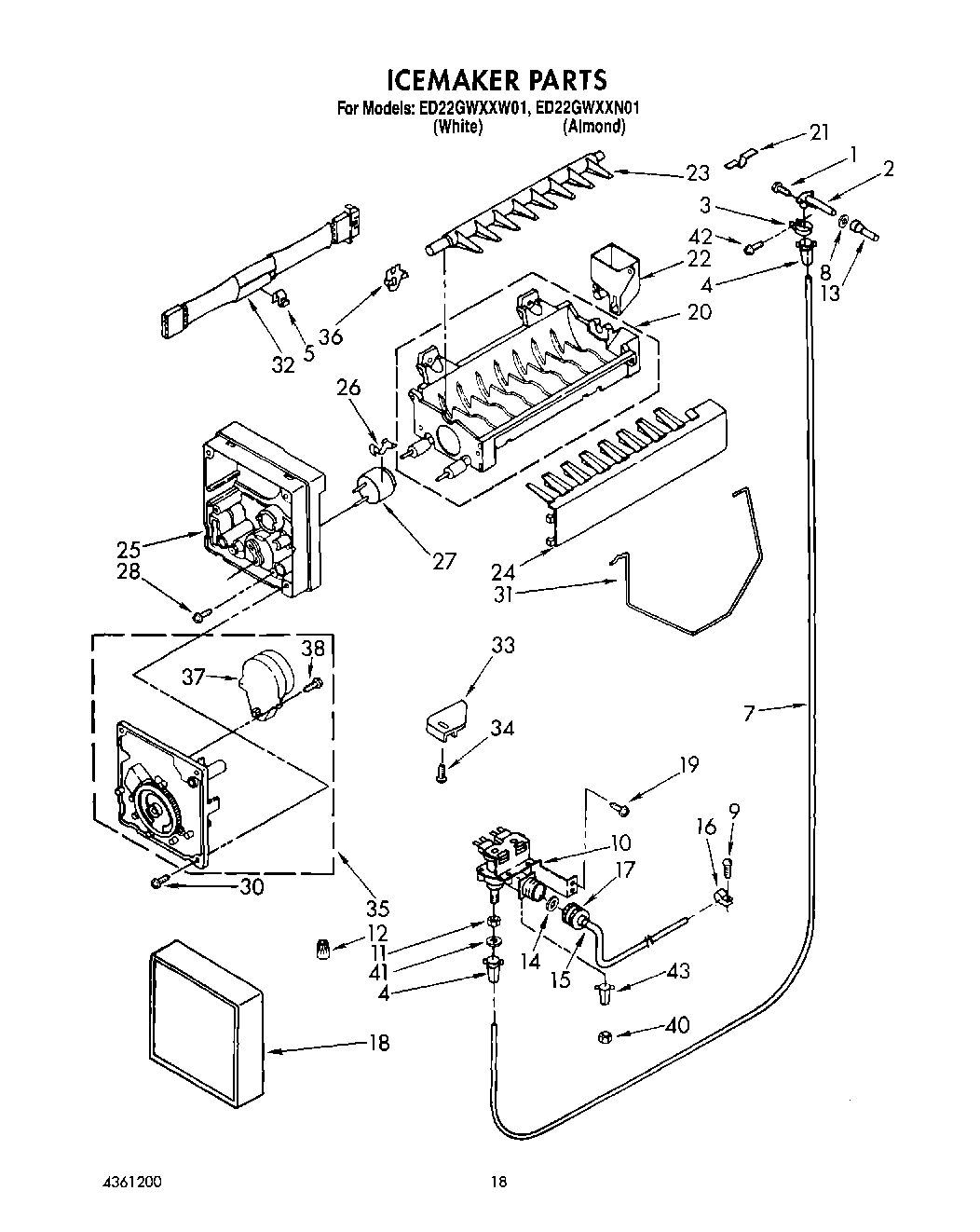

13 - ICEMAKER, LIT/OPTIONAL

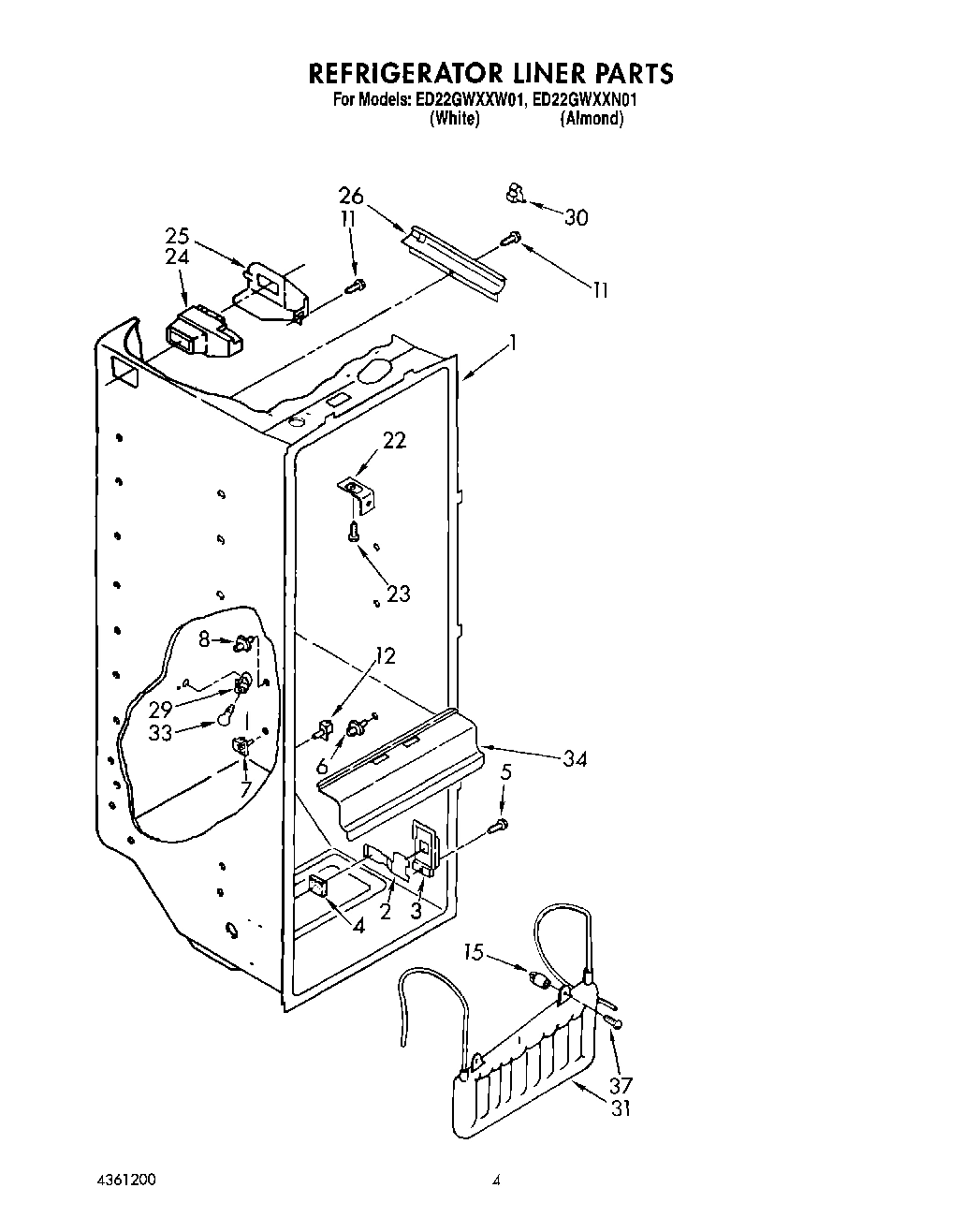

03 - REFRIGERATOR LINER

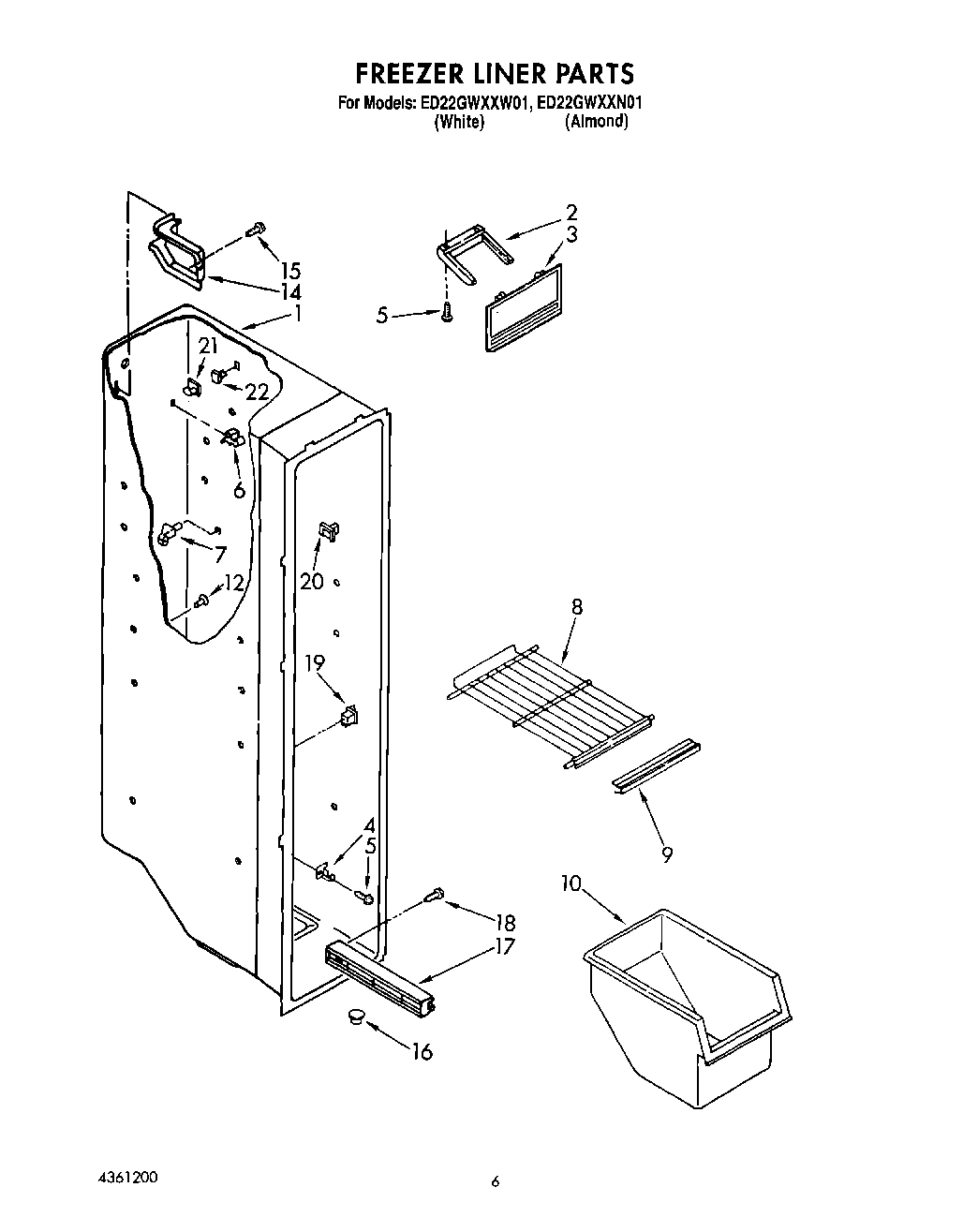

05 - FREEZER LINER

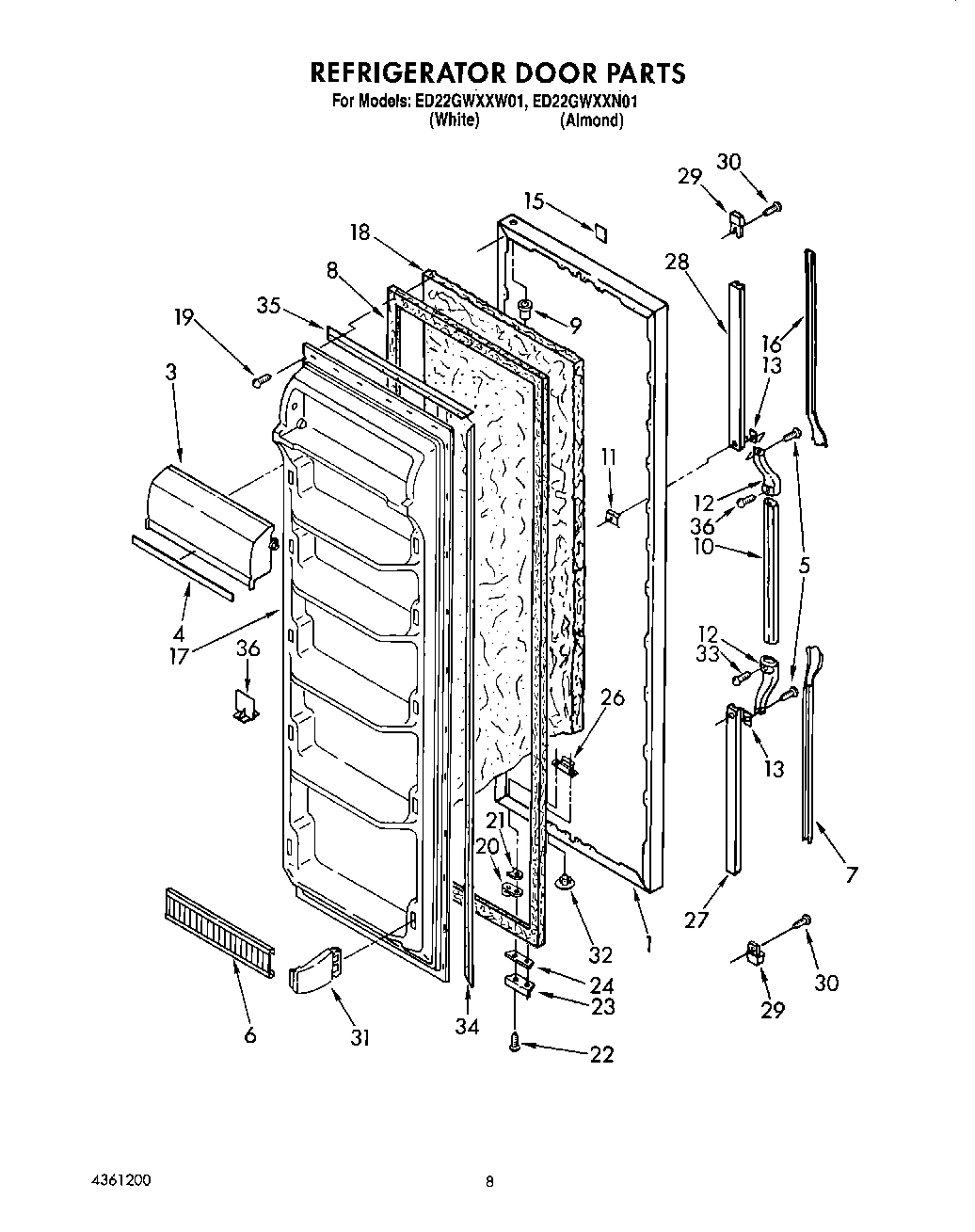

07 - REFRIGERATOR DOOR

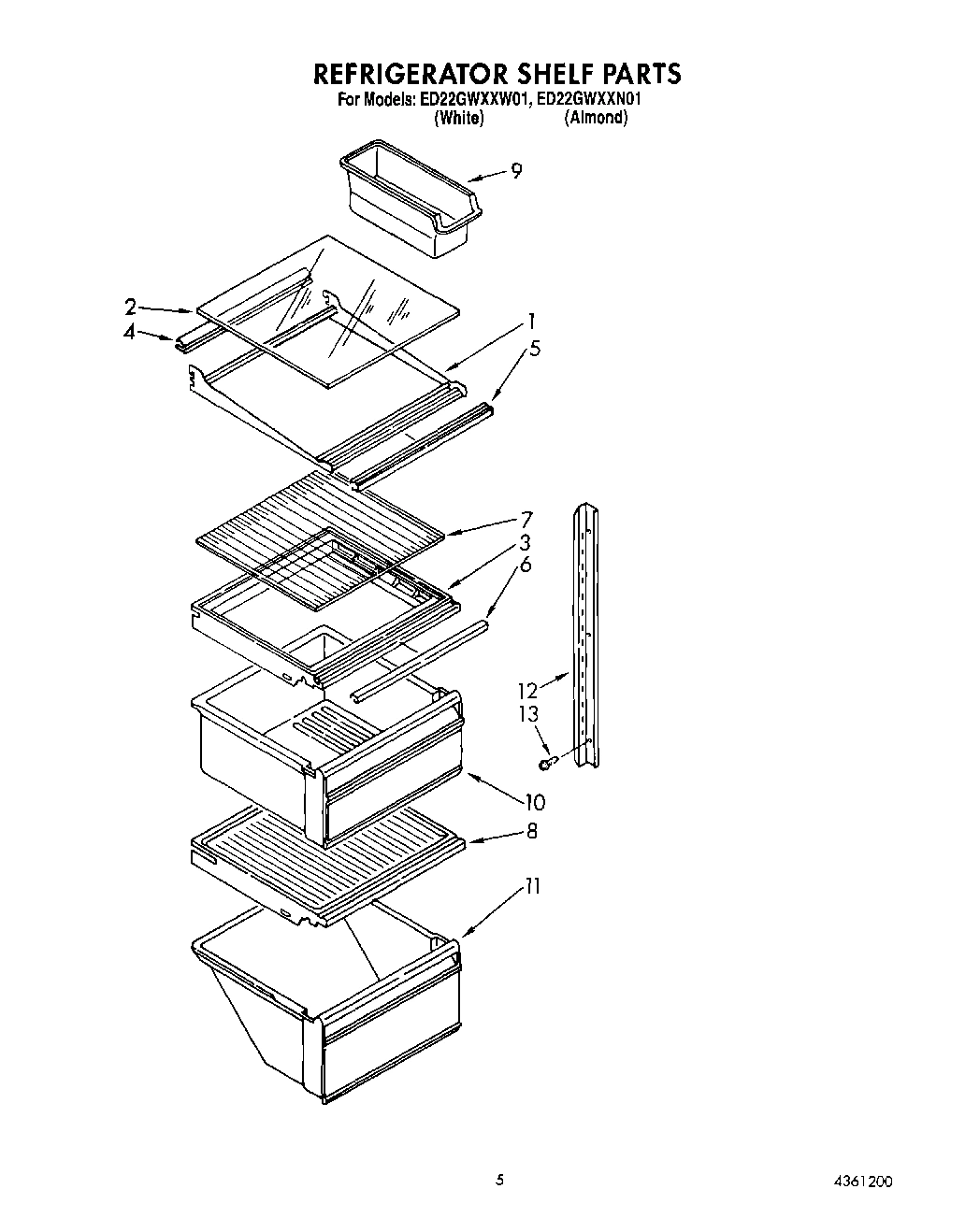

04 - REFRIGERATOR SHELF

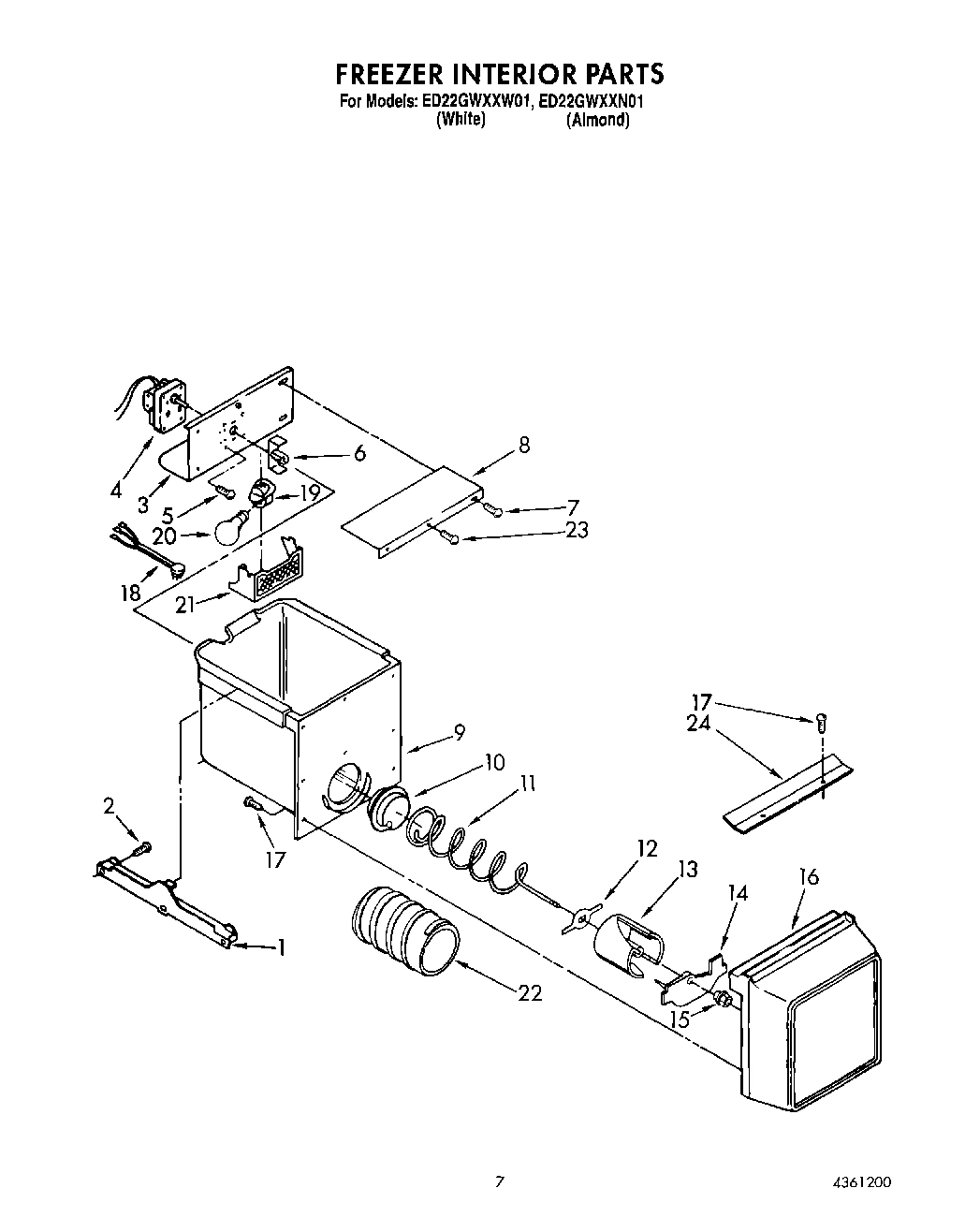

06 - FREEZER INTERIOR

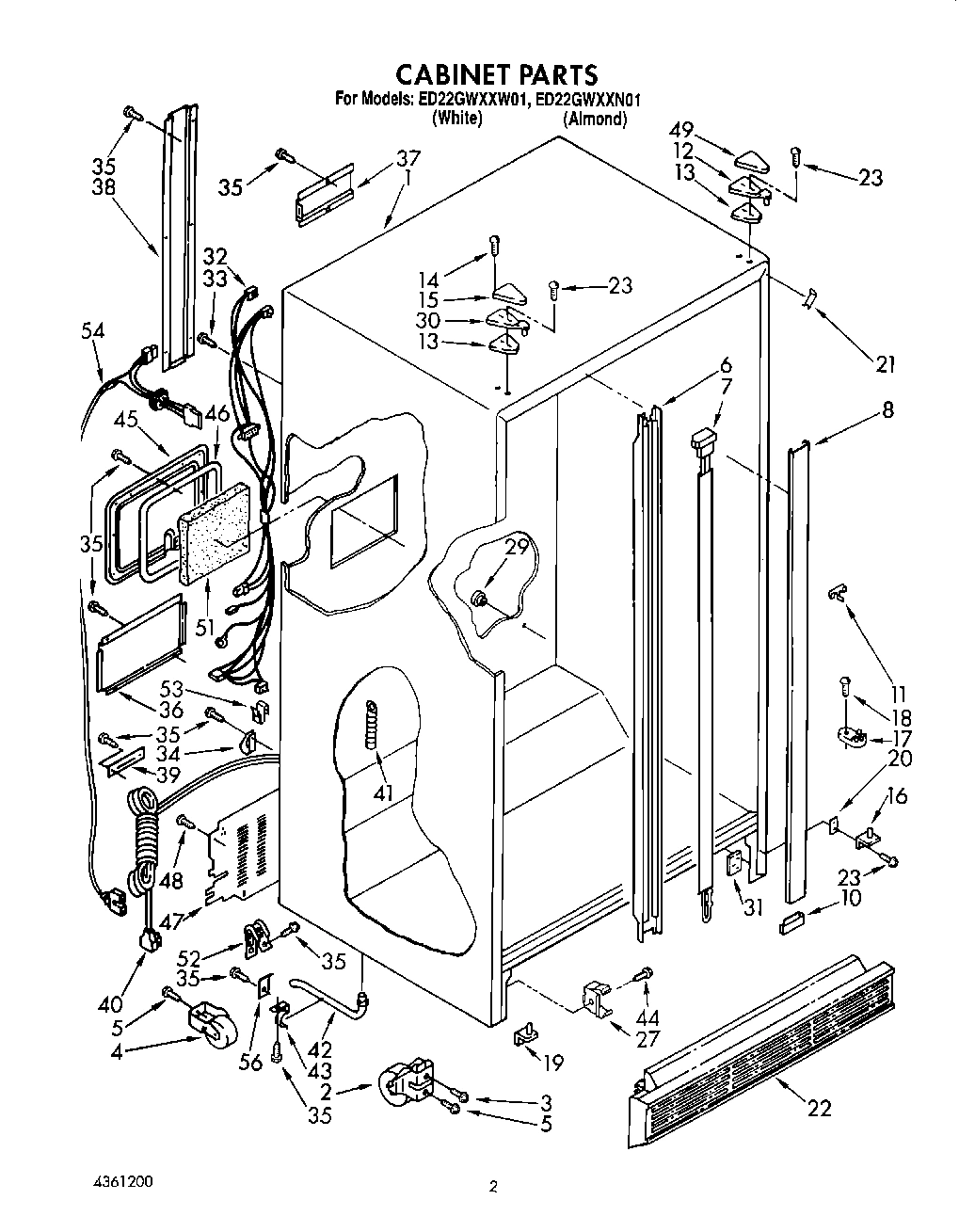

02 - CABINET

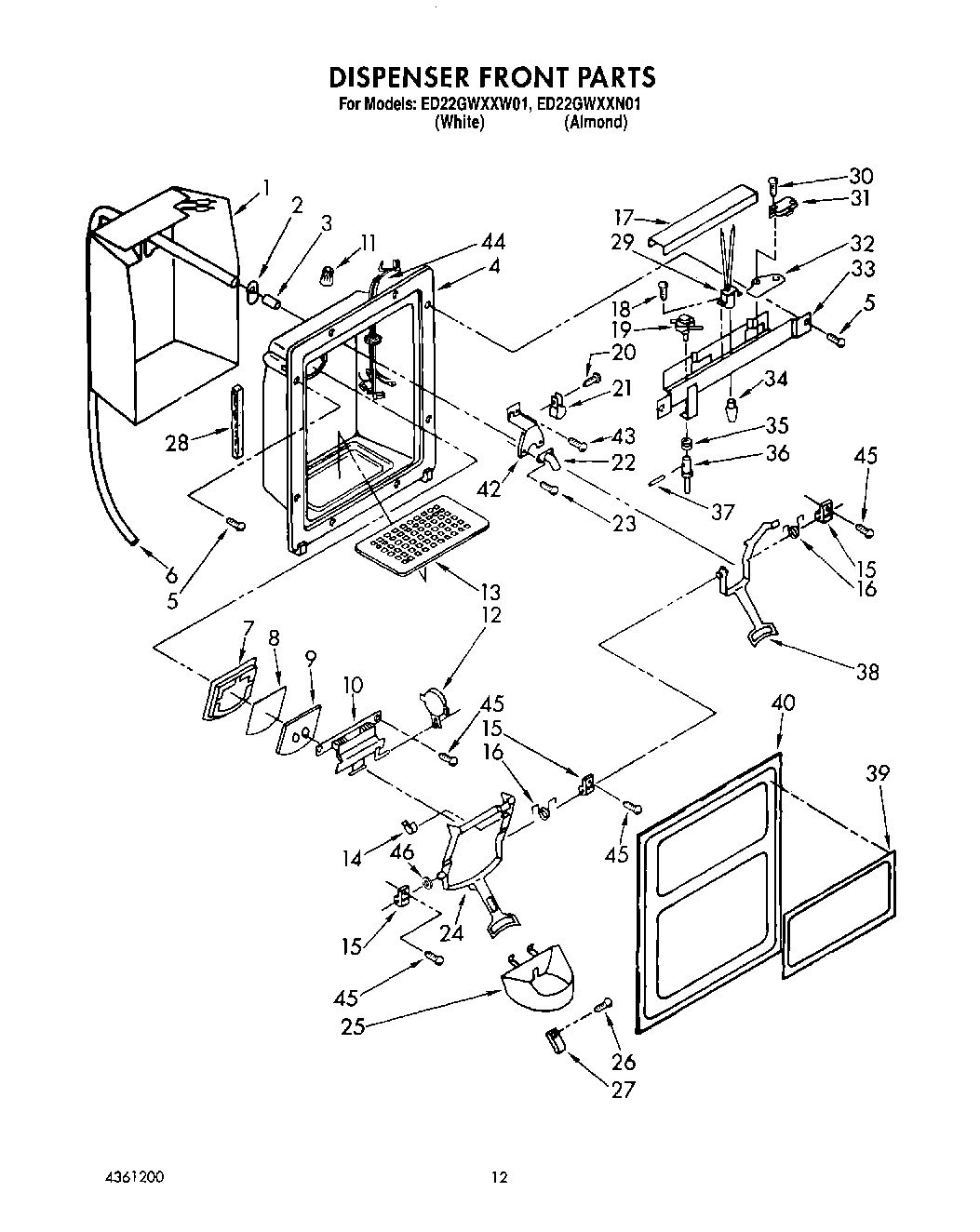

09 - DISPENSER FRONT

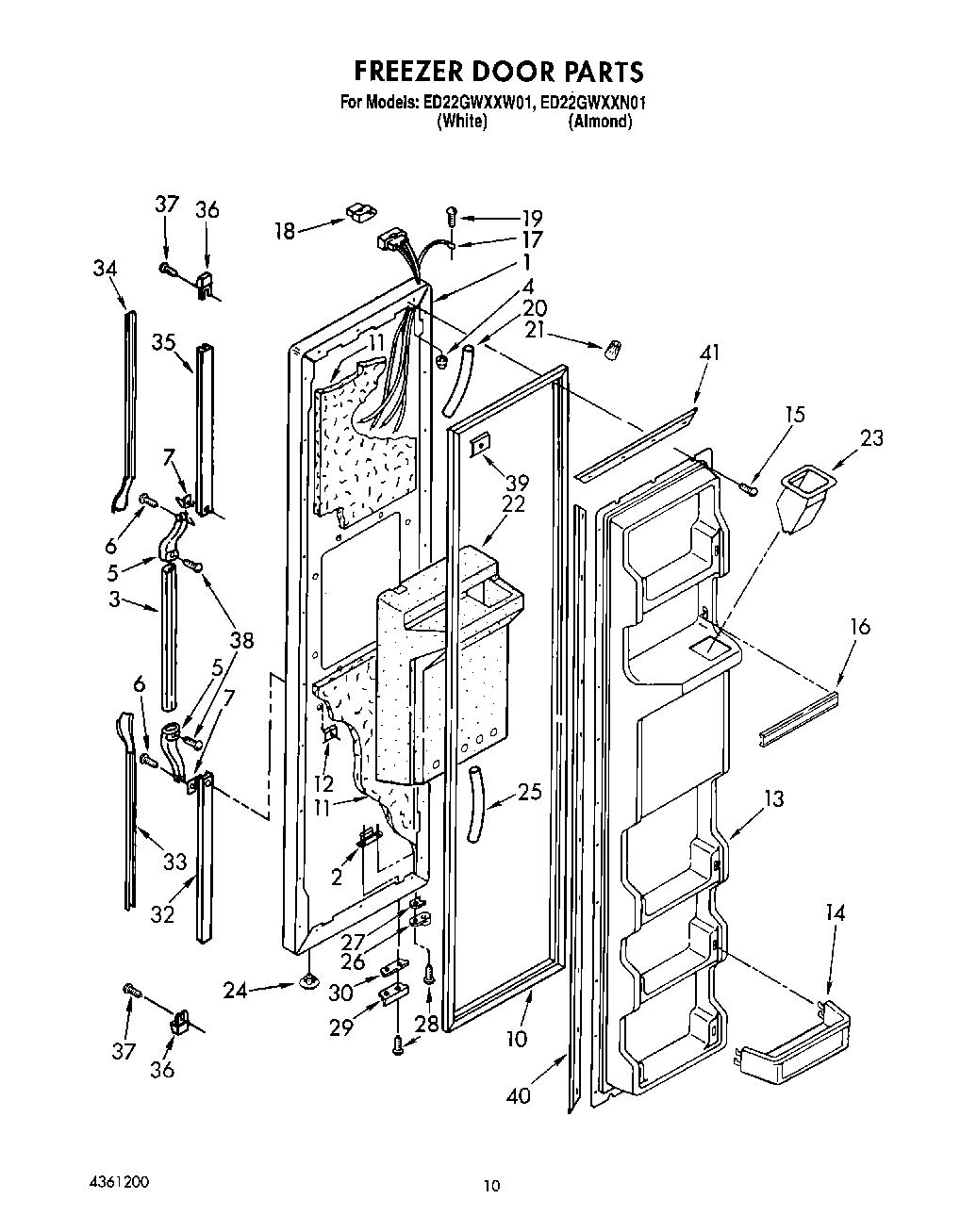

08 - FREEZER DOOR

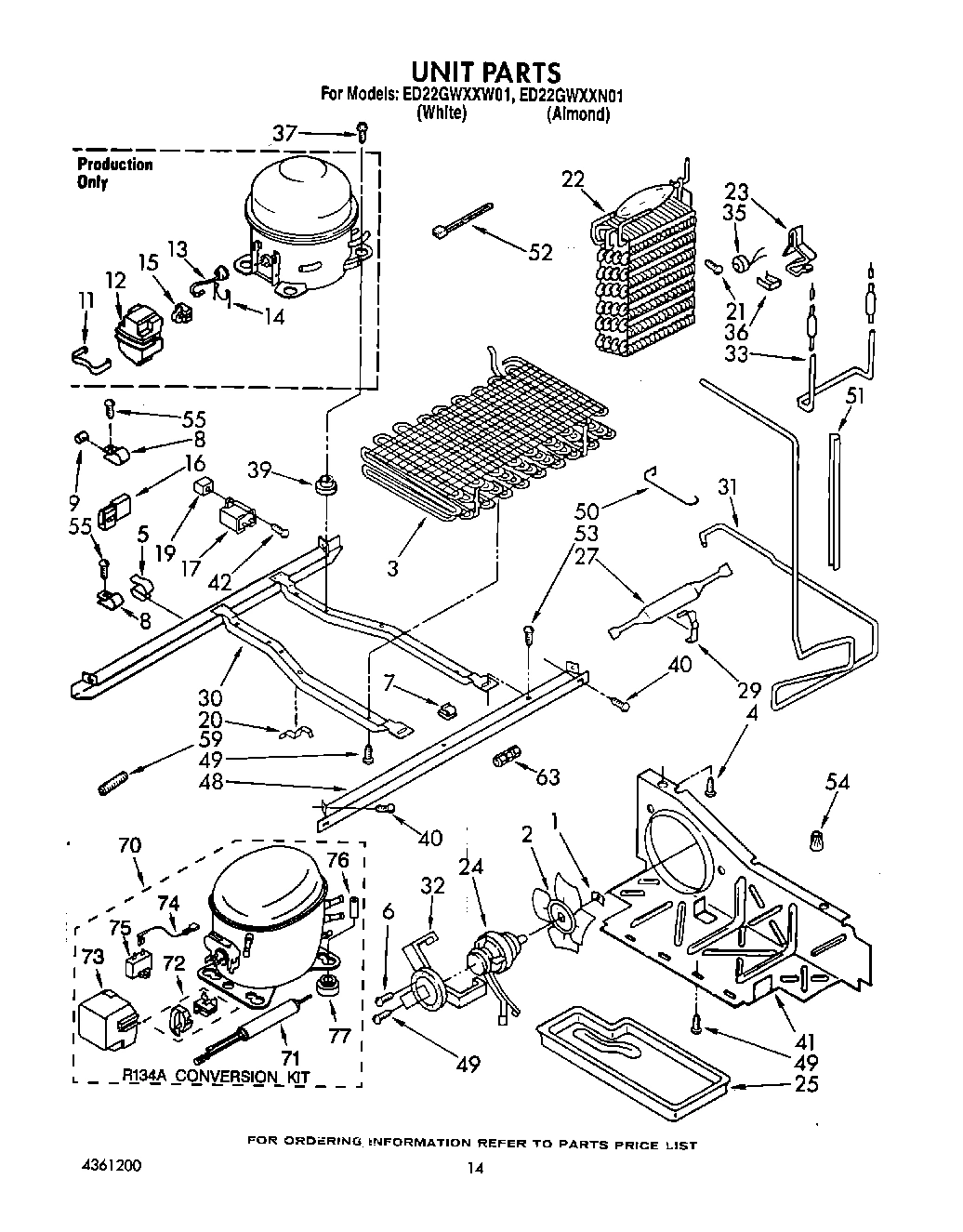

10 - UNIT

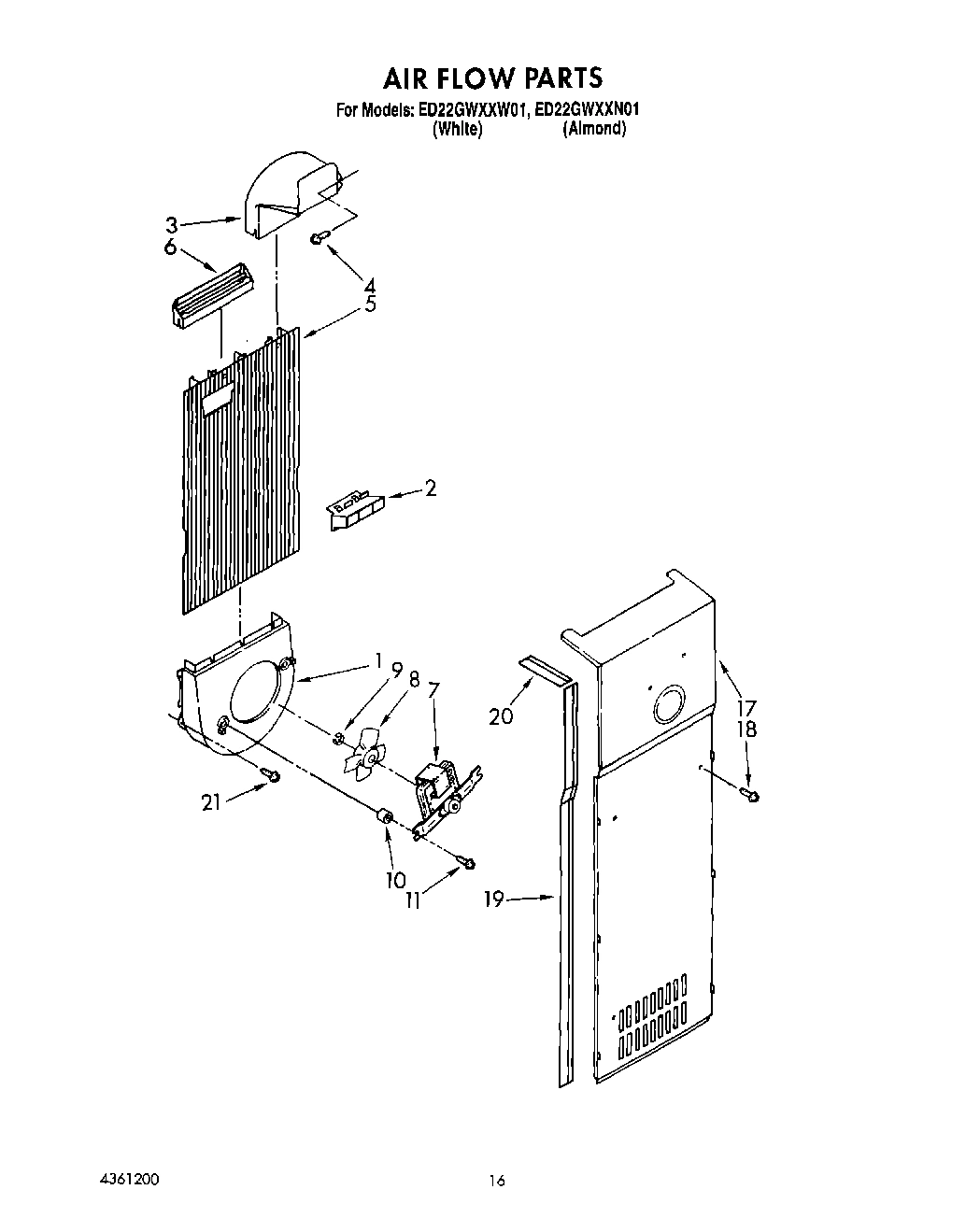

11 - AIR FLOW
Common parts from model Whirlpool ED22GWXXN01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI145464A Contact Us For Availability
1
refrigerator door (white) WPL 1115273 Contact Us For Availability
1
Refrigerator Door (Almond (Also Order Item 18 WPL 1115276 Contact Us For Availability
1
Shelf, Cantilever (3) WPL 1118413 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI145462A Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 1115235 Contact Us For Availability
1
freezer, door panel (almond (also order item WPL 1115238 Contact Us For Availability
1
Fan Scroll WPL 1127163 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Glass, Shelf WPL 2148237 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Ice Compartment WPL 2148696 Contact Us For Availability
3
Door, Compartment WPL 2148218 Contact Us For Availability
3
Handle, Center WPL 1118417 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability
3
Condenser Assembly WPL 1105640 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
4
Trim, Compartment Door WPL 1110717 Contact Us For Availability
4
Reflector, Shelf WPL 1114306 Contact Us For Availability
4
Motor WPL 851152 Contact Us For Availability
4
Housing, Dispenser WPL 1107943 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
5
Trim, Shelf WPL 1114302 Contact Us For Availability
5
Screw (4) WPL 488454 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
Air Duct Freezer WPL 2157548 Contact Us For Availability
6
Trim, Door Shelf (5) WPL 2148197 Contact Us For Availability
6
Trim, Crisper Cover WPL 1110795 Contact Us For Availability
6
Mullion Rail WPL 2155015 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
7
Heater, Mullion WPL 1106997 Contact Us For Availability
7
Clip (3) WPL 934011 Contact Us For Availability
7
Fan Motor WPL 2149964 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Shelf (3) WPL 1114609 Contact Us For Availability
8
Front Mullion Rail (White) WPL 1123966 Contact Us For Availability
8
Front Mullion Rail (Almond) WPL 1123969 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Trim Shelf WPL 1110782 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
10
Bin, Freezer WPL 2148194 Contact Us For Availability
10
Filler Bottom Mullion (White) WPL 1118361 Contact Us For Availability
10
Filler Bottom Mullion (Almond) WPL 1118362 Contact Us For Availability
10
Door Mechanism Assembly WPL 938669 Contact Us For Availability
10
Fan Grommet (2) WPL 1114354 Contact Us For Availability
11
Foam Insulation WPL 876029 Contact Us For Availability
11
Pan, Meat WPL 2148192 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Screw (2) WPL 489168 Contact Us For Availability
12
Grommet (8) WPL 1110779 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Ladder, Shelf WPL 1108433 Contact Us For Availability
12
Hinge, Top WPL 1123514 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
13
Overload WPL 2149967 Contact Us For Availability
14
Wiring Cover WPL 1114607 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
14
Screw, Bind WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
trim, door shelf (4) WPL 2148265 Contact Us For Availability
14
Overload Spring WPL 943320 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Stud, Spacer (2) WPL 1115399 Contact Us For Availability
15
Tape Strip WPL 991259 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Relay (Order Overload To Obtain Relay) WPL ARI145465A Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Fitting, Drain WPL 942768 Contact Us For Availability
16
Front Cover Ice Container WPL 2148249 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2151619 Contact Us For Availability
16
Trim, Door Shelf WPL 2148252 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
17
Slide, Freezer Bin (2) WPL 1115383 Contact Us For Availability
17
Panel, Interior Door WPL 1129249 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Harness, Door (Includes Item 18) WPL 1116960 Contact Us For Availability
17
Cover, Evaporator WPL 2157554 Contact Us For Availability
18
screw WPL 487979 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149942 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
19
hinge Bottom (L.H.) WPL 2151620 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1110675 Contact Us For Availability
20
Stud, Front (3) WPL 946356 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Shim .030 WPL 836196 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
21
Stud, Rear (3) WPL 1106982 Contact Us For Availability
21
Lens, Dispenser Light WPL 983359 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
support stud (8) WPL 946355 Contact Us For Availability
22
Grille WPL 1129061 Contact Us For Availability
22
Insulation, Dispenser WPL 1115206 Contact Us For Availability
22
Evaporator WPL 1106987 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
23
Chute, Ice WPL 987188 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Hole Plug (2) WPL 534927 Contact Us For Availability
24
Deflector, Ice Container WPL 1127233 Contact Us For Availability
24
Lever, Ice Dispenser WPL 1127421 Contact Us For Availability
25
Guide, Ice WPL 1118269 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Tray, Evaporator WPL 1105524 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
27
Stop, Glass WPL 1119056 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
29
Bracket, Door Stop WPL 1115906 Contact Us For Availability
29
Grommet WPL 1129178 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
30
Shim WPL 988421 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
30
Screw, 4-40 x 3/4 (4) WPL 488362 Contact Us For Availability
31
end cap, trim (10) WPL 1110713 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Exchanger, Heat WPL 1106990 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
32
Cabinet Harness WPL 2149745 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Insert, Handle WPL 1118435 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
33
Heater, Defrost WPL 2154542 Contact Us For Availability
34
Light Lens WPL 1114624 Contact Us For Availability
34
insert, handle WPL 1118436 Contact Us For Availability
34
Clamp WPL 937357 Contact Us For Availability
35
Retainer, Insert WPL 1119366 Contact Us For Availability
35
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
End Cap (2) WPL 2156220 Contact Us For Availability
36
Divider, Shelf WPL 1114380 Contact Us For Availability
36
Cover, Wiring WPL 1129193 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Screw, 10-32 x 5/8 (2) WPL 489075 Contact Us For Availability
37
Wiring Shield, Short WPL 1108440 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
38
Screw, 6-20 x 3/8 (4) WPL 489022 Contact Us For Availability
38
Wiring Shield, Long WPL 1108441 Contact Us For Availability
38
Lever, Water Dispenser WPL 1115349 Contact Us For Availability
39
Tube Clamp (2) WPL 1105607 Contact Us For Availability
39
overlay, front cover WPL 2150335 Contact Us For Availability
40
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
front cover, housing (includes item 39) WPL 2150340 Contact Us For Availability
41
Drain Ferrule WPL 2155556 Contact Us For Availability
41
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
41
Baffle, Air WPL 1105530 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
43
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
44
Wiring Assembly, Door WPL 2149783 Contact Us For Availability
45
Cover, Plug WPL 1108443 Contact Us For Availability
46
Sealing Gasket WPL 1115321 Contact Us For Availability
46
Washer (Repair) WPL 488307 Contact Us For Availability
47
Cover, Unit WPL 1105617 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1105614 Contact Us For Availability
51
Insulation WPL 1118236 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
56
Clamp, Water Line (2) WPL 836472 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388006 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
× ![]()
