Model Whirlpool ED22F134QN0 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

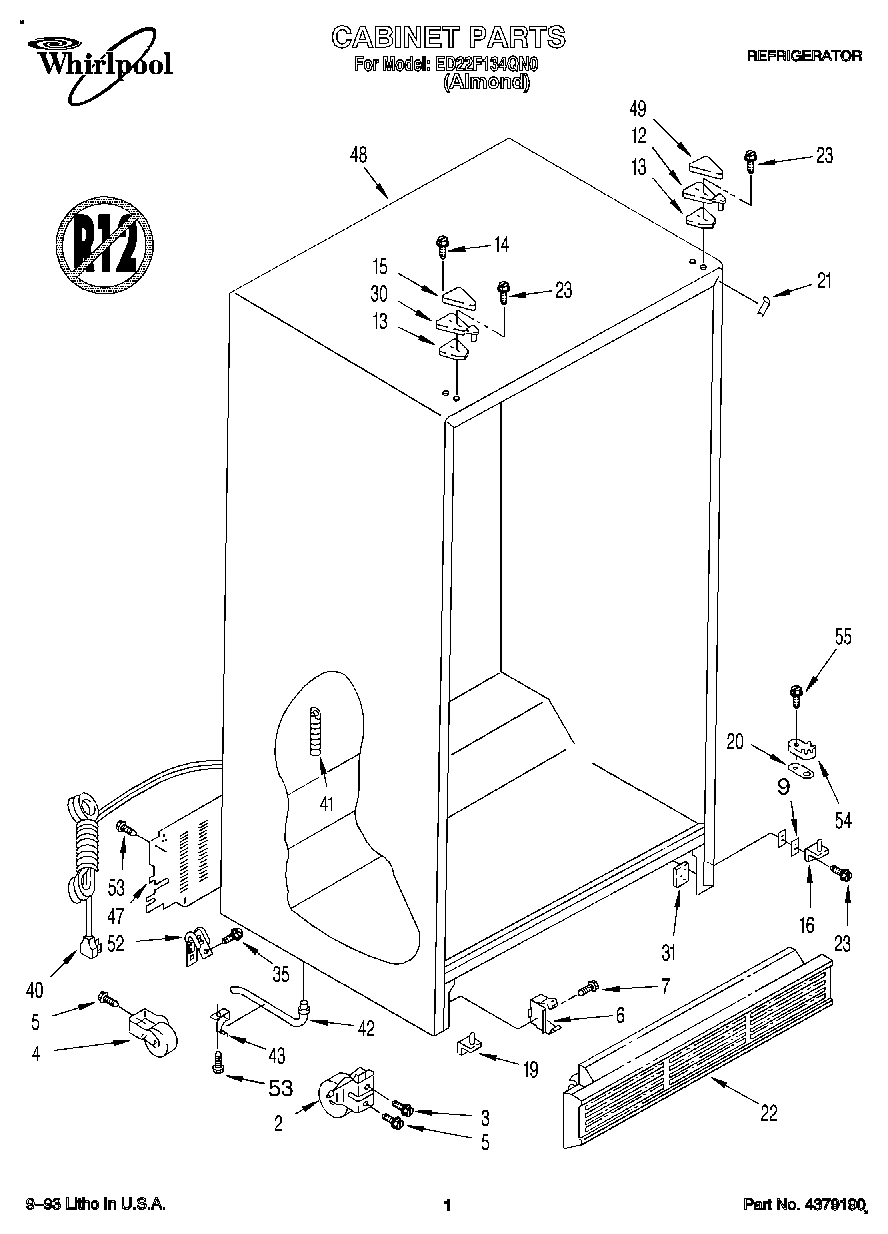

01 - CABINET

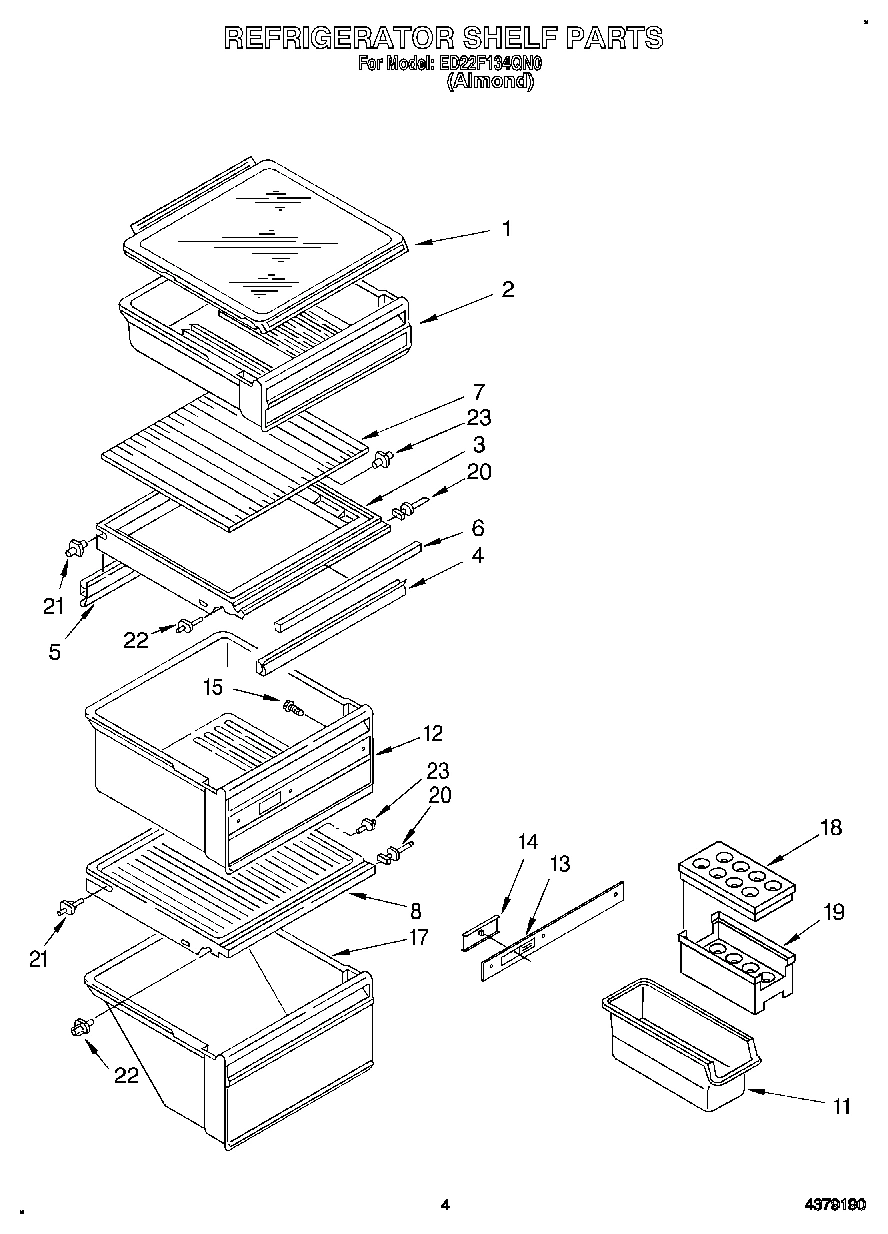

03 - REFRIGERATOR SHELF
05 - AIR FLOW
04 - FREEZER LINER
11 - ICEMAKER
07 - REFRIGERATOR DOOR
09 - DISPENSER FRONT
02 - REFRIGERATOR LINER
06 - MOTOR AND ICE CONTAINER
08 - FREEZER DOOR
10 - UNIT
12 - CONTROL, LIT/OPTIONAL
Common parts from model Whirlpool ED22F134QN0 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL 2153725 WPL 2153725 Contact Us For Availability
WPL LIT2155534 WPL LIT2155534 Contact Us For Availability
WPL LIT2162750 WPL LIT2162750 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 18) WPL 1115276 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26472A5 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) WPL 1115238 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
3
Door, Compartment WPL 2148847 Contact Us For Availability
3
Handle, Center WPL 943079 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Trim, Compartment Door WPL 1118208 Contact Us For Availability
4
Housing, Dispenser WPL 1125969 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
6
Shelf Bin (2) WPL 1124847 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI26474A2 Contact Us For Availability
6
Timer, Defrost (10 Hour) WPL 2162046 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
7
Frame, Slides WPL 2152718 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149192 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
8
Pin Plate (6) WPL 1116986 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152721 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Shelf Bin (3) WPL 2149085 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
13
Track, Shelf (Right Side (2)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (2)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Panel, Interior Door WPL 2149009 Contact Us For Availability
13
Overload (Production (Includes Relay)) WPL 2162362 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Divider, Bin WPL 2152335 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Trim, Door Shelf WPL 2149084 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Relay (See Overload) WPL ARI26475A6 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Wine Rack WPL 1124828 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Trim, Door Shelf WPL 2149083 Contact Us For Availability
17
Panel, Interior Door WPL 1129278 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Harness, Door (Includes Item 18) WPL 1119212 Contact Us For Availability
17
Capacitor WPL 2154565 Contact Us For Availability
18
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Spacer, Hinge WPL 987179 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
21
Shelf Stud WPL 1115290 Contact Us For Availability
21
Wire Connector WPL 227991 Contact Us For Availability
22
Insulation, Dispenser WPL 2149014 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Chute, Ice WPL 1119036 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser WPL 1125972 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice WPL 1126026 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Harness, Intermediate WPL 2149199 Contact Us For Availability
27
Slide, Light Switch WPL 2152727 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
Bracket, Door Stop WPL 988420 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
29
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
KIT, EVAPORATOR REPAIR (ALUMINUM EPO WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Bracket, Fan Motor WPL 2162062 Contact Us For Availability
33
Heater, Defrost WPL 2161322 Contact Us For Availability
33
Insert, Handle WPL 1119363 Contact Us For Availability
33
Pin Plate (6) WPL 1118048 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Screw, WPL 489365 Contact Us For Availability
34
Insert, Handle WPL 1119369 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
35
Shelf Bin (2) WPL 1124846 Contact Us For Availability
35
Retainer, Insert WPL 1119366 Contact Us For Availability
35
Screw (2) WPL 489360 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
36
End Cap (2) WPL 2156220 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw WPL 489075 Contact Us For Availability
37
Door Dike, Hinge Side WPL 1115379 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Door Dike, Handle Side WPL 1119055 Contact Us For Availability
38
Lever, Water Dispenser WPL 2159198 Contact Us For Availability
39
Screw WPL 486214 Contact Us For Availability
39
Plaque, Front Cover WPL 2162690 Contact Us For Availability
39
End Cap, Trim WPL 1115333 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2162701 Contact Us For Availability
40
End Cap, Trim WPL 1115364 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Screw WPL 489022 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Screw WPL 488316 Contact Us For Availability
44
Wiring Harness, Door WPL 2147166 Contact Us For Availability
44
Front Cover, Ice Containter WPL 2149005 Contact Us For Availability
44
Door Dike (2) WPL 1115378 Contact Us For Availability
45
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
46
Washer WPL 489336 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
46
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
48
Spacer WPL 625834 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
× ![]()
