Model Whirlpool ED22DWXTG04 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

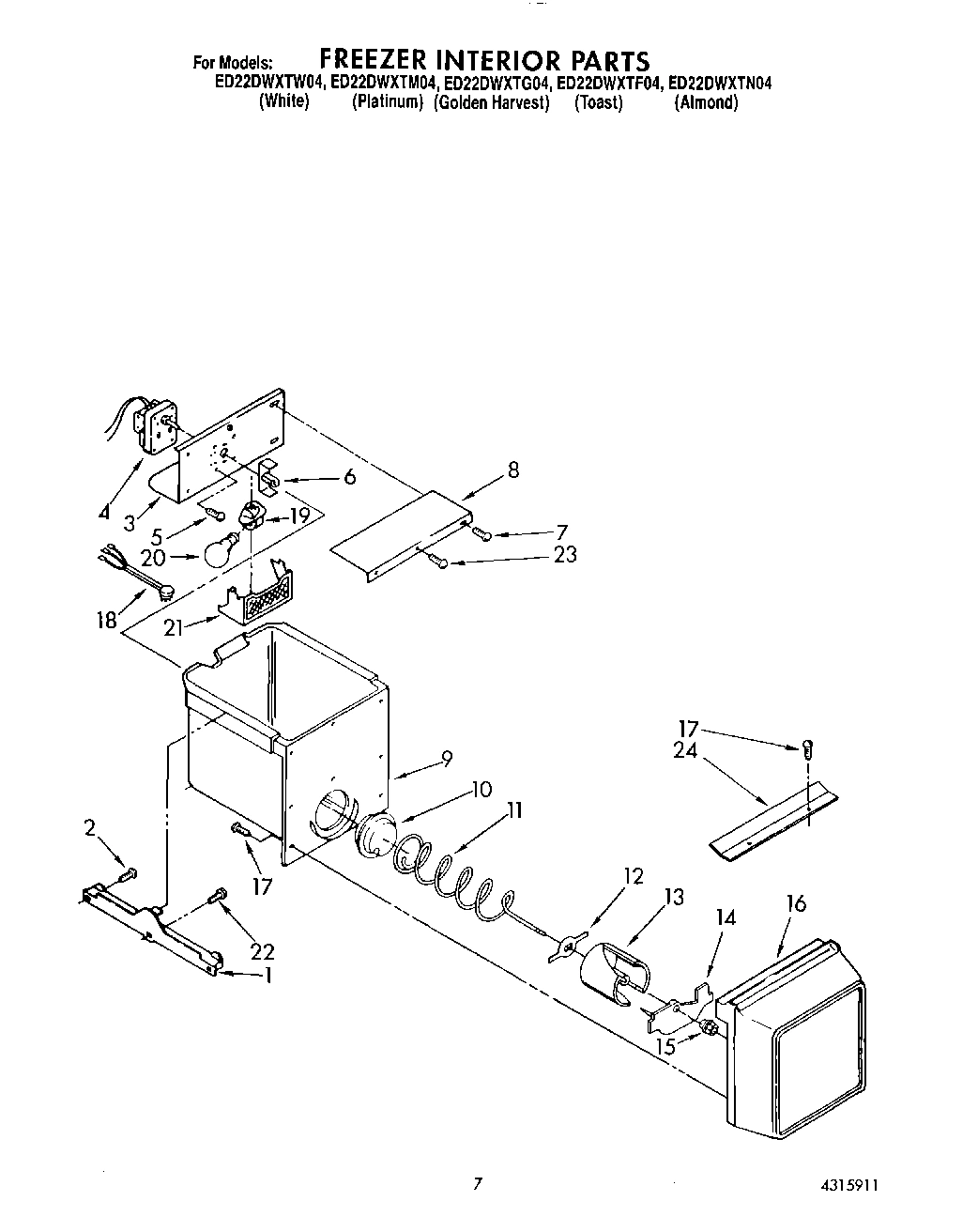

06 - FREEZER INTERIOR

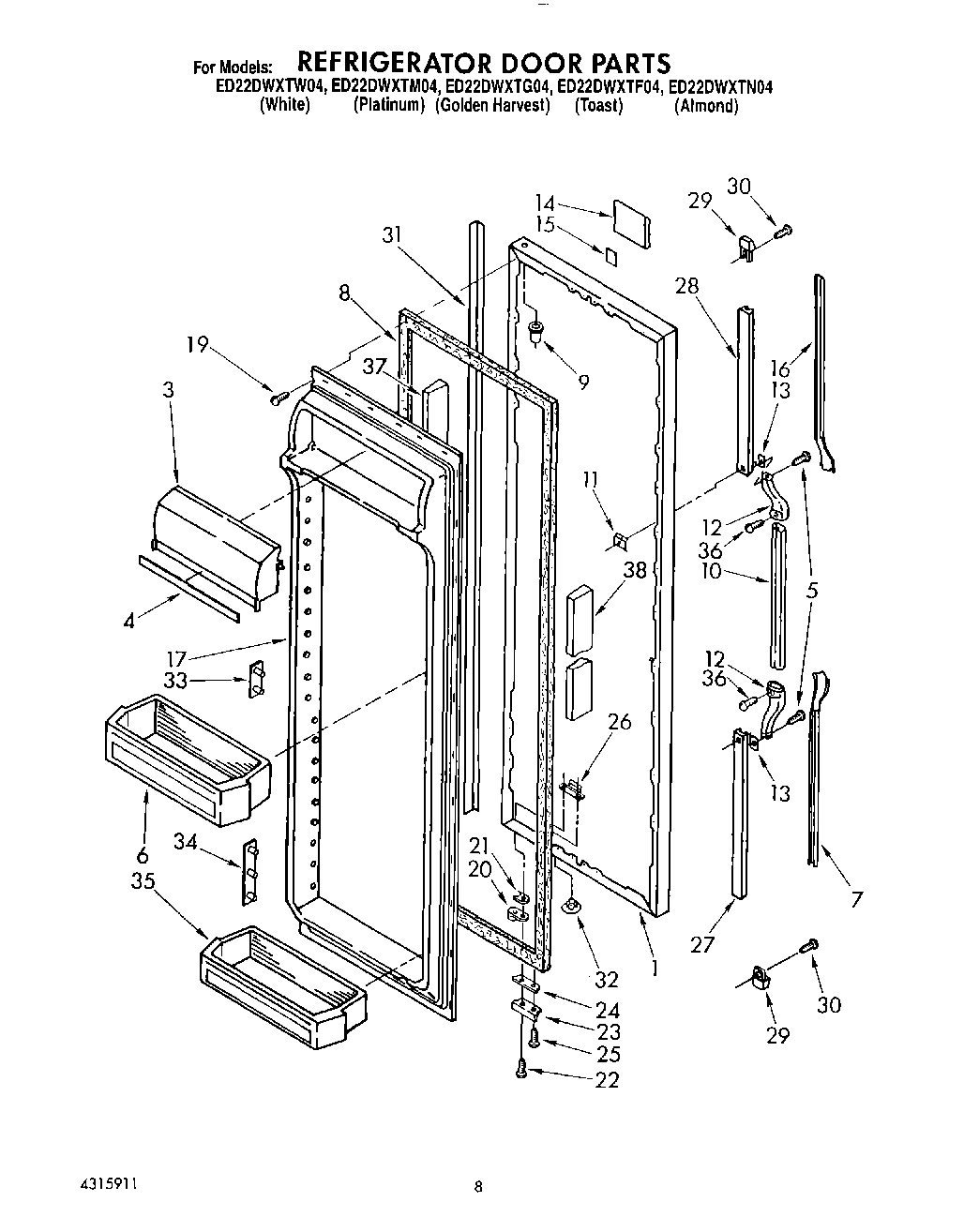

07 - REFRIGERATOR DOOR

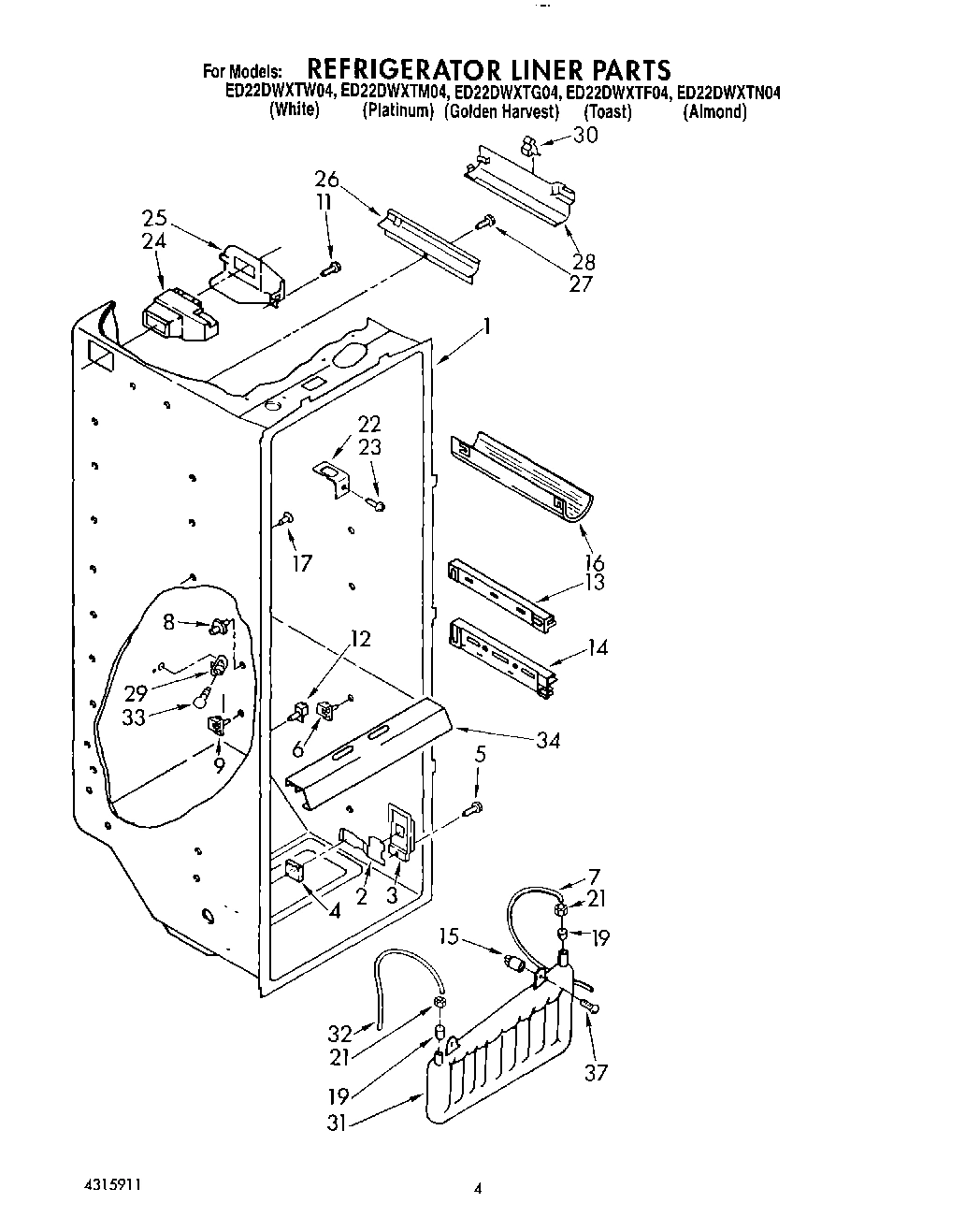

03 - REFRIGERATOR LINER

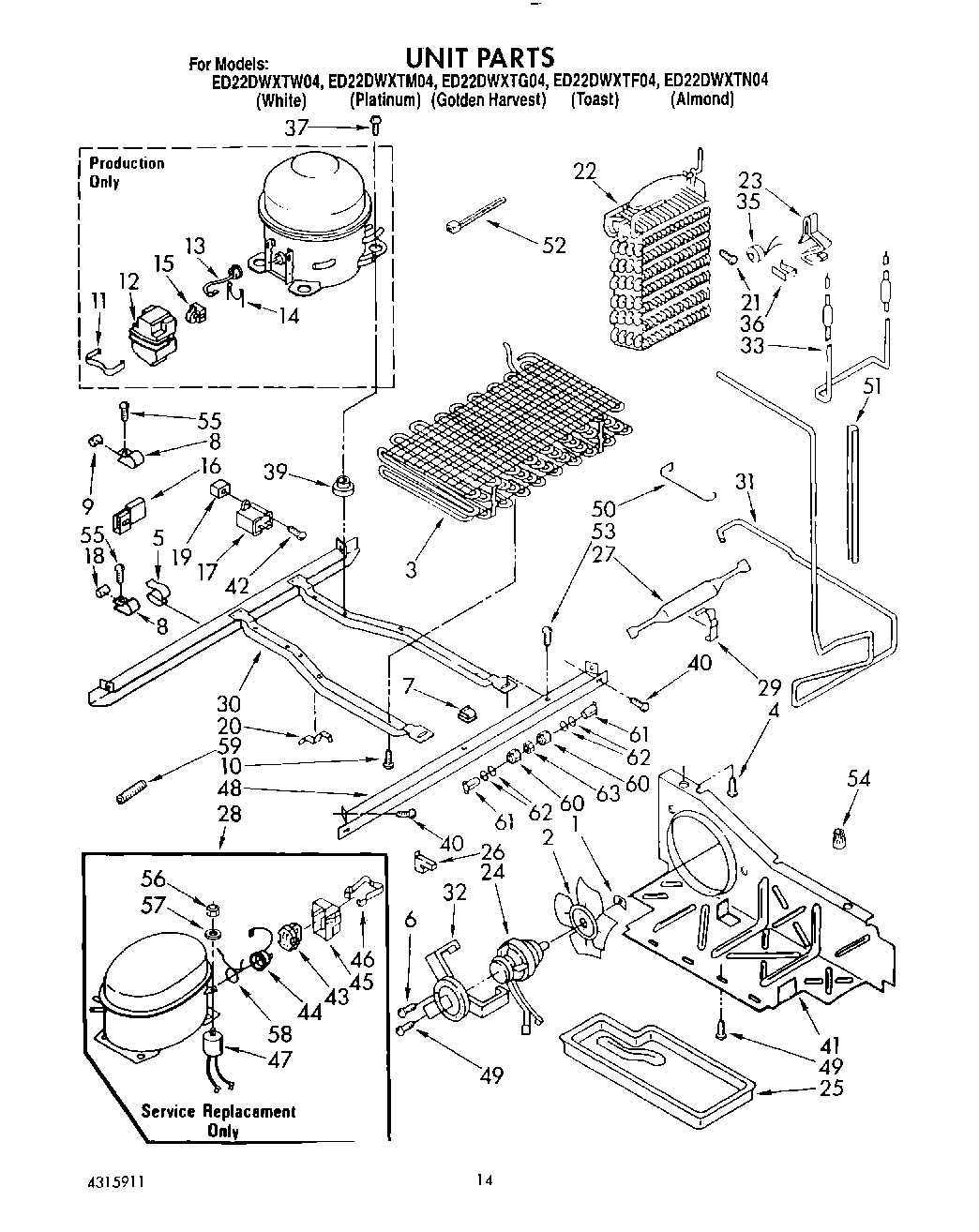

10 - UNIT

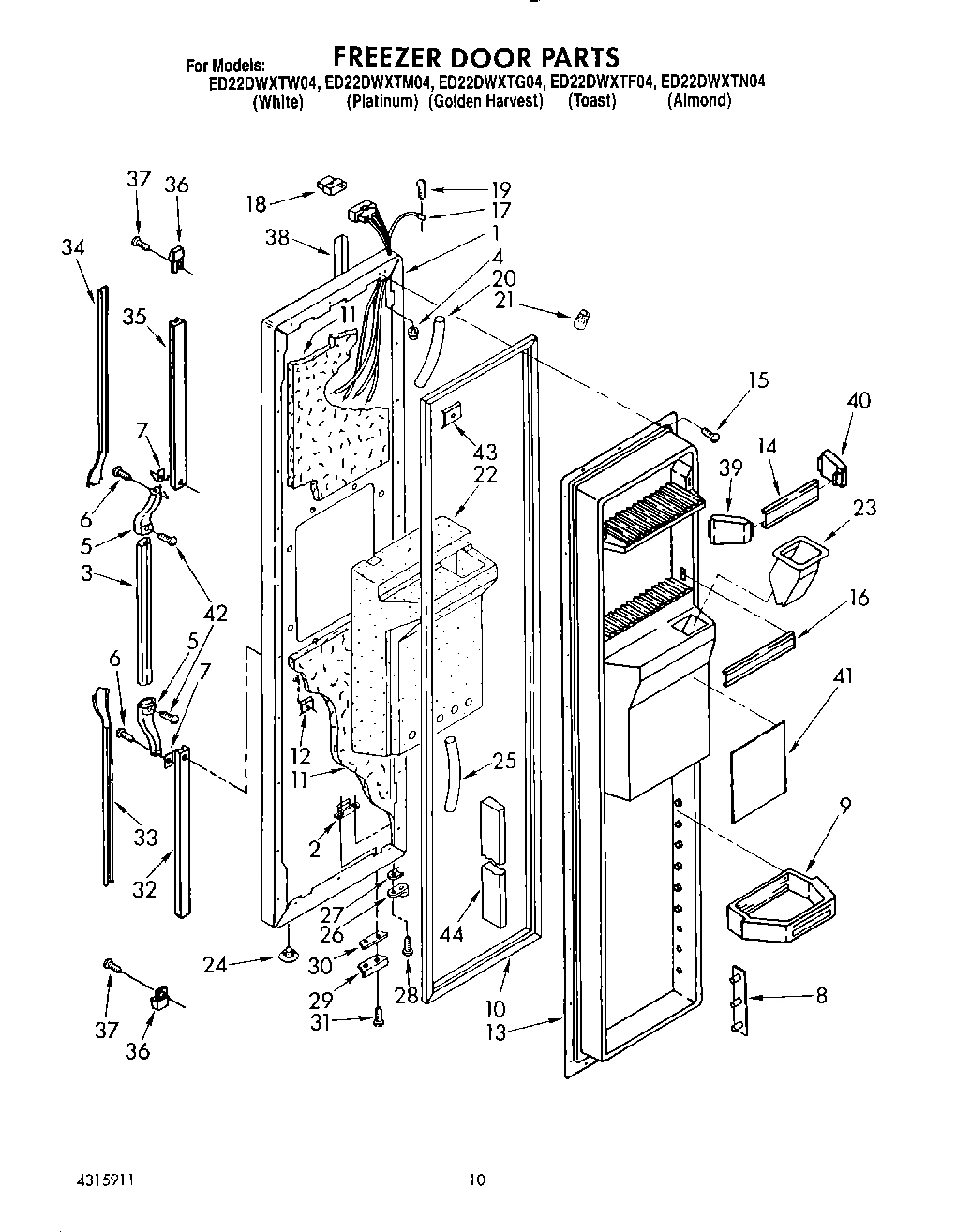

08 - FREEZER DOOR

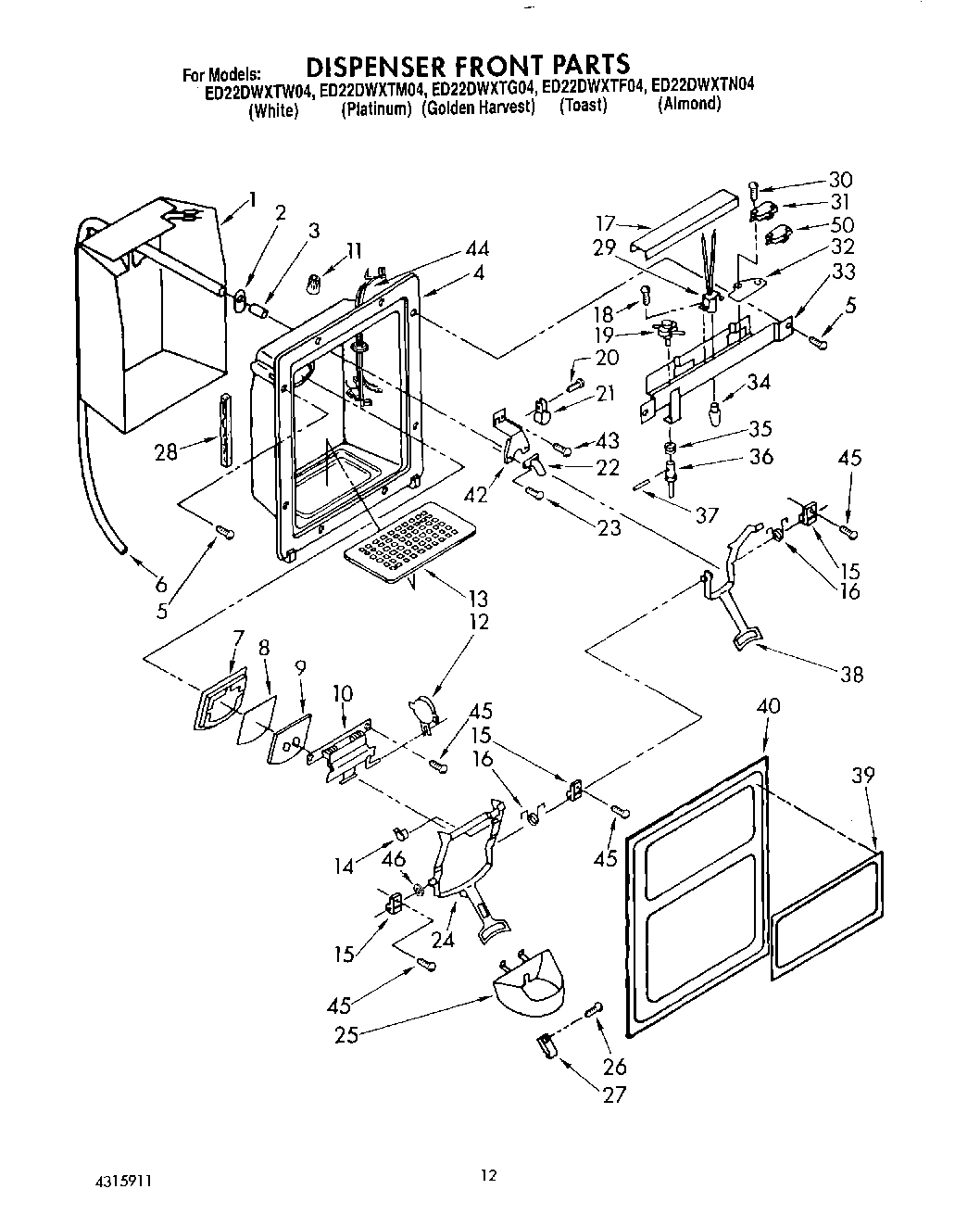

09 - DISPENSER FRONT

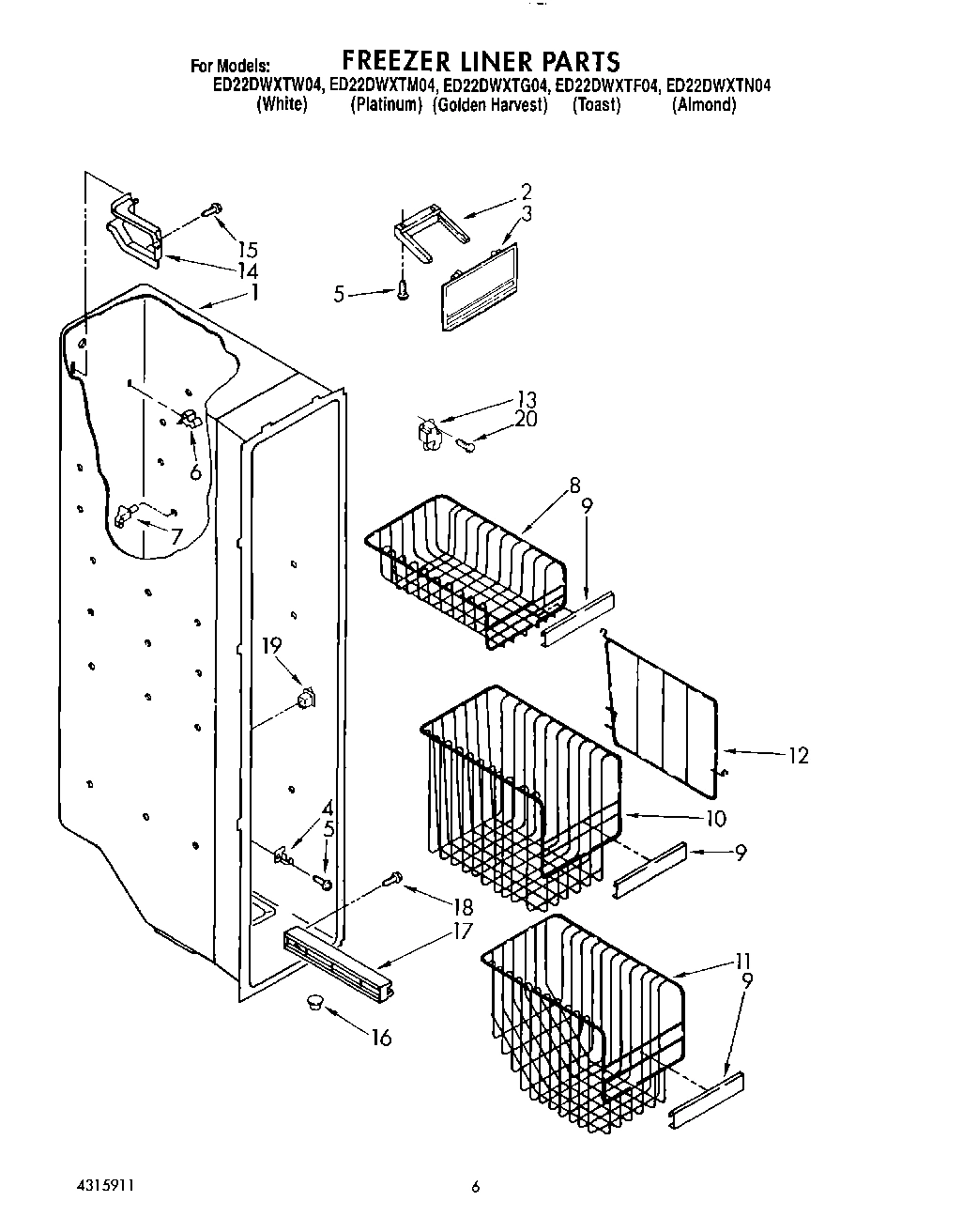

05 - FREEZER LINER

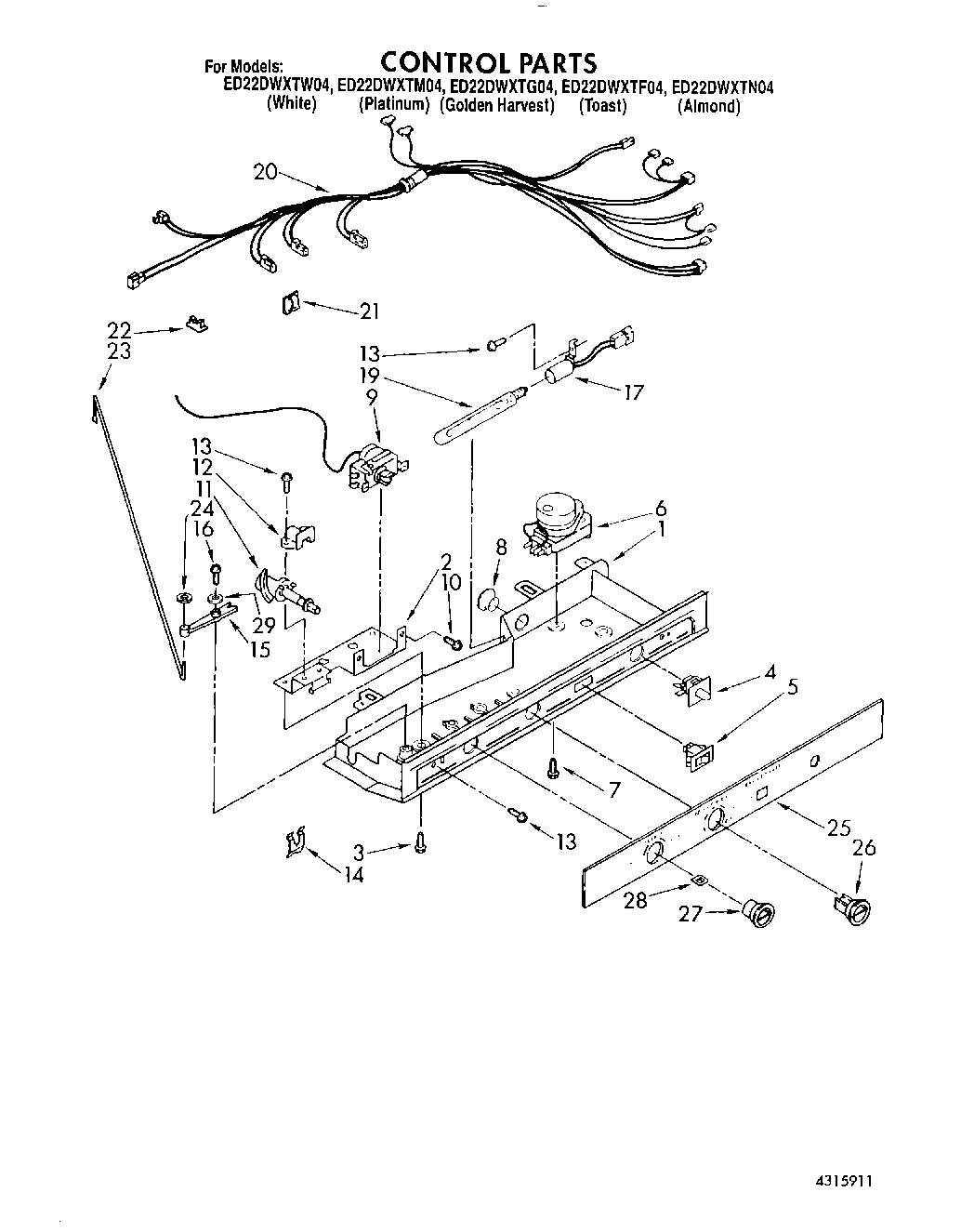

12 - CONTROL

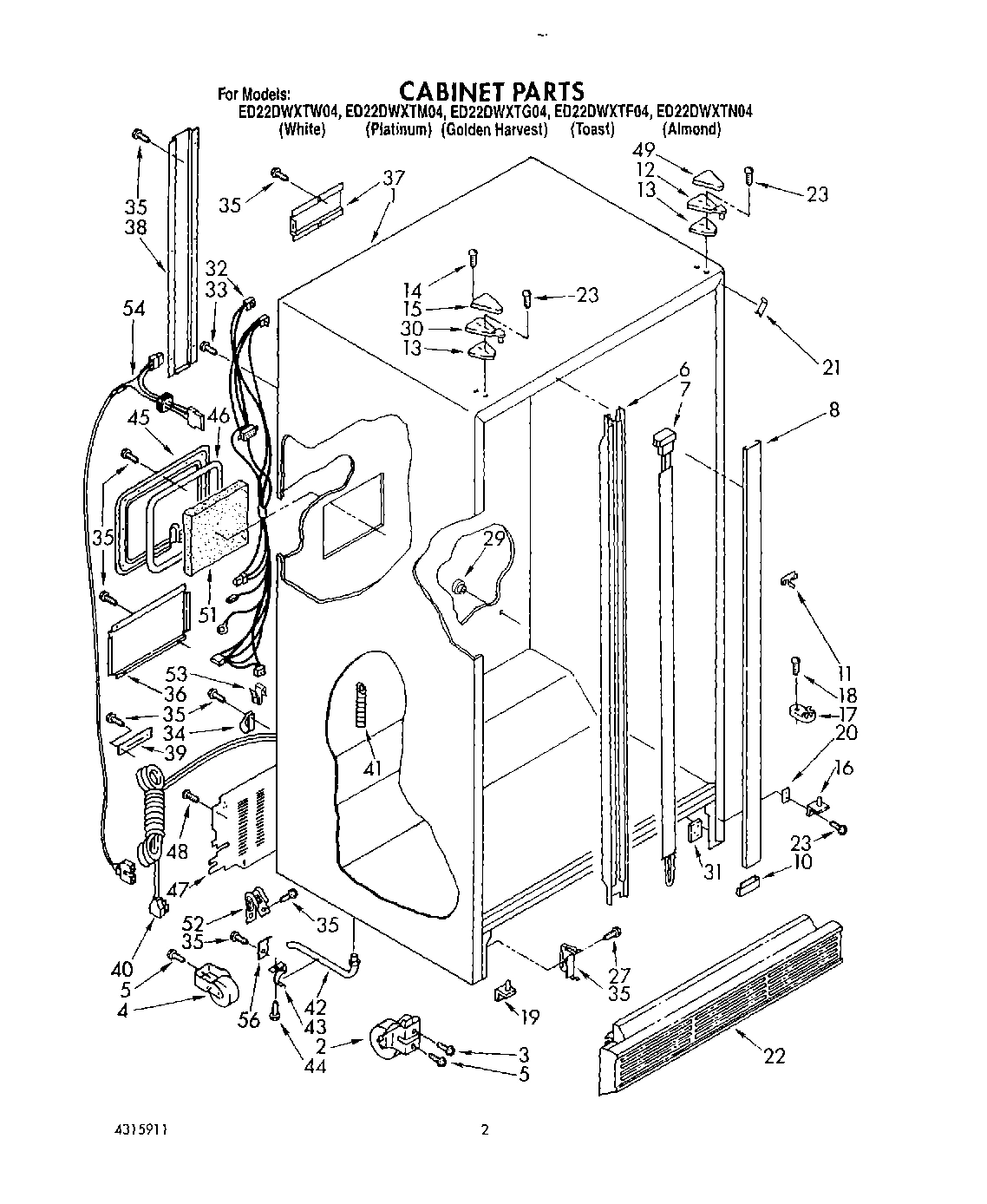

02 - CABINET

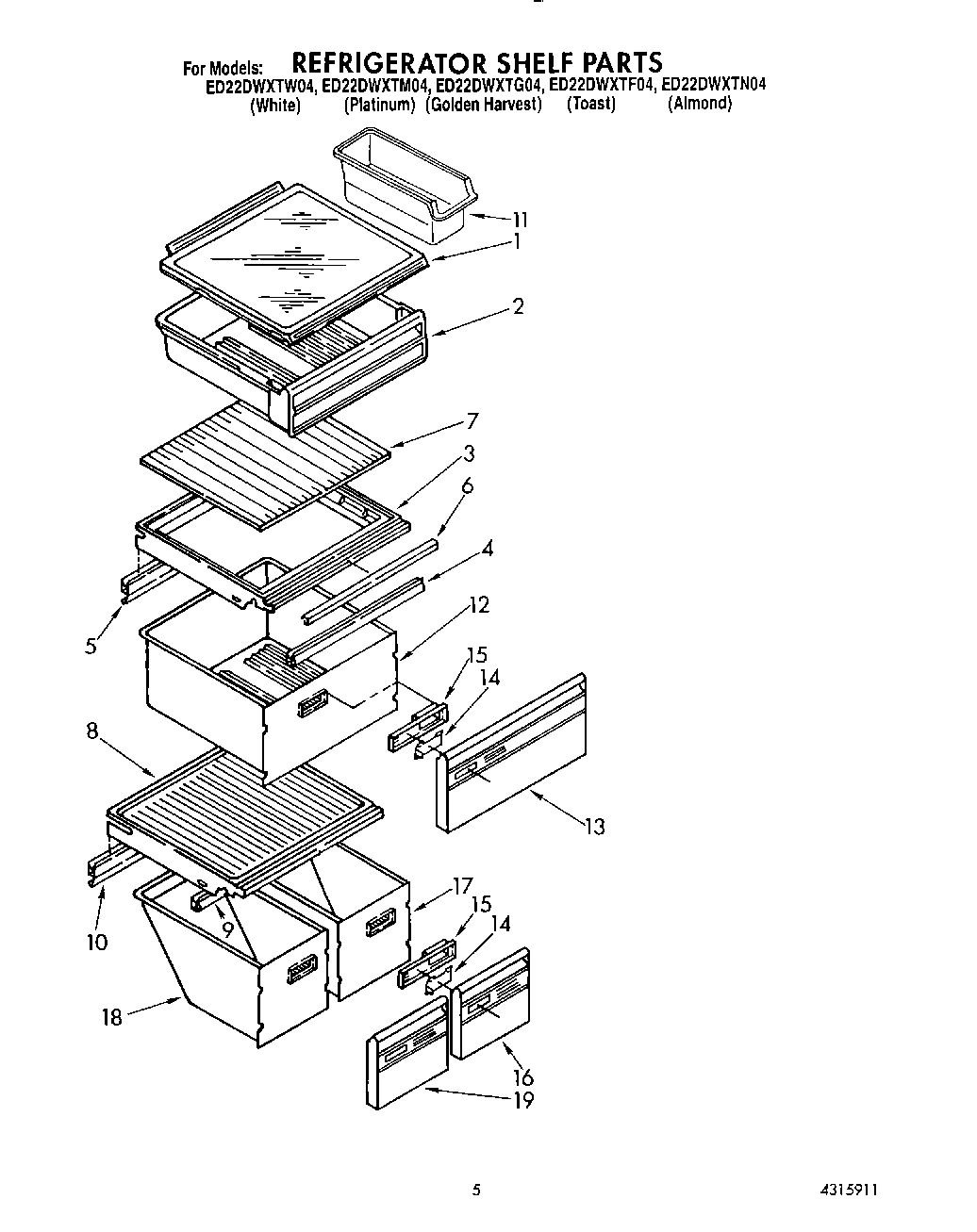

04 - REFRIGERATOR SHELF

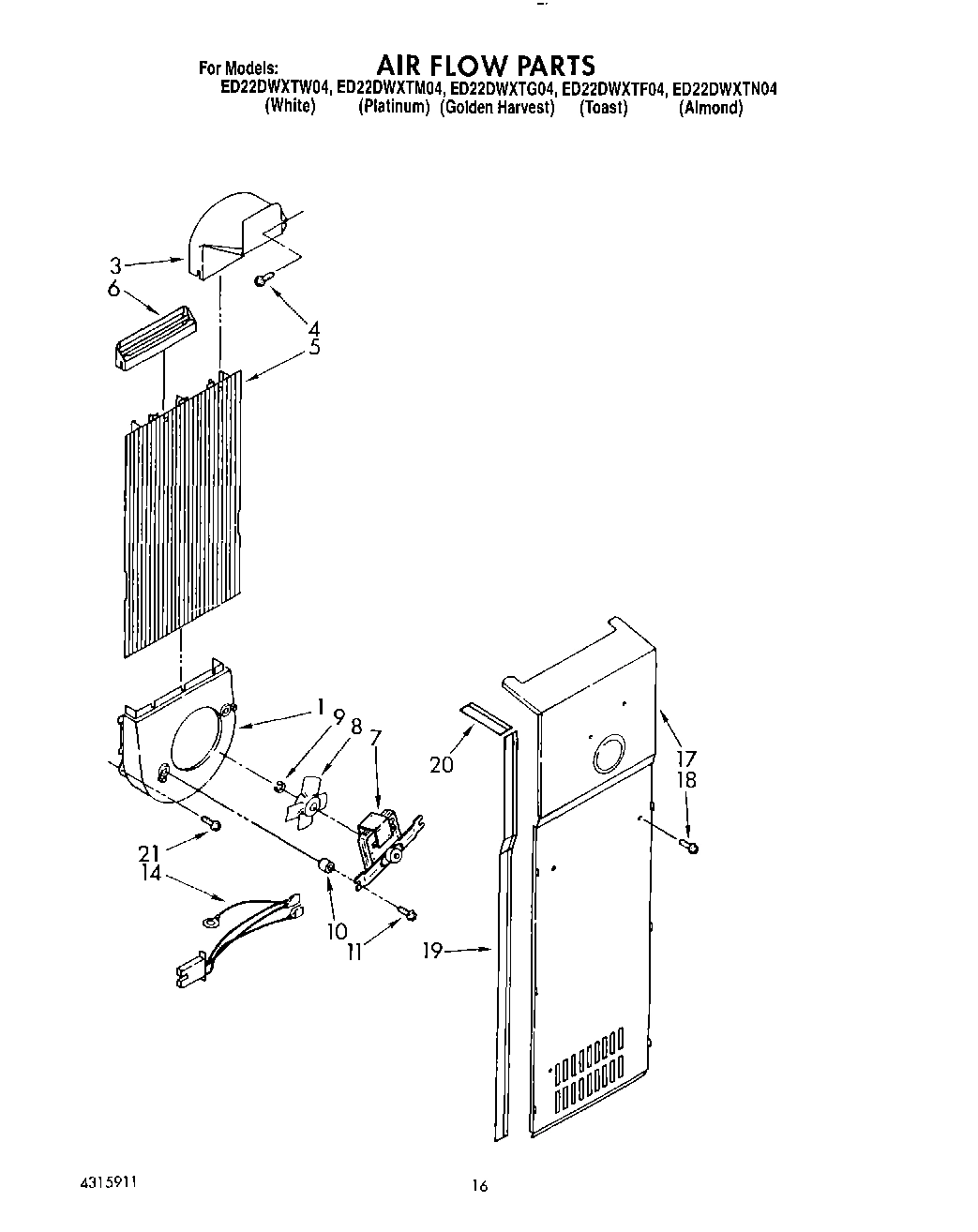

11 - AIR FLOW

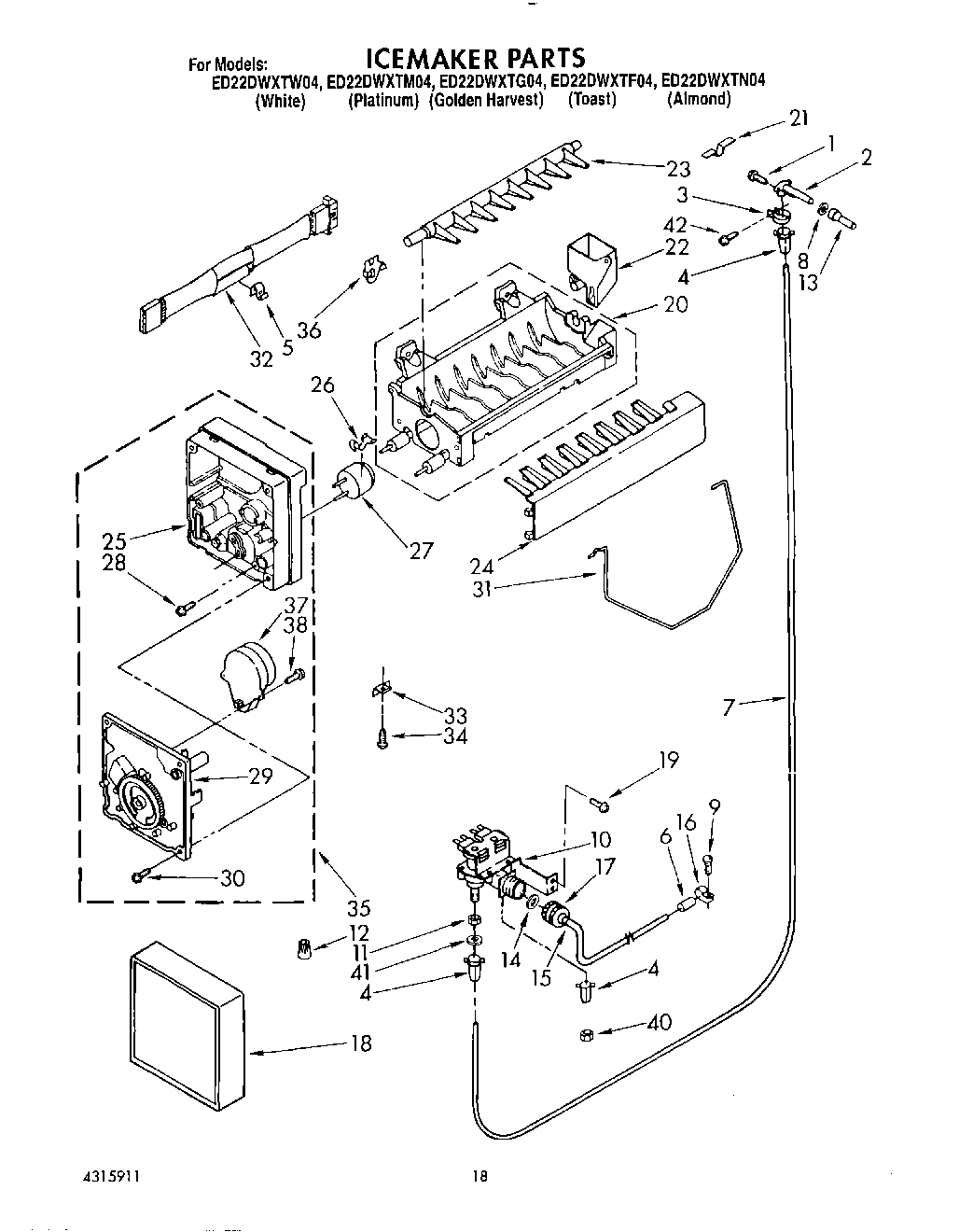

13 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool ED22DWXTG04 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1114077 WPL LIT1114077 Contact Us For Availability
WPL LIT1124919 WPL LIT1124919 Contact Us For Availability
WPL LIT1127822 WPL LIT1127822 Contact Us For Availability
WPL LIT4315911 WPL LIT4315911 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI145385A Contact Us For Availability
1
Freezer, Door Panel (White) WPL 1115235 Contact Us For Availability
1
Freezer, Door Panel (Golden Harvest) WPL 1115237 Contact Us For Availability
1
Freezer, Door Panel (Almond) WPL 1115238 Contact Us For Availability
1
Freezer, Door Panel (Toast) WPL 1115239 Contact Us For Availability
1
Freezer, Door Panel (Platinum (Also Order Ite WPL 1115240 Contact Us For Availability
1
Heater, Dispenser WPL 1118039 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI145386A Contact Us For Availability
1
Control Box WPL 1123962 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI145384A Contact Us For Availability
1
Shelf Assembly, Glass Sliding (3) WPL 1127158 Contact Us For Availability
1
Fan Scroll WPL 1127163 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Fan, Blade WPL 989524 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Front Roller (2) WPL 981128 Contact Us For Availability
2
Snack Bin WPL 1115262 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Condenser Assembly WPL 1105640 Contact Us For Availability
3
Handle, Center WPL 1118417 Contact Us For Availability
3
Door, Ice Compartment WPL 1115218 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
3
Screw, 5/16-24 x 1 WPL 489333 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Screw WPL 489050 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Housing, Dispenser WPL 1107943 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
4
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
5
Screw, (4) 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
5
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
5
Air Duct Freezer WPL 1108434 Contact Us For Availability
6
Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability
6
Mullion Rail WPL 1118354 Contact Us For Availability
6
Trim, Crisper Cover WPL 1110795 Contact Us For Availability
6
Diffuser Air Duct WPL 1118245 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Clip (3) WPL 934011 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
7
Heater, Mullion WPL 1106997 Contact Us For Availability
7
Fan Motor WPL 1127165 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Pin Plate (6) WPL 1116986 Contact Us For Availability
8
Basket (2) WPL 1114671 Contact Us For Availability
8
Front Mullion Rail (White) WPL 1123966 Contact Us For Availability
8
Front Mullion Rail (Golden Harvest) WPL 1123968 Contact Us For Availability
8
Front Mullion Rail (Almond) WPL 1123969 Contact Us For Availability
8
Front Mullion Rail (Toast) WPL 1123970 Contact Us For Availability
8
Front Mullion Rail (Platinum) WPL 1123971 Contact Us For Availability
8
Cover, Meat Pan WPL 1118198 Contact Us For Availability
9
Stud (4) WPL 1115290 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
9
Shelf Bin (3) WPL 1121336 Contact Us For Availability
9
Trim, Basket WPL 1127151 Contact Us For Availability
9
Gasket (Front) WPL 1115292 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
10
Door Mechanism Assembly WPL 938669 Contact Us For Availability
10
Basket, Tall WPL 1114673 Contact Us For Availability
10
Filler Bottom Mullion (White) WPL 1118361 Contact Us For Availability
10
Filler Bottom Mullion (Almond) WPL 1118362 Contact Us For Availability
10
Filler Bottom Mullion (Golden Harvest) WPL 1118363 Contact Us For Availability
10
Filler Bottom Mullion (Toast) WPL 1118364 Contact Us For Availability
10
Filler Bottom Mullion (Platinum) WPL 1118365 Contact Us For Availability
10
Gasket (Rear) WPL 1121384 Contact Us For Availability
10
Fan Grommet (2) WPL 1114354 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Basket, Slope WPL 1114675 Contact Us For Availability
11
Cam Assembly WPL 1110566 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
11
Screw (2) WPL 489168 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Rack, Pizza WPL 1115253 Contact Us For Availability
12
Hinge, Top WPL 1123514 Contact Us For Availability
13
Track, Shelf (Right Side (2)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (2)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Overload WPL 1118862 Contact Us For Availability
13
Panel, Interior Door WPL 1118240 Contact Us For Availability
13
Terminal Block WPL 942842 Contact Us For Availability
13
Front, Crisper Pan WPL 1114684 Contact Us For Availability
13
Tube, Water Inlet WPL 1114644 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Overload Spring WPL 943320 Contact Us For Availability
14
Trim, Door Shelf WPL 1115266 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Wiring Cover WPL 1114607 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Screw, Bind WPL 489284 Contact Us For Availability
14
Slide, Humidity Control WPL 1110541 Contact Us For Availability
14
Fan Motor, Harness WPL 1114721 Contact Us For Availability
14
Washer WPL 489323 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Stud, Spacer (2) WPL 1115399 Contact Us For Availability
15
Relay WPL 1101014 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Hinge Cover (Toast) WPL 1100381 Contact Us For Availability
15
Hinge Cover (Platinum) WPL 1100382 Contact Us For Availability
15
Hinge Cover (Golden Harvest) WPL 989885 Contact Us For Availability
15
Housing, Humidity Control WPL 1110542 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Wine Rack WPL 1115261 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Trim, Door Shelf WPL 1115268 Contact Us For Availability
16
Fitting, Drain WPL 942768 Contact Us For Availability
16
Hinge, Bottom R.H. WPL 1115900 Contact Us For Availability
16
Front, Meat Pan WPL 1114693 Contact Us For Availability
17
Harness, Door (Includes Illustration 18) WPL 1116960 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1114679 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1114680 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Meat Pan WPL 1114690 Contact Us For Availability
17
Cover, Evaporator WPL 1127168 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
18
Screw (2) WPL 489296 Contact Us For Availability
18
Meat Pan WPL 1114691 Contact Us For Availability
18
Cover WPL 627356 Contact Us For Availability
19
Insert, Plastic Tube WPL 1129177 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
19
Hinge, Bottom (L.H.) WPL 1115903 Contact Us For Availability
19
Front, Meat Pan WPL 1114694 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1110675 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Control Box Harness WPL 1127814 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
21
Nut, Compression WPL 1129179 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Golden Harvest) WPL 1110710 Contact Us For Availability
21
Filler, Wrapper (Toast) WPL 1110711 Contact Us For Availability
21
Filler, Wrapper (Platinum) WPL 1110712 Contact Us For Availability
21
Clip WPL 652604 Contact Us For Availability
22
Evaporator WPL 1106987 Contact Us For Availability
22
Insulation, Dispenser WPL 1115206 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille WPL 1129061 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
23
Chute, Ice WPL 987188 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Screw (Repair) WPL 489297 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Hole Plug (2) WPL 534927 Contact Us For Availability
24
Lever, Ice Dispenser WPL 1127421 Contact Us For Availability
25
Tray, Evaporator WPL 1105524 Contact Us For Availability
25
Tube, Door Wiring WPL 1109246 Contact Us For Availability
25
Guide, Ice WPL 1118269 Contact Us For Availability
25
Escutcheon, Control Box WPL 1123998 Contact Us For Availability
26
Cover, Conduit WPL 1123926 Contact Us For Availability
26
Receptacle, Housing WPL 1103840 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
27
Stop, Glass WPL 1119056 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
28
Cover, Wiring WPL 1123921 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482982 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Clamp, Drier WPL 548508 Contact Us For Availability
29
Bracket, Door Stop WPL 1115906 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
29
Grommet WPL 1129178 Contact Us For Availability
30
Shim WPL 988421 Contact Us For Availability
30
Screw, 4-40 x 1 WPL 488361 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
31
Exchanger, Heat WPL 1106990 Contact Us For Availability
31
Screw, 8 x 5/8 WPL 488549 Contact Us For Availability
31
Switch (2) WPL 841336 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Tube WPL 1129175 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
32
Cabinet Harness WPL 1129190 Contact Us For Availability
33
Heater, Defrost WPL 1106969 Contact Us For Availability
33
Insert, Handle (White) WPL 1119361 Contact Us For Availability
33
Insert, Handle (Golden Harvest) WPL 1119362 Contact Us For Availability
33
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
33
Insert, Handle (Toast) WPL 1119364 Contact Us For Availability
33
Insert, Handle (Platinum) WPL 1119365 Contact Us For Availability
33
Bracket, Control WPL 1107454 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
34
Insert, Handle (White) WPL 1119367 Contact Us For Availability
34
Insert, Handle (Golden Harvest) WPL 1119368 Contact Us For Availability
34
Insert, Handle (Almond) WPL 1119369 Contact Us For Availability
34
Insert, Handle (Toast) WPL 1119370 Contact Us For Availability
34
Insert, Handle (Platinum) WPL 1119371 Contact Us For Availability
34
Clamp WPL 937357 Contact Us For Availability
35
Retainer, Insert WPL 1119366 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
36
End Cap (2) WPL 941259 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
36
Cover, Wiring WPL 1108442 Contact Us For Availability
37
Door Dike, Hinge Side WPL 1115379 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Screw, 10-32 x WPL 489075 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
37
Wiring Shield, Short WPL 1108440 Contact Us For Availability
38
Door Dike, Handle Side WPL 1119055 Contact Us For Availability
38
WPL 1119061 WPL 1119061 Contact Us For Availability
38
Lever, Water Dispenser WPL 1115349 Contact Us For Availability
38
WPL 1108441 WPL 1108441 Contact Us For Availability
39
WPL 1115333 WPL 1115333 Contact Us For Availability
39
Plaque, Front Cover WPL 1118319 Contact Us For Availability
39
WPL 1105607 WPL 1105607 Contact Us For Availability
40
WPL 1115364 WPL 1115364 Contact Us For Availability
40
Front Cover, Housing WPL 2150309 Contact Us For Availability
40
WPL 937360 WPL 937360 Contact Us For Availability
40
Nut, Compression WPL 1108005 Contact Us For Availability
41
Baffle, Air WPL 1105530 Contact Us For Availability
41
``O`` Ring WPL 488794 Contact Us For Availability
41
WPL 1115270 WPL 1115270 Contact Us For Availability
41
WPL 842258 WPL 842258 Contact Us For Availability
42
WPL 876029 WPL 876029 Contact Us For Availability
42
WPL 479502 WPL 479502 Contact Us For Availability
42
WPL 489022 WPL 489022 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
42
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
42
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
42
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
42
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
42
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
42
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
42
WPL 515393 WPL 515393 Contact Us For Availability
42
WPL 542639 WPL 542639 Contact Us For Availability
42
WPL 72112 WPL 72112 Contact Us For Availability
42
WPL 799340 WPL 799340 Contact Us For Availability
42
WPL 799833 WPL 799833 Contact Us For Availability
42
WPL 978883 WPL 978883 Contact Us For Availability
43
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
44
Overload WPL 483054 Contact Us For Availability
44
WPL 1115378 WPL 1115378 Contact Us For Availability
44
Wiring Assembly, Door WPL 1118373 Contact Us For Availability
44
WPL 488978 WPL 488978 Contact Us For Availability
45
Cover, Terminal WPL 1105015 Contact Us For Availability
45
WPL 1108443 WPL 1108443 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
46
Washer (Repair) WPL 488307 Contact Us For Availability
46
WPL 1115321 WPL 1115321 Contact Us For Availability
47
Capacitor WPL 482996 Contact Us For Availability
47
WPL 1105617 WPL 1105617 Contact Us For Availability
48
Unit Mounting Rail WPL 1105525 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
49
WPL 1119790 WPL 1119790 Contact Us For Availability
50
Guard, Fan WPL 1105614 Contact Us For Availability
50
Switch WPL 934316 Contact Us For Availability
51
WPL 1118236 WPL 1118236 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
53
WPL 548745 WPL 548745 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
56
WPL 836472 WPL 836472 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
58
Overload Spring WPL 1114190 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
