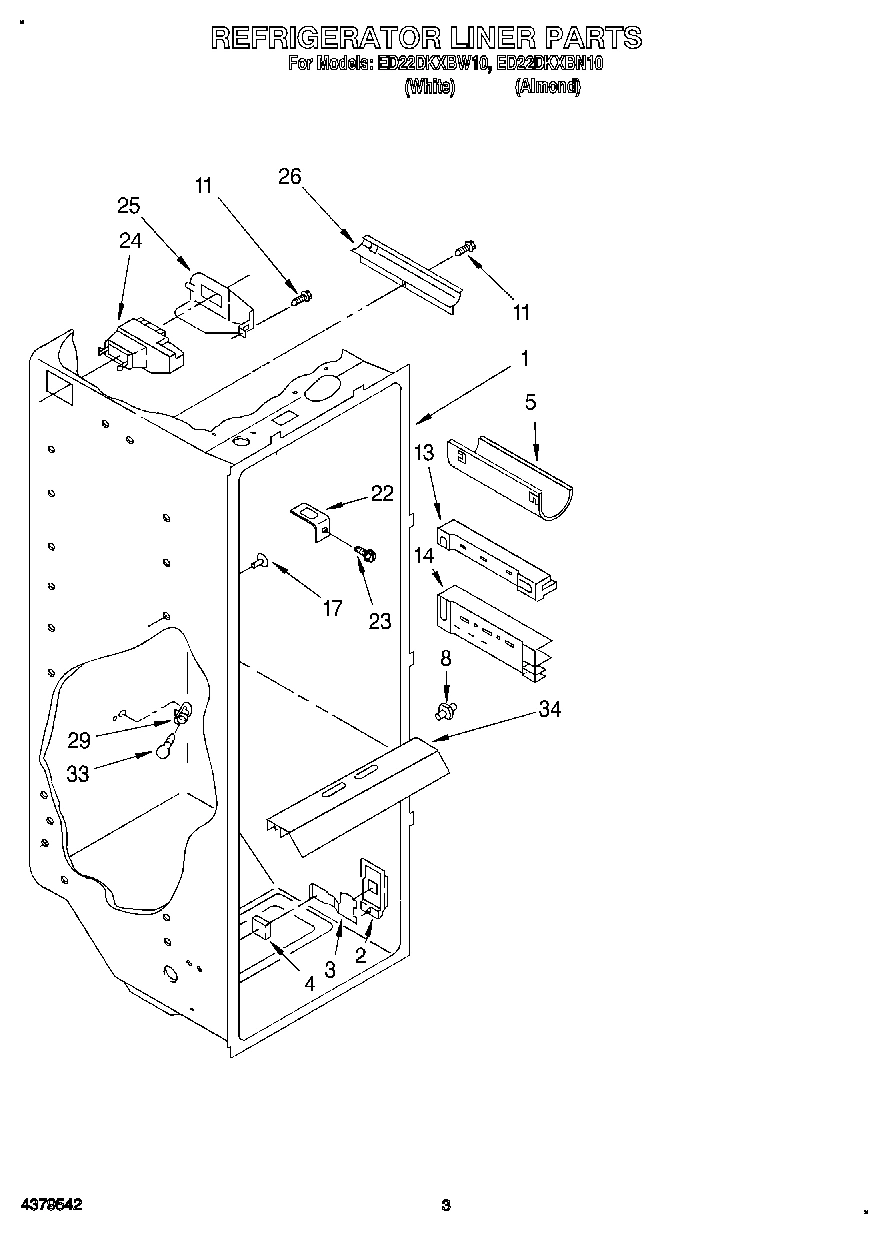

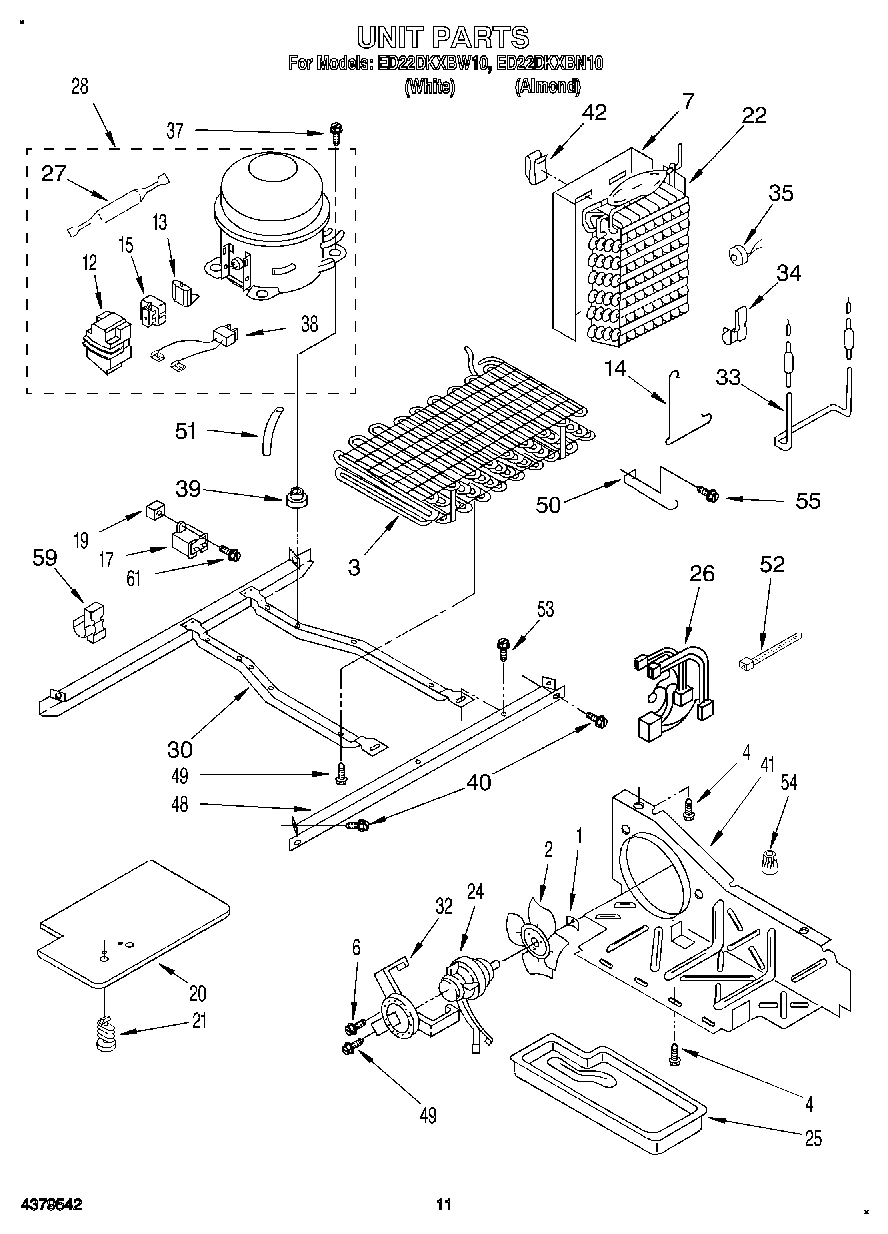

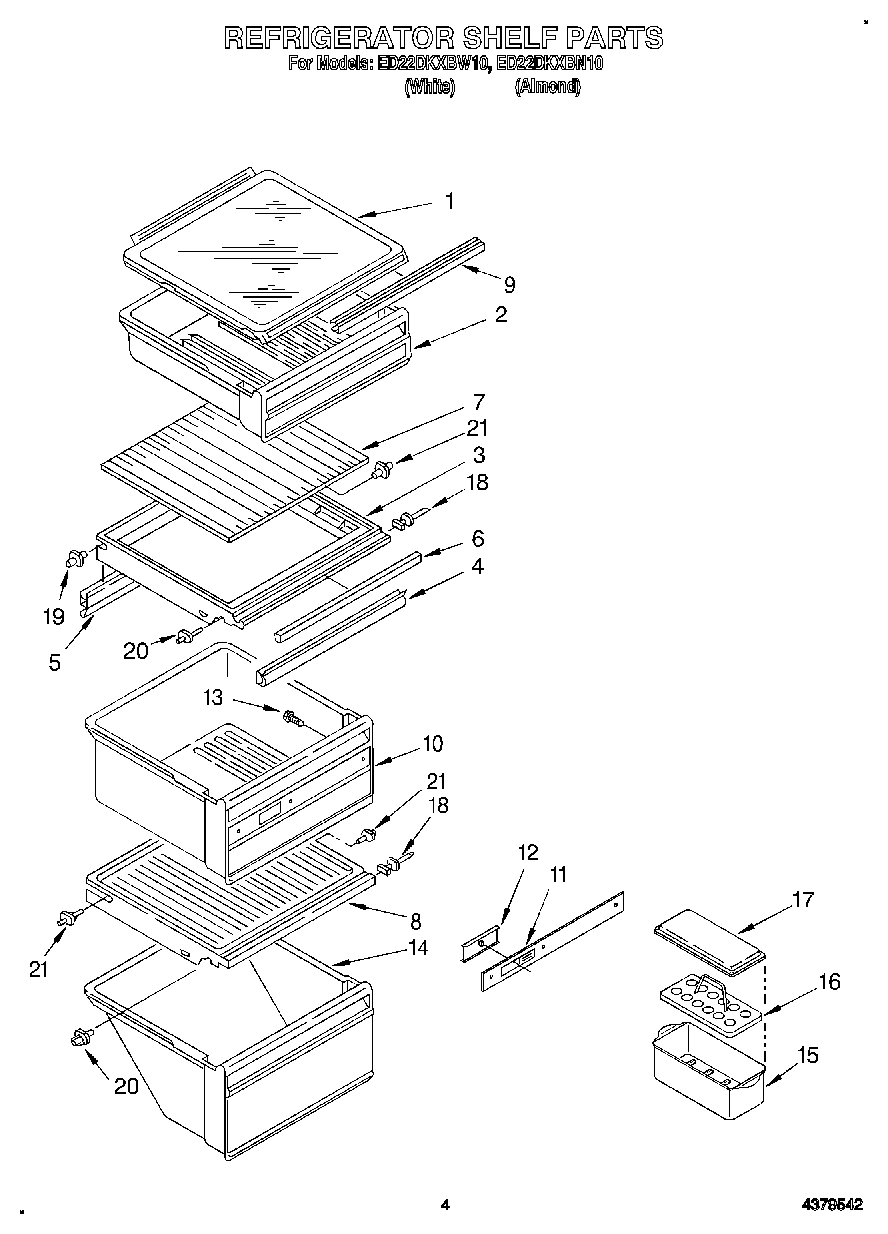

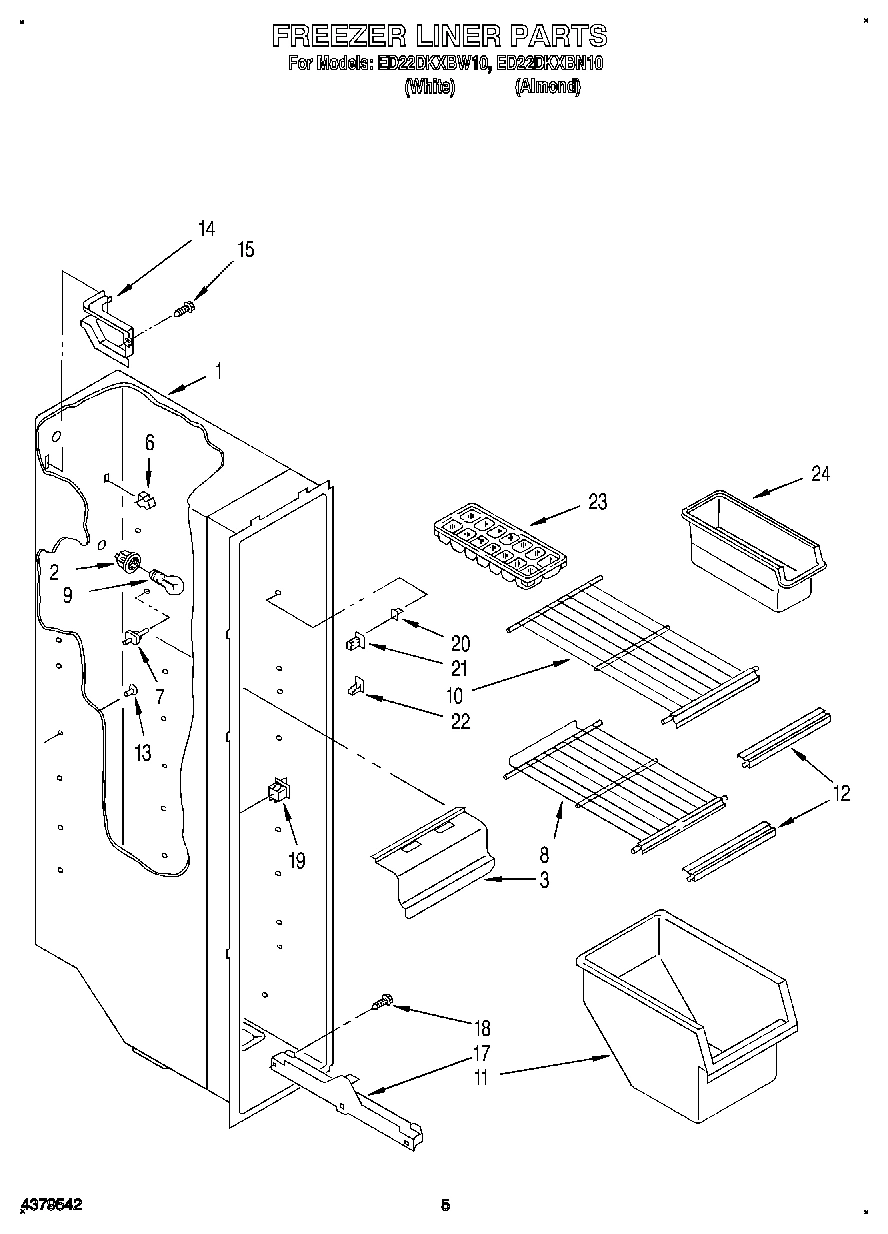

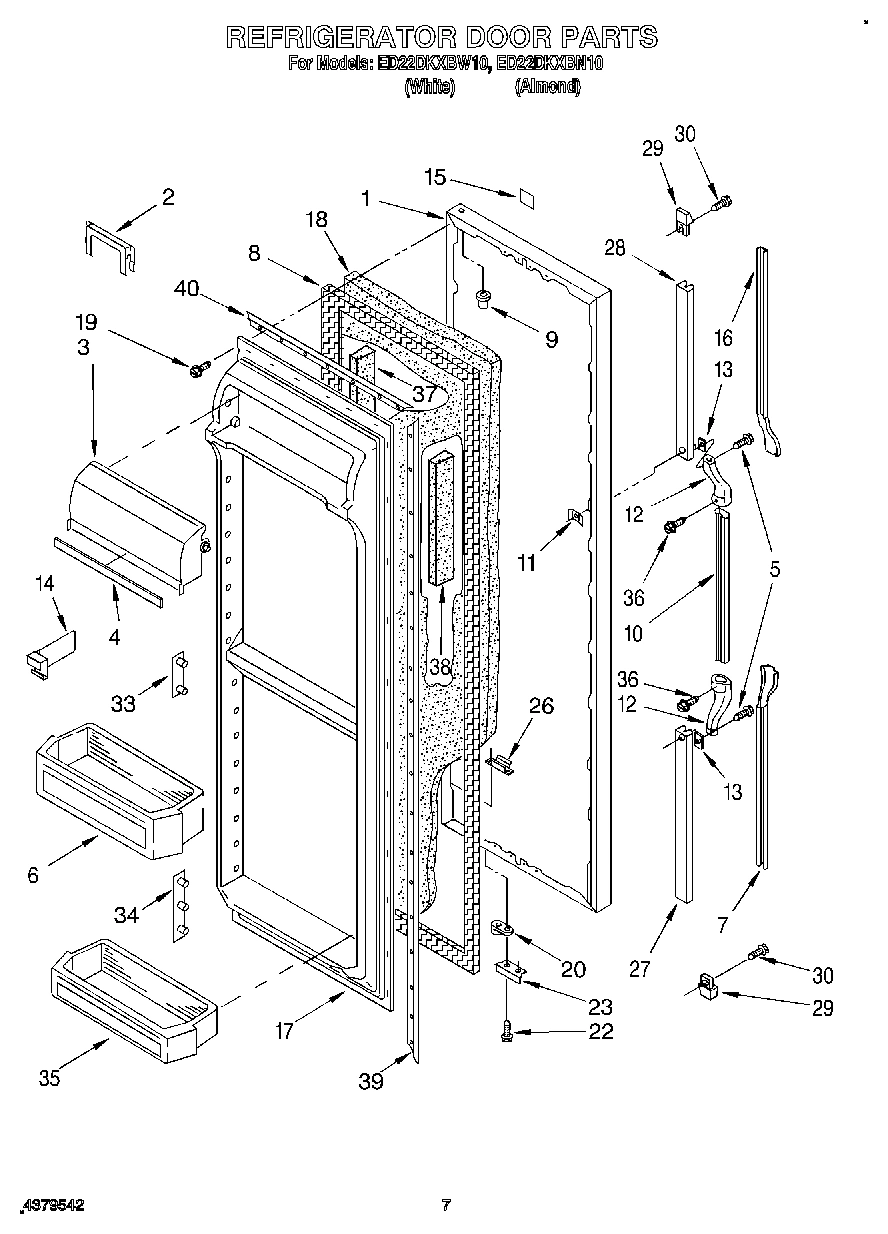

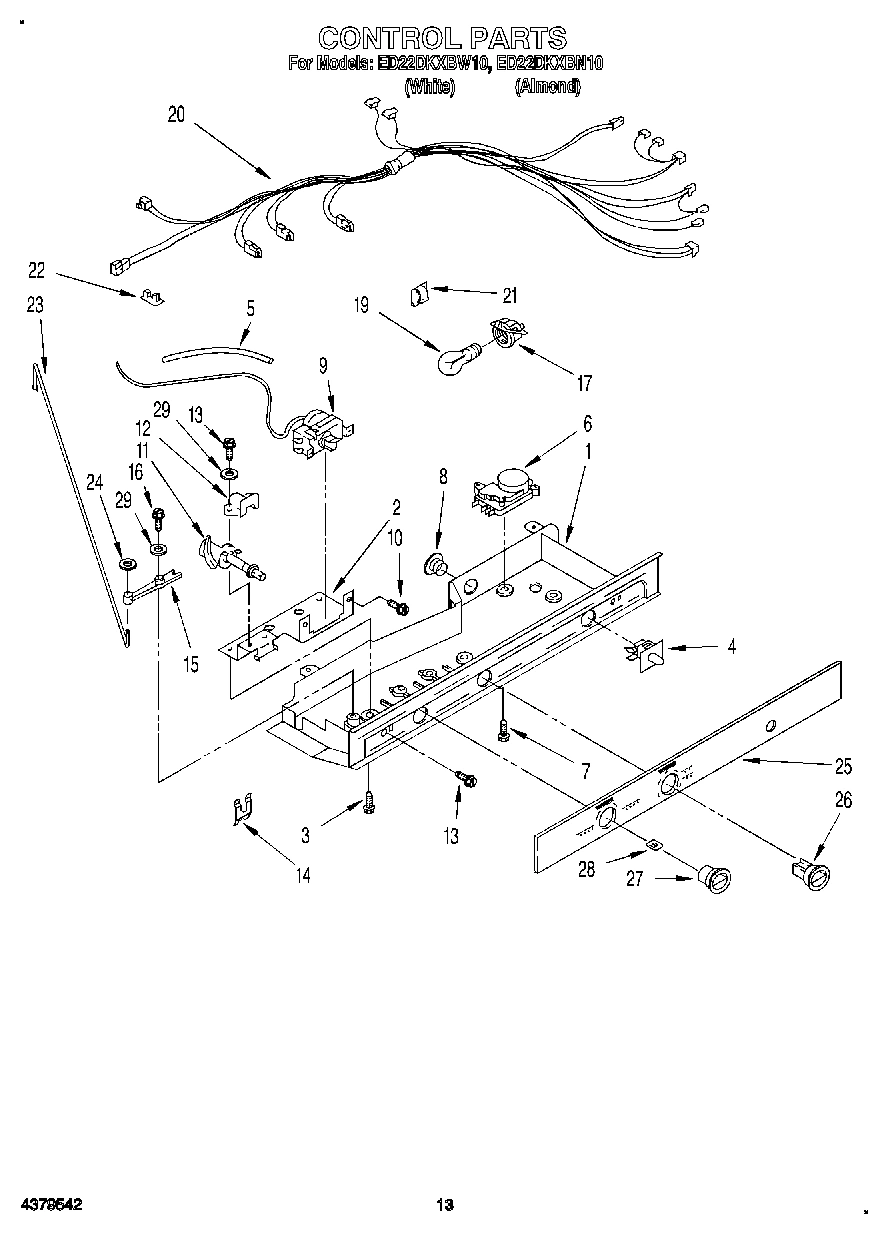

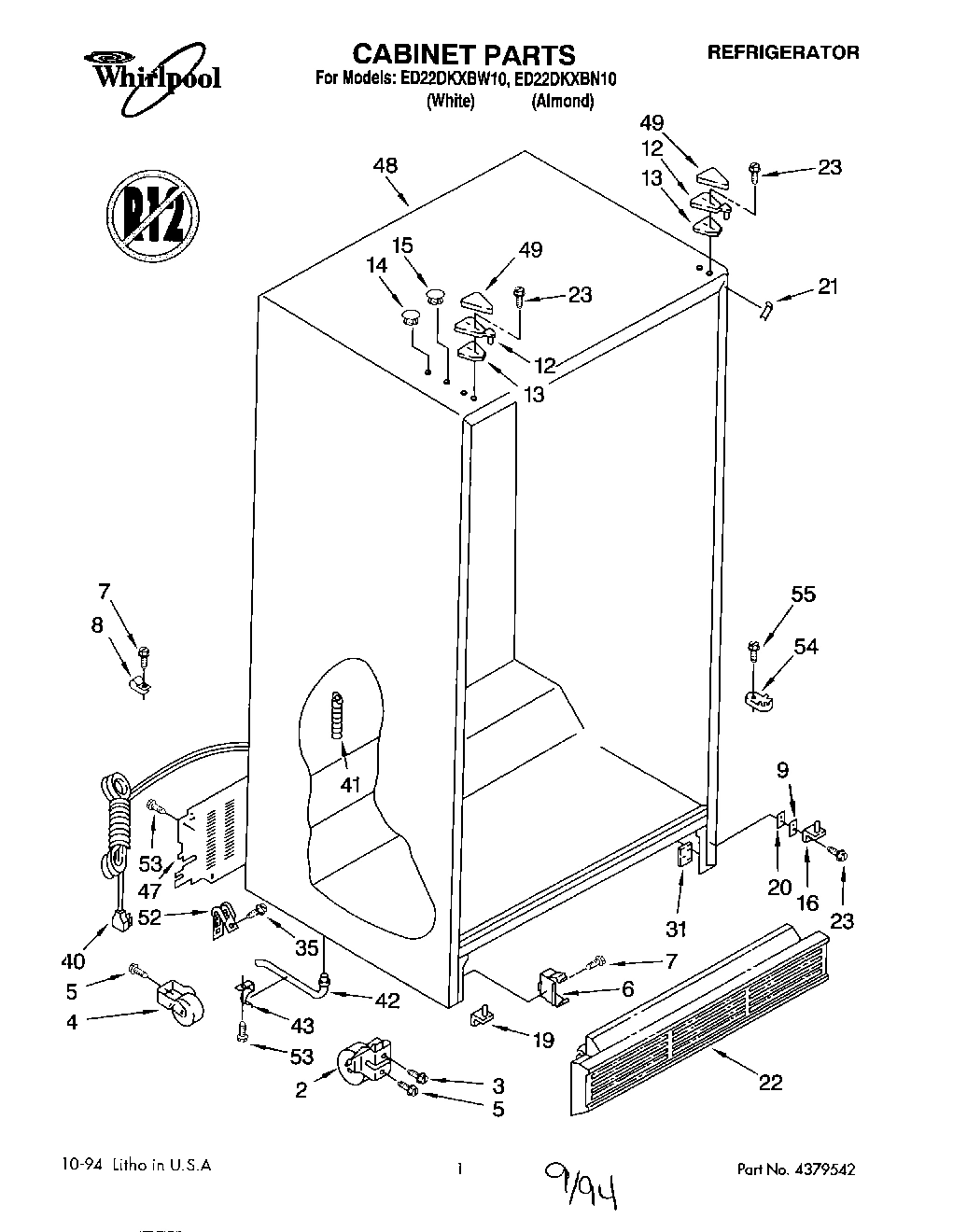

Model Whirlpool ED22DKXBW10 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2169531 WPL LIT2169531 Contact Us For Availability

WPL LIT2175811 WPL LIT2175811 Contact Us For Availability

WPL LIT2175859 WPL LIT2175859 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Shelf Assembly, Glass Sliding (3) WPL 2162991 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI26277A3 Contact Us For Availability

1

Refrigerator Door Panel (White) WPL 4362040 Contact Us For Availability

1

Refrigerator Door Panel (Almond (Also Order I WPL 4362041 Contact Us For Availability

1

Control Box WPL 2169147 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI26276A6 Contact Us For Availability

2

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $35.48

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Snack Bin WPL 2170578 Contact Us For Availability

2

Retainer, Bottle WPL 2163566 Contact Us For Availability

2

Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability

3

WP1126289 Whirlpool Refrigerator Cover In Stock WPL WP1126289 $71.42

3

WP2155595 Whirlpool Refrigerator Light Lens Backorder WPL WP2155595 $28.09

3

Door, Compartment WPL 2148847 Contact Us For Availability

3

Screw (2) WPL 489397 Contact Us For Availability

3

Slide, Meat Pan Control WPL 984102 Contact Us For Availability

3

Condenser Assembly WPL 2164513 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability

4

Trim, Compartment Door WPL 2162896 Contact Us For Availability

4

Pad, Foam WPL 992358 Contact Us For Availability

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

5

NLA:SCREW Backorder WPL WPW10141645 $3.70

5

Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability

5

Wine Rack WPL 1124828 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

Trim, Crisper Cover WPL 2162845 Contact Us For Availability

6

Shelf Bin (2) WPL 2162889 Contact Us For Availability

6

Defrost Timer (10 Hr.) WPL 2162046 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

Glass, Crisper Cover WPL 2162983 Contact Us For Availability

7

Insert, Handle (White) WPL 1119361 Contact Us For Availability

7

Insert, Handle (Almond) WPL 1119363 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability

8

2188404A Whirlpool Refrigerator Door Gasket In Stock WPL 2188404A $125.61

8

4388538 Whirlpool Refrigerator Shelf Stud Kit In Stock WPL 4388538 $11.60

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP2148298 Whirlpool Refrigerator Deli Drawer In Stock WPL WP2148298 $98.03

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

Shelf (Large 2) WPL 1114609 Contact Us For Availability

8

Shelf (Small) WPL 1118165 Contact Us For Availability

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

Trim WPL 2162989 Contact Us For Availability

9

Cap, Hinge Sleeve WPL 509929 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Pan, Crisper WPL 2162860 Contact Us For Availability

Shelf WPL 1114608 Contact Us For Availability

Handle, Center (White) WPL 1124713 Contact Us For Availability

Handle, Center (Almond) WPL 943079 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

Front, Crisper Pan WPL 2162854 Contact Us For Availability

Bin, Freezer WPL 2148194 Contact Us For Availability

Screw Anchor (2) WPL 941242 Contact Us For Availability

Cam Assembly WPL 2161250 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

Slide, Humidity Control WPL 2162849 Contact Us For Availability

Trim, Shelf WPL 2162938 Contact Us For Availability

End Cap, Center Handle WPL 1119359 Contact Us For Availability

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $72.20

Track, Shelf (Right Side (2)) WPL 1114632 Contact Us For Availability

Track, Shelf (Left Side (2)) WPL 1114633 Contact Us For Availability

Shim, Hinge Top WPL 1123515 Contact Us For Availability

Screw (3) WPL 489162 Contact Us For Availability

Grommet WPL 1110779 Contact Us For Availability

Shim WPL 935075 Contact Us For Availability

Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Track, Shelf (Left Side) WPL 1115265 Contact Us For Availability

Meat Pan WPL 2162932 Contact Us For Availability

Cover, Wiring WPL 2155401 Contact Us For Availability

Divider, Bin WPL 2152335 Contact Us For Availability

Retainer, Damper WPL 938439 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

Pivot Arm WPL 1110559 Contact Us For Availability

Nameplate (White) WPL 2148544 Contact Us For Availability

Nameplate (Almond) WPL 2162698 Contact Us For Availability

Relay (See Overload) WPL ARI26278A6 Contact Us For Availability

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP2177817 Whirlpool Refrigerator Egg Containe Backorder WPL WP2177817 $7.39

Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability

Insert, Handle (White) WPL 1119367 Contact Us For Availability

Insert, Handle (Almond) WPL 1119369 Contact Us For Availability

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

WP1114631 Whirlpool Refrigerator Shelf Suppor Backorder WPL WP1114631 $4.32

Cover WPL 2164374 Contact Us For Availability

Slide, Bin (Left Side) WPL 1115383 Contact Us For Availability

Panel, Interior Door WPL 1129278 Contact Us For Availability

Capacitor WPL 2169137 Contact Us For Availability

18

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

18

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

Shelf Stud WPL 1115290 No Longer Available

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.42

WP2149540 Whirlpool Shelf Support In Stock WPL WP2149540 $10.97

Spacer, Hinge WPL 987179 Contact Us For Availability

Stud WPL 946355 Contact Us For Availability

Control Box Harness WPL 2149186 Contact Us For Availability

Unit Cover, Bottom WPL 2160505 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

Filler, Wrapper (White) WPL 1110708 Contact Us For Availability

Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability

Stud, R.S. Front WPL 946356 Contact Us For Availability

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Grille (White) WPL 2155477 Contact Us For Availability

Grille (Almond) WPL 2155478 Contact Us For Availability

Stud, L.S. Rear WPL 1106982 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Bracket, Door Stop WPL 2155332 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

Fastener, Push-On WPL 489285 Contact Us For Availability

25

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

25

Escutcheon, Control Box WPL 2161213 Contact Us For Availability

25

Tray, Evaporator WPL 2154114 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

Tap, Plate WPL 2155335 Contact Us For Availability

Harness, Intermediate WPL 2153994 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

27

Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability

27

Knob, Air Control WPL 1116853 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

Retainer, Insert WPL 1119366 Contact Us For Availability

Knob, Retainer WPL 837444 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

End Cap (2) WPL 2156220 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

Transformer (115-230 Volt) WPL 515393 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

30

Screw WPL 489075 Contact Us For Availability

31

Tap Plate (2) WPL 2147310 Contact Us For Availability

32

Bracket, Fan Motor WPL 2162062 Contact Us For Availability

33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

33

Heater, Defrost WPL 2161322 Contact Us For Availability

33

Pin Plate (6) WPL 1118048 Contact Us For Availability

34

Pin Plate (8) WPL 1116986 Contact Us For Availability

34

Light Lens WPL 2169504 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

35

Shelf Bin (2) WPL 2162888 Contact Us For Availability

36

Screw WPL 489022 Contact Us For Availability

37

Door Dike, Hinge Side WPL 1115379 Contact Us For Availability

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

38

Door Dike, Handle Side WPL 1119055 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

Cord, Service WPL 937360 Contact Us For Availability

40

Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

Clip, Heat WPL 2155547 Contact Us For Availability

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

47

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $68.58

48

Cabinet (Not A Serviceable Part) WPL ARI26275A7 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

49

Screw WPL 488624 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $25.31

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

54

Wire Connector WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

55

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

59

Clip, Wire & Tube WPL 2155658 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
