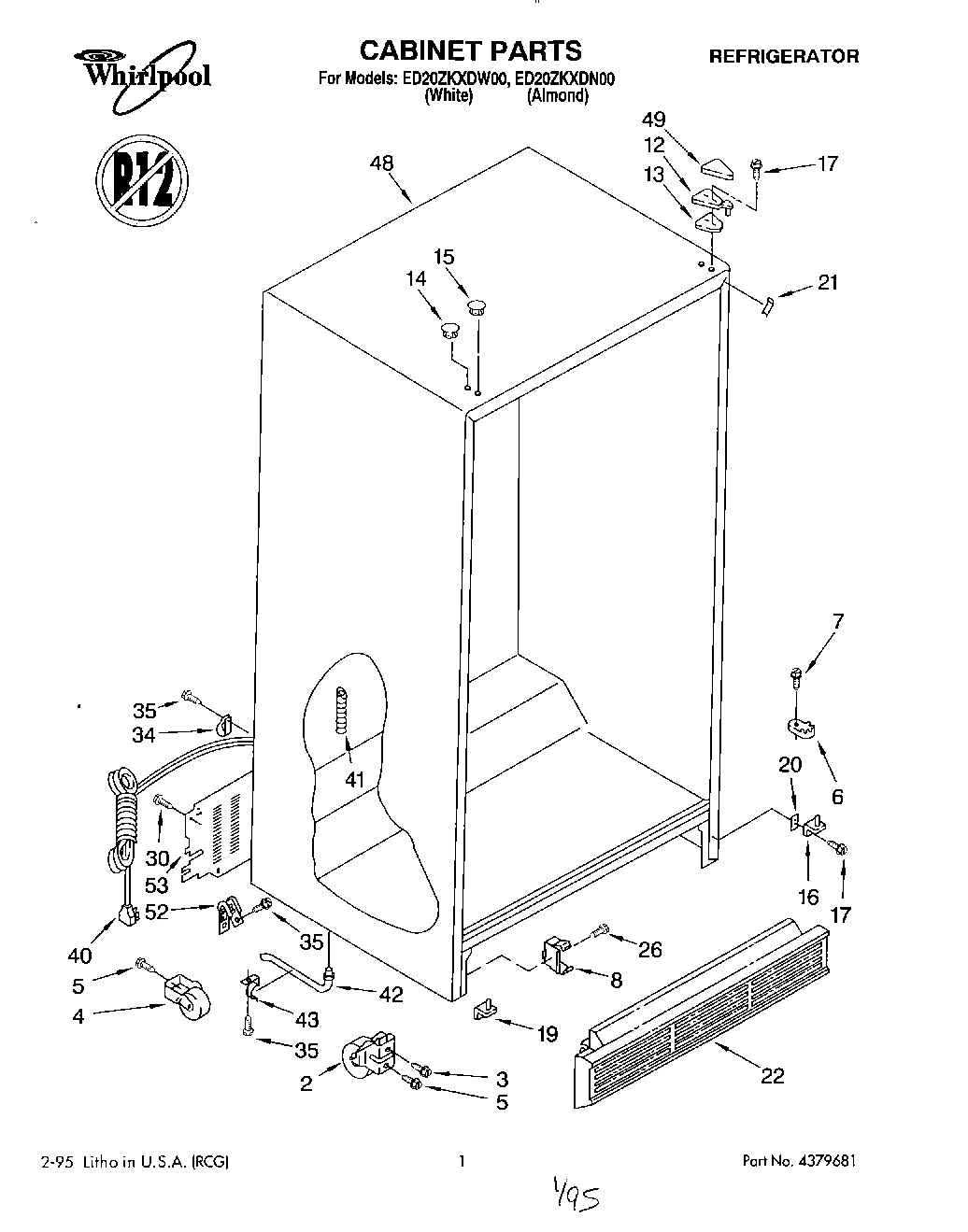

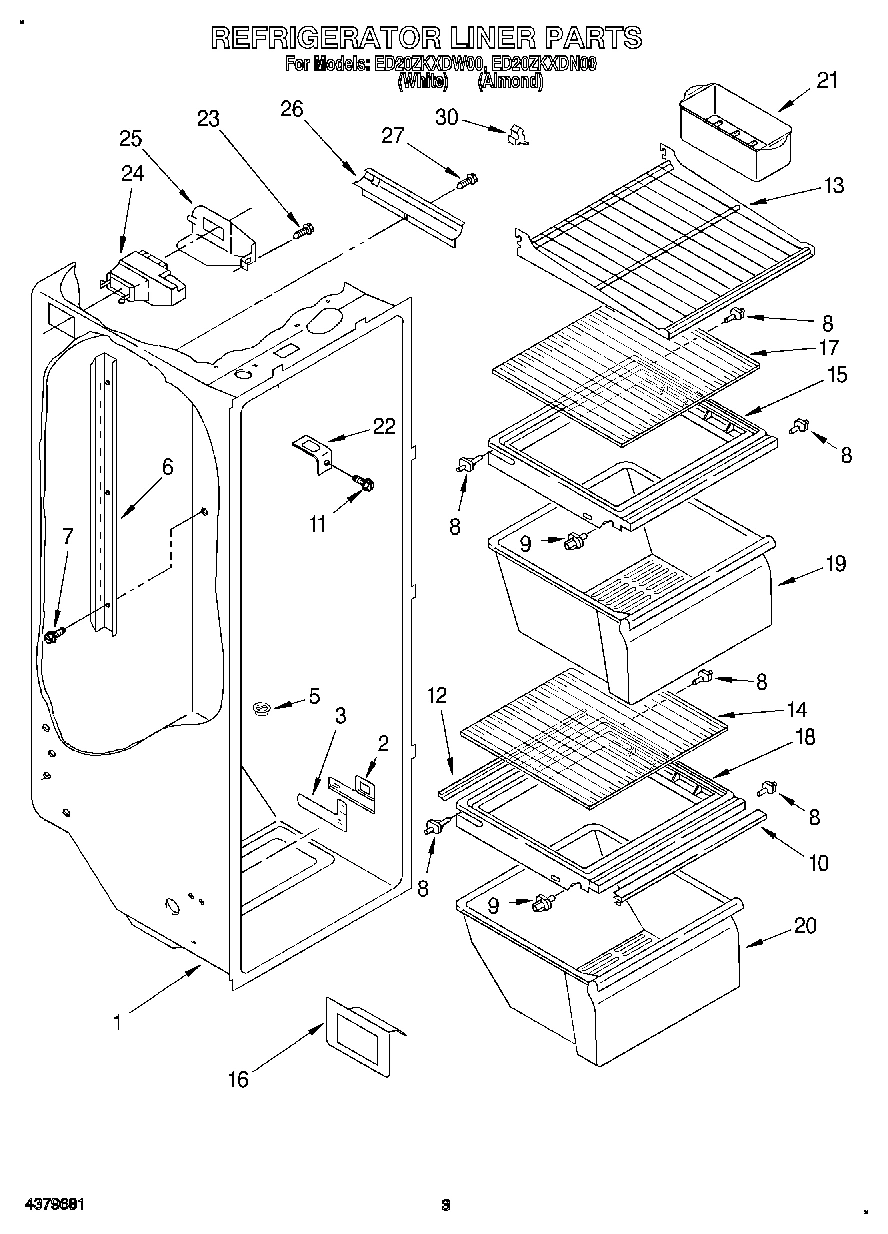

Model Whirlpool ED20ZKXDW00 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2175891 WPL LIT2175891 Contact Us For Availability

WPL LIT2176131 WPL LIT2176131 Contact Us For Availability

WPL LIT2179904 WPL LIT2179904 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Serviceable Part) WPL ARI26085A4 Contact Us For Availability

1

Freezer, Door Panel (White) WPL 4362049 Contact Us For Availability

1

Freezer, Door Panel (Almond (Also Order Item WPL 4362050 Contact Us For Availability

1

Control Box WPL 2169147 Contact Us For Availability

1

Refrigerator Door Panel (White) WPL 4362040 Contact Us For Availability

1

Refrigerator Door Panel (Almond (Also Order I WPL 4362041 Contact Us For Availability

2

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Tap, Plate WPL 2155335 Contact Us For Availability

3

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.42

3

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

3

Condenser Assembly WPL 2164513 Contact Us For Availability

3

Screw (2) WPL 489397 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

4

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

Grommet WPL 509812 Contact Us For Availability

5

Bracket, Door Stop WPL 2155332 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

Hole Plug WPL 655411 Contact Us For Availability

6

Shim WPL 935075 Contact Us For Availability

6

Defrost Timer WPL 2162046 Contact Us For Availability

6

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.71

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability

7

Support, Stud (10) WPL 946355 Contact Us For Availability

7

End Cap (2) WPL 1119359 Contact Us For Availability

8

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

Stud, Front (4) WPL 946356 Contact Us For Availability

8

Insert, Bottom (White) WPL 1119361 Contact Us For Availability

8

Insert, Bottom (Almond) WPL 1119363 Contact Us For Availability

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

Cover, Unit Compartment WPL 2160505 Contact Us For Availability

9

Stud R.S. Rear (4) WPL 1106982 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Grommet (10) WPL 2176134 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability

4388538 Whirlpool Refrigerator Shelf Stud Kit In Stock WPL 4388538 $11.60

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

Cam Assembly WPL 2161250 Contact Us For Availability

Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

2188404A Whirlpool Refrigerator Door Gasket In Stock WPL 2188404A $125.61

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

Shelf WPL 2163612 Contact Us For Availability

Harness, Fan, Evaporator, And Heater WPL 2161478 Contact Us For Availability

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $72.20

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

Shim, Hinge (2) WPL 1123515 Contact Us For Availability

Cap, Hinge Sleeve WPL 509929 Contact Us For Availability

Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability

Shelf (1) WPL 2174269 Contact Us For Availability

Shelf (2) WPL 2174270 Contact Us For Availability

Handle, Center (White) WPL 1124713 Contact Us For Availability

Handle, Center (Almond) WPL 943079 Contact Us For Availability

Retainer, Damper WPL 938439 Contact Us For Availability

2188405A Whirlpool Refrigerator Door Gasket Backorder WPL 2188405A $132.43

Pivot Arm WPL 1110559 Contact Us For Availability

Relay (See Overload) WPL ARI26086A9 Contact Us For Availability

Bin, Freezer WPL 2171707 Contact Us For Availability

Reinforcement, Shelf WPL 2152266 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $27.52

Screw WPL 489022 Contact Us For Availability

17

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

17

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $35.48

17

Screw Anchor WPL 941242 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP2155595 Whirlpool Refrigerator Light Lens Backorder WPL WP2155595 $28.09

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Screw WPL 489075 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

Insert, Top (White) WPL 1119367 Contact Us For Availability

Insert, Top (Almond) WPL 1119369 Contact Us For Availability

20

Cover, Wiring WPL 2155401 Contact Us For Availability

20

Control Box Harness WPL 2149185 Contact Us For Availability

21

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

21

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

21

Insert Retainer (Top) WPL 1119366 Contact Us For Availability

22

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

22

Insert Retainer (Bottom) WPL 1119360 Contact Us For Availability

22

CLIP, WIRING WPL 1115375 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

Clip, Heater (2) WPL 2161330 Contact Us For Availability

Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability

End Cap (2) WPL 2156220 Contact Us For Availability

Connecting Rod WPL 1123959 Contact Us For Availability

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

Fastener, Push-On WPL 489285 Contact Us For Availability

Trim, Door Shelf (2) WPL 2170586 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

Escutcheon, Control Box WPL 2170787 Contact Us For Availability

Divider, Shelf WPL 2160050 Contact Us For Availability

26

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

26

Harness, Intermediate WPL 2153994 Contact Us For Availability

27

Knob, Air Control WPL 1116853 Contact Us For Availability

27

Interior Door Panel (Also Order Item No.15) WPL 1124961 Contact Us For Availability

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

28

Knob, Retainer WPL 837444 Contact Us For Availability

28

Trim, Door Shelf (2) WPL 2170587 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4388286 Whirlpool Refrigerator Shelf Bar Endc In Stock WPL 4388286 $8.55

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, B WPL 799344 Contact Us For Availability

xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability

Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

30

Unit Mounting Frame WPL 2160498 Contact Us For Availability

32

Fan, Motor Bracket WPL 548695 Contact Us For Availability

32

Door, Compartment WPL 2174901 Contact Us For Availability

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $49.61

34

Capacitor WPL 2169137 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

35

Panel, Interior Door WPL 1129241 Contact Us For Availability

36

Nameplate (White) WPL 2162781 Contact Us For Availability

36

Nameplate (Almond) WPL 2162782 Contact Us For Availability

37

Trim, Door Shelf WPL 2170585 Contact Us For Availability

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

38

WP2196100 Whirlpool Shelf Retainer Bar Suppor In Stock WPL WP2196100 $3.70

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

40

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

41

Air Baffle WPL 2155301 Contact Us For Availability

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Trim, Door Compartment WPL 2162896 Contact Us For Availability

44

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

Screw WPL 488624 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $25.31

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

54

Wire Connector WPL 850145 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

NI

NLA:SCREW Backorder WPL WPW10141645 $3.70
