Model Whirlpool ED20ZKXDN02 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
02 - REFRIGERATOR LINER
04 - AIR FLOW

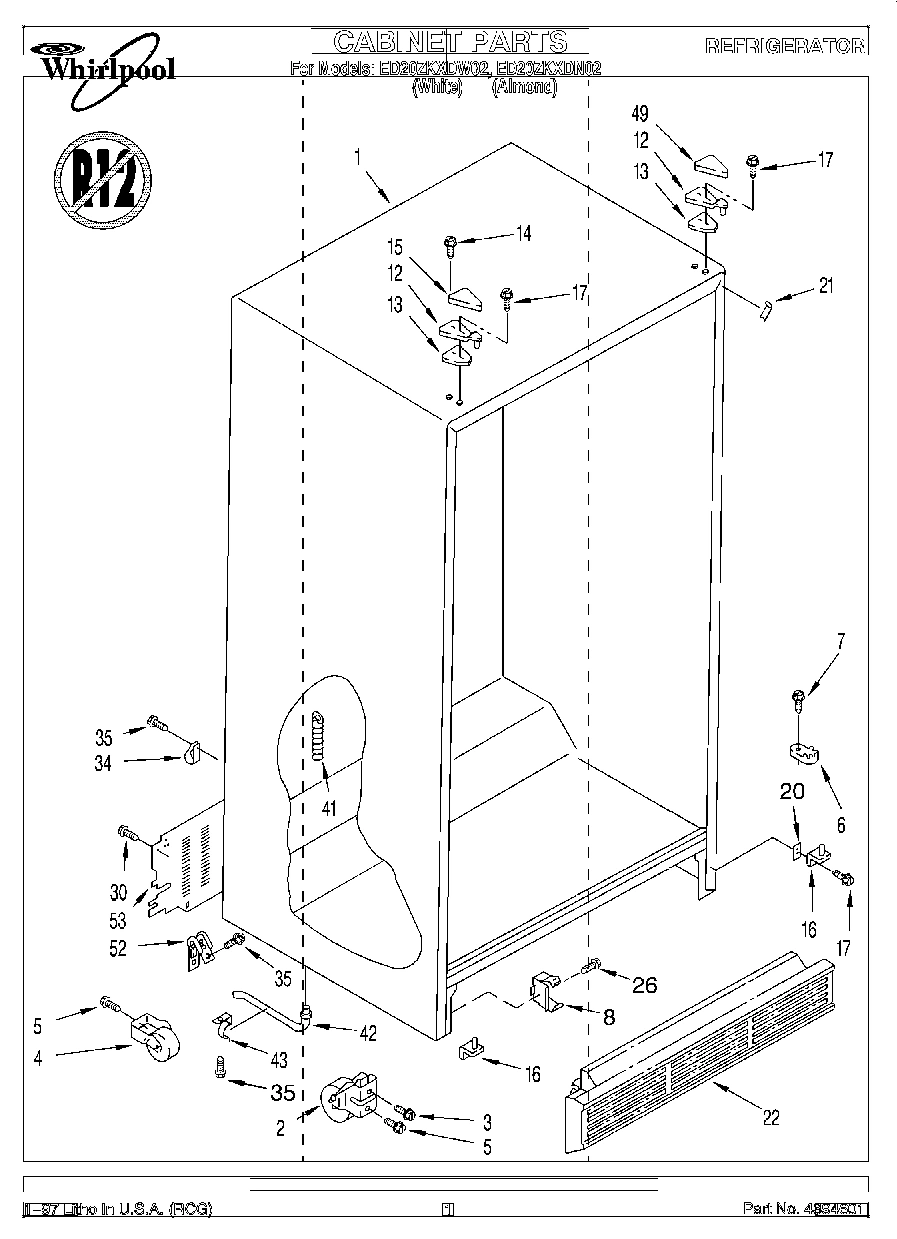

01 - CABINET

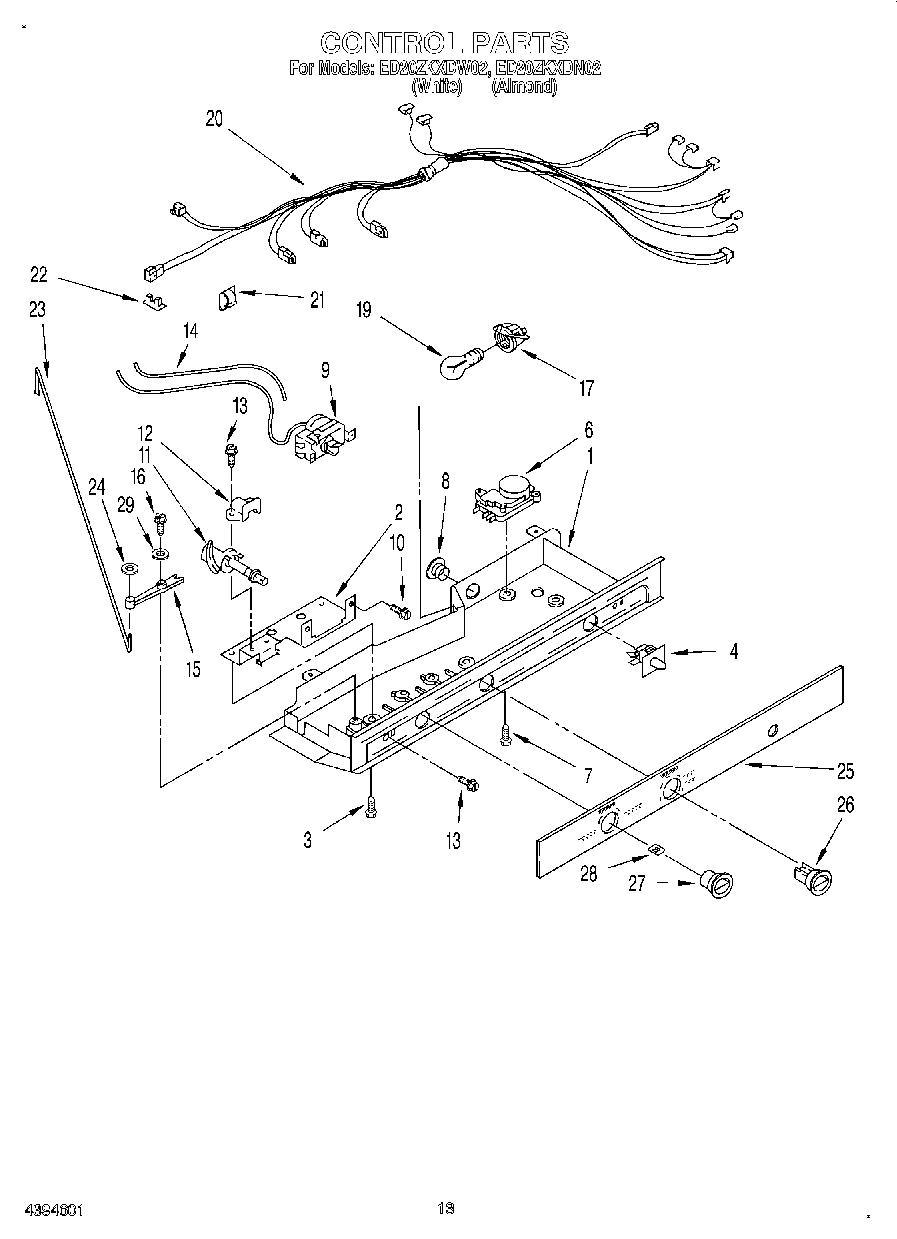

08 - CONTROL, LIT/OPTIONAL

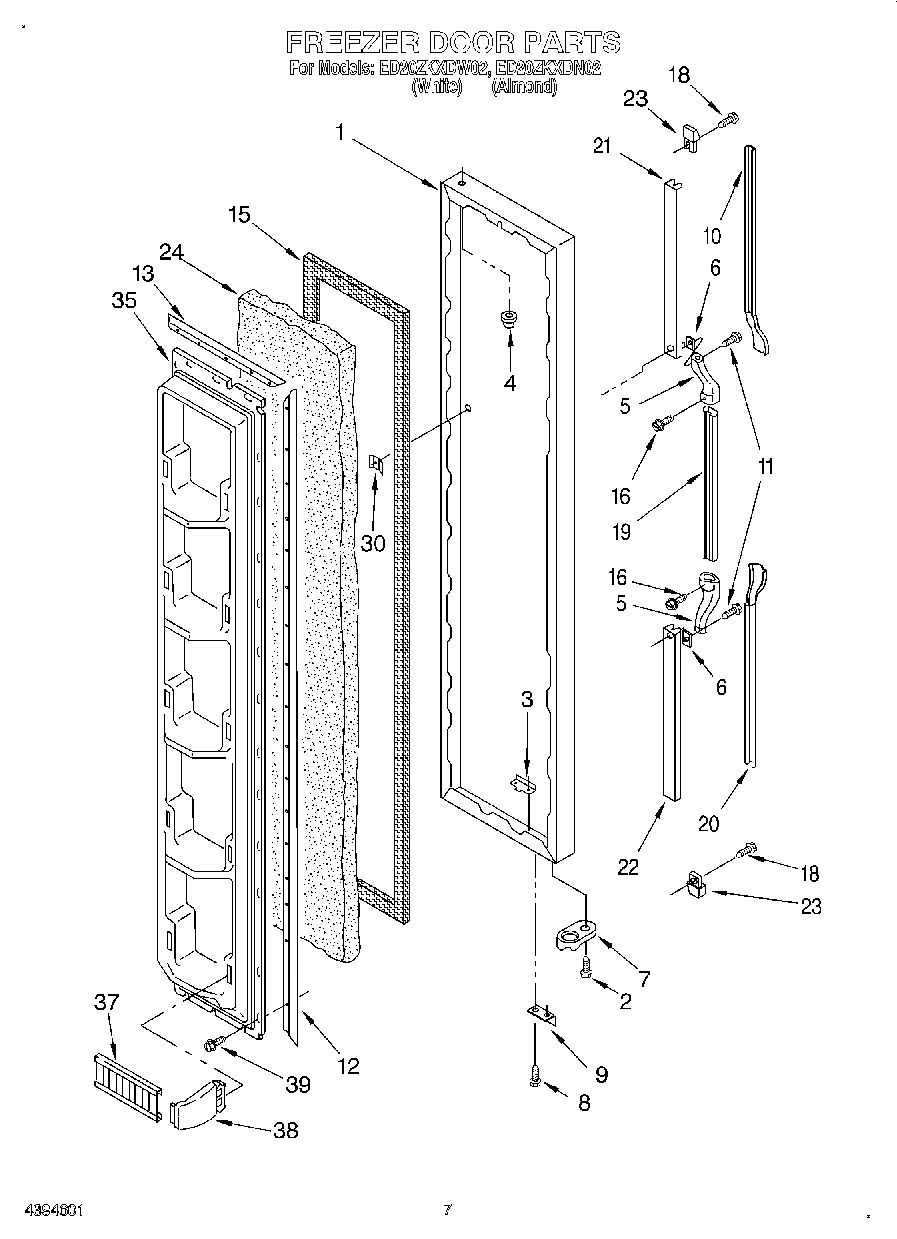

05 - FREEZER DOOR

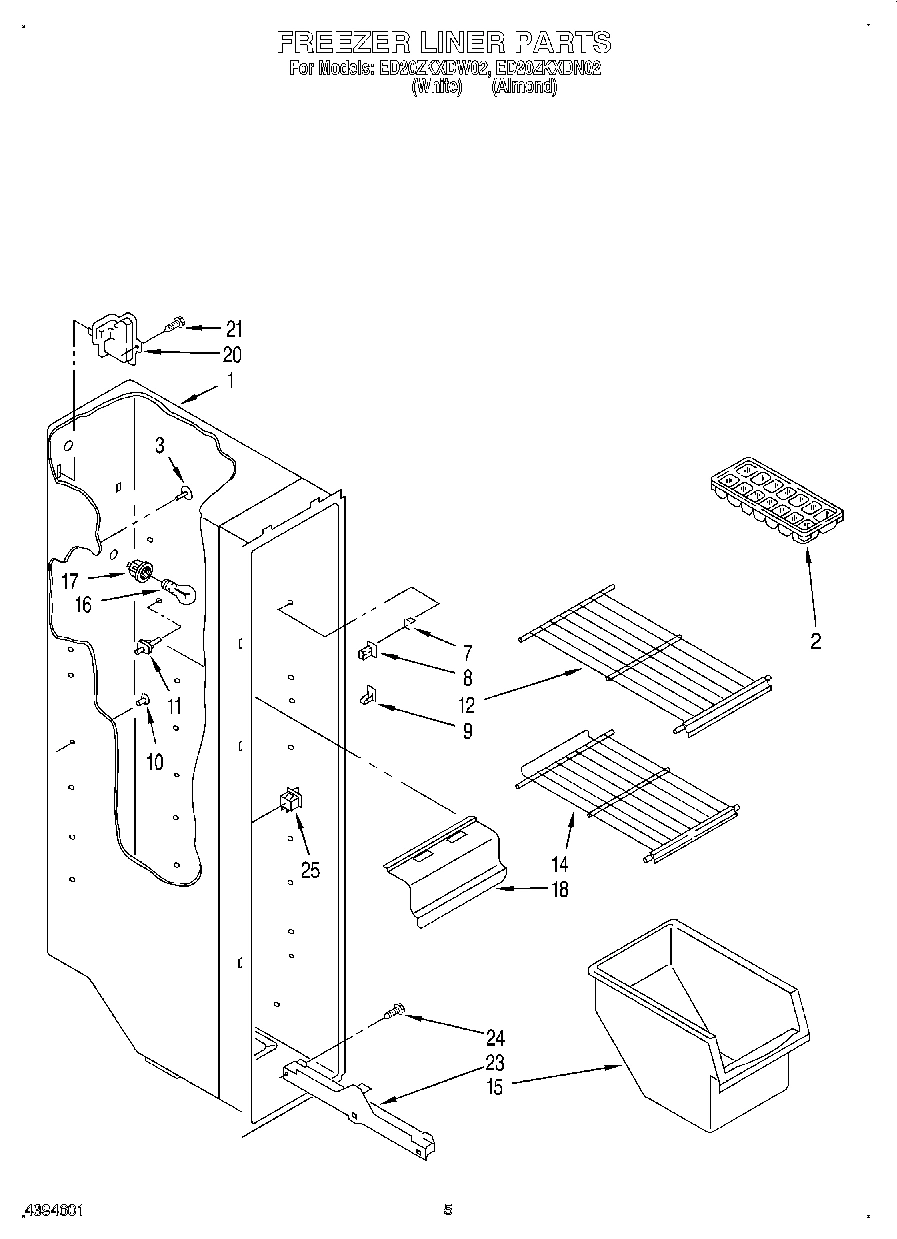

03 - FREEZER LINER

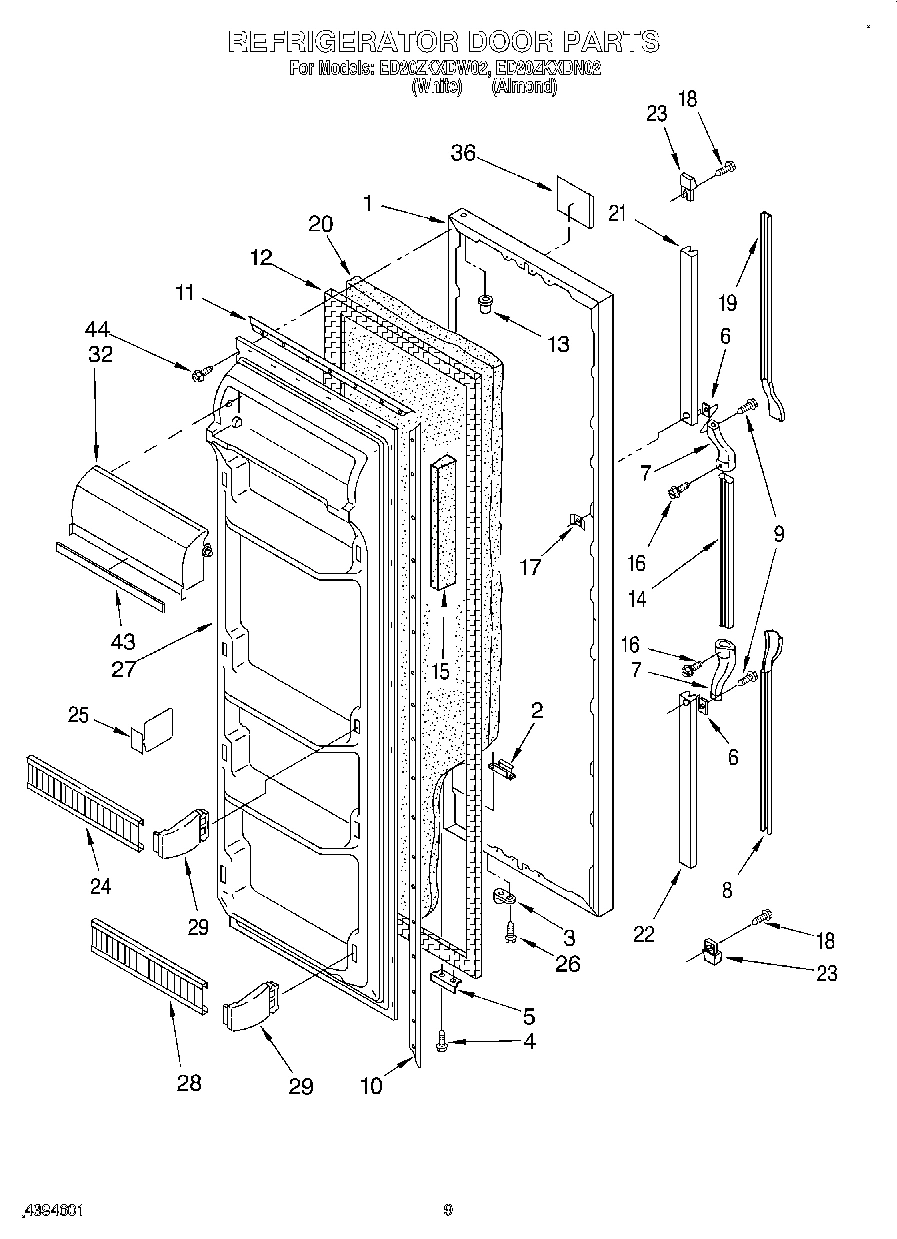

06 - REFRIGERATOR DOOR

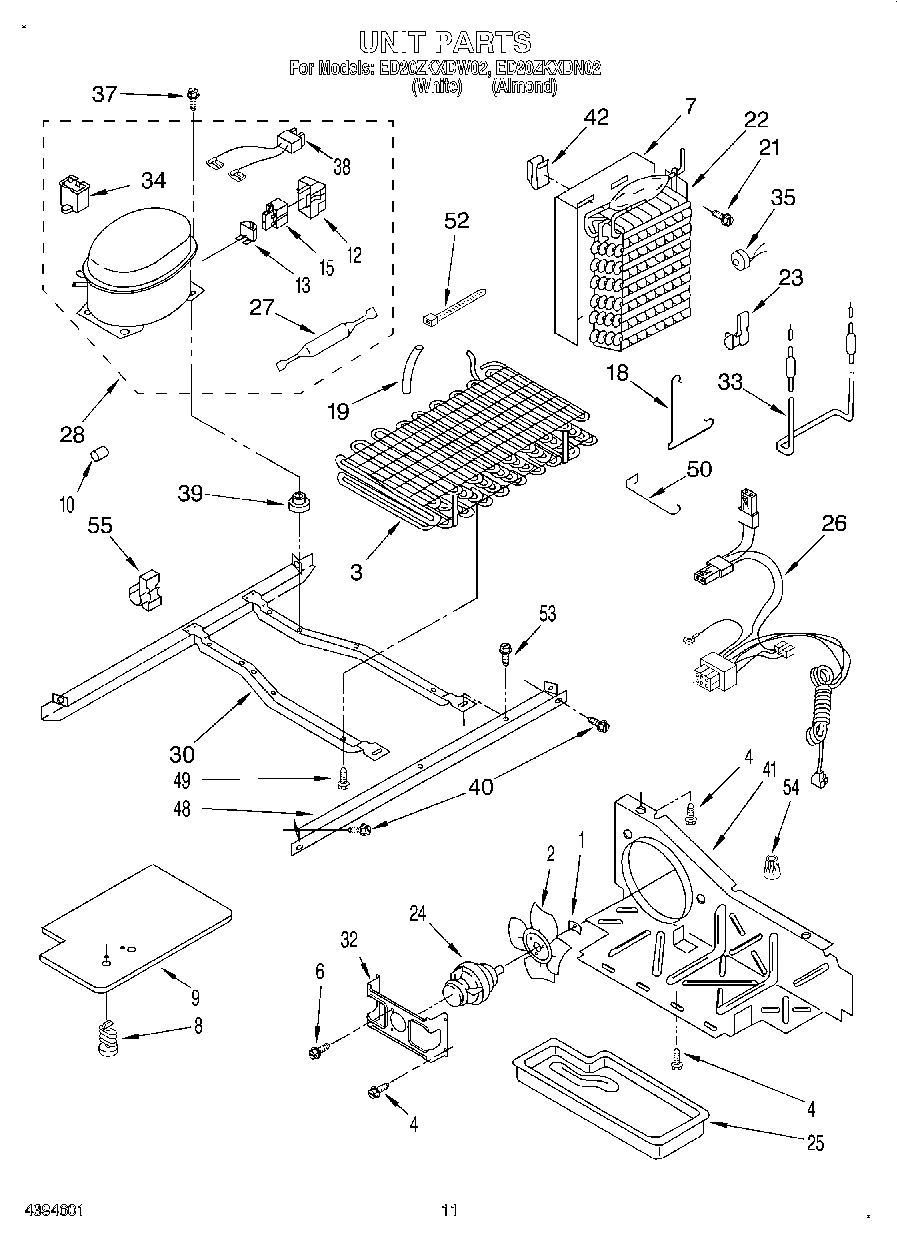

07 - UNIT
Common parts from model Whirlpool ED20ZKXDN02 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 2194997N Contact Us For Availability
1
Freezer, Door Panel (White) WPL 2194997W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26078A6 Contact Us For Availability
1
Refrigerator Door Panel (Almond (Also Order I WPL 2194995N Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 2194995W Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Tap, Plate WPL 2155335 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
5
Bracket, Door Stop WPL 2155332 Contact Us For Availability
6
Shim WPL 935075 Contact Us For Availability
7
End Cap (2) WPL 1119359 Contact Us For Availability
7
Support, Stud (10) WPL 946355 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
8
Insert, Bottom (Almond) WPL 2194773N Contact Us For Availability
8
Insert, Bottom (White) WPL 2194773W Contact Us For Availability
8
Stud, Front (4) WPL 946356 Contact Us For Availability
9
Cover, Unit Compartment WPL 2182057 Contact Us For Availability
9
Stud R.S. Rear (4) WPL 1106982 Contact Us For Availability
10
Grommet (10) WPL 2176134 Contact Us For Availability
10
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
11
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
12
Shelf WPL 2163612 Contact Us For Availability
13
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
14
Handle, Center (Almond) WPL 2194767N Contact Us For Availability
14
Handle, Center (White) WPL 2194767W Contact Us For Availability
14
Shelf (1) WPL 2174269 Contact Us For Availability
14
Shelf (2) WPL 2174270 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bin, Freezer WPL 2171707 Contact Us For Availability
15
Reinforcement, Shelf WPL 2152266 Contact Us For Availability
15
Relay (See Overload) WPL ARI26079A3 Contact Us For Availability
16
Screw WPL 489022 Contact Us For Availability
17
Screw Anchor WPL 941242 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
19
Insert, Top (Almond) WPL 2194774N Contact Us For Availability
19
Insert, Top (White) WPL 2194774W Contact Us For Availability
20
Cover, Wiring WPL 2155401 Contact Us For Availability
21
Insert Retainer (Top) WPL 2194771 Contact Us For Availability
22
Insert Retainer (Bottom) WPL 2194770 Contact Us For Availability
23
End Cap (2) WPL 2156220 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
23
Clip, Heater (2) WPL 2161330 Contact Us For Availability
24
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Divider, Shelf WPL 2160050 Contact Us For Availability
26
Harness, Intermediate WPL 2194747 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Interior Door Panel (Also Order Item No.15) WPL 1124961 Contact Us For Availability
28
Trim, Door Shelf (2) WPL 2182188 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
32
Compartment Door WPL 2148289 Contact Us For Availability
34
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
35
Panel, Interior Door WPL 1129241 Contact Us For Availability
36
Nameplate (White) WPL 2175383 Contact Us For Availability
36
Nameplate (Almond) WPL 2175384 Contact Us For Availability
37
Trim, Door Shelf WPL 2170585 Contact Us For Availability
41
Air Baffle WPL 2155301 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Trim, Door Compartment WPL 2162896 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
55
Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability
55
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
