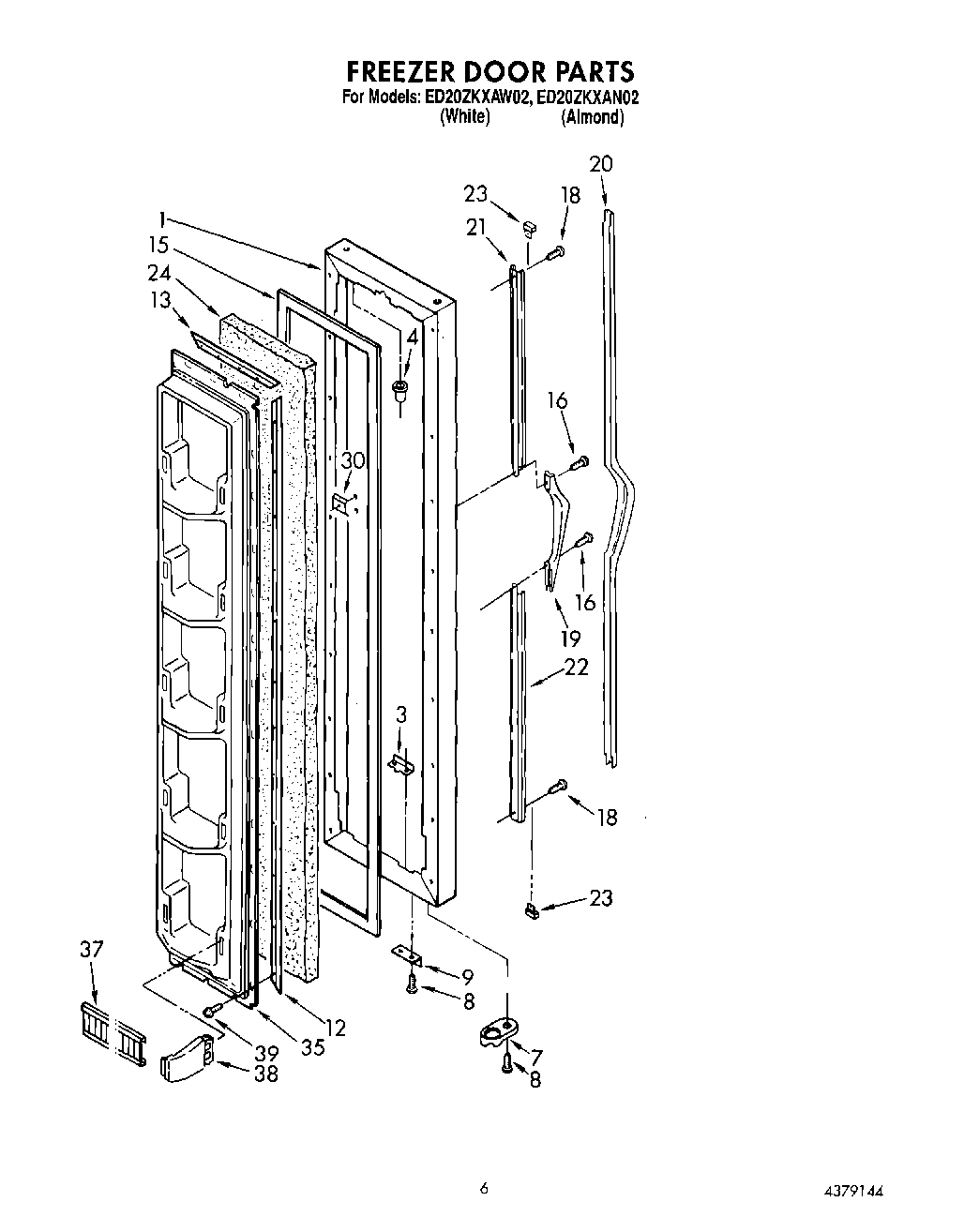

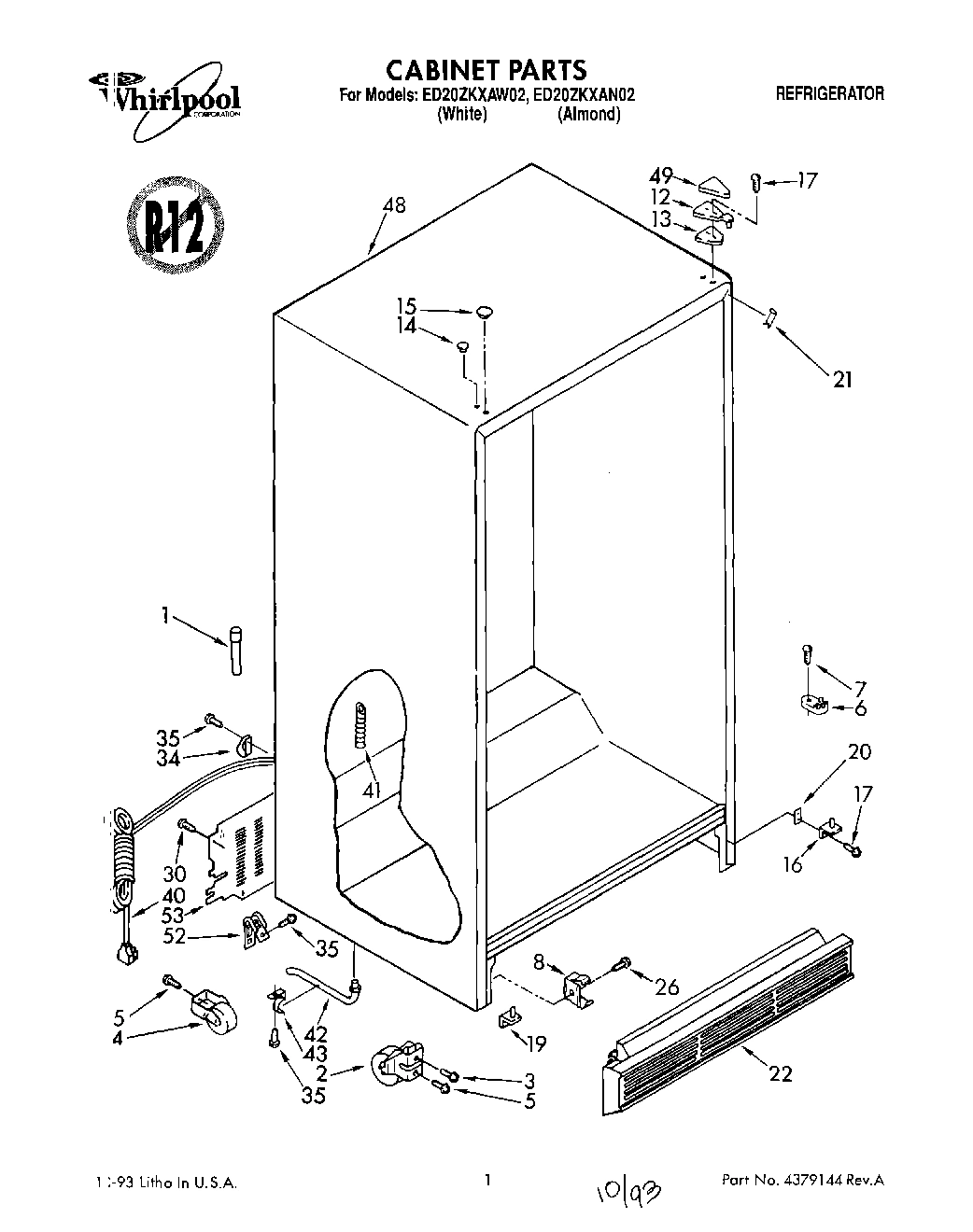

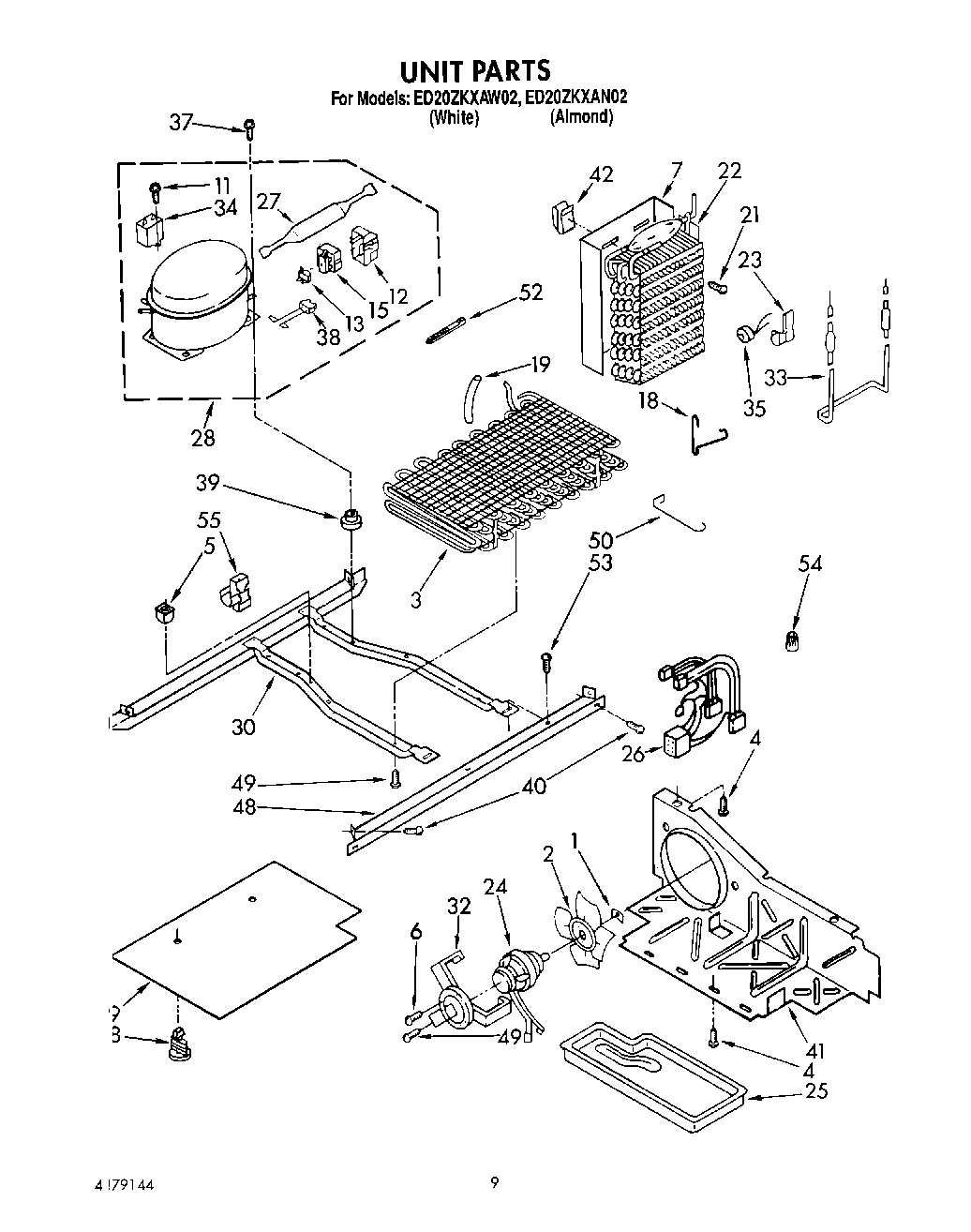

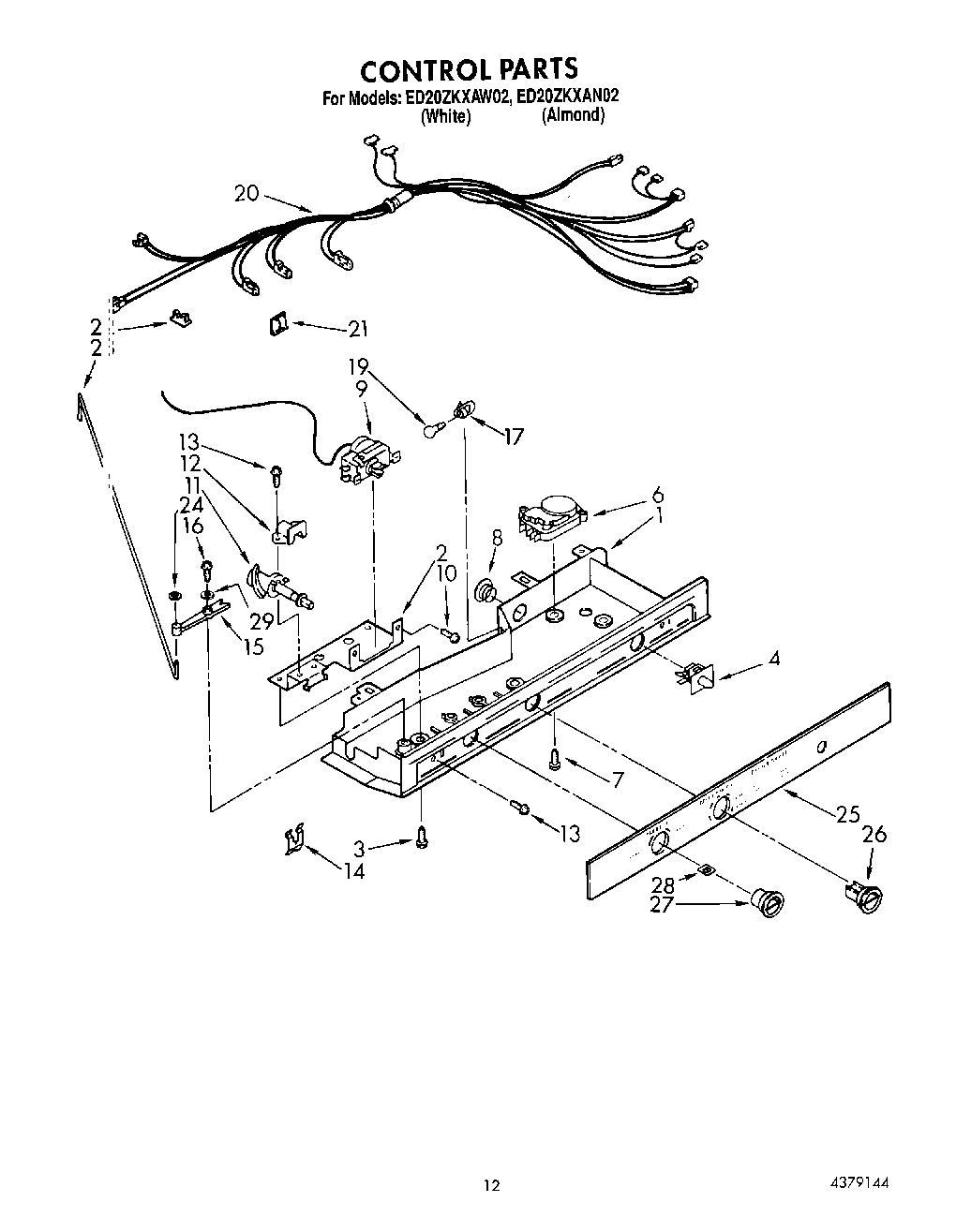

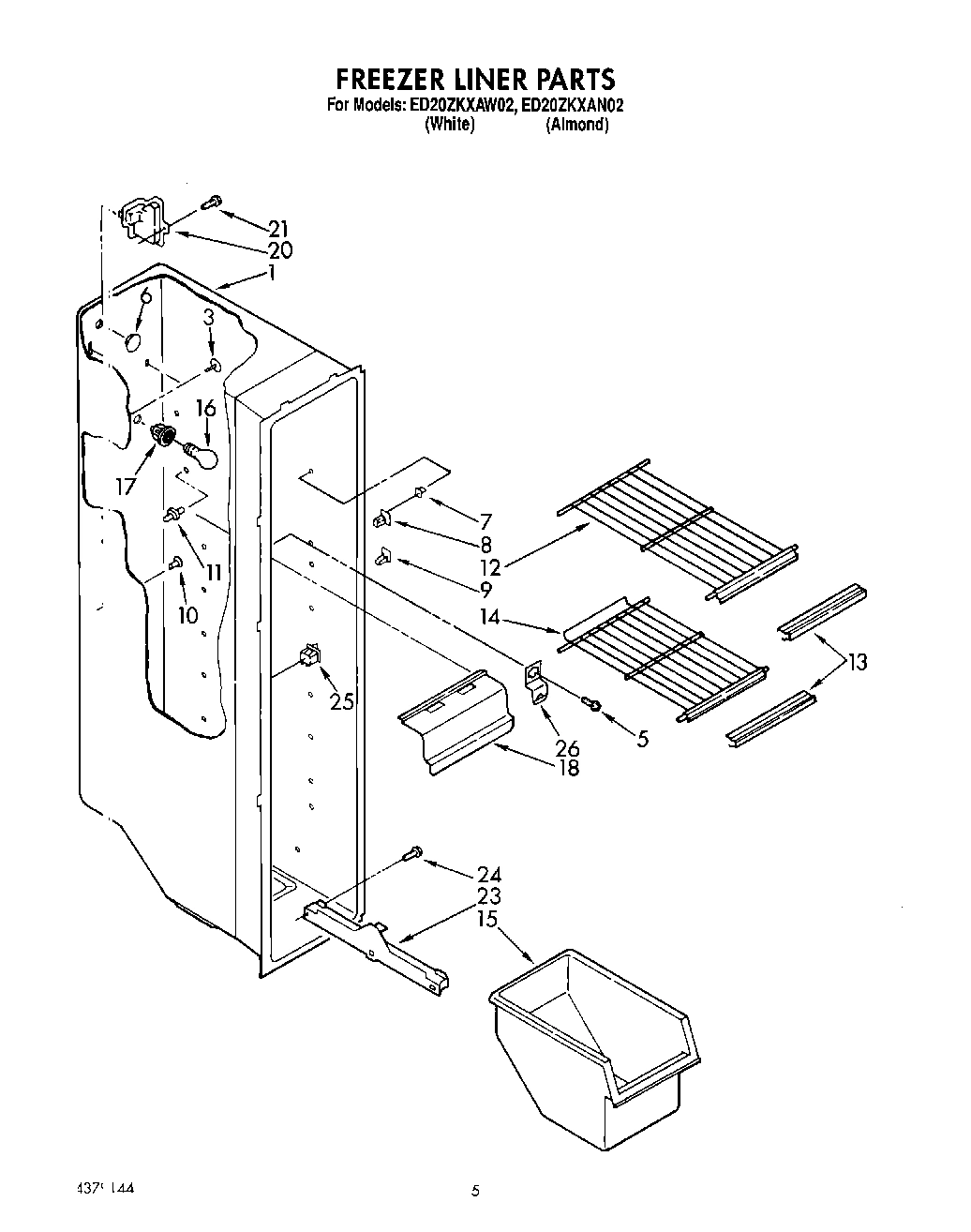

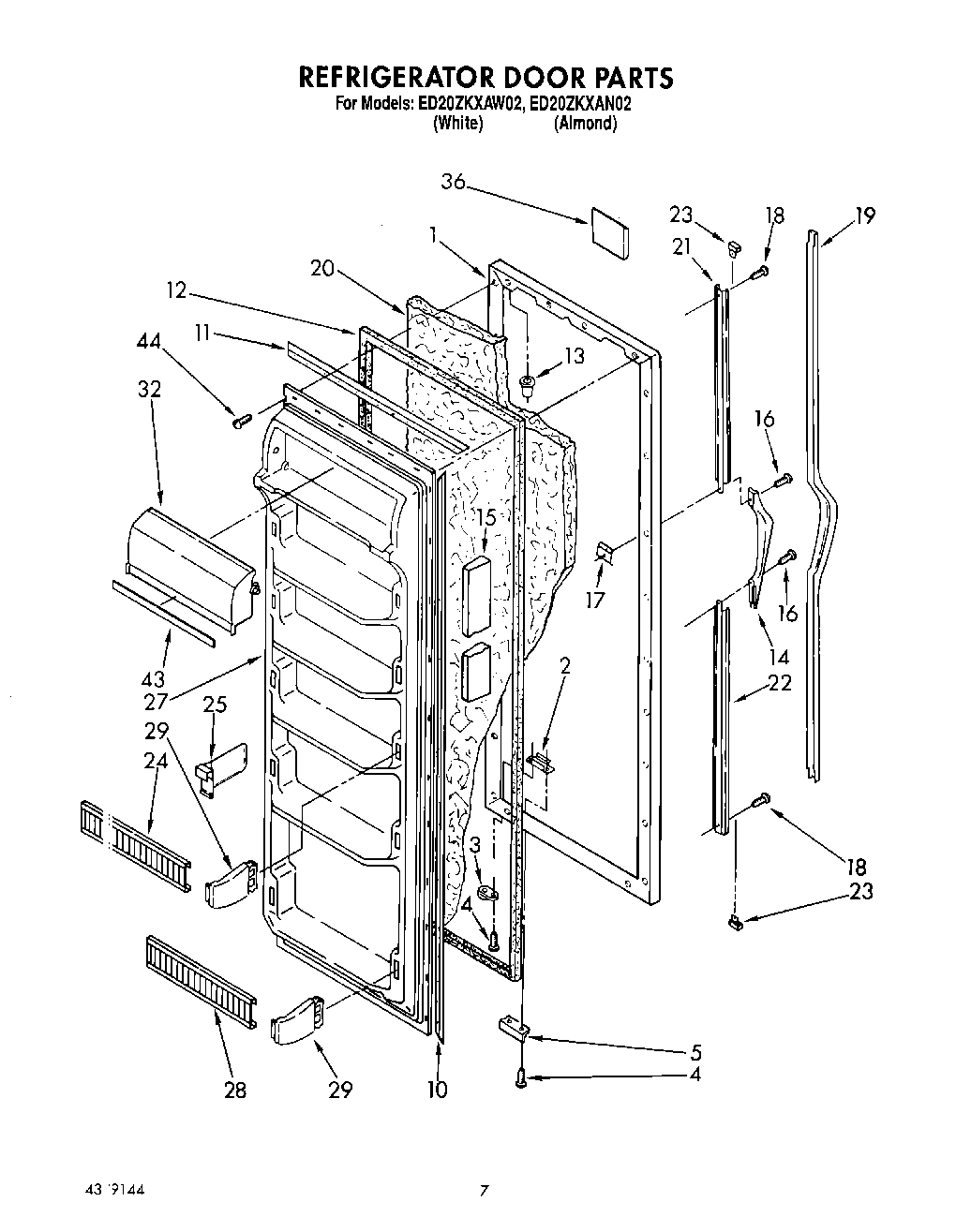

Model Whirlpool ED20ZKXAN02 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2155745 WPL LIT2155745 Contact Us For Availability

WPL LIT2162815 WPL LIT2162815 Contact Us For Availability

WPL LIT2169103 WPL LIT2169103 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Refrigerator Door (White) WPL 4362024 Contact Us For Availability

1

Refrigerator Door (Almond (Also Order Item 20 WPL 4362025 Contact Us For Availability

1

Water, Tube WPL 2155247 Contact Us For Availability

1

Control Box WPL 2169147 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI26046A8 Contact Us For Availability

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Tap, Plate WPL 2155335 Contact Us For Availability

2

Front Roller (2) WPL 2152011 Contact Us For Availability

3

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.42

3

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

3

Screw WPL 489393 Contact Us For Availability

3

Screw (2) WPL 489397 Contact Us For Availability

3

Condenser Assembly WPL 2164513 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

5

Bracket, Door Stop WPL 2155334 Contact Us For Availability

5

Screw, WPL 488454 Contact Us For Availability

5

Grommet WPL 509812 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

6

Defrost Timer WPL 2162046 Contact Us For Availability

6

Hole Plug WPL 655411 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

7

Support, Stud (16) WPL 946355 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability

8

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

Stud (5) WPL 946356 Contact Us For Availability

9

WP2149540 Whirlpool Shelf Support In Stock WPL WP2149540 $4.34

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

Stud (5) WPL 1106982 Contact Us For Availability

9

Cover, Unit Compartment WPL 2160505 Contact Us For Availability

10

Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability

10

Grommet (14) WPL 1110779 Contact Us For Availability

4388538 Whirlpool Refrigerator Shelf Stud Kit In Stock WPL 4388538 $11.05

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability

Cam Assembly WPL 2161250 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

2188404A Whirlpool Refrigerator Door Gasket In Stock WPL 2188404A $119.63

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $33.95

Shelf WPL 1106979 Contact Us For Availability

Service WPL 1108115 Contact Us For Availability

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $68.76

Shim, Hinge (2) WPL 1123515 Contact Us For Availability

Cap, Hinge Sleeve WPL 509929 Contact Us For Availability

Trim Shelf WPL 1110782 Contact Us For Availability

Handle WPL 987009 Contact Us For Availability

Hole, Plug (White) WPL 849391 Contact Us For Availability

Hole Plug (Almond) WPL 989958 Contact Us For Availability

Retainer, Damper WPL 938439 Contact Us For Availability

Shelf (Large 2) WPL 1106980 Contact Us For Availability

Shelf (Small 1) WPL 2155603 Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

Reinforcement, Shelf WPL 2152266 Contact Us For Availability

Hole Plug (White) WPL 1115352 Contact Us For Availability

Hole Plug (Almond) WPL 1115354 Contact Us For Availability

Bin, Freezer WPL 2148194 Contact Us For Availability

Relay (See Overload) WPL ARI26047A9 Contact Us For Availability

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Hinge Bottom (R.H) WPL 2155320 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $33.80

Glass, Shelf WPL 1114687 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP2155595 Whirlpool Refrigerator Light Lens Backorder WPL WP2155595 $26.75

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Screw WPL 489075 Contact Us For Availability

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

Insert, Handle (White) WPL 2148102 Contact Us For Availability

Insert, Handle (Almond) WPL 2148103 Contact Us For Availability

Hinge Bottom (L.H) WPL 2155322 Contact Us For Availability

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

Spacer, Hinge WPL 836196 Contact Us For Availability

Control Box Harness WPL 2149185 Contact Us For Availability

Cover, Wiring WPL 2152644 Contact Us For Availability

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Insert Retainer (Top) WPL 987008 Contact Us For Availability

Filler, Wrapper (White) WPL 1110708 Contact Us For Availability

Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

Grille WPL 2155476 Contact Us For Availability

Insert Retainer (Bottom) WPL 987010 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

End Cap WPL 987006 Contact Us For Availability

Connecting Rod WPL 1123959 Contact Us For Availability

Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability

Clip, Heater (2) WPL 2161330 Contact Us For Availability

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

Fastener, Push-On WPL 489285 Contact Us For Availability

Trim, Door Shelf (2) WPL 2148267 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

Divider, Shelf WPL 2160049 Contact Us For Availability

Escutcheon, Control Box WPL 2161213 Contact Us For Availability

26

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

26

Support Clip WPL 2155021 Contact Us For Availability

26

Harness, Intermediate WPL 2153994 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

Interior Door Panel Also Order Item 15 (3) WPL 1124961 Contact Us For Availability

27

Knob, Air Control WPL 1116853 Contact Us For Availability

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $341.23

28

Trim, Door Shelf (2) WPL 2148268 Contact Us For Availability

28

Knob, Retainer WPL 837444 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4388286 Whirlpool Refrigerator Shelf Bar Endc In Stock WPL 4388286 $8.55

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability

Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

Transformer (115-230 Volt) WPL 515393 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, B WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

30

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

30

Unit Mounting Frame WPL 2160498 Contact Us For Availability

32

Door, Compartment WPL 2148218 Contact Us For Availability

32

Fan, Motor Bracket WPL 2162062 Contact Us For Availability

33

Heater, Defrost WPL 2161322 Contact Us For Availability

34

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

34

Capacitor WPL 2154565 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

35

Panel, Interior Door WPL 1129241 Contact Us For Availability

36

Nameplate WPL 2162781 Contact Us For Availability

37

Trim, Door Shelf WPL 2148200 Contact Us For Availability

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

38

WP2196100 Whirlpool Shelf Retainer Bar Suppor Backorder WPL WP2196100 $3.70

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

Cord, Service WPL 937360 Contact Us For Availability

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

41

Air Baffle WPL 2155301 Contact Us For Availability

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

43

Trim, Door Compartment WPL 1110717 Contact Us For Availability

44

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

48

Cabinet (Not A Serviceable Part) WPL ARI26044A3 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

49

Screw WPL 488624 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $24.10

52

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $65.32

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 850145 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
