Model Whirlpool ED20PKXAN02 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
08 - FREEZER DOOR
01 - CABINET

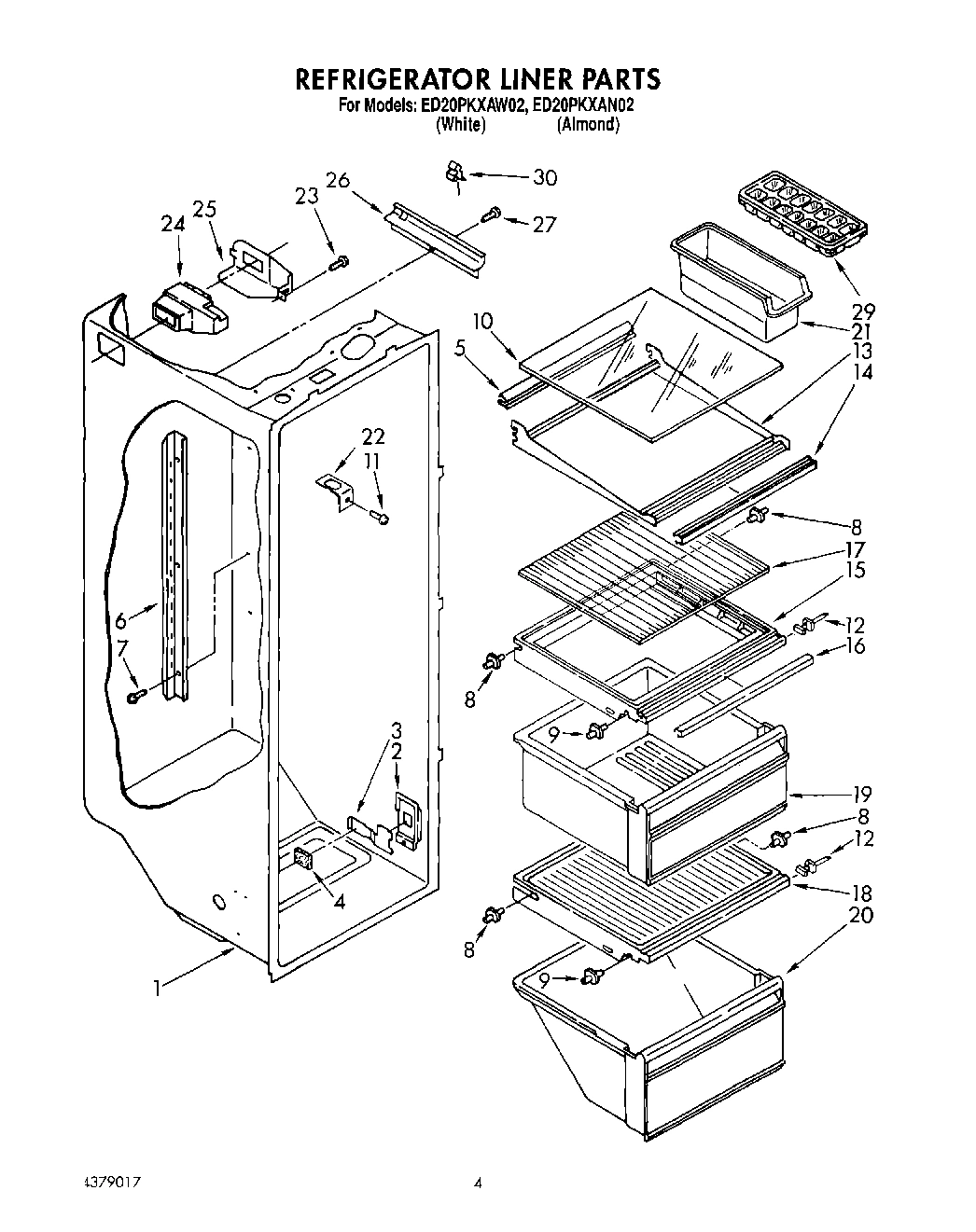

02 - REFRIGERATOR LINER

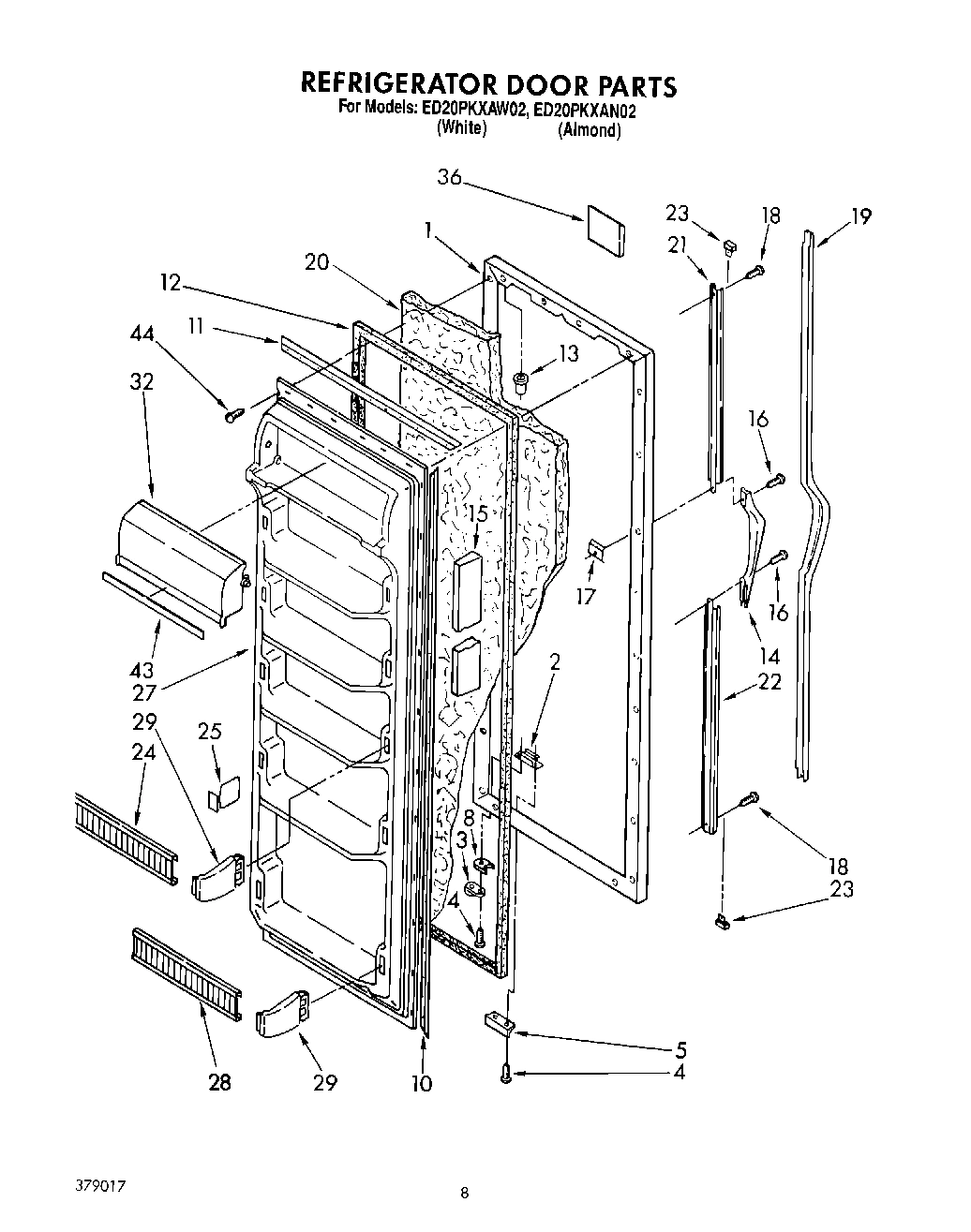

05 - REFRIGERATOR DOOR

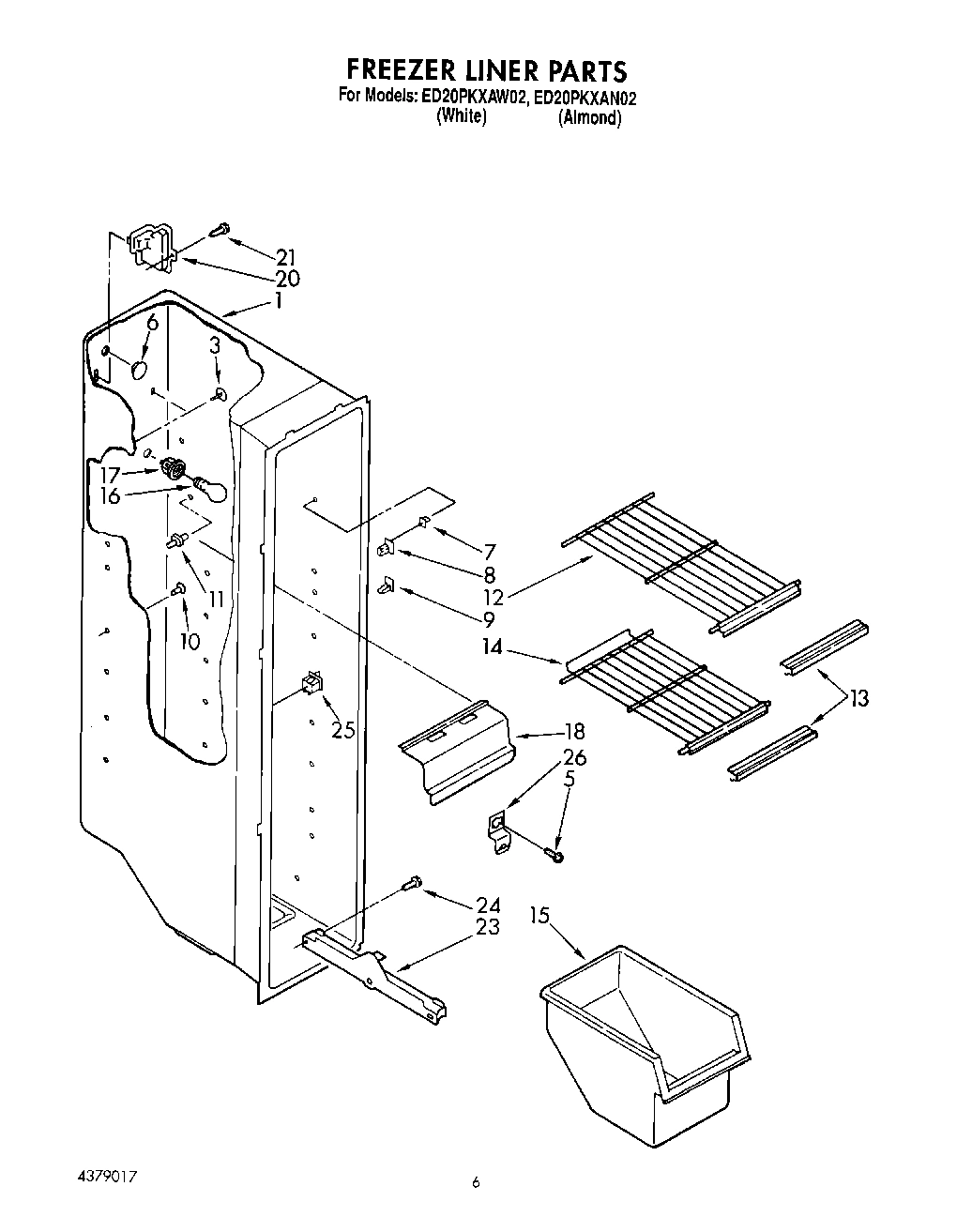

03 - FREEZER LINER

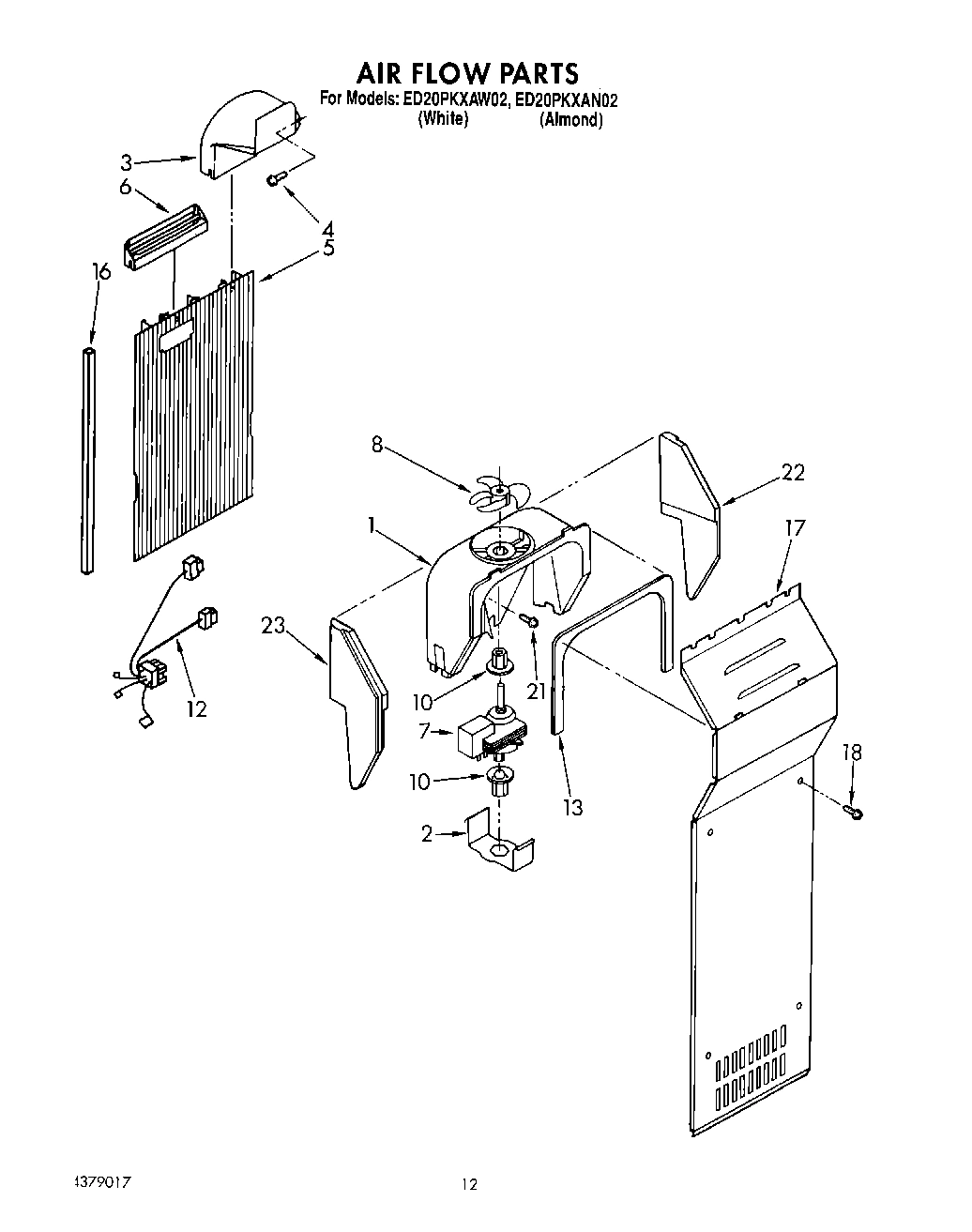

07 - AIR FLOW, LIT/OPTIONAL

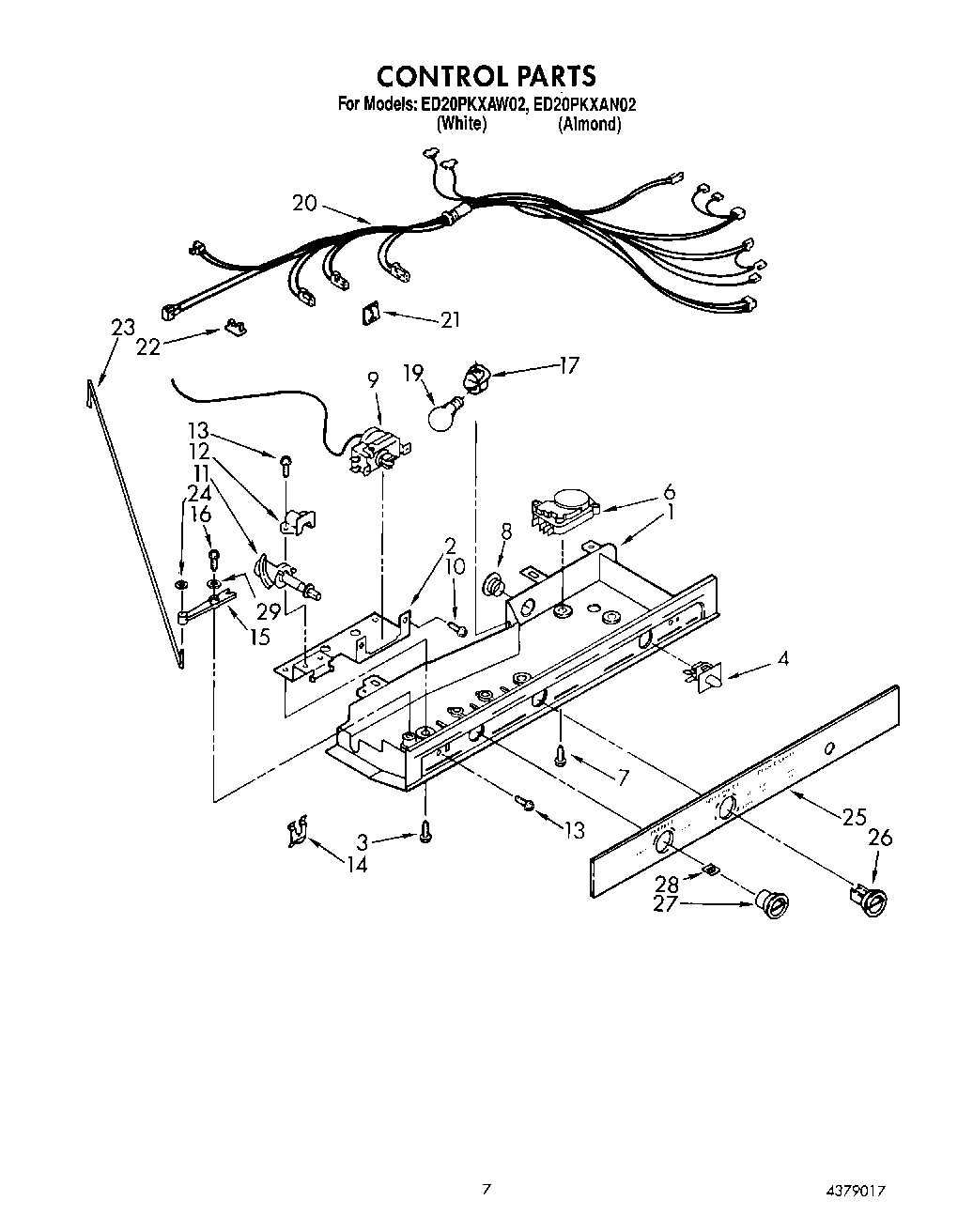

04 - CONTROL

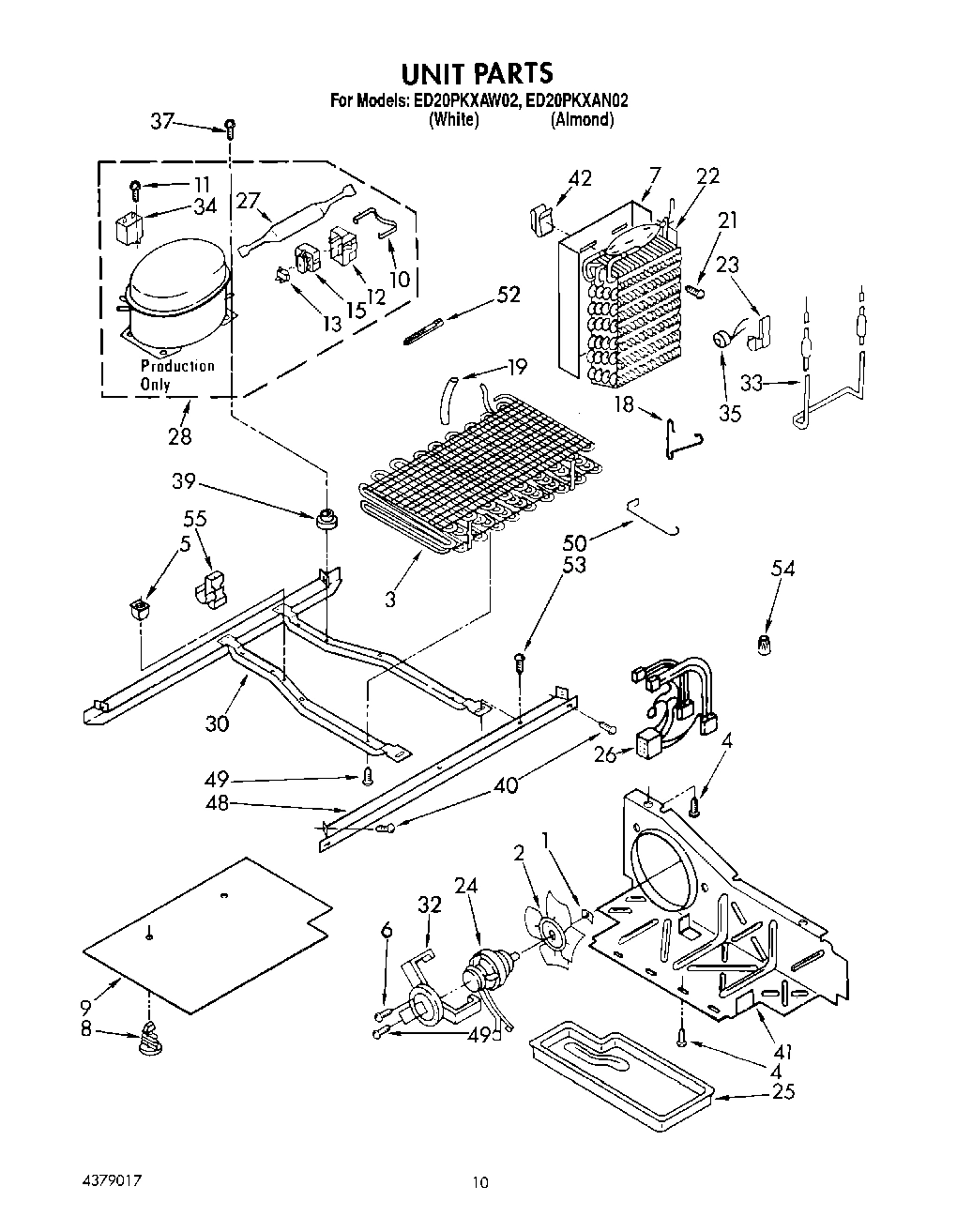

06 - UNIT
Common parts from model Whirlpool ED20PKXAN02 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2155531 WPL LIT2155531 Contact Us For Availability
WPL LIT2155745 WPL LIT2155745 Contact Us For Availability
WPL LIT2162815 WPL LIT2162815 Contact Us For Availability
WPL LIT4379017 WPL LIT4379017 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI25771A6 Contact Us For Availability
1
Refrigerator, Door Panel (Also Order Item No. WPL 1106923 Contact Us For Availability
1
Refrigerator, Door Panel (Also Order Item No. WPL 1108465 Contact Us For Availability
1
Refrigerator, Door Panel (Also Order Item No. WPL 4362024 Contact Us For Availability
1
Refrigerator, Door Panel (Also Order Item No. WPL 4362025 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI25772A4 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Tap Plate (For All Serial Numbers Other Than WPL 2155335 Contact Us For Availability
2
Tap Plate (For Serial Numbers: SC1240000 Thr WPL 988402 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
Reflector WPL 1114306 Contact Us For Availability
5
Bracket, Door Stop (For Serial Numbers: SC12 WPL 1115906 Contact Us For Availability
5
Bracket, Door Stop (For All Serial Numbers Ot WPL 2155334 Contact Us For Availability
5
Grommet WPL 509812 Contact Us For Availability
6
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
6
Hole Plug WPL 1129056 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Defrost Timer WPL 2162046 Contact Us For Availability
7
Support, Stud (16) WPL 946355 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
8
Stud (5) WPL 946356 Contact Us For Availability
9
Stud (5) WPL 1106982 Contact Us For Availability
9
Cover, Unit Compartment WPL 2160505 Contact Us For Availability
10
Glass, Shelf WPL 2148108 Contact Us For Availability
10
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
10
Grommet (14) WPL 1110779 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Strap, (Service Compressor Only) WPL 938384 Contact Us For Availability
11
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Shelf WPL 1106979 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2161327 Contact Us For Availability
12
Cover (Service) WPL 1108115 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Shelf, Cantilever WPL 2148087 Contact Us For Availability
13
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
13
Trim Shelf WPL 1110782 Contact Us For Availability
14
Trim, Shelf (3) WPL 1114302 Contact Us For Availability
14
Handle WPL 987009 Contact Us For Availability
14
Shelf (Large 2) WPL 1106980 Contact Us For Availability
14
Shelf (Small 1) WPL 2155603 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Reinforcement, Shelf WPL 2152266 Contact Us For Availability
15
Bin, Freezer WPL 2148194 Contact Us For Availability
15
Relay (See Overload) WPL ARI25773A8 Contact Us For Availability
16
Trim, Cover WPL 2172710 Contact Us For Availability
17
Glass, Shelf WPL 1114687 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
19
Ins WPL 2148102 Contact Us For Availability
19
WPL 2148103 WPL 2148103 Contact Us For Availability
20
Pan, Meat WPL 2148192 Contact Us For Availability
20
Cover, Wiring WPL 2152644 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
21
WPL 987008 WPL 987008 Contact Us For Availability
22
Grille WPL 2155476 Contact Us For Availability
22
WPL 987010 WPL 987010 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
WPL 876029 WPL 876029 Contact Us For Availability
23
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
23
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
23
WPL 987006 WPL 987006 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
23
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
23
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
23
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
23
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
23
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
23
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
23
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY WPL 799833 Contact Us For Availability
23
WPL 978883 WPL 978883 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
23
Clip, Heater (2) WPL 2161330 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
WPL 2148267 WPL 2148267 Contact Us For Availability
25
WPL 2160049 WPL 2160049 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
26
Support Clip WPL 2155021 Contact Us For Availability
26
Harness, Intermediate WPL 2153994 Contact Us For Availability
27
WPL 1124961 WPL 1124961 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
WPL 2148268 WPL 2148268 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
32
WPL 2148218 WPL 2148218 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Heater, Defrost WPL 2161322 Contact Us For Availability
34
Capacitor WPL 2154565 Contact Us For Availability
36
WPL 2162781 WPL 2162781 Contact Us For Availability
36
WPL 2162782 WPL 2162782 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
41
Air Baffle WPL 2155301 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
WPL 1110717 WPL 1110717 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI25770A2 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
55
Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability
55
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
