Model Whirlpool ED20PKXAN01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

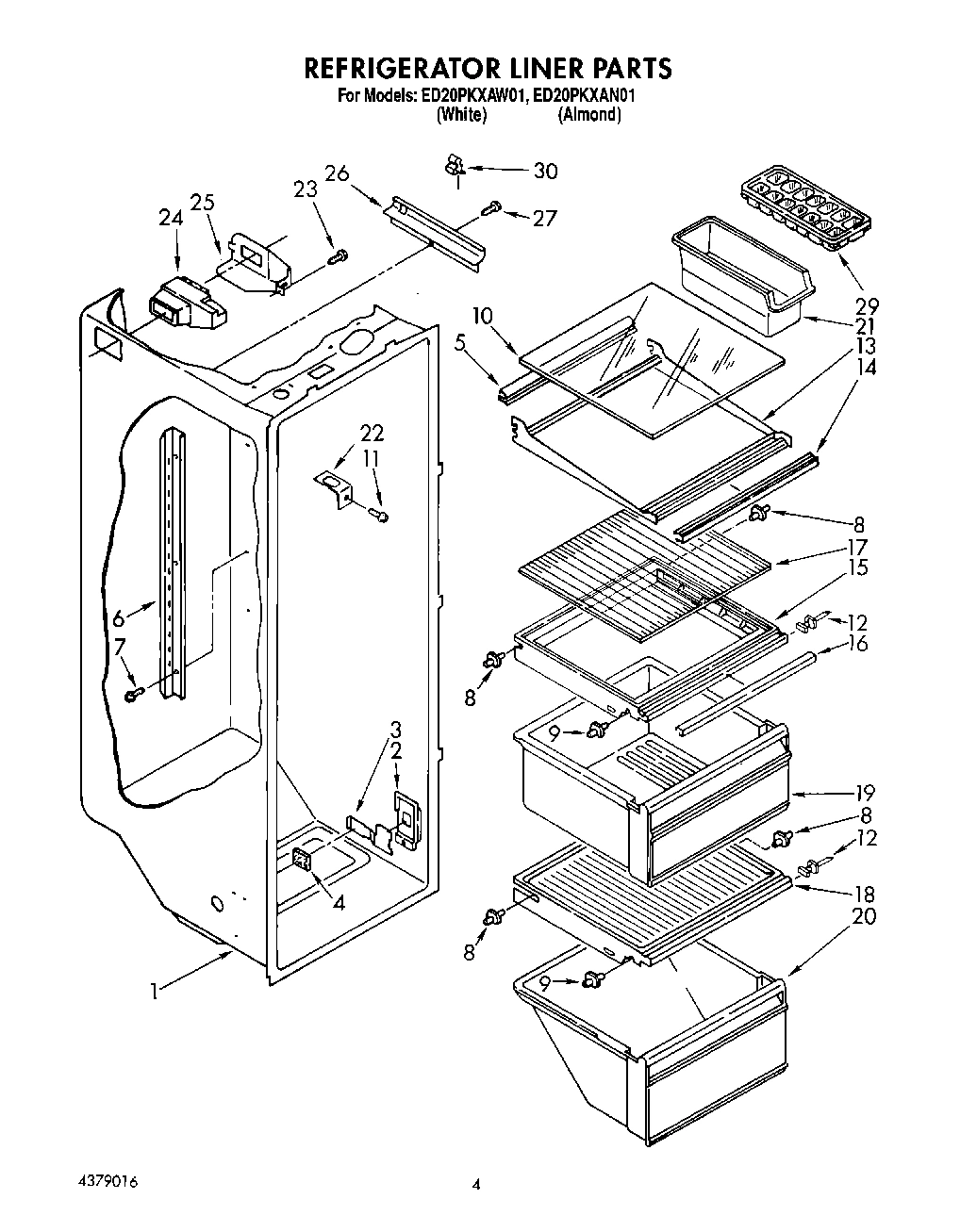

02 - REFRIGERATOR LINER

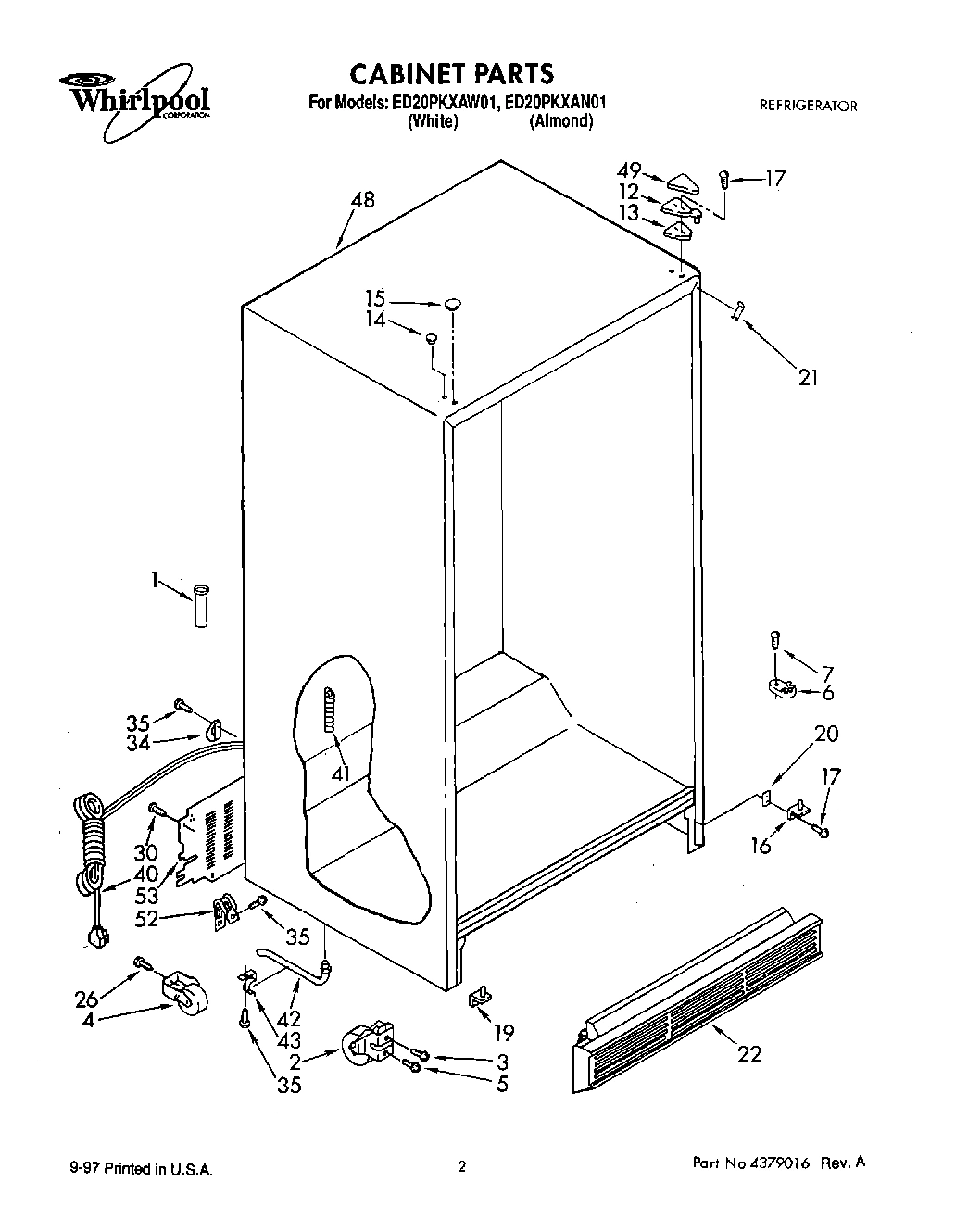

01 - CABINET
06 - UNIT
08 - CONTROL, LIT/OPTIONAL
04 - FREEZER DOOR
03 - FREEZER LINER
05 - REFRIGERATOR DOOR
07 - AIR FLOW
Common parts from model Whirlpool ED20PKXAN01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2155531 WPL LIT2155531 Contact Us For Availability
WPL LIT2155745 WPL LIT2155745 Contact Us For Availability
WPL LIT2162708 WPL LIT2162708 Contact Us For Availability
WPL LIT4379016 WPL LIT4379016 Contact Us For Availability
1
Control Box WPL 2155518 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 1106922 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 1108470 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI25768A1 Contact Us For Availability
1
Refrigerator Door (White) WPL 1106923 Contact Us For Availability
1
Refrigerator Door (Almond) (Also Order Item 2 WPL 1108465 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Divider WPL 1114380 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
5
Bracket, Door Stop WPL 1115906 Contact Us For Availability
6
Defrost Timer WPL 2154984 Contact Us For Availability
6
Hole Plug WPL 655411 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Support, Stud (16) WPL 946355 Contact Us For Availability
8
Cover, Unit Compartment WPL 2160505 Contact Us For Availability
8
Stud (5) WPL 946356 Contact Us For Availability
9
Stud (5) WPL 1106982 Contact Us For Availability
10
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
10
Grommet (14) WPL 1110779 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
11
Strap WPL 938384 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
12
Cover WPL 1108115 Contact Us For Availability
12
Shelf WPL 1106979 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2161327 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Overload) (Service (Includes Relay) WPL 1108114 Contact Us For Availability
13
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
13
Trim Shelf WPL 1110782 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Handle WPL 987009 Contact Us For Availability
14
Shelf (Large 2) WPL 1106980 Contact Us For Availability
14
Shelf (Small 1) WPL 2155603 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI25769A2 Contact Us For Availability
15
Bin, Freezer WPL 2148194 Contact Us For Availability
15
Reinforcement, Shelf WPL 2152266 Contact Us For Availability
17
Glass, Shelf WPL 1114687 Contact Us For Availability
17
Capacitor (Production) WPL 2154565 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
19
Screw, Grommit WPL 509812 Contact Us For Availability
19
Insert, Handle (White) WPL 2148102 Contact Us For Availability
19
Insert, Handle (Almond) WPL 2148103 Contact Us For Availability
20
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
20
Cover, Wiring WPL 2152644 Contact Us For Availability
21
Insert Retainer (Top) WPL 987008 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Insert Retainer (Bottom) WPL 987010 Contact Us For Availability
23
Clip WPL 2161329 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
23
End Cap WPL 987006 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Trim, Door Shelf (2) WPL 2148267 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
25
Divider, Shelf WPL 2160049 Contact Us For Availability
26
Harness, Intermediate WPL 2153994 Contact Us For Availability
26
Support Clip WPL 2155021 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Interior Door Panel Also Order Item 15 (3) WPL 1124961 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Trim, Door Shelf (2) WPL 2148268 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
WPL 799344 WPL 799344 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
29
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, B WPL 799340 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Door, Compartment WPL 2148218 Contact Us For Availability
33
Heater, Defrost WPL 2162079 Contact Us For Availability
34
Clip, Heater WPL 2161330 Contact Us For Availability
35
Panel, Interior Door WPL 1129241 Contact Us For Availability
36
Nameplate (White) WPL 2162781 Contact Us For Availability
36
Nameplate (Almond) WPL 2162782 Contact Us For Availability
37
Trim, Door Shelf WPL 2148200 Contact Us For Availability
41
Air, Baffle WPL 1127938 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Trim, Door Compartment WPL 1110717 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI25766A1 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
