Model Whirlpool ED20PKXAN00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
05 - FREEZER DOOR
07 - UNIT

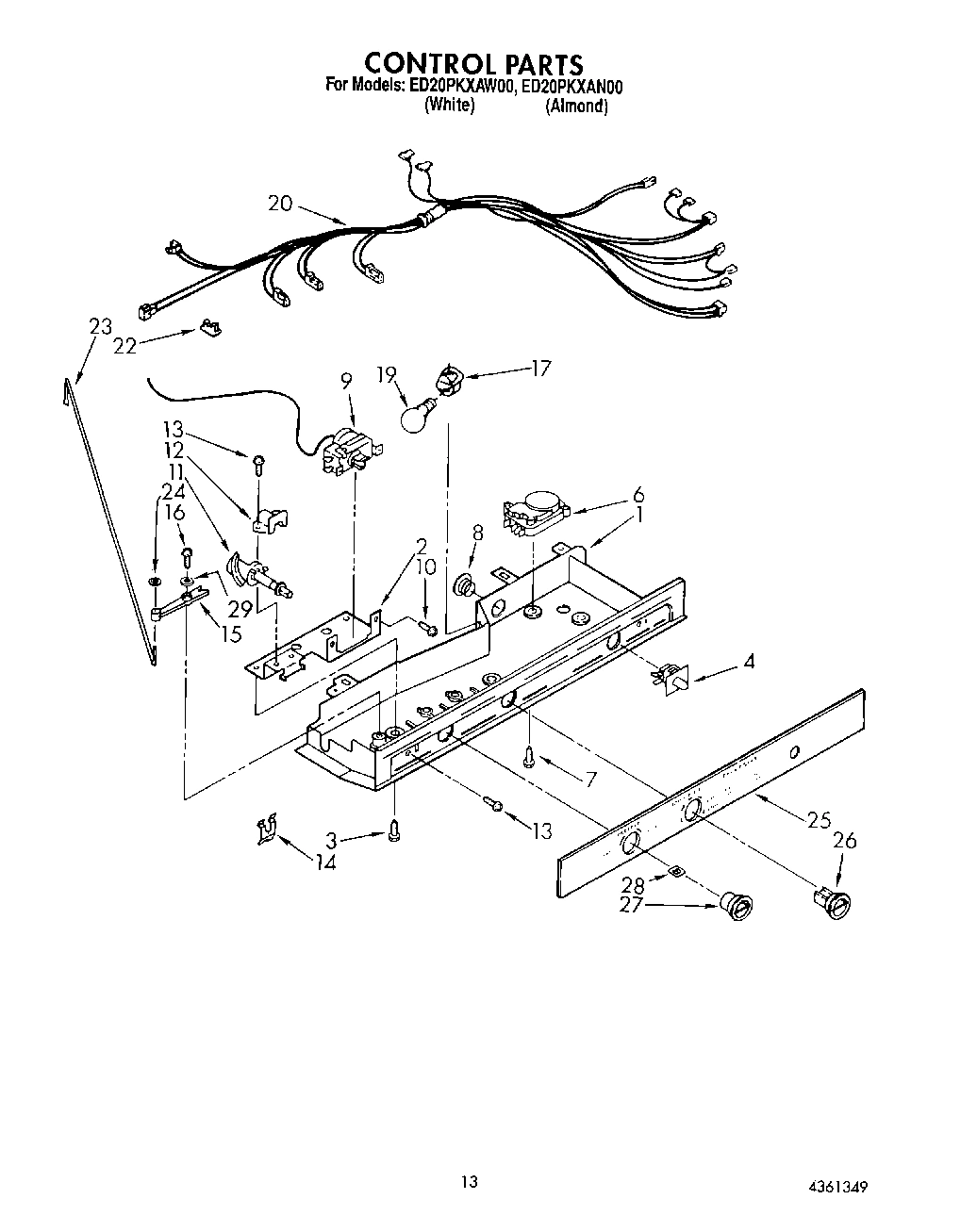

09 - CONTROL, LIT/OPTIONAL

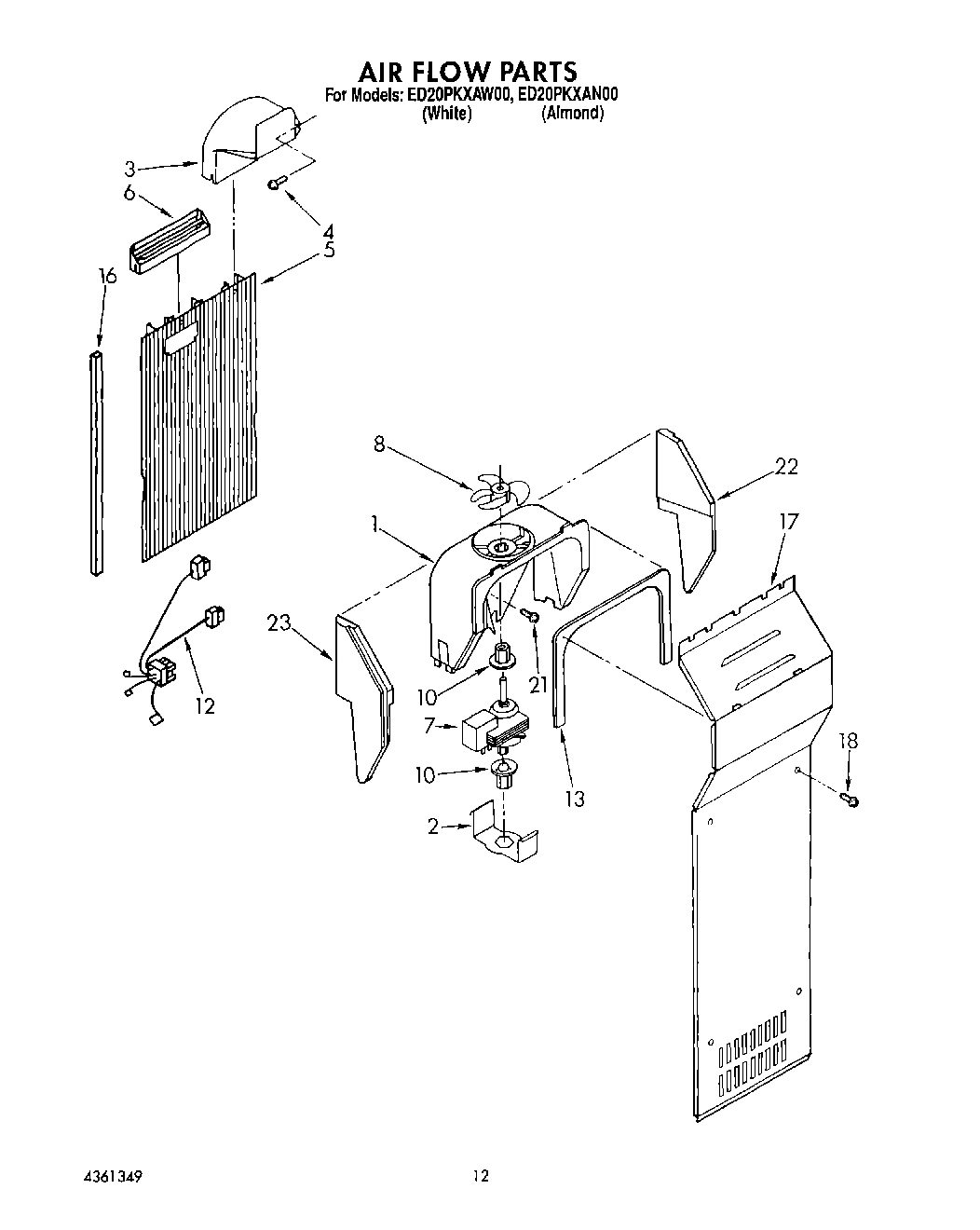

08 - AIR FLOW

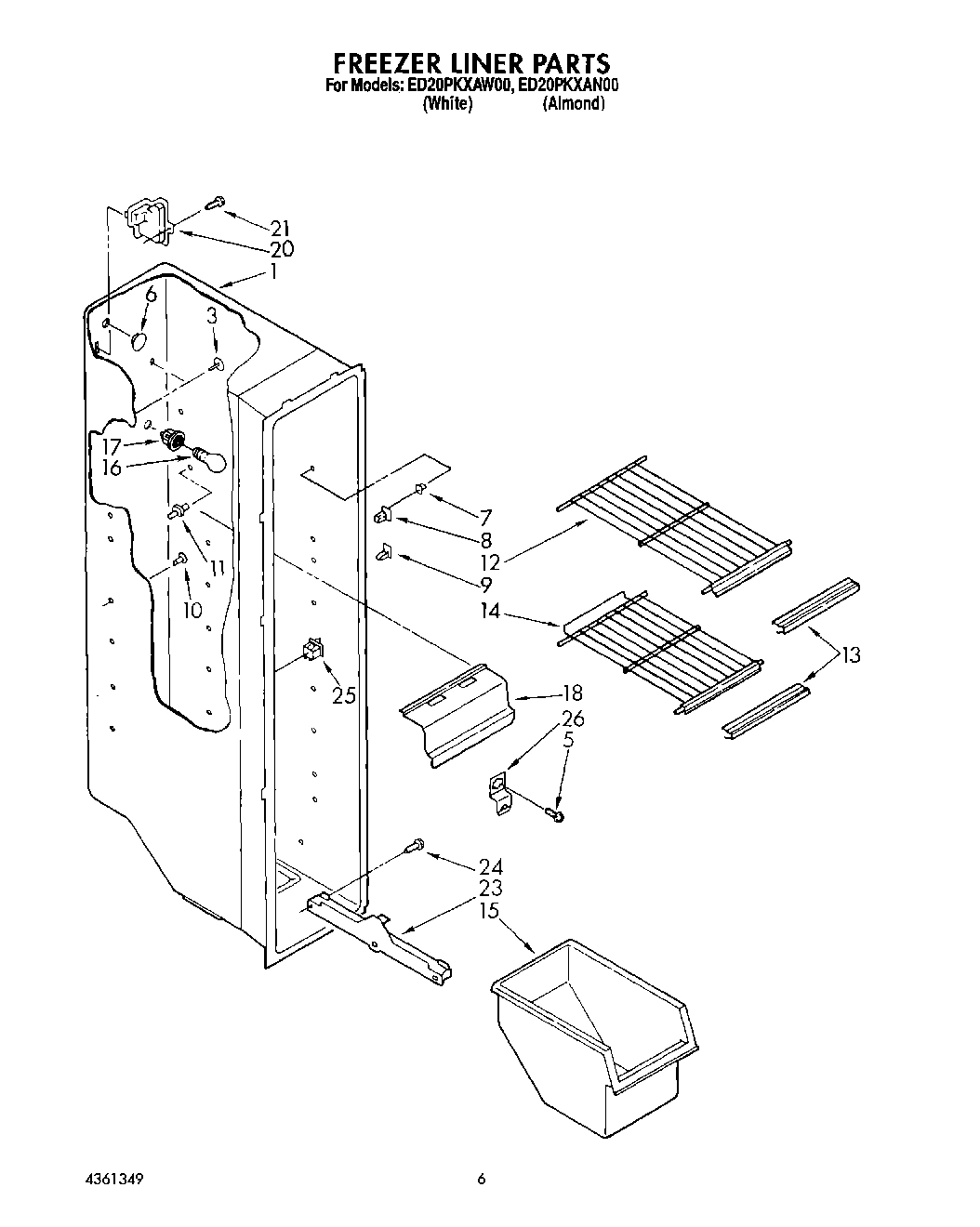

04 - FREEZER LINER

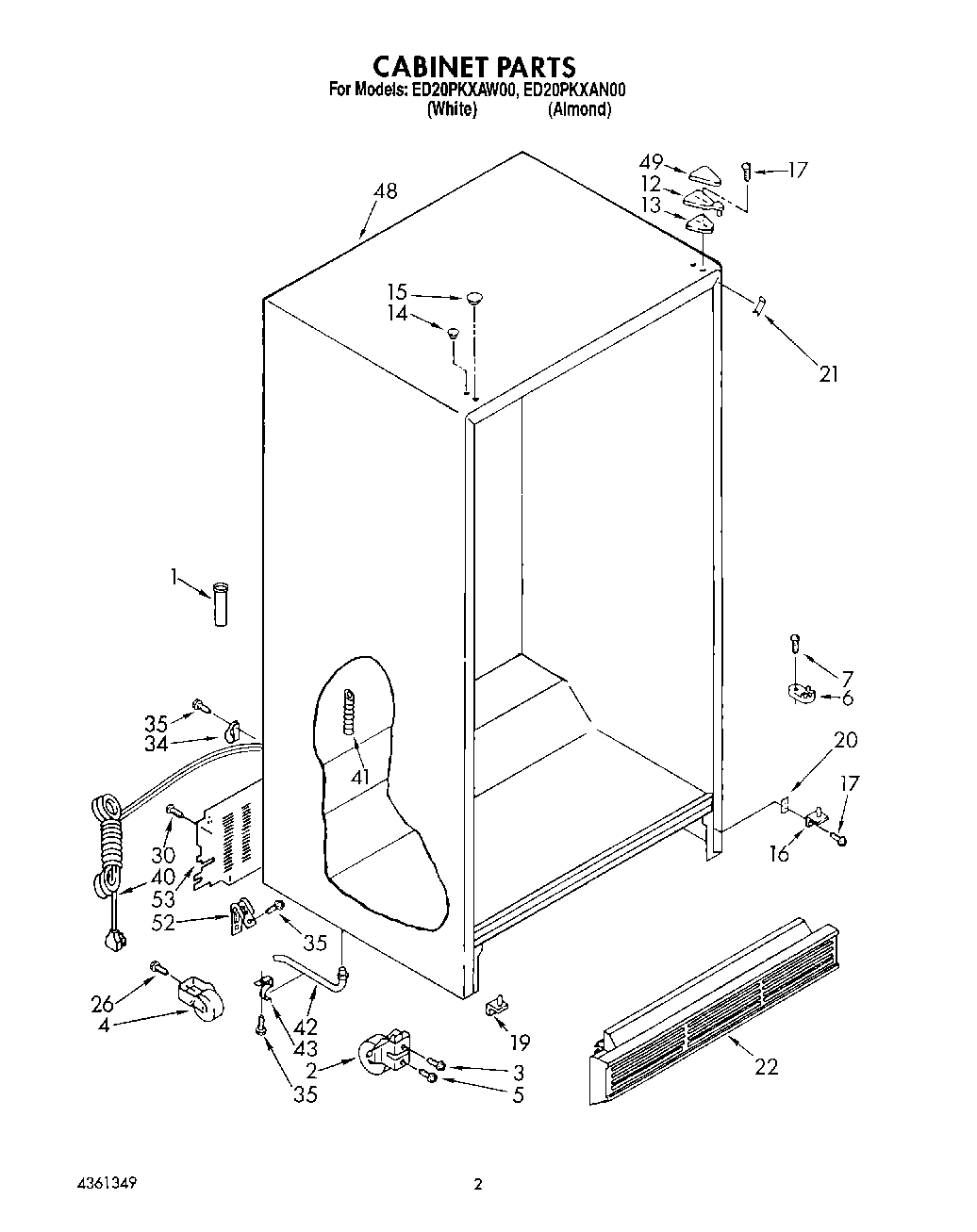

02 - CABINET

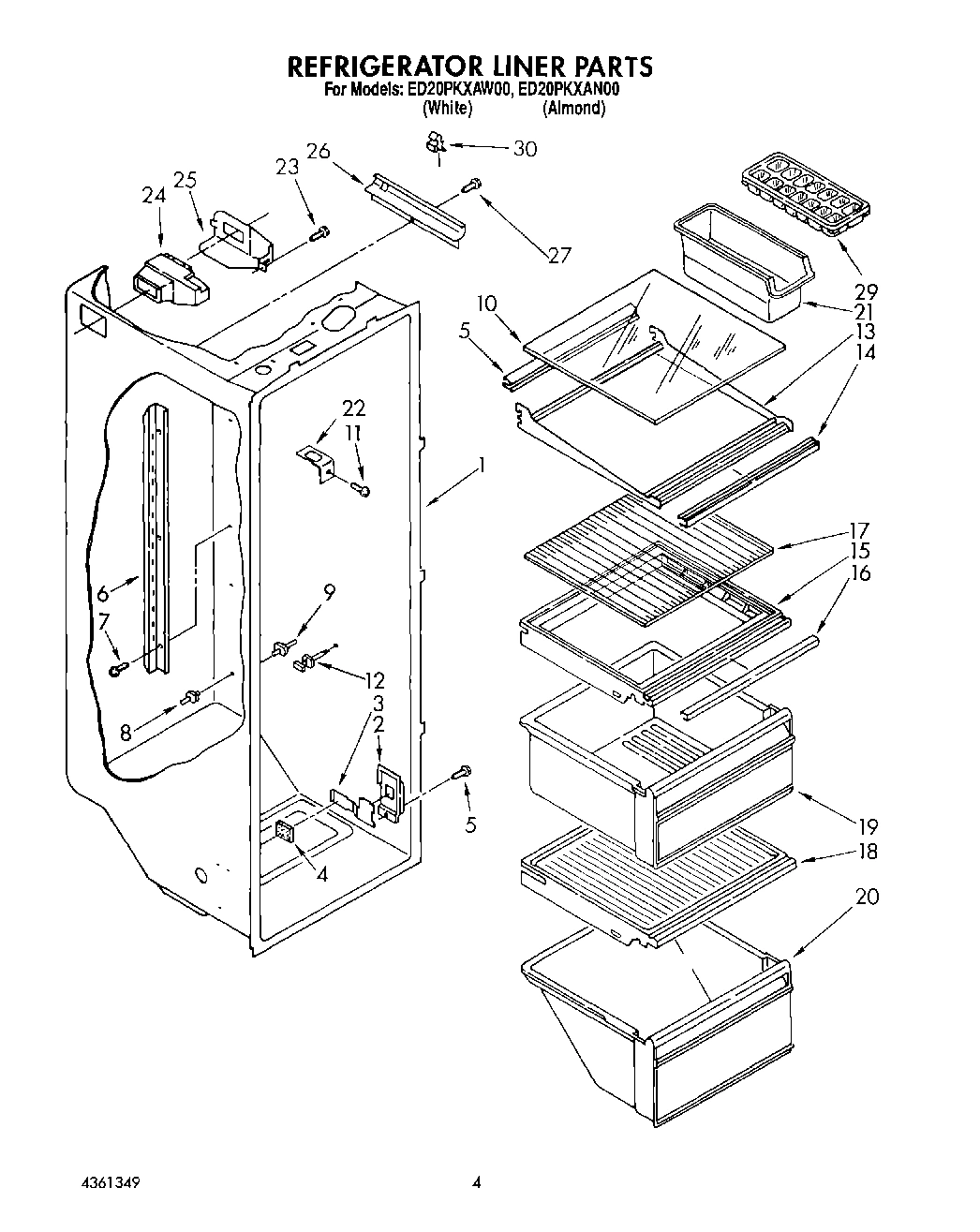

03 - REFRIGERATOR LINER

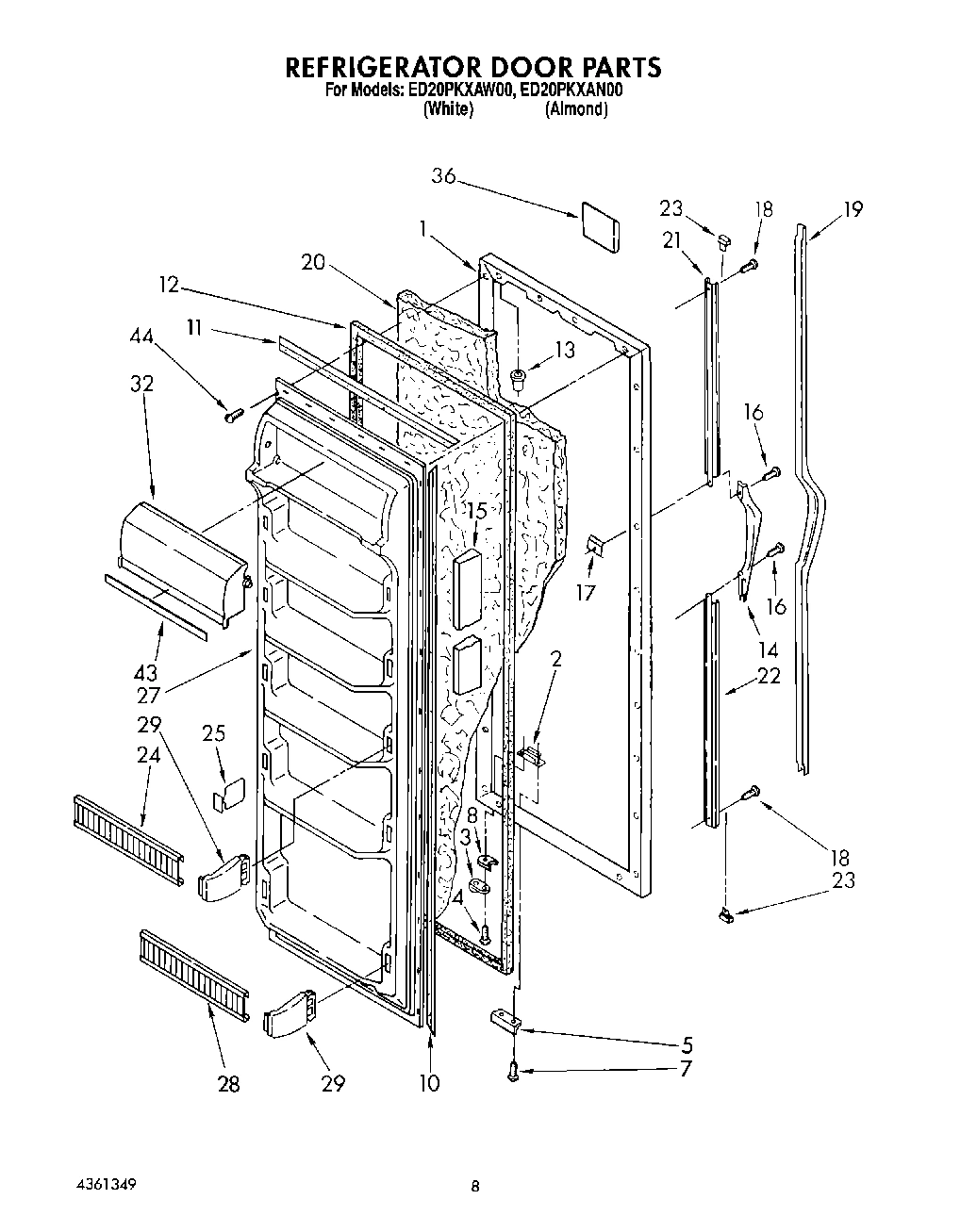

06 - REFRIGERATOR DOOR
Common parts from model Whirlpool ED20PKXAN00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2155531 WPL LIT2155531 Contact Us For Availability
WPL LIT2155745 WPL LIT2155745 Contact Us For Availability
WPL LIT2162708 WPL LIT2162708 Contact Us For Availability
WPL LIT4361349 WPL LIT4361349 Contact Us For Availability
1
Control Box WPL 2155518 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI25764A1 Contact Us For Availability
1
Water, Tube WPL 2155247 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI25763A4 Contact Us For Availability
1
Refrigerator Door (White) WPL 1106923 Contact Us For Availability
1
Refrigerator Door (Almond) (Also Order Item 2 WPL 1108465 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
Reflector WPL 1114306 Contact Us For Availability
5
Bracket, Door Stop WPL 1115906 Contact Us For Availability
6
Defrost Timer WPL 2154984 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Hole Plug WPL 655411 Contact Us For Availability
6
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
7
Support, Stud (16) WPL 946355 Contact Us For Availability
8
Stud (5) WPL 946356 Contact Us For Availability
9
Stud (5) WPL 1106982 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Grommet (14) WPL 1110779 Contact Us For Availability
10
Glass, Shelf WPL 2148108 Contact Us For Availability
10
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2161327 Contact Us For Availability
12
Shelf WPL 1106979 Contact Us For Availability
12
Hinge, Top (2) WPL 1123514 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Trim Shelf WPL 1110782 Contact Us For Availability
13
Shelf, Cantilever WPL 2148087 Contact Us For Availability
13
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Shelf (Large 2) WPL 1106980 Contact Us For Availability
14
Shelf (Small 1) WPL 2155603 Contact Us For Availability
14
Hole, Plug (White) WPL 849391 Contact Us For Availability
14
Hole Plug (Almond) WPL 989958 Contact Us For Availability
14
Trim, Shelf (3) WPL 1114302 Contact Us For Availability
14
Handle WPL 987009 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bin, Freezer WPL 2148194 Contact Us For Availability
15
Hole Plug (White) WPL 1115352 Contact Us For Availability
15
Hole Plug (Almond) WPL 1115354 Contact Us For Availability
15
Reinforcement, Shelf WPL 2152266 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2151619 Contact Us For Availability
16
Trim, Cover WPL 1110795 Contact Us For Availability
17
Glass, Shelf WPL 1114687 Contact Us For Availability
17
Screw, 10-32 x 23/32 WPL 489327 Contact Us For Availability
18
Screw, 10-32 x 5/8 WPL 489075 Contact Us For Availability
19
hinge Bottom (L.H.) WPL 2151620 Contact Us For Availability
19
Insert, Handle (White) WPL 2148102 Contact Us For Availability
19
Insert, Handle (Almond) WPL 2148103 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
20
Cover, Wiring WPL 2152644 Contact Us For Availability
20
Spacer, Hinge WPL 836196 Contact Us For Availability
20
Pan, Meat WPL 2148192 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Insert Retainer (Top) WPL 987008 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille WPL 1129001 Contact Us For Availability
22
Insert Retainer (Bottom) WPL 987010 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
23
Slide, Freezer Bin (2) WPL 1115383 Contact Us For Availability
23
End Cap WPL 987006 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Trim, Door Shelf (2) WPL 2148267 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
25
Divider, Shelf WPL 2160049 Contact Us For Availability
26
Support Clip WPL 2155021 Contact Us For Availability
26
Screw, WPL 488454 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Interior Door Panel Also Order Item 15 (3) WPL 1124961 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Trim, Door Shelf (2) WPL 2148268 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
WPL 799344 WPL 799344 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
29
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
WPL 799340 WPL 799340 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
32
Door, Compartment WPL 2148218 Contact Us For Availability
36
Nameplate (White) WPL 2162781 Contact Us For Availability
36
Nameplate (Almond) WPL 2162782 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
43
Trim, Door Compartment WPL 1110717 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI25762A3 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
53
Cover, Unit WPL 2161316 Contact Us For Availability
59
Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability
60
Clip (2) WPL 2161330 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
