Model Whirlpool ED20F134RN0 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

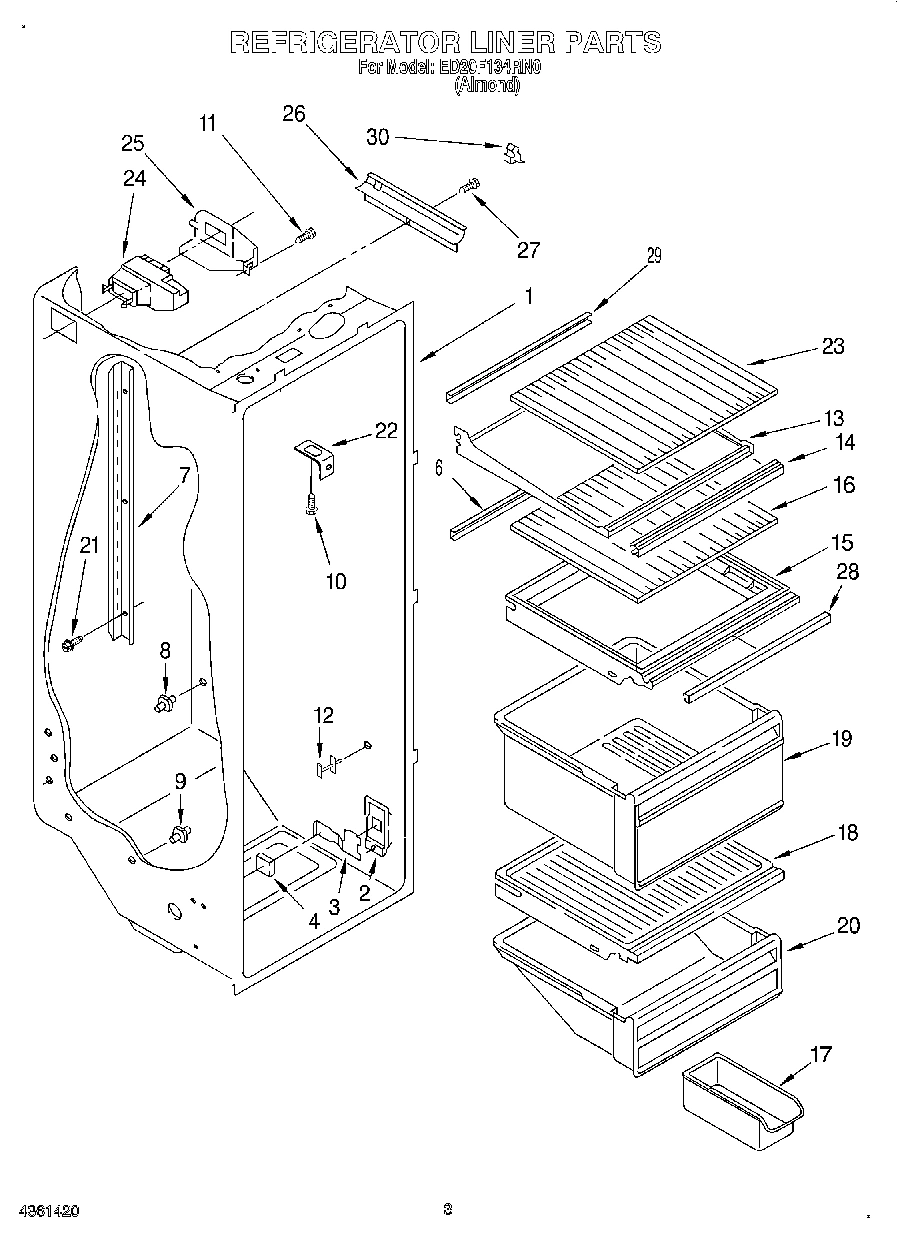

02 - REFRIGERATOR LINER

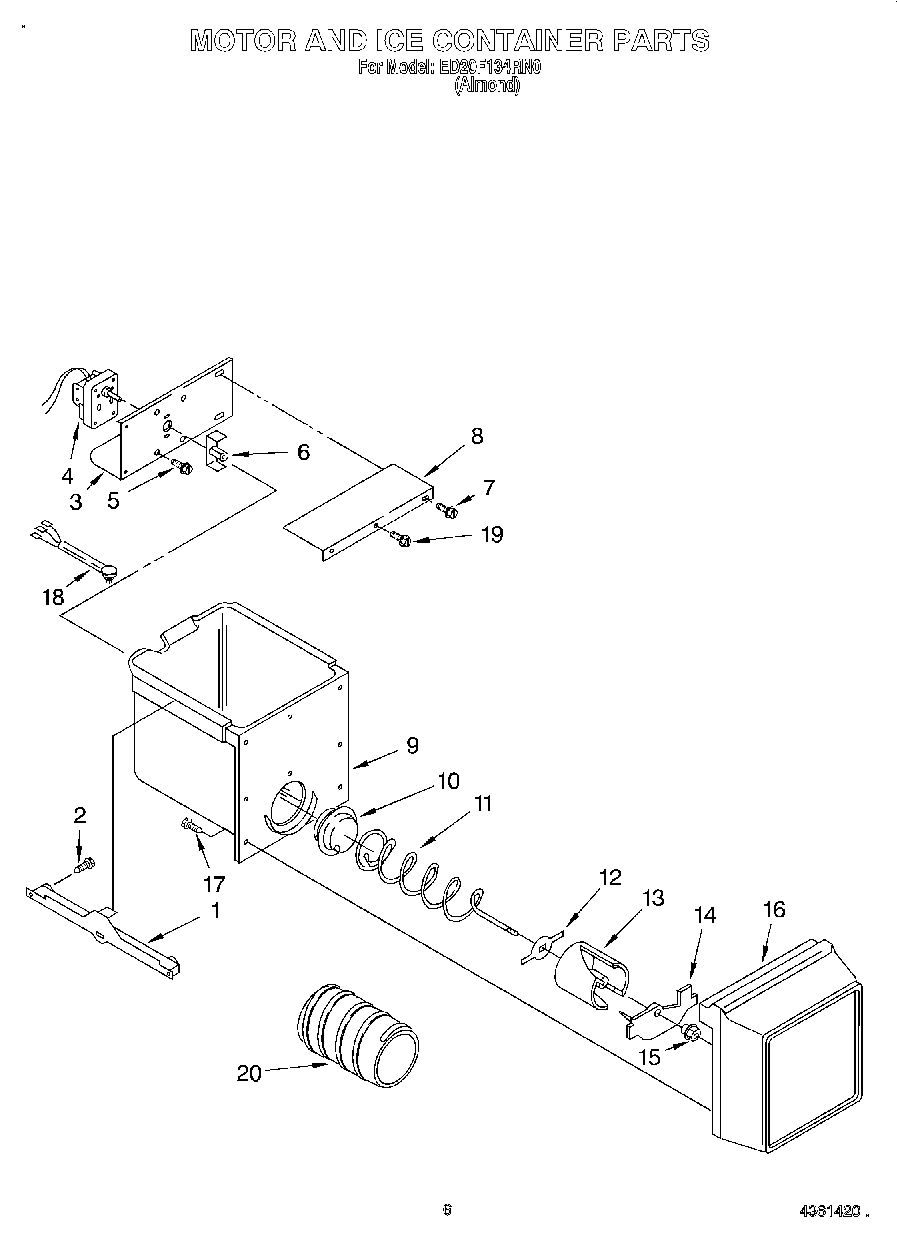

04 - MOTOR AND ICE CONTAINER
11 - ICEMAKER, LIT/OPTIONAL

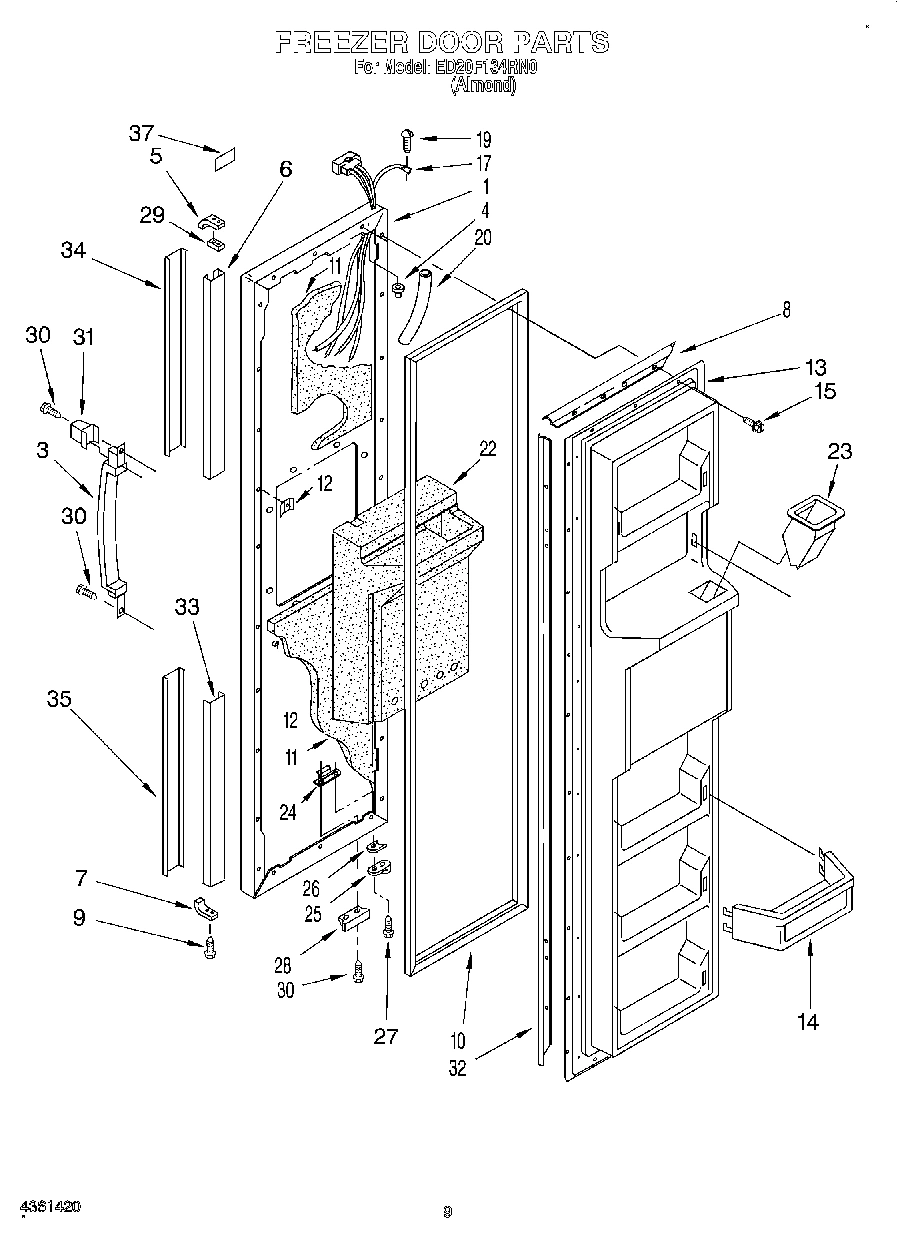

06 - FREEZER DOOR

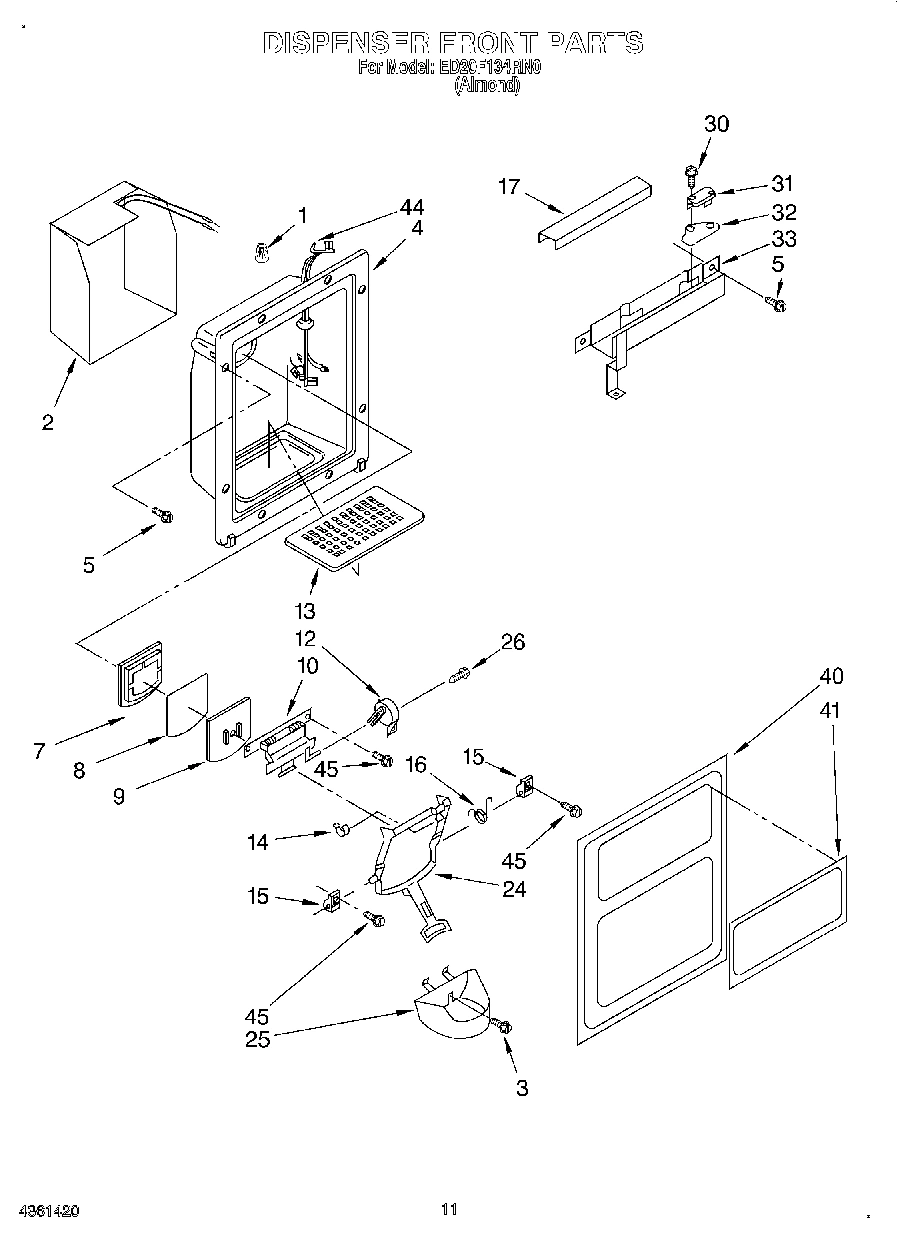

07 - DISPENSER FRONT

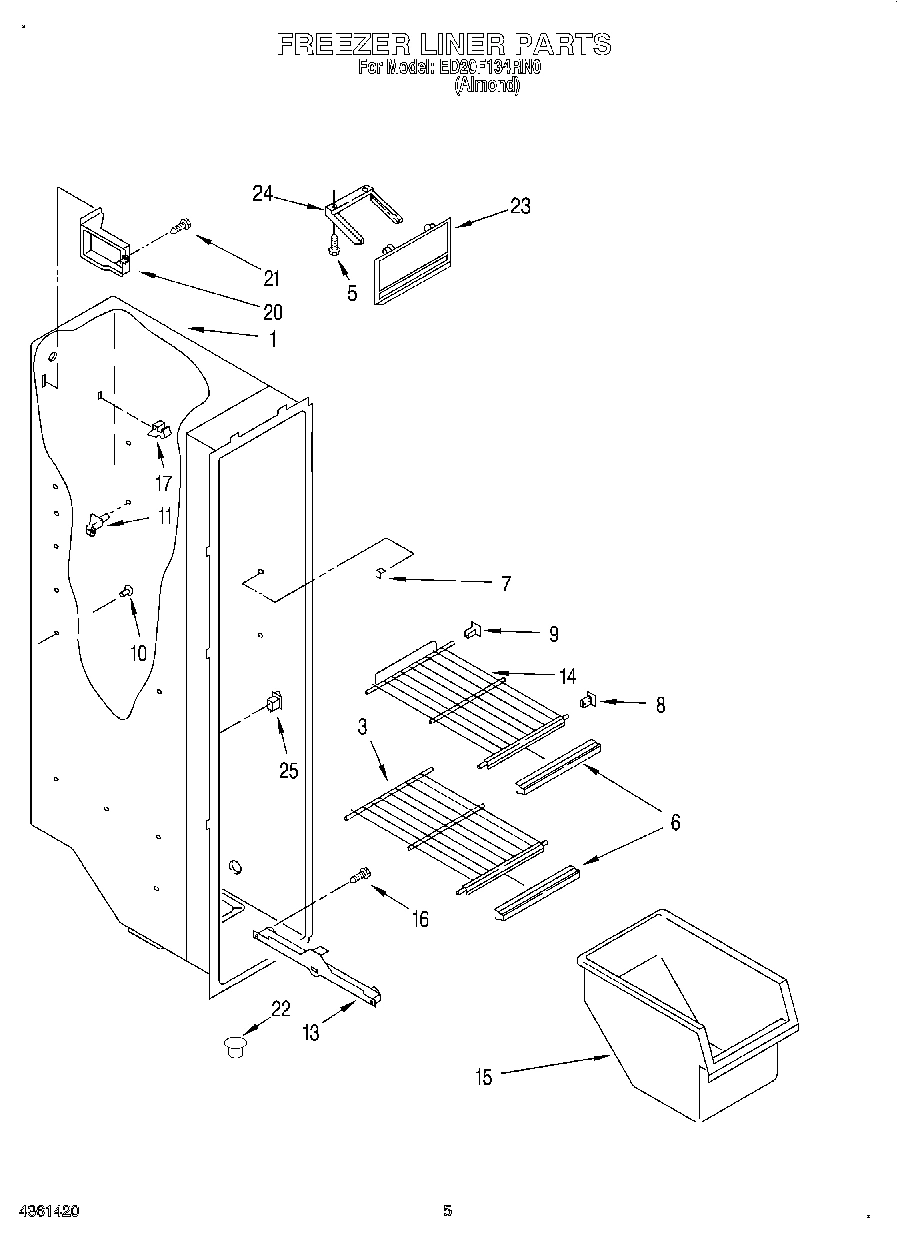

03 - FREEZER LINER

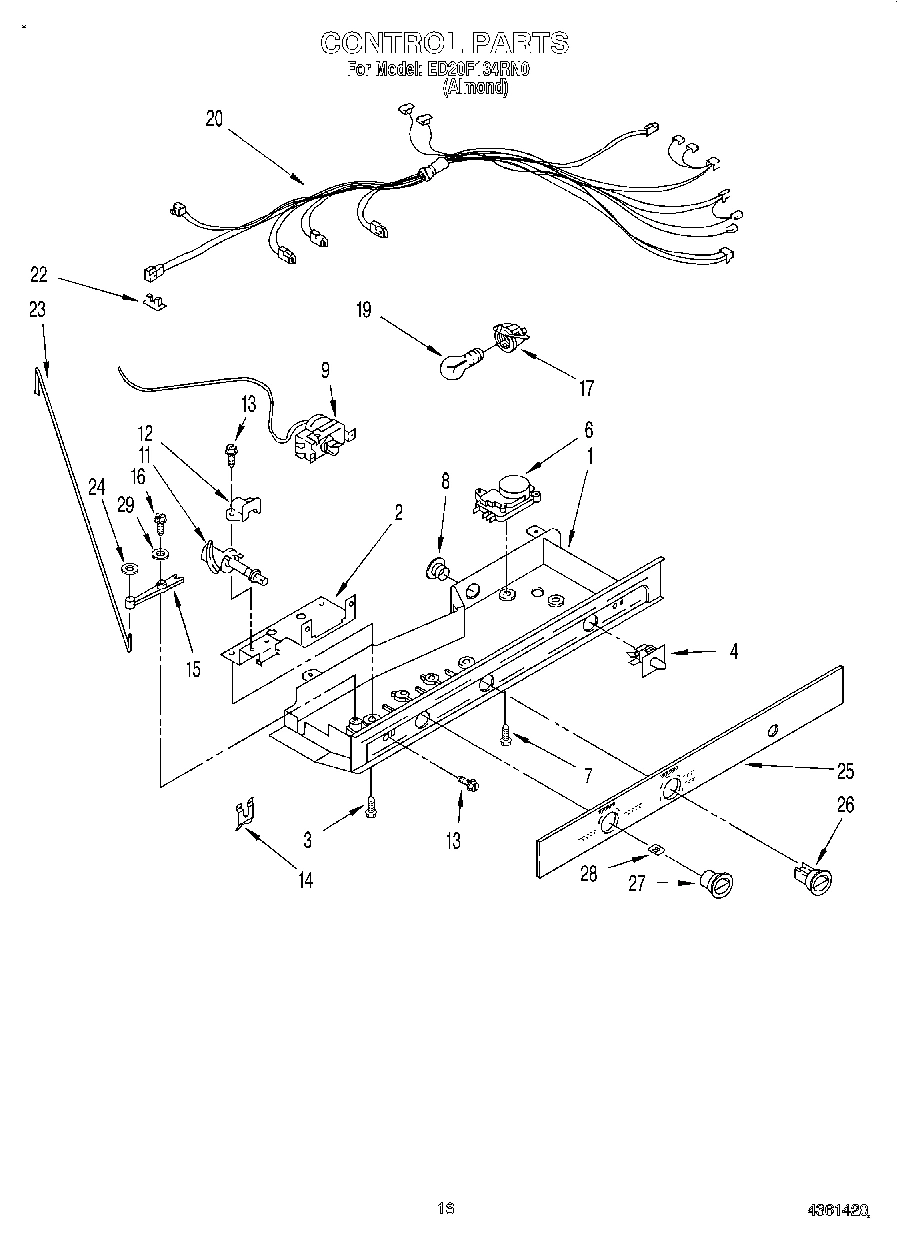

10 - CONTROL

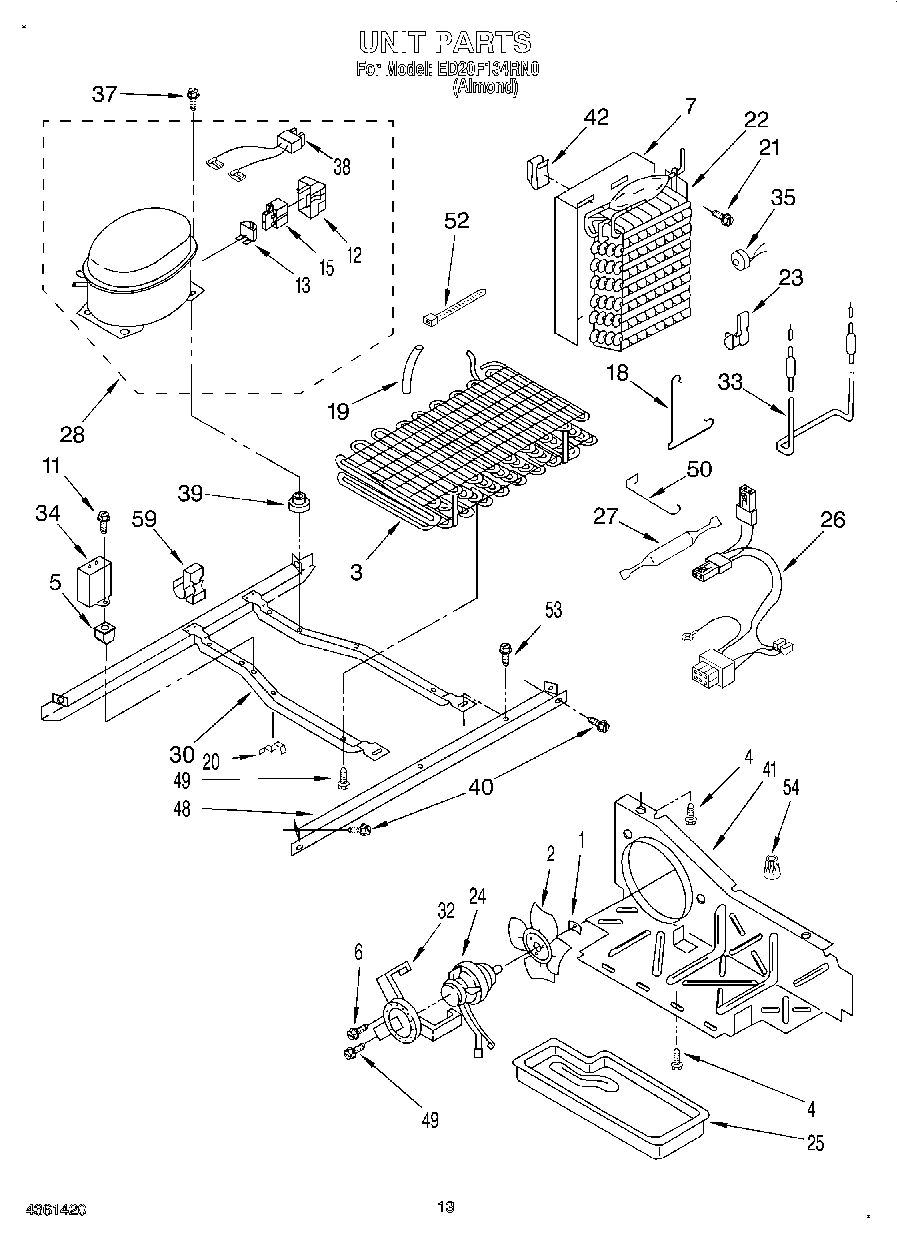

08 - UNIT

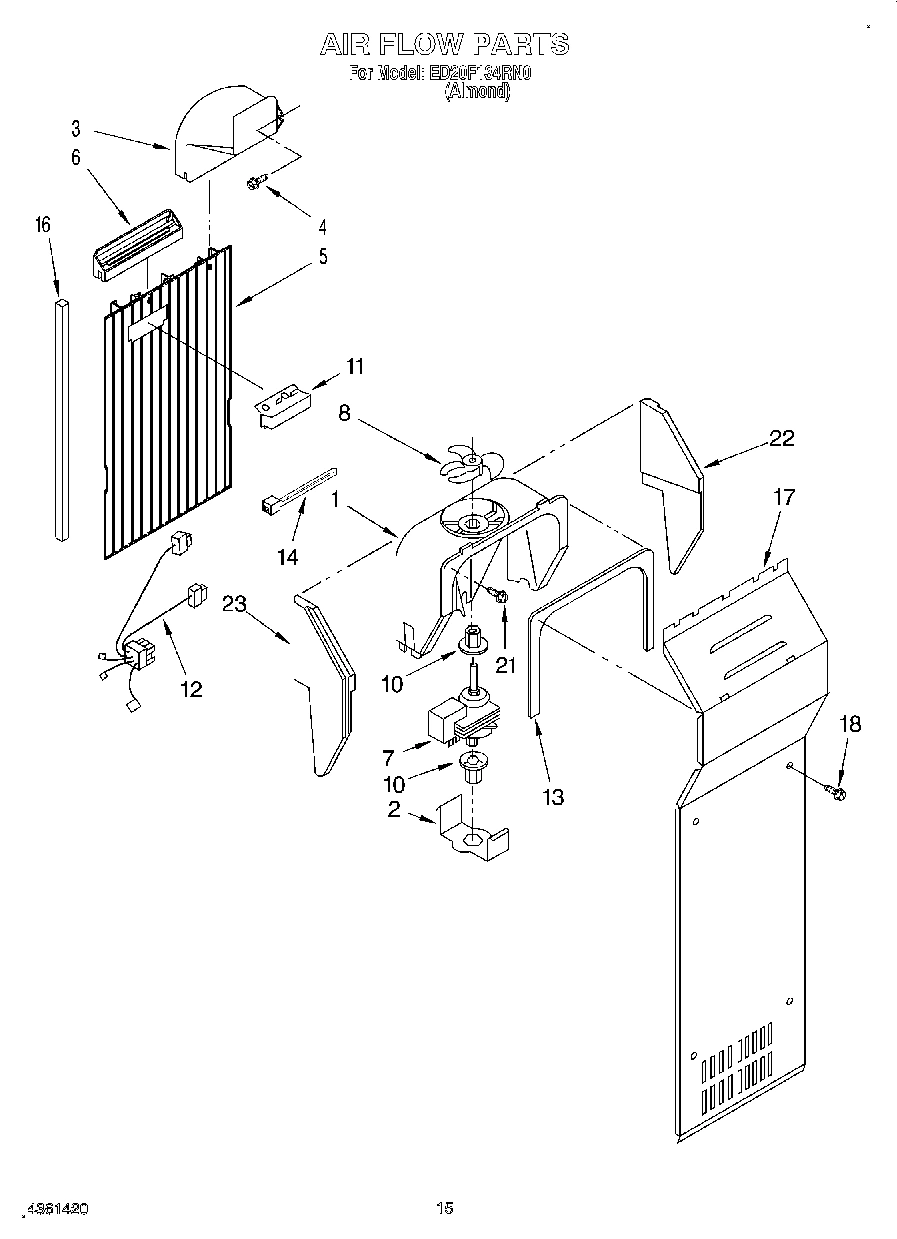

09 - AIRFLOW

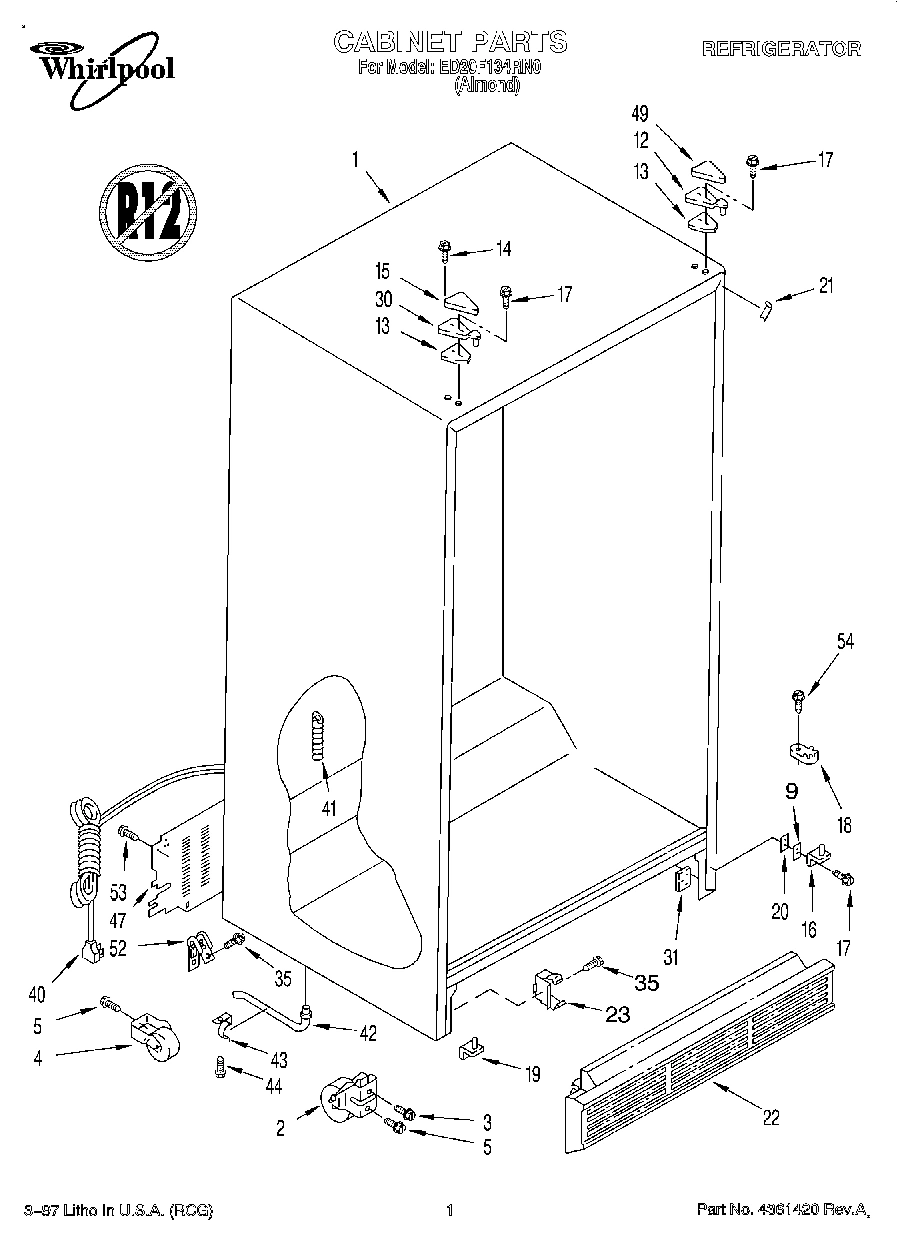

01 - CABINET

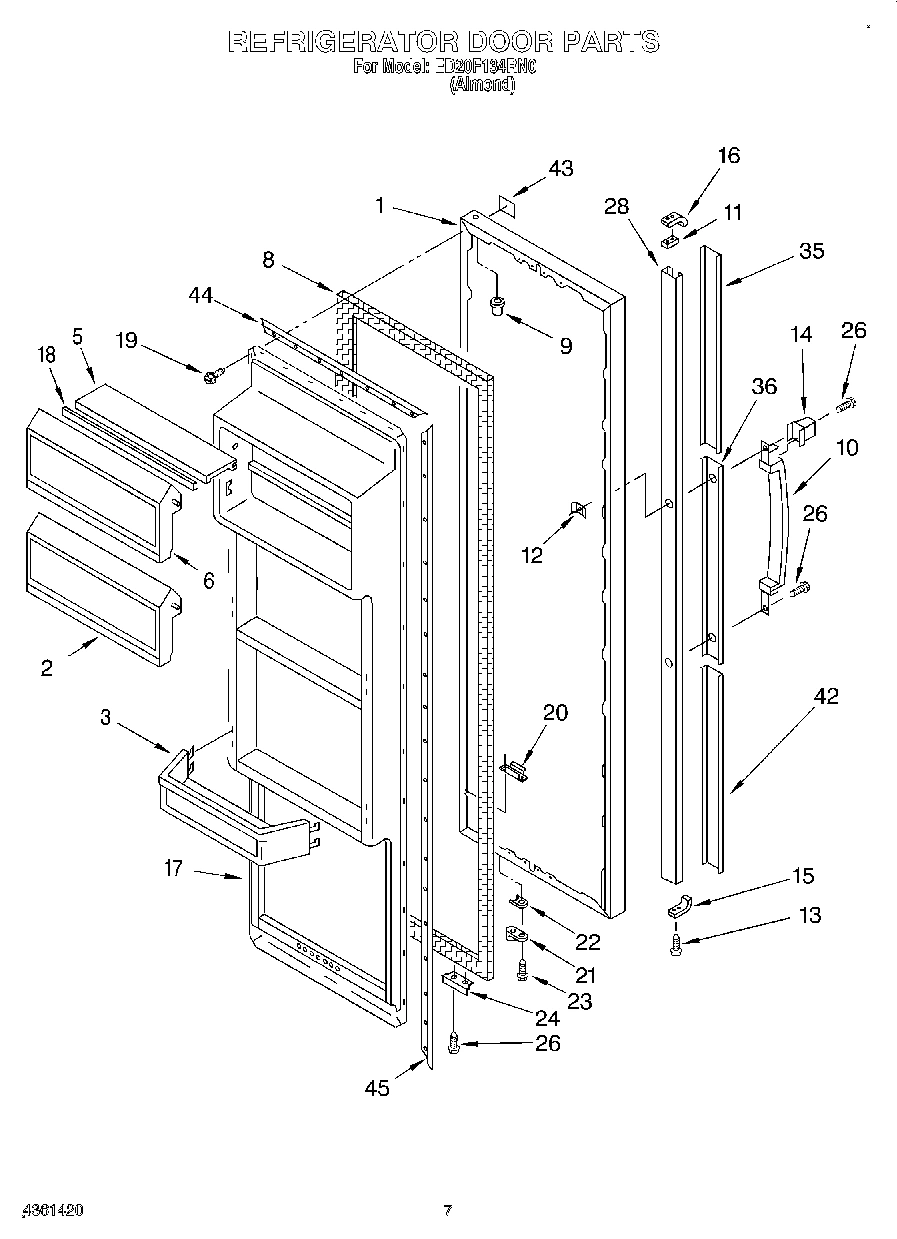

05 - REFRIGERATOR DOOR
Common parts from model Whirlpool ED20F134RN0 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) WPL 2155884 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI25724A3 Contact Us For Availability
1
Control Box WPL 2155518 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI25722A3 Contact Us For Availability
1
Refrigerator Door WPL 2154241 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Heater, Dispenser WPL 2154789 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Door, Compartment WPL 2161280 Contact Us For Availability
3
Screw WPL 489197 Contact Us For Availability
3
Shelf WPL 2155603 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Trim, Shelf (3) WPL 2161274 Contact Us For Availability
4
Housing, Dispenser WPL 1116820 Contact Us For Availability
5
Grommet WPL 509812 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Shelf, Compartment WPL 1116707 Contact Us For Availability
6
Track, Roll-Top WPL 2154319 Contact Us For Availability
6
Trim, Shelf WPL 2163981 Contact Us For Availability
6
Defrost Timer WPL 2154984 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Door, Compartment WPL 2164022 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Support, Stud (6) WPL 946355 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Retainer, Gasket WPL 1117767 Contact Us For Availability
8
Stud, Front (3) WPL 946356 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Stud, Rear (3) WPL 1106982 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
10
Handle WPL 2161269 Contact Us For Availability
10
Door Mechanism Assembly WPL 938669 Contact Us For Availability
10
Grommet, (6) WPL 1110779 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
11
Shim, Handle (2) WPL 2160458 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2161327 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1123514 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
13
Slide, Freezer Bin (2) WPL 1115383 Contact Us For Availability
14
Trim, Door Shelf (4) WPL 2161275 Contact Us For Availability
14
End Cap, Handle WPL 2156607 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Shelf WPL 1106980 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
End Cap (Bottom) WPL 2151819 Contact Us For Availability
15
Bearing, Lever (2) WPL 983697 Contact Us For Availability
15
Freezer Bin WPL 2161258 Contact Us For Availability
15
Relay (See Overload) WPL ARI25725A5 Contact Us For Availability
15
Hinge Cover WPL 2150343 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
End Cap (Top) WPL 2160457 Contact Us For Availability
16
Screw, 8 x 1 (4) WPL 487979 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2151619 Contact Us For Availability
17
Harness, Door (Includes Illustration 18) WPL 1118032 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Screw, 10-32 x 23/32 WPL 489327 Contact Us For Availability
17
Panel, Interior Door WPL 2161221 Contact Us For Availability
18
Meat Pan Cover WPL 1116742 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161329 Contact Us For Availability
18
Trim, Interior Door Shelf WPL 2161276 Contact Us For Availability
19
hinge Bottom (L.H.) WPL 2151620 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Tap Plate WPL 988402 Contact Us For Availability
20
Cover, Wiring WPL 2155572 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
21
Filler, Wrapper WPL 1110709 Contact Us For Availability
22
Insulation, Dispenser WPL 1116821 Contact Us For Availability
22
Grille WPL 1129001 Contact Us For Availability
23
Chute, Ice WPL 1109488 Contact Us For Availability
23
Door, Ice Compartment WPL 2161252 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
23
Clip, Heater (2) WPL 2161330 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Bracket, Door Stop WPL 1115906 Contact Us For Availability
24
Lever, Ice Dispenser WPL 1127421 Contact Us For Availability
24
Slide, Ice Door WPL 1115380 Contact Us For Availability
25
Guide, Ice WPL 1119035 Contact Us For Availability
25
Escutcheon, Control Box WPL 2155525 Contact Us For Availability
26
Screw, 8 x 5/8 WPL 488549 Contact Us For Availability
26
Screw WPL 488316 Contact Us For Availability
26
Harness, Intermediate WPL 2153994 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Track, Roll WPL 2154317 Contact Us For Availability
30
Screw, 4-40 x 1 WPL 489155 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Track, Roll-Bottom WPL 2154320 Contact Us For Availability
33
Bracket, Control WPL 1116811 Contact Us For Availability
33
Heater, Defrost WPL 2162079 Contact Us For Availability
34
Capacitor WPL 2154565 Contact Us For Availability
35
Trim, Top WPL 2161271 Contact Us For Availability
36
Trim, Middle WPL 2161272 Contact Us For Availability
37
Nameplate WPL 2154377 Contact Us For Availability
40
Front Cover, Housing WPL 2161278 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
41
Overlay WPL 2161277 Contact Us For Availability
41
Air, Baffle WPL 1127938 Contact Us For Availability
41
Drain Ferrule WPL 2155556 Contact Us For Availability
42
Trim, Bottom WPL 2161273 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Nameplate WPL 2161281 Contact Us For Availability
44
Wiring Assembly, Door WPL 1118374 Contact Us For Availability
44
Retainer, Gasket WPL 1118301 Contact Us For Availability
45
Retainer, Gasket WPL 1117766 Contact Us For Availability
47
Cover, Unit WPL 2161316 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
59
Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability
59
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
xEnamel, Golden Wheat (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
100
Enamel, Golden Wheat (1 Qt. Uncut) WPL 261891 Contact Us For Availability
100
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
100
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
100
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
100
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
WPL 515393 WPL 515393 Contact Us For Availability
100
WPL 542639 WPL 542639 Contact Us For Availability
100
WPL 72112 WPL 72112 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799832 WPL 799832 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
