Model Whirlpool ED20DFXEW02 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
02 - REFRIGERATOR LINER
03 - REFRIGERATOR SHELF

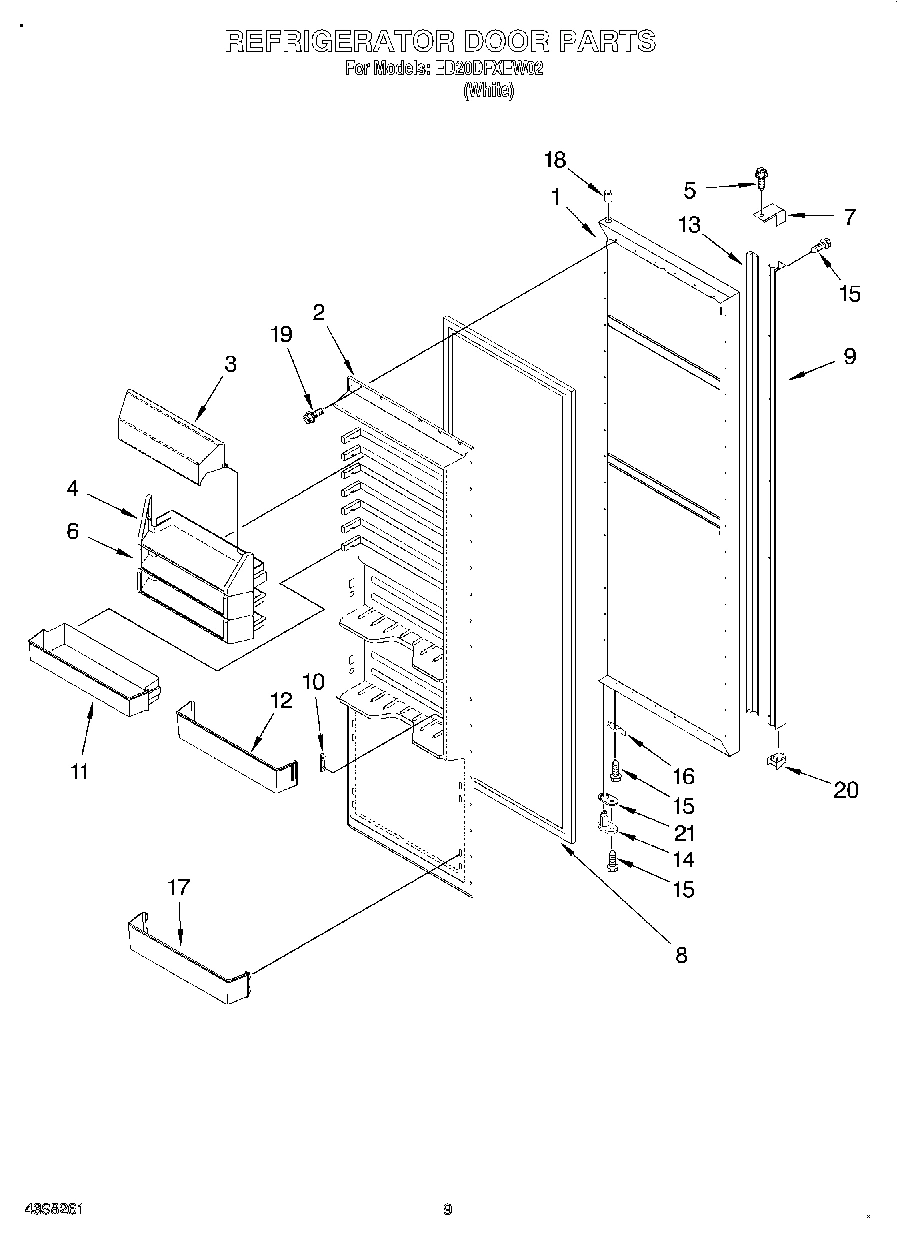

06 - REFRIGERATOR DOOR

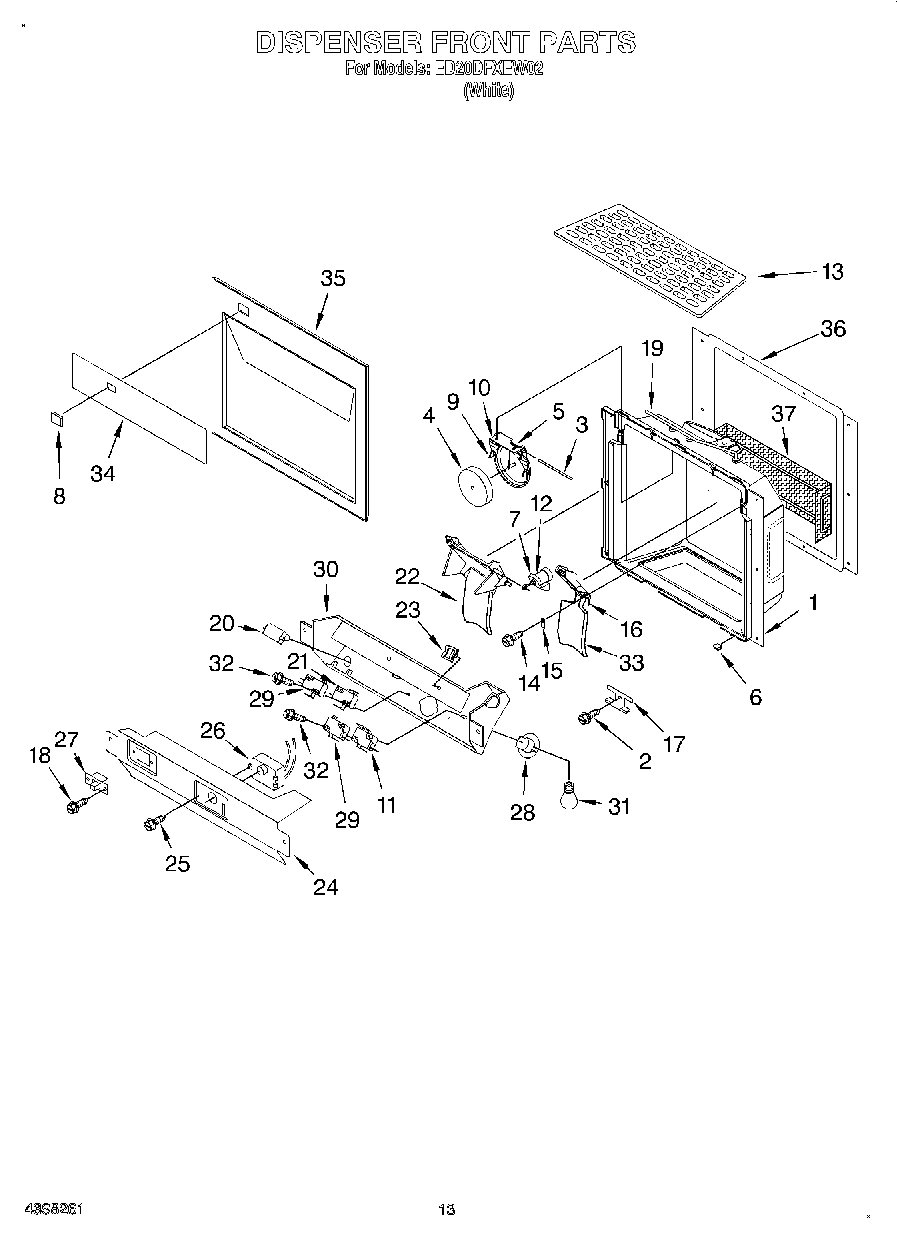

08 - DISPENSER FRONT

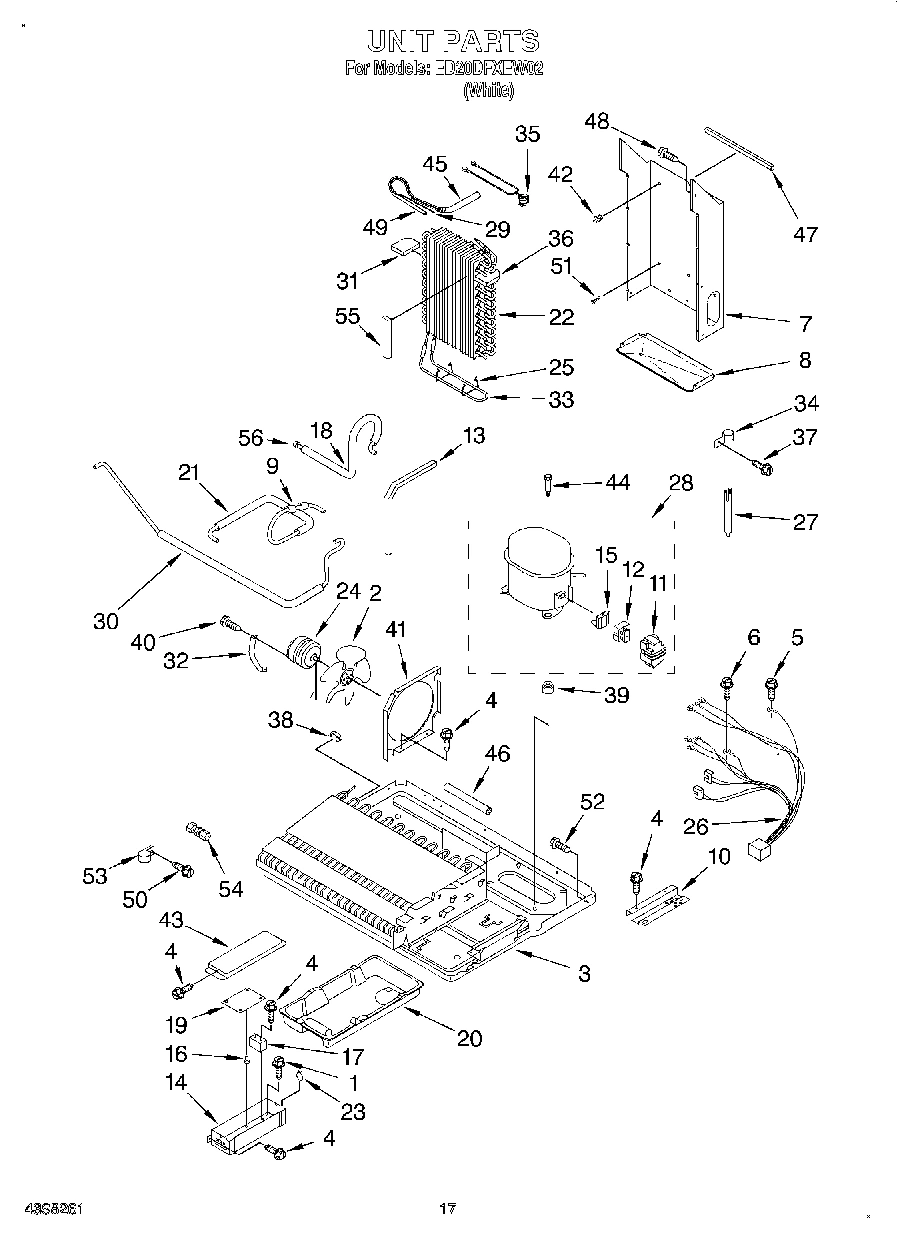

10 - UNIT

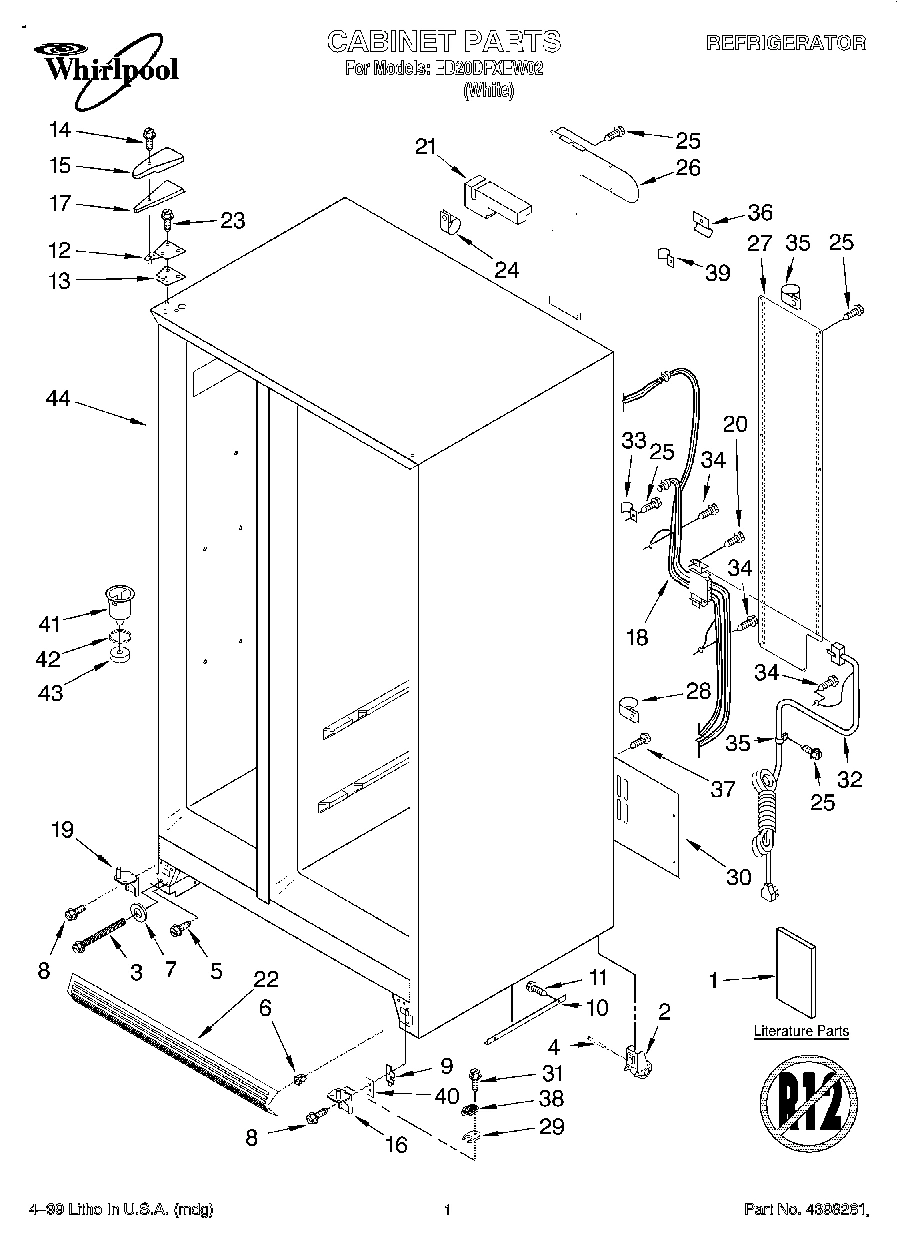

01 - CABINET, LITERATURE

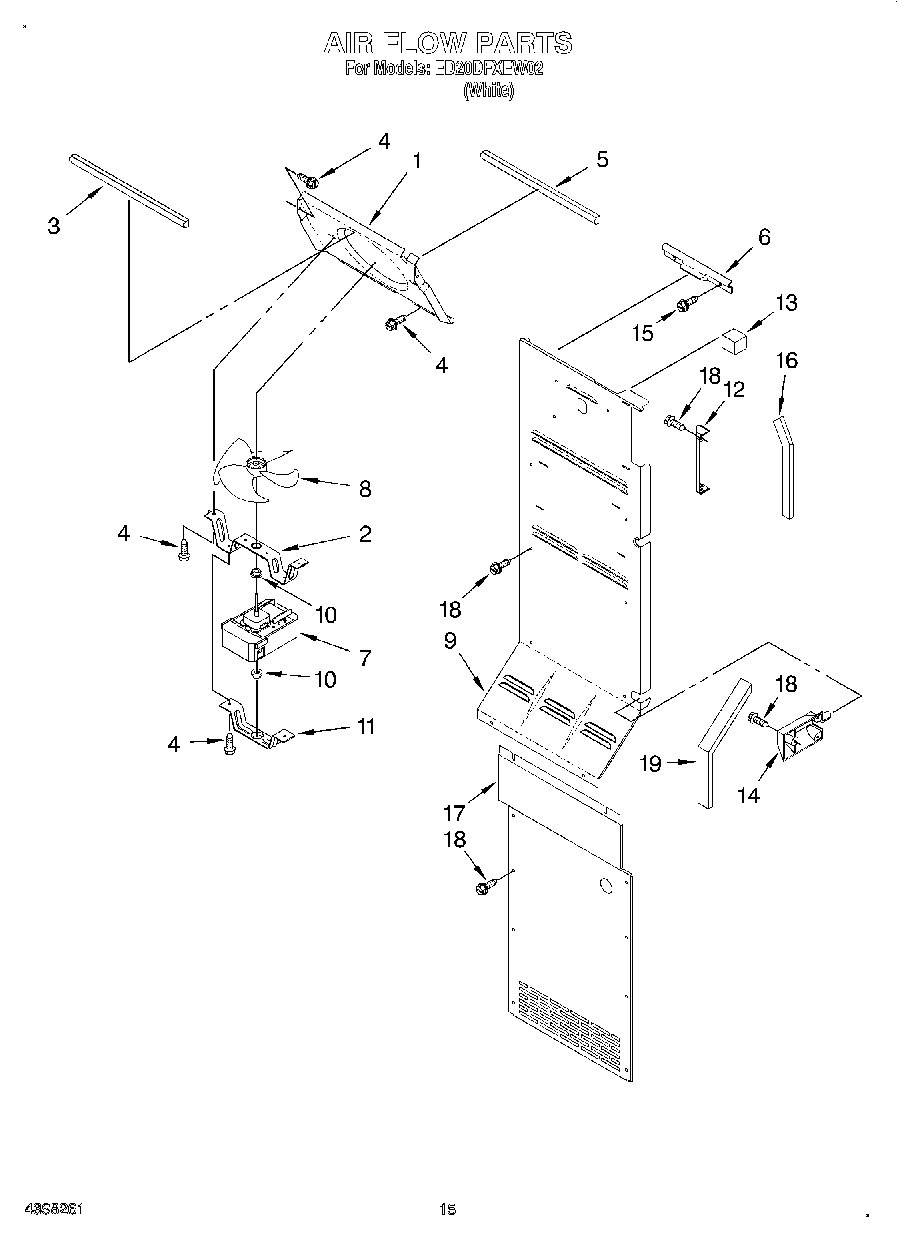

09 - AIR FLOW

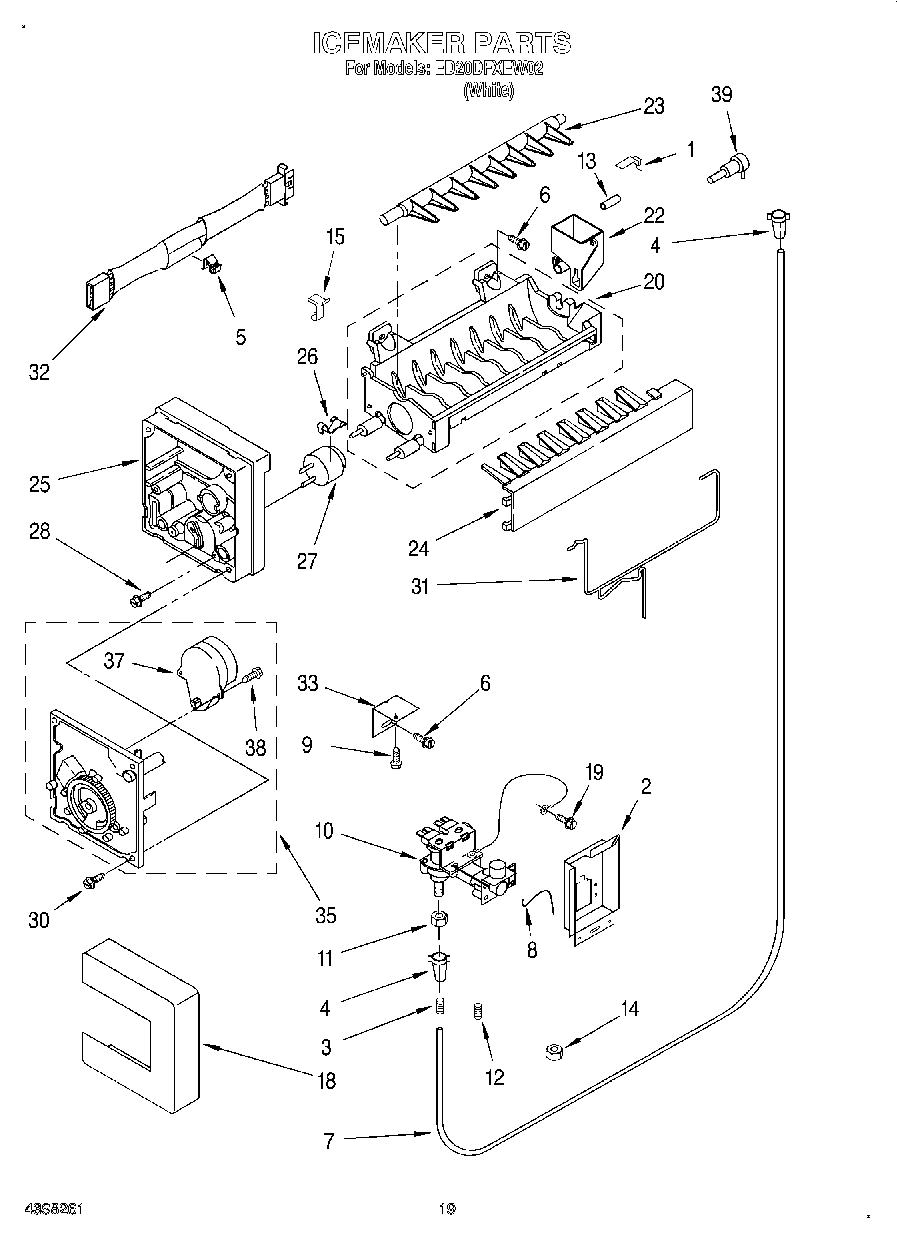

11 - ICE MAKER, OPTIONAL

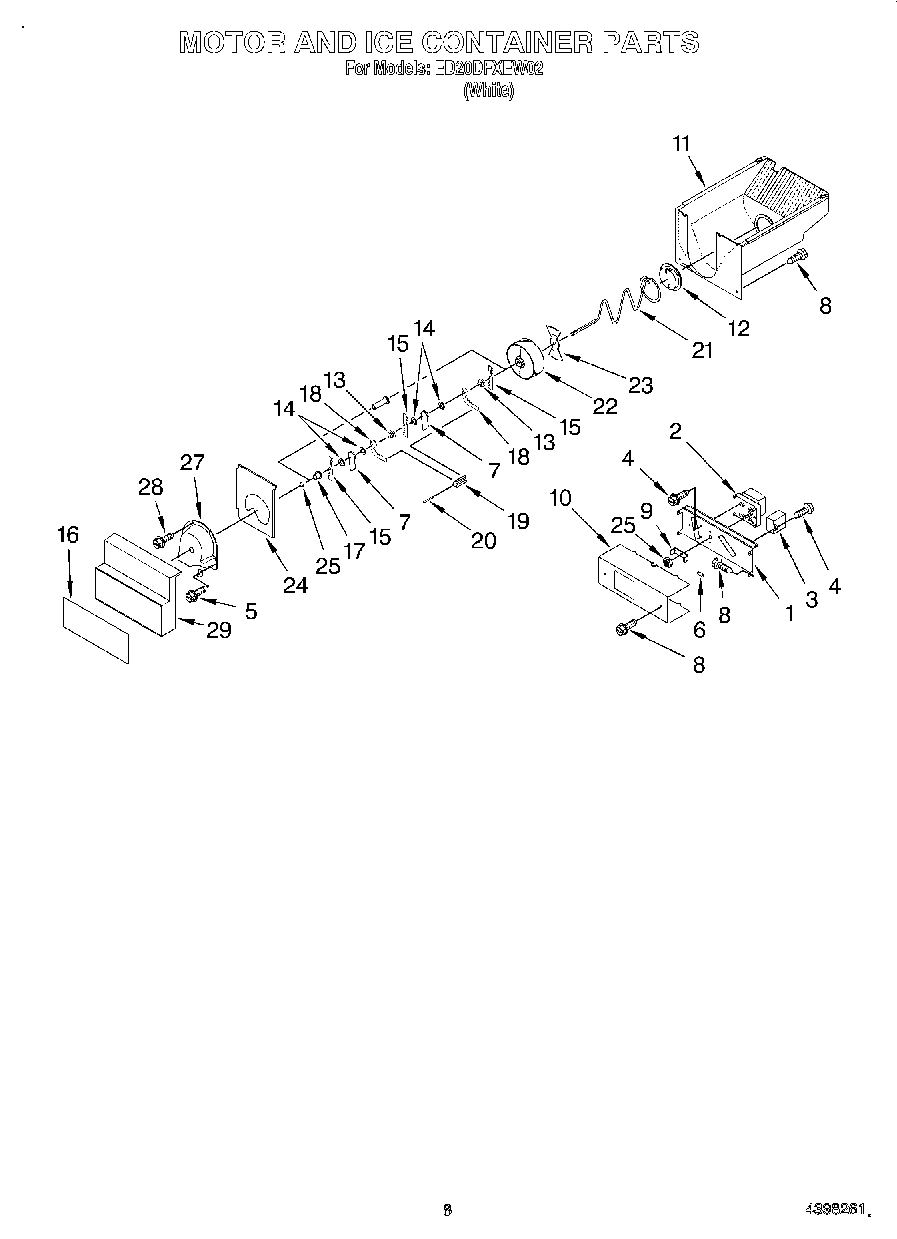

05 - MOTOR AND ICE CONTAINER

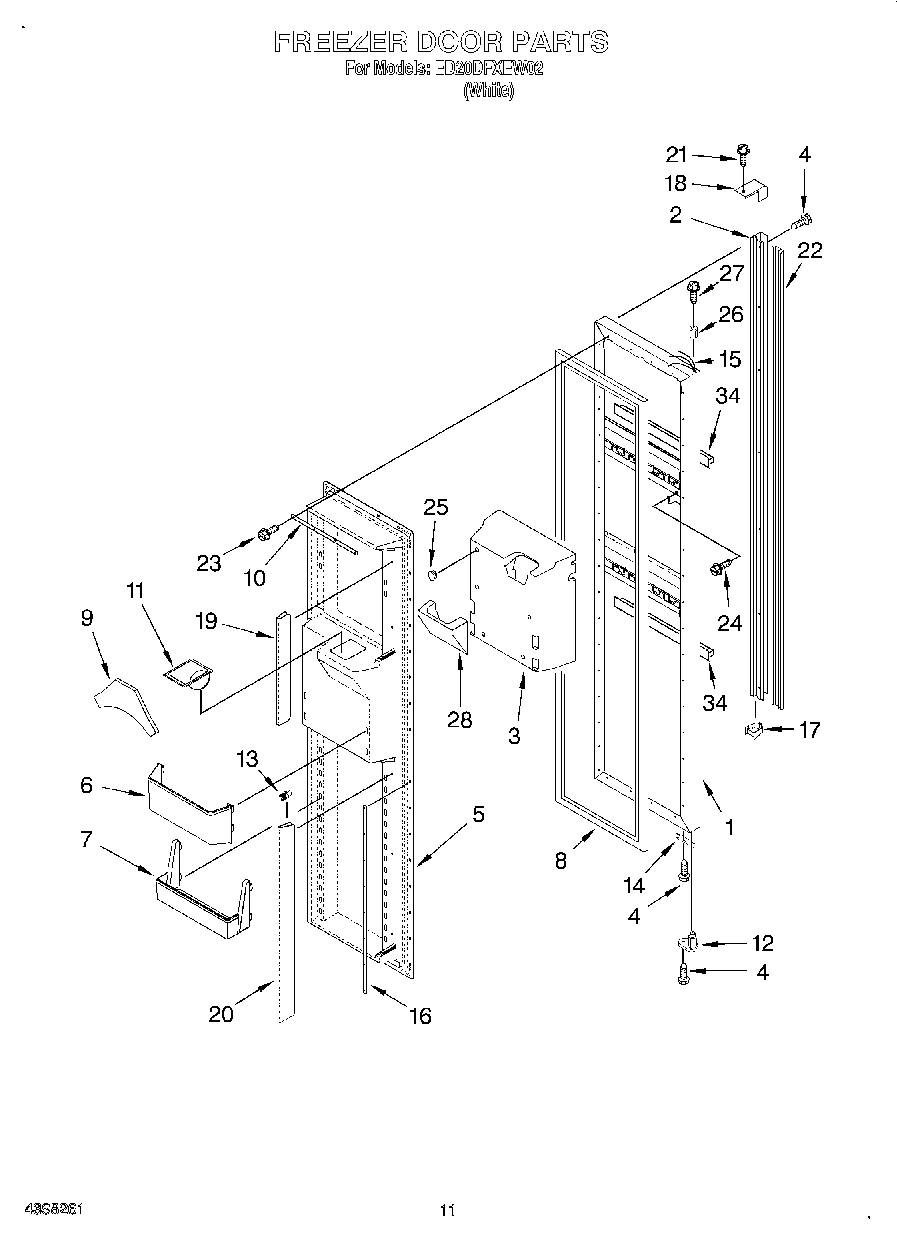

07 - FREEZER DOOR

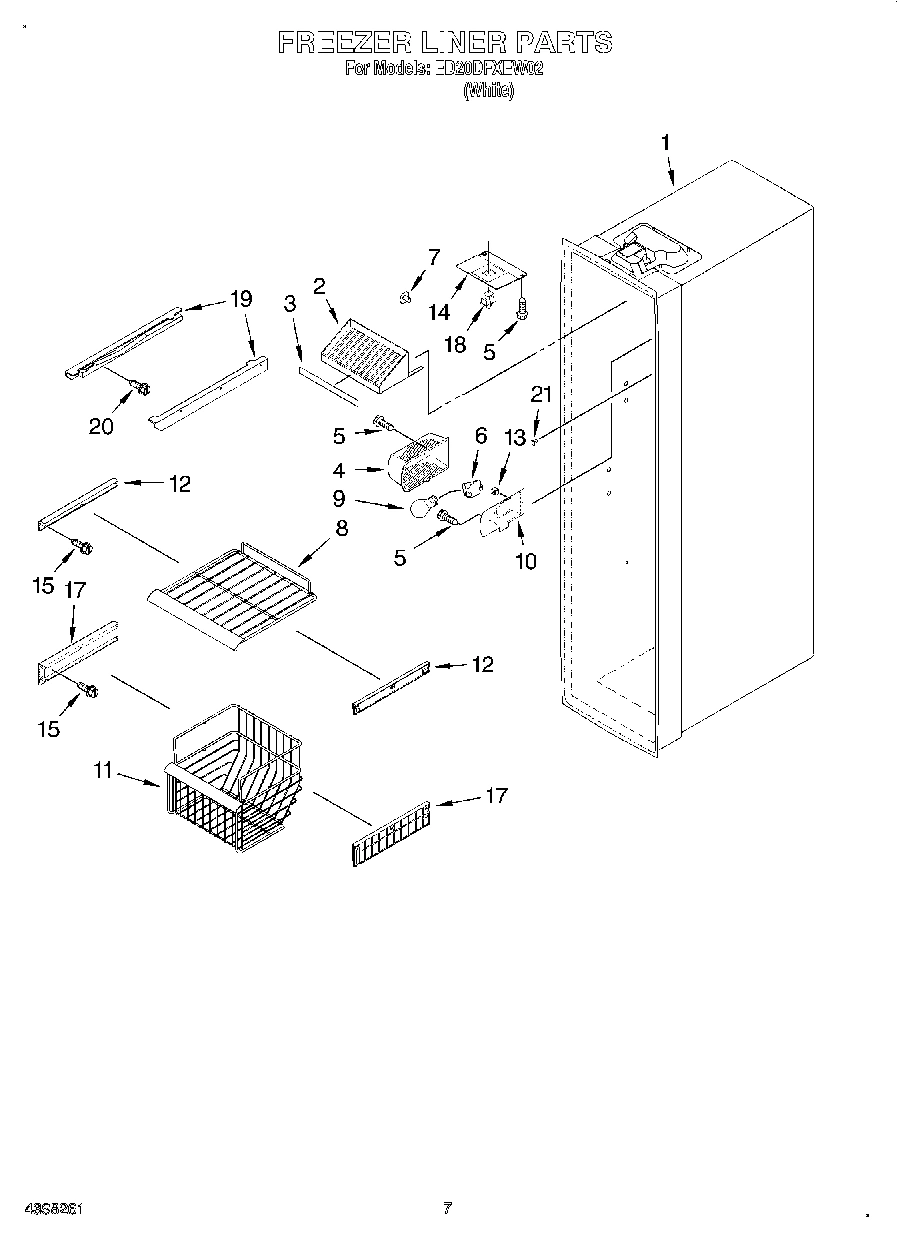

04 - FREEZER LINER
Common parts from model Whirlpool ED20DFXEW02 SIDE BY SIDE REFRIGERATOR
1
Shelf Assembly, Glass Sliding (2) WPL 4343873 Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 4343803 Contact Us For Availability
1
Housing, Dispenser (Includes No.37) WPL 4344559 Contact Us For Availability
1
Literature Parts (Energy Label) WPL LIT4344131 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8170364 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8170365 Contact Us For Availability
1
Fan Shroud WPL 4343799 Contact Us For Availability
1
Clip WPL 4343703 Contact Us For Availability
1
Bracket, Motor WPL 8170357 Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) WPL 4343820 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI145216A Contact Us For Availability
2
Crisper Pan (Lower) WPL 4343716 Contact Us For Availability
2
Interior Panel WPL 4343804 Contact Us For Availability
2
Screw WPL 4343838 Contact Us For Availability
2
Fan, Blade WPL 4343843 Contact Us For Availability
2
Roller (4) WPL 8170348 Contact Us For Availability
2
Retainer, Fan Motor WPL 4343935 Contact Us For Availability
2
Bracket, Water Valve WPL 4344551 Contact Us For Availability
2
Motor, Dispenser WPL 8170356 Contact Us For Availability
2
Handle WPL 4343734 Contact Us For Availability
2
Top Shelf WPL 4343980 Contact Us For Availability
3
Cover, Crisper (Lower) WPL 4343719 Contact Us For Availability
3
Door, Dairy WPL 4343816 Contact Us For Availability
3
Pin, Chute Door WPL 4343946 Contact Us For Availability
3
Condenser & Pan Assembly WPL 8170353 Contact Us For Availability
3
Capacitor WPL 4343851 Contact Us For Availability
3
Screw, Rear Roller Adjust WPL 8170349 Contact Us For Availability
3
Foam Seal WPL 4343791 Contact Us For Availability
3
Spring WPL 4343685 Contact Us For Availability
3
Insulation, Dispenser Cavity WPL 8170327 Contact Us For Availability
3
Insert, Top Shelf WPL 4343981 Contact Us For Availability
4
Screw WPL 4343749 Contact Us For Availability
4
Gasket, Cover (Front) WPL 4343910 Contact Us For Availability
4
Shelf, Dairy WPL 4343809 Contact Us For Availability
4
Insulation, Door WPL 4343948 Contact Us For Availability
4
Screw WPL 4343861 Contact Us For Availability
4
Pin, Clevis (4) WPL 4343776 Contact Us For Availability
4
Light Lens WPL 8170335 Contact Us For Availability
5
Seal, Control WPL 4343882 Contact Us For Availability
5
Spring, Chute Door WPL 4343950 Contact Us For Availability
5
Foam Seal WPL 4343789 Contact Us For Availability
5
Screw, Front Roller Adjust WPL 4343785 Contact Us For Availability
5
Screw WPL 4343898 Contact Us For Availability
5
Interior Panel WPL 4343821 Contact Us For Availability
6
Glass, Meat Cover WPL 4343889 Contact Us For Availability
6
Shelf Bin (2) WPL 4343817 Contact Us For Availability
6
Clip WPL 4343952 Contact Us For Availability
6
Screw WPL 4343860 Contact Us For Availability
6
Clip WPL 4343687 Contact Us For Availability
6
Clip, Wiring WPL 4343982 Contact Us For Availability
6
Trivet, Shelf WPL 4343747 Contact Us For Availability
6
Light Socket WPL 4343643 Contact Us For Availability
7
Glass, Crisper Cover (Upper) WPL 4343913 Contact Us For Availability
7
Cap, Handle Top WPL 4343630 Contact Us For Availability
7
Retainer, Door Delay WPL 4343953 Contact Us For Availability
7
Heat Shield WPL 8170350 Contact Us For Availability
7
Washer WPL 4343786 Contact Us For Availability
7
Fan Motor WPL 4344139 Contact Us For Availability
7
Damper, Ice WPL 4343904 Contact Us For Availability
7
Shelf Bin (4) WPL 4343746 Contact Us For Availability
7
Support, Stud (2) WPL 4343723 Contact Us For Availability
8
Cover, Crisper (Upper) WPL 4343718 Contact Us For Availability
8
Door Gasket, Magnetic WPL 4343812 Contact Us For Availability
8
Cap, Cube/Crush Switch WPL 4343624 Contact Us For Availability
8
Drain Pan WPL 4343792 Contact Us For Availability
8
Clip, Water Valve WPL 4343697 Contact Us For Availability
8
Door Gasket, Magnetic WPL 4343833 Contact Us For Availability
8
Shelf (3) WPL 4343662 Contact Us For Availability
9
Frame, Meat Pan WPL 4343883 Contact Us For Availability
9
Door Handle WPL 4343728 Contact Us For Availability
9
Door, Ice WPL 4343955 Contact Us For Availability
9
Dampner WPL 4343872 Contact Us For Availability
9
Spacer WPL 8170343 Contact Us For Availability
9
Rear Cover WPL 4343655 Contact Us For Availability
9
Seal, Ice Chute WPL 4343634 Contact Us For Availability
10
Crisper Pan (Upper) WPL 4343717 Contact Us For Availability
10
Clip, Retainer WPL 4343810 Contact Us For Availability
10
Bracket, Chute Door WPL 4343949 Contact Us For Availability
10
Shelf, High Voltage Box WPL 4343867 Contact Us For Availability
10
Support (2) WPL 4343774 Contact Us For Availability
10
Cover, Motor WPL 4343638 Contact Us For Availability
10
Retainer (Top & Bottom) WPL 4343824 Contact Us For Availability
10
Plate, Socket WPL 4343644 Contact Us For Availability
11
Gasket, Rear WPL 4343909 Contact Us For Availability
11
Shelf Bin WPL 4343815 Contact Us For Availability
11
Switch WPL 4343963 Contact Us For Availability
11
Cover WPL 4343852 Contact Us For Availability
11
Screw WPL 4343788 Contact Us For Availability
11
Bracket, Motor WPL 4343937 Contact Us For Availability
11
Ice Container WPL 4343896 Contact Us For Availability
11
Chute, Ice WPL 4343633 Contact Us For Availability
11
Basket, Slope WPL 4343720 Contact Us For Availability
12
Slide, Humidity Control WPL 4343912 Contact Us For Availability
12
Shelf Bin (2) WPL 4343805 Contact Us For Availability
12
Mechanism Delay WPL 4343954 Contact Us For Availability
12
Hinge Top (2) WPL 8170368 Contact Us For Availability
12
Cover, Air Supply WPL 4343671 Contact Us For Availability
12
Spring WPL 4343686 Contact Us For Availability
12
Shelf Track (Single) (Right Side) WPL 4343744 Contact Us For Availability
12
Shelf Track (Single) (Left Side) WPL 4343745 Contact Us For Availability
13
Gasket WPL 4343886 Contact Us For Availability
13
Insert, Handle WPL 4343731 Contact Us For Availability
13
Grille, Overflow WPL 4343679 Contact Us For Availability
13
Gasket WPL 4343871 Contact Us For Availability
13
Shim, Hinge Top WPL 8170366 Contact Us For Availability
13
Gasket Cover WPL 4343688 Contact Us For Availability
13
Tube, Water Inlet WPL 4343722 Contact Us For Availability
13
Spacer, Step (2) WPL 4343905 Contact Us For Availability
13
Clip, Removable Door Dike WPL 4343825 Contact Us For Availability
13
Clip, Ground WPL 4343682 Contact Us For Availability
14
Meat Pan WPL 4343888 Contact Us For Availability
14
Bracket, Door Stop WPL 8170290 Contact Us For Availability
14
Screw WPL 4343962 Contact Us For Availability
14
High Voltage Box WPL 4343854 Contact Us For Availability
14
Screw WPL 4343715 Contact Us For Availability
14
Cover, Air WPL 4343672 Contact Us For Availability
14
Nut WPL 4343647 Contact Us For Availability
14
Spacer, Wavered WPL 4343890 Contact Us For Availability
14
Cover, Switch WPL 4343928 Contact Us For Availability
15
Clip, Lever (4) WPL 4343947 Contact Us For Availability
15
Hinge Cover WPL 4343739 Contact Us For Availability
15
Clamp WPL 4343984 Contact Us For Availability
15
Blade, Rotary WPL 4343903 Contact Us For Availability
15
Harness, Door WPL 4343826 Contact Us For Availability
16
Trim, Front (2) WPL 4343914 Contact Us For Availability
16
Spring, Lever WPL 4343951 Contact Us For Availability
16
Support WPL 4343868 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 8170347 Contact Us For Availability
16
Gasket WPL 4343673 Contact Us For Availability
16
Insert, Cover WPL 4343892 Contact Us For Availability
16
Retainer (Side) WPL 4343835 Contact Us For Availability
17
Cover WPL 2169935 Contact Us For Availability
17
Shelf Bin (2) WPL 4343814 Contact Us For Availability
17
Clip, Cover WPL 4343823 Contact Us For Availability
17
Hinge, Cover Foil (Fzr Only) WPL 8170367 Contact Us For Availability
17
Cover, Evaporator WPL 4343750 Contact Us For Availability
17
Spacer WPL 4343902 Contact Us For Availability
17
Cap, Bottom WPL 4343769 Contact Us For Availability
17
Shelf Track (Left Side (2)) WPL 4343663 Contact Us For Availability
17
Shelf Track (Right Side (2)) WPL 4343664 Contact Us For Availability
18
Slide, Control WPL 4343881 Contact Us For Availability
18
Hinge Sleeve WPL 4343943 Contact Us For Availability
18
Screw WPL 4343974 Contact Us For Availability
18
Sleeve WPL 4343870 Contact Us For Availability
18
Wire Harness WPL 4343790 Contact Us For Availability
18
Cover WPL 4343696 Contact Us For Availability
18
Blade, Fixed (2) WPL 4343901 Contact Us For Availability
18
Cap, Top WPL 4343627 Contact Us For Availability
19
Sleeve WPL 4343877 Contact Us For Availability
19
Screw WPL 8170322 Contact Us For Availability
19
Control WPL 4343842 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 8170345 Contact Us For Availability
19
Gasket, Foam WPL 4343822 Contact Us For Availability
19
Block, Blade WPL 4343907 Contact Us For Availability
19
Removable Door Dike, Top WPL 4343836 Contact Us For Availability
19
Slide, Ice Container (Right Side) WPL 4343708 Contact Us For Availability
20
Extrusion WPL 4343875 Contact Us For Availability
20
Cap, Bottom WPL 4343766 Contact Us For Availability
20
Light Switch WPL 4343966 Contact Us For Availability
20
Drain Pan WPL 4343863 Contact Us For Availability
20
Roll Pin WPL 4343906 Contact Us For Availability
20
Removable Door Dike, Bottom WPL 4343837 Contact Us For Availability
20
Screw WPL 4343653 Contact Us For Availability
21
Trim, Rear WPL 4343876 Contact Us For Availability
21
Screw WPL 4343693 Contact Us For Availability
21
PERIMITER TRIM KIT (White) WPL 4378872 Contact Us For Availability
21
DOOR PANEL TRIM KIT (White) WPL 4378878 Contact Us For Availability
21
Micro Switch WPL 4343968 Contact Us For Availability
21
Tube, Discharge WPL 4343857 Contact Us For Availability
21
Air Baffle WPL 4343783 Contact Us For Availability
21
Conveyor WPL 4343894 Contact Us For Availability
21
Grommet, Screw WPL 4343657 Contact Us For Availability
22
Grommet, Air Duct WPL 4343878 Contact Us For Availability
22
Lever, Ice Dispenser WPL 4343956 Contact Us For Availability
22
Evaporator WPL 4343748 Contact Us For Availability
22
Insert, Handle WPL 4343741 Contact Us For Availability
23
Extension, Air Duct WPL 4343880 Contact Us For Availability
23
Clip, Wire WPL 4343969 Contact Us For Availability
23
Clamp, Wire WPL 8170292 Contact Us For Availability
23
Screw WPL 4343684 Contact Us For Availability
23
Drive Bar WPL 4343891 Contact Us For Availability
23
Screw (42) WPL 4343811 Contact Us For Availability
24
Trim, Frame WPL 4343887 Contact Us For Availability
24
Cover WPL 4343970 Contact Us For Availability
24
Clamp WPL 4343777 Contact Us For Availability
24
Front, Ice Crusher WPL 4343899 Contact Us For Availability
25
Air Duct WPL 4343879 Contact Us For Availability
25
Screw WPL 4343971 Contact Us For Availability
25
Screw WPL 4343759 Contact Us For Availability
25
Nut, Locking WPL 4343641 Contact Us For Availability
25
Button Plug WPL 8170293 Contact Us For Availability
26
Switch, Sensor WPL 4343972 Contact Us For Availability
26
Harness, Unit WPL 4343846 Contact Us For Availability
26
Wire Cover WPL 4343707 Contact Us For Availability
27
Shelf Arm (Left Side) WPL 4343884 Contact Us For Availability
27
Shelf Arm (Right Side) WPL 4343885 Contact Us For Availability
27
Switch, Cube/ Crush WPL 4343973 Contact Us For Availability
27
Back Cover WPL 4343659 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Housing, Crusher WPL 4343900 Contact Us For Availability
27
Screw, Ground WPL 4343725 Contact Us For Availability
28
Glass, Crisper Cover (Lower) WPL 4343916 Contact Us For Availability
28
Lamp Holder WPL 4343967 Contact Us For Availability
28
Clip, Water Tube WPL 4343705 Contact Us For Availability
28
Screw WPL 4343908 Contact Us For Availability
28
Insulation, Dispenser Chute WPL 8170328 Contact Us For Availability
29
Band, Crisper (Upper) WPL 4343911 Contact Us For Availability
29
Shim, Door Closer (White) WPL 8170324 Contact Us For Availability
29
Heat Exchanger WPL 4343919 Contact Us For Availability
29
Shim, Door Closer (White) WPL 8170340 Contact Us For Availability
29
Front Cover, Ice Container WPL 4343897 Contact Us For Availability
30
Band, Crisper (Lower) WPL 4343915 Contact Us For Availability
30
Bracket, Control WPL 4343832 Contact Us For Availability
30
Tube, Condenser/ PC Loop WPL 4343858 Contact Us For Availability
30
Cover, Unit WPL 4343978 Contact Us For Availability
31
Container WPL 4344128 Contact Us For Availability
31
Block, Evaporator (Left Side) WPL 4343921 Contact Us For Availability
31
Screw WPL 8170338 Contact Us For Availability
32
Screw WPL 4343965 Contact Us For Availability
32
Bracket, Fan Motor WPL 4343853 Contact Us For Availability
32
Power Cord WPL 4343760 Contact Us For Availability
32
Harness, Wiring WPL 4343983 Contact Us For Availability
33
Lever, Water Dispenser WPL 8170329 Contact Us For Availability
33
Tube Clamp WPL 4343752 Contact Us For Availability
34
Cover, Control WPL 4344060 Contact Us For Availability
34
Plaque, Front Cover WPL 4343618 Contact Us For Availability
34
Clip, Drier WPL 4343763 Contact Us For Availability
34
Screw WPL 4343765 Contact Us For Availability
34
Retainer, Decorative Panel WPL 8170314 Contact Us For Availability
35
Knob, Thermostat WPL 4344180 Contact Us For Availability
35
Front Cover, Housing WPL 4343621 Contact Us For Availability
35
Clamp WPL 4343661 Contact Us For Availability
36
Gasket, Front WPL 4343724 Contact Us For Availability
36
Gasket WPL 4343831 Contact Us For Availability
36
Block, Evaporator (Right Side) WPL 4343922 Contact Us For Availability
37
Insert WPL 4343650 Contact Us For Availability
37
Heater, Dispenser WPL 8170331 Contact Us For Availability
37
Screw WPL 4343979 Contact Us For Availability
38
Screw WPL 4343674 Contact Us For Availability
38
Clip, Condenser WPL 4343866 Contact Us For Availability
39
Light Lens, Side WPL 4343751 Contact Us For Availability
39
Grommet (4) WPL 4343845 Contact Us For Availability
39
Fitting, Water Tube WPL 8170352 Contact Us For Availability
40
Screw WPL 4344562 Contact Us For Availability
40
Shim, Hinge WPL 8170342 Contact Us For Availability
41
Light Socket WPL 4343800 Contact Us For Availability
41
Air Baffle WPL 4343862 Contact Us For Availability
42
Clip, Evaporator WPL 4343798 Contact Us For Availability
43
Cover, Reservior WPL 4343646 Contact Us For Availability
43
Cover, High Voltage Box WPL 4343864 Contact Us For Availability
44
Grille, Air Return WPL 4343925 Contact Us For Availability
44
Screw WPL 4343847 Contact Us For Availability
45
Plug, Button WPL 4343926 Contact Us For Availability
45
Cover, Tubing WPL 4343923 Contact Us For Availability
46
Sleeve WPL 4343844 Contact Us For Availability
49
Sleeve WPL 4343924 Contact Us For Availability
51
Clip, Evaporator WPL 4343797 Contact Us For Availability
52
Screw WPL 4343764 Contact Us For Availability
54
Union WPL 4343648 Contact Us For Availability
55
Gasket, Foam WPL 4343753 Contact Us For Availability
56
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
56
Tube, Suction WPL 4343848 Contact Us For Availability
56
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, WPL 799344 Contact Us For Availability
100
Torx Key WPL 1117510 Contact Us For Availability
100
Ice Container Assembly WPL 4343700 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
