Model Whirlpool EC5150WV1 ICE CUBE MAKER – Common Parts & Diagrams

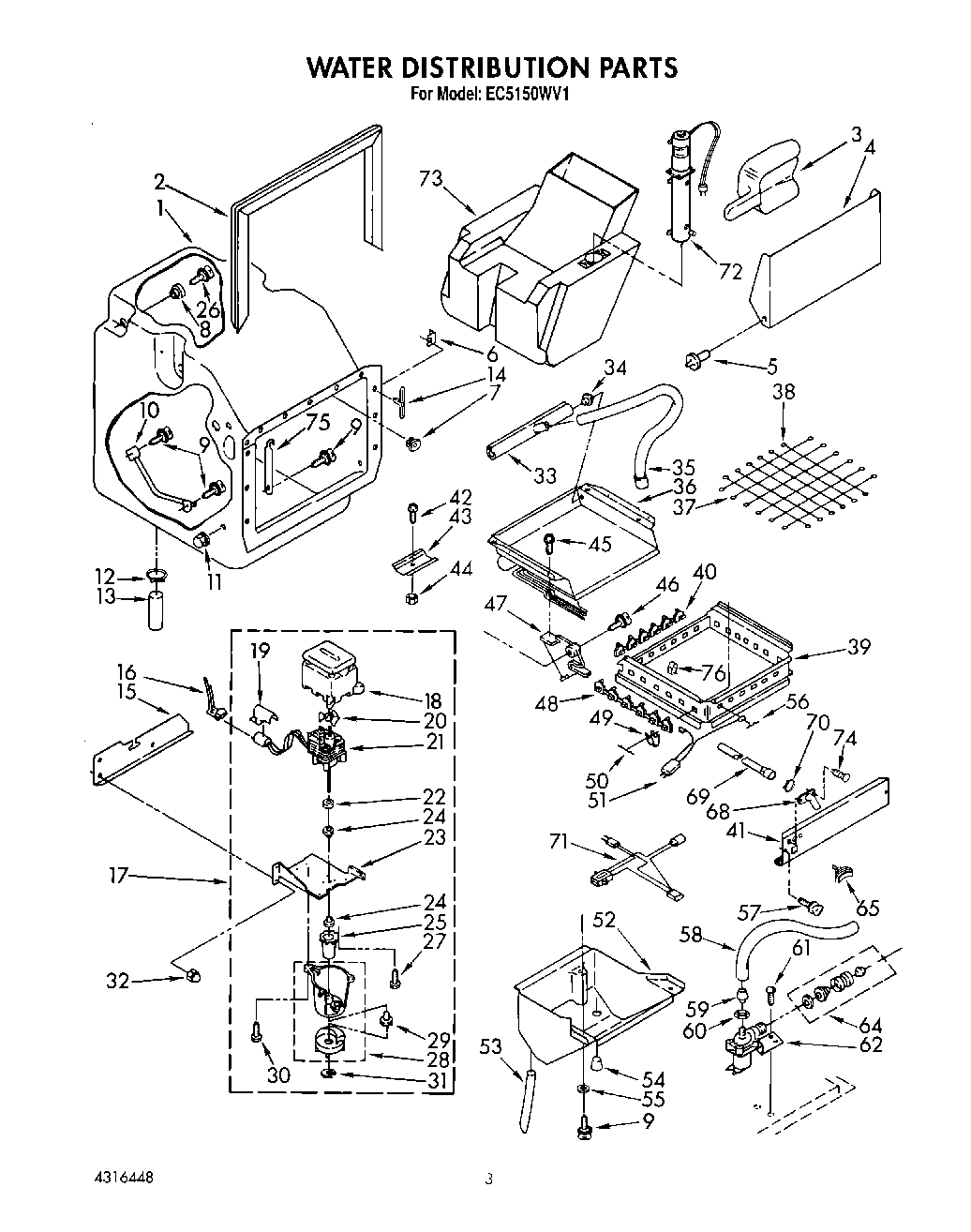

02 - WATER DISTRIBUTION

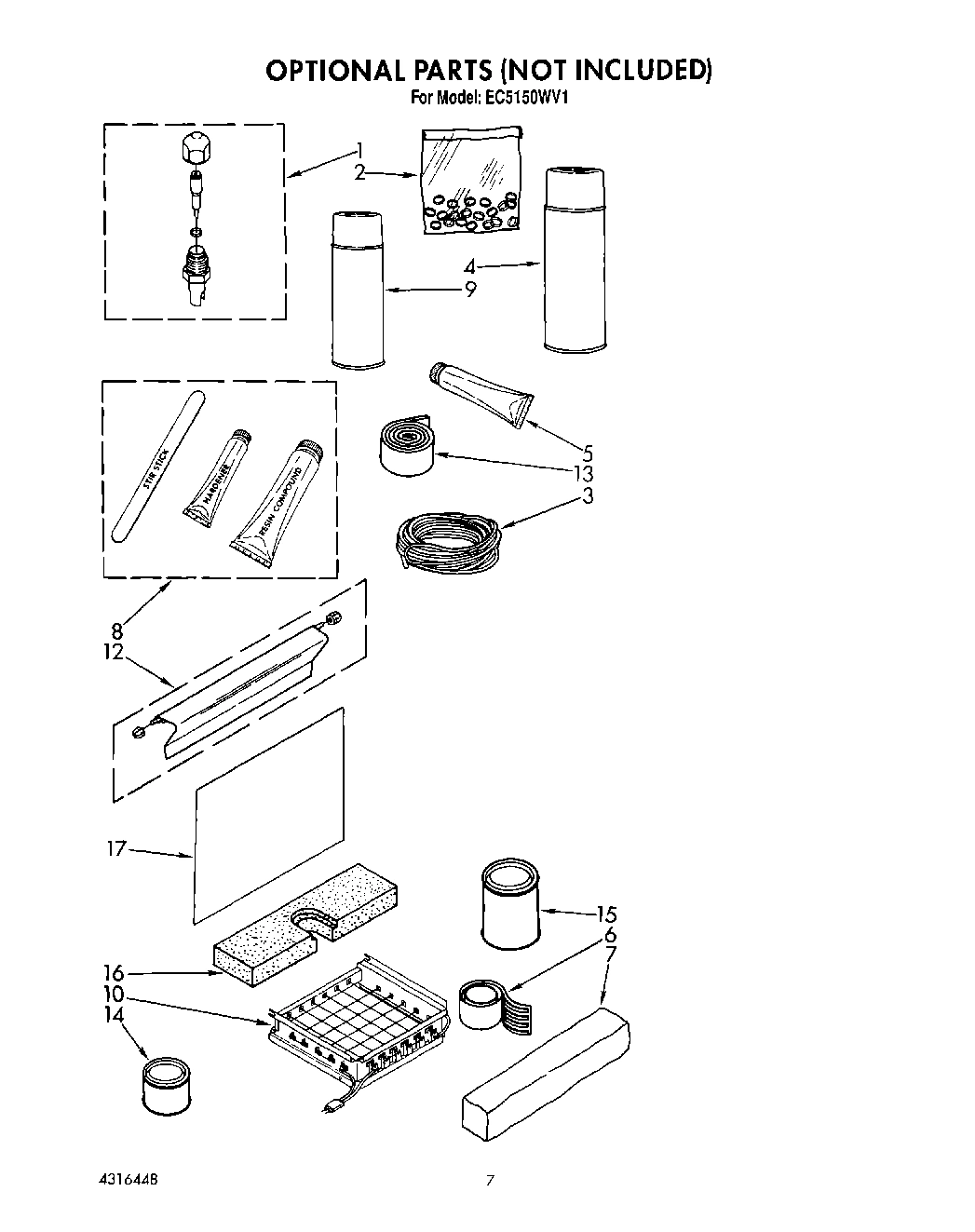

04 - OPTIONAL PARTS

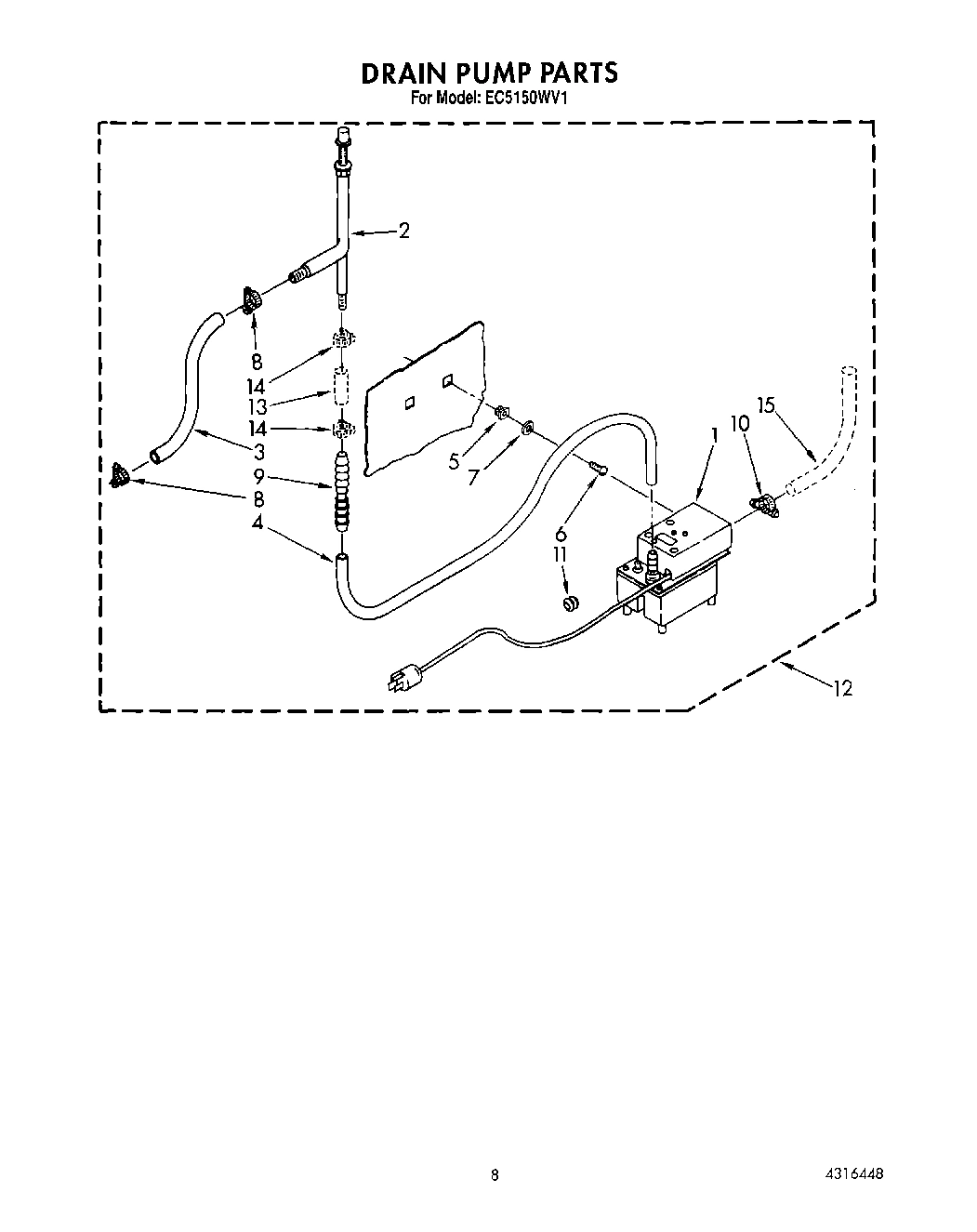

05 - DRAIN PUMP

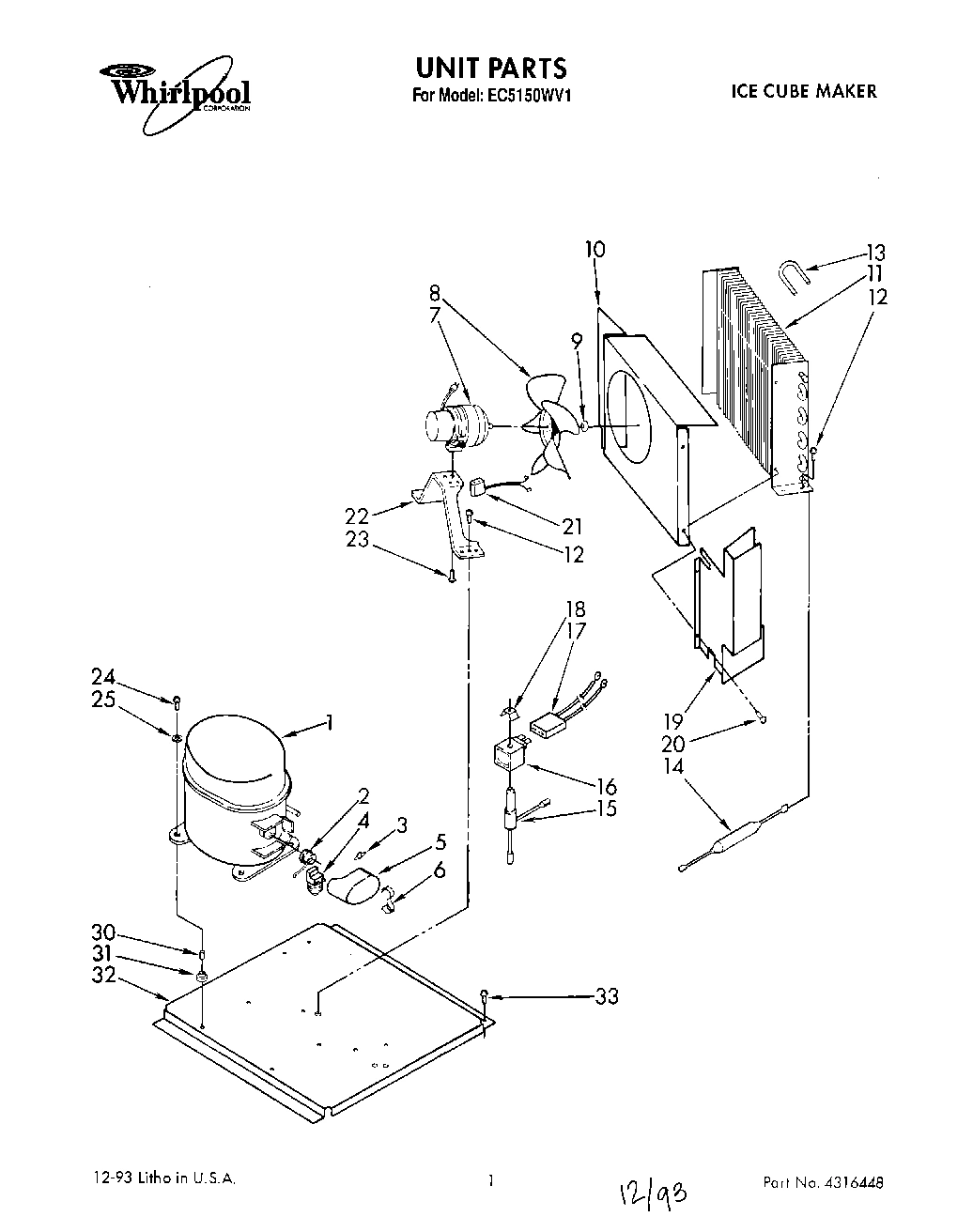

01 - UNIT, LITERATURE

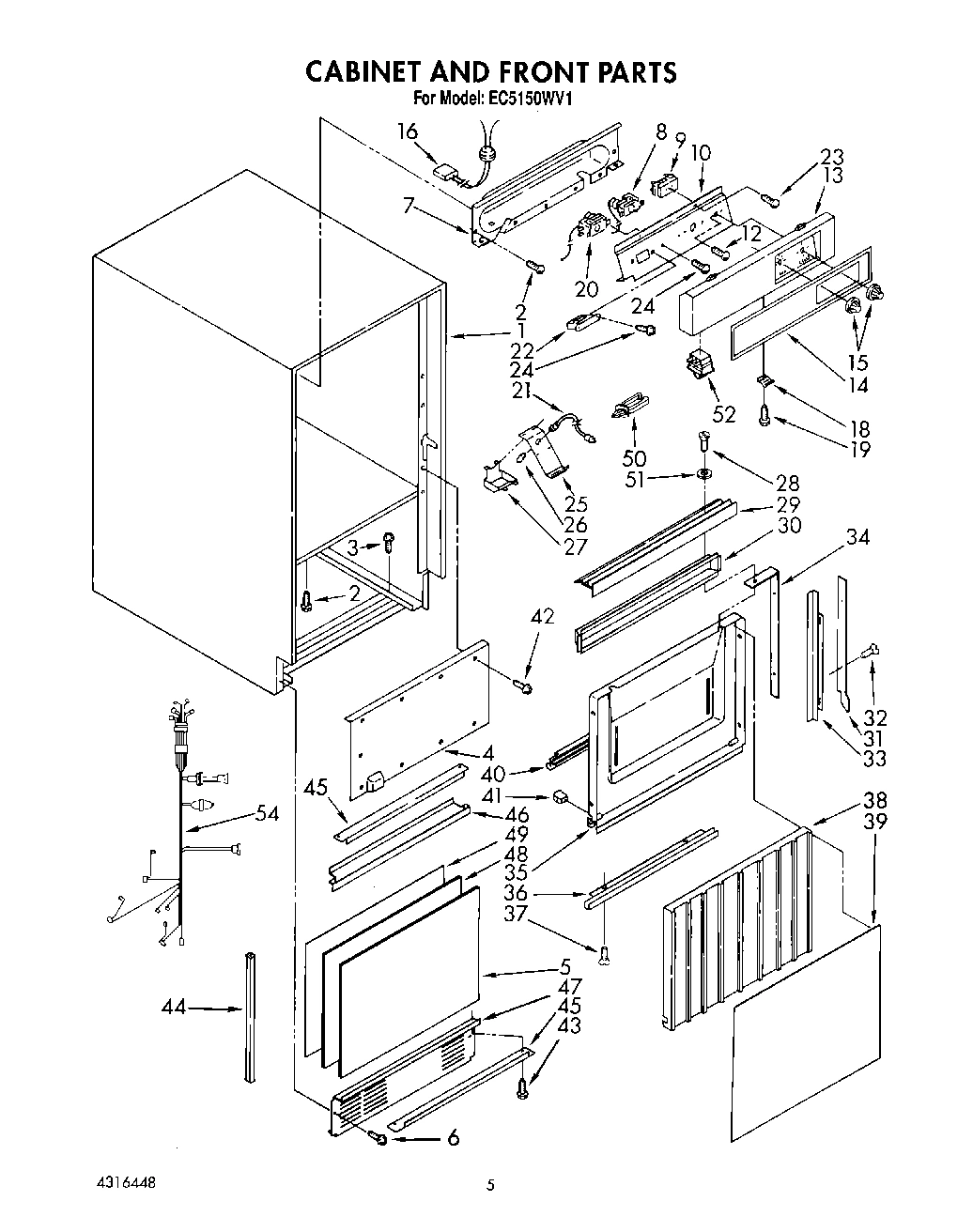

03 - CABINET AND FRONT
Common parts from model Whirlpool EC5150WV1 ICE CUBE MAKER
Wiring Diagram WPL LIT759098 Contact Us For Availability
Sheet, Tech WPL LIT759099 Contact Us For Availability
Instructions, Installation WPL LIT759105 Contact Us For Availability
Guide, Use And Care WPL LIT759133 Contact Us For Availability
1
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
1
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
1
Pump, Condensate Drain WPL 758913 Contact Us For Availability
1
Compressor, WPL 758593 Contact Us For Availability
1
Cabinet WPL 757942 Contact Us For Availability
2
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
2
OVERLOAD (Service) WPL 589231 Contact Us For Availability
2
OVERLOAD (Production) WPL 758638 Contact Us For Availability
3
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
3
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
3
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
3
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
3
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
3
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
3
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
3
Hose, 7/8 I.D. x 20.0`` (Air Gap To Discharge WPL 770966 Contact Us For Availability
3
Spring, Overload (Service Only) WPL 549086 Contact Us For Availability
3
Screw, No.10-32 x 3/8 WPL 680811 Contact Us For Availability
4
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
4
Hose, 3/8 I.D. x 14 3/8`` (Pump To Air Gap) WPL 758915 Contact Us For Availability
4
Relay, Start (Service) WPL 549337 Contact Us For Availability
4
Relay, Start (Production) WPL 758637 Contact Us For Availability
4
Support, Cabinet Front WPL 758652 Contact Us For Availability
5
Grommet, Mtg (2) WPL 596807 Contact Us For Availability
5
Cover, Terminal (Production) WPL 1108115 Contact Us For Availability
5
Cover, Terminal (Service) WPL 549336 Contact Us For Availability
5
Panel, Grille Cabinet Front WPL 758720 Contact Us For Availability
6
Retainer, Cover (Service) WPL 549342 Contact Us For Availability
6
Retainer, Cover (Production) WPL 938384 Contact Us For Availability
7
Washer (2) WPL 486713 Contact Us For Availability
7
Motor, Fan (Includes No. 23) WPL 1108089 Contact Us For Availability
7
Panel, Rear Escutcheon WPL 756664 Contact Us For Availability
8
Thermostat, Evaporator WPL 759308 Contact Us For Availability
8
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
8
Clamp, Hose (2) WPL 596572 Contact Us For Availability
9
Paint, Spray (Leveler, Enamel) WPL 206925 Contact Us For Availability
9
Connector, Hose WPL 758918 Contact Us For Availability
9
Nut, Hex 1/4-20 WPL 681650 Contact Us For Availability
9
Switch, Rotary WPL 593139 Contact Us For Availability
10
Grid, Cutter (1-1/4`` - Cubes (Complete Assem WPL 758469 Contact Us For Availability
10
Grid, Cutter (3/4`` - Cubes) WPL 758470 Contact Us For Availability
10
Shroud, Condenser WPL 757955 Contact Us For Availability
10
Panel, Control WPL 756341 Contact Us For Availability
11
Bushing, Cord WPL 758919 Contact Us For Availability
11
Condenser WPL 756299 Contact Us For Availability
12
Screw, 1/4-20 x 1/2 WPL 681305 Contact Us For Availability
12
Ice Deflector Kit WPL 702354 Contact Us For Availability
12
Pump, Condensate Drain (Complete Kit) WPL 758840 Contact Us For Availability
13
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
13
Hose, 5/8 x 4`` (Connector To Air Gap) WPL 593577 Contact Us For Availability
13
Accumulator WPL 756298 Contact Us For Availability
13
Escutcheon, Control WPL 758884 Contact Us For Availability
14
Clamp, Hose (2) WPL 596023 Contact Us For Availability
14
Insert, Escutcheon WPL 758566 Contact Us For Availability
15
Hose, 1/2 I.D. x 12`` (Bin To Pump) WPL 593369 Contact Us For Availability
15
Valve, Solenoid Coil WPL 598086 Contact Us For Availability
15
Knob, Control (2) WPL 758557 Contact Us For Availability
16
Insulation, Kit (Bin Bottom) WPL 588490 Contact Us For Availability
16
Coil, Solenoid WPL 587970 Contact Us For Availability
16
Harness, Wiring (Cutter Grid) WPL 758567 Contact Us For Availability
17
Panel, Door (Stainless Steel) WPL 755340 Contact Us For Availability
17
Panel, Door (White & Black) WPL 755364 Contact Us For Availability
17
Panel, Door (Almond & Harvest Gold) WPL 755371 Contact Us For Availability
17
Panel, Door (Walnut) WPL 756870 Contact Us For Availability
17
Panel, Door (Toast & Pl WPL 758740 Contact Us For Availability
17
WPL 758745 WPL 758745 Contact Us For Availability
17
Harness, Wiring (Solenoid Coil) WPL 587971 Contact Us For Availability
18
Retainer, Solenoid Coil WPL 564234 Contact Us For Availability
18
Latch, Door WPL 759007 Contact Us For Availability
19
Deflector, Air WPL 758811 Contact Us For Availability
19
Screw 8-32 x .375 WPL 680964 Contact Us For Availability
20
Thermostat, Ice-Bin WPL 759309 Contact Us For Availability
20
Blade, Fan WPL 587096 Contact Us For Availability
21
Motor, Pump WPL 1127834 Contact Us For Availability
21
Harness, Wiring (Fan Motor) WPL 585219 Contact Us For Availability
21
Harness, Light WPL 758488 Contact Us For Availability
22
Washer WPL 583424 Contact Us For Availability
22
Bracket, Fan Motor WPL 560817 Contact Us For Availability
22
Transformer WPL 758414 Contact Us For Availability
23
Bracket, Pump WPL 756122 Contact Us For Availability
23
Screw, 8-36 x 1/2 (4) WPL 489199 Contact Us For Availability
24
Grommet (2) WPL 596016 Contact Us For Availability
24
Screw, 5/16-18 x 1-1/4 (4) WPL 680233 Contact Us For Availability
24
Screw, 8-32 x 3/8 (2) WPL 681036 Contact Us For Availability
25
Sleeve WPL 593229 Contact Us For Availability
25
Washer, Flat (4) WPL 595230 Contact Us For Availability
25
Bracket, Light WPL 758490 Contact Us For Availability
26
Thumbscrew 10-32 x 5/8 WPL 680930 Contact Us For Availability
26
Bulb, Light WPL 745362 Contact Us For Availability
27
Shield, Light WPL 758489 Contact Us For Availability
28
Pump, Assembly WPL 583518 Contact Us For Availability
28
Screw, 10 x 1/2 WPL 681419 Contact Us For Availability
29
Impeller, Pump (Includes No. 31) WPL 583426 Contact Us For Availability
29
Handle, Door WPL 758622 Contact Us For Availability
30
Screw, 8-18 x 3/4 WPL 681391 Contact Us For Availability
30
Sleeve (4) WPL 585564 Contact Us For Availability
30
Pocket, Handle WPL 758752 Contact Us For Availability
31
Ring, Retaining WPL 681301 Contact Us For Availability
31
Grommet (4) WPL 596355 Contact Us For Availability
31
Rail, Door (Right Side) WPL 593184 Contact Us For Availability
31
Rail, Door (Left Side) WPL 593185 Contact Us For Availability
32
Nut (3) WPL 681770 Contact Us For Availability
32
Base, Unit WPL 758810 Contact Us For Availability
32
Screw, No.8-32 1/2 (6) WPL 681459 Contact Us For Availability
33
Dispenser, Water WPL 585813 Contact Us For Availability
33
Trim, Door (2) WPL 758748 Contact Us For Availability
34
Plug, WPL 758597 Contact Us For Availability
34
Strip, Tapping (2) WPL 593104 Contact Us For Availability
35
Hose, Dispenser WPL 585856 Contact Us For Availability
35
Liner, Door WPL 758655 Contact Us For Availability
36
Evaporator WPL 758028 Contact Us For Availability
36
Trim, Door WPL 758400 Contact Us For Availability
37
Wire, Cutter (Includes 9 Wires) WPL 587503 Contact Us For Availability
37
Screw, No.8-32 x 1/2 WPL 681196 Contact Us For Availability
38
Wire, Cutter (Includes 10 Wires) WPL 587504 Contact Us For Availability
38
Insulation, Door WPL 758608 Contact Us For Availability
39
Frame, Grid WPL 759200 Contact Us For Availability
39
Panel, Door (White & Black) WPL 758746 Contact Us For Availability
40
Strip Insulation (2) WPL 758910 Contact Us For Availability
40
Gasket, Door WPL 758169 Contact Us For Availability
41
Panel, Grid WPL 759025 Contact Us For Availability
41
Plug, Hinge WPL 593192 Contact Us For Availability
42
Screw, 10-32 x 1/2 WPL 596037 Contact Us For Availability
43
Clamp WPL 587662 Contact Us For Availability
44
Nut, 10-32 WPL 681676 Contact Us For Availability
44
Trim, Sides (2) WPL 758714 Contact Us For Availability
45
Trim, Front Top & Bottom WPL 758717 Contact Us For Availability
46
Screw, Thumb 10-32 x 1`` WPL 681611 Contact Us For Availability
46
Support Panel WPL 758718 Contact Us For Availability
47
Bracket, Grid (2) WPL 756564 Contact Us For Availability
47
Grille, Panel WPL 758769 Contact Us For Availability
48
Strip, Insulation (2) WPL 758909 Contact Us For Availability
48
Filler, Grille Panel WPL 758770 Contact Us For Availability
49
Clip, Grid Wires (19) WPL 759197 Contact Us For Availability
49
Panel, Inner Grille WPL 758771 Contact Us For Availability
50
Pin, Grid Wires (4) WPL 587112 Contact Us For Availability
50
Retainer, Wire WPL 758844 Contact Us For Availability
51
Harness, Wiring (Cutter Grid) WPL 587639 Contact Us For Availability
51
Washer (2) WPL 681613 Contact Us For Availability
52
Pan, Water WPL 756659 Contact Us For Availability
53
Hose, Overflow WPL 759109 Contact Us For Availability
54
Plug, Pan WPL 759043 Contact Us For Availability
54
Harness, Cabinet WPL 758838 Contact Us For Availability
55
Washer, WPL 681245 Contact Us For Availability
56
Pin, Grid Wire (17) WPL 587111 Contact Us For Availability
57
Screw, Thumb 10-32 x 3/4 (2) WPL 681534 Contact Us For Availability
58
Hose, Water Fill WPL 759213 Contact Us For Availability
62
WPL 759296 WPL 759296 Contact Us For Availability
64
WPL 2165477 WPL 2165477 Contact Us For Availability
65
WPL 759028 WPL 759028 Contact Us For Availability
69
WPL 759031 WPL 759031 Contact Us For Availability
71
WPL 759027 WPL 759027 Contact Us For Availability
72
WPL 759023 WPL 759023 Contact Us For Availability
73
WPL 759022 WPL 759022 Contact Us For Availability
74
WPL 489256 WPL 489256 Contact Us For Availability
75
WPL 759108 WPL 759108 Contact Us For Availability
76
WPL 759114 WPL 759114 Contact Us For Availability
× ![]()
