Model Whirlpool EC5100XT0 ICE CUBE MAKER – Common Parts & Diagrams
03 - WATER DISTRIBUTION
05 - OPTIONAL

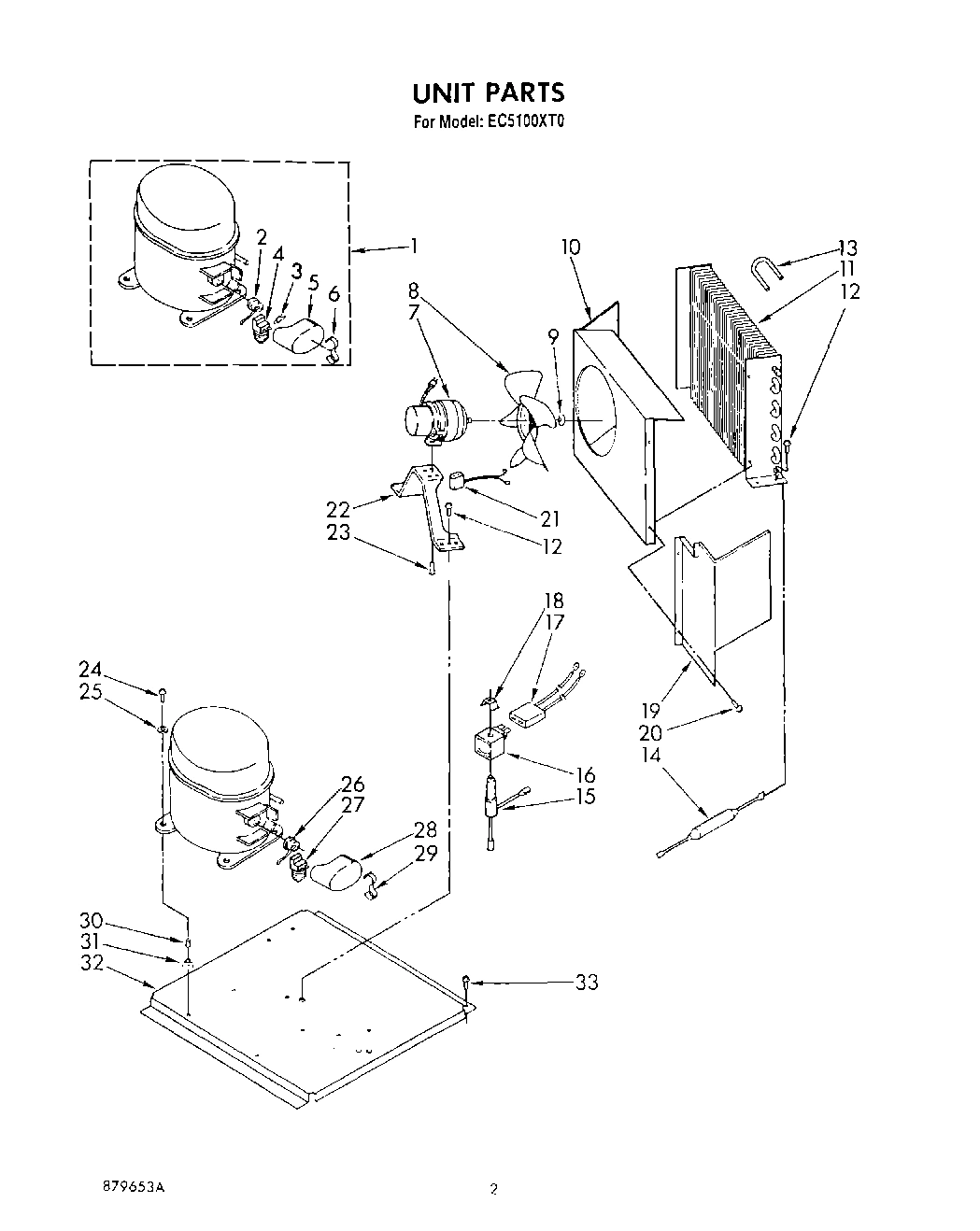

02 - UNIT, LITERATURE

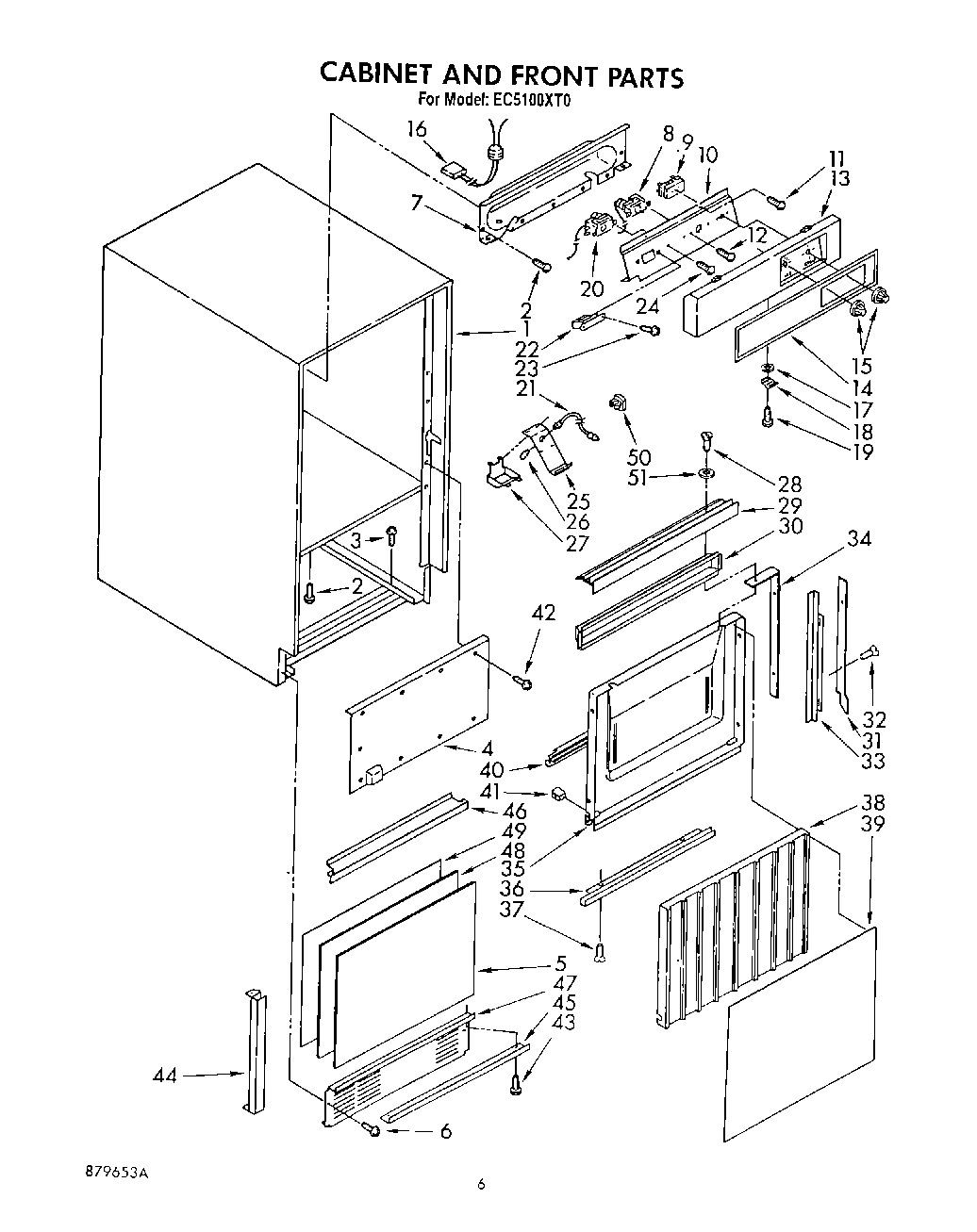

04 - CABINET AND FRONT

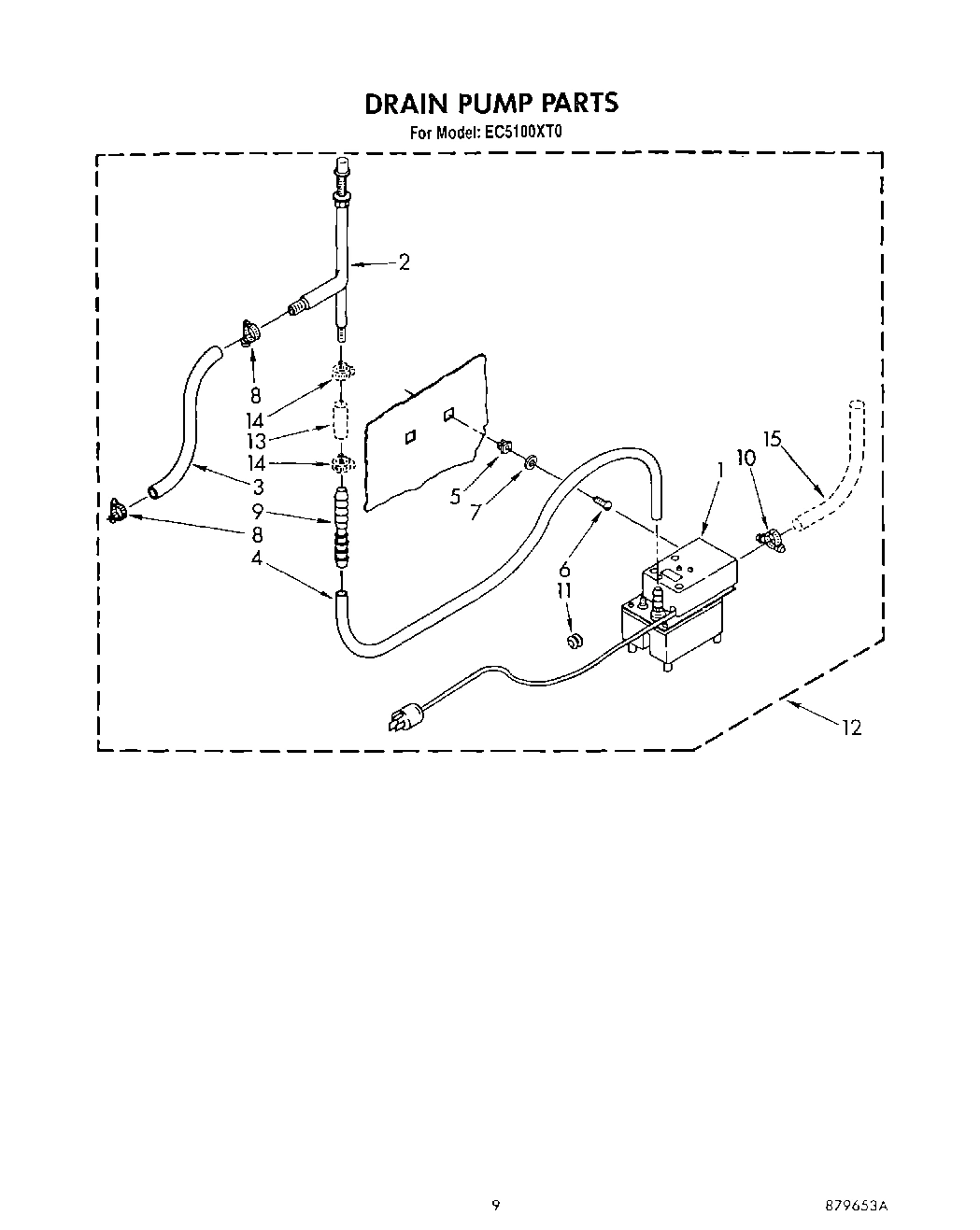

06 - DRAIN PUMP

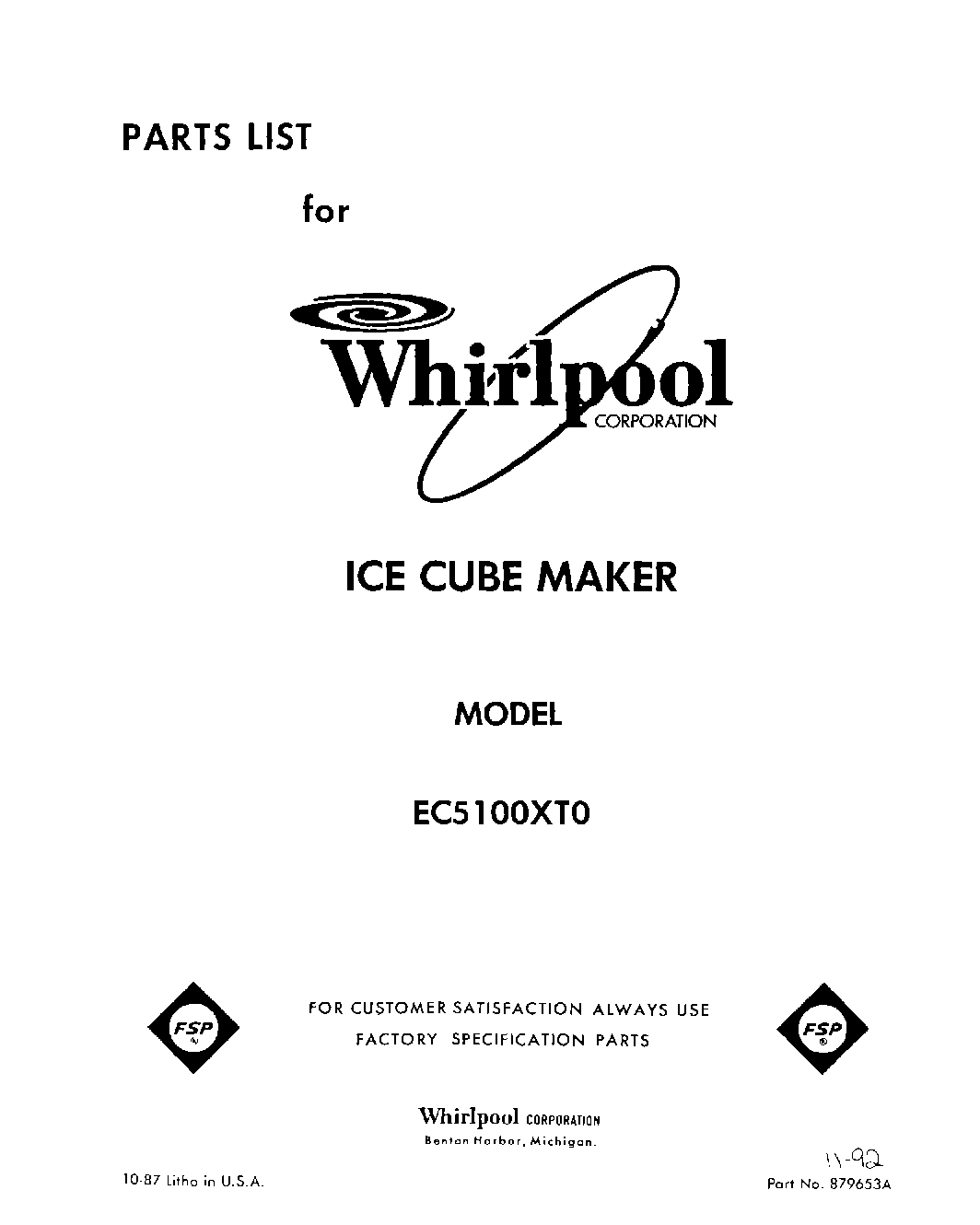

01 - FRONT COVER
Common parts from model Whirlpool EC5100XT0 ICE CUBE MAKER
Sheet, Tech WPL LIT758860 Contact Us For Availability
Guide, Use And Care WPL LIT758933 Contact Us For Availability
Instructions, Installation WPL LIT758934 Contact Us For Availability
List, Repair Parts WPL LIT879653 Contact Us For Availability
1
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
1
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
1
Compressor, Service Kit WPL 485780 Contact Us For Availability
1
Cabinet WPL 757942 Contact Us For Availability
1
Pump, Condensate Drain WPL 758913 Contact Us For Availability
2
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
2
Overload WPL 589231 Contact Us For Availability
3
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
3
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
3
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
3
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
3
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
3
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
3
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
3
Spring, Overload WPL 549086 Contact Us For Availability
3
Screw, No.10-32 x 3/8 WPL 680811 Contact Us For Availability
3
Hose, 7/8 I.D. x 20.0`` (Air Gap To Discharge WPL 770966 Contact Us For Availability
4
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
4
Relay, Start WPL 549337 Contact Us For Availability
4
Support, Cabinet Front WPL 758652 Contact Us For Availability
4
Hose, 3/8 I.D. x 14 3/8`` (Pump To Air Gap) WPL 758915 Contact Us For Availability
5
Cover, Terminal WPL 549336 Contact Us For Availability
5
Panel, Grille Cabinet Front WPL 758720 Contact Us For Availability
5
Grommet, Mtg (2) WPL 596807 Contact Us For Availability
6
Retainer, Cover WPL 549342 Contact Us For Availability
7
Motor, Fan (Includes No. 23) WPL 1108089 Contact Us For Availability
7
Panel, Rear Escutcheon WPL 756664 Contact Us For Availability
7
Washer (2) WPL 486713 Contact Us For Availability
8
Thermostat, Evaporator WPL 598235 Contact Us For Availability
8
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
8
Clamp, Hose (2) WPL 596572 Contact Us For Availability
9
Paint, Spray (Leveler, Enamel) WPL 206925 Contact Us For Availability
9
Nut, Hex 1/4-20 WPL 681650 Contact Us For Availability
9
Switch, Rotary WPL 593139 Contact Us For Availability
9
Connector, Hose WPL 758918 Contact Us For Availability
10
Grid, Cutter (1-1/4`` - Cubes (Complete Assem WPL 758469 Contact Us For Availability
10
Grid, Cutter (3/4`` - Cubes) WPL 758470 Contact Us For Availability
10
Shroud, Condenser WPL 757955 Contact Us For Availability
10
Panel, Control WPL 756341 Contact Us For Availability
11
Leg, Leveling Kit WPL 876649 Contact Us For Availability
11
Condenser WPL 756299 Contact Us For Availability
11
Bushing, Cord WPL 758919 Contact Us For Availability
12
Ice Deflector Kit WPL 702354 Contact Us For Availability
12
Screw, 1/4-20 x 1/2 WPL 681305 Contact Us For Availability
12
Pump, Condensate Drain (Complete Kit) WPL 758840 Contact Us For Availability
13
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
13
Accumulator WPL 756298 Contact Us For Availability
13
Escutcheon, Control WPL 758884 Contact Us For Availability
13
Hose, 5/8 x 4`` (Connector To Air Gap) WPL 593577 Contact Us For Availability
14
Insert, Escutcheon WPL 758566 Contact Us For Availability
14
Clamp, Hose (2) WPL 596023 Contact Us For Availability
15
Hose, 1/2 I.D. x 12`` (Bin To Pump) WPL 593369 Contact Us For Availability
15
Valve, Solenoid Coil WPL 598086 Contact Us For Availability
15
Knob, Control (2) WPL 758557 Contact Us For Availability
16
Insulation, Kit (Bin Bottom) WPL 588490 Contact Us For Availability
16
Coil, Solenoid WPL 587970 Contact Us For Availability
16
Harness, Wiring (Cutter Grid) WPL 758567 Contact Us For Availability
17
Washer, Latch WPL 681245 Contact Us For Availability
17
Panel, Door (Toast & Platinum) WPL 758721 Contact Us For Availability
17
Panel, Door (Almond & Harvest Gold) WPL 758722 Contact Us For Availability
17
Harness, Wiring (Solenoid Coil) WPL 587971 Contact Us For Availability
18
Retainer, Solenoid Coil WPL 564234 Contact Us For Availability
18
Latch, Door WPL 593179 Contact Us For Availability
19
Sheild, Wiring WPL 756124 Contact Us For Availability
19
Deflector, Air WPL 758811 Contact Us For Availability
19
Screw, 8-32 x 1/2 WPL 595142 Contact Us For Availability
20
Blade, Fan WPL 587096 Contact Us For Availability
20
Thermostat, Ice Bin WPL 759141 Contact Us For Availability
21
Motor, Pump WPL 756950 Contact Us For Availability
21
Harness, Wiring (Fan Motor) WPL 585219 Contact Us For Availability
21
Harness, Light WPL 758488 Contact Us For Availability
22
Washer WPL 593060 Contact Us For Availability
22
Bracket, Fan Motor WPL 560817 Contact Us For Availability
22
Transformer WPL 758414 Contact Us For Availability
23
Bracket, Pump WPL 756122 Contact Us For Availability
23
Screw, 8-36 x 1/2 (4) WPL 489199 Contact Us For Availability
24
Grommet (2) WPL 596016 Contact Us For Availability
24
Screw, 5/16-18 x 1-1/4 (4) WPL 680233 Contact Us For Availability
24
Screw, 8-32 x 3/8 (2) WPL 681036 Contact Us For Availability
25
Sleeve WPL 593229 Contact Us For Availability
25
Washer, Flat (4) WPL 595230 Contact Us For Availability
25
Bracket, Light WPL 758490 Contact Us For Availability
26
Overload WPL 758638 Contact Us For Availability
26
Bulb, Light WPL 745362 Contact Us For Availability
27
Relay, Start WPL 758637 Contact Us For Availability
27
Shield, Light WPL 758489 Contact Us For Availability
28
Pump, Assembly WPL 583518 Contact Us For Availability
28
Screw, 10 x 1/2 WPL 681419 Contact Us For Availability
28
Cover, Terminal WPL 1108115 Contact Us For Availability
29
Impeller, Pump (Includes No. 31) WPL 583426 Contact Us For Availability
29
Retainer, Terminal Cover WPL 938384 Contact Us For Availability
29
Handle, Door WPL 758622 Contact Us For Availability
30
Screw, 8-18 x 3/4 WPL 681391 Contact Us For Availability
30
Sleeve (4) WPL 585564 Contact Us For Availability
30
Pocket, Handle WPL 758752 Contact Us For Availability
31
Ring, Retaining WPL 681301 Contact Us For Availability
31
Grommet (4) WPL 596355 Contact Us For Availability
31
Rail, Door (Right Side) WPL 593184 Contact Us For Availability
31
Rail, Door (Left Side) WPL 593185 Contact Us For Availability
32
Nut (3) WPL 681770 Contact Us For Availability
32
Base, Unit WPL 758810 Contact Us For Availability
32
Screw, No.8-32 1/2 (6) WPL 681459 Contact Us For Availability
33
Dispenser, Water WPL 585813 Contact Us For Availability
33
Trim, Door (2) WPL 758748 Contact Us For Availability
34
Plug, WPL 758597 Contact Us For Availability
34
Strip, Tapping (2) WPL 593104 Contact Us For Availability
35
Hose, Dispenser WPL 585856 Contact Us For Availability
35
Liner, Door WPL 758655 Contact Us For Availability
36
Evaporator WPL 758028 Contact Us For Availability
36
Trim, Door WPL 758400 Contact Us For Availability
37
Wire, Cutter (Includes 9 Wires) WPL 588048 Contact Us For Availability
37
Screw, No.8-32 x 1/2 WPL 681196 Contact Us For Availability
38
Wire, Cutter (Includes 10 Wires) WPL 588109 Contact Us For Availability
38
Insulation, Door WPL 758608 Contact Us For Availability
39
Panel, Door (White & Black) WPL 758746 Contact Us For Availability
40
Gasket, Door WPL 758169 Contact Us For Availability
41
Panel, Grid WPL 593171 Contact Us For Availability
41
Plug, Hinge WPL 593192 Contact Us For Availability
42
Screw, 10-32 x 1/2 WPL 596037 Contact Us For Availability
43
Clamp WPL 587662 Contact Us For Availability
44
Nut, 10-32 WPL 681676 Contact Us For Availability
44
Trim, Sides (2) WPL 758713 Contact Us For Availability
45
Trim, Top & Bottom WPL 758716 Contact Us For Availability
46
Screw, Thumb 10-32 x 1`` WPL 681611 Contact Us For Availability
46
Support Panel WPL 758718 Contact Us For Availability
47
Bracket, Grid (2) WPL 756564 Contact Us For Availability
47
Grille, Panel WPL 758769 Contact Us For Availability
48
Insulator, Grid Wires (38) WPL 598277 Contact Us For Availability
48
Filler, Grille Panel WPL 758770 Contact Us For Availability
49
Clip, Grid Wires (38) WPL 564072 Contact Us For Availability
49
Panel, Inner Grille WPL 758771 Contact Us For Availability
50
Pin, Grid Wires (4) WPL 587112 Contact Us For Availability
50
Retainer, Wire WPL 593360 Contact Us For Availability
51
Harness, Wiring (Cutter Grid) WPL 587639 Contact Us For Availability
51
Washer (2) WPL 681613 Contact Us For Availability
52
Pan, Water WPL 756659 Contact Us For Availability
54
Plug, Pan WPL 593572 Contact Us For Availability
56
Pin, Grid Wire (17) WPL 587111 Contact Us For Availability
57
Screw, Thumb 10-32 x 3/4 (2) WPL 681534 Contact Us For Availability
61
Screw, 1/4 -20 x 1-3/4 (2) WPL 681688 Contact Us For Availability
62
Valve, Water WPL 757433 Contact Us For Availability
63
WPL 758737 WPL 758737 Contact Us For Availability
64
WPL 533238 WPL 533238 Contact Us For Availability
× ![]()
