Model Whirlpool EBE22AA0 ELECTRIC RANGE – Common Parts & Diagrams

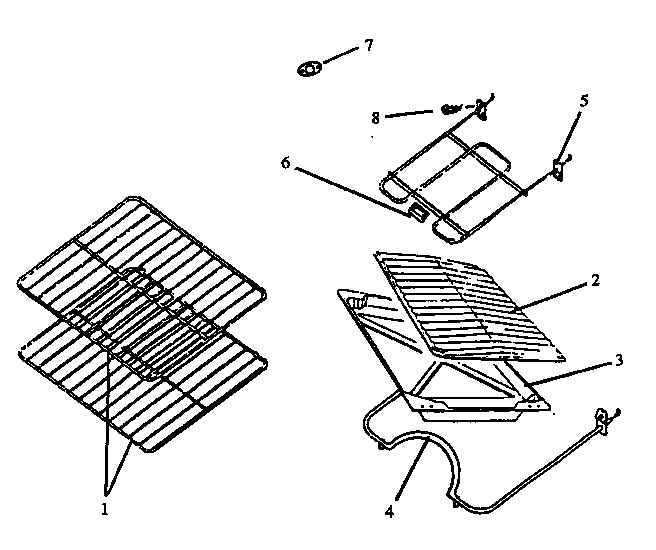

1
RACK, OVEN, 20``
RACK, OVEN, 20`` WPL Y0312234 Contact Us For Availability
View on Model

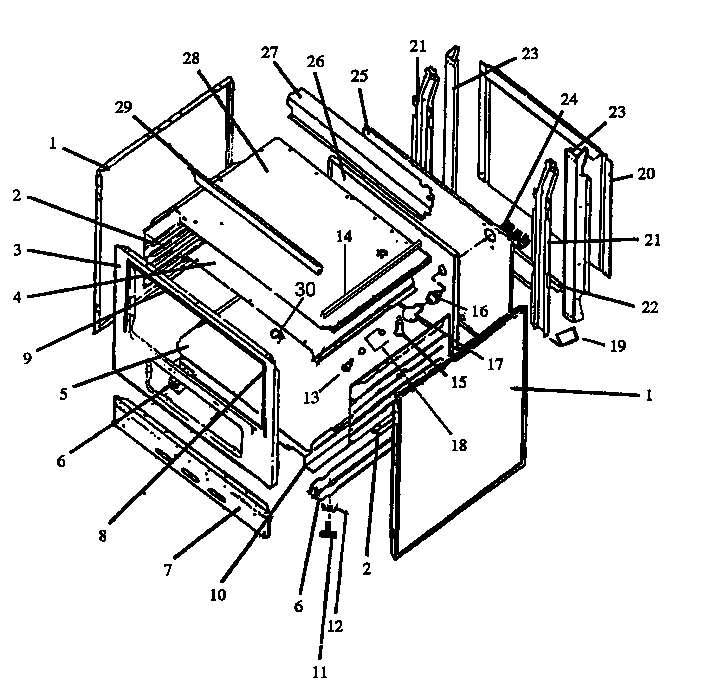

1
PANEL, TEXTURE BODY
PANEL, TEXTURE BODY WPL 313762W Contact Us For Availability
View on Model

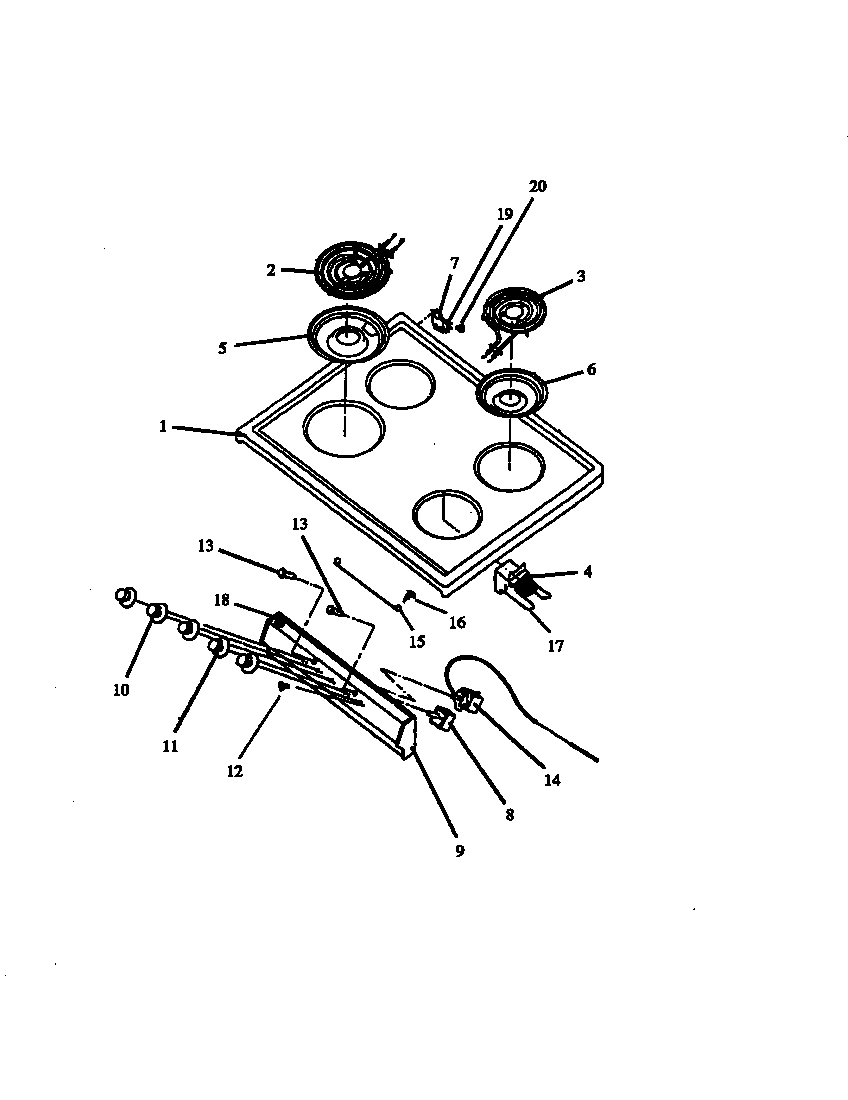

1
TOP, 20`` MAIN ELECTRIC (WHITE)
TOP, 20`` MAIN ELECTRIC (WHITE) WPL Y06461007W Contact Us For Availability
View on Model

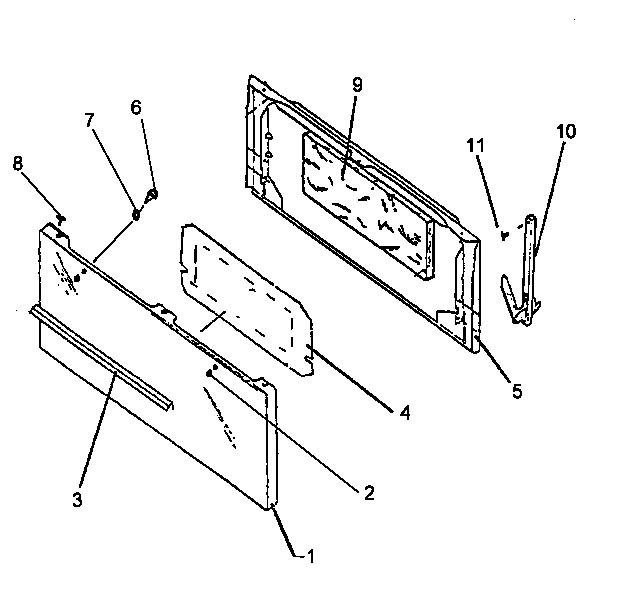

1
PANEL, OVEN DOOR (WHITE)
PANEL, OVEN DOOR (WHITE) WPL Y06487112W Contact Us For Availability
View on Model

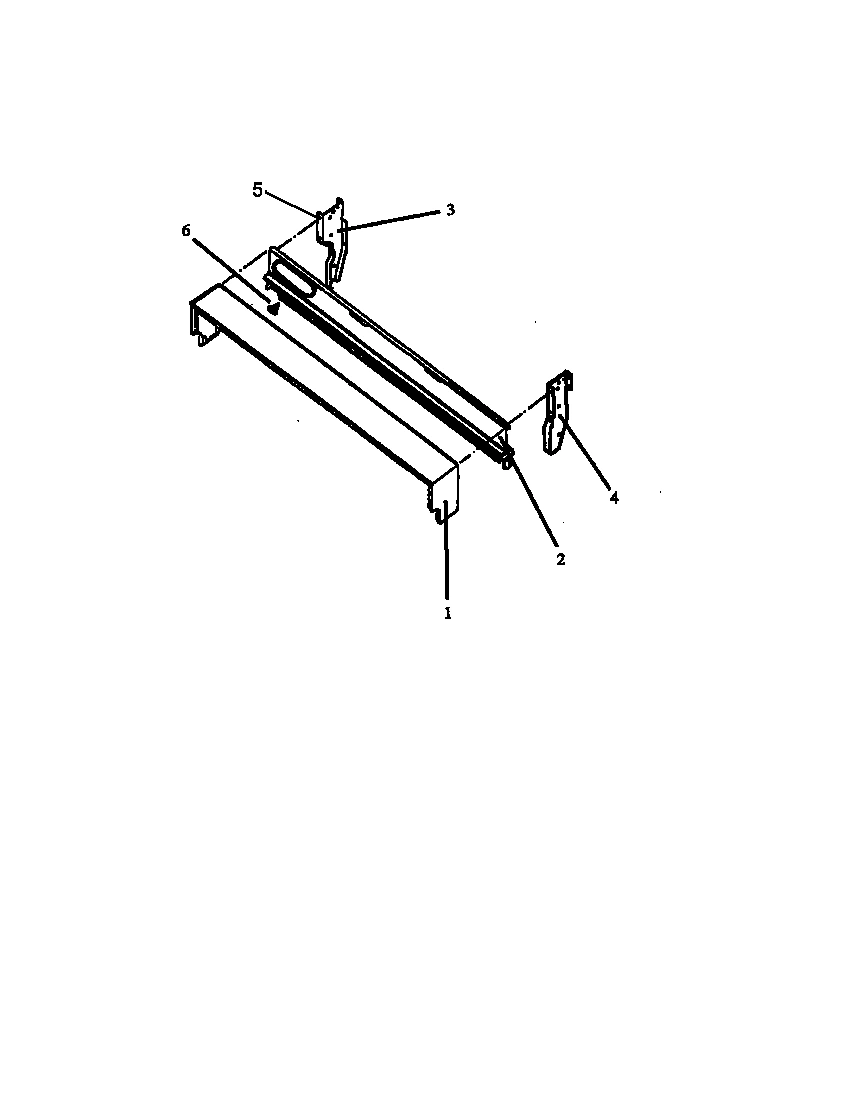

1
BACKGUARD FRAME
BACKGUARD FRAME WPL 0057317 Contact Us For Availability
View on Model
2
LINER,OVEN SIDE
LINER,OVEN SIDE WPL 0311807 Contact Us For Availability
View on Model
2
HANDLE SPACER, PLASTIC (J)
HANDLE SPACER, PLASTIC (J) WPL Y0310818 Contact Us For Availability
View on Model
2
PNL-FILLER 4X 20,CALORIC
PNL-FILLER 4X 20,CALORIC WPL 02336011B Contact Us For Availability
View on Model
3
SPRING CLIP
SPRING CLIP WPL Y0088664 Contact Us For Availability
View on Model
3
PAN, BROILER
PAN, BROILER WPL 87722CG Contact Us For Availability
View on Model
3
MAIN FRONT, 20`` ELEC.
MAIN FRONT, 20`` ELEC. WPL 310100E Contact Us For Availability
View on Model
3
HANDLE, OVEN DOOR (J)
HANDLE, OVEN DOOR (J) WPL Y0052776 Contact Us For Availability
View on Model
3
SUPPORT, BACKGUARD, L.H.
SUPPORT, BACKGUARD, L.H. WPL 0088666 Contact Us For Availability
View on Model
4
TOP, OV LNR BLACK 20``
TOP, OV LNR BLACK 20`` WPL Y06469700E Contact Us For Availability
View on Model
4
BAFFLE, OVEN DOOR 20``
BAFFLE, OVEN DOOR 20`` WPL Y06567400 Contact Us For Availability
View on Model
4
SUPPORT, BACKGUARD, R.H.
SUPPORT, BACKGUARD, R.H. WPL 0088667 Contact Us For Availability
View on Model
5
BROIL ELEMENT
BROIL ELEMENT WPL Y0088867 Contact Us For Availability
View on Model
5
LINER, OVEN BOTTOM
LINER, OVEN BOTTOM WPL 88586CG Contact Us For Availability
View on Model
5
LINER, OVEN DOOR
LINER, OVEN DOOR WPL 06567200E Contact Us For Availability
View on Model
5
SUB 63661, BUMPER, OV. DR.
SUB 63661, BUMPER, OV. DR. WPL Y0087002 Contact Us For Availability
View on Model
6
CLIP, T-STAT BULB
CLIP, T-STAT BULB WPL Y0088822 Contact Us For Availability
View on Model
6
RAIL, BASE
RAIL, BASE WPL 06555001 Contact Us For Availability
View on Model
6
SCREW, DOOR HANDLE
SCREW, DOOR HANDLE WPL Y0311884 Contact Us For Availability
View on Model
6
SCREW
SCREW WPL 0310240 Contact Us For Availability
View on Model
7
DISC, THERMO
DISC, THERMO WPL 0053357 Contact Us For Availability
View on Model
7
PANEL, BASE TOE 20``
PANEL, BASE TOE 20`` WPL Y06451503 Contact Us For Availability
View on Model
7
HINGE, MAIN TOP (BLK)
HINGE, MAIN TOP (BLK) WPL Y02002702 Contact Us For Availability
View on Model
7
SEE NOTE WAFERED WASHER -- (INCLUDED W/HANDLE
SEE NOTE WAFERED WASHER -- (INCLUDED W/HANDLE WPL Y00000000 Contact Us For Availability
View on Model
8
SEAL, OVEN-SIDES
SEAL, OVEN-SIDES WPL Y0056090 Contact Us For Availability
View on Model
8
SCREW No.10 X 1/2``
SCREW No.10 X 1/2`` WPL Y0310804 Contact Us For Availability
View on Model
9
SEAL, OVEN DOOR-TOP
SEAL, OVEN DOOR-TOP WPL Y0056494 Contact Us For Availability
View on Model
9
MANIFOLD PANEL, 20``
MANIFOLD PANEL, 20`` WPL Y0310479 Contact Us For Availability
View on Model
9
INSULATION,WRAPPER
INSULATION,WRAPPER WPL Y07724400 Contact Us For Availability
View on Model
10
SUPPORT
SUPPORT WPL Y0057213 Contact Us For Availability
View on Model
10
HINGE, DOOR (J)
HINGE, DOOR (J) WPL Y0311397 Contact Us For Availability
View on Model
11
KNOB, THERMOSTAT
KNOB, THERMOSTAT WPL Y0310527 Contact Us For Availability
View on Model
11
SCREW No.10 X 5/16
SCREW No.10 X 5/16 WPL 0310234 Contact Us For Availability
View on Model
12
SNAP-IN TEE NUT
SNAP-IN TEE NUT WPL Y0088571 Contact Us For Availability
View on Model
13
WIRE CHANNEL SUPPORT
WIRE CHANNEL SUPPORT WPL Y0088817 Contact Us For Availability
View on Model
13
LIGHT, PILOT
LIGHT, PILOT WPL 0088640 Contact Us For Availability
View on Model
13
LIGHT, INDICATOR
LIGHT, INDICATOR WPL Y0088777 Contact Us For Availability
View on Model
14
WIRE CHANNEL
WIRE CHANNEL WPL 311010E Contact Us For Availability
View on Model
14
THERMO-ELECT.
THERMO-ELECT. WPL 0088758 Contact Us For Availability
View on Model
15
OVEN VENT
OVEN VENT WPL 0088761 Contact Us For Availability
View on Model
17
MOUNTING BRKT. PLUG BLOCK
MOUNTING BRKT. PLUG BLOCK WPL Y0302765 Contact Us For Availability
View on Model
19
KIT, ANTI-TIP
KIT, ANTI-TIP WPL 07687600 Contact Us For Availability
View on Model
19
NUT, SPEED, FLAT
NUT, SPEED, FLAT WPL Y0310032 Contact Us For Availability
View on Model
20
SUPT, BOTTOM WIRE COVER
SUPT, BOTTOM WIRE COVER WPL Y06434805 Contact Us For Availability
View on Model
20
SCREW No.10X1/2 BLUNT
SCREW No.10X1/2 BLUNT WPL Y0310363 Contact Us For Availability
View on Model
21
VERTICAL SUP. (J)
VERTICAL SUP. (J) WPL 0052742 Contact Us For Availability
View on Model
22
ASSY REAR COVER
ASSY REAR COVER WPL Y06519102 Contact Us For Availability
View on Model
23
SUPPORT, REAR, VERTICAL {J}
SUPPORT, REAR, VERTICAL {J} WPL 0056477 Contact Us For Availability
View on Model
25
MAIN BACK, ELEC
MAIN BACK, ELEC WPL Y06478200 Contact Us For Availability
View on Model
26
LINER, OVEN BACK (16``)
LINER, OVEN BACK (16``) WPL Y06472600E Contact Us For Availability
View on Model
27
COVER, REAR B.B. (20``)
COVER, REAR B.B. (20``) WPL Y06409833 Contact Us For Availability
View on Model
28
BURNER BOX, BOTTOM
BURNER BOX, BOTTOM WPL 311000E Contact Us For Availability
View on Model
29
SWITCH COVER
SWITCH COVER WPL 0086933 Contact Us For Availability
View on Model
30
CLIP, CAPILLARY
CLIP, CAPILLARY WPL 0310802 Contact Us For Availability
View on Model
NI
SAFE EDGE 1&9/16``BY 1/2``
SAFE EDGE 1&9/16``BY 1/2`` WPL Y0310035 Contact Us For Availability
View on Model
NI
SCREW, No.8-32 X 5/16 PPH (BLK)
SCREW, No.8-32 X 5/16 PPH (BLK) WPL Y07584700 Contact Us For Availability
View on Model
NI
SCREW-No.6X 1/2 HEX HD
SCREW-No.6X 1/2 HEX HD WPL Y07473800 Contact Us For Availability
View on Model
NI
ANGLE-SUPT, 14`` LG
ANGLE-SUPT, 14`` LG WPL Y00311400 Contact Us For Availability
View on Model
