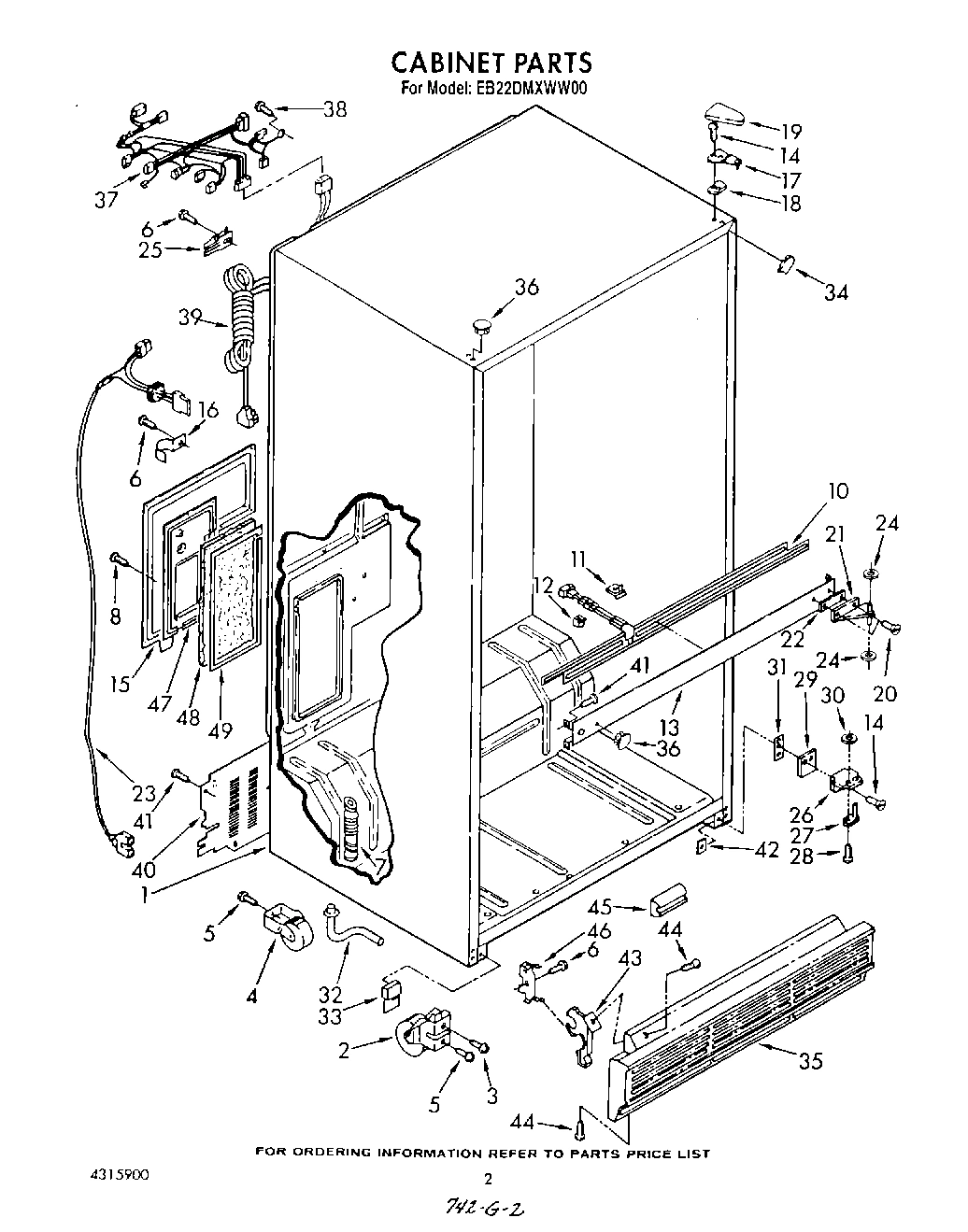

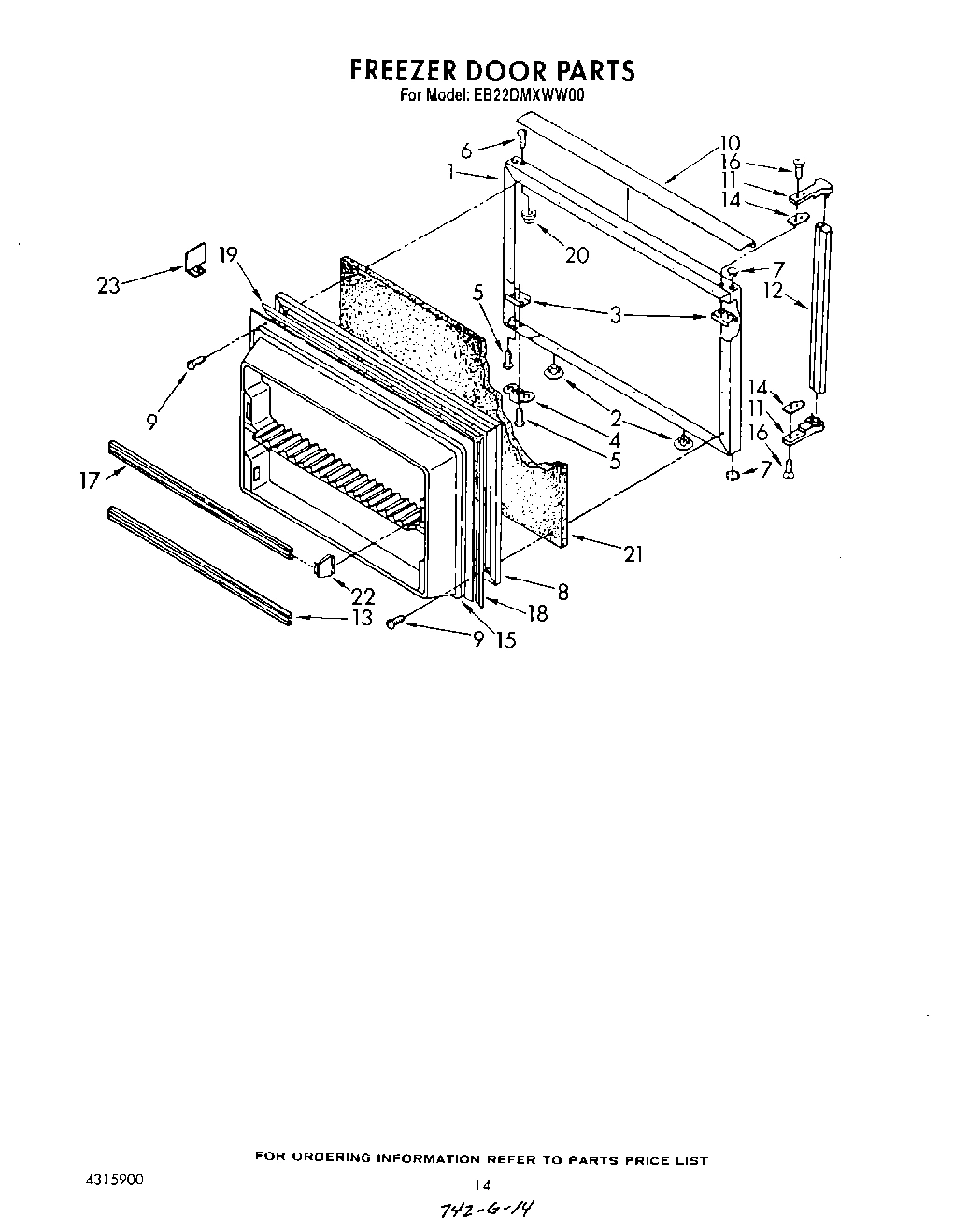

Model Whirlpool EB22DMXWN00 BOTTOM MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL LIT1115017 WPL LIT1115017 Contact Us For Availability

WPL LIT1127423 WPL LIT1127423 Contact Us For Availability

WPL LIT2149156 WPL LIT2149156 Contact Us For Availability

WPL LIT4315900 WPL LIT4315900 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Shelf, Ladder (2) WPL 1127413 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI25331A4 Contact Us For Availability

1

Compartment Separator Assembly (Includes Cent WPL 2149152 Contact Us For Availability

1

Compartment Separator Assembly (Includes Cent WPL 2149165 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 24) WPL 1110304 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 24) WPL 1110306 Contact Us For Availability

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

2

Shelf, Ladder Center WPL 1127414 Contact Us For Availability

2

Slide, Basket (Right Side) WPL 986382 Contact Us For Availability

2

Slide, Basket (Left Side) WPL 986383 Contact Us For Availability

2

Defrost Timer WPL 1127591 Contact Us For Availability

2

Hole Plug (2) WPL 534927 Contact Us For Availability

2

Fan, Blade WPL 989524 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

3

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

3

Condenser Assembly WPL 1105640 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

4

Screw, Support Center (2) WPL 520959 Contact Us For Availability

4

Shelf Track, (Right Side) WPL 1114679 Contact Us For Availability

4

Shelf Track, (Left Side) WPL 1114680 Contact Us For Availability

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

4

Screw WPL 489050 Contact Us For Availability

5

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability

5

Light Lens WPL 983910 Contact Us For Availability

5

Clip, Wire (2) WPL 548745 Contact Us For Availability

6

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

7

Shelf, Cantilever WPL 1110739 Contact Us For Availability

7

Electrical Shield Extension WPL 1127396 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Air Baffle, Evaporator WPL 1115006 Contact Us For Availability

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

Trim, Shelf WPL 1110741 Contact Us For Availability

8

Wiring Assembly, Control Box WPL 2147064 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1114785 Contact Us For Availability

9

WP2151749 Whirlpool Refrigerator Cover Backorder WPL WP2151749 $124.51

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

9

Scroll, Fan WPL 1115104 Contact Us For Availability

9

Cable Tie WPL 1102000 Contact Us For Availability

9

Dampener WPL 510769 Contact Us For Availability

4318047 Whirlpool Water Valve In Stock WPL 4318047 $29.77

WP819470 Whirlpool Refrigerator Thermostat Backorder WPL WP819470 $62.70

Trim, Crisper Cover WPL 1105649 Contact Us For Availability

Wiring Assembly, Fan Motor WPL 1127434 Contact Us For Availability

Handle End WPL 944157 Contact Us For Availability

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Handle End, Side WPL 1109189 Contact Us For Availability

Glass, Crisper Cover WPL 1124553 Contact Us For Availability

Fan Motor WPL 1127401 Contact Us For Availability

Spring, Relay Case WPL 943322 Contact Us For Availability

Blade, Fan WPL 992920 Contact Us For Availability

Pan Shelf, Cantilever WPL 1110756 Contact Us For Availability

Bracket, Thermostat WPL 848446 Contact Us For Availability

Handle, Center WPL 1109048 Contact Us For Availability

Case, Relay WPL 1105055 Contact Us For Availability

Connector Wire WPL 227991 Contact Us For Availability

Freezer Basket, (Lower) WPL 1127250 Contact Us For Availability

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

Ring, Compression WPL 992953 Contact Us For Availability

Shim, Handle End (Side) WPL 935075 Contact Us For Availability

Overload WPL 2147065 Contact Us For Availability

Tube, Water Inlet WPL 939027 Contact Us For Availability

Spacer, Handle Door WPL 943188 Contact Us For Availability

Trim, Basket WPL 1127251 Contact Us For Availability

Grommet (2) WPL 1114354 Contact Us For Availability

Control Knob WPL 1127260 Contact Us For Availability

Overload Spring WPL 943320 Contact Us For Availability

Washer WPL 628337 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Screw (2) WPL 489168 Contact Us For Availability

Control Panel Assembly (Includes Item 16) WPL 1127261 Contact Us For Availability

Relay WPL 1101014 Contact Us For Availability

Tube, Inlet Valve WPL 627854 Contact Us For Availability

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Glass, Shelf WPL 1124554 Contact Us For Availability

Gasket, Fan Scroll WPL 1127406 Contact Us For Availability

Clamp Tube WPL 510716 Contact Us For Availability

Housing Plug WPL 1118850 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Freezer Basket, (Upper) WPL 2149146 Contact Us For Availability

Nut, Valve WPL 537588 Contact Us For Availability

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

Shim, Hinge Top WPL 1123515 Contact Us For Availability

Cover, Evaporator WPL 1115004 Contact Us For Availability

Diffuser Assembly, Air WPL 986021 Contact Us For Availability

Insert, Handle WPL 1119665 Contact Us For Availability

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

Pan, Crisper WPL 1121124 Contact Us For Availability

Interior Door Panel WPL 1127254 Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

Pan, Meat WPL 1124218 Contact Us For Availability

Screw, 8 x 1-1/4 (2) WPL 488357 Contact Us For Availability

Trim, Door Compartment WPL 1124223 Contact Us For Availability

Clip, Unit Cover (2) WPL 548744 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Crisper Gasket, Front (2) WPL 1116512 Contact Us For Availability

Gasket WPL 1127488 Contact Us For Availability

Divider, Door Shelf WPL 1114380 Contact Us For Availability

Knob WPL 627992 Contact Us For Availability

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Reflector, Shelf WPL 1114435 Contact Us For Availability

Damper, Air WPL 984658 Contact Us For Availability

Compartment Door, Right Side WPL 1124222 Contact Us For Availability

Evaporator WPL 1114714 Contact Us For Availability

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Reflector, Shelf WPL 1110743 Contact Us For Availability

Retainer, Air Damper WPL 836493 Contact Us For Availability

Compartment Door, Left Side WPL 1124225 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Glass, Full Shelf WPL 1124555 Contact Us For Availability

Knob, Air Diffuser (Includes Item 25) WPL 1127263 Contact Us For Availability

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

Trim, Shelf WPL 1119562 Contact Us For Availability

Knob, Retainer WPL 837444 Contact Us For Availability

Pin Plate (8) WPL 1116986 Contact Us For Availability

Tray, Evaporator WPL 1105524 Contact Us For Availability

26

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $24.25

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Gasket Retainer, Side (2) WPL 986008 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Slide, Crisper WPL 1116718 Contact Us For Availability

Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

Shelf, Full Cantilever WPL 1116350 Contact Us For Availability

Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability

Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482982 Contact Us For Availability

29

Retainer, Insert WPL 935873 Contact Us For Availability

29

Clamp, Dryer WPL 1127590 Contact Us For Availability

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $95.80

WP489200 Whirlpool Refrigerator Washer Backorder WPL WP489200 $4.61

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

Crisper Pan, Front WPL 1114776 Contact Us For Availability

Endcap, Insert Retainer WPL 1105804 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Spacer WPL 1129868 Contact Us For Availability

Crisper Gasket, WPL 1105653 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Nameplate WPL 1111555 Contact Us For Availability

Exchanger, Heat WPL 1114723 Contact Us For Availability

Shut Off Arm WPL 2149150 Contact Us For Availability

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

Extension, Drain Tube WPL 1127377 Contact Us For Availability

Trim, Door Shelf WPL 1124254 Contact Us For Availability

Fan, Motor Bracket WPL 548695 Contact Us For Availability

Corner Filler, Grille WPL 1106808 Contact Us For Availability

Bin, Door Shelf (2) WPL 1124208 Contact Us For Availability

Heater, Defrost WPL 2149065 Contact Us For Availability

Shield, Heat WPL 627751 Contact Us For Availability

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Filler, Wrap Corner (2) (White) WPL 1110708 Contact Us For Availability

Filler, Wrap Corner (2) (Almond) WPL 1110709 Contact Us For Availability

Bin, Door Shelf (Deep) (2) WPL 1124209 Contact Us For Availability

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $3.70

WP2182381 Whirlpool Refrigerator Bimetallic D In Stock WPL WP2182381 $37.79

Grille WPL 1106806 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

Hole Plug (5) (White) WPL 1129062 Contact Us For Availability

Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability

Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability

37

Cabinet Wiring Assembly WPL 2149887 Contact Us For Availability

37

Gasket Retainer, Top & Bottom WPL 836118 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

Cord, Service WPL 937360 Contact Us For Availability

Door Dike, Center WPL 1122711 Contact Us For Availability

Clip WPL 652604 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

Cover, Unit WPL 2147329 Contact Us For Availability

Door Dike, Side (2) WPL 1122709 Contact Us For Availability

41

Tape Strip WPL 991259 Contact Us For Availability

41

Baffle, Air WPL 1105530 Contact Us For Availability

42

Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability

42

Divider-Deep Rear (2) WPL 2149057 Contact Us For Availability

43

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $50.51

43

WP944224 Whirlpool Refrigerator Support In Stock WPL WP944224 $3.70

44

Screw WPL 489173 Contact Us For Availability

44

Overload WPL 483054 Contact Us For Availability

45

Bumper, Grille WPL 546131 Contact Us For Availability

45

Cover, Terminal WPL 1105015 Contact Us For Availability

46

Clip, Grille Retainer (2) WPL 2147227 Contact Us For Availability

46

Strap WPL 938384 Contact Us For Availability

47

Plug Cover WPL 1115013 Contact Us For Availability

47

Overload Spring WPL 1114190 Contact Us For Availability

48

Insulation WPL 1115131 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

Sealing Gasket WPL 1121118 Contact Us For Availability

49

Screw WPL 488624 Contact Us For Availability

50

Guard, Fan WPL 1105614 Contact Us For Availability

51

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Support (2) WPL 1115128 Contact Us For Availability

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

56

Capacitor WPL 482996 Contact Us For Availability

57

Nut WPL 489142 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Washer WPL 489143 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
