Model Maytag DWU6502AAB DISHWASHER – Common Parts & Diagrams

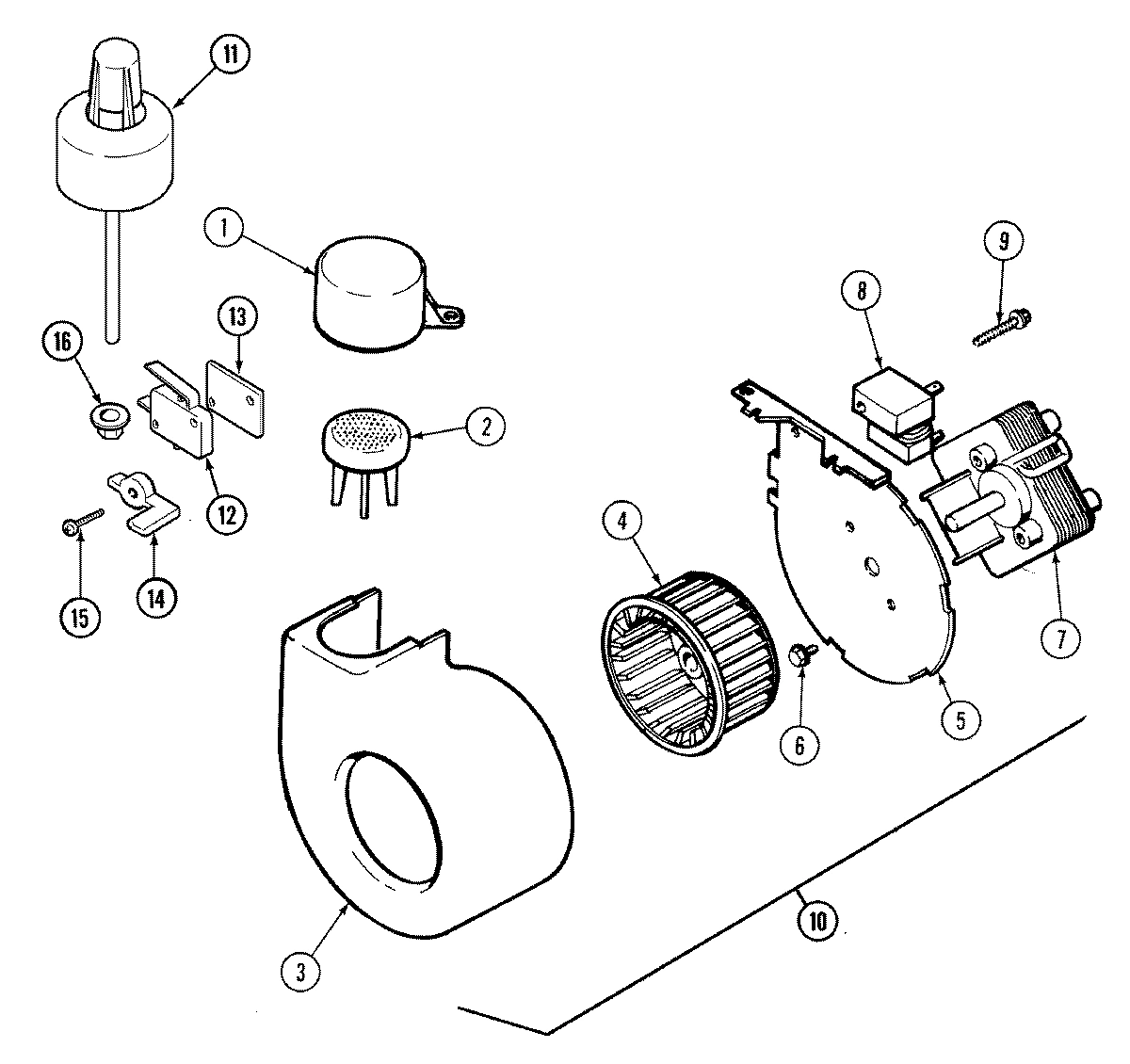

01 - BLOWER, FLOAT & WATER LEVEL SWITCH

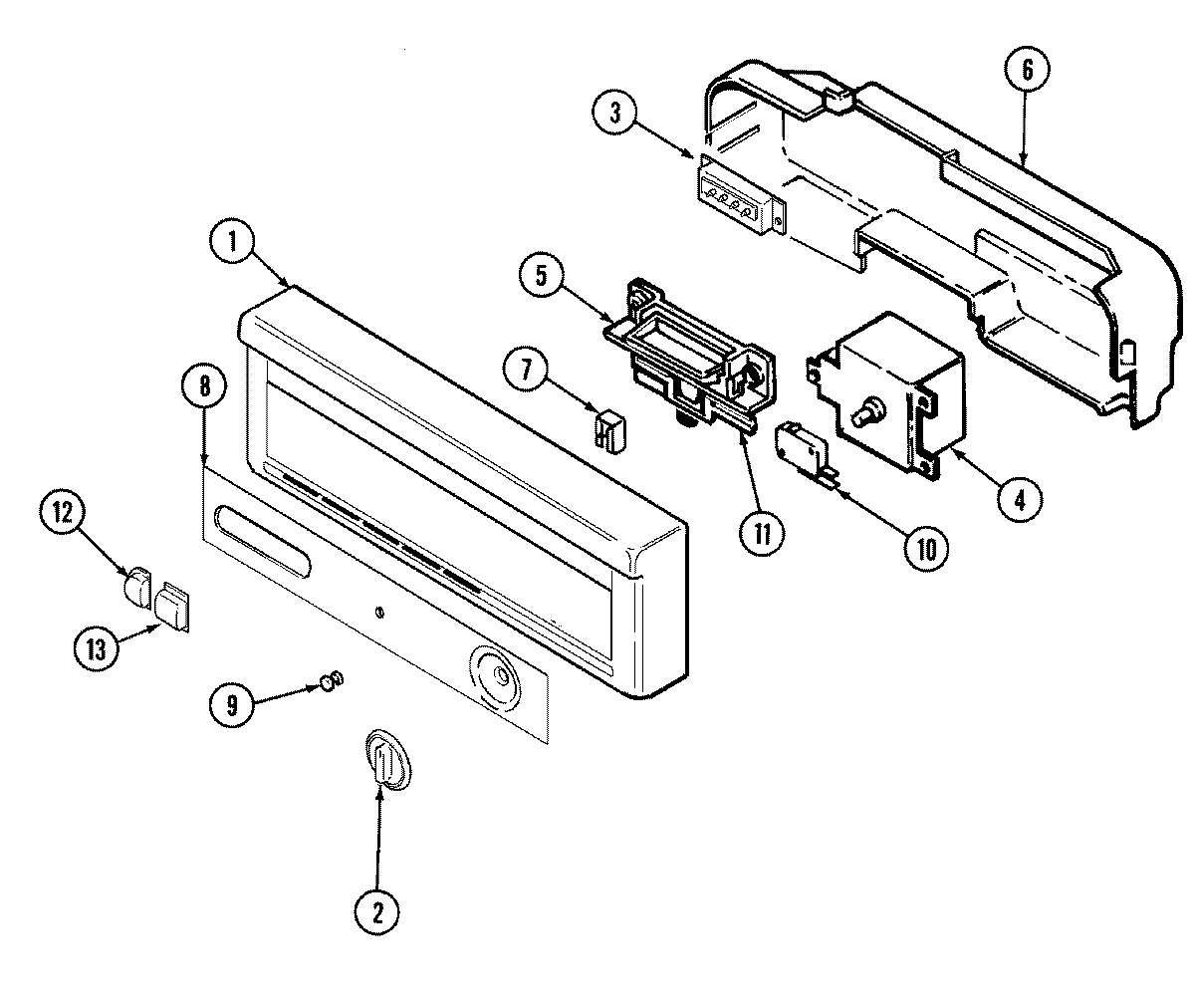

02 - CONTROL PANEL

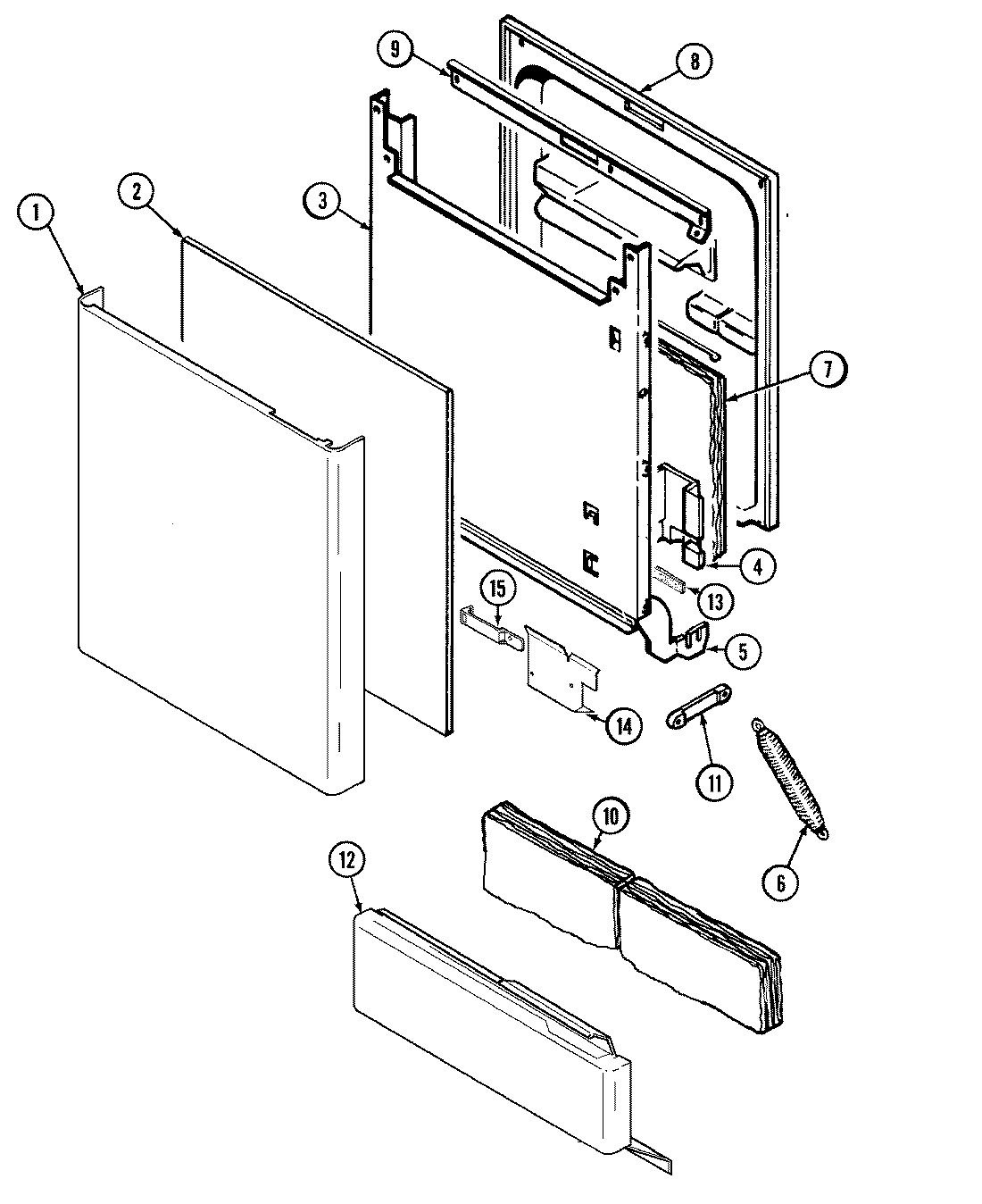

03 - DOOR

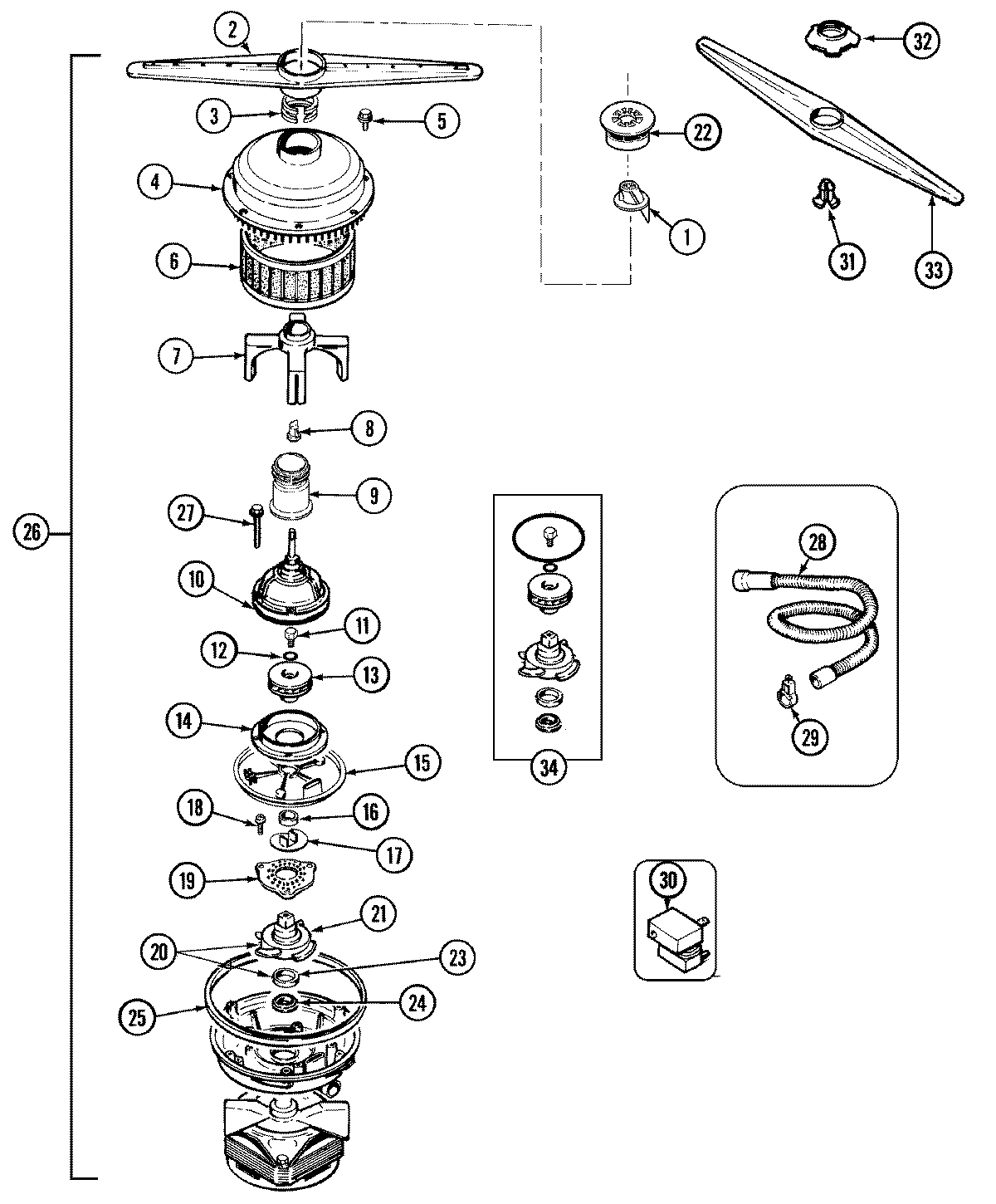

04 - PUMP & MOTOR

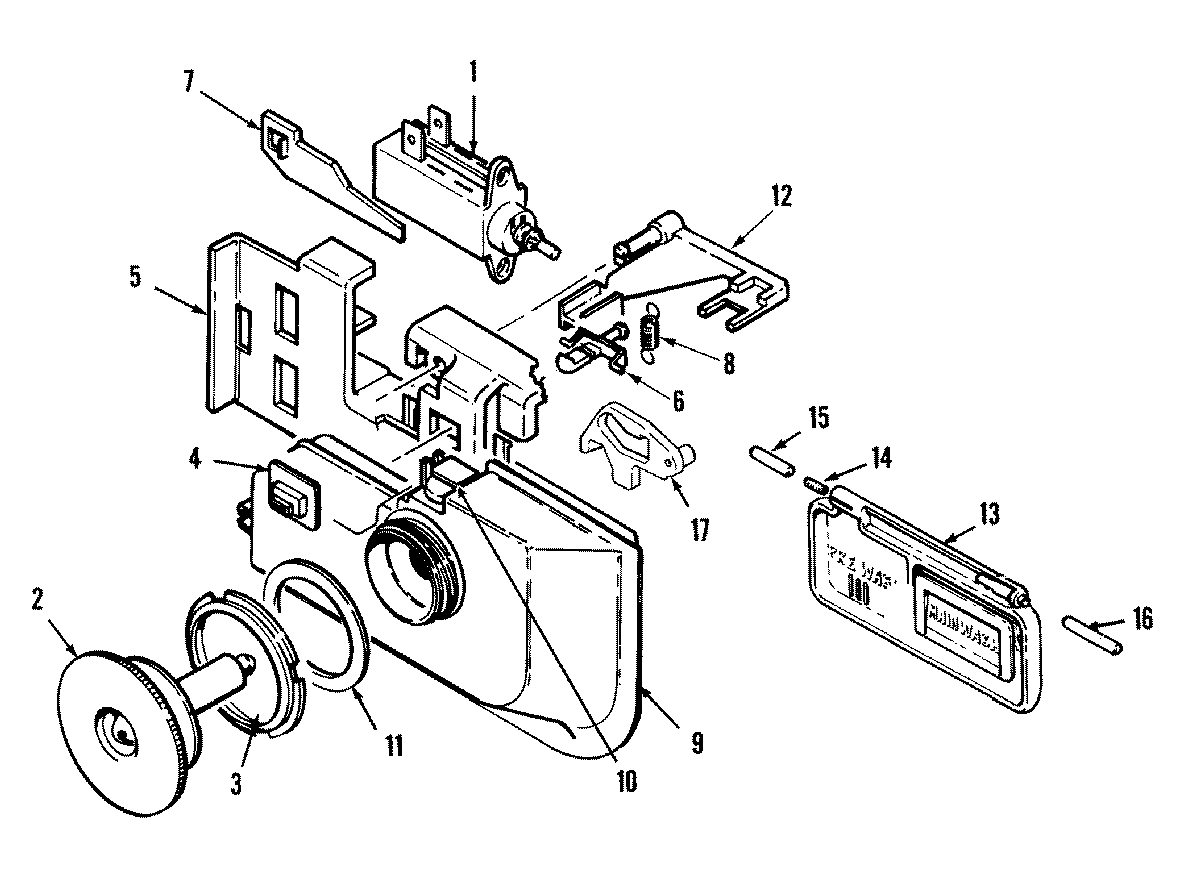

05 - RINSE AID & SOAP DISPENSER

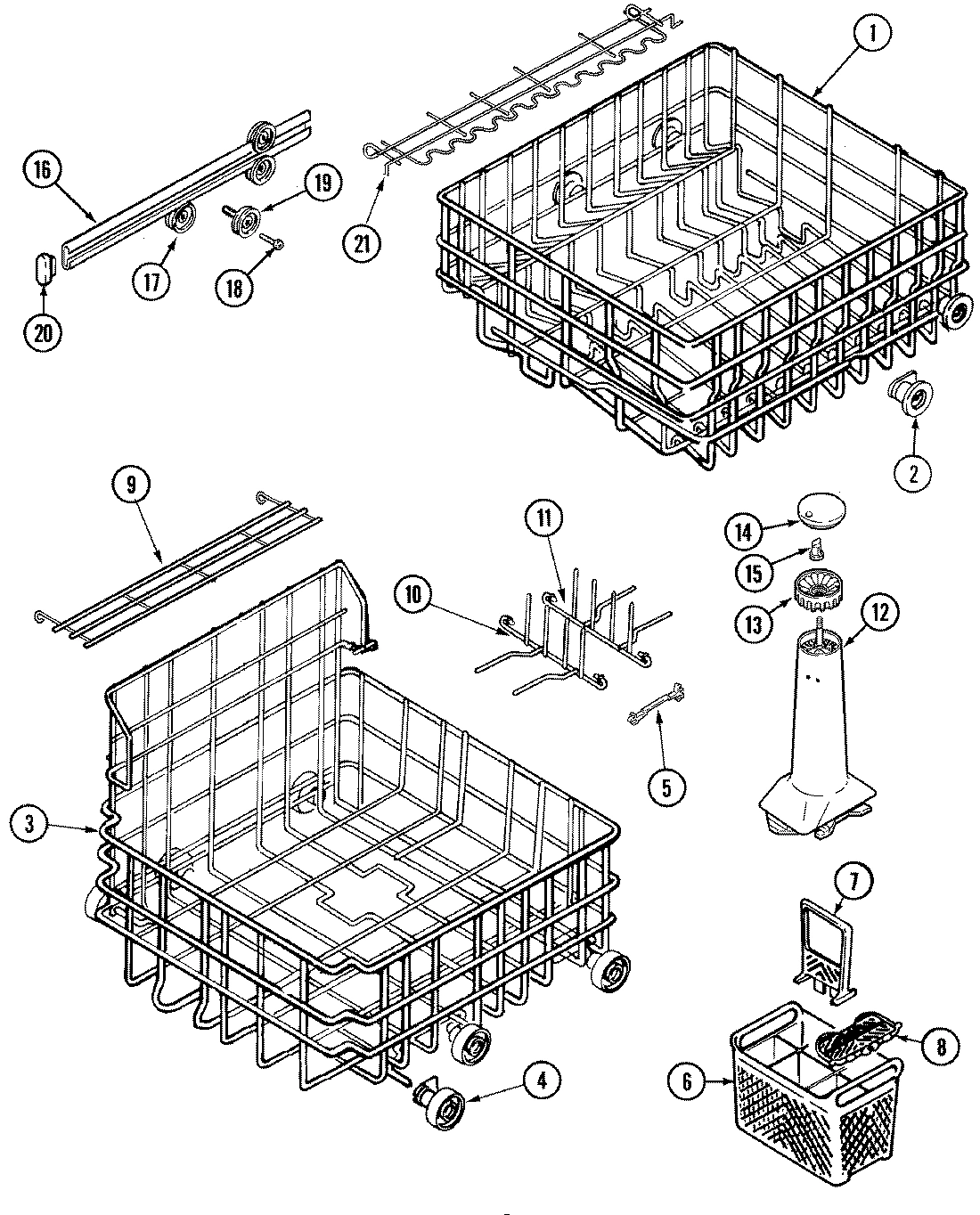

06 - TRACK & RACK ASSEMBLY

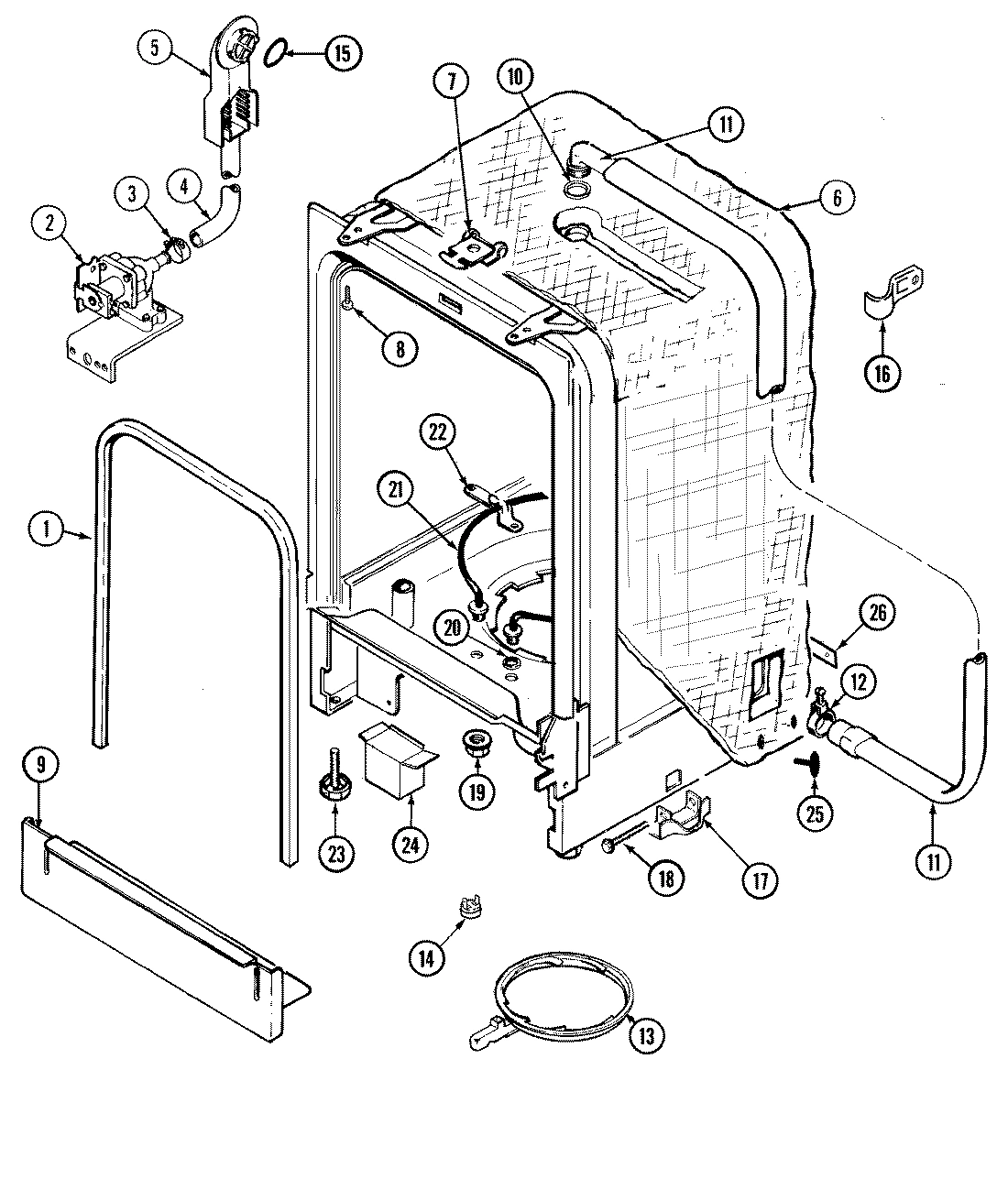

07 - TUB

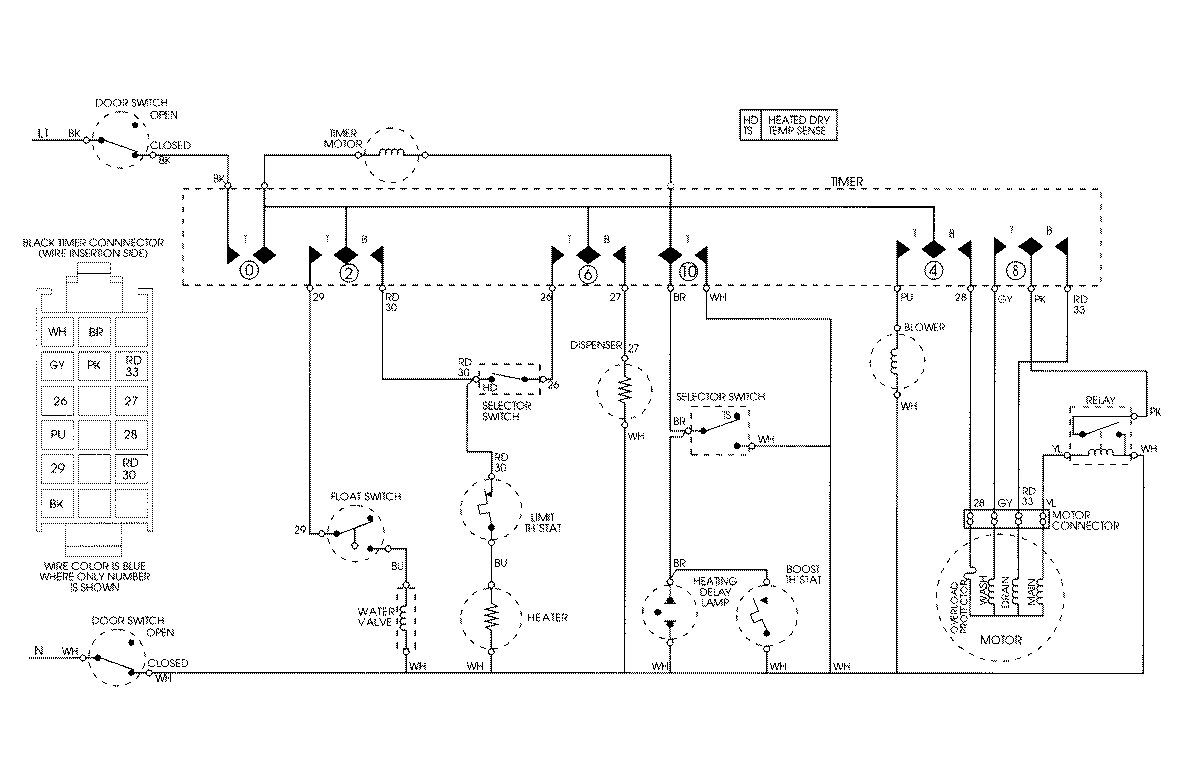

08 - WIRING INFORMATION
Common parts from model Maytag DWU6502AAB DISHWASHER
1
MAY 99001417 MAY 99001417 Contact Us For Availability
1
MAY 99001421 MAY 99001421 Contact Us For Availability
1
MAY 99001507 MAY 99001507 Contact Us For Availability
2
MAY 903184 MAY 903184 Contact Us For Availability
3
MAY 912313 MAY 912313 Contact Us For Availability
3
MAY Y913060 MAY Y913060 Contact Us For Availability
3
MAY 99001487 MAY 99001487 Contact Us For Availability
4
MAY 912633 MAY 912633 Contact Us For Availability
4
MAY 99001498 MAY 99001498 Contact Us For Availability
4
MAY 912536 MAY 912536 Contact Us For Availability
4
MAY Y913191 MAY Y913191 Contact Us For Availability
5
MAY 912533 MAY 912533 Contact Us For Availability
5
MAY 912622 MAY 912622 Contact Us For Availability
5
SCREW, No.8X1/2 HEX WASHER HEAD MAY 912615 Contact Us For Availability
6
MAY 99001291 MAY 99001291 Contact Us For Availability
6
MAY 903446 MAY 903446 Contact Us For Availability
6
MAY 99001057 MAY 99001057 Contact Us For Availability
7
MAY 903115 MAY 903115 Contact Us For Availability
7
MAY Y912708 MAY Y912708 Contact Us For Availability
7
MAY 99001355 MAY 99001355 Contact Us For Availability
7
MAY 99001289 MAY 99001289 Contact Us For Availability
7
MAY 903081 MAY 903081 Contact Us For Availability
7
MAY 912648 MAY 912648 Contact Us For Availability
7
MAY 912650 MAY 912650 Contact Us For Availability
7
MAY Y912873 MAY Y912873 Contact Us For Availability
8
MAY 99001067 MAY 99001067 Contact Us For Availability
8
MAY 99001104 MAY 99001104 Contact Us For Availability
8
MAY 99001212 MAY 99001212 Contact Us For Availability
8
MAY 912639 MAY 912639 Contact Us For Availability
9
MAY Y912696 MAY Y912696 Contact Us For Availability
9
MAY Y912668 MAY Y912668 Contact Us For Availability
9
MAY 99001422 MAY 99001422 Contact Us For Availability
9
MAY 903656 MAY 903656 Contact Us For Availability
9
MAY 902990 MAY 902990 Contact Us For Availability
9
MAY 912640 MAY 912640 Contact Us For Availability
10
MAY Y912836 MAY Y912836 Contact Us For Availability
10
MAY 912321 MAY 912321 Contact Us For Availability
10
MAY 903124 MAY 903124 Contact Us For Availability
10
MAY 99001485 MAY 99001485 Contact Us For Availability
11
MAY 912647 MAY 912647 Contact Us For Availability
11
MAY 910654 MAY 910654 Contact Us For Availability
11
MAY Y913061 MAY Y913061 Contact Us For Availability
12
MAY 910934 MAY 910934 Contact Us For Availability
12
MAY 99001290 MAY 99001290 Contact Us For Availability
12
MAY 99001412 MAY 99001412 Contact Us For Availability
12
MAY 904030 MAY 904030 Contact Us For Availability
12
MAY 99001533 MAY 99001533 Contact Us For Availability
13
MAY 99001442 MAY 99001442 Contact Us For Availability
13
MAY 903108 MAY 903108 Contact Us For Availability
13
MAY Y912686 MAY Y912686 Contact Us For Availability
14
MAY Y912547 MAY Y912547 Contact Us For Availability
14
MAY 912014 MAY 912014 Contact Us For Availability
14
MAY 99001006 MAY 99001006 Contact Us For Availability
14
MAY 99001005 MAY 99001005 Contact Us For Availability
14
MAY 99001443 MAY 99001443 Contact Us For Availability
14
MAY 99001414 MAY 99001414 Contact Us For Availability
14
MAY 912323 MAY 912323 Contact Us For Availability
14
MAY 99001008 MAY 99001008 Contact Us For Availability
15
MAY 912644 MAY 912644 Contact Us For Availability
15
MAY 99001426 MAY 99001426 Contact Us For Availability
15
MAY 99001444 MAY 99001444 Contact Us For Availability
15
MAY 912657 MAY 912657 Contact Us For Availability
16
MAY 912510 MAY 912510 Contact Us For Availability
16
MAY Y912545 MAY Y912545 Contact Us For Availability
16
MAY Y912790 MAY Y912790 Contact Us For Availability
17
MAY 99001287 MAY 99001287 Contact Us For Availability
17
MAY 912310 MAY 912310 Contact Us For Availability
17
MAY 912548 MAY 912548 Contact Us For Availability
17
MAY 912651 MAY 912651 Contact Us For Availability
18
MAY 912613 MAY 912613 Contact Us For Availability
19
MAY 912309 MAY 912309 Contact Us For Availability
19
MAY 912645 MAY 912645 Contact Us For Availability
19
MAY 99001333 MAY 99001333 Contact Us For Availability
20
MAY Y913079 MAY Y913079 Contact Us For Availability
20
MAY 903304 MAY 903304 Contact Us For Availability
20
MAY 912546 MAY 912546 Contact Us For Availability
21
MAY 912317 MAY 912317 Contact Us For Availability
21
MAY 99001508 MAY 99001508 Contact Us For Availability
21
MAY 903096 MAY 903096 Contact Us For Availability
22
MAY Y912541 MAY Y912541 Contact Us For Availability
23
MAY 903303 MAY 903303 Contact Us For Availability
24
MAY 902882 MAY 902882 Contact Us For Availability
24
MAY 400321 MAY 400321 Contact Us For Availability
24
MAY 912563 MAY 912563 Contact Us For Availability
25
MAY 912529 MAY 912529 Contact Us For Availability
25
MAY 911917 MAY 911917 Contact Us For Availability
26
MAY 99001424 MAY 99001424 Contact Us For Availability
26
MAY 912365 MAY 912365 Contact Us For Availability
26
MAY 912654 MAY 912654 Contact Us For Availability
27
MAY 912383 MAY 912383 Contact Us For Availability
28
MAY 912540 MAY 912540 Contact Us For Availability
30
MAY 99001425 MAY 99001425 Contact Us For Availability
31
MAY Y912681 MAY Y912681 Contact Us For Availability
32
MAY 912680 MAY 912680 Contact Us For Availability
33
MAY 903079 MAY 903079 Contact Us For Availability
34
MAY 12001489 MAY 12001489 Contact Us For Availability
NI
MAY 15001807 MAY 15001807 Contact Us For Availability
× ![]()
