Model GE DVL223GA0AA Dryer Gas – Common Parts & Diagrams
BURNER
CABINET & DRUM

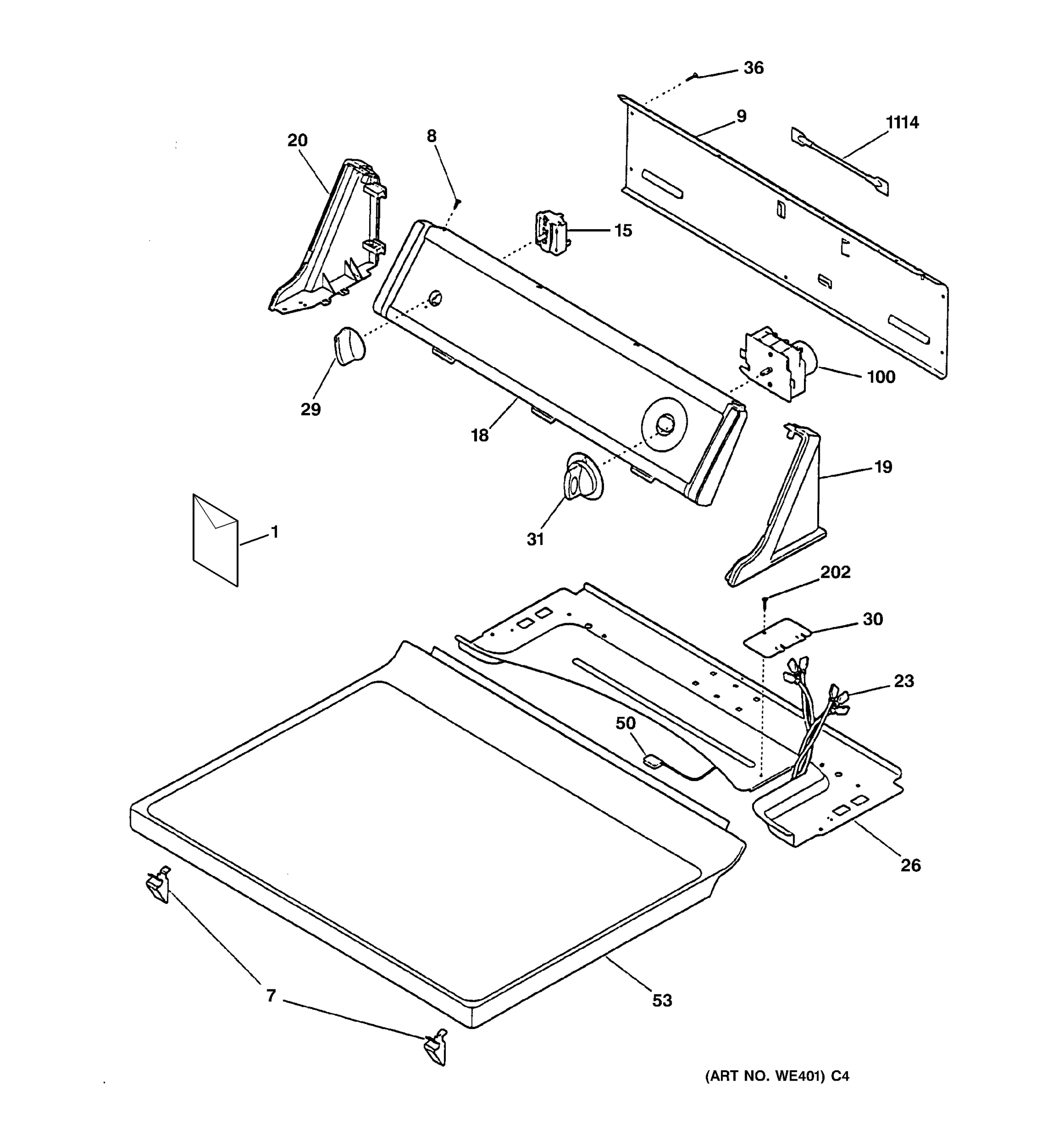

CONTROLS & TOP PANEL

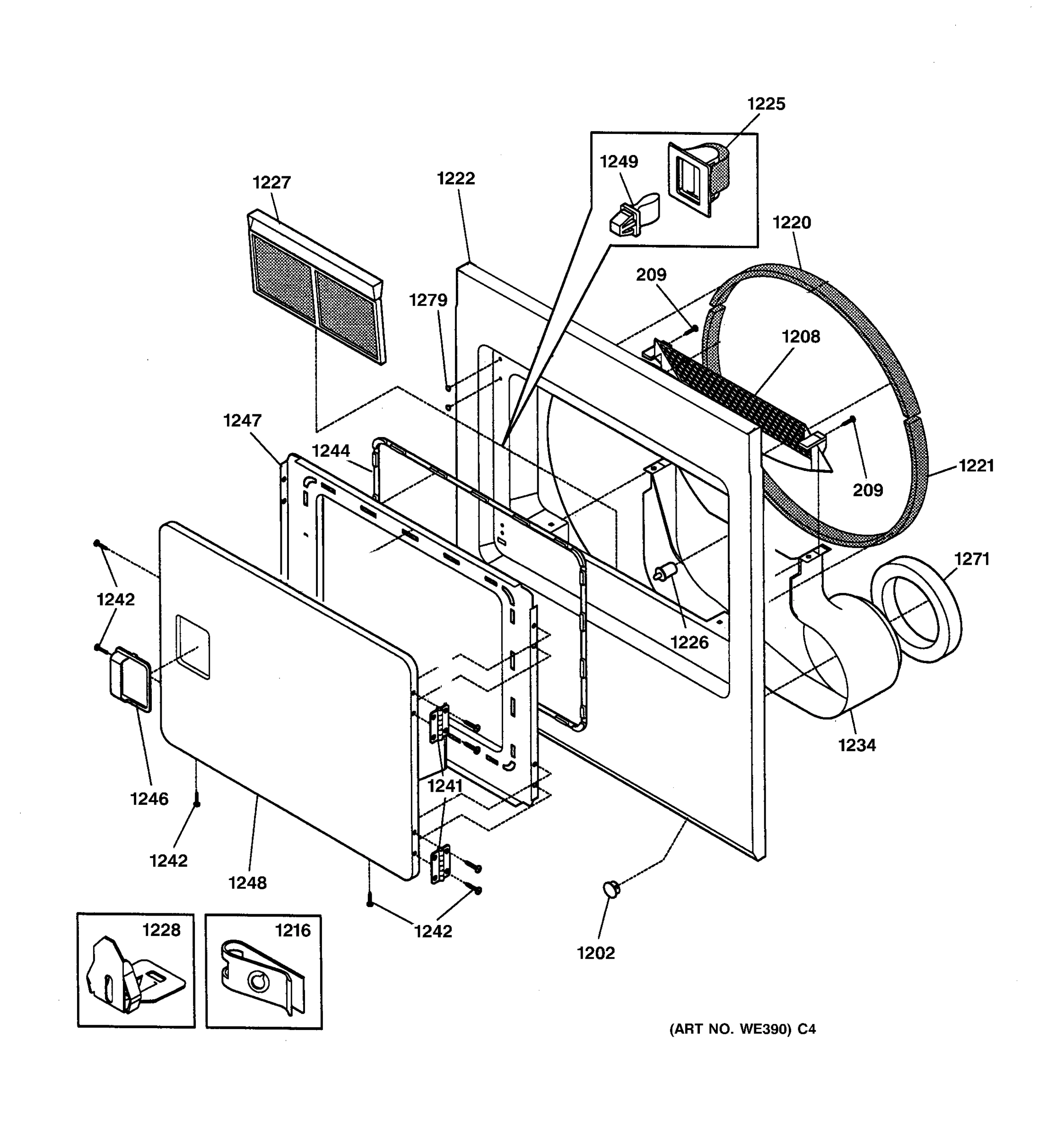

FRONT PANEL & DOOR

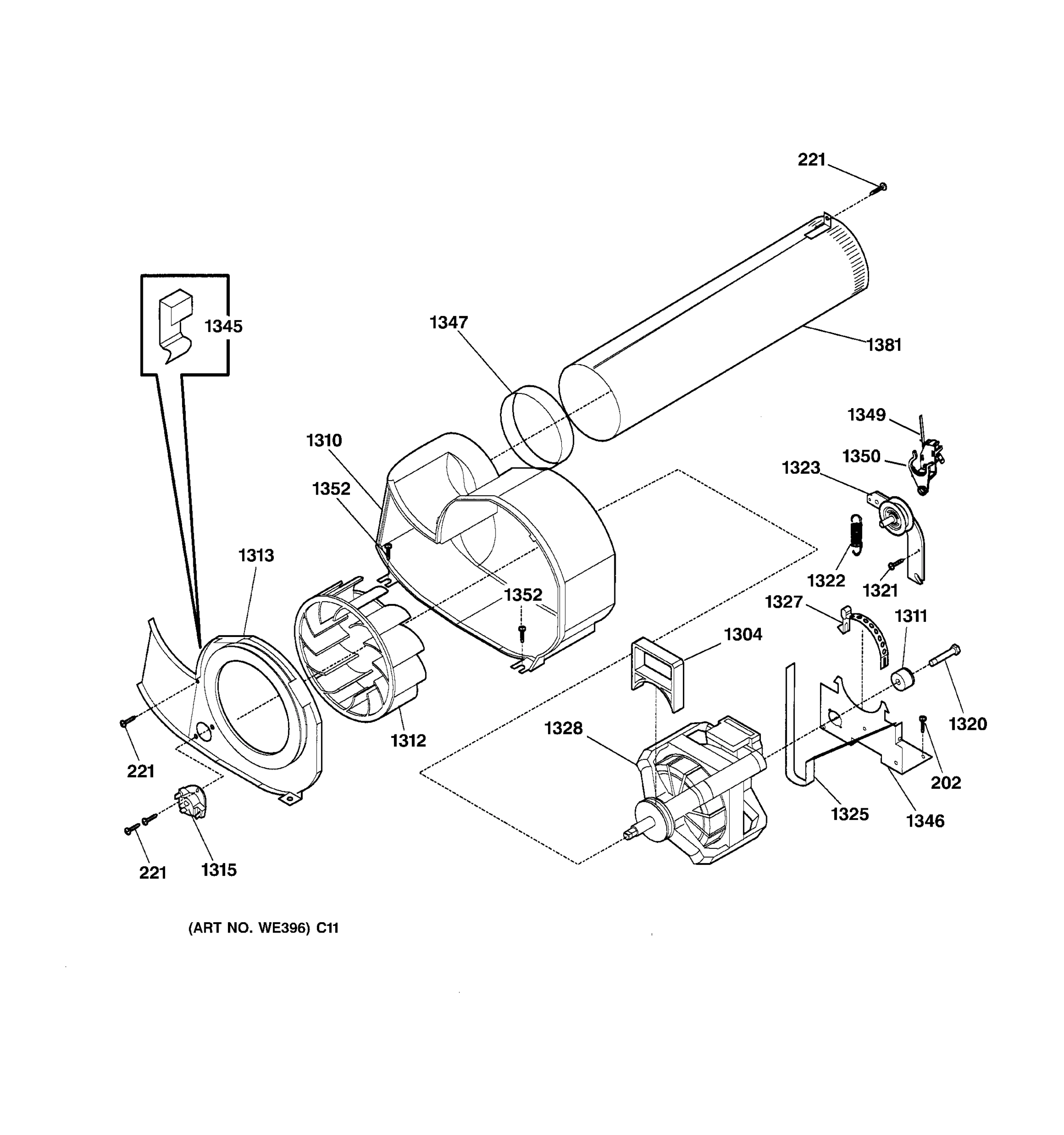

MOTOR
Common parts from model GE DVL223GA0AA Dryer Gas
1
GEN 31-15406 GEN 31-15406 Contact Us For Availability
1
GEN 49-9996 GEN 49-9996 Contact Us For Availability
7
CLIP-TOP FRONT/PANEL GEN WE02X10009 Contact Us For Availability
8
SCR 8-18 X .50 FLT HD/SN GEN WE02X10021 Contact Us For Availability
9
GEN WE20X10010 GEN WE20X10010 Contact Us For Availability
18
GEN WH19X10016 GEN WH19X10016 Contact Us For Availability
19
GEN WE19X10026 GEN WE19X10026 Contact Us For Availability
20
END CAP LH AD GEN WE19X10027 Contact Us For Availability
23
GEN WE08X10008 GEN WE08X10008 Contact Us For Availability
26
GEN WE19X10023 GEN WE19X10023 Contact Us For Availability
30
GEN WE01X10034 GEN WE01X10034 Contact Us For Availability
31
KNOB TIMER, AD GEN WE01X10039 Contact Us For Availability
36
SCREW, 8-18 X 1/2 GEN WH02X10013 Contact Us For Availability
50
GEN WE08X10006 GEN WE08X10006 Contact Us For Availability
53
GEN WE20X10013 GEN WE20X10013 Contact Us For Availability
100
GEN WE04X10036 GEN WE04X10036 Contact Us For Availability
202
GEN WR02X9494 GEN WR02X9494 Contact Us For Availability
209
SCREW-LOCK, 10-16 X .500 GEN WH02X10009 Contact Us For Availability
221
GEN WH01X10004 GEN WH01X10004 Contact Us For Availability
1114
GEN WE04X10035 GEN WE04X10035 Contact Us For Availability
1202
PLUG AD GEN WE01X10040 Contact Us For Availability
1208
GEN WE18X10001 GEN WE18X10001 Contact Us For Availability
1213
GEN WE13X10009 GEN WE13X10009 Contact Us For Availability
1214
GEN WE02X10005 GEN WE02X10005 Contact Us For Availability
1216
CLIP WIRING GEN WE02X10010 Contact Us For Availability
1218
GEN WE02X10006 GEN WE02X10006 Contact Us For Availability
1220
GEN WE03X0073 GEN WE03X0073 Contact Us For Availability
1221
GEN WE09X0105 GEN WE09X0105 Contact Us For Availability
1222
GEN WE20X10014 GEN WE20X10014 Contact Us For Availability
1225
GEN WE01X10023 GEN WE01X10023 Contact Us For Availability
1226
GEN WE04X10034 GEN WE04X10034 Contact Us For Availability
1227
GEN WE18X10002 GEN WE18X10002 Contact Us For Availability
1228
GEN WE02X0361 GEN WE02X0361 Contact Us For Availability
1229
GEN WE02X10007 GEN WE02X10007 Contact Us For Availability
1234
GEN WE14X10005 GEN WE14X10005 Contact Us For Availability
1235
GEN WE11X10003 GEN WE11X10003 Contact Us For Availability
1237
GEN WE14X10017 GEN WE14X10017 Contact Us For Availability
1240
GEN WE02X10012 GEN WE02X10012 Contact Us For Availability
1241
GEN WE01X10012 GEN WE01X10012 Contact Us For Availability
1242
SCREW, 8-18 AB X .44 GEN WH02X10038 Contact Us For Availability
1244
GEN WE09X0107 GEN WE09X0107 Contact Us For Availability
1245
GEN WE01X10035 GEN WE01X10035 Contact Us For Availability
1246
GEN WE01X10041 GEN WE01X10041 Contact Us For Availability
1247
GEN WE10X10010 GEN WE10X10010 Contact Us For Availability
1248
GEN WE10X10011 GEN WE10X10011 Contact Us For Availability
1249
GEN WE01X1158 GEN WE01X1158 Contact Us For Availability
1264
GEN WE02X10013 GEN WE02X10013 Contact Us For Availability
1271
GEN WE09X10002 GEN WE09X10002 Contact Us For Availability
1279
GEN WE01X10042 GEN WE01X10042 Contact Us For Availability
1304
GEN WE01X10016 GEN WE01X10016 Contact Us For Availability
1310
GEN WE14X10008 GEN WE14X10008 Contact Us For Availability
1311
GEN WE01X10029 GEN WE01X10029 Contact Us For Availability
1312
GEN WE16X10001 GEN WE16X10001 Contact Us For Availability
1313
GEN WE14X10009 GEN WE14X10009 Contact Us For Availability
1315
GEN WE04X10018 GEN WE04X10018 Contact Us For Availability
1320
SCREW HX HD 1/4-20TX1.25 GEN WE02X10014 Contact Us For Availability
1321
GEN WE02X10022 GEN WE02X10022 Contact Us For Availability
1322
GEN WE01X10027 GEN WE01X10027 Contact Us For Availability
1323
IDLER BRKT & PULLEY ASM GEN WE01X10037 Contact Us For Availability
1327
GEN WE01X10003 GEN WE01X10003 Contact Us For Availability
1328
GEN WE17X10002 GEN WE17X10002 Contact Us For Availability
1345
GEN WE02X10015 GEN WE02X10015 Contact Us For Availability
1346
GEN WE13X10006 GEN WE13X10006 Contact Us For Availability
1347
GEN WE09X10003 GEN WE09X10003 Contact Us For Availability
1349
GEN WE04X10030 GEN WE04X10030 Contact Us For Availability
1350
GEN WE13X10008 GEN WE13X10008 Contact Us For Availability
1352
GEN WH02X10028 GEN WH02X10028 Contact Us For Availability
1371
GEN WE04X10020 GEN WE04X10020 Contact Us For Availability
1373
GEN WE01X10022 GEN WE01X10022 Contact Us For Availability
1381
GEN WE14X10007 GEN WE14X10007 Contact Us For Availability
× ![]()
