Model Whirlpool DUS104-19 DISHWASHER – Common Parts & Diagrams

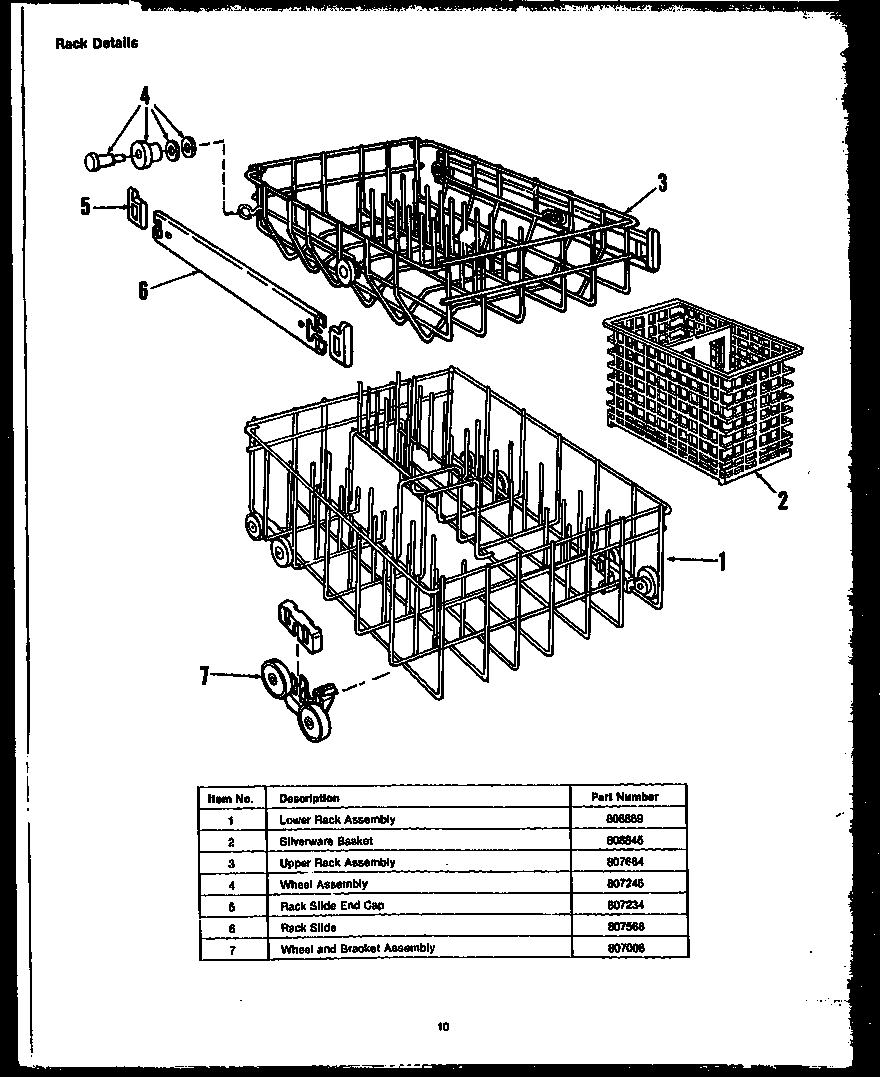

06 - RACK DETAILS

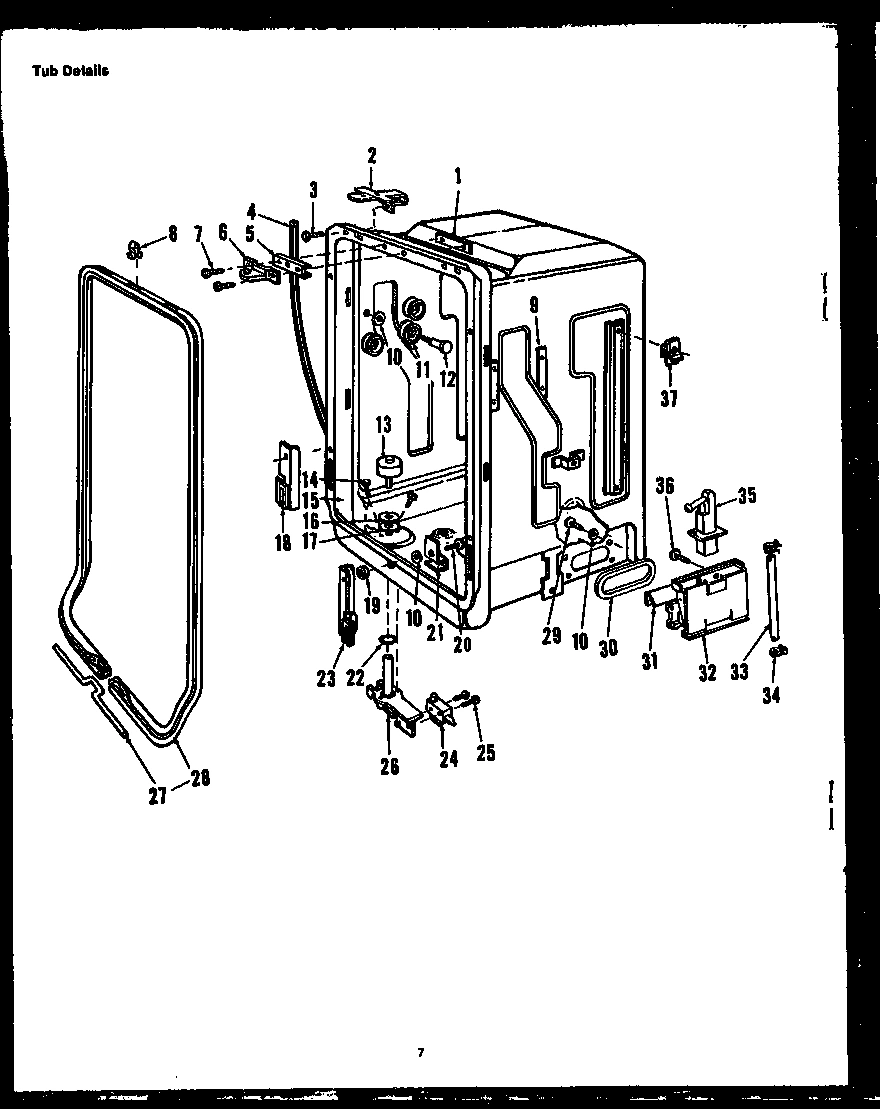

07 - TUB DETAILS

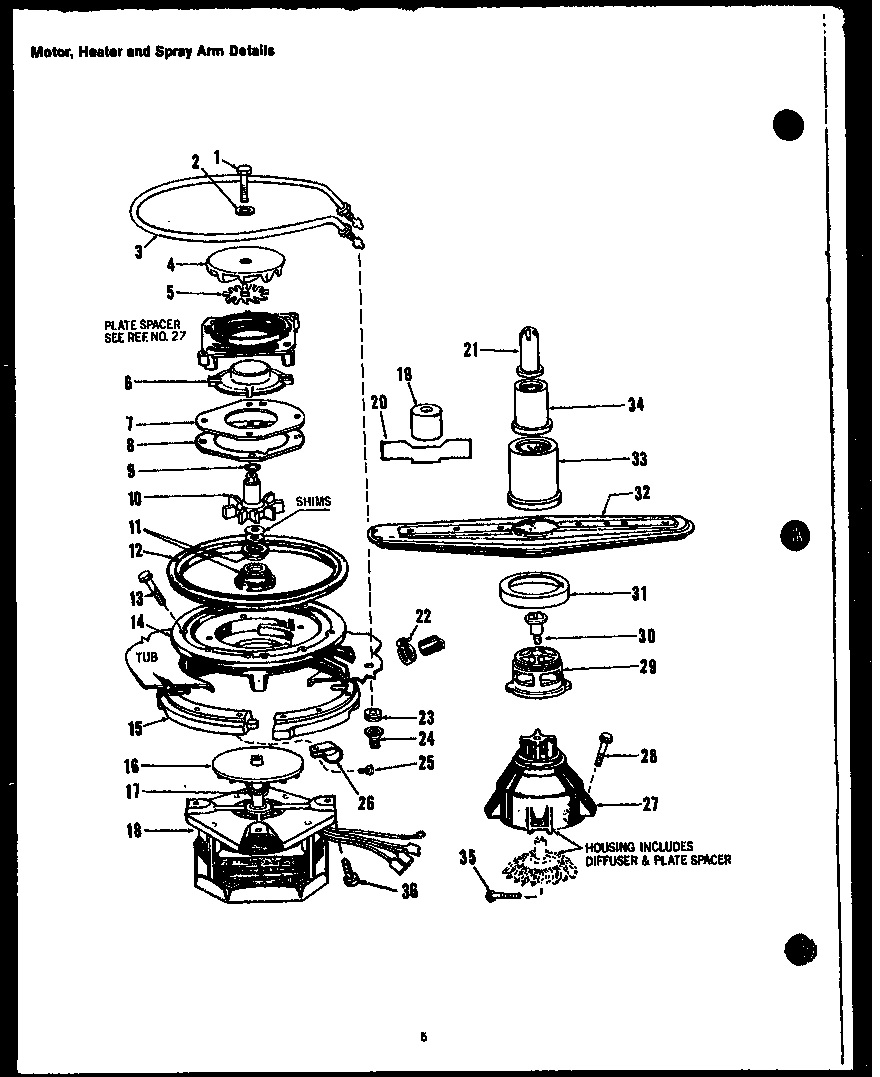

04 - MOTOR
01 - DETERGENT CUP DETAILS

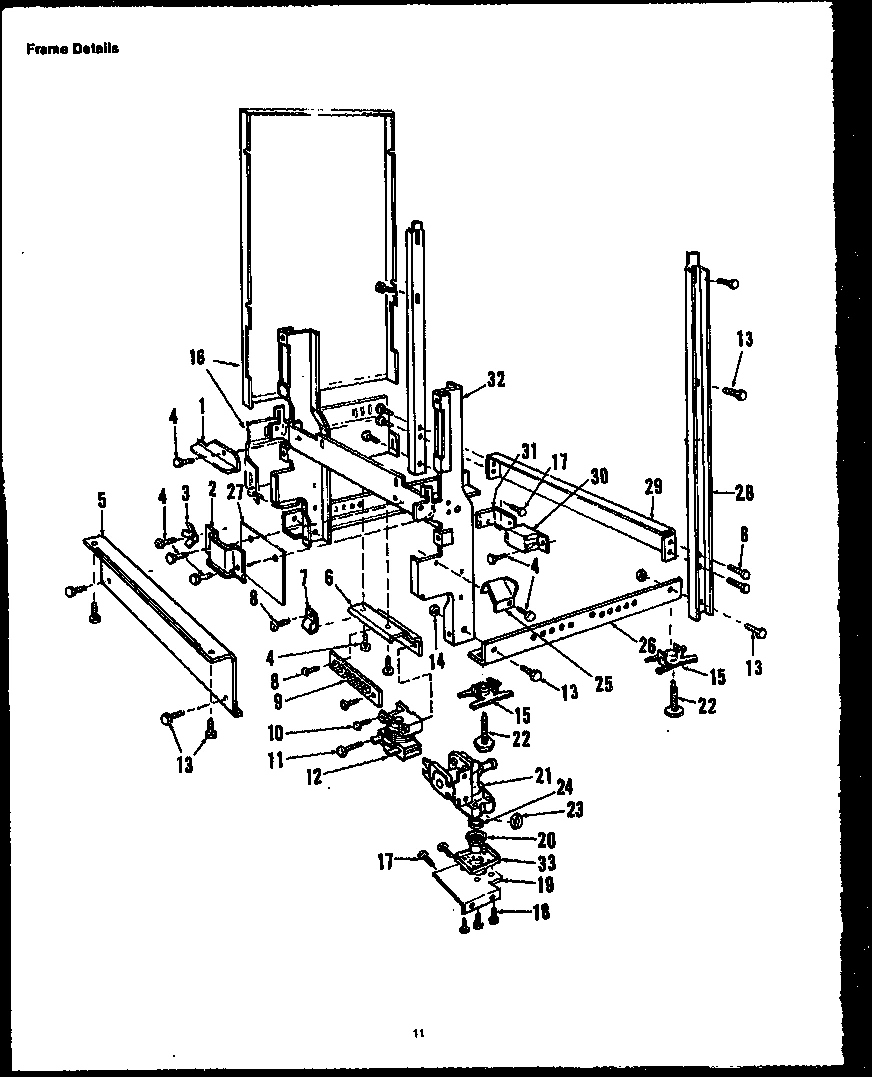

03 - FRAME DETAILS

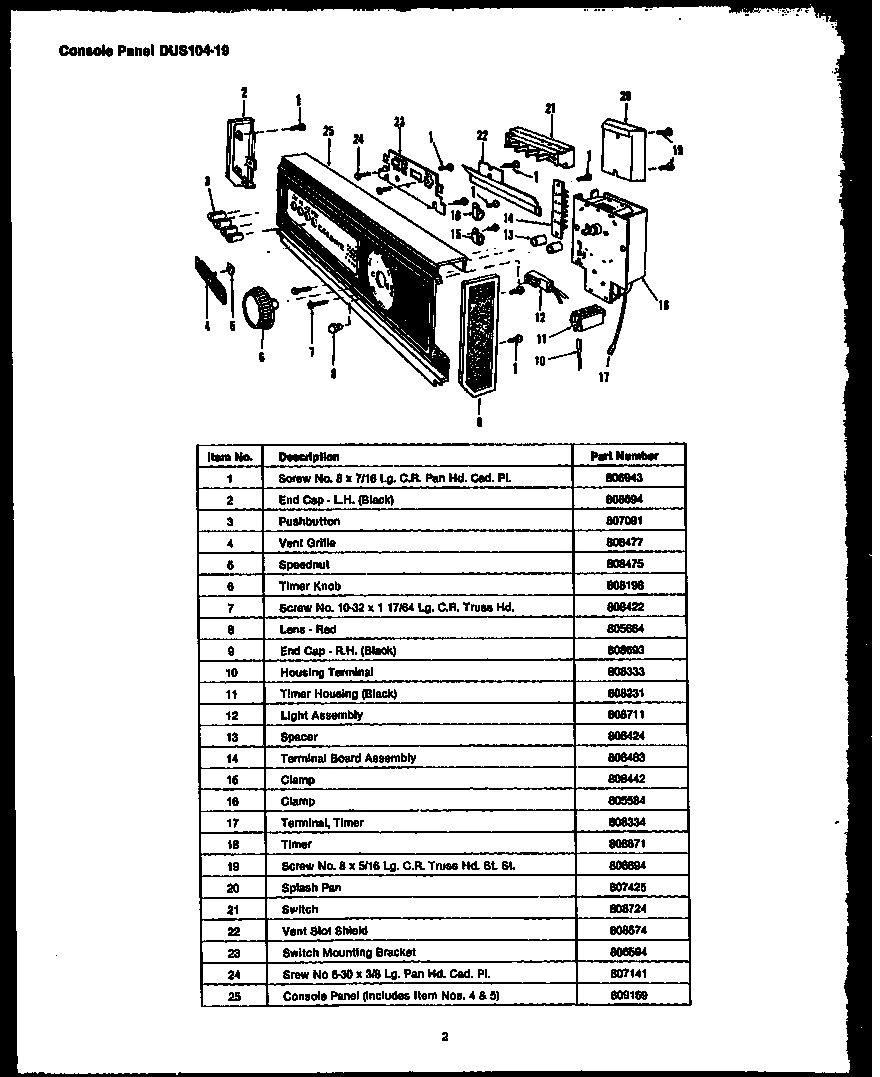

05 - Page 1
02 - DOOR DETAILS
Common parts from model Whirlpool DUS104-19 DISHWASHER
1
LOWER RACK WPL Y0808869 Contact Us For Availability
1
LATCH TAPPING PLATE WPL 0808868 Contact Us For Availability
1
SCREW WPL 0806894 Contact Us For Availability
1
SCREW No.10X1-1/4`` LG HEX WASHER WPL Y0806353 Contact Us For Availability
1
KIT, DETERGENT CUP WPL 0807261 Contact Us For Availability
1
SUDS DEFLECTOR, LH WPL 0807558 Contact Us For Availability
1
SCREW WPL 0806943 Contact Us For Availability
2
SILVERWARE BASKET WPL Y0808845 Contact Us For Availability
2
CLIP WPL 0808289 Contact Us For Availability
2
No.8 TYPE A SET SST WASHER WPL 0803367 Contact Us For Availability
2
``O`` RING WPL Y0808210 Contact Us For Availability
2
WIRING CLAMP WPL 0806723 Contact Us For Availability
2
END CAP, LH WPL 0808694 Contact Us For Availability
2
LATCH ASSEMBLY WPL Y0807016 Contact Us For Availability
3
UPPER RACK WPL Y0807684 Contact Us For Availability
3
HEATER SERVICE KIT WPL Y0806864 Contact Us For Availability
3
SCREW WPL 0806565 Contact Us For Availability
3
PUSHBUTTON WPL Y0807091 Contact Us For Availability
3
SCREW WPL 0806830 Contact Us For Availability
4
WHEEL ASSEMBLY WPL 0807245 Contact Us For Availability
4
DRAIN HOSE WPL Y0809112 Contact Us For Availability
4
UPPER IMPELLER WPL Y0809005 Contact Us For Availability
4
CAM WPL Y0806566 Contact Us For Availability
4
VENT GRILLE WPL Y0808477 Contact Us For Availability
4
SWITCH COVER WPL 0807450 Contact Us For Availability
5
END CAP, SLIDE WPL 0807234 Contact Us For Availability
5
SHIM STRIKE WPL 0807073 Contact Us For Availability
5
BLADE, MACERATOR WPL 0808075 Contact Us For Availability
5
SPIROL PIN WPL Y0808827 Contact Us For Availability
5
TOEPLATE WPL 0807559 Contact Us For Availability
5
SPEED NUT WPL Y0808475 Contact Us For Availability
5
SWITCH, DOOR LATCH WPL Y0807043 Contact Us For Availability
6
RACK SLIDE WPL 0807568 Contact Us For Availability
6
STRIKE WPL Y0807015 Contact Us For Availability
6
SHROUD IMPELLER WPL Y0806267 Contact Us For Availability
6
SPRING WPL Y0805227 Contact Us For Availability
6
BRKT, TERMINAL BLOCK WPL 0807675 Contact Us For Availability
6
KNOB, TIMER WPL Y0808198 Contact Us For Availability
6
SCREW WPL 0808618 Contact Us For Availability
7
WHEEL ASSY WPL Y0807008 Contact Us For Availability
7
PUMP PLATE WPL 0807884 Contact Us For Availability
7
SPRING, CAM COMPRESSION WPL 0806567 Contact Us For Availability
7
SCREW, No.10-32 X 1 7/64 WPL 0808422 Contact Us For Availability
7
DOOR PANEL TRIM, BOTTOM WPL Y0808323 Contact Us For Availability
8
FASTENER GASKET WPL Y0805763 Contact Us For Availability
8
GASKET, PUMP WPL Y0807709 Contact Us For Availability
8
NUT WPL Y0806568 Contact Us For Availability
8
LENS WPL 0805664 Contact Us For Availability
8
SUB 806893 LATCH KNOB WPL 0806398 Contact Us For Availability
9
TWIN NUT ASSEM. WPL 0807038 Contact Us For Availability
9
``O`` RING WPL Y0806521 Contact Us For Availability
9
TRIGGER ASSY WPL Y0808507 Contact Us For Availability
9
TERMINAL BLOCK WPL 0807486 Contact Us For Availability
9
END CAP, RH WPL 0808693 Contact Us For Availability
9
BODY DISPENSER, WETTING AGENT WPL Y0806753 Contact Us For Availability
10
WASHER, SEALING WPL 0809044 Contact Us For Availability
10
PUMP SEAL KIT WPL Y0809116 Contact Us For Availability
10
WASHER WPL 0802836 Contact Us For Availability
10
TERMINAL, (PACK OF 25) WPL 0808333 Contact Us For Availability
10
PLUNGER WPL 0806757 Contact Us For Availability
11
ROLLER WPL 0807180 Contact Us For Availability
11
WATER SEAL WPL Y0803903 Contact Us For Availability
11
BUSHING WPL 0805626 Contact Us For Availability
11
SCREW WPL 0804672 Contact Us For Availability
11
HOUSING, TIMER B WPL Y0808231 Contact Us For Availability
11
BI-METAL ASSY WPL Y0809109 Contact Us For Availability
12
KIT, SCREW & WASHER WPL 0808564 Contact Us For Availability
12
GASKET WPL Y0809008 Contact Us For Availability
12
``O`` RING WPL Y0806647 Contact Us For Availability
12
RELAY WPL 0805255 Contact Us For Availability
12
LIGHT ASSY. WPL 0808711 Contact Us For Availability
13
FLOAT WPL Y0804630 Contact Us For Availability
13
SCREW WPL Y0807268 Contact Us For Availability
13
KIT, SHAFT SEAL WPL Y0806674 Contact Us For Availability
13
TERMINAL, GROUNDING WPL 0807213 Contact Us For Availability
13
SCREW WPL 0807001 Contact Us For Availability
13
SPACER WPL 0808424 Contact Us For Availability
14
PUMP HOUSING WPL Y0809059 Contact Us For Availability
14
TERMINAL BOARD ASSY. WPL Y0808483 Contact Us For Availability
14
GROMMET, MOUNTING WPL 0805631 Contact Us For Availability
15
TUB & GASKET ASSY WPL 0809045 Contact Us For Availability
15
CLAMP RING WPL Y0807712 Contact Us For Availability
15
TEE NUT - SNAP IN WPL 0807671 Contact Us For Availability
15
SCREW WPL 0806863 Contact Us For Availability
16
RING WPL Y0808064 Contact Us For Availability
16
SLINGER, PLASTIC WPL 0808899 Contact Us For Availability
16
SIDE PANEL KIT, ALMOND WPL 0808889 Contact Us For Availability
16
SIDE PANEL WPL 808885 Contact Us For Availability
16
PANEL, SIDE WPL 808886 Contact Us For Availability
16
PANEL, SIDE WPL 808887 Contact Us For Availability
16
PANEL, SIDE WPL 808888 Contact Us For Availability
16
FILL PLUG WPL Y0807673 Contact Us For Availability
17
GASKET WPL Y0808063 Contact Us For Availability
17
TOLERANCE RING WPL 0808898 Contact Us For Availability
17
SCREW WPL Y0807950 Contact Us For Availability
17
TERMINAL END WPL 0808334 Contact Us For Availability
17
ARM, L.H. WPL Y0807539 Contact Us For Availability
18
COUNTERBALANCE ARM GUIDE, LH WPL 0807599 Contact Us For Availability
18
MOTOR ASSY WPL Y0809100 Contact Us For Availability
18
SCREW WPL 0808368 Contact Us For Availability
18
TIMER WPL 0808671 Contact Us For Availability
18
VENT PLATE ASSY WPL Y0808370 Contact Us For Availability
19
USE M0281003 WPL 0803346 Contact Us For Availability
19
SEAL INSTALLATION TOOL WPL Y0803923 Contact Us For Availability
19
MOUNTING BRACKET WPL 0807613 Contact Us For Availability
19
USE 0806976 WPL 0806810 Contact Us For Availability
20
SHIM GAUGE WPL 0807077 Contact Us For Availability
20
FITTING WPL Y0808337 Contact Us For Availability
20
SPLASH PAN WPL 0807425 Contact Us For Availability
20
DOOR PANEL TRIM, RH WPL 0808990 Contact Us For Availability
21
CLIP, GASKET WPL 0808115 Contact Us For Availability
21
TOWER TIP WPL 0808849 Contact Us For Availability
21
VALVE WPL 0808668 Contact Us For Availability
21
SWITCH WPL 0808724 Contact Us For Availability
21
WELD & FINISH ASSY WPL 0808583 Contact Us For Availability
22
``0`` RING WPL Y0807759 Contact Us For Availability
22
LEVELING LEGS WPL 0807672 Contact Us For Availability
22
VENT SLOT SHIELD WPL 0808574 Contact Us For Availability
23
COUNTERBALANCE ARM GUIDE, RH WPL 0807600 Contact Us For Availability
23
GROMMET WPL Y0806833 Contact Us For Availability
23
FLOW WASHER WPL 0808577 Contact Us For Availability
23
BRACKET, SWITCH MOUNTING WPL 0806594 Contact Us For Availability
23
ARM BRACKET WPL Y0806717 Contact Us For Availability
24
FLOAT SWITCH WPL Y0807680 Contact Us For Availability
24
NUT WPL 0806834 Contact Us For Availability
24
GASKET WPL Y0806100 Contact Us For Availability
24
SCREW WPL 0807141 Contact Us For Availability
24
ARM, R.H. WPL 0807538 Contact Us For Availability
25
SCREW 4-40 X 5/8 LG HEX HD CAD WPL 0804594 Contact Us For Availability
25
SCREW WPL 0807270 Contact Us For Availability
25
SUDS DEFLECTOR, RH WPL 0807563 Contact Us For Availability
25
CONSOLE PANEL WPL 0809169 Contact Us For Availability
25
DOOR SPRING WPL Y0807534 Contact Us For Availability
26
SUB 809859,FLOAT ASSY WPL Y0807677 Contact Us For Availability
26
BASE ANGLE WPL 0807564 Contact Us For Availability
26
SCREW WPL 0803311 Contact Us For Availability
27
JUNCTION ROD WPL 0808118 Contact Us For Availability
27
IMPELLER, HOUSING KIT WPL Y0809119 Contact Us For Availability
27
WIRE SHIELD WPL 0808013 Contact Us For Availability
27
SPRING PAD WPL 0805884 Contact Us For Availability
28
DOOR GASKET WPL Y0809003 Contact Us For Availability
28
SCREW, PUMP HOUSING WPL 0807359 Contact Us For Availability
28
SUPPORT CHANNEL WPL 0808670 Contact Us For Availability
28
DOOR GUIDE WPL 0807537 Contact Us For Availability
29
SCREW WPL Y0806901 Contact Us For Availability
29
BEARING WPL Y0809046 Contact Us For Availability
29
REAR BRACE WPL 0807566 Contact Us For Availability
29
SCREW WPL Y0808749 Contact Us For Availability
30
GASKET WPL Y0806797 Contact Us For Availability
30
SPRAY ARM BOLT WPL Y0809018 Contact Us For Availability
30
JUNCTION BOX COVER WPL 0800222 Contact Us For Availability
30
USE M0217224 WPL Y0803416 Contact Us For Availability
31
TAPPING PLATE WPL 0808705 Contact Us For Availability
31
CLAMP WPL Y0808442 Contact Us For Availability
31
SHIELD, BEARING WPL Y0808924 Contact Us For Availability
31
COVER BRACKET WPL 0807019 Contact Us For Availability
32
VENT STACK WPL 0808706 Contact Us For Availability
32
SPRAY ARM WPL Y0808848 Contact Us For Availability
32
SUB 809212, HINGE, FRAME WPL 0807674 Contact Us For Availability
32
DOOR PANEL, WHITE WPL Y0808298 Contact Us For Availability
33
TOWER BASE WPL Y0808178 Contact Us For Availability
33
FITTING, RETAINER WPL Y0808458 Contact Us For Availability
34
TUBE, INLET WPL 0807891 Contact Us For Availability
34
TOWER SECTION WPL Y0808179 Contact Us For Availability
34
DOOR PANEL TRIM, LH WPL 0808991 Contact Us For Availability
35
INLET NOZZLE WPL 0808707 Contact Us For Availability
35
DOOR & ACCESS PNL INSERTS ALM WPL 0808919 Contact Us For Availability
35
DOOR & ACCESS PNL INSERTS HARV WPL 0808920 Contact Us For Availability
35
DOOR & ACCESS PNL INSERTS COFF WPL 0808921 Contact Us For Availability
35
DOOR & ACCESS PNL INSERTS AVOC WPL 0808922 Contact Us For Availability
35
DOOR & ACCESS PNL INSERTS BLK WPL 0808923 Contact Us For Availability
36
SCREW WPL 0808818 Contact Us For Availability
36
SCREW WPL Y0809022 Contact Us For Availability
37
NUT, CAGE WPL 0806291 Contact Us For Availability
37
TRIM, ACC SIDE WPL 0808104 Contact Us For Availability
38
TUB INSULATION WPL 0809143 Contact Us For Availability
38
ACCESS PANEL TRIM, BOTTOM WPL 0808303 Contact Us For Availability
39
ACCESS PANEL, WHITE WPL Y0808304 Contact Us For Availability
40
TRIM, ACC SIDE WPL 0808103 Contact Us For Availability
41
ACCESS PANEL TRIM, TOP WPL Y0808471 Contact Us For Availability
NI
PUMP&MOTOR ASM WPL 809120 Contact Us For Availability
× ![]()
