Model Whirlpool DUS-402-19 DISHWASHER – Common Parts & Diagrams

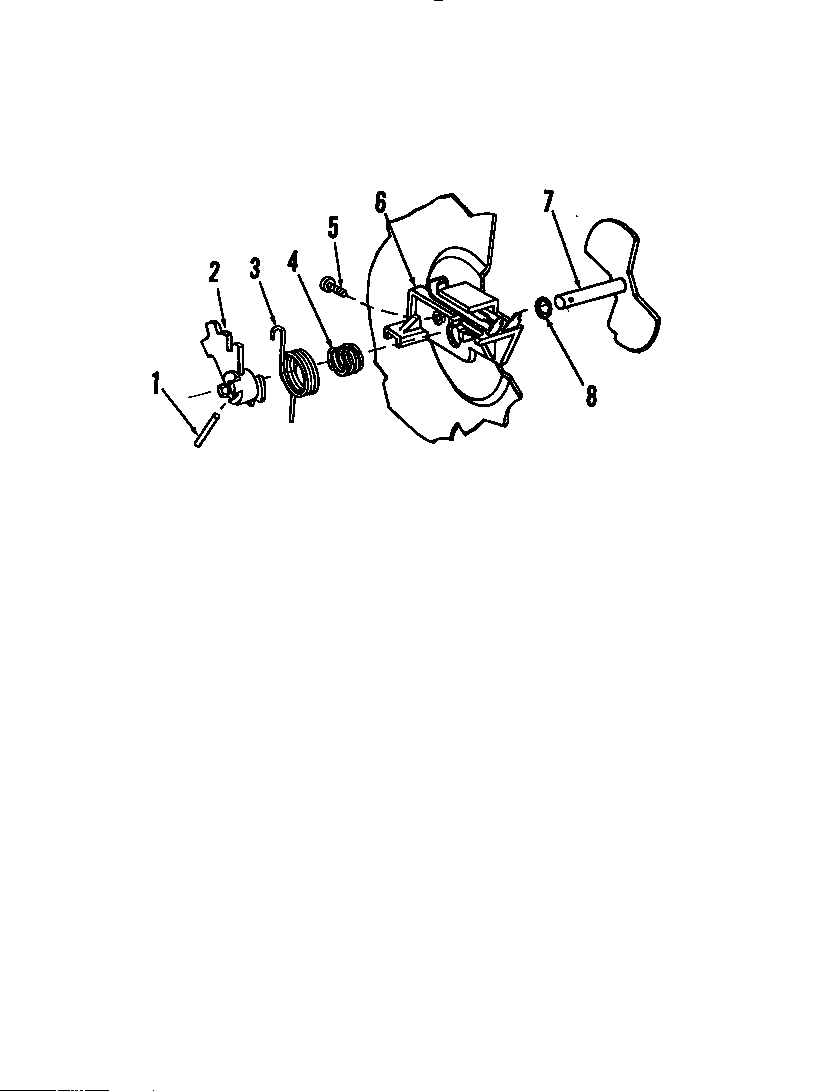

02 - DETERGENT CUP

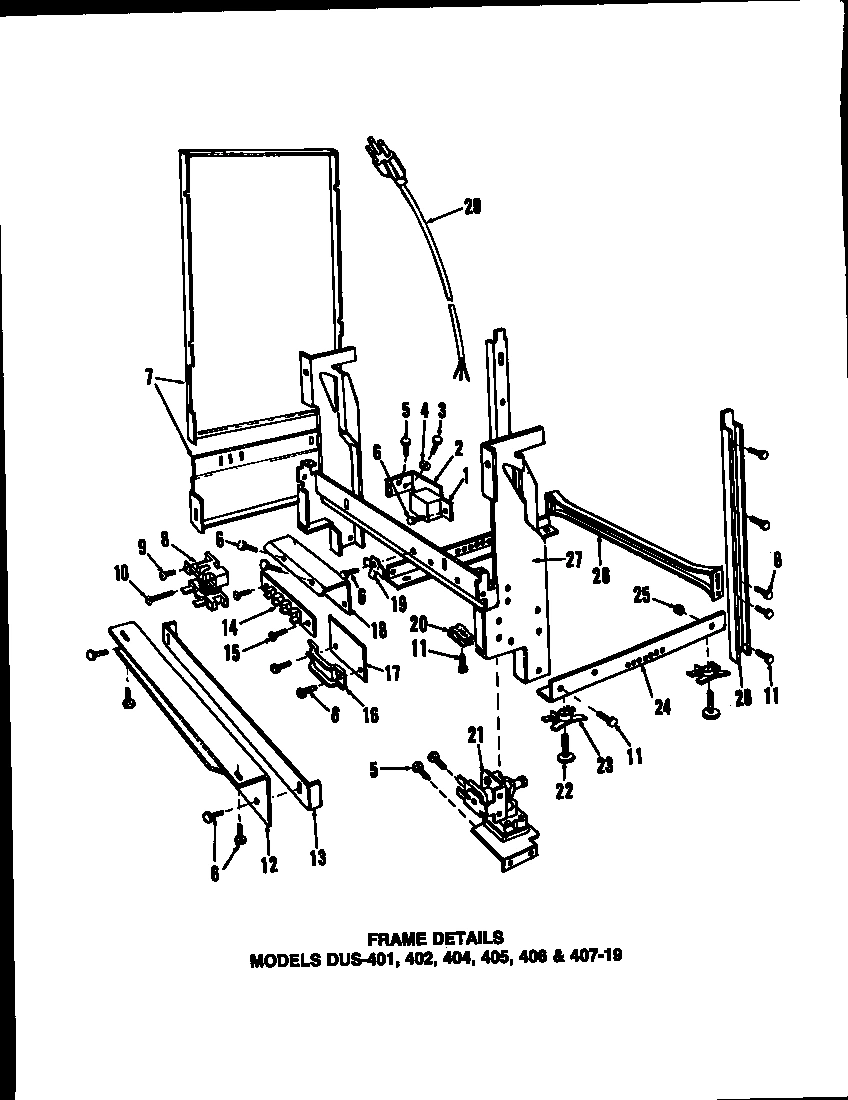

04 - FRAME DETAILS

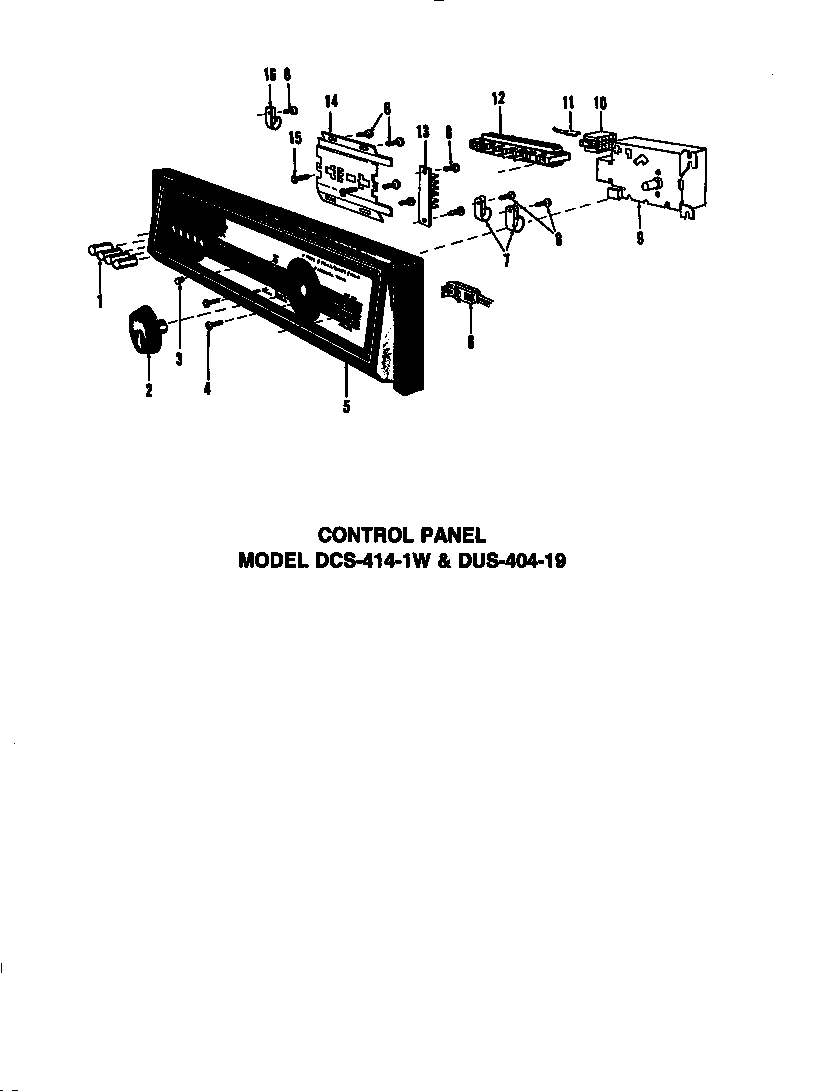

01 - COUNTER PANEL

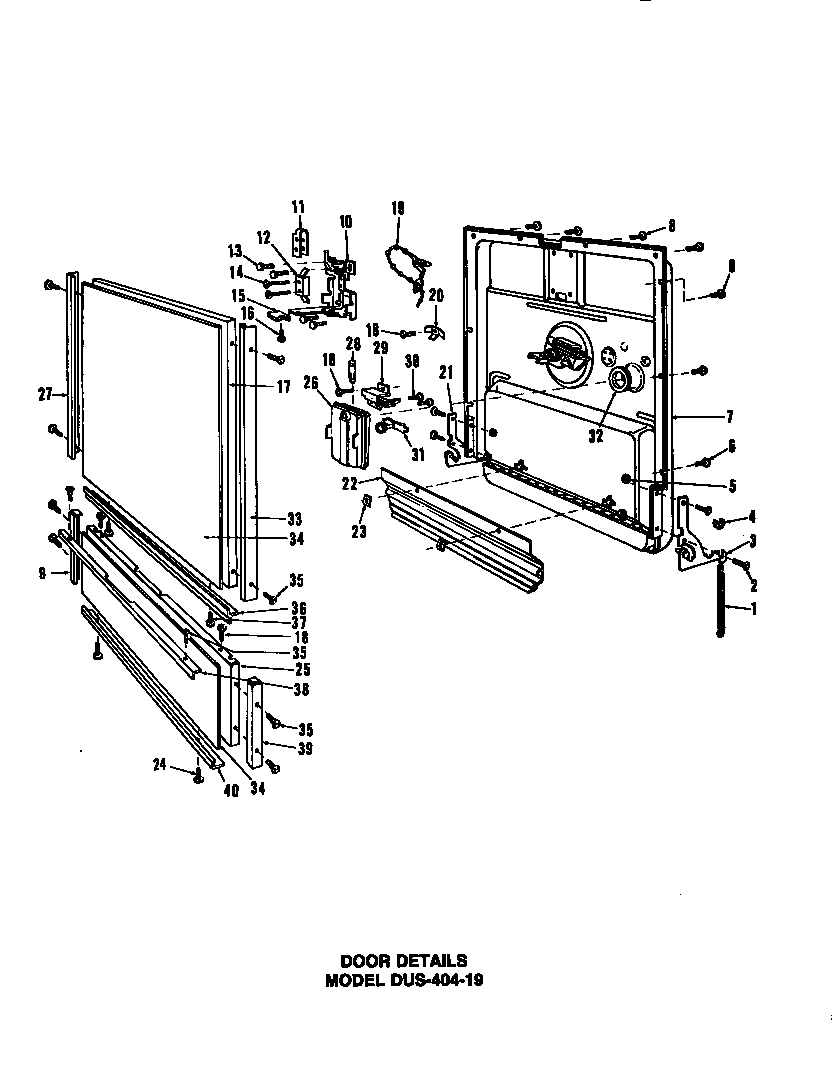

03 - DOOR DETAILS

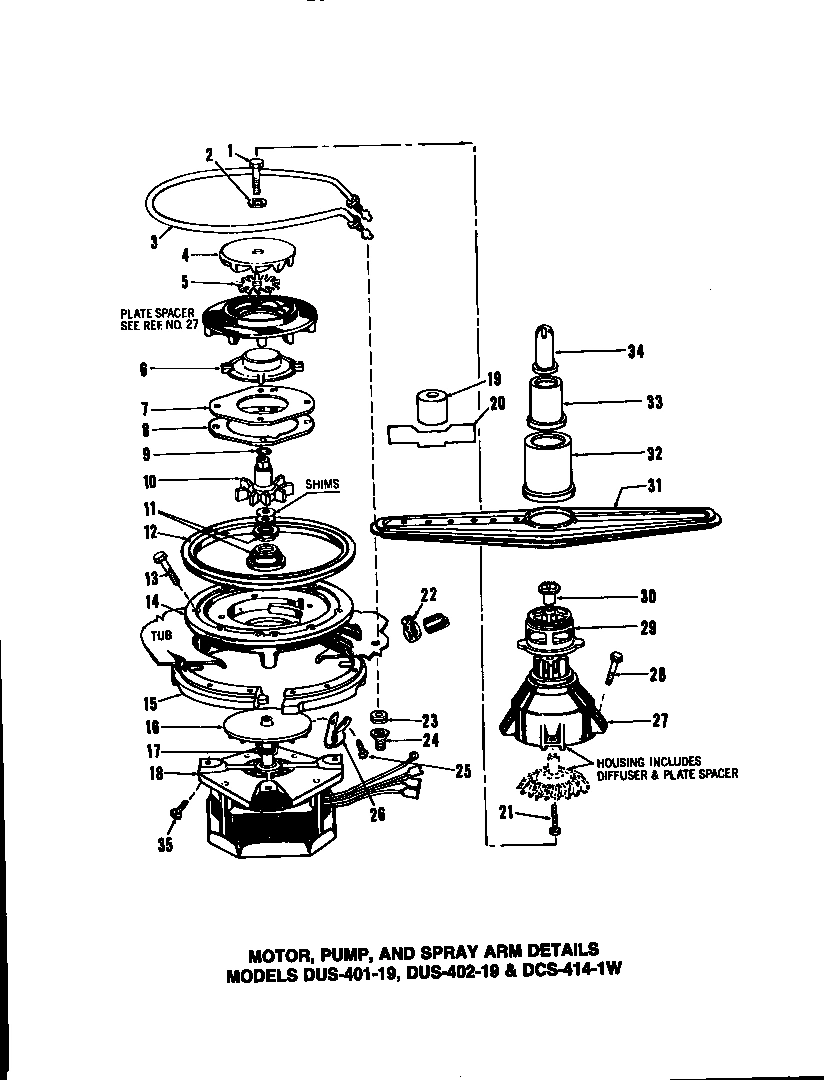

05 - MOTOR, PUMP, AND SPRAY ARM DETAILS

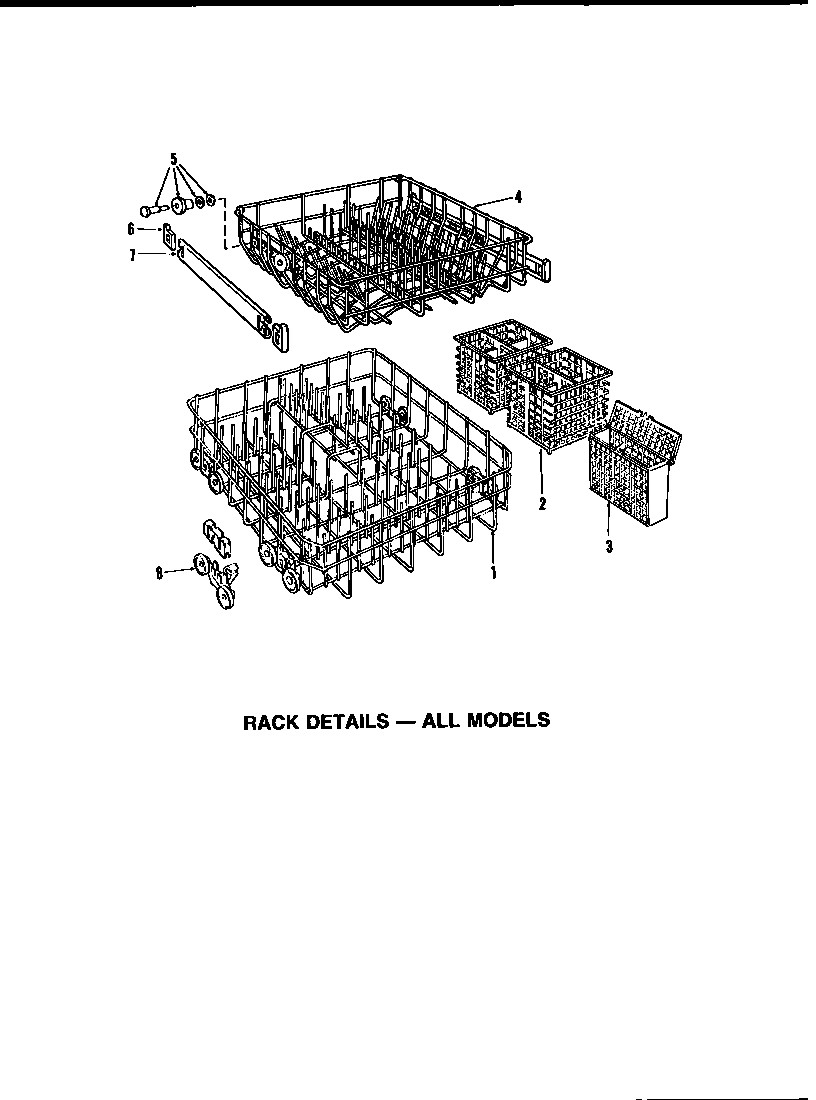

06 - RACK DETAILS

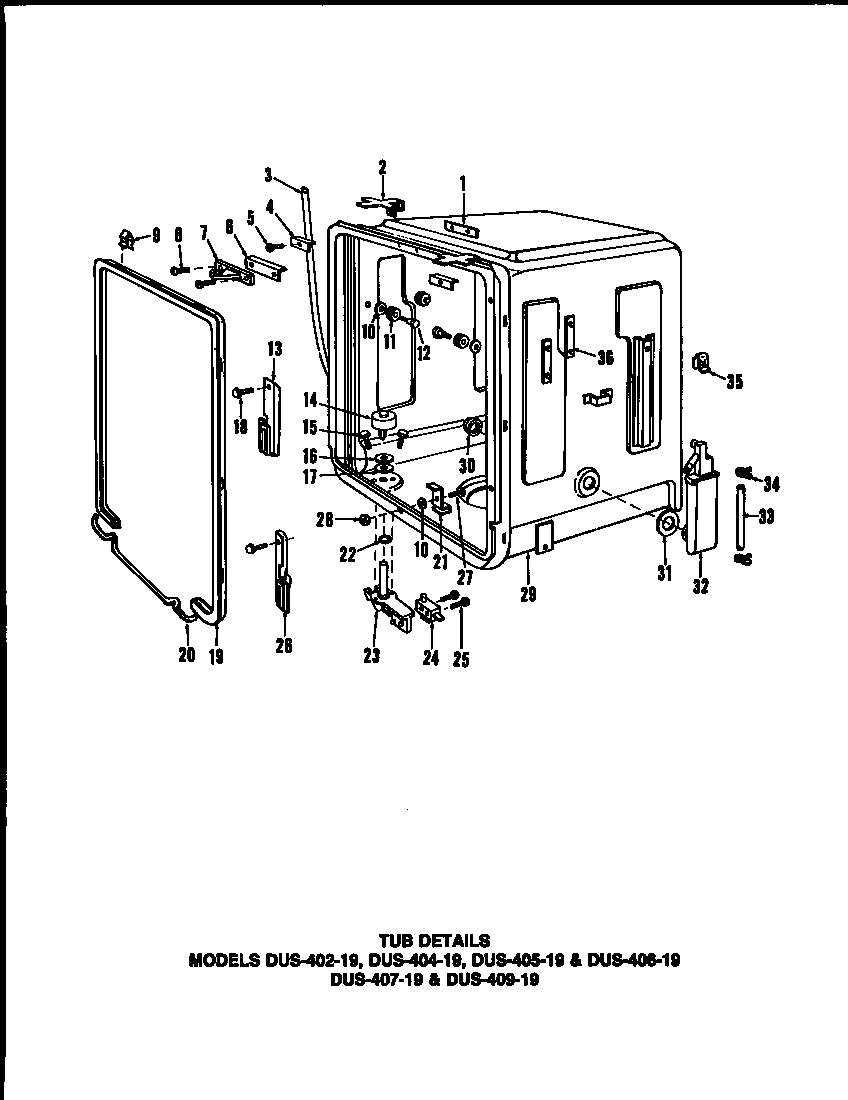

08 - TUB DETAILS

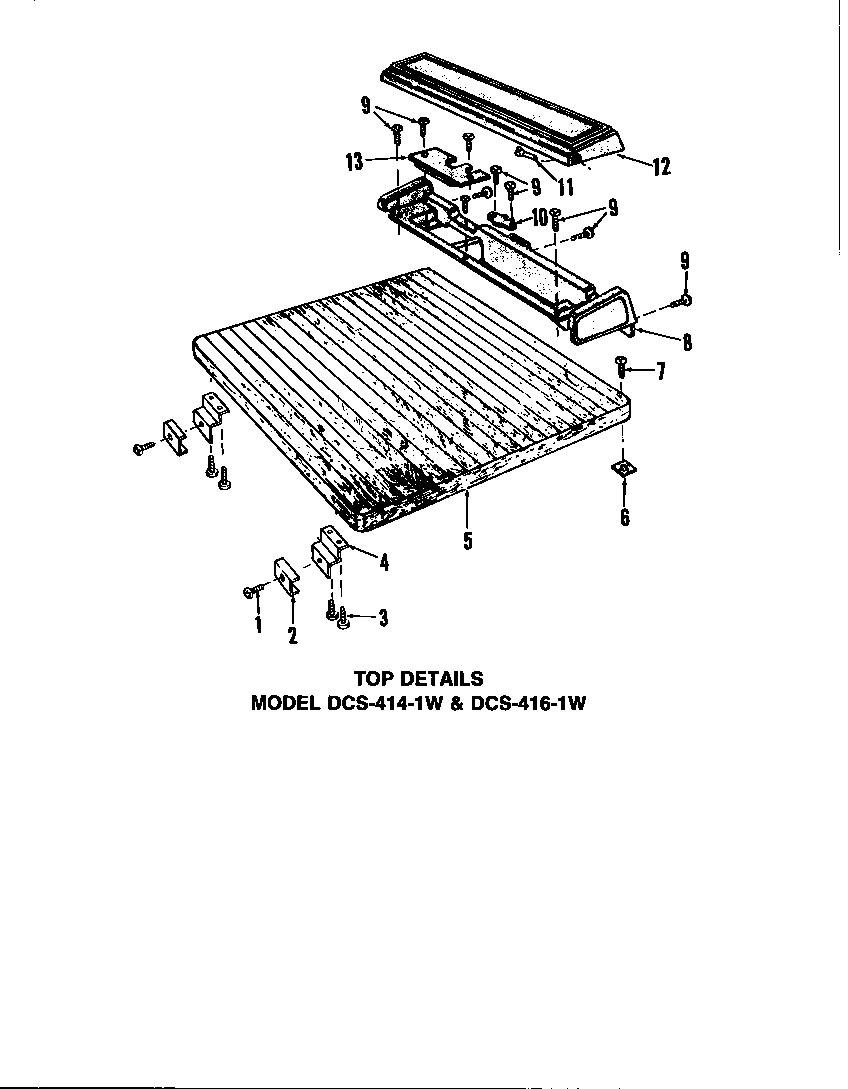

07 - TOP DETAILS
Common parts from model Whirlpool DUS-402-19 DISHWASHER
1
SPIROL PIN WPL Y0808827 Contact Us For Availability
1
JUNCTION BOX COVER WPL 0800222 Contact Us For Availability
1
PUSHBUTTON WPL Y0807091 Contact Us For Availability
1
DOOR SPRING WPL Y0809360 Contact Us For Availability
1
SCREW No.10X1-1/4`` LG HEX WASHER WPL Y0806353 Contact Us For Availability
1
LOWER RACK ASSY WPL Y0808874 Contact Us For Availability
1
LATCH TAPPING PLATE WPL 0808868 Contact Us For Availability
2
CAM WPL Y0806566 Contact Us For Availability
2
COVER BRACKET WPL 0807019 Contact Us For Availability
2
KNOB WPL 0809356 Contact Us For Availability
2
No.8 TYPE A SET SST WASHER WPL 0803367 Contact Us For Availability
2
SILVERWARE BASKET WPL Y0808845 Contact Us For Availability
2
CLIP WPL 0808289 Contact Us For Availability
2
CLIP, SHIM WPL 0809199 Contact Us For Availability
3
SPRING WPL Y0805227 Contact Us For Availability
3
SCREW WPL 0807951 Contact Us For Availability
3
LENS WPL 0809036 Contact Us For Availability
3
ARM ASSY COUNTERBALANCE R H WPL Y0805681 Contact Us For Availability
3
HEATER WPL Y0809060 Contact Us For Availability
3
DRAIN HOSE WPL Y0809112 Contact Us For Availability
4
SPRING, CAM COMPRESSION WPL 0806567 Contact Us For Availability
4
WASHER WPL 0807373 Contact Us For Availability
4
SCREW WPL 0805324 Contact Us For Availability
4
SPRING PAD WPL 0805884 Contact Us For Availability
4
UPPER IMPELLER WPL Y0809005 Contact Us For Availability
4
RACK, UPPER WPL 0807902 Contact Us For Availability
5
SCREW WPL Y0807950 Contact Us For Availability
5
CONTROL PANEL WPL 0809358 Contact Us For Availability
5
BLADE, MACERATOR WPL 0808075 Contact Us For Availability
5
ROLLER WPL Y0807957 Contact Us For Availability
5
SCREW WPL 0806976 Contact Us For Availability
6
BI-METAL ASSY. WPL Y0809072 Contact Us For Availability
6
LIGHT, ASSY. WPL 0809317 Contact Us For Availability
6
SHROUD IMPELLER WPL Y0806267 Contact Us For Availability
6
END CAP, RACK SLIDE WPL Y0807853 Contact Us For Availability
6
SHIM WPL 0809214 Contact Us For Availability
7
LID, DISPENSER WPL Y0809028 Contact Us For Availability
7
SIDE PANEL KIT, WHITE WPL 0808880 Contact Us For Availability
7
SIDE PANEL KIT, ALMOND WPL 0808884 Contact Us For Availability
7
SIDE PANEL KIT WPL 808881 Contact Us For Availability
7
SIDE PANEL KIT WPL 808882 Contact Us For Availability
7
SIDE PANEL KIT WPL 808883 Contact Us For Availability
7
DOOR ASSY. WPL 0809054 Contact Us For Availability
7
PUMP PLATE WPL 0807884 Contact Us For Availability
7
RACK SLIDE WPL 0807854 Contact Us For Availability
7
STRIKE WPL Y0807015 Contact Us For Availability
8
``O`` RING WPL Y0806647 Contact Us For Availability
8
RELAY WPL 0805255 Contact Us For Availability
8
SCREW WPL 0809175 Contact Us For Availability
8
SCREW WPL Y0808749 Contact Us For Availability
8
GASKET, PUMP WPL Y0807709 Contact Us For Availability
8
WHEEL ASSY WPL Y0807008 Contact Us For Availability
9
x TIMER WPL 0809190 Contact Us For Availability
9
TIMER WPL Y0809191 Contact Us For Availability
9
TRIM, ACC SIDE WPL 0808104 Contact Us For Availability
9
``O`` RING WPL Y0806521 Contact Us For Availability
9
FASTENER GASKET WPL Y0805763 Contact Us For Availability
10
SCREW WPL 0804672 Contact Us For Availability
10
TIMER, TERMINAL HOUSING WPL 0809296 Contact Us For Availability
10
LATCH ASSEMBLY WPL Y0807016 Contact Us For Availability
10
PUMP SEAL KIT WPL Y0809116 Contact Us For Availability
10
WASHER, SEALING WPL 0809044 Contact Us For Availability
11
SCREW WPL 0807001 Contact Us For Availability
11
TERMINAL, (PACK OF 25) WPL 0808333 Contact Us For Availability
11
SWITCH COVER WPL 0807450 Contact Us For Availability
11
WATER SEAL WPL Y0803903 Contact Us For Availability
11
ROLLER WPL 0807180 Contact Us For Availability
12
USE 0809765 WPL 0809304 Contact Us For Availability
12
SWITCH WPL 0809328 Contact Us For Availability
12
SWITCH, DOOR LATCH WPL Y0807043 Contact Us For Availability
12
GASKET WPL Y0809008 Contact Us For Availability
12
KIT, SCREW & WASHER WPL 0808564 Contact Us For Availability
13
TOE PLATE, ADJUSTABLE WPL 0809303 Contact Us For Availability
13
TERMINAL BOARD ASSY. WPL Y0808483 Contact Us For Availability
13
GUIDE, COUNTERBALANCE, L.H. WPL Y0807470 Contact Us For Availability
14
TERMINAL BLOCK WPL 0807486 Contact Us For Availability
14
BRACKET, SWITCH WPL 0809314 Contact Us For Availability
14
SCREW WPL 0808618 Contact Us For Availability
14
PUMP HOUSING WPL Y0809059 Contact Us For Availability
14
FLOAT WPL Y0804630 Contact Us For Availability
15
SCREW WPL 0807141 Contact Us For Availability
15
SUB 806893 LATCH KNOB WPL 0806398 Contact Us For Availability
15
SCREW WPL Y0807268 Contact Us For Availability
15
CLAMP RING WPL Y0807712 Contact Us For Availability
16
WIRING CLAMP WPL 0806723 Contact Us For Availability
16
USE 0806830 WPL 0809163 Contact Us For Availability
16
SLINGER, PLASTIC WPL 0808899 Contact Us For Availability
16
RING WPL Y0808064 Contact Us For Availability
17
WIRE SHIELD WPL 0809144 Contact Us For Availability
17
DOOR PANEL, WHITE WPL 0807262 Contact Us For Availability
17
TOLERANCE RING WPL 0808898 Contact Us For Availability
17
GASKET WPL Y0808063 Contact Us For Availability
18
BRACKET, TERMINAL BOARD WPL 0807849 Contact Us For Availability
18
MOTOR ASSY WPL Y0809100 Contact Us For Availability
18
SCREW, No.10-24 X 5/8 WPL 0806539 Contact Us For Availability
19
TIE WIRE WPL Y0809075 Contact Us For Availability
19
SEAL INSTALLATION TOOL WPL Y0803923 Contact Us For Availability
19
GASKET & WIRE ASSY WPL Y0809035 Contact Us For Availability
20
TERMINAL, GROUNDING WPL 0807213 Contact Us For Availability
20
SPEED NUT WPL 0808170 Contact Us For Availability
20
SHIM GAUGE WPL 0807077 Contact Us For Availability
20
GASKET, WIRE JUNCTION WPL 0809320 Contact Us For Availability
21
VALVE ASSY WPL Y0809240 Contact Us For Availability
21
ARM ASSY LH COUNTERBALANCE WPL 0805682 Contact Us For Availability
21
CLIP, GASKET WPL 0808115 Contact Us For Availability
22
LEVELING LEGS WPL 0807672 Contact Us For Availability
22
BAFFLE SEAL WPL Y0809025 Contact Us For Availability
22
``0`` RING WPL Y0807759 Contact Us For Availability
23
TEE NUT - SNAP IN WPL 0807671 Contact Us For Availability
23
SPEEDNUT WPL 0809026 Contact Us For Availability
23
MOTOR SECURING BOLT WPL 0806883 Contact Us For Availability
23
SUB 809859,FLOAT ASSY WPL Y0807677 Contact Us For Availability
24
``U`` FRAME ASSEMBLY WPL Y0807851 Contact Us For Availability
24
NUT WPL 0806834 Contact Us For Availability
24
FLOAT SWITCH WPL Y0807680 Contact Us For Availability
25
ACCESS PANEL, WHITE WPL 0809108 Contact Us For Availability
25
SCREW WPL 0807270 Contact Us For Availability
25
SCREW 4-40 X 5/8 LG HEX HD CAD WPL 0804594 Contact Us For Availability
26
BRACE, REAR WPL Y0807852 Contact Us For Availability
26
CLAMP WPL Y0808442 Contact Us For Availability
26
BODY DISPENSER, WETTING AGENT WPL Y0806753 Contact Us For Availability
26
GUIDE, COUNTERBALANCE, R.H. WPL Y0807471 Contact Us For Availability
27
WELD ASSEMBLY, HINGE WPL 0807848 Contact Us For Availability
27
DOOR PANEL TRIM, LH WPL 0808991 Contact Us For Availability
27
IMPELLER, HOUSING KIT WPL Y0809119 Contact Us For Availability
28
SUPPORT CHANNEL WPL 0808670 Contact Us For Availability
28
PLUNGER WPL 0806757 Contact Us For Availability
28
SCREW, PUMP HOUSING WPL 0807359 Contact Us For Availability
28
USE M0281003 WPL 0803346 Contact Us For Availability
29
POWER CORD WPL Y0808395 Contact Us For Availability
29
BI-METAL ASSY WPL Y0809109 Contact Us For Availability
29
BEARING WPL Y0809046 Contact Us For Availability
29
TUB & GASKET ASSY WPL 0809347 Contact Us For Availability
30
SPRAY ARM BOLT WPL Y0809018 Contact Us For Availability
30
NUT PLASTIC WPL 0805669 Contact Us For Availability
31
FILL PLUG WPL Y0807673 Contact Us For Availability
31
SPRAY ARM WPL 0808177 Contact Us For Availability
31
WASHER WPL Y0803573 Contact Us For Availability
32
GROMMET, MOUNTING WPL 0805631 Contact Us For Availability
32
TOWER BASE WPL Y0808178 Contact Us For Availability
32
WATER INLET ASSY WPL Y0806470 Contact Us For Availability
33
DOOR PANEL TRIM, RH WPL 0808990 Contact Us For Availability
33
OVERLAY, CONTROL PANEL WPL 0808197 Contact Us For Availability
33
TUBE, INLET WPL 0807891 Contact Us For Availability
34
DOOR & ACCESS PANEL INSERT,ALM WPL 0808908 Contact Us For Availability
34
DOOR & ACCESS PNL INSERTS HARV WPL 0808912 Contact Us For Availability
34
DOOR AND ACCESS PANEL INSERTS WPL 0808914 Contact Us For Availability
34
TOWER TIP WPL Y0808180 Contact Us For Availability
34
CLAMP WPL Y0807813 Contact Us For Availability
35
SCREW WPL Y0809022 Contact Us For Availability
35
NUT, CAGE WPL 0806291 Contact Us For Availability
36
DOOR TRIM, BOTTOM WPL Y0807347 Contact Us For Availability
36
TWIN NUT ASSEM. WPL 0807038 Contact Us For Availability
38
TRIM, TOP, ACCESS PANEL WPL 0808346 Contact Us For Availability
39
TRIM, ACC SIDE WPL 0808103 Contact Us For Availability
40
ACCESS PANEL TRIM, BOTTOM WPL Y0808105 Contact Us For Availability
NI
TUB INSULATION WPL 0809113 Contact Us For Availability
× ![]()
