Model Whirlpool DU980QPDZ2 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

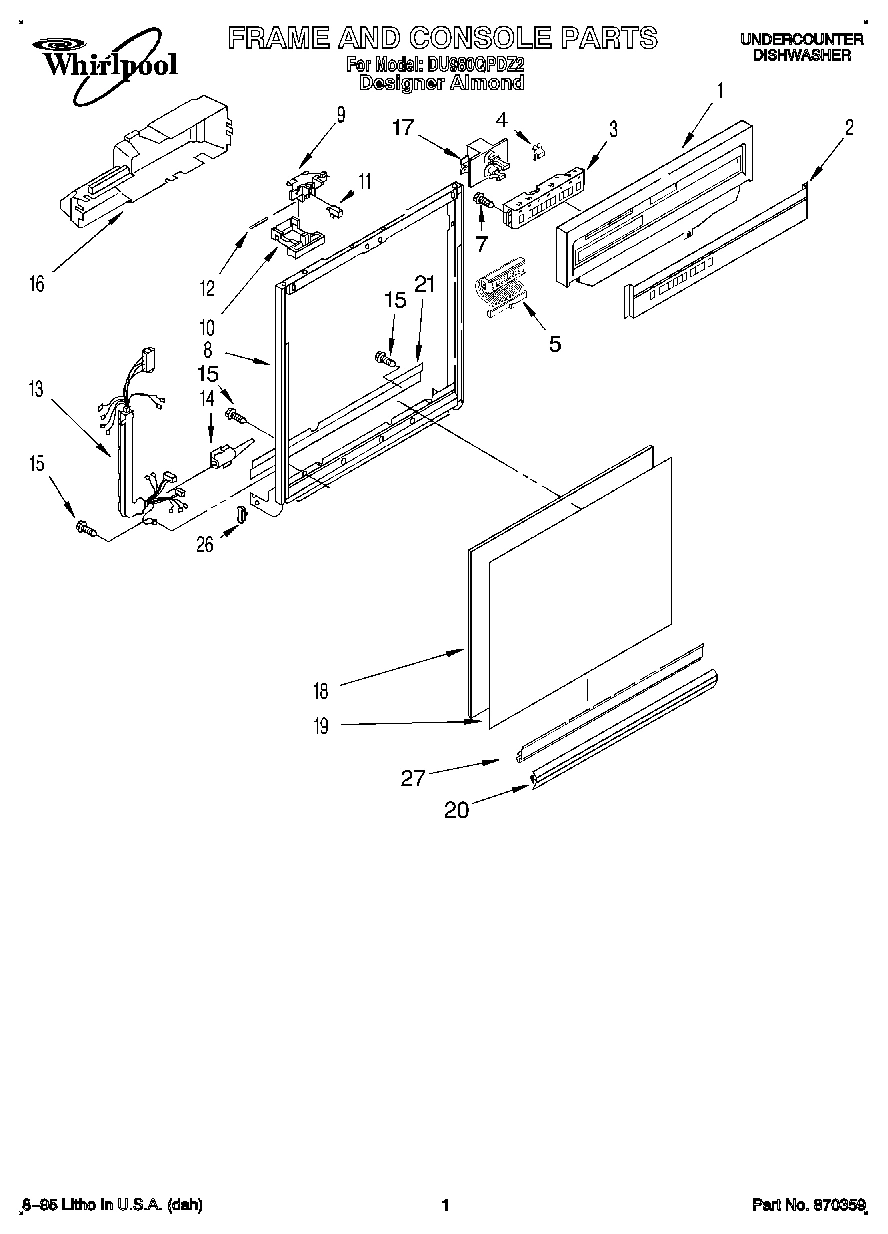

01 - FRAME AND CONSOLE

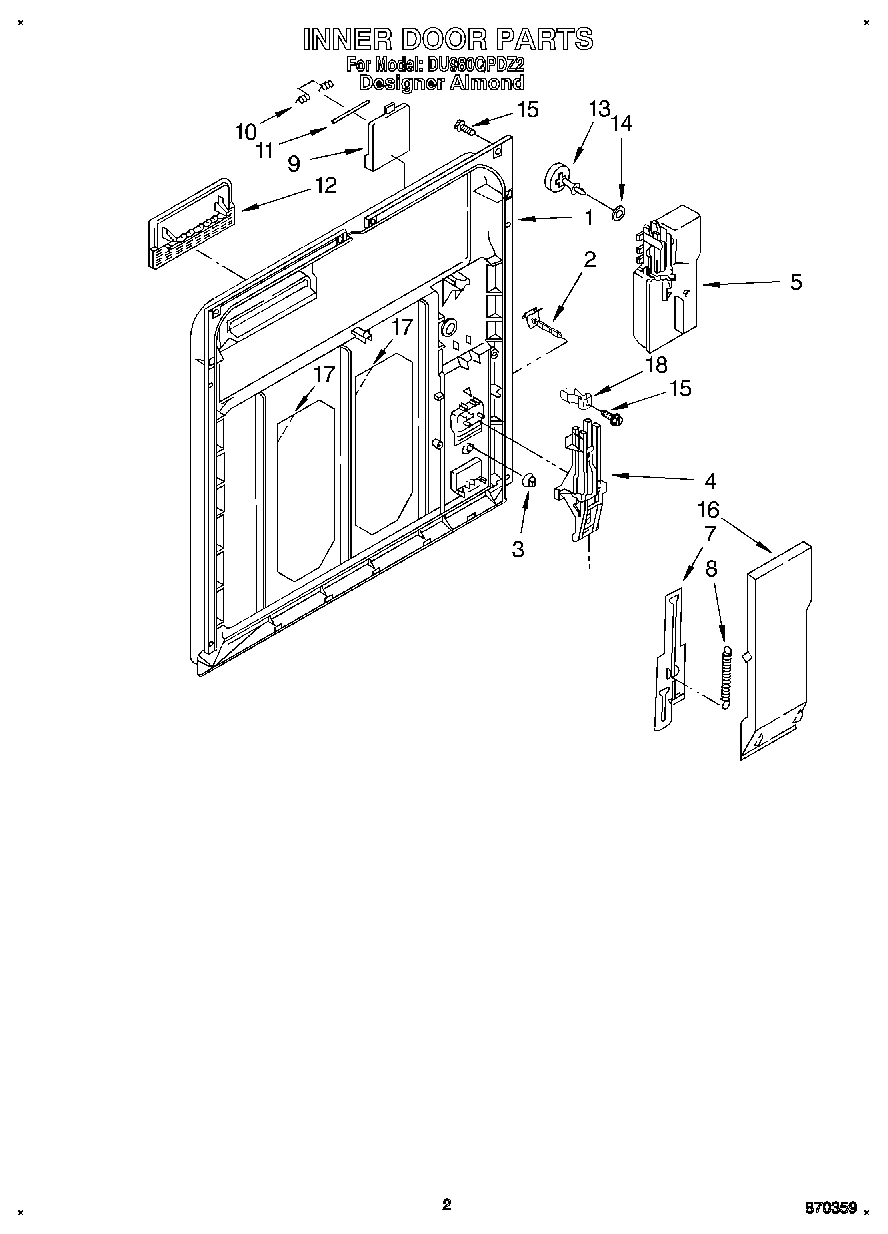

02 - INNER DOOR

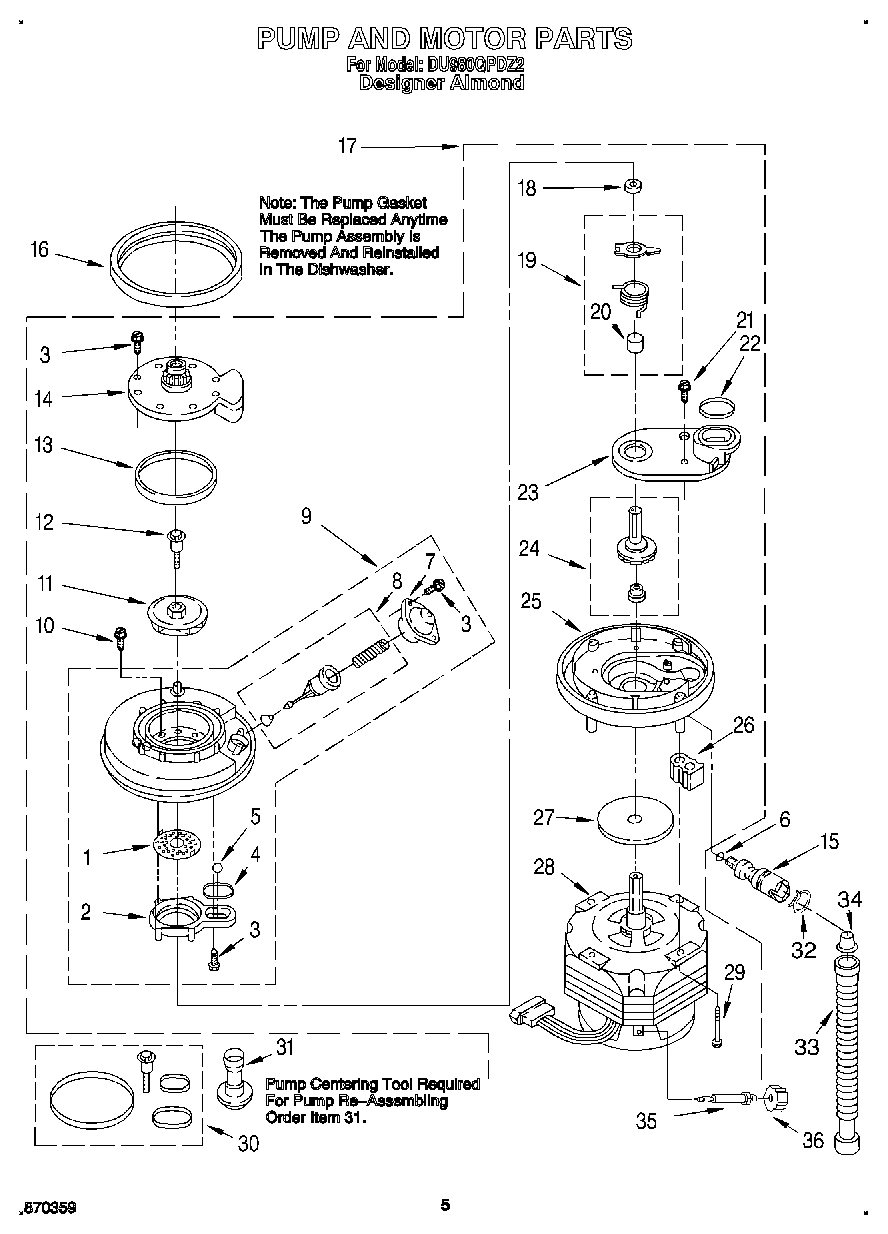

04 - PUMP AND MOTOR

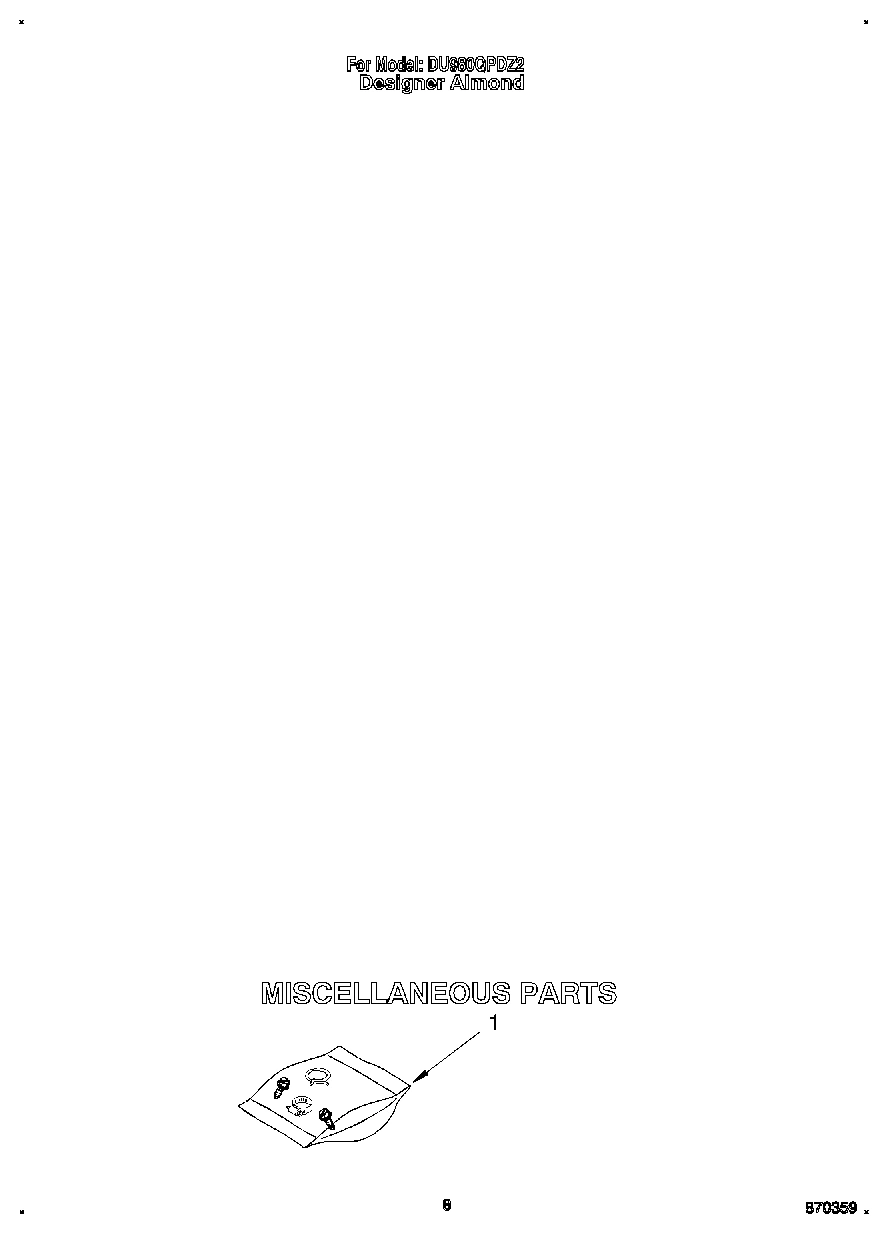

06 - MISCELLANEOUS

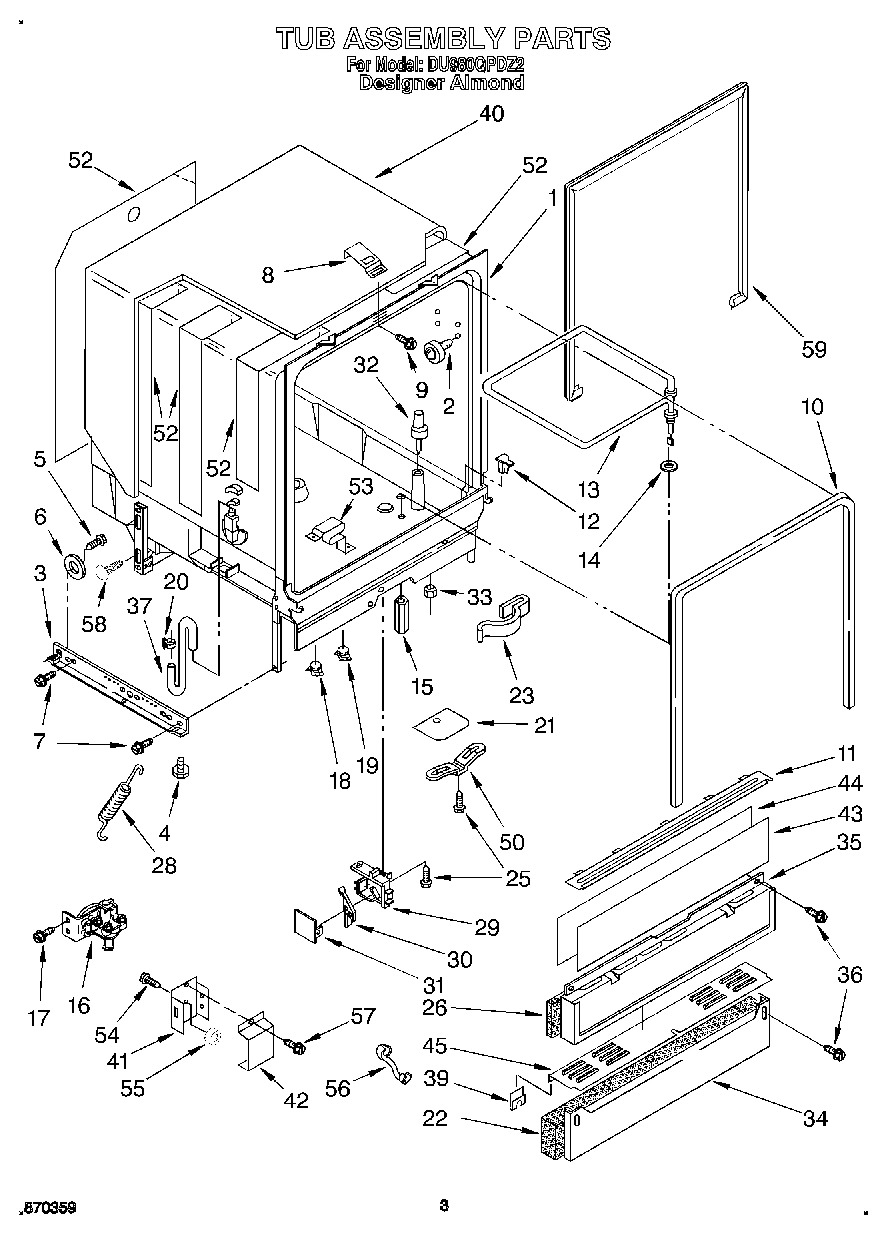

03 - TUB ASSEMBLY

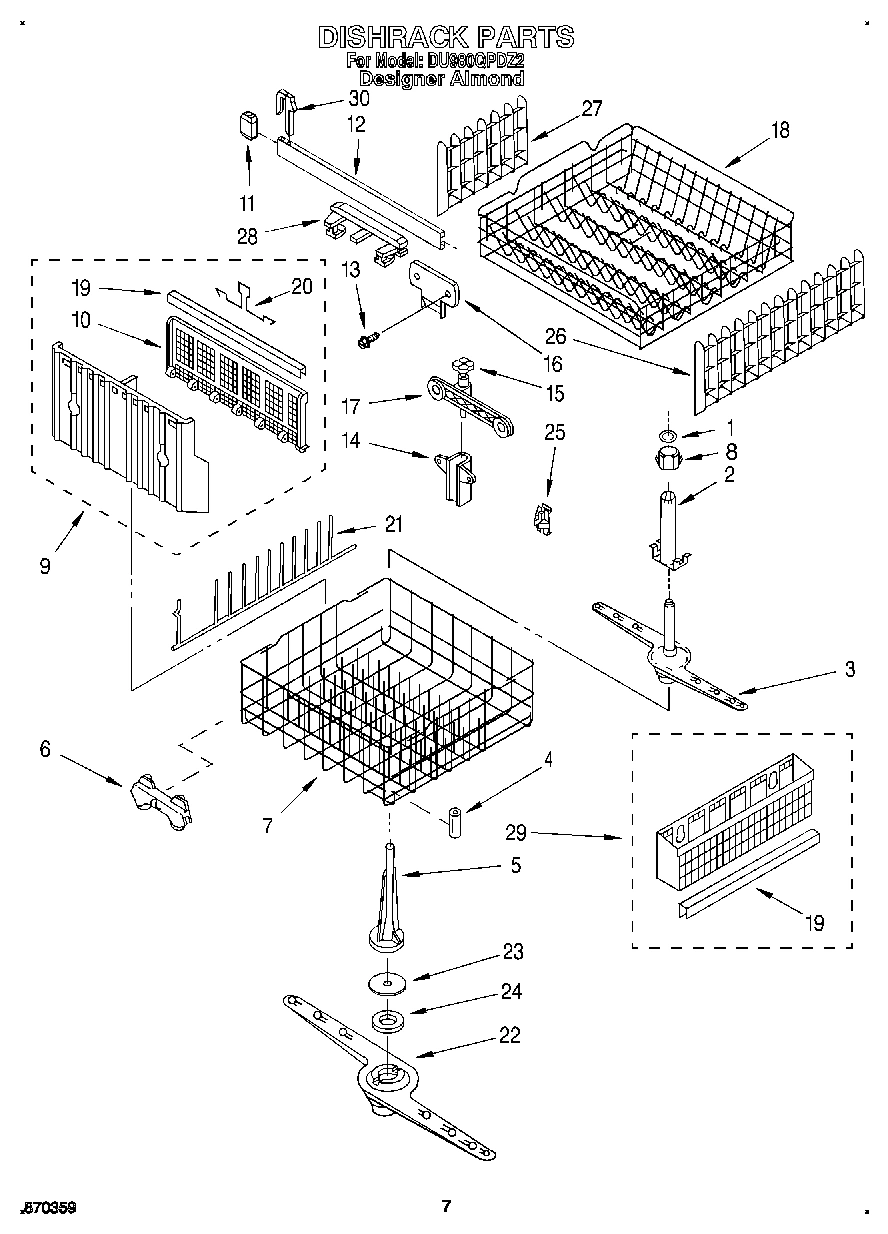

05 - DISHRACK, LIT/OPTIONAL
Common parts from model Whirlpool DU980QPDZ2 UNDERCOUNTER DISHWASHER
WPL LIT3367007 WPL LIT3367007 Contact Us For Availability
WPL LIT3369685 WPL LIT3369685 Contact Us For Availability
WPL LIT3373484 WPL LIT3373484 Contact Us For Availability
WPL LIT3373755 WPL LIT3373755 Contact Us For Availability
WPL LIT3374754 WPL LIT3374754 Contact Us For Availability
WPL LIT3374766 WPL LIT3374766 Contact Us For Availability
WPL LIT677967 WPL LIT677967 Contact Us For Availability
1
Clip WPL 303722 Contact Us For Availability
1
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability
1
Tub Assembly WPL 3375130 Contact Us For Availability
2
Support, Arm (Also Order Items 1 & 8) WPL 3368290 Contact Us For Availability
2
Tub, Wheel Assembly (8) WPL 3369078 Contact Us For Availability
3
Runner (2) WPL 3368932 Contact Us For Availability
3
Spray Arm, Upper (Also Order Items 1 & 8) WPL 3368300 Contact Us For Availability
5
Screw, Shoulder (2) WPL 3370389 Contact Us For Availability
5
Tower, Pressure WPL 300848 Contact Us For Availability
6
Wheel (2) WPL 302819 Contact Us For Availability
7
Draw Bar, Electronic WPL 3369448 Contact Us For Availability
8
Support, Lock Spray Arm WPL 3374702 Contact Us For Availability
8
Plate, Latch WPL 3374719 Contact Us For Availability
9
Silverware Basket Assembly WPL 3369488 Contact Us For Availability
10
Cover, Basket WPL 3369485 Contact Us For Availability
11
End Cap (Front or Rear) WPL 300845 Contact Us For Availability
11
Retainer, Access Panel WPL 3372414 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
12
Track WPL 3369071 Contact Us For Availability
13
Heater WPL 3375558 Contact Us For Availability
15
Nut (2) (Heater Terminal) WPL 3369073 Contact Us For Availability
15
Worm (2) WPL 3369981 Contact Us For Availability
16
Gasket, Pump WPL 717000 Contact Us For Availability
16
Water Valve WPL 3374621 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
17
Motor, Dual WPL 3374501 Contact Us For Availability
19
Thermostat, Operating WPL 3373359 Contact Us For Availability
19
Trim, Basket WPL 717528 Contact Us For Availability
20
Handle, Basket WPL 300086 Contact Us For Availability
21
Shield, Thermostat WPL 3376149 Contact Us For Availability
22
Sprayarm, Lower WPL 3369347 Contact Us For Availability
23
Cap, Nozzle WPL 3367910 Contact Us For Availability
24
Bearing, Nozzle WPL 719576 Contact Us For Availability
25
Retainer, Flexrow WPL 3368629 Contact Us For Availability
26
Sound Shield WPL 3374767 Contact Us For Availability
26
Cupshelf, Large (2) WPL 3371265 Contact Us For Availability
28
Motor (Includes Item 27) (Also Order Item 30) WPL 3375481 Contact Us For Availability
29
Screw (4) WPL 3369331 Contact Us For Availability
29
Housing, Float Switch WPL 3375563 Contact Us For Availability
29
Basket, Utensil (Includes Item 19) WPL 3369494 Contact Us For Availability
30
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability
30
Switch, Float WPL 3369067 Contact Us For Availability
30
Stop, Track (2) WPL 3374701 Contact Us For Availability
30
Side Panel Kit (White) WPL 4317925 Contact Us For Availability
30
Avocado WPL 4317926 Contact Us For Availability
30
Gold WPL 4317927 Contact Us For Availability
30
Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability
30
Toast WPL 4317930 Contact Us For Availability
30
Platinum WPL 4317931 Contact Us For Availability
30
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
30
WPL 799340 WPL 799340 Contact Us For Availability
30
WPL 978883 WPL 978883 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
31
Cover, Switch Housing WPL 3375564 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
34
Toe Panel WPL 9742862 Contact Us For Availability
35
Shaft, Absorb WPL 3374757 Contact Us For Availability
36
WPL 3374756 WPL 3374756 Contact Us For Availability
37
Hose, Inlet WPL 3369414 Contact Us For Availability
39
Clip, Grounding WPL 3374718 Contact Us For Availability
41
Box, Terminal WPL 3370292 Contact Us For Availability
42
COVER ASSEMBLY TERMINAL BOX WPL 300068 Contact Us For Availability
43
Panel, Front (Almond/Black) WPL 3369527 Contact Us For Availability
44
Spacer, Corrugated WPL 3369526 Contact Us For Availability
45
Extension & Clip Assembly WPL 3374728 Contact Us For Availability
50
Bracket, Thermostat WPL 3370555 Contact Us For Availability
52
Damper, Tub side (6) WPL 3374773 Contact Us For Availability
52
Damper, Tub (Back) WPL 3374774 Contact Us For Availability
53
Support, Heater WPL 3368987 Contact Us For Availability
56
Relief, Strain WPL 3370307 Contact Us For Availability
57
Screw, 8-18 WPL 3369138 Contact Us For Availability
59
Seal, Enclosure WPL 3374768 Contact Us For Availability
× ![]()
