Model Whirlpool DU9700XY0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
02 - FRAME AND CONSOLE
04 - TUB ASSEMBLY

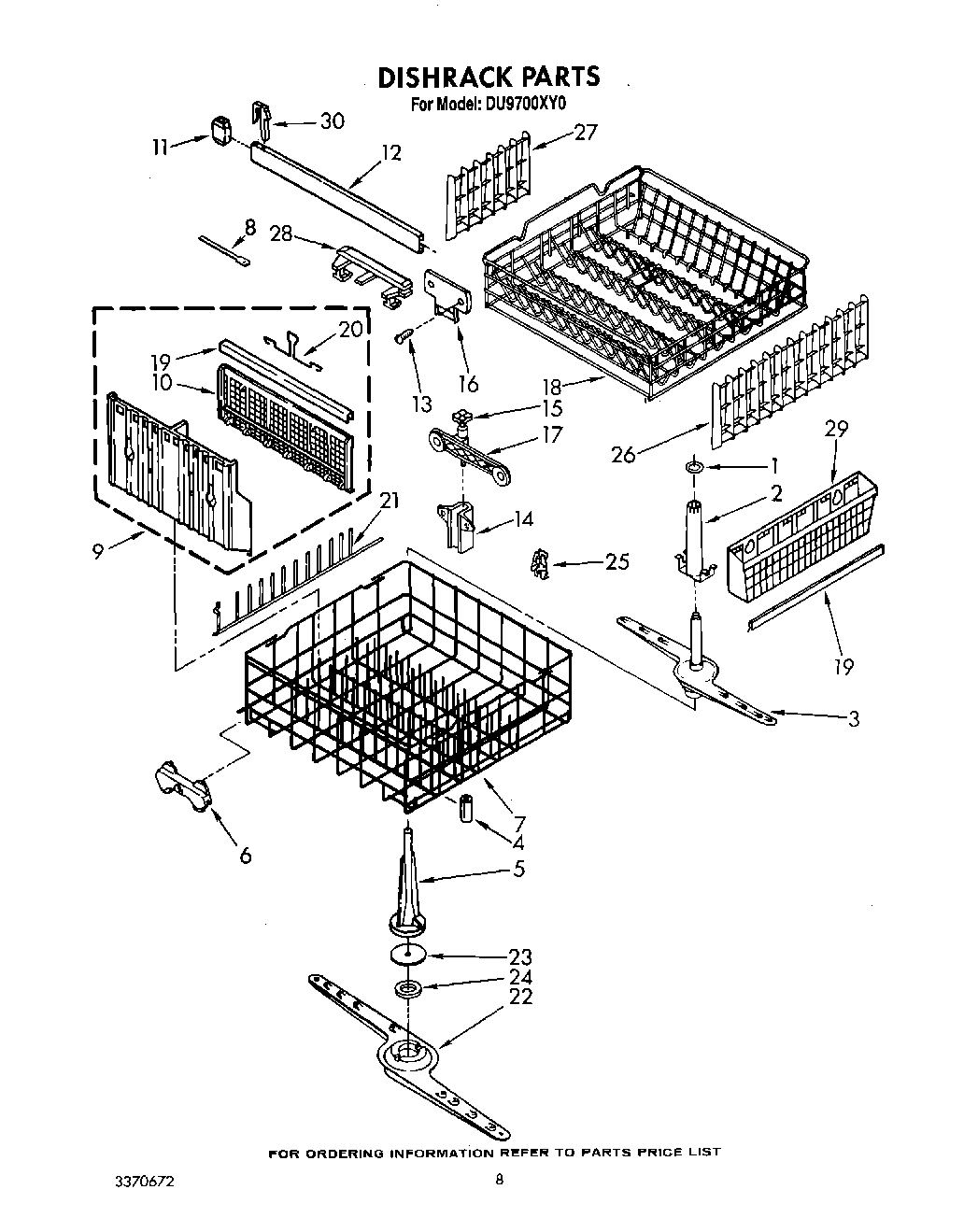

06 - DISHRACK, LIT/OPTIONAL

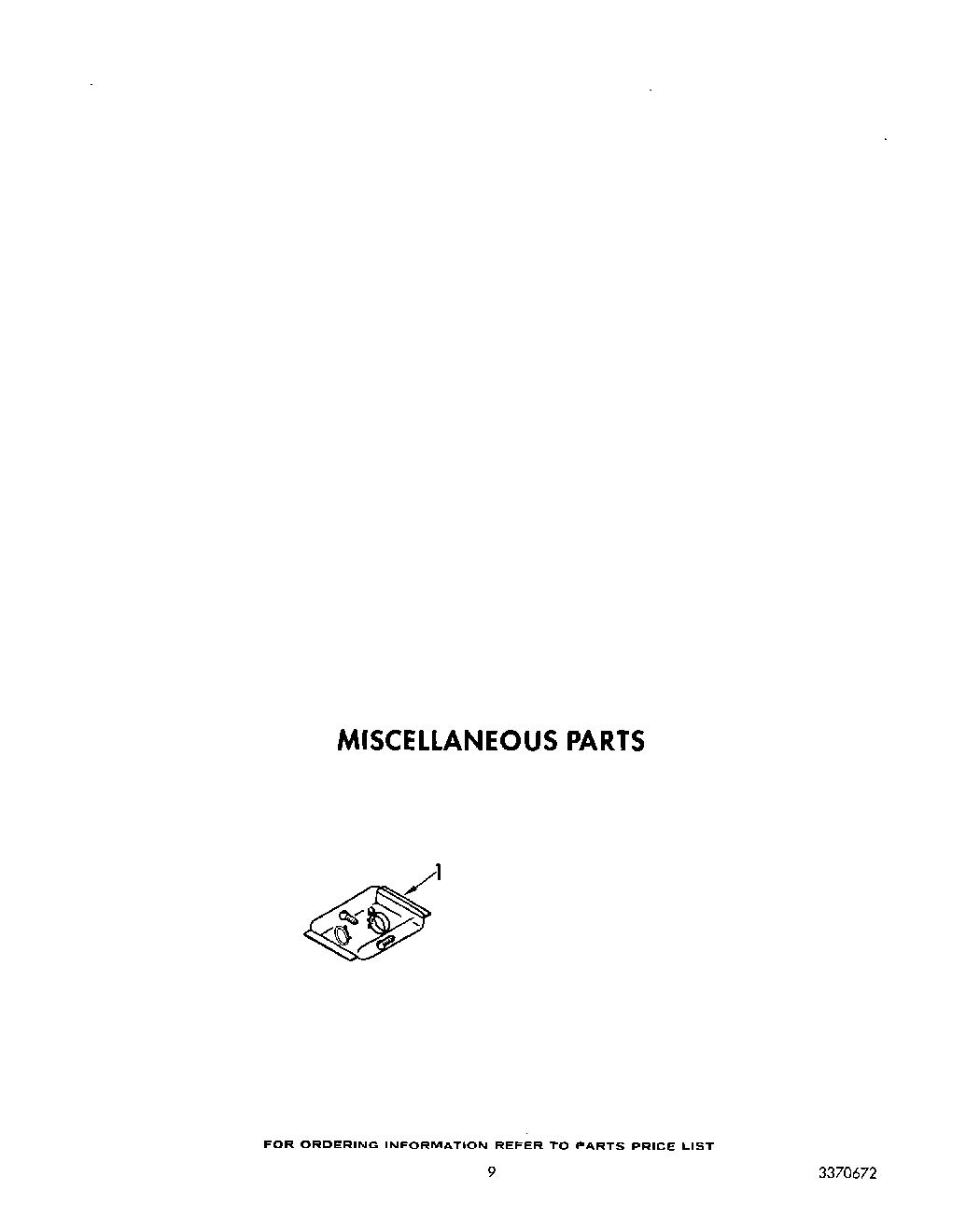

07 - MISCELLANEOUS

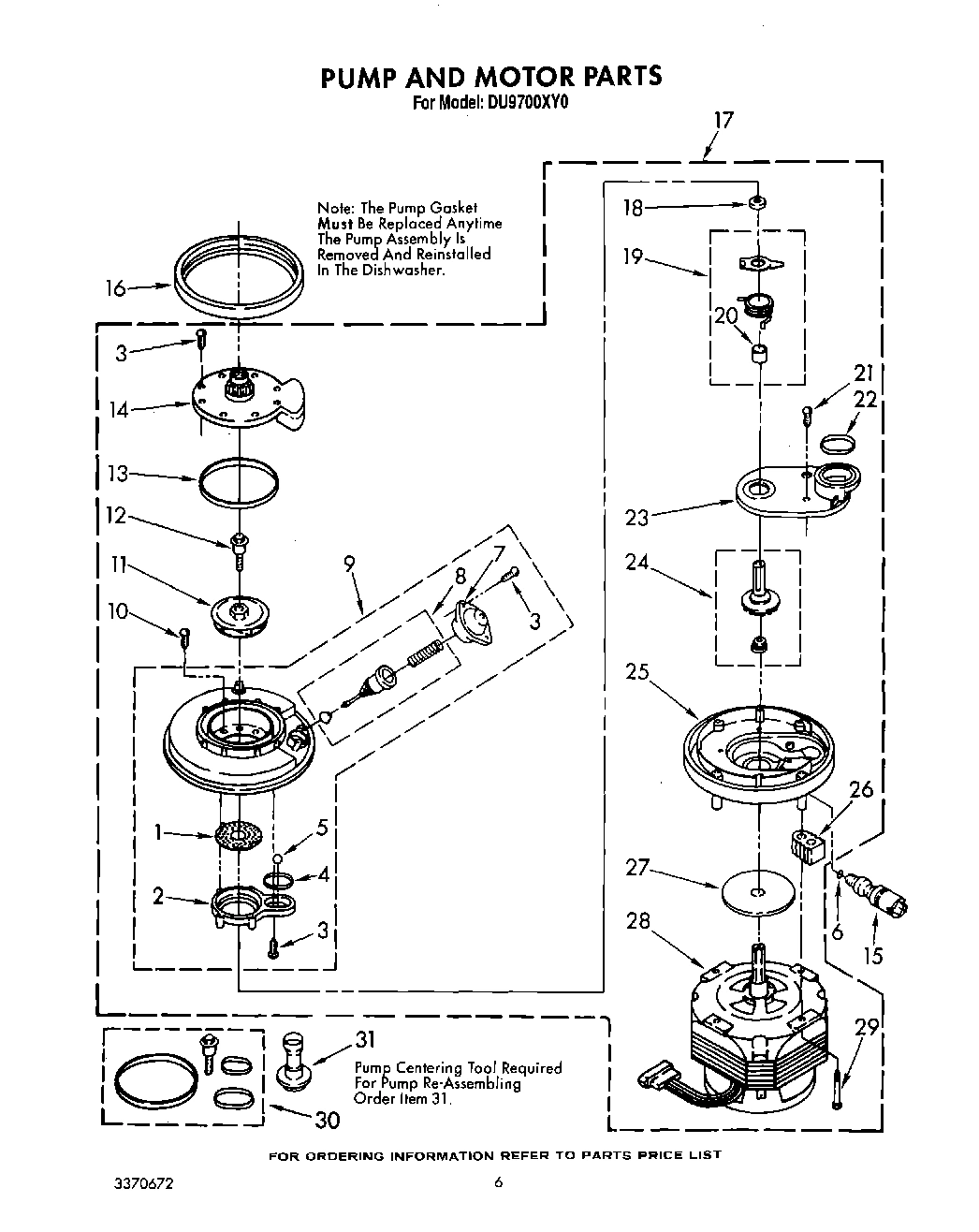

05 - PUMP AND MOTOR

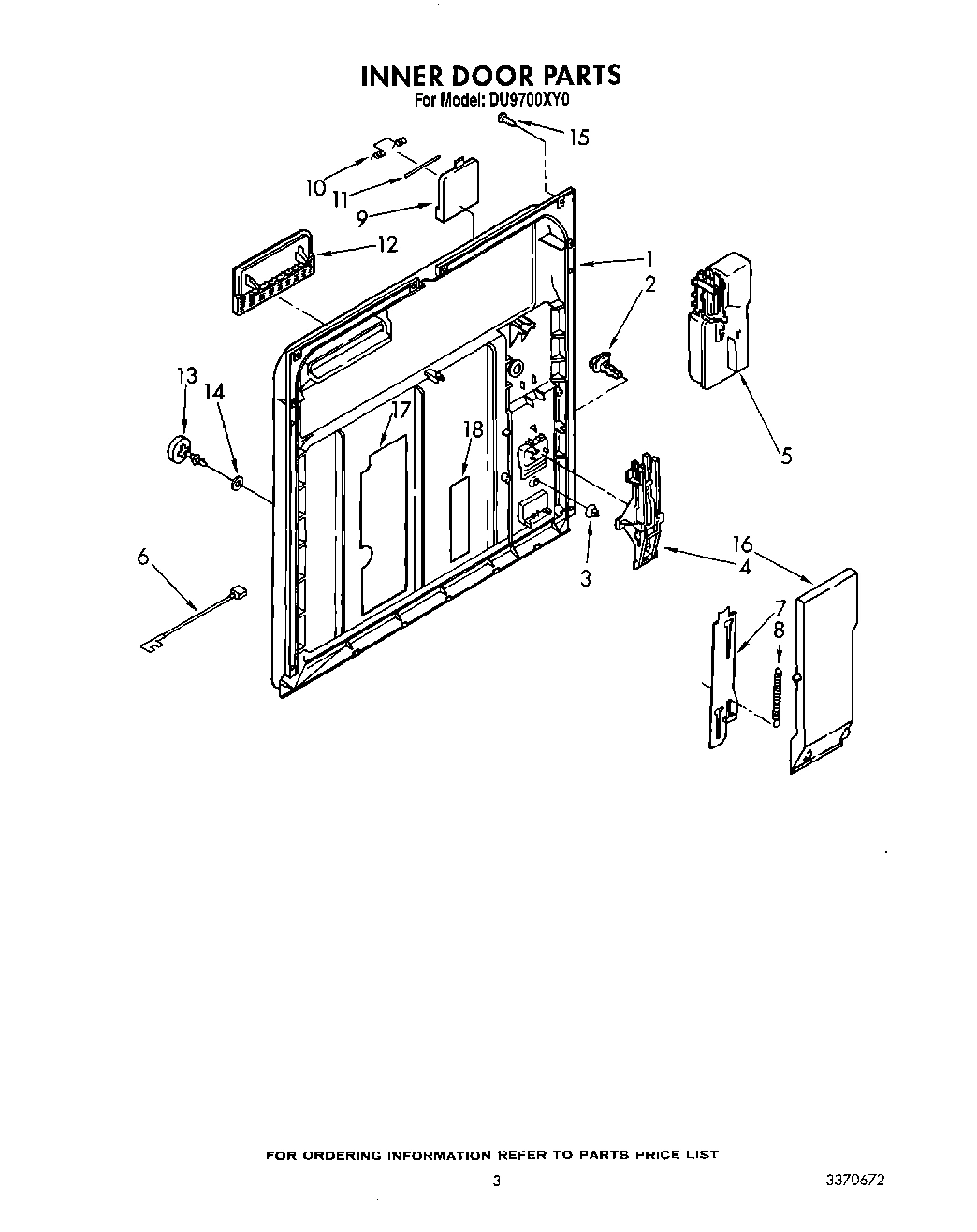

03 - INNER DOOR
Common parts from model Whirlpool DU9700XY0 UNDERCOUNTER DISHWASHER
Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability
WPL LIT3369263 WPL LIT3369263 Contact Us For Availability
WPL LIT3369671 WPL LIT3369671 Contact Us For Availability
WPL LIT3370539 WPL LIT3370539 Contact Us For Availability
WPL LIT3370672 WPL LIT3370672 Contact Us For Availability
WPL LIT3372181 WPL LIT3372181 Contact Us For Availability
1
Clip WPL 303722 Contact Us For Availability
1
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability
1
Plate, Perforated (Includes Item 5) (Also Ord WPL 302720 Contact Us For Availability
1
Inner Door (Also Order Latch Door Kit 676413) WPL 3371480 Contact Us For Availability
2
Support, Arm WPL 3368290 Contact Us For Availability
2
Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability
3
Spray Arm, Upper WPL 3368300 Contact Us For Availability
5
Tower, Pressure WPL 300848 Contact Us For Availability
5
Ball, Check WPL 302709 Contact Us For Availability
6
Wheel (2) WPL 302819 Contact Us For Availability
6
``O`` Ring WPL 95080 Contact Us For Availability
6
Thermistor and Clip Assembly WPL 3370710 Contact Us For Availability
7
Draw Bar, Electronic WPL 3369448 Contact Us For Availability
7
Cover, Valve WPL 302721 Contact Us For Availability
8
Clip, Strap WPL 3370075 Contact Us For Availability
8
Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability
9
Silverware Basket Assembly WPL 3369488 Contact Us For Availability
9
Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability
10
Cover, Basket WPL 3369485 Contact Us For Availability
10
Screw, 8-18 x 1-5/8 (4) WPL 302717 Contact Us For Availability
11
End Cap (Front or Rear) WPL 300845 Contact Us For Availability
12
Track WPL 3369071 Contact Us For Availability
13
Heater WPL 3369416 Contact Us For Availability
14
Outlet, Pump (Includes Item 13) WPL 3369478 Contact Us For Availability
15
Nut (2) (Heater Terminal) WPL 3369073 Contact Us For Availability
15
Worm (2) WPL 3369981 Contact Us For Availability
16
Gasket, Pump WPL 717000 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
16
Water Valve WPL 3371817 Contact Us For Availability
17
Pump & Motor Assembly (Includes Item 16) WPL 3369475 Contact Us For Availability
17
Pad, Insulation (Left) WPL 3371544 Contact Us For Availability
18
Spacer, Corrugated WPL 3368979 Contact Us For Availability
18
Bushing, Grind WPL 302707 Contact Us For Availability
18
Pad, Insulation (Right) WPL 3371545 Contact Us For Availability
19
Trim, Basket WPL 717528 Contact Us For Availability
20
Retainer, Panel WPL 3370441 Contact Us For Availability
20
Handle, Basket WPL 300086 Contact Us For Availability
20
Sleeve, Drain Impeller WPL 302705 Contact Us For Availability
22
Retainer, Shield WPL 3369775 Contact Us For Availability
22
Sprayarm, Lower WPL 3369347 Contact Us For Availability
22
Seal, Drain Cover WPL 302704 Contact Us For Availability
23
Cap, Nozzle WPL 3367910 Contact Us For Availability
23
Cover, Drain (Also Order Item 30) See Note A. WPL 302723 Contact Us For Availability
24
Bearing, Nozzle WPL 719576 Contact Us For Availability
24
Relay WPL 3369447 Contact Us For Availability
25
Retainer, Flexrow WPL 3368629 Contact Us For Availability
25
Base, Pump (Includes Item 24) (Also Order Ite WPL 3367204 Contact Us For Availability
26
Sound Shield WPL 3369617 Contact Us For Availability
26
Cupshelf, Large (2) WPL 3371265 Contact Us For Availability
27
Shield, Harness WPL 3368983 Contact Us For Availability
28
Spring & Bearing Assembly (2) WPL 3370939 Contact Us For Availability
28
Motor (Includes Item 27) (Also Order Item 30) WPL 3369472 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
29
Basket, Utensil (Includes Item 19) WPL 3369494 Contact Us For Availability
29
Screw (4) WPL 3369331 Contact Us For Availability
30
Switch, Float WPL 3369067 Contact Us For Availability
30
Stop, Track (2) WPL 3369046 Contact Us For Availability
30
Leveler (Thinner) WPL 350941 Contact Us For Availability
30
Side Panel Kit (White) WPL 4317925 Contact Us For Availability
30
Avocado WPL 4317926 Contact Us For Availability
30
Gold WPL 4317927 Contact Us For Availability
30
Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability
30
Toast WPL 4317930 Contact Us For Availability
30
Platinum WPL 4317931 Contact Us For Availability
30
Vinyl Touch Up (Blue) WPL 675476 Contact Us For Availability
30
Tine Tip Repair Kit (Blue-Enough For Two Comp WPL 675506 Contact Us For Availability
30
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
30
Black (Uncut) WPL 799340 Contact Us For Availability
30
Almond (Uncut) WPL 978883 Contact Us For Availability
30
Pump Seal Kit (Includes Items 4, 12 WPL 675505 Contact Us For Availability
31
WPL 303918 WPL 303918 Contact Us For Availability
31
Cover, Switch Housing WPL 3369049 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
37
Hose, Inlet WPL 3369414 Contact Us For Availability
40
Sound Shield WPL 3369771 Contact Us For Availability
41
Terminal Block & Plug Assembly WPL 3369332 Contact Us For Availability
42
Cover Assembly, Terminal Box WPL 3369357 Contact Us For Availability
43
Panel, Front (Almond/Black) WPL 3369527 Contact Us For Availability
44
Spacer, Corrugated WPL 3369526 Contact Us For Availability
45
Extension WPL 3369531 Contact Us For Availability
46
Trim, Side (2) WPL 3369593 Contact Us For Availability
47
Trim, Bottom WPL 3369588 Contact Us For Availability
50
Bracket, Thermostat WPL 3370555 Contact Us For Availability
51
Sound Shield WPL 3370942 Contact Us For Availability
52
Insulation, Pad (Top) WPL 3370940 Contact Us For Availability
52
Insulation, Pad (Rear) WPL 3370941 Contact Us For Availability
52
Insulation, Pad (Center) WPL 3370943 Contact Us For Availability
× ![]()
