Model Whirlpool DU9700XR5 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
03 - DOOR
04 - HEATER, PUMP AND LOWER SPRAY ARM

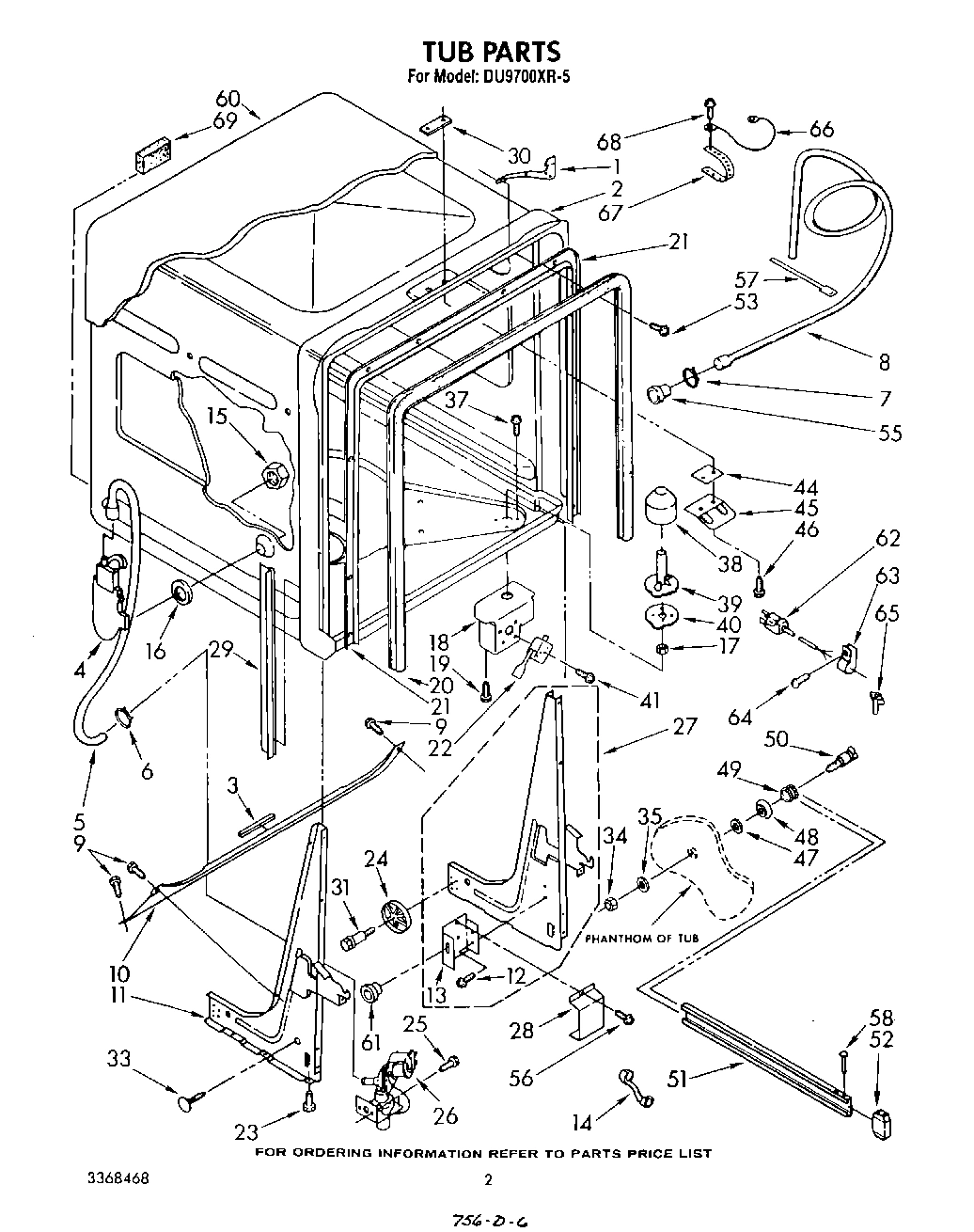

02 - TUB , LITERATURE AND OPTIONAL

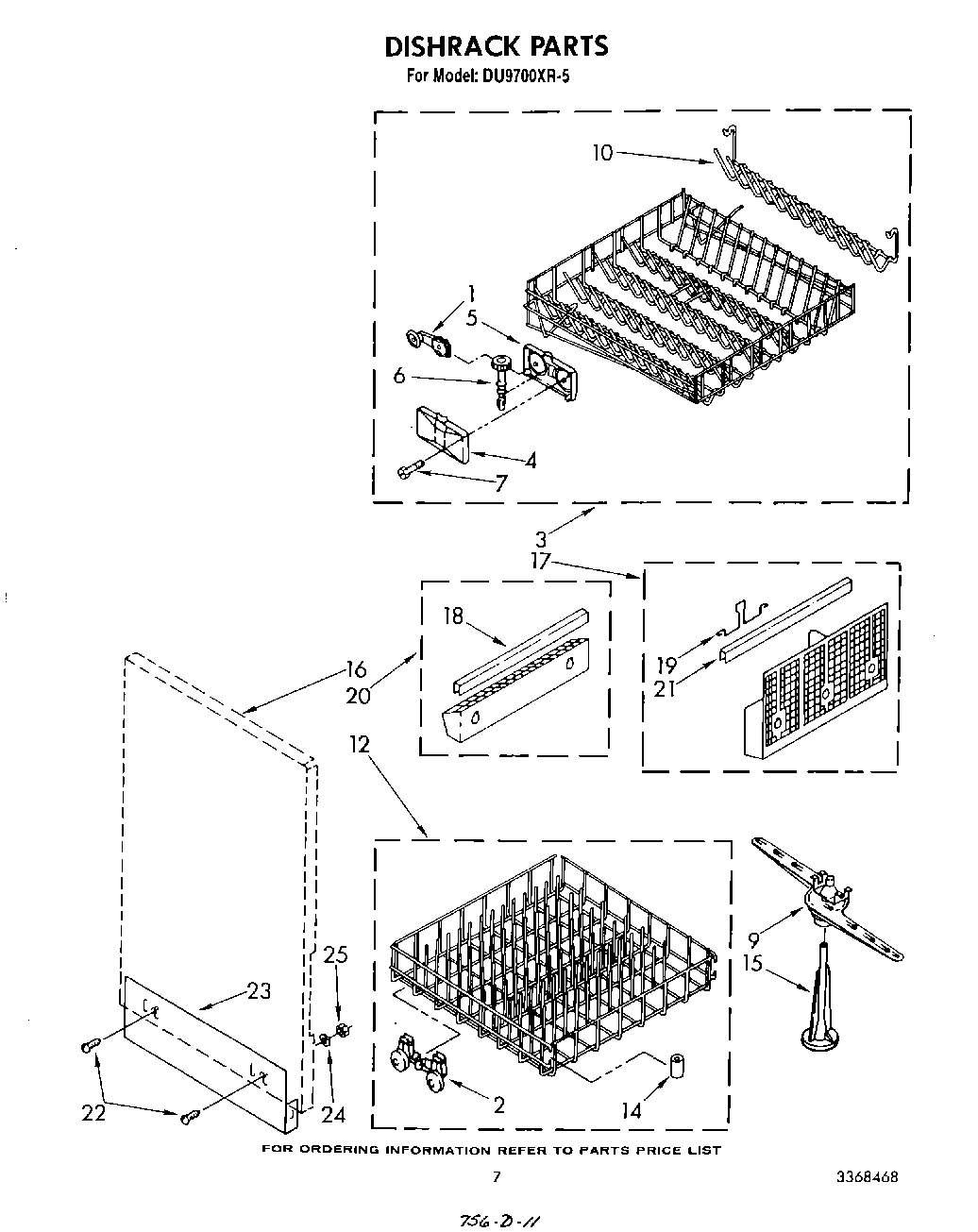

05 - DISHRACK

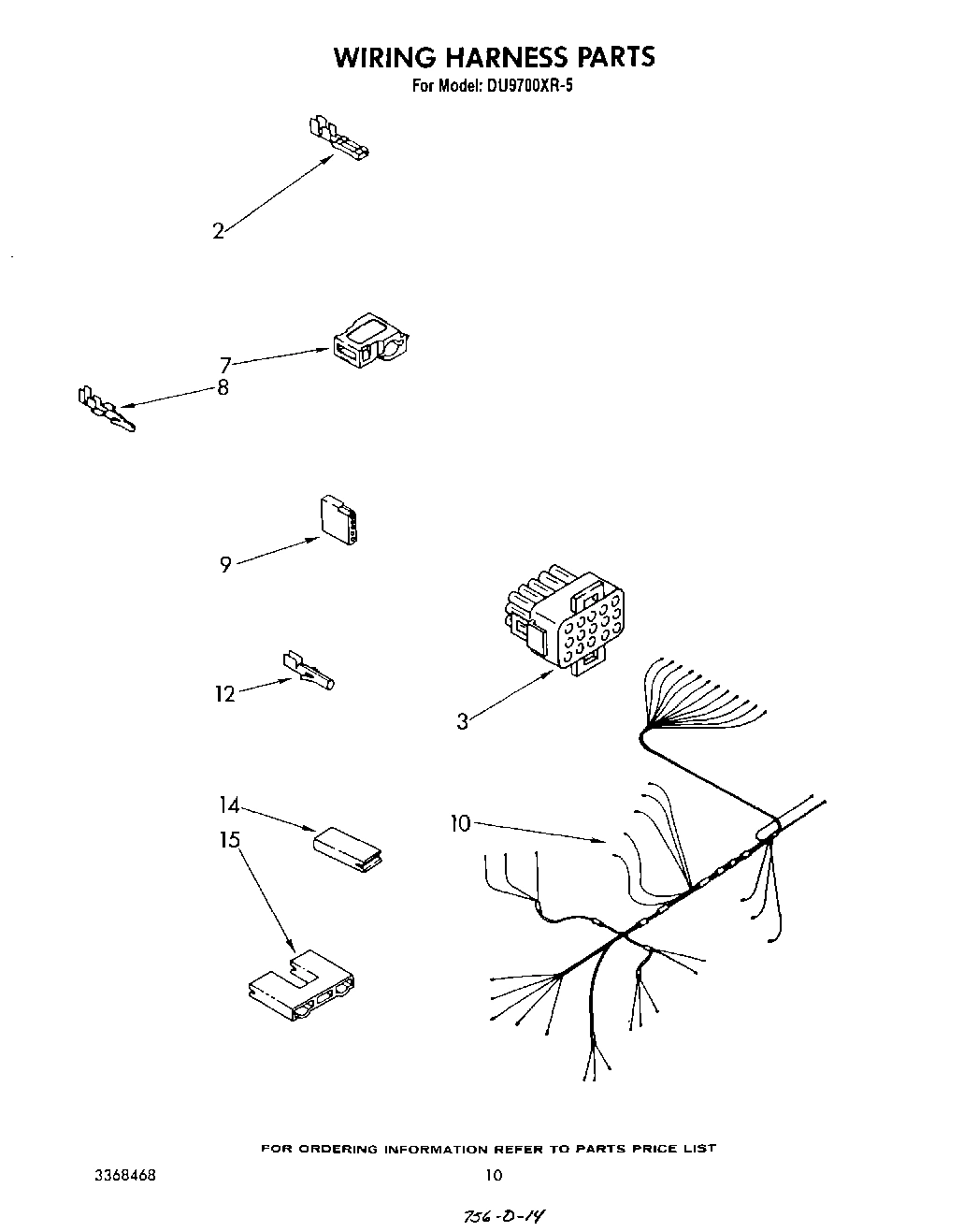

07 - WIRING HARNESS

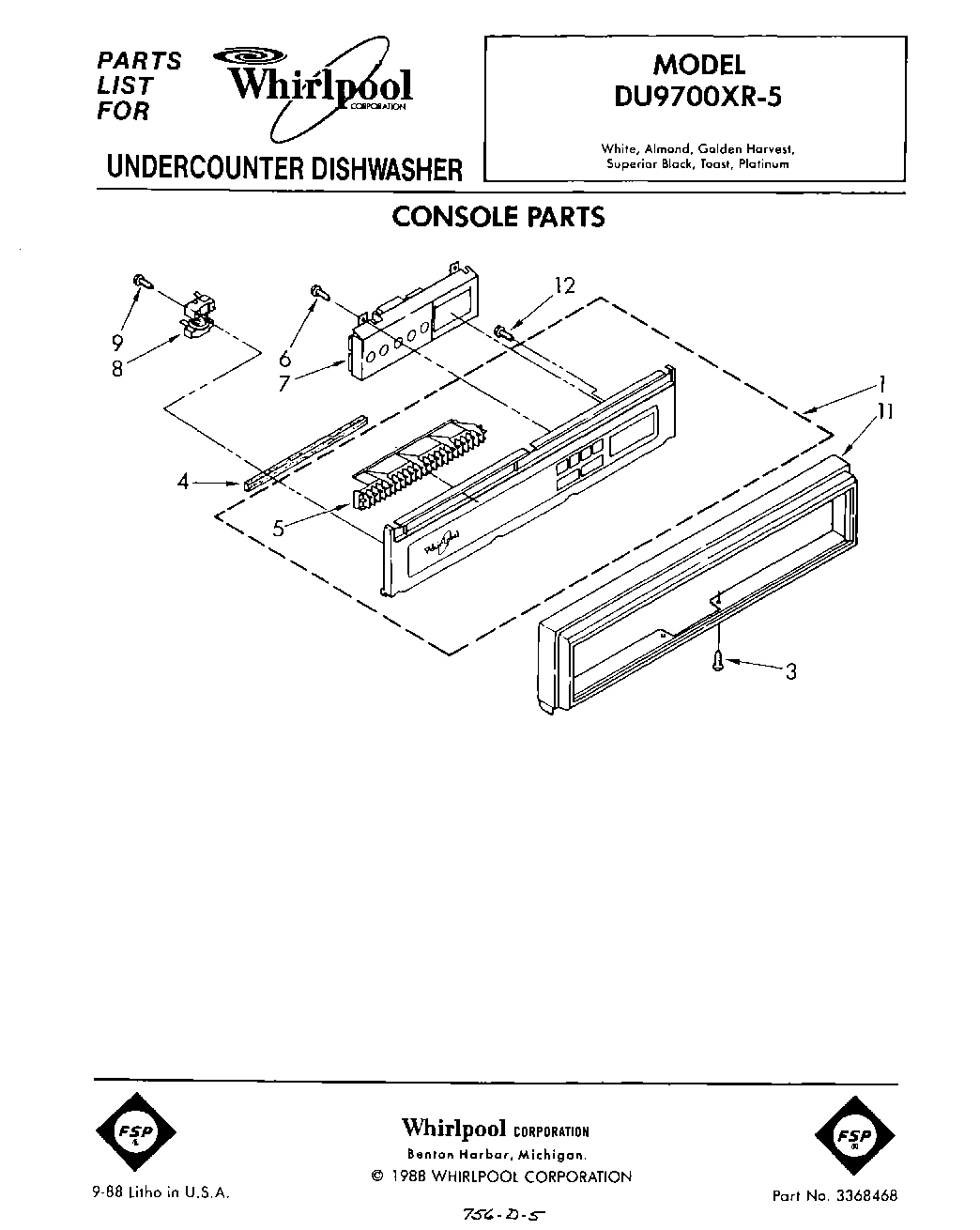

01 - CONSOLE

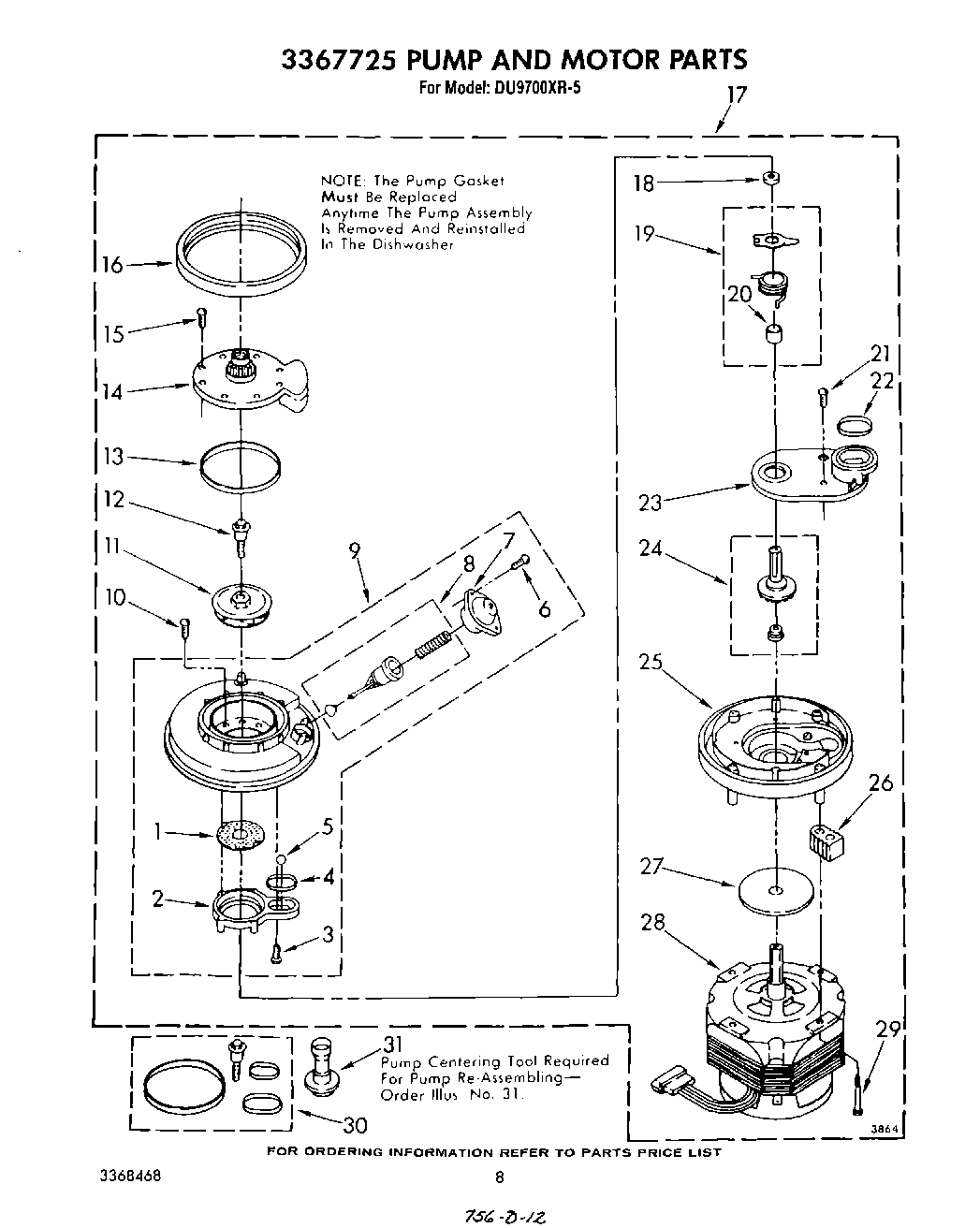

06 - 3367725 PUMP AND MOTOR
Common parts from model Whirlpool DU9700XR5 UNDERCOUNTER DISHWASHER
WPL LIT304297 WPL LIT304297 Contact Us For Availability
WPL LIT304300 WPL LIT304300 Contact Us For Availability
WPL LIT3367007 WPL LIT3367007 Contact Us For Availability
WPL LIT3367228 WPL LIT3367228 Contact Us For Availability
WPL LIT3367558 WPL LIT3367558 Contact Us For Availability
WPL LIT3368468 WPL LIT3368468 Contact Us For Availability
1
Bracket, Mounting (2) WPL 300796 Contact Us For Availability
1
Wheel & Gear Assembly (4) WPL 304200 Contact Us For Availability
1
Console WPL 3367874 Contact Us For Availability
1
Plate, Perforated (Includes Illus. 5) (Also O WPL 302720 Contact Us For Availability
2
Terminal, Female WPL 352088 Contact Us For Availability
2
tub assembly WPL 3367464 Contact Us For Availability
2
Base, Inlet (Includes Illus. 1 & 5) (Also Ord WPL 3367173 Contact Us For Availability
3
Edge Protector WPL 303294 Contact Us For Availability
3
Plug, Terminal WPL 304413 Contact Us For Availability
4
Inlet, Water WPL 300974 Contact Us For Availability
4
Cover, Housing (2) WPL 304202 Contact Us For Availability
4
Seal, Foam WPL 3368537 Contact Us For Availability
5
Hose, Inlet WPL 304670 Contact Us For Availability
5
Housing, Gear (2) WPL 304208 Contact Us For Availability
5
Grill, Vent WPL 304602 Contact Us For Availability
5
Ball, Check WPL 302709 Contact Us For Availability
6
Worm, Dishrack (2) WPL 304203 Contact Us For Availability
7
Insulator, Terminal WPL 344936 Contact Us For Availability
7
Control, Electronic (Alt.) WPL 3367466 Contact Us For Availability
7
Control, Electronic (Alt.) WPL 3368316 Contact Us For Availability
7
Control, Electronic WPL 661547 Contact Us For Availability
7
Cover, Valve WPL 302721 Contact Us For Availability
8
Relay, Start WPL 304409 Contact Us For Availability
8
Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability
9
Receptacle (5-Circuit) WPL 719585 Contact Us For Availability
9
Screw, 8-18 x 1-1/4 Slot Hex Wash Hd WPL 301588 Contact Us For Availability
9
Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability
10
Brace WPL 303111 Contact Us For Availability
10
Shelf, Cup WPL 304744 Contact Us For Availability
10
Harness, Wiring WPL 3368395 Contact Us For Availability
10
Screw, 8-18 x 1-5/8 St. Stl. (4) WPL 302717 Contact Us For Availability
11
Leg & Hinge Assembly, L.H. WPL 3367284 Contact Us For Availability
11
Bezel, Console WPL 304396 Contact Us For Availability
12
Screw, 8-32 x 3/8 Hex Washer Head Slotted Tap WPL 718178 Contact Us For Availability
12
Socket WPL 304412 Contact Us For Availability
12
Screw, 6-32x7/16 WPL 3367296 Contact Us For Availability
13
Box, Terminal WPL 300067 Contact Us For Availability
14
Relief, Strain WPL 717563 Contact Us For Availability
14
Bumper (2) WPL 717970 Contact Us For Availability
14
Connector Block (Alternate) WPL 301219 Contact Us For Availability
14
Connector Block (Alternate) WPL 358736 Contact Us For Availability
14
Outlet, Pump (Includes Illus. 13) WPL 302730 Contact Us For Availability
15
Tower WPL 304170 Contact Us For Availability
15
Nut, 7/8-16 Polypropylene (1) WPL 713799 Contact Us For Availability
15
Connector, Block (Alternate) WPL 300708 Contact Us For Availability
15
Connector Block (Alternate) WPL 374230 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
16
Panel, R.S. Panel, L.S. WPL ARI24893A7 Contact Us For Availability
17
Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability
17
Pump & Motor Assembly WPL 3367725 Contact Us For Availability
17
Silverware Basket WPL 304166 Contact Us For Availability
18
Bracket, Overflow WPL 719342 Contact Us For Availability
18
Bushing, Grind WPL 302707 Contact Us For Availability
19
Screw, 8 x 1/2 Hi-Lo Blunt Point (3) WPL 718250 Contact Us For Availability
19
Handle, Basket WPL 300086 Contact Us For Availability
20
Gasket, Door WPL 3368007 Contact Us For Availability
20
Utinsil, Basket WPL 304163 Contact Us For Availability
20
Sleeve, Drain Impeller WPL 302705 Contact Us For Availability
21
Retainer & Seal WPL 3368002 Contact Us For Availability
21
Check Ball & Retainer WPL 675488 Contact Us For Availability
21
Trim, Basket WPL 717528 Contact Us For Availability
22
Screw (2) WPL 9419621 Contact Us For Availability
22
Switch, Pressure (Alt.) WPL 301671 Contact Us For Availability
22
Switch, Pressure (Alt.) WPL 301672 Contact Us For Availability
22
Switch, Pressure (Alt.) WPL 304589 Contact Us For Availability
22
Switch, Pressure WPL 660741 Contact Us For Availability
22
Seal, Drain Cover WPL 302704 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
23
Panel, Lower Side WPL 3367549 Contact Us For Availability
23
Cover, Drain (Also Order Illus. No. 30) See N WPL 302723 Contact Us For Availability
25
Base, Pump (Includes Illus. 24 & 31) (Also Or WPL 3367204 Contact Us For Availability
26
Valve, Water Inlet (Alt.) WPL 303650 Contact Us For Availability
26
Valve, Water Inlet (Alt.) WPL 300453 Contact Us For Availability
26
Valve, Water Inlet WPL 660995 Contact Us For Availability
27
Leg & Hinge Assembly, R.H. WPL 3367285 Contact Us For Availability
28
Motor (Includes Illus. 24, 27 & 31) (Also Ord WPL 3367726 Contact Us For Availability
29
Retainer, Sound Shield WPL 3368112 Contact Us For Availability
29
WPL 301817 WPL 301817 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
30
WPL 675505 WPL 675505 Contact Us For Availability
31
WPL 303918 WPL 303918 Contact Us For Availability
31
Screw, Shoulder WPL 302818 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Locknut, 10-32 (8) WPL 718829 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
39
Cap, Nozzle WPL 3367198 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
40
Spray Arm, Lower WPL 302767 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
41
Screw, 4-40 x 5/8 Hex Head Slotted Thread Cut WPL 302203 Contact Us For Availability
43
Heater (Alt.) WPL 302113 Contact Us For Availability
43
Heater (Alt.) WPL 302562 Contact Us For Availability
43
Heater WPL 660318 Contact Us For Availability
43
Heater (Alt.) WPL 717141 Contact Us For Availability
43
Heater (Alt.) WPL 719587 Contact Us For Availability
44
Thermistor WPL 304792 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
45
Bracket WPL 3368272 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
46
Nut, 7/16 x 20 (2) WPL 718537 Contact Us For Availability
47
Washer, Retainer (2) WPL 717289 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
48
Support, Heater (2) WPL 717096 Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
49
Washer (2) WPL 711284 Contact Us For Availability
49
Wheel Assembly (8) WPL 300844 Contact Us For Availability
50
Washer (2) WPL 14351 Contact Us For Availability
50
Screw, Shoulder (8) WPL 712499 Contact Us For Availability
51
Nut, 10-32 (2) WPL 120614 Contact Us For Availability
51
Track (2) WPL 303297 Contact Us For Availability
52
Grate WPL 303469 Contact Us For Availability
52
WPL 303299 WPL 303299 Contact Us For Availability
53
Thermostat, Hi Limit WPL 303824 Contact Us For Availability
53
WPL 3368008 WPL 3368008 Contact Us For Availability
55
WPL 301656 WPL 301656 Contact Us For Availability
58
WPL 303298 WPL 303298 Contact Us For Availability
61
WPL 302770 WPL 302770 Contact Us For Availability
62
WPL 302764 WPL 302764 Contact Us For Availability
63
WPL 596553 WPL 596553 Contact Us For Availability
65
WPL 770754 WPL 770754 Contact Us For Availability
66
WPL 303485 WPL 303485 Contact Us For Availability
67
WPL 22965 WPL 22965 Contact Us For Availability
68
WPL 132848 WPL 132848 Contact Us For Availability
69
WPL 261890 WPL 261890 Contact Us For Availability
69
WPL 261891 WPL 261891 Contact Us For Availability
69
WPL 285365 WPL 285365 Contact Us For Availability
69
WPL 285366 WPL 285366 Contact Us For Availability
69
WPL 285367 WPL 285367 Contact Us For Availability
69
WPL 285368 WPL 285368 Contact Us For Availability
69
WPL 3368107 WPL 3368107 Contact Us For Availability
69
WPL 350941 WPL 350941 Contact Us For Availability
69
WPL 675506 WPL 675506 Contact Us For Availability
69
WPL 72112 WPL 72112 Contact Us For Availability
69
WPL 799640 WPL 799640 Contact Us For Availability
69
WPL 978883 WPL 978883 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
81
Shield, Sound (Access WPL 304660 Contact Us For Availability
82
WPL 304661 WPL 304661 Contact Us For Availability
84
WPL 304444 WPL 304444 Contact Us For Availability
85
WPL 304443 WPL 304443 Contact Us For Availability
86
WPL 304391 WPL 304391 Contact Us For Availability
89
WPL 304408 WPL 304408 Contact Us For Availability
90
WPL 301957 WPL 301957 Contact Us For Availability
91
WPL 301857 WPL 301857 Contact Us For Availability
92
WPL 3367288 WPL 3367288 Contact Us For Availability
93
WPL 303362 WPL 303362 Contact Us For Availability
94
WPL 3367720 WPL 3367720 Contact Us For Availability
95
WPL 303090 WPL 303090 Contact Us For Availability
96
WPL 303755 WPL 303755 Contact Us For Availability
97
WPL 303753 WPL 303753 Contact Us For Availability
98
WPL 303754 WPL 303754 Contact Us For Availability
× ![]()
