Model Whirlpool DU940QWDZ3 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

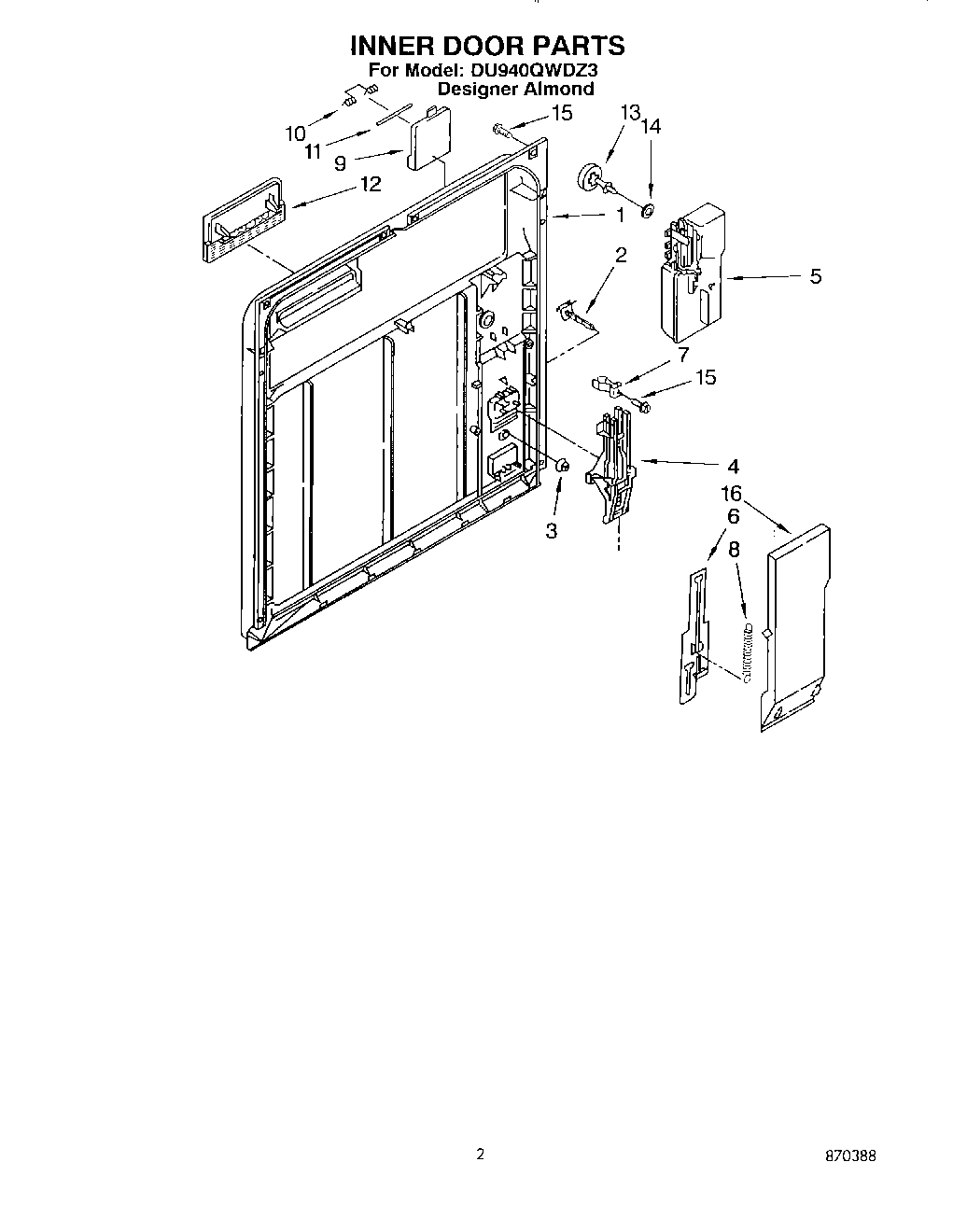

02 - INNER DOOR

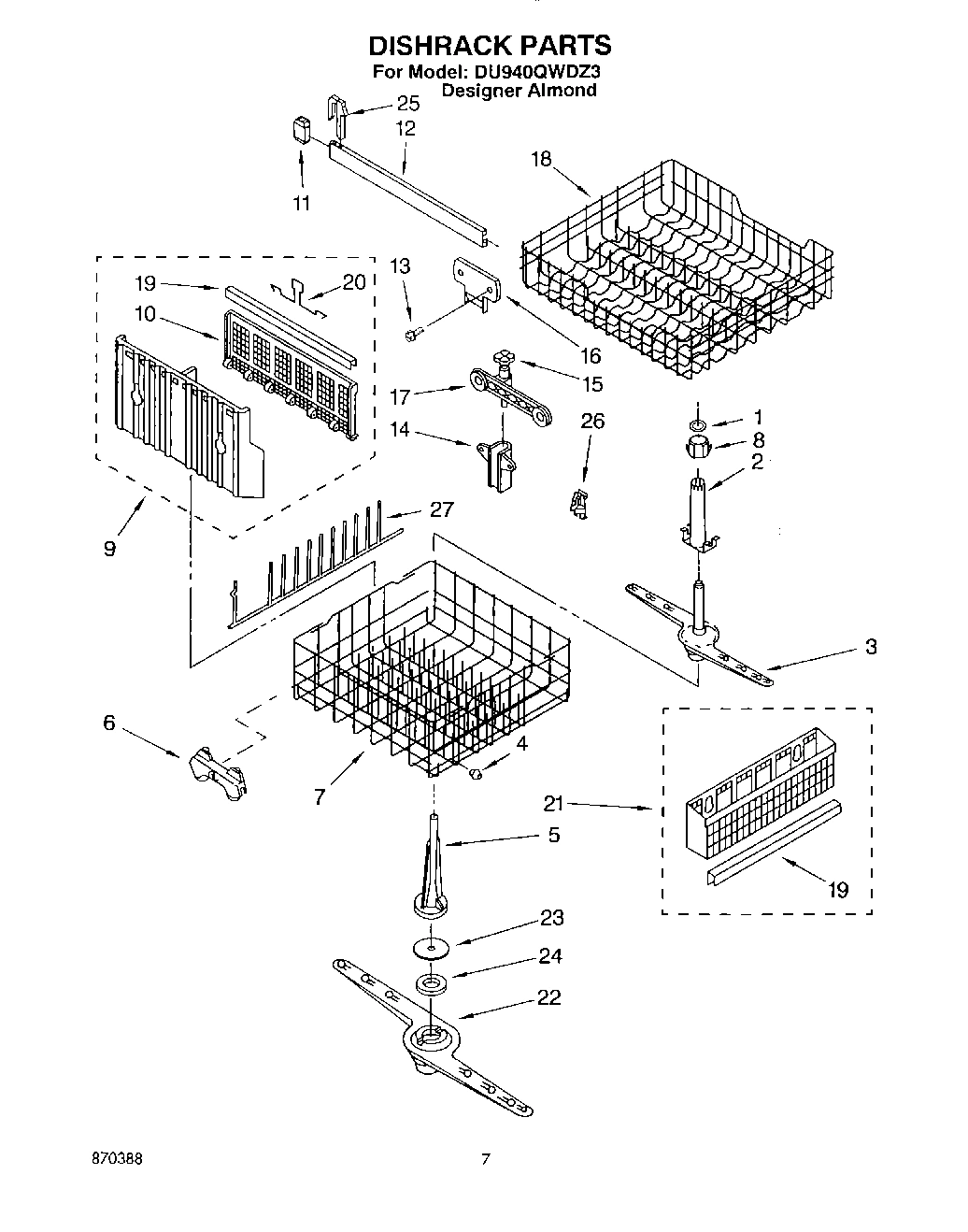

05 - DISHRACK, LIT/OPTIONAL

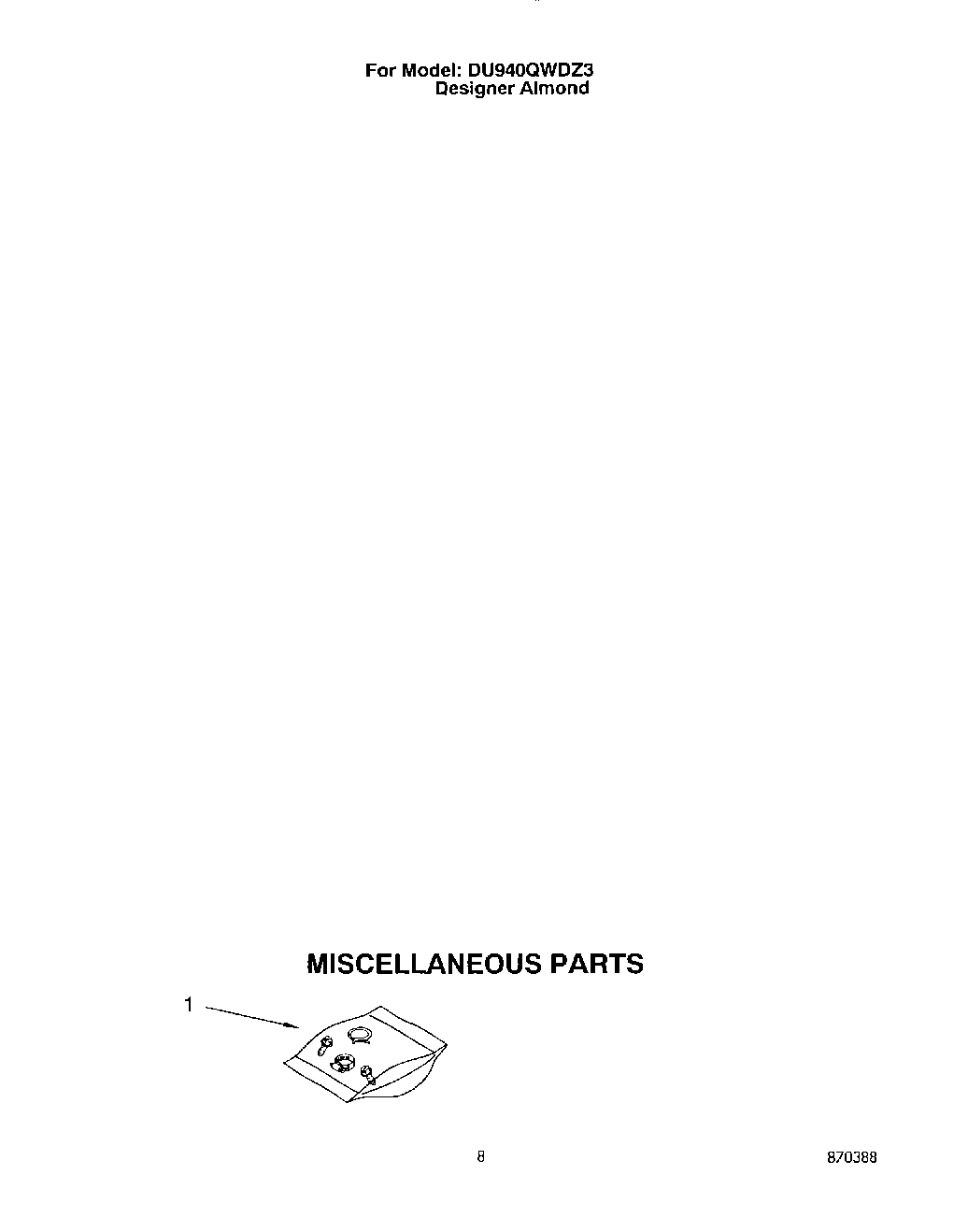

06 - MISCELLANEOUS

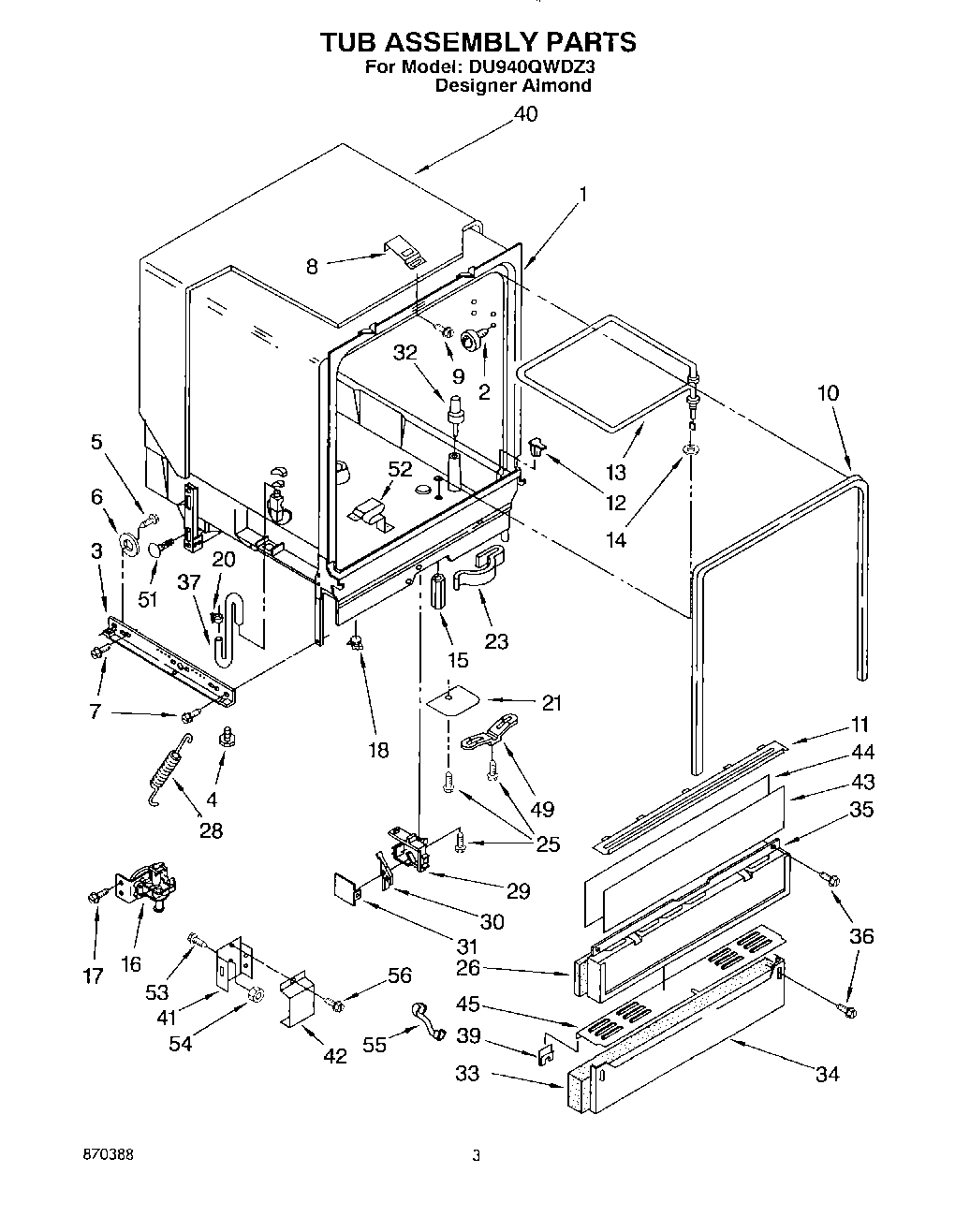

03 - TUB ASSEMBLY

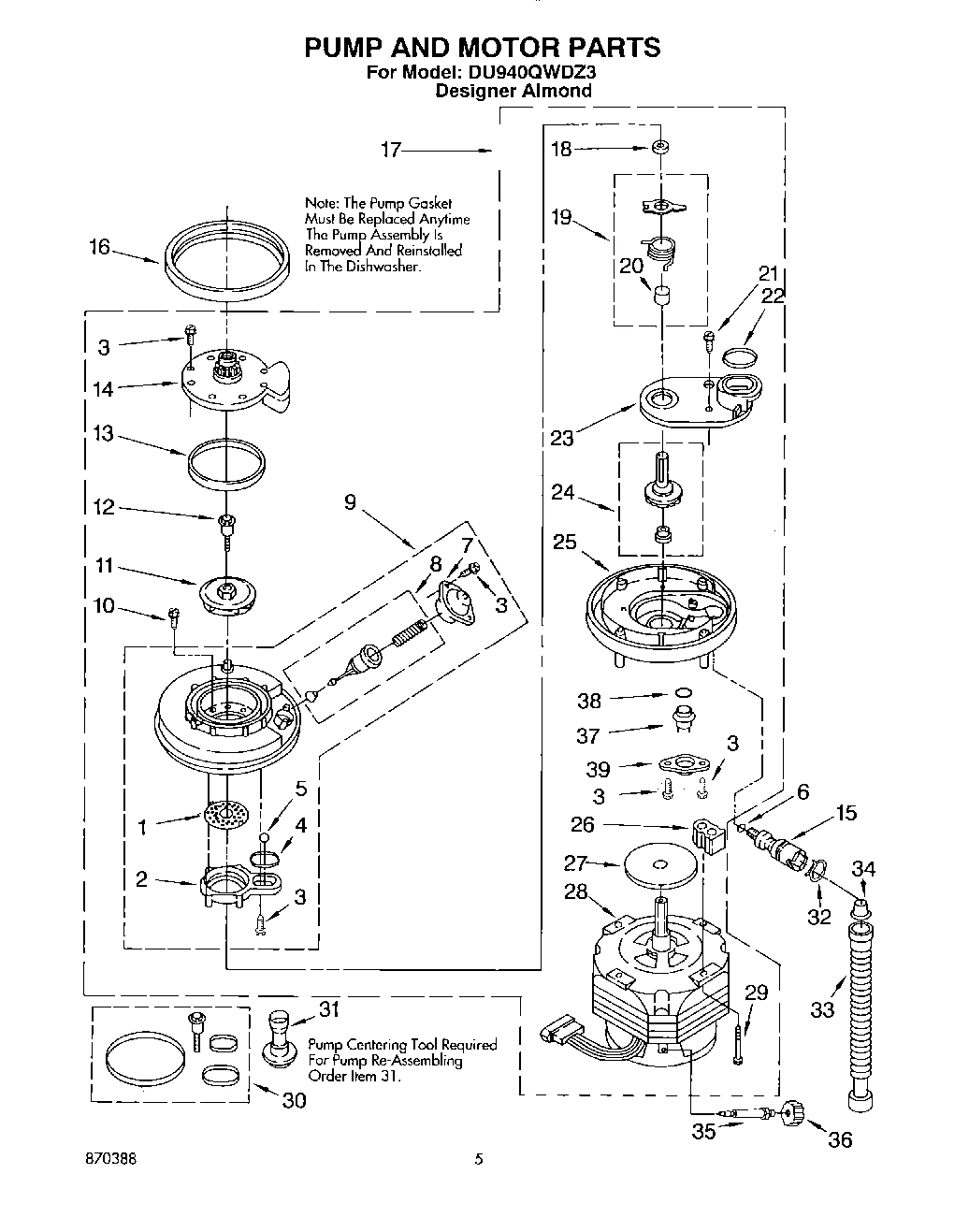

04 - PUMP AND MOTOR

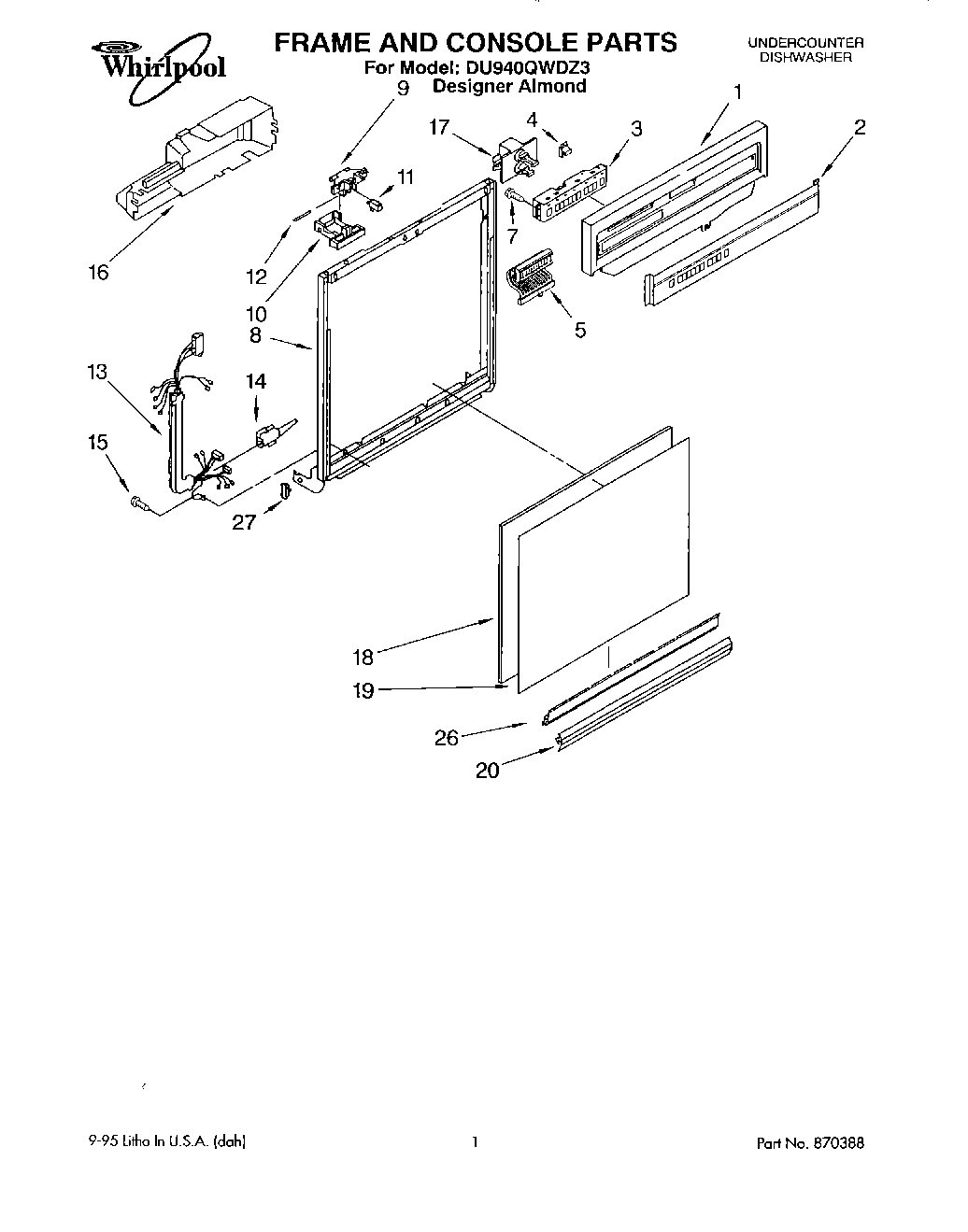

01 - FRAME AND CONSOLE
Common parts from model Whirlpool DU940QWDZ3 UNDERCOUNTER DISHWASHER
1
Clip WPL 303722 Contact Us For Availability
1
Plate, Perforated (Includes Item 5) (Also Ord WPL 9740982 Contact Us For Availability
1
Console (Includes Item 2) WPL 3375295 Contact Us For Availability
2
Support, Arm (Also Order Items 1 & 8) WPL 3368290 Contact Us For Availability
2
Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability
2
Insert, Console WPL 3374807 Contact Us For Availability
3
Runner (2) WPL 3368932 Contact Us For Availability
3
Control, Electronic WPL 3375556 Contact Us For Availability
5
Screw, Shoulder (2) WPL 3370389 Contact Us For Availability
5
Ball, Check WPL 302709 Contact Us For Availability
5
Switch, Display WPL 3374762 Contact Us For Availability
6
Draw Bar, Electronic WPL 3369448 Contact Us For Availability
6
``O`` Ring WPL 95080 Contact Us For Availability
7
Cover, Valve WPL 302721 Contact Us For Availability
8
Support, Lock Spray Arm WPL 3374702 Contact Us For Availability
8
Plate, Latch WPL 3374719 Contact Us For Availability
8
Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability
8
Door Frame (Includes Item 26) WPL 3374708 Contact Us For Availability
9
Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability
10
Screw, 8-16 x 1-5/8 (4) WPL 3400001 Contact Us For Availability
10
Lever, Latch WPL 3375061 Contact Us For Availability
11
End Cap (Front or Rear) WPL 300845 Contact Us For Availability
11
Retainer, Access Panel WPL 3372414 Contact Us For Availability
11
Switch, (2) WPL 3369325 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
13
Heater WPL 3376843 Contact Us For Availability
13
Harness and Protector WPL 3376441 Contact Us For Availability
14
Outlet, Pump (Includes Item 13) WPL 3369478 Contact Us For Availability
15
Nut (2) (Heater Terminal) WPL 3369073 Contact Us For Availability
16
Water Valve WPL 3374621 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
16
Cover Timer WPL 3375473 Contact Us For Availability
17
Motor, Dual WPL 3374501 Contact Us For Availability
17
Pump & Motor Assembly (Includes Item 16) WPL 3376752 Contact Us For Availability
18
Bushing, Grind WPL 302707 Contact Us For Availability
18
Door, Sound Absorber WPL 3374777 Contact Us For Availability
20
Sleeve, Drain Impeller WPL 302705 Contact Us For Availability
20
Retainer, Panel WPL 3374012 Contact Us For Availability
21
Shield, Thermostat WPL 3376149 Contact Us For Availability
22
Seal, Drain Cover WPL 302704 Contact Us For Availability
23
Cap, Nozzle WPL 3367910 Contact Us For Availability
23
Cover, Drain (Also Order Item 30) See Note A. WPL 302723 Contact Us For Availability
25
Base, Pump (Also Order Item 30) See Note A. WPL 3376157 Contact Us For Availability
26
Sound Shield WPL 3382404 Contact Us For Availability
27
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
28
Motor (Includes Item 27) (Also Order Item 30) WPL 3378053 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
29
Screw (4) WPL 3369331 Contact Us For Availability
30
Switch, Float WPL 3369067 Contact Us For Availability
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
31
Cover, Switch Housing WPL 3369049 Contact Us For Availability
33
Insulation, Toe Panel WPL 3374767 Contact Us For Availability
34
Toe Panel WPL 9742862 Contact Us For Availability
35
WPL 3374757 WPL 3374757 Contact Us For Availability
36
WPL 3374756 WPL 3374756 Contact Us For Availability
37
Hose, Inlet WPL 3369414 Contact Us For Availability
37
WPL 3376722 WPL 3376722 Contact Us For Availability
39
Clip, Grounding WPL 3374718 Contact Us For Availability
41
Box, Terminal WPL 3370292 Contact Us For Availability
43
Access Panel (Almond/Black) WPL 3369527 Contact Us For Availability
44
Spacer, Corrugated WPL 3369526 Contact Us For Availability
45
Extension & Clip Assembly WPL 3374728 Contact Us For Availability
49
Bracket, Thermostat WPL 3370555 Contact Us For Availability
52
Support, Heater WPL 3368987 Contact Us For Availability
55
Relief, Strain WPL 3370307 Contact Us For Availability
56
Screw, 8-18 WPL 3369138 Contact Us For Availability
× ![]()
