Model Whirlpool DU920QWDB6 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

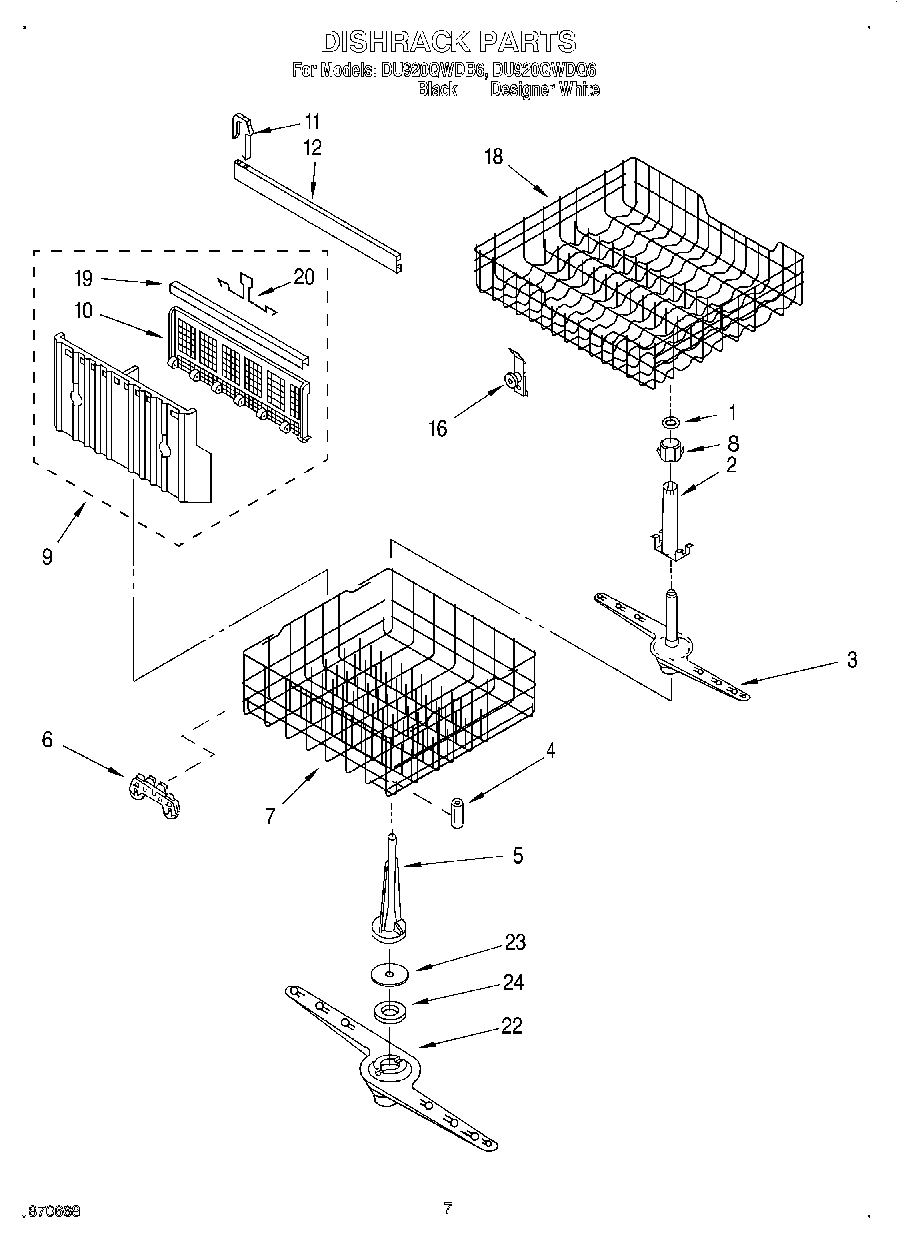

05 - DISHRACK

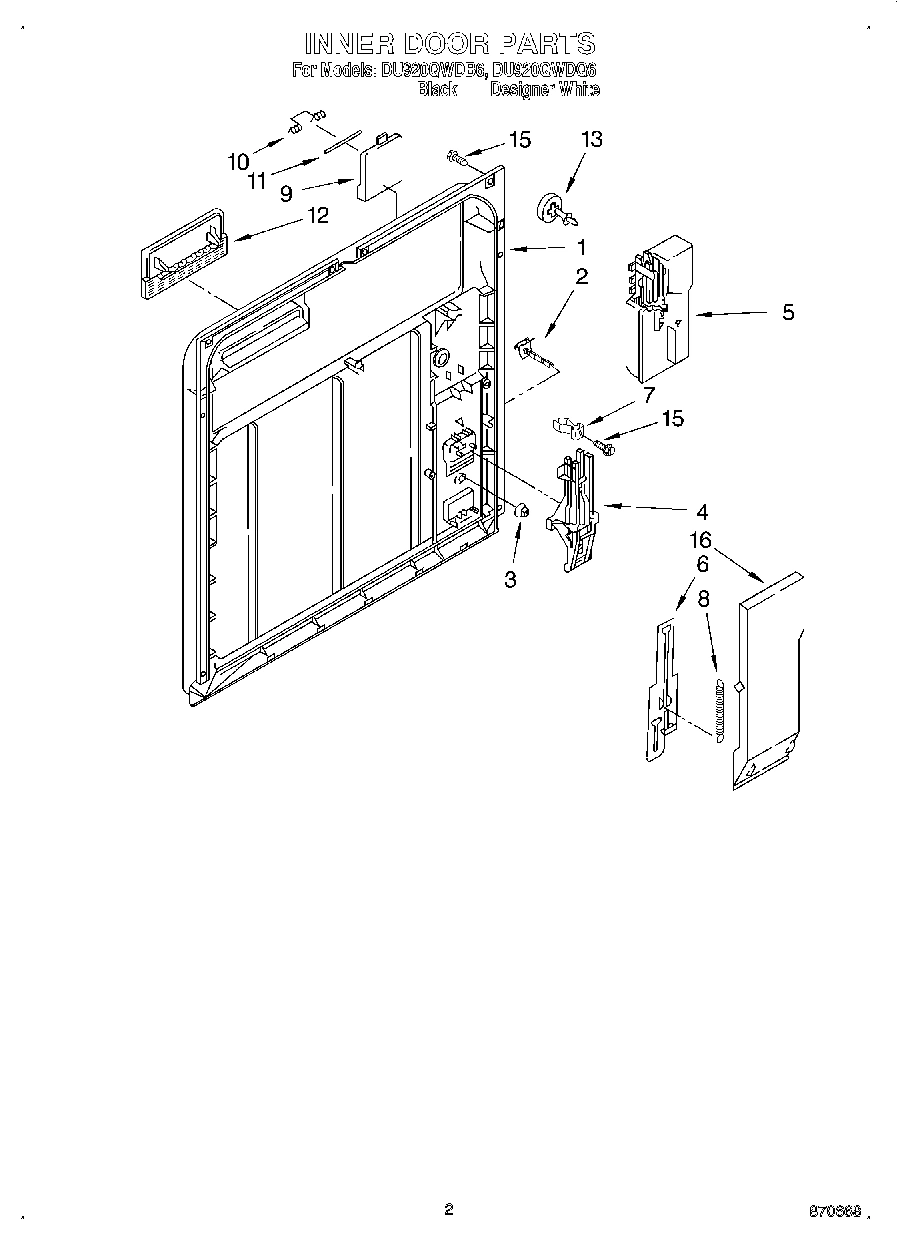

02 - INNER DOOR
03 - TUB ASSEMBLY
04 - PUMP AND MOTOR
01 - FRAME AND CONSOLE
06 - MISCELLANEOUS, LIT/OPTIONAL
Common parts from model Whirlpool DU920QWDB6 UNDERCOUNTER DISHWASHER
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
Black (Uncut) WPL 799340 Contact Us For Availability
Almond (Uncut) WPL 978883 Contact Us For Availability
Do-It Yourself, Manual WPL LIT00677967 Contact Us For Availability
Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability
Guide, Use & Care WPL LIT3376833 Contact Us For Availability
Instructions, Installation WPL LIT3380268 Contact Us For Availability
Tech Sheet WPL LIT3381233 Contact Us For Availability
Energy Guide WPL LIT3381327 Contact Us For Availability
1
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
1
Clip WPL 303722 Contact Us For Availability
1
Console (Includes Item 2) (Black) WPL 3375291 Contact Us For Availability
1
Console (Includes Item 2) (White) WPL 3375292 Contact Us For Availability
1
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability
1
Side Panel Kit (White) WPL 4317925 Contact Us For Availability
1
Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability
2
Tub, Wheel Assembly (8) WPL 3380371 Contact Us For Availability
2
Support, Arm (Also Order Items 1 & 8) WPL 3368290 Contact Us For Availability
2
Insert, Console (Black) WPL 3374803 Contact Us For Availability
2
Insert, Console (White) WPL 3374804 Contact Us For Availability
3
Control, Electronic WPL 3375556 Contact Us For Availability
5
Switch, Display WPL 3374778 Contact Us For Availability
6
Draw Bar, Electronic WPL 3369448 Contact Us For Availability
8
Support, Lock Spray Arm WPL 3374702 Contact Us For Availability
8
Door Frame (Includes Item 27) (White) WPL 3374712 Contact Us For Availability
10
Lever, Latch (Black) WPL 3369457 Contact Us For Availability
10
Lever, Latch White WPL 3372231 Contact Us For Availability
11
Switch, (2) WPL 3369325 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
13
Harness and Protector WPL 3381225 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
16
Cover Timer WPL 3375473 Contact Us For Availability
17
Motor, Dual WPL 3374501 Contact Us For Availability
17
Pump & Motor Assembly (Includes Item 16) WPL 3376752 Contact Us For Availability
18
Bushing, Grind WPL 302707 Contact Us For Availability
18
Door, Sound Absorber WPL 3374777 Contact Us For Availability
20
Retainer, Panel (Black) WPL 3374010 Contact Us For Availability
20
Retainer, Panel (White) WPL 3374011 Contact Us For Availability
20
Sleeve, Drain Impeller WPL 3378139 Contact Us For Availability
22
Seal, Drain Cover WPL 302704 Contact Us For Availability
23
Cap, Nozzle WPL 3367910 Contact Us For Availability
23
Cover, Drain (Also Order Item 30) See Note A. WPL 3378207 Contact Us For Availability
25
Base, Pump (Also Order Item 30) See Note A. WPL 3376157 Contact Us For Availability
28
Motor & Fan (Assembly) (Includes Item 27) (Al WPL 3379364 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
29
Screw WPL 3369331 Contact Us For Availability
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
35
Panel, Access (White) WPL 3369614 Contact Us For Availability
35
Shaft, Absorber WPL 3374757 Contact Us For Availability
36
Weight, Absorber WPL 3378202 Contact Us For Availability
37
The WPL 3378083 Contact Us For Availability
43
Access Panel (White/Black) WPL 3370868 Contact Us For Availability
45
Extension & Clip Assembly WPL 3374728 Contact Us For Availability
× ![]()
