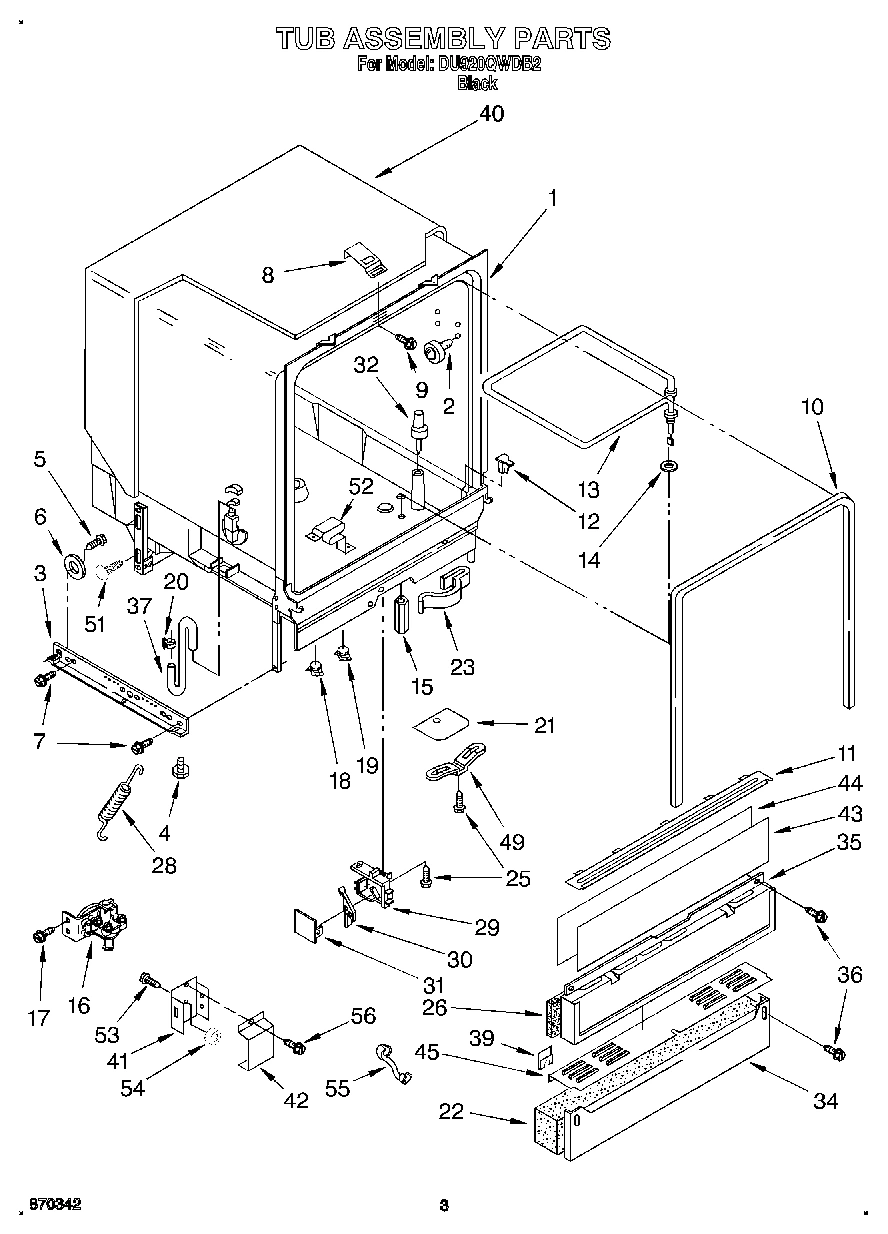

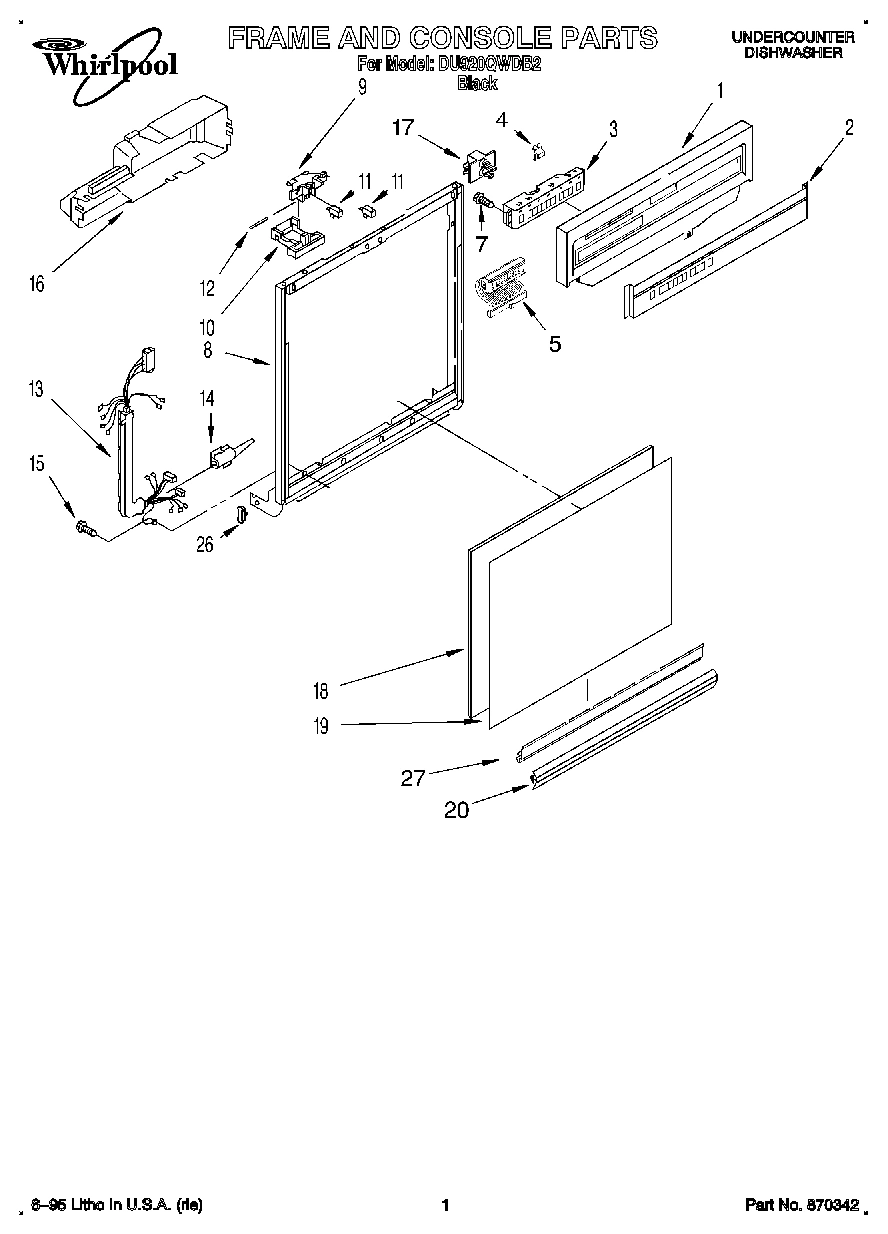

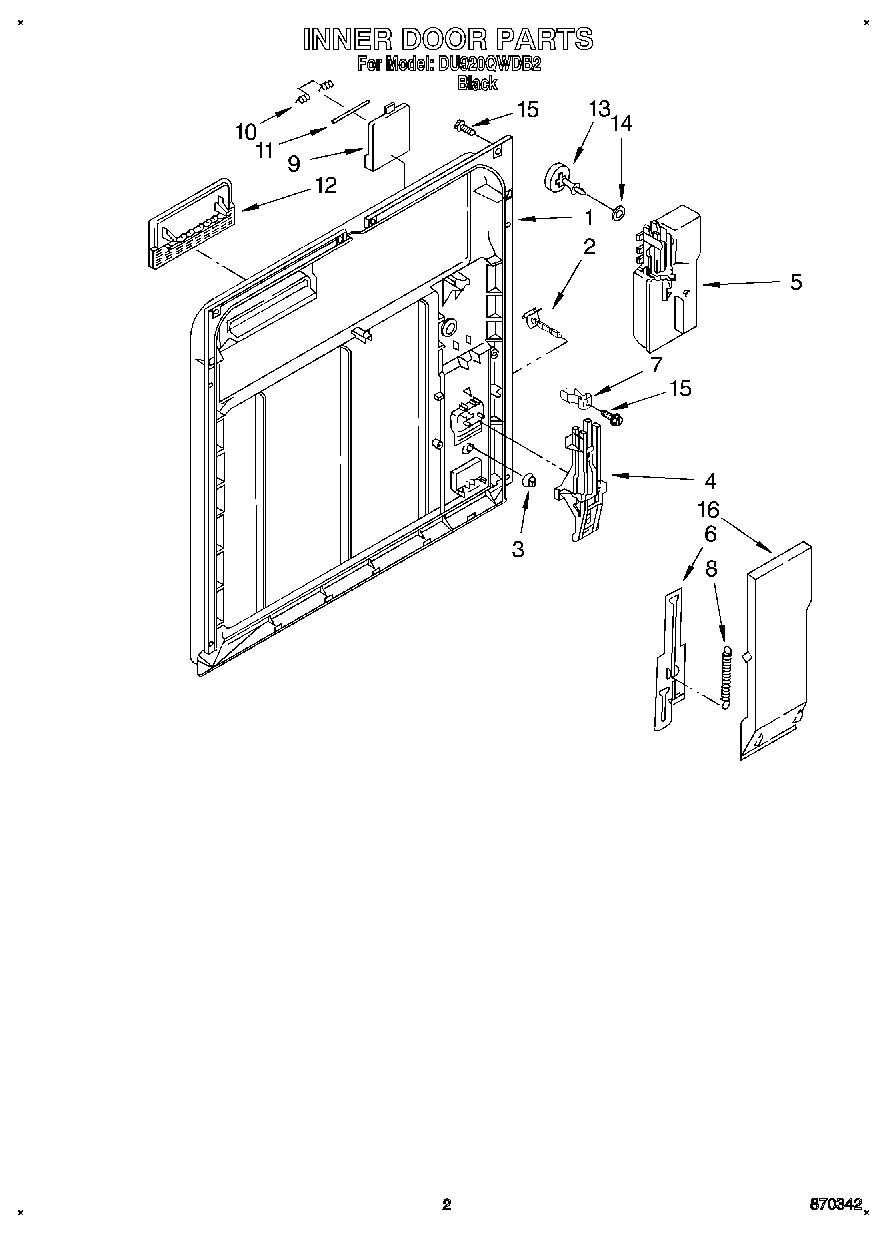

Model Whirlpool DU920QWDB2 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

Do-It Yourself, Manual
Do-It Yourself, Manual WPL LIT00677967 Contact Us For Availability
View on Model
Instructions, Installation (Supplement) (Loca
Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability
View on Model
WPL LIT3369679
WPL LIT3369679 WPL LIT3369679 Contact Us For Availability
View on Model
WPL LIT3373484
WPL LIT3373484 WPL LIT3373484 Contact Us For Availability
View on Model
WPL LIT3373752
WPL LIT3373752 WPL LIT3373752 Contact Us For Availability
View on Model
WPL LIT3374754
WPL LIT3374754 WPL LIT3374754 Contact Us For Availability
View on Model
WPL LIT3374766
WPL LIT3374766 WPL LIT3374766 Contact Us For Availability
View on Model
1
Clip
Clip WPL 303722 Contact Us For Availability
View on Model
1
Plate, Perforated (Includes Item 5) (Also Ord
Plate, Perforated (Includes Item 5) (Also Ord WPL 9740982 Contact Us For Availability
View on Model
1

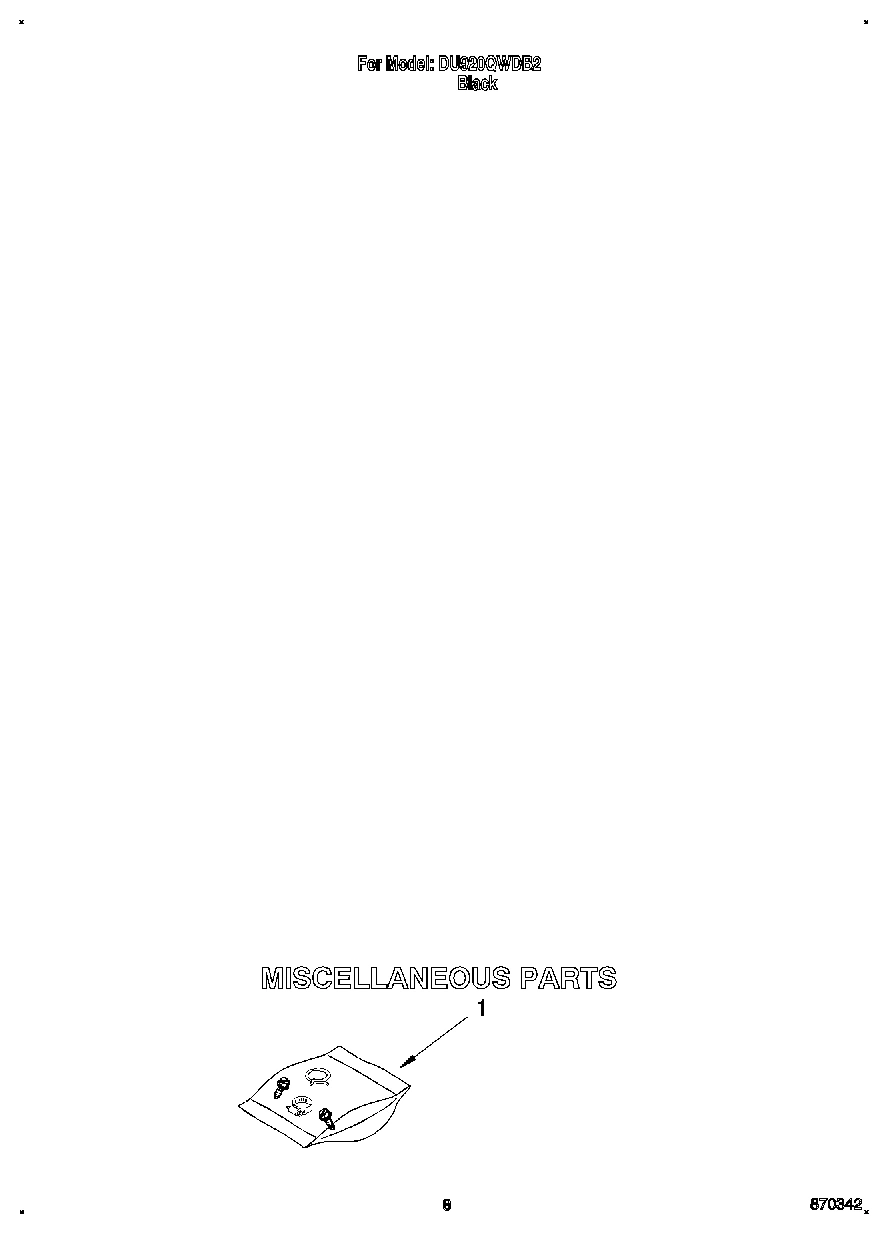

Miscellaneous Parts Bag (Includes 2 Screws &
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability
View on Model
2
Support, Arm (Also Order Items 1 & 8)
Support, Arm (Also Order Items 1 & 8) WPL 3368290 Contact Us For Availability
View on Model
2
Base, Inlet (Includes Items 1 & 5) (Also Orde
Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability
View on Model
3
Spray Arm, Upper (Also Order Items 1 & 8)
Spray Arm, Upper (Also Order Items 1 & 8) WPL 3368300 Contact Us For Availability
View on Model
5
Tower, Pressure
Tower, Pressure WPL 300848 Contact Us For Availability
View on Model
5
Ball, Check
Ball, Check WPL 302709 Contact Us For Availability
View on Model
6
Wheel (2)
Wheel (2) WPL 302819 Contact Us For Availability
View on Model
6
Draw Bar, Electronic
Draw Bar, Electronic WPL 3369448 Contact Us For Availability
View on Model
6
``O`` Ring
``O`` Ring WPL 95080 Contact Us For Availability
View on Model
7
Cover, Valve
Cover, Valve WPL 302721 Contact Us For Availability
View on Model
8
Support, Lock Spray Arm
Support, Lock Spray Arm WPL 3374702 Contact Us For Availability
View on Model
8
Door Frame (Includes Item 27)
Door Frame (Includes Item 27) WPL 3374711 Contact Us For Availability
View on Model
8
Valve Stem Kit (Includes Items 12, 13 & 22) S
Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability
View on Model
9

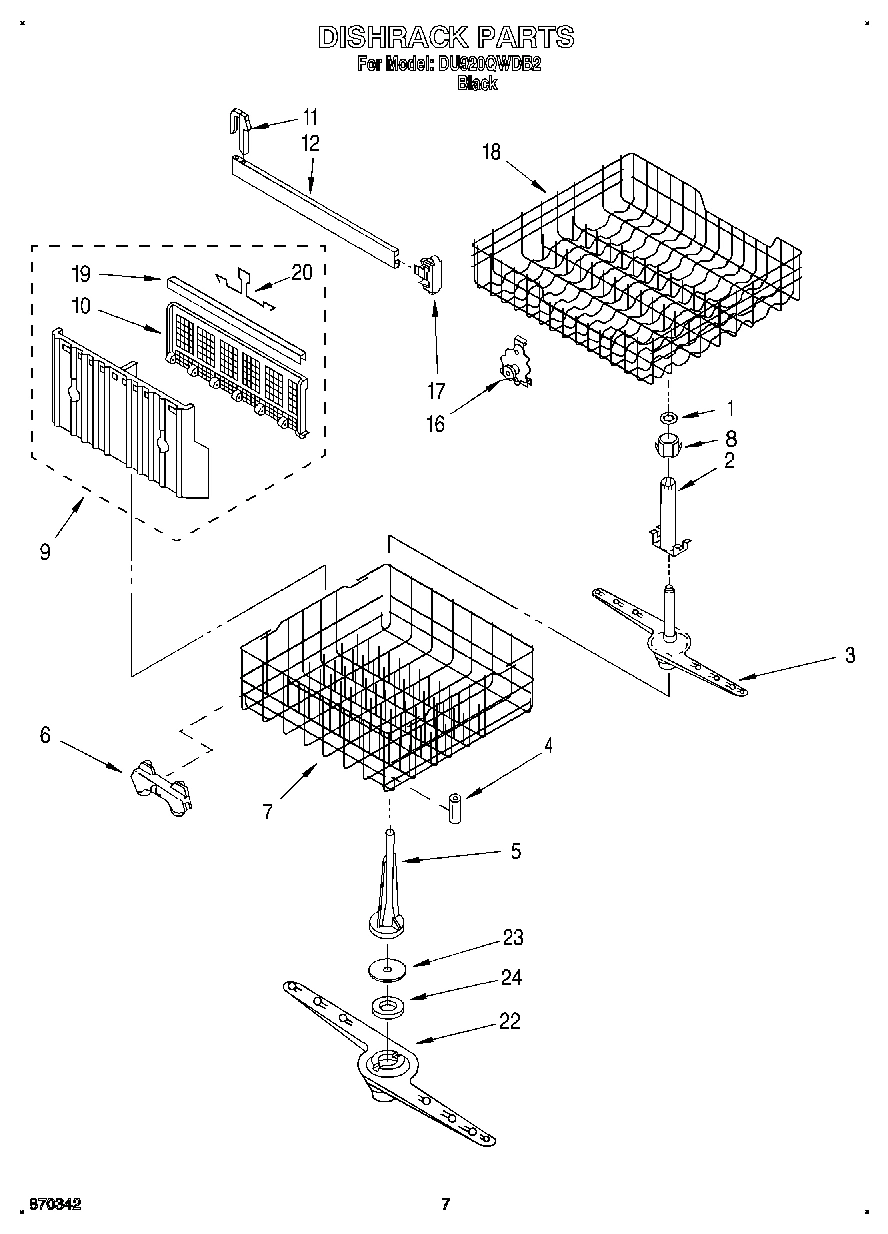

Silverware Basket Assembly
Silverware Basket Assembly WPL 3369488 Contact Us For Availability
View on Model
9
Separator Assembly (Includes Items 12, 13 & 2
Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability
View on Model
10
Lever, Latch
Lever, Latch WPL 3369457 Contact Us For Availability
View on Model
10
Cover, Basket
Cover, Basket WPL 3369485 Contact Us For Availability
View on Model
10
Screw
Screw WPL 3400001 Contact Us For Availability
View on Model
11
Stop, Track (2)
Stop, Track (2) WPL 3374701 Contact Us For Availability
View on Model
12
Pin, Switch (2)
Pin, Switch (2) WPL 3368955 Contact Us For Availability
View on Model
12
Track
Track WPL 3369071 Contact Us For Availability
View on Model
14
Outlet, Pump (Includes Item 13)
Outlet, Pump (Includes Item 13) WPL 3369478 Contact Us For Availability
View on Model
16
Gasket, Pump
Gasket, Pump WPL 717000 Contact Us For Availability
View on Model
16
Water Valve
Water Valve WPL 3374621 Contact Us For Availability
View on Model
16
Cover, Drip
Cover, Drip WPL 3371569 Contact Us For Availability
View on Model
17
Motor, Dual
Motor, Dual WPL 3374501 Contact Us For Availability
View on Model
17
End Cap
End Cap WPL 300845 Contact Us For Availability
View on Model
17

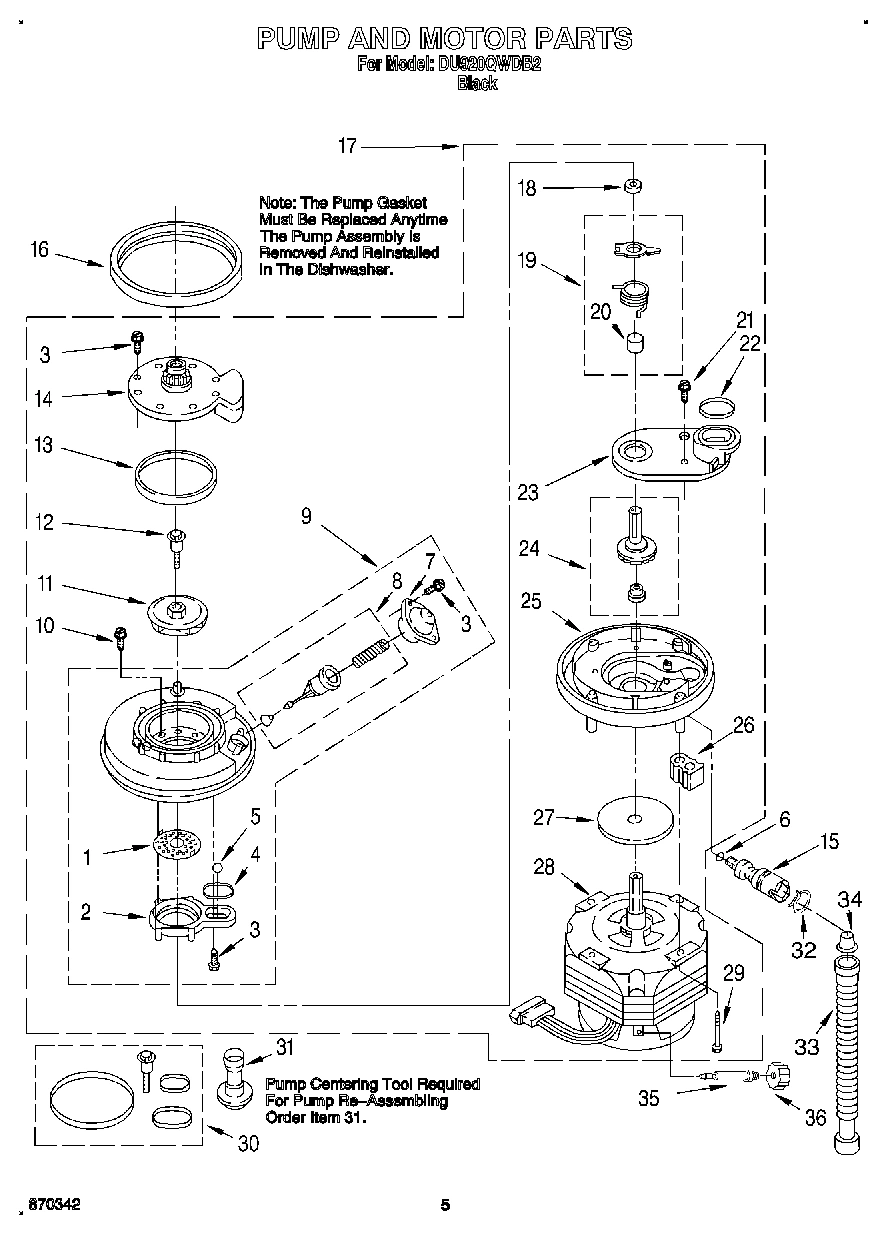

Pump & Motor Assembly (Includes Item 16)
Pump & Motor Assembly (Includes Item 16) WPL 3375493 Contact Us For Availability
View on Model
18
Bushing, Grind
Bushing, Grind WPL 302707 Contact Us For Availability
View on Model
19
Trim, Basket
Trim, Basket WPL 717528 Contact Us For Availability
View on Model
20
Retainer, Panel
Retainer, Panel WPL 3374010 Contact Us For Availability
View on Model
20
Handle, Basket
Handle, Basket WPL 300086 Contact Us For Availability
View on Model
20
Sleeve, Drain Impeller
Sleeve, Drain Impeller WPL 302705 Contact Us For Availability
View on Model
22
Sprayarm, Lower
Sprayarm, Lower WPL 3369347 Contact Us For Availability
View on Model
22
Seal, Drain Cover
Seal, Drain Cover WPL 302704 Contact Us For Availability
View on Model
23
Cap, Nozzle
Cap, Nozzle WPL 3367910 Contact Us For Availability
View on Model
23
Cover, Drain (Also Order Item 30) See Note A.
Cover, Drain (Also Order Item 30) See Note A. WPL 302723 Contact Us For Availability
View on Model
24
Bearing, Nozzle
Bearing, Nozzle WPL 719576 Contact Us For Availability
View on Model
24
DOOR SPRING KIT: (HEAVY DUTY)
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
View on Model
24
Side Panel Kit (White)
Side Panel Kit (White) WPL 4317925 Contact Us For Availability
View on Model
24
Avocado
Avocado WPL 4317926 Contact Us For Availability
View on Model
24
Gold
Gold WPL 4317927 Contact Us For Availability
View on Model
24
Side Panel Kit: (Almond)
Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability
View on Model
24
Toast
Toast WPL 4317930 Contact Us For Availability
View on Model
24
Platinum
Platinum WPL 4317931 Contact Us For Availability
View on Model
24
Tine Tip Repair Kit (Blue - Enough For Two Co
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
View on Model
24
Black (Uncut)
Black (Uncut) WPL 799340 Contact Us For Availability
View on Model
24
Almond (Uncut)
Almond (Uncut) WPL 978883 Contact Us For Availability
View on Model
25
Base, Pump (Also Order Item 30) See Note A.
Base, Pump (Also Order Item 30) See Note A. WPL 3376151 Contact Us For Availability
View on Model
28
Motor (Includes Item 27) (Also Order Item 30)
Motor (Includes Item 27) (Also Order Item 30) WPL 3375480 Contact Us For Availability
View on Model
29
Housing, Float Switch
Housing, Float Switch WPL 3369048 Contact Us For Availability
View on Model
29
Screw
Screw WPL 3369331 Contact Us For Availability
View on Model
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22)
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability
View on Model
31
Tool, Pump Centering
Tool, Pump Centering WPL 303918 Contact Us For Availability
View on Model
35
Shaft, Absorber
Shaft, Absorber WPL 3374757 Contact Us For Availability
View on Model
36
Weight, Absorber
Weight, Absorber WPL 3374756 Contact Us For Availability
View on Model
42
COVER ASSEMBLY TERMINAL BOX
COVER ASSEMBLY TERMINAL BOX WPL 300068 Contact Us For Availability
View on Model
45
Extension & Clip Assembly
Extension & Clip Assembly WPL 3374728 Contact Us For Availability
View on Model
49
Bracket, Thermostat
Bracket, Thermostat WPL 3370555 Contact Us For Availability
View on Model
52
Support, Heater
Support, Heater WPL 3368987 Contact Us For Availability
View on Model
55
Relief, Strain
Relief, Strain WPL 3370307 Contact Us For Availability
View on Model
56
Screw
Screw WPL 3369138 Contact Us For Availability
View on Model
