Model Whirlpool DU9200XX0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
05 - PUMP AND MOTOR
07 - OPTIONAL, MISCELLANEOUS

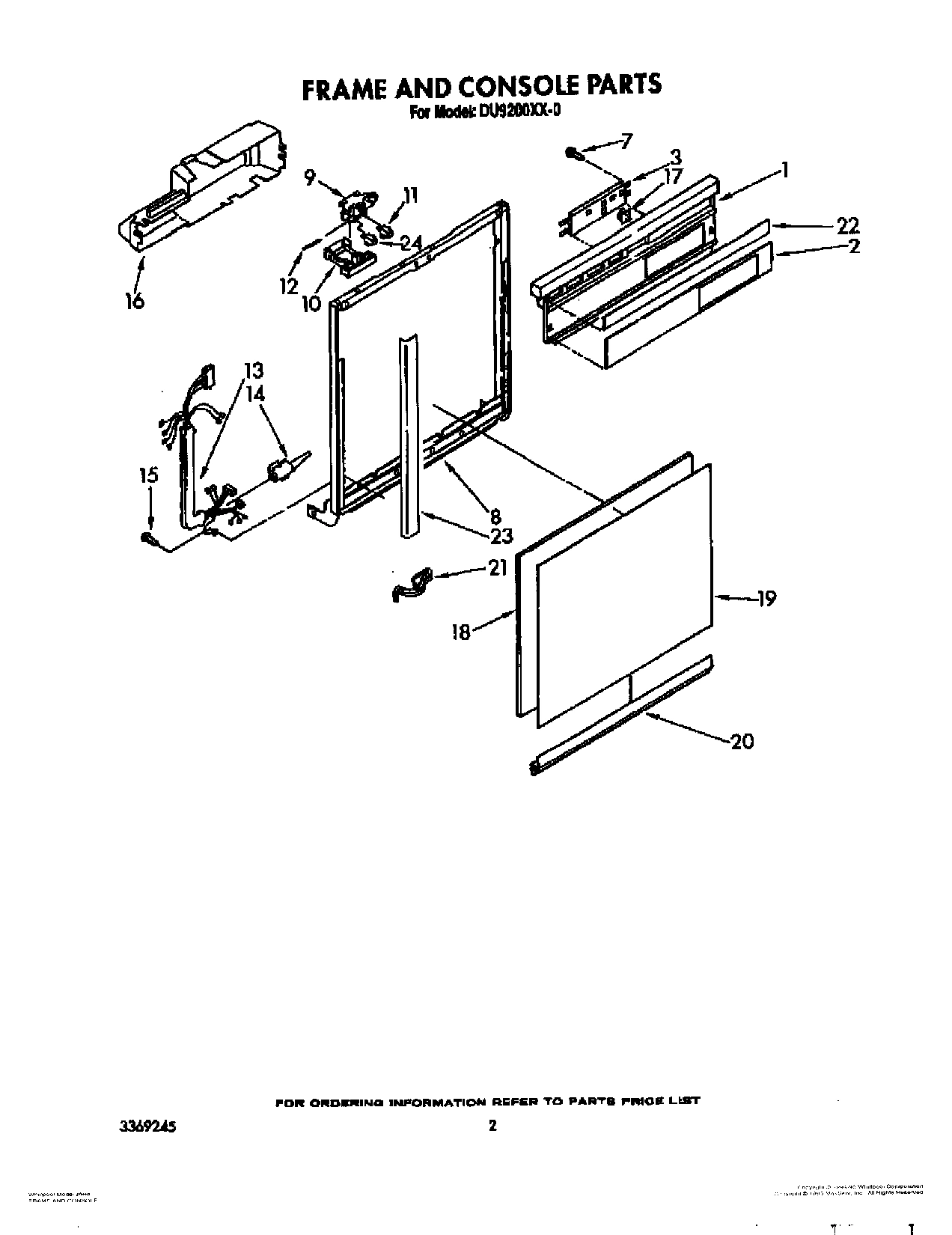

02 - FRAME AND CONSOLE

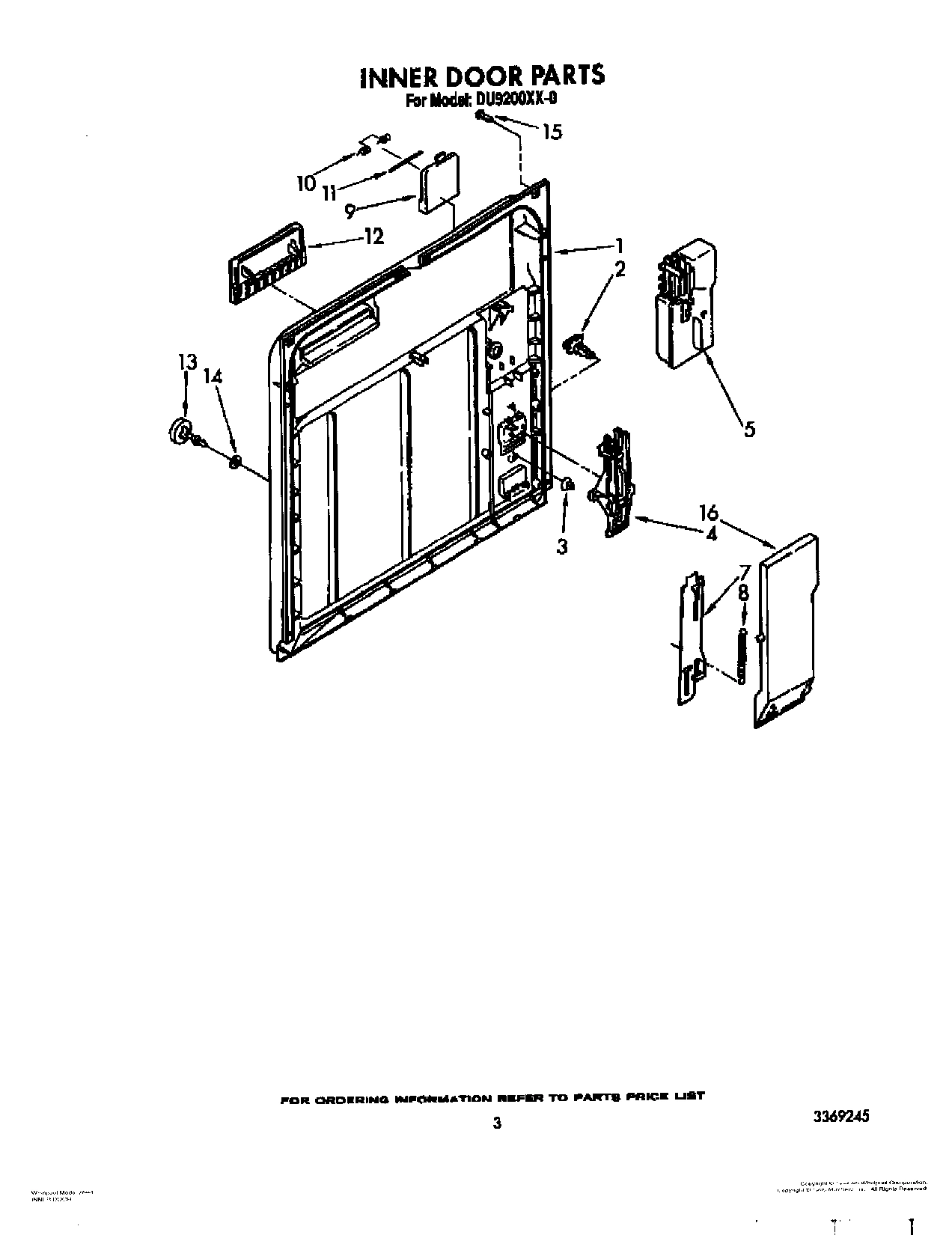

03 - INNER DOOR

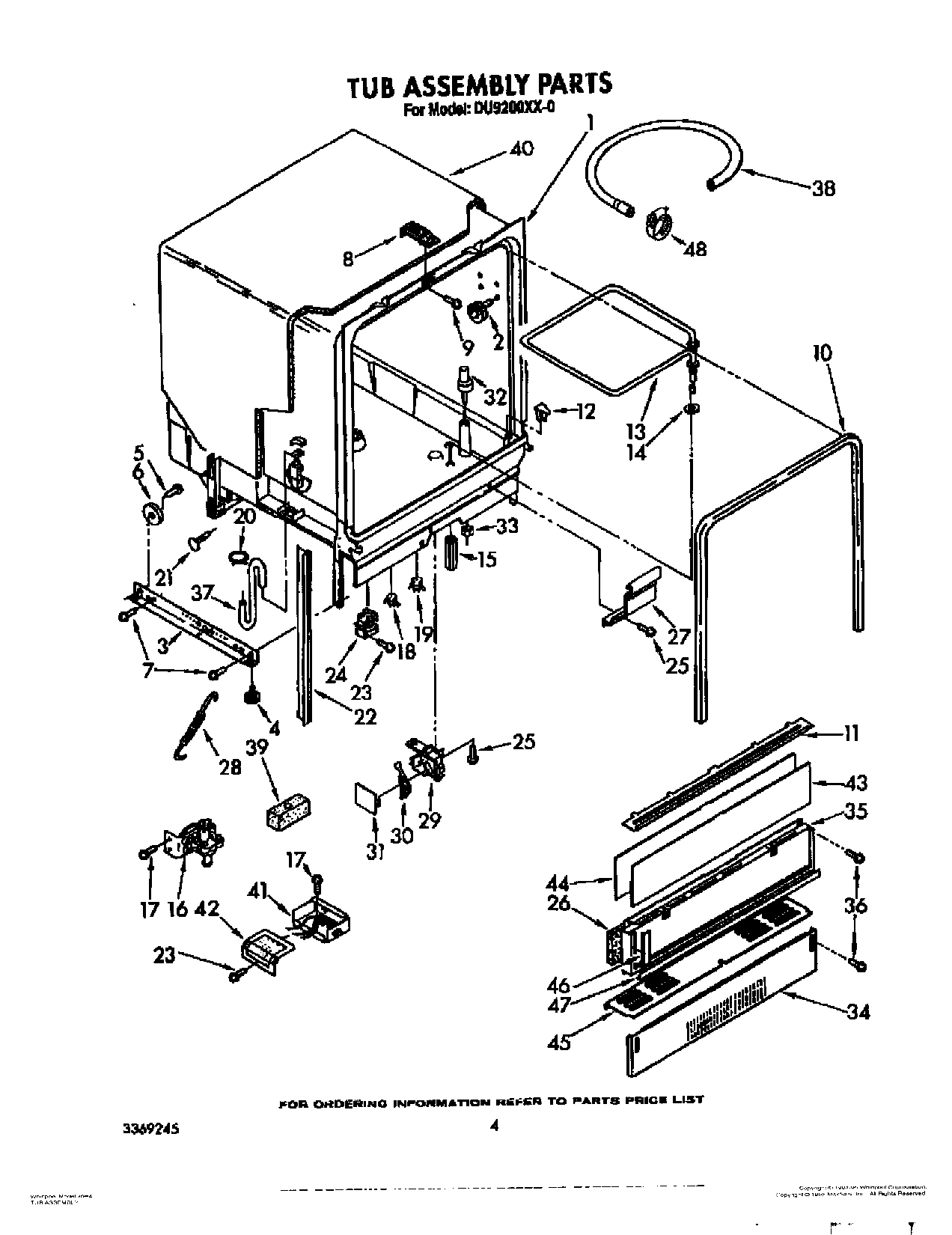

04 - TUB ASSEMBLY

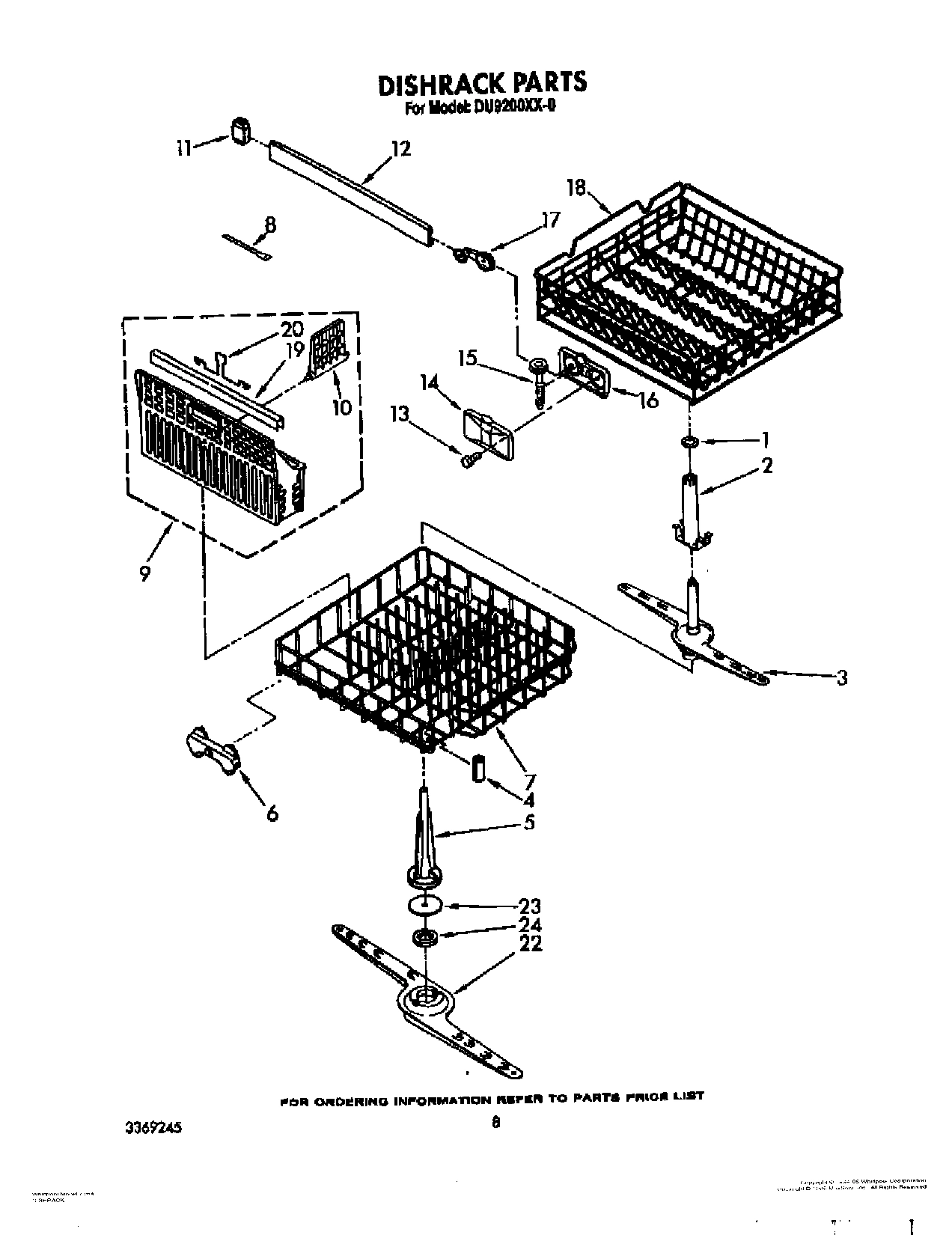

06 - DISHRACK
Common parts from model Whirlpool DU9200XX0 UNDERCOUNTER DISHWASHER
Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability
Guide, Use And Care WPL LIT3369100 Contact Us For Availability
Parts List WPL LIT3369245 Contact Us For Availability
Instructions, Installation WPL LIT3369671 Contact Us For Availability
Tech Sheet WPL LIT3370538 Contact Us For Availability
1
Clip WPL 303722 Contact Us For Availability
1
Inner Door (Also Order Latch Door Kit 676413) WPL 3369533 Contact Us For Availability
1
Tub Assembly WPL 3370851 Contact Us For Availability
2
Tub, Wheel Assembly (8) WPL 3369078 Contact Us For Availability
2
Support, Arm WPL 304212 Contact Us For Availability
3
Runner (2) WPL 3368932 Contact Us For Availability
4
Bumper (2) WPL 304490 Contact Us For Availability
5
Tower, Pressure WPL 304170 Contact Us For Availability
5
Screw, Shoulder (2) WPL 3370389 Contact Us For Availability
7
Draw Bar, Electronic WPL 3369448 Contact Us For Availability
8
Door Frame WPL 3368900 Contact Us For Availability
8
Plate, Latch WPL 3368965 Contact Us For Availability
8
Clip, Strap WPL 3370075 Contact Us For Availability
9
Screw, 8-32 WPL 3368919 Contact Us For Availability
9
Silverware Basket Assembly WPL 3369492 Contact Us For Availability
10
Cover, Basket WPL 3369489 Contact Us For Availability
11
End Cap (Front or Rear) WPL 300845 Contact Us For Availability
11
Switch, (2) WPL 3369325 Contact Us For Availability
12
Pin, Switch (2) WPL 3369504 Contact Us For Availability
12
Track WPL 3369071 Contact Us For Availability
13
Harness and Protector (Includes Item 14) WPL 3369765 Contact Us For Availability
13
Heater WPL 3369416 Contact Us For Availability
14
Cover, Housing (2) WPL 304202 Contact Us For Availability
15
Nut (2) (Heater Terminal) WPL 3369073 Contact Us For Availability
15
Worm (2) WPL 304203 Contact Us For Availability
16
Cover, Timer WPL 3369192 Contact Us For Availability
16
Cover, Drip WPL 3369068 Contact Us For Availability
16
Water Valve WPL 3369868 Contact Us For Availability
16
Housing, Gear (2) WPL 304208 Contact Us For Availability
17
Motor, Dual WPL 3369417 Contact Us For Availability
17
Gear and Wheel Assembly (4) WPL 304200 Contact Us For Availability
18
Spacer, Corrugated WPL 3368979 Contact Us For Availability
19
Thermostat WPL 3370231 Contact Us For Availability
19
Trim, Basket WPL 717528 Contact Us For Availability
20
Retainer, Panel WPL 3370441 Contact Us For Availability
20
Handle, Basket WPL 300086 Contact Us For Availability
22
Trim, Console WPL 3369598 Contact Us For Availability
22
Retainer, Shield WPL 3369775 Contact Us For Availability
23
Cap, Nozzle WPL 3367910 Contact Us For Availability
23
Trim (2) WPL 3369592 Contact Us For Availability
24
Bearing, Nozzle WPL 719576 Contact Us For Availability
24
Relay WPL 3369447 Contact Us For Availability
24
Switch (1) WPL 3369530 Contact Us For Availability
24
Superior Black WPL 285005 Contact Us For Availability
24
Leveler (Thinner) WPL 350941 Contact Us For Availability
24
Vinyl Touch Up (Blue) WPL 675476 Contact Us For Availability
24
Tine Tip Repair Kit (Blue-Enough For Two Comp WPL 675506 Contact Us For Availability
24
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
24
Black (Uncut) WPL 799340 Contact Us For Availability
24
Almond (Uncut) WPL 978883 Contact Us For Availability
26
Sound Shield WPL 3369617 Contact Us For Availability
27
Shield, Harness WPL 3368983 Contact Us For Availability
28
Spring & Bearing Assembly (2) WPL 3370939 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
30
Switch, Float WPL 3369067 Contact Us For Availability
31
WPL 303918 WPL 303918 Contact Us For Availability
31
Cover, Switch Housing WPL 3369049 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
37
Hose, Inlet WPL 3369414 Contact Us For Availability
39
Diverter WPL 3369317 Contact Us For Availability
40
Sound Shield WPL 3369771 Contact Us For Availability
41
Terminal Block & Plug Assembly WPL 3369332 Contact Us For Availability
42
Cover Assembly, Terminal Box WPL 3369357 Contact Us For Availability
43
Panel, Front (Almond/Black) WPL 3369527 Contact Us For Availability
44
Spacer, Corrugated WPL 3369526 Contact Us For Availability
45
Extension WPL 3369531 Contact Us For Availability
46
Trim, Side (2) WPL 3369593 Contact Us For Availability
47
Trim, Bottom WPL 3369588 Contact Us For Availability
× ![]()
