Model Whirlpool DU915QWDQ0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
02 - INNER DOOR
04 - PUMP AND MOTOR

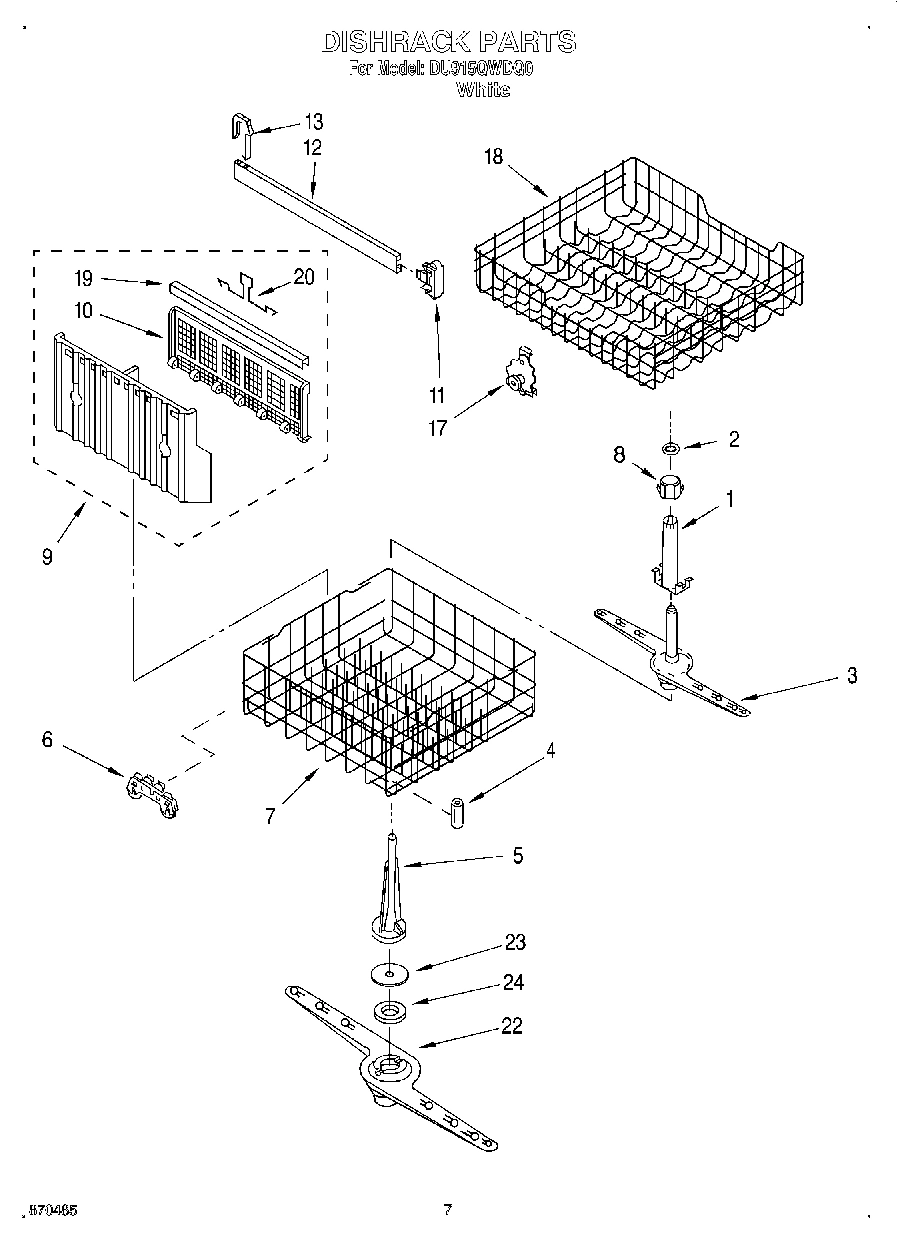

05 - DISHRACK, LIT/OPTIONAL

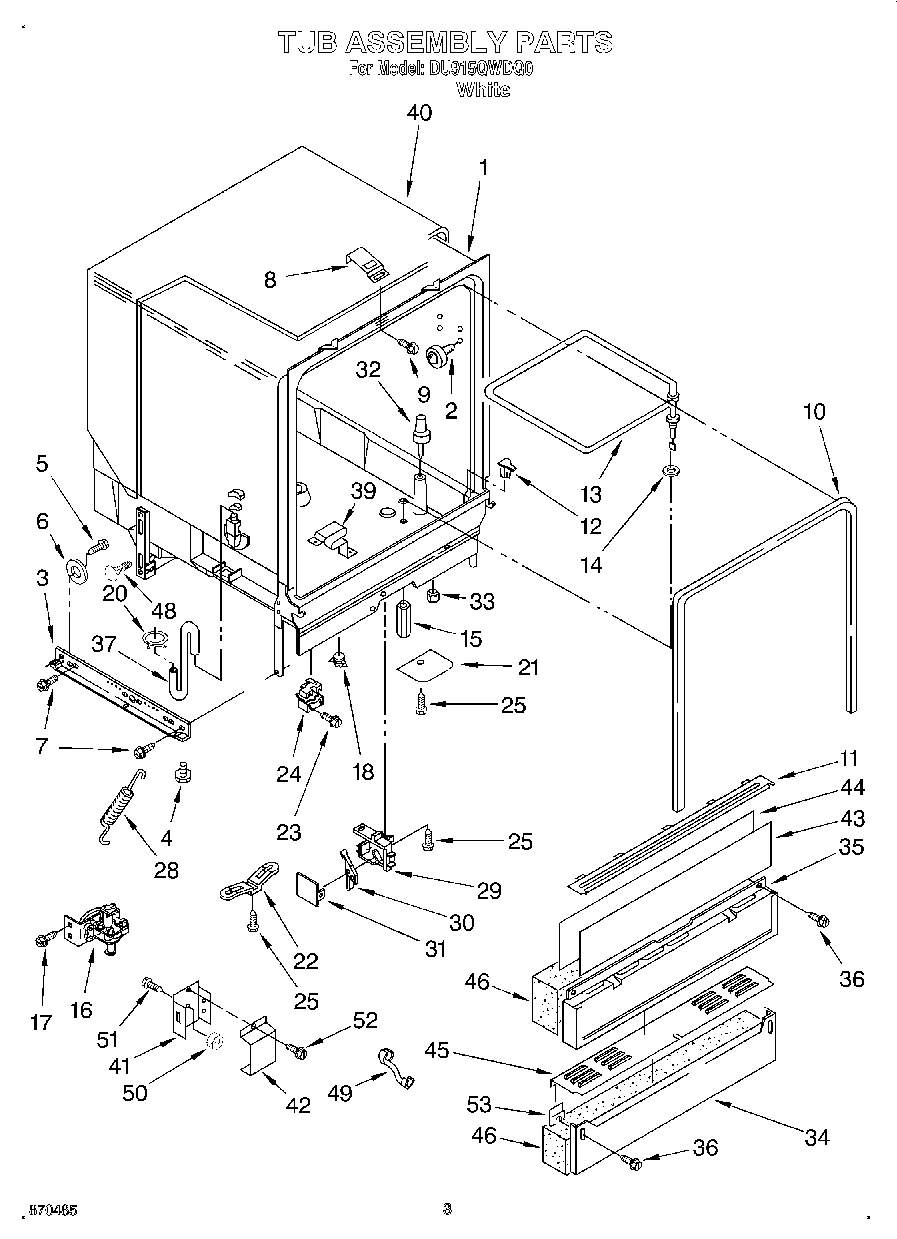

03 - TUB ASSEMBLY

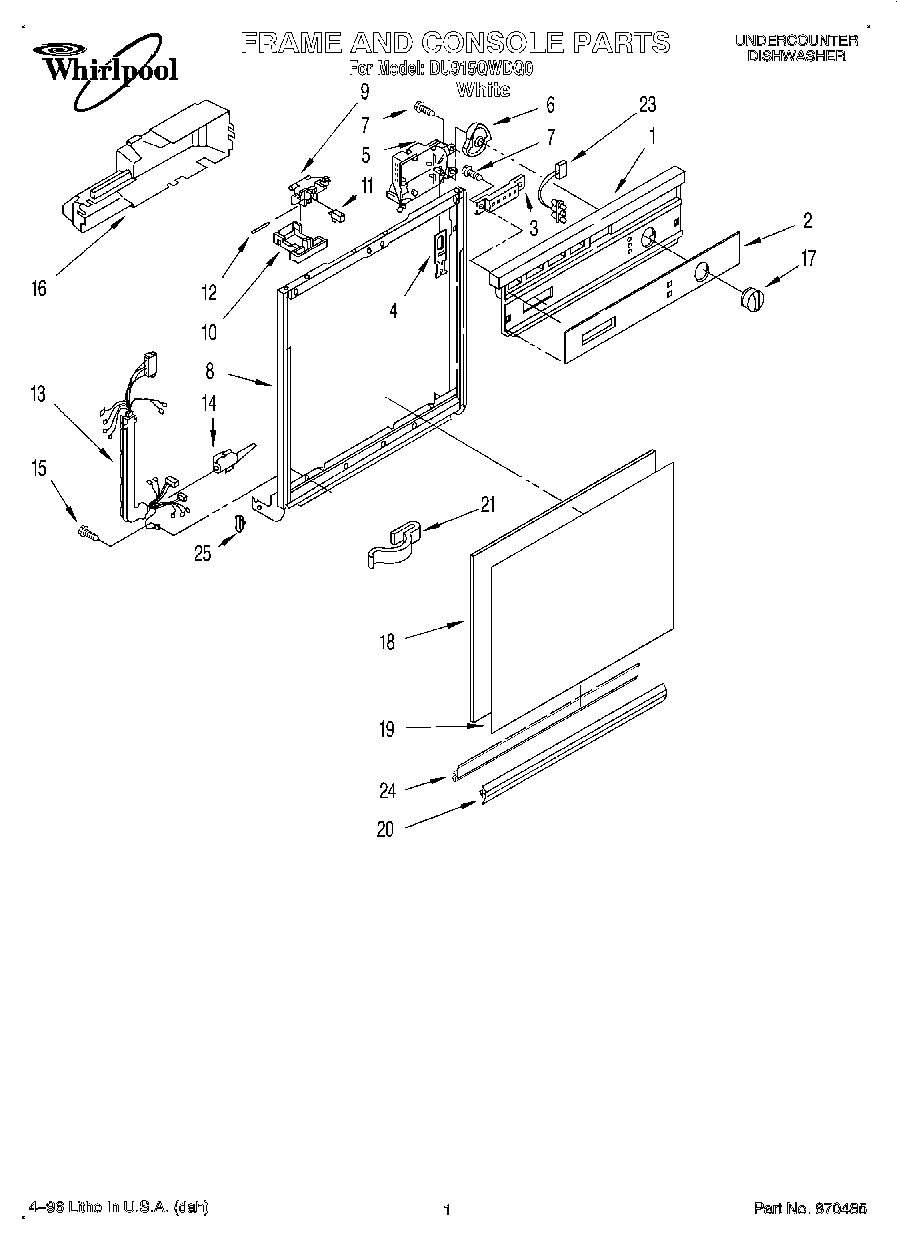

01 - FRAME AND CONSOLE
Common parts from model Whirlpool DU915QWDQ0 UNDERCOUNTER DISHWASHER
1
Support, Arm (Also Order Items 2 & 8) WPL 3368290 Contact Us For Availability
1
Tub Assembly WPL 3375130 Contact Us For Availability
1
Console (Includes Item 2) WPL 3375279 Contact Us For Availability
2
Clip WPL 303722 Contact Us For Availability
2
Tub, Wheel Assembly (8) WPL 3369078 Contact Us For Availability
2
Insert, Console WPL 3378209 Contact Us For Availability
3
Runner (2) WPL 3368933 Contact Us For Availability
3
Switch WPL 3378079 Contact Us For Availability
5
Screw, Shoulder WPL 3370389 Contact Us For Availability
5
Timer WPL 3376353 Contact Us For Availability
6
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
6
Wheel (2) WPL 302819 Contact Us For Availability
6
Cam WPL 3378124 Contact Us For Availability
8
Support, Lock Spray Arm WPL 3374702 Contact Us For Availability
8
Plate, Latch WPL 3374719 Contact Us For Availability
8
Door Frame (Includes Item 24) WPL 3374712 Contact Us For Availability
10
Lever, Latch WPL 3372231 Contact Us For Availability
11
End Cap (Front or Rear) WPL 300845 Contact Us For Availability
11
Retainer, Access Panel WPL 3372413 Contact Us For Availability
11
Switch, (2) WPL 3369325 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
13
Heater (Includes (2) Item No. 14) WPL 3377912 Contact Us For Availability
13
Harness and Protector WPL 3378080 Contact Us For Availability
15
Nut (2) (Heater Terminal) WPL 3369073 Contact Us For Availability
16
Gasket, Pump WPL 717000 Contact Us For Availability
16
Water Valve WPL 3374621 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
16
Cover Timer WPL 3373367 Contact Us For Availability
18
Sound Absorber WPL 3374777 Contact Us For Availability
20
Retainer, Panel WPL 3374011 Contact Us For Availability
21
Shield, Thermostat WPL 3376149 Contact Us For Availability
22
Sprayarm, Lower WPL 3369347 Contact Us For Availability
22
Bracket, Thermostat WPL 3370555 Contact Us For Availability
23
Cap, Nozzle WPL 3367910 Contact Us For Availability
23
Light Assembly WPL 3369318 Contact Us For Availability
24
Bearing, Nozzle WPL 719576 Contact Us For Availability
24
Relay WPL 3369447 Contact Us For Availability
24
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
24
Primer (White) WPL 350941 Contact Us For Availability
24
SIDE PANEL KITS: (WHITE) WPL 4317925 Contact Us For Availability
24
Side Panel Kits (Almond) WPL 4317929 Contact Us For Availability
24
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
24
Black (Uncut) WPL 799340 Contact Us For Availability
24
Almond (Uncut) WPL 978883 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
30
Switch, Float WPL 3369067 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
31
Cover, Switch Housing WPL 3369049 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
35
Panel, Access WPL 3369614 Contact Us For Availability
37
Hose, Inlet WPL 3369414 Contact Us For Availability
38
WPL 3376723 WPL 3376723 Contact Us For Availability
39
Support, Heater WPL 3368987 Contact Us For Availability
41
Box, Terminal WPL 3370292 Contact Us For Availability
42
COVER ASSEMBLY TERMINAL BOX WPL 300068 Contact Us For Availability
43
Access Panel (White/Black) WPL 3370868 Contact Us For Availability
44
Spacer, Corrugated WPL 3369526 Contact Us For Availability
45
Extension & Clip Assembly WPL 3374728 Contact Us For Availability
46
Insulation, Toe & Access Panel WPL 3374767 Contact Us For Availability
49
Relief, Strain WPL 3370307 Contact Us For Availability
52
Screw WPL 3369138 Contact Us For Availability
53
Clip, Grounding WPL 3378123 Contact Us For Availability
× ![]()
