Model Whirlpool DU915QWDB0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
02 - INNER DOOR
05 - DISHRACK, LIT/OPTIONAL

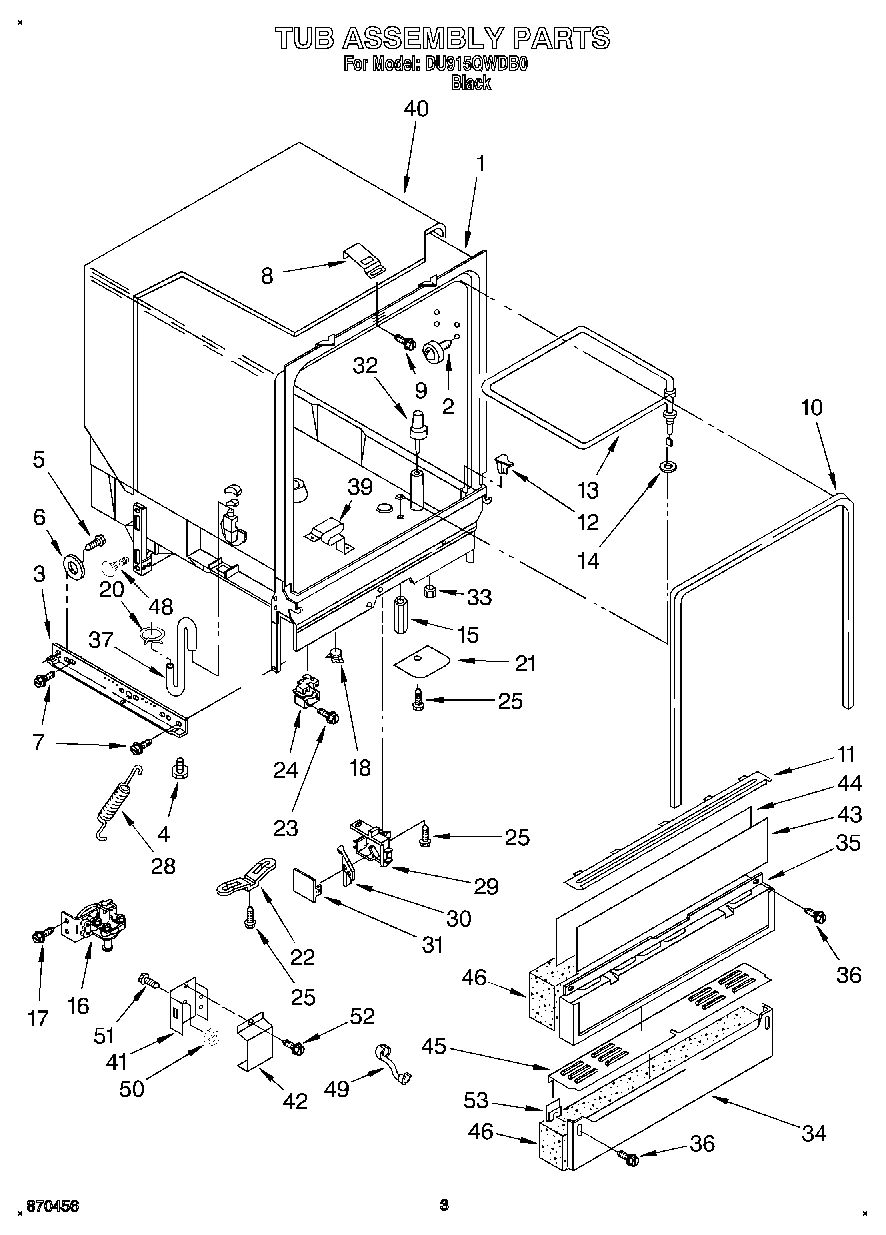

03 - TUB ASSEMBLY

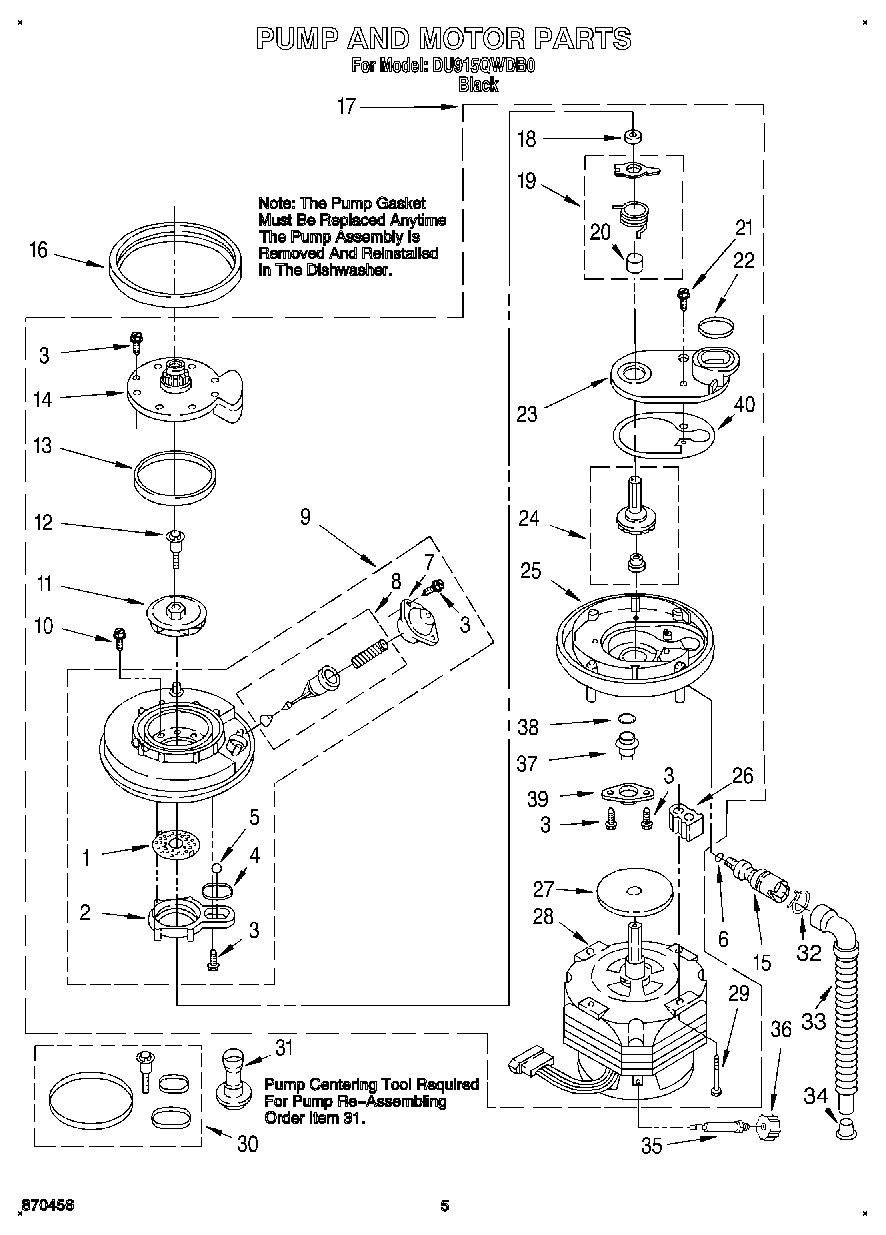

04 - PUMP AND MOTOR
01 - FRAME AND CONSOLE
Common parts from model Whirlpool DU915QWDB0 UNDERCOUNTER DISHWASHER
1
Support, Arm (Also Order Items 2 & 8) WPL 3368290 Contact Us For Availability
1
Plate, Perforated (Includes Item 5) (Also Ord WPL 9740982 Contact Us For Availability
1
Console (Includes Item 2) WPL 3375278 Contact Us For Availability
2
Clip WPL 303722 Contact Us For Availability
2
Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability
2
Insert, Console WPL 3378208 Contact Us For Availability
3
Switch WPL 3378078 Contact Us For Availability
5
Ball, Check WPL 302709 Contact Us For Availability
5
Timer WPL 3376353 Contact Us For Availability
6
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
6
``O`` Ring WPL 95080 Contact Us For Availability
7
Cover, Valve WPL 302721 Contact Us For Availability
8
Support, Lock Spray Arm WPL 3374702 Contact Us For Availability
8
Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability
9
Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability
10
Lever, Latch WPL 3369457 Contact Us For Availability
10
Screw WPL 3400001 Contact Us For Availability
11
End Cap (Front or Rear) WPL 300845 Contact Us For Availability
11
Switch, (2) WPL 3369325 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
13
Harness and Protector WPL 3378080 Contact Us For Availability
14
Outlet, Pump (Includes Item 13) WPL 3369478 Contact Us For Availability
16
Water Valve WPL 3374621 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
16
Cover, Timer WPL 3369192 Contact Us For Availability
17
Pump & Motor Assembly (Includes Item 16) WPL 3376752 Contact Us For Availability
18
Bushing, Grind WPL 302707 Contact Us For Availability
18
Sound Absorber WPL 3374777 Contact Us For Availability
20
Retainer, Panel WPL 3374010 Contact Us For Availability
20
Sleeve, Drain Impeller WPL 302705 Contact Us For Availability
22
Seal, Drain Cover WPL 302704 Contact Us For Availability
23
Cap, Nozzle WPL 3367910 Contact Us For Availability
23
Cover, Drain (Also Order Item 30) See Note A. WPL 302723 Contact Us For Availability
23
Light Assembly WPL 3369318 Contact Us For Availability
24
Relay WPL 3369447 Contact Us For Availability
24
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
25
Base, Pump (Includes Item 24) (Also Order Ite WPL 3376157 Contact Us For Availability
28
Motor (Includes Item 27) (Also Order Item 30) WPL 3376765 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
29
Screw WPL 3369331 Contact Us For Availability
30
Switch, Float WPL 3369067 Contact Us For Availability
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
31
Cover, Switch Housing WPL 3369049 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
35
Shaft, Absorber WPL 3374757 Contact Us For Availability
36
Weight, Absorber WPL 3374756 Contact Us For Availability
37
Hose, Inlet WPL 3369414 Contact Us For Availability
37
T WPL 3378083 Contact Us For Availability
39
Support, Heater WPL 3368987 Contact Us For Availability
41
Box, Terminal WPL 3370292 Contact Us For Availability
43
Access Panel (Almond/Black) WPL 3369527 Contact Us For Availability
44
Spacer, Corrugated WPL 3369526 Contact Us For Availability
45
Extension WPL 3369531 Contact Us For Availability
46
Insulation, Toe & Access WPL 3382404 Contact Us For Availability
49
Relief, Strain WPL 3370307 Contact Us For Availability
52
Screw WPL 3369138 Contact Us For Availability
53
Clip, Grounding WPL 3374718 Contact Us For Availability
× ![]()
