Model Whirlpool DU900PCDZ4 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

675679 Whirlpool Dishwasher White Tip Tines In Stock WPL 675679 $11.01

676458 Whirlpool Dishwasher Tine Tip Backorder WPL 676458 $15.56

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $15.23

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $15.77

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $15.43

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability

Primer (White) WPL 350941 Contact Us For Availability

Side Panel Kit (White) WPL 4317925 Contact Us For Availability

Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability

Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability

Black (Uncut) WPL 799340 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Do-It Yourself Manual WPL LIT0677967 Contact Us For Availability

Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability

Instructions, Installation WPL LIT3369679 Contact Us For Availability

Guide, Use & Care WPL LIT3376816 Contact Us For Availability

Wiring Diagram WPL LIT3379047 Contact Us For Availability

Energy Guide WPL LIT3379136 Contact Us For Availability

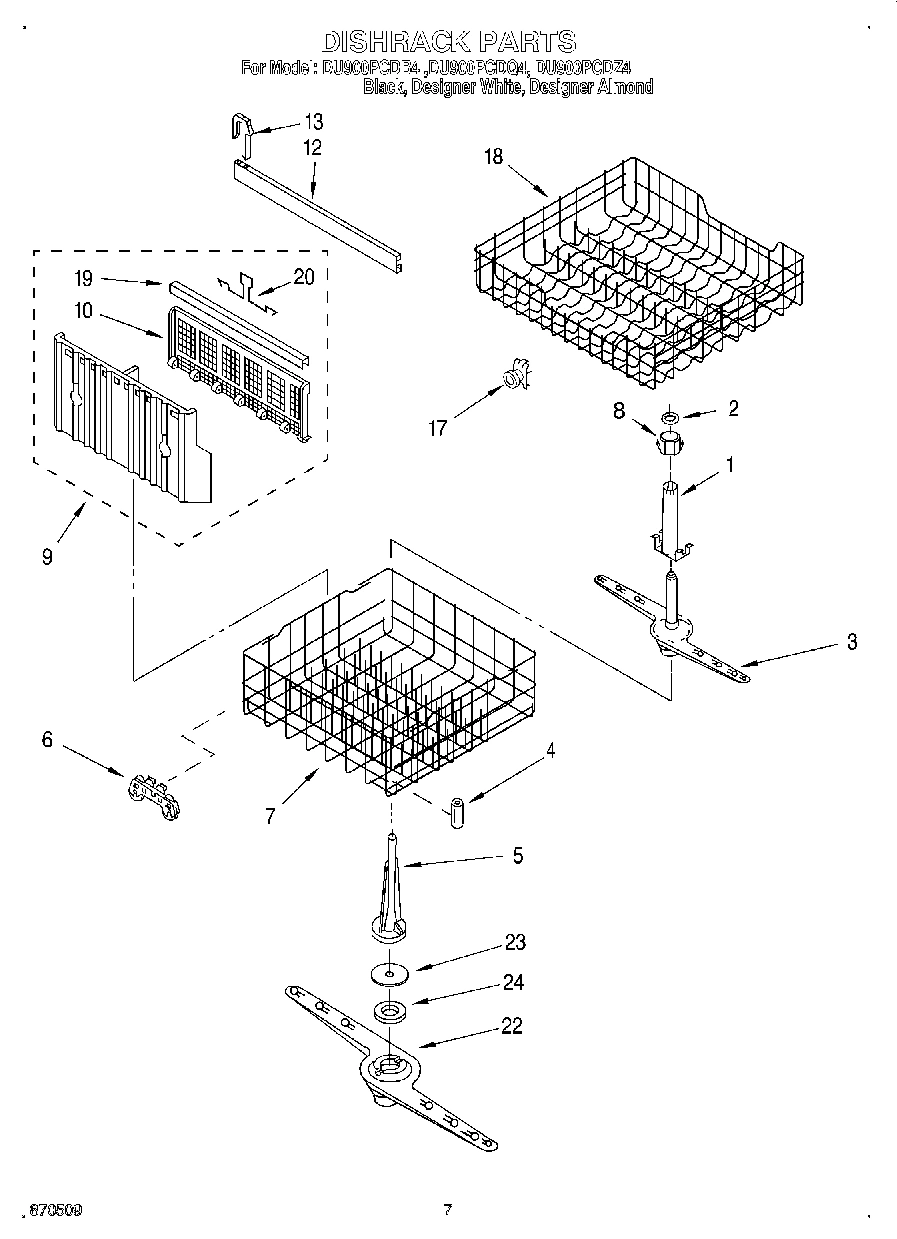

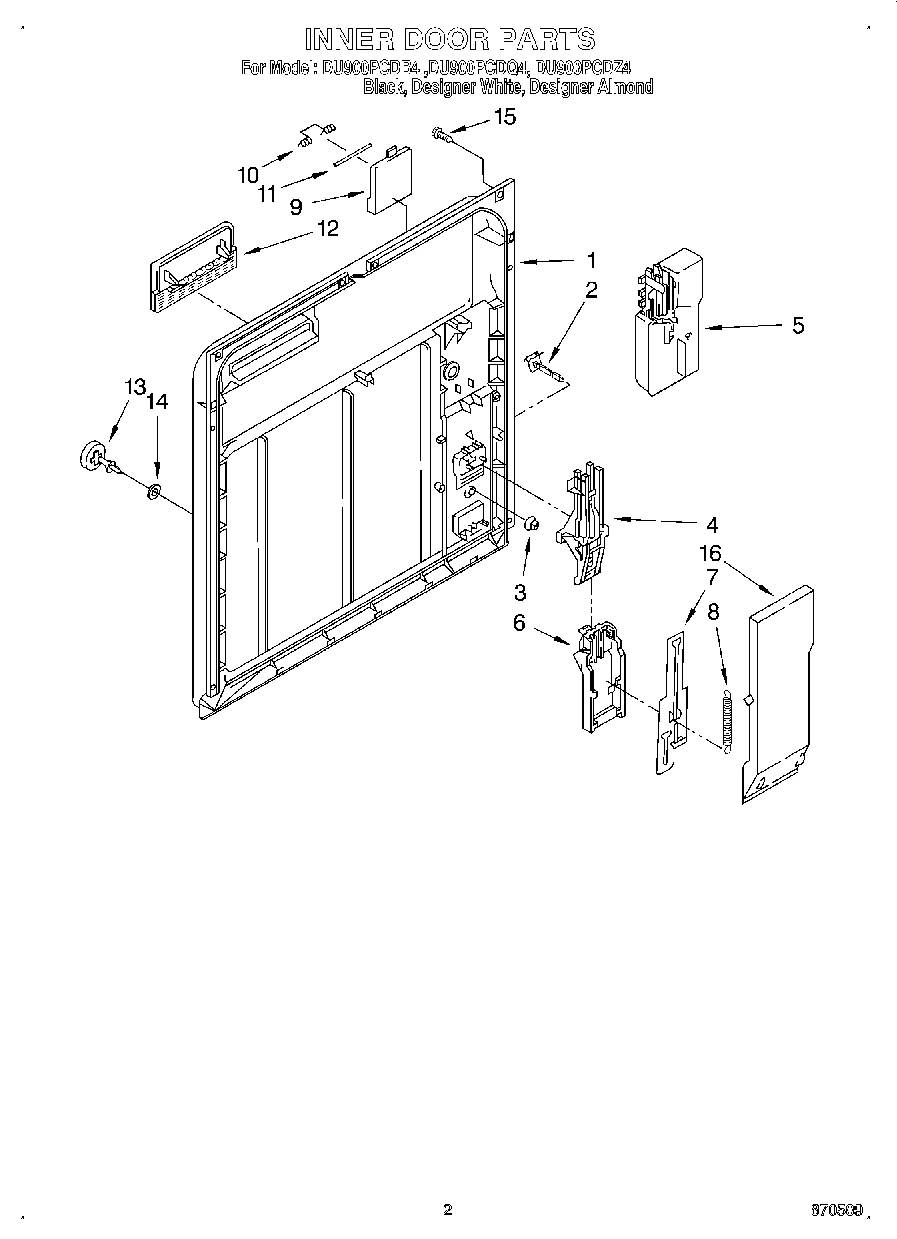

1

Support, Arm (Also Order Items 2 & 8) WPL 3368290 Contact Us For Availability

1

Console (Includes Item 2) (Black) WPL 3375273 Contact Us For Availability

1

Console (Includes Item 2) (White) WPL 3375274 Contact Us For Availability

1

Console (Includes Item 2) (Almond) WPL 3375275 Contact Us For Availability

1

Plate, Perforated (Includes Item 5) (Also Ord WPL 9740982 Contact Us For Availability

1

Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability

2

Clip WPL 303722 Contact Us For Availability

2

Insert, Console (Black) WPL 3376024 Contact Us For Availability

2

Insert, Console (White) WPL 3376025 Contact Us For Availability

2

Insert, Console (Almond) WPL 3376026 Contact Us For Availability

2

Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

3

Switch (Black) WPL 3376027 Contact Us For Availability

3

Switch (White) WPL 3376028 Contact Us For Availability

3

Switch (Almond) WPL 3376029 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

WP3369529 Whirlpool Dishwasher Follower Backorder WPL WP3369529 $29.37

5

Timer WPL 3373626 Contact Us For Availability

5

Ball, Check WPL 302709 Contact Us For Availability

6

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

6

WP3378124 Whirlpool Dishwasher Cam Backorder WPL WP3378124 $49.79

6

Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability

6

``O`` Ring WPL 95080 Contact Us For Availability

7

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $2.51

7

Cover, Valve WPL 302721 Contact Us For Availability

8

3374711 Whirlpool Dishwasher Frame Backorder WPL 3374711 $65.50

8

WP3368999 Whirlpool Dishwasher Spring In Stock WPL WP3368999 $2.51

8

Support, Lock Spray Arm WPL 3374702 Contact Us For Availability

8

Door Frame (Includes Item 24) (White) WPL 3374712 Contact Us For Availability

8

Door Frame (Includes Item 24) (Almond) WPL 3374713 Contact Us For Availability

8

Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability

9

WP3380854 Whirlpool Door Latch Bolt In Stock WPL WP3380854 $32.13

9

Separator Assembly (Includes Items 12, 13 & 2 WPL 303882 Contact Us For Availability

Lever, Latch (Black) WPL 3369457 Contact Us For Availability

Lever, Latch (White) WPL 3372232 Contact Us For Availability

Lever, Latch (Almond) WPL 3375061 Contact Us For Availability

Screw WPL 3400001 Contact Us For Availability

11

WP3372028 Whirlpool Hinge Pin In Stock WPL WP3372028 $4.43

11

Switch, (2) WPL 3369325 Contact Us For Availability

12

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $3.70

12

WP3371710 Whirlpool Dishwasher Screen Backorder WPL WP3371710 $3.70

12

Pin, Switch (2) WPL 3368955 Contact Us For Availability

13

WP302711 Whirlpool Dishwasher Ring Seal Backorder WPL WP302711 $11.66

13

Harness and Protector WPL 3378948 Contact Us For Availability

14

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $5.33

14

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

14

Outlet, Pump (Includes Item 13) WPL 3369478 Contact Us For Availability

15

675238 Whirlpool Check Valve Backorder WPL 675238 $28.04

15

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

Cover, Drip WPL 3371569 Contact Us For Availability

Cover Timer (Almond Model) WPL 3373367 Contact Us For Availability

Cover Timer (Black Model) WPL 3375473 Contact Us For Availability

17

3375348 Whirlpool Dishwasher Timer Knob Backorder WPL 3375348 $38.43

17

Pump & Motor Assembly (Includes Item 16) WPL 3376752 Contact Us For Availability

18

Spacer, Corrugated WPL 3368979 Contact Us For Availability

18

Bushing, Grind WPL 302707 Contact Us For Availability

19

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $85.12

19

WP3369769 Whirlpool Dishwasher Panel In Stock WPL WP3369769 $17.79

Retainer, Panel (Black) WPL 3374010 Contact Us For Availability

White WPL 3374011 Contact Us For Availability

Almond WPL 3374012 Contact Us For Availability

Sleeve, Drain Impeller WPL 302705 Contact Us For Availability

21

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

21

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

22

Seal, Drain Cover WPL 302704 Contact Us For Availability

23

Cap, Nozzle WPL 3367910 Contact Us For Availability

23

Cover, Drain (Also Order Item 30) See Note A. WPL 3378207 Contact Us For Availability

24

WP3374716 Whirlpool Dishwasher Channel Backorder WPL WP3374716 $30.80

24

WP719576 Whirlpool Dishwasher Bearing Backorder WPL WP719576 $4.26

24

Relay WPL 3369447 Contact Us For Availability

25

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $4.43

25

Base, Pump (Also Order Item 30) See Note A. WPL 3376157 Contact Us For Availability

26

WP3367197 Whirlpool Dishwasher Support Backorder WPL WP3367197 $3.51

27

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

28

WP3374343 Whirlpool Dishwasher Spring Backorder WPL WP3374343 $11.07

28

Motor & Fan (Assembly) (Includes Item 27) (Al WPL 3376765 Contact Us For Availability

29

Housing, Float Switch WPL 3369048 Contact Us For Availability

29

Screw WPL 3369331 Contact Us For Availability

30

Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

32

WP3376397 Whirlpool Dishwasher Float Assembly In Stock WPL WP3376397 $51.33

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $47.73

33

Nut WPL 717488 Contact Us For Availability

34

3371748 Whirlpool Dishwasher Cap Backorder WPL 3371748 $4.41

35

Panel, Access WPL 3369614 Contact Us For Availability

35

Shaft, Absorber WPL 3374757 Contact Us For Availability

36

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

36

Weight, Absorber WPL 3374756 Contact Us For Availability

37

The WPL 3378083 Contact Us For Availability

38

WP3376723 Whirlpool Dishwasher Seal Backorder WPL WP3376723 $3.93

39

WP3376358 Whirlpool Dishwasher Retainer Backorder WPL WP3376358 $4.48

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $3.70

42

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

43

Access Panel (White/Black) WPL 3370868 Contact Us For Availability

45

Extension & Clip Assembly WPL 3374728 Contact Us For Availability

52

Screw WPL 3369138 Contact Us For Availability

53

Clip, Grounding WPL 3378123 Contact Us For Availability
