Model Whirlpool DU900PCDB5 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

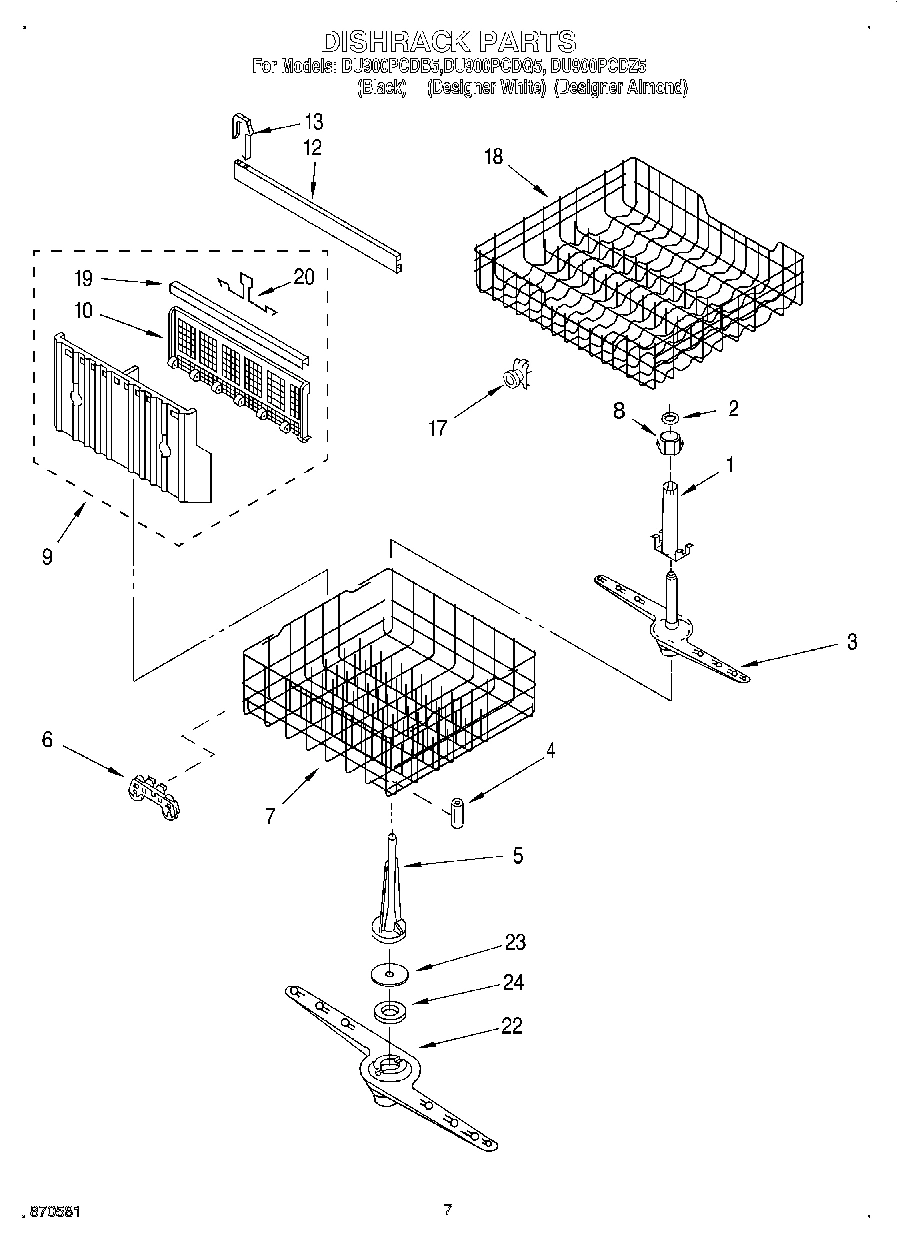

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

675679 Whirlpool Dishwasher White Tip Tines In Stock WPL 675679 $11.01

676458 Whirlpool Dishwasher Tine Tip Backorder WPL 676458 $15.56

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $15.23

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $15.77

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $15.43

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability

Black (Uncut) WPL 799340 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Do-It Yourself Manual WPL LIT0677967 Contact Us For Availability

Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability

Guide, Use & Care WPL LIT3376832 Contact Us For Availability

Wiring Diagram WPL LIT3379192 Contact Us For Availability

Instructions, Installation WPL LIT3380268 Contact Us For Availability

Energy Guide WPL LIT3380582 Contact Us For Availability

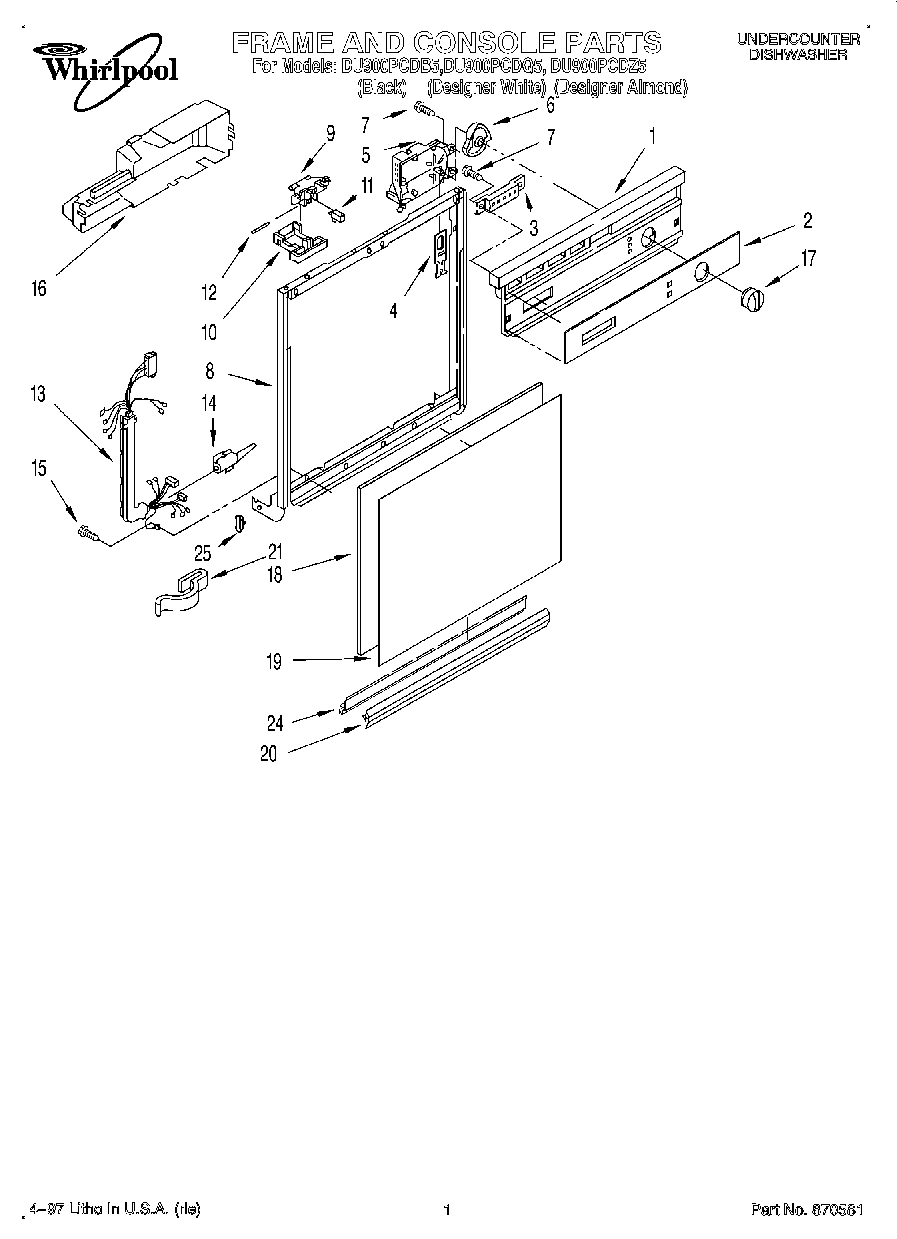

1

DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability

1

Support, Arm (Also Order Items 2 & 8) WPL 3368290 Contact Us For Availability

1

Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability

1

SIDE PANEL KITS: (WHITE) WPL 4317925 Contact Us For Availability

1

Side Panel Kits (Almond) WPL 4317929 Contact Us For Availability

1

Console (Includes Item 2) (Black) WPL 3375273 Contact Us For Availability

1

Console (Includes Item 2) (White) WPL 3375274 Contact Us For Availability

1

Console (Includes Item 2) (Almond) WPL 3375275 Contact Us For Availability

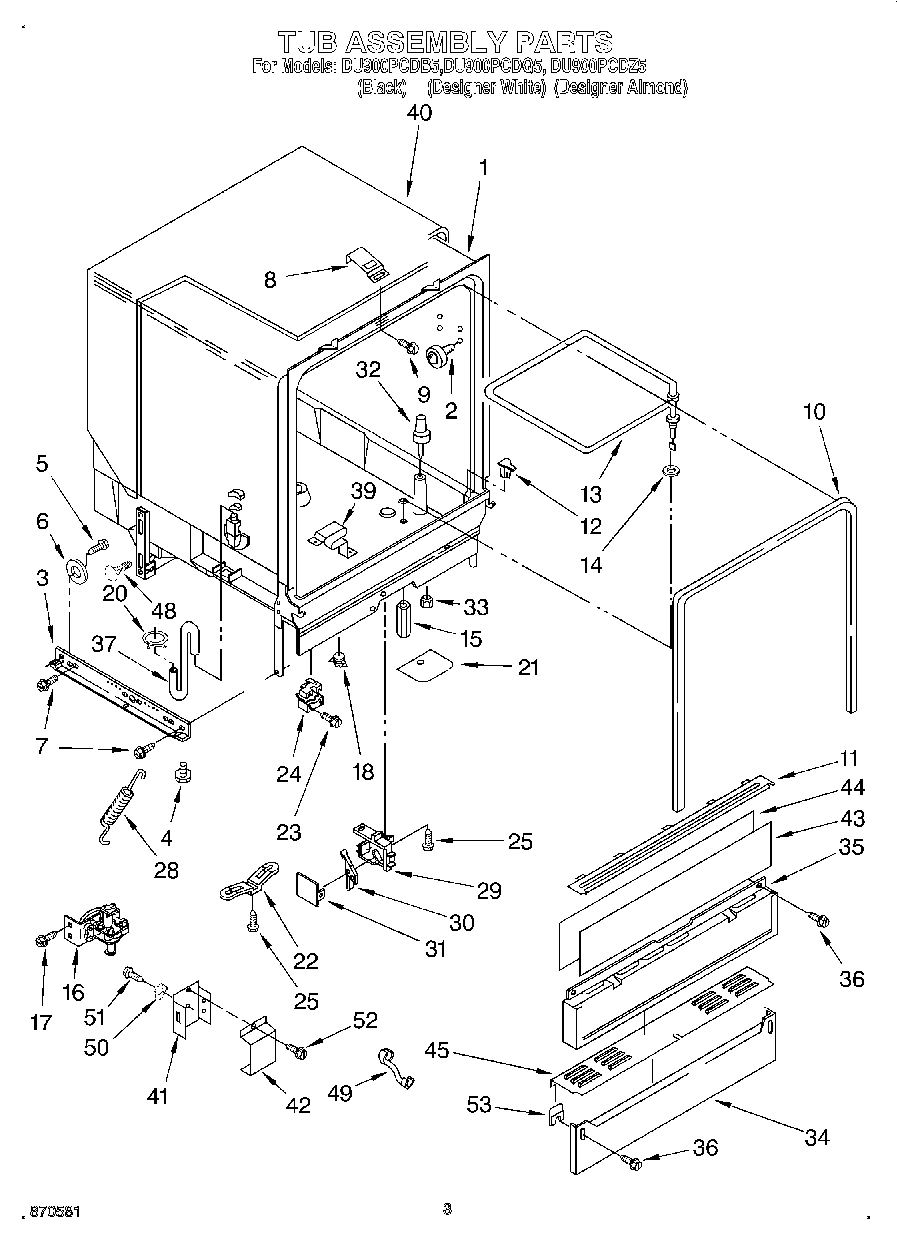

2

Tub, Wheel Assembly (8) WPL 3380371 Contact Us For Availability

2

Clip WPL 303722 Contact Us For Availability

2

Insert, Console (Black) WPL 3376024 Contact Us For Availability

2

Insert, Console (White) WPL 3376025 Contact Us For Availability

2

Insert, Console (Almond) WPL 3376026 Contact Us For Availability

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

3

Switch (Black) WPL 3376027 Contact Us For Availability

3

Switch (White) WPL 3376028 Contact Us For Availability

3

Switch (Almond) WPL 3376029 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

WP3369529 Whirlpool Dishwasher Follower Backorder WPL WP3369529 $29.37

5

Timer WPL 3373626 Contact Us For Availability

6

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

6

WP3378124 Whirlpool Dishwasher Cam Backorder WPL WP3378124 $49.79

6

Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability

7

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $2.51

8

3374711 Whirlpool Dishwasher Frame Backorder WPL 3374711 $65.50

8

WP3368999 Whirlpool Dishwasher Spring In Stock WPL WP3368999 $2.51

8

Support, Lock Spray Arm WPL 3374702 Contact Us For Availability

8

Door Frame (Includes Item 24) (White) WPL 3374712 Contact Us For Availability

8

Door Frame (Includes Item 24) (Almond) WPL 3374713 Contact Us For Availability

9

WP3380854 Whirlpool Door Latch Bolt In Stock WPL WP3380854 $32.13

10

Lever, Latch (Black) WPL 3369457 Contact Us For Availability

10

Lever, Latch (White) WPL 3372232 Contact Us For Availability

10

Lever, Latch (Almond) WPL 3375061 Contact Us For Availability

11

WP3372028 Whirlpool Hinge Pin In Stock WPL WP3372028 $4.43

11

WP3372412 Whirlpool Dishwasher Retainer Backorder WPL WP3372412 $31.68

11

Switch, (2) WPL 3369325 Contact Us For Availability

12

WP3371710 Whirlpool Dishwasher Screen Backorder WPL WP3371710 $3.70

12

Pin, Switch (2) WPL 3368955 Contact Us For Availability

13

WP302711 Whirlpool Dishwasher Ring Seal Backorder WPL WP302711 $11.66

13

WP3379941 Whirlpool Dishwasher Stop Backorder WPL WP3379941 $33.96

13

Harness and Protector WPL 3380435 Contact Us For Availability

14

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $5.33

14

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

15

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

16

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

16

Cover, Drip WPL 3371569 Contact Us For Availability

16

Cover Timer WPL 3373367 Contact Us For Availability

17

3375348 Whirlpool Dishwasher Timer Knob Backorder WPL 3375348 $38.43

18

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

18

Spacer, Corrugated WPL 3368979 Contact Us For Availability

19

WP3369769 Whirlpool Dishwasher Panel In Stock WPL WP3369769 $17.79

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

Retainer, Panel (Black) WPL 3374010 Contact Us For Availability

Retainer, Panel (White) WPL 3374011 Contact Us For Availability

Retainer, Panel (Almond) WPL 3374012 Contact Us For Availability

21

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

21

Shield, Thermostat WPL 3376149 Contact Us For Availability

22

W10539489 Whirlpool Dishwasher Bracket-Stat Backorder WPL W10539489 $7.32

23

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

23

Cap, Nozzle WPL 3367910 Contact Us For Availability

24

WP3374716 Whirlpool Dishwasher Channel Backorder WPL WP3374716 $30.80

24

WP719576 Whirlpool Dishwasher Bearing Backorder WPL WP719576 $4.26

24

Relay WPL 3369447 Contact Us For Availability

25

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $4.43

28

WP3374343 Whirlpool Dishwasher Spring Backorder WPL WP3374343 $11.07

29

Housing, Float Switch WPL 3369048 Contact Us For Availability

30

Switch, Float WPL 3369067 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

31

Cover, Switch Housing WPL 3369049 Contact Us For Availability

32

WP3376397 Whirlpool Dishwasher Float Assembly In Stock WPL WP3376397 $51.33

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $47.73

33

Nut WPL 717488 Contact Us For Availability

3371748 Whirlpool Dishwasher Cap Backorder WPL 3371748 $4.41

WP3379920 Whirlpool Dishwasher Toe Panel Backorder WPL WP3379920 $78.93

WP3379921 Whirlpool Dishwasher Toe Panel Backorder WPL WP3379921 $71.95

Toe Panel (Almond) WPL 9742862 Contact Us For Availability

35

WP3369193 Whirlpool Dishwasher Panel Backorder WPL WP3369193 $56.87

35

WP8054184 Whirlpool Dishwasher Door Panel Backorder WPL WP8054184 $10.43

35

Panel, Access (White) WPL 3369614 Contact Us For Availability

36

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

37

Hose, Inlet WPL 3369414 Contact Us For Availability

38

WP3376723 Whirlpool Dishwasher Seal Backorder WPL WP3376723 $3.93

39

3379740 Whirlpool Dishwasher Heater Support Backorder WPL 3379740 $32.08

40

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.15

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $3.70

41

Terminal Box WPL 3378131 Contact Us For Availability

42

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

43

Access Panel (White/Black) WPL 3370868 Contact Us For Availability

43

Access Panel (Almond/Black) WPL 3369527 Contact Us For Availability

44

Spacer, Corrugated WPL 3369526 Contact Us For Availability

45

Extension & Clip Assembly WPL 3374728 Contact Us For Availability

48

WP304666 Whirlpool Dishwasher Retainer In Stock WPL WP304666 $9.37

49

Relief, Strain WPL 3370307 Contact Us For Availability

50

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $2.51

51

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

52

Screw WPL 3369138 Contact Us For Availability

53

Clip, Grounding WPL 3378123 Contact Us For Availability
