Model Whirlpool DU8960XY1 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

WPL LIT0677967
WPL LIT0677967 WPL LIT0677967 Contact Us For Availability
View on Model
WPL LIT3367007
WPL LIT3367007 WPL LIT3367007 Contact Us For Availability
View on Model
WPL LIT3369098
WPL LIT3369098 WPL LIT3369098 Contact Us For Availability
View on Model
WPL LIT3369600
WPL LIT3369600 WPL LIT3369600 Contact Us For Availability
View on Model
WPL LIT3372194
WPL LIT3372194 WPL LIT3372194 Contact Us For Availability
View on Model
WPL LIT3374368
WPL LIT3374368 WPL LIT3374368 Contact Us For Availability
View on Model
1
Clip
Clip WPL 303722 Contact Us For Availability
View on Model
1

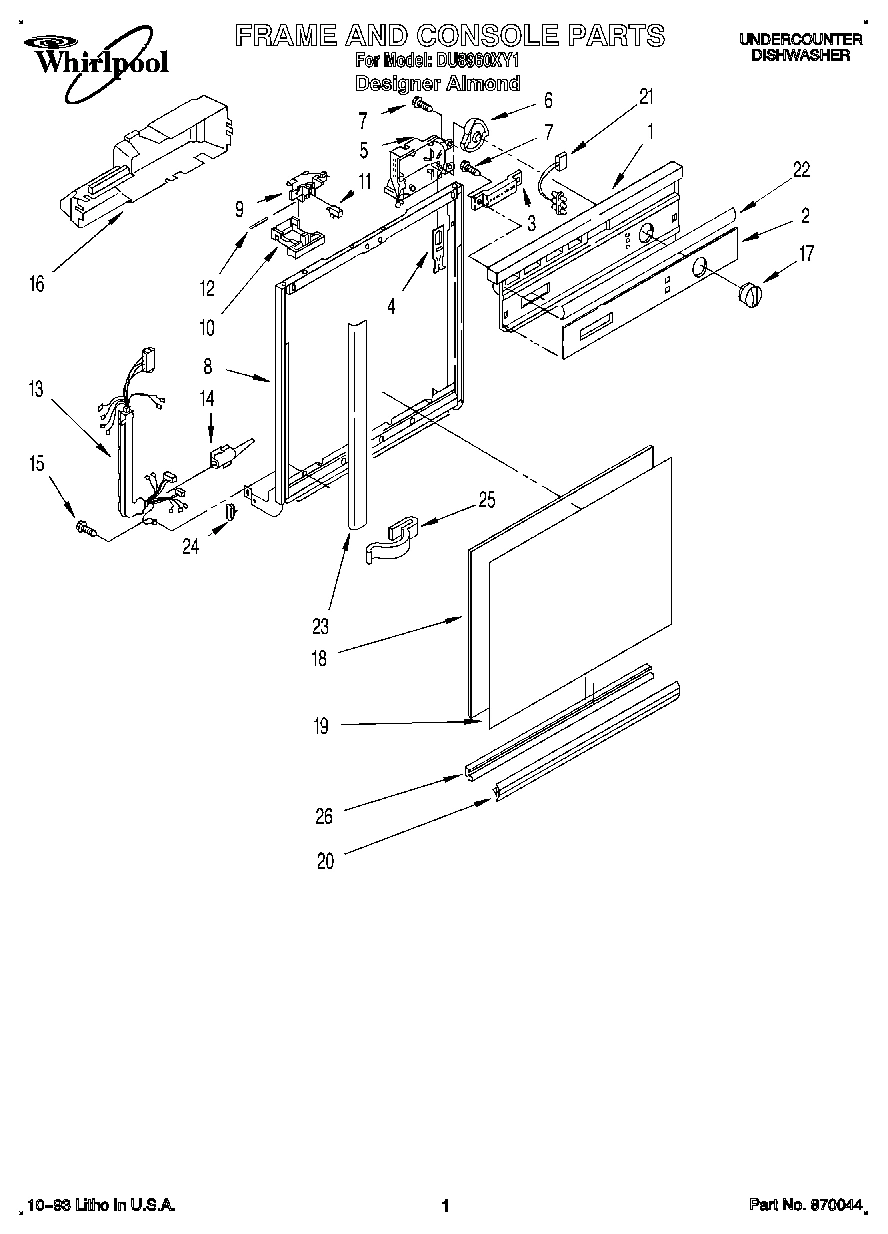

Console (Includes Item 2)
Console (Includes Item 2) WPL 3373013 Contact Us For Availability
View on Model
1
Plate, Perforated (Includes Item 5) (Also Ord
Plate, Perforated (Includes Item 5) (Also Ord WPL 9740982 Contact Us For Availability
View on Model
1

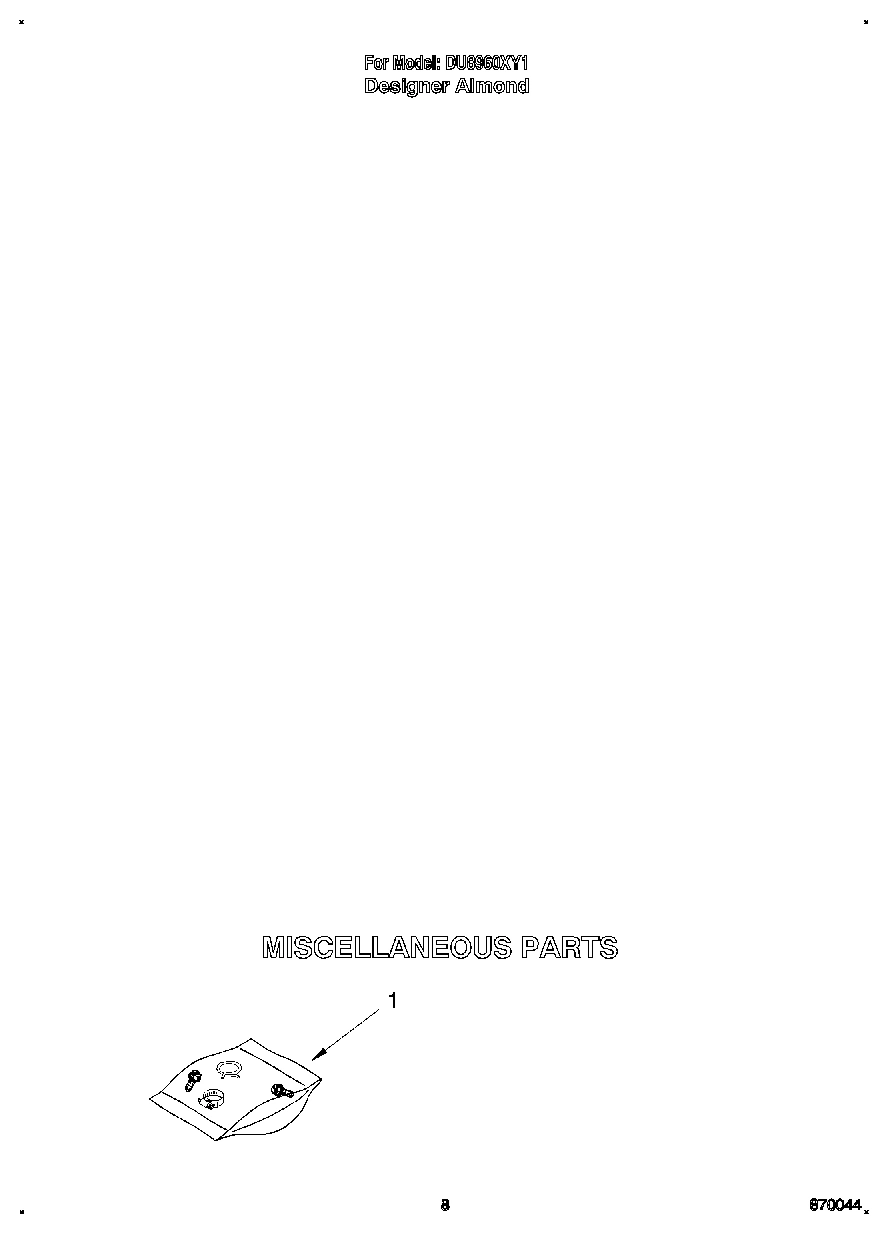

Miscellaneous Parts Bag (Includes 2 Screws &
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability
View on Model
2
Support, Arm
Support, Arm WPL 3368290 Contact Us For Availability
View on Model
2
Insert, Console
Insert, Console WPL 3373495 Contact Us For Availability
View on Model
2
Base, Inlet (Includes Items 1 & 5) (Also Orde
Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability
View on Model
3
Spray Arm, Upper
Spray Arm, Upper WPL 3368300 Contact Us For Availability
View on Model
3
Switch, 9-Button
Switch, 9-Button WPL 3373493 Contact Us For Availability
View on Model
4
Follower, Cam
Follower, Cam WPL 3368997 Contact Us For Availability
View on Model
5
Tower, Pressure
Tower, Pressure WPL 300848 Contact Us For Availability
View on Model
5
Timer
Timer WPL 3369203 Contact Us For Availability
View on Model
5
Ball, Check
Ball, Check WPL 302709 Contact Us For Availability
View on Model
6
Draw Bar, (Upper Dispenser)
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
View on Model
6
``O`` Ring
``O`` Ring WPL 95080 Contact Us For Availability
View on Model
7
Cover, Valve
Cover, Valve WPL 302721 Contact Us For Availability
View on Model
8
Valve Stem Kit (Includes Items 12, 13 & 22) S
Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability
View on Model
9

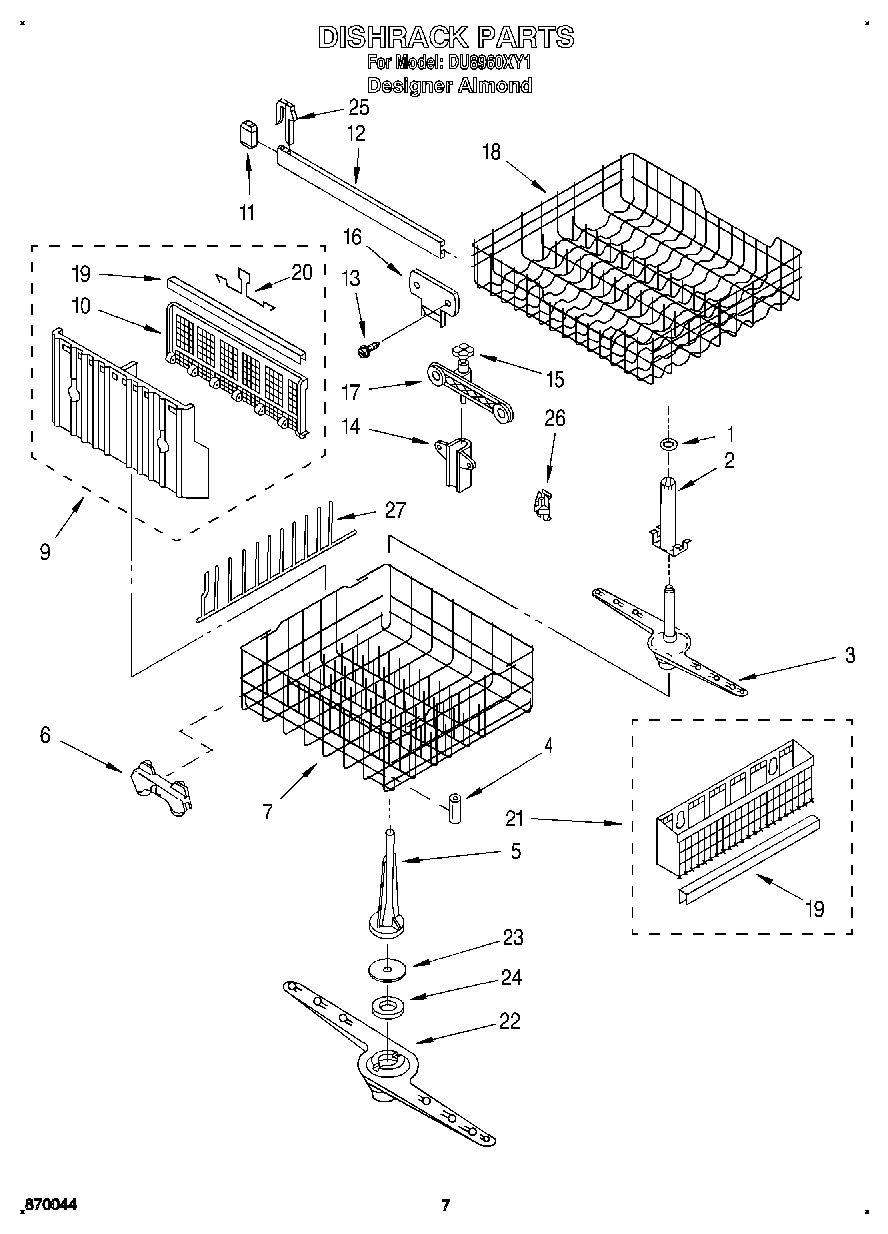

Silverware Basket Assembly
Silverware Basket Assembly WPL 3369488 Contact Us For Availability
View on Model
9
Separator Assembly (Includes Items 12, 13 & 2
Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability
View on Model
10
Cover, Basket
Cover, Basket WPL 3369485 Contact Us For Availability
View on Model
10
Screw, 8-18 x 1-5/8 (4)
Screw, 8-18 x 1-5/8 (4) WPL 9741258 Contact Us For Availability
View on Model
11
End Cap (Front or Rear)
End Cap (Front or Rear) WPL 300845 Contact Us For Availability
View on Model
11
Switch, (2)
Switch, (2) WPL 3369325 Contact Us For Availability
View on Model
12
Pin, Switch (2)
Pin, Switch (2) WPL 3368955 Contact Us For Availability
View on Model
12
Track
Track WPL 3369071 Contact Us For Availability
View on Model
13
Harness and Protector
Harness and Protector WPL 3372253 Contact Us For Availability
View on Model
14
Outlet, Pump (Includes Item 13)
Outlet, Pump (Includes Item 13) WPL 3369478 Contact Us For Availability
View on Model
15
Worm (2)
Worm (2) WPL 3369981 Contact Us For Availability
View on Model
16
Cover, Drip
Cover, Drip WPL 3371569 Contact Us For Availability
View on Model
16
Cover Timer
Cover Timer WPL 3373367 Contact Us For Availability
View on Model
17
Knob, Timer
Knob, Timer WPL 3373508 Contact Us For Availability
View on Model
17

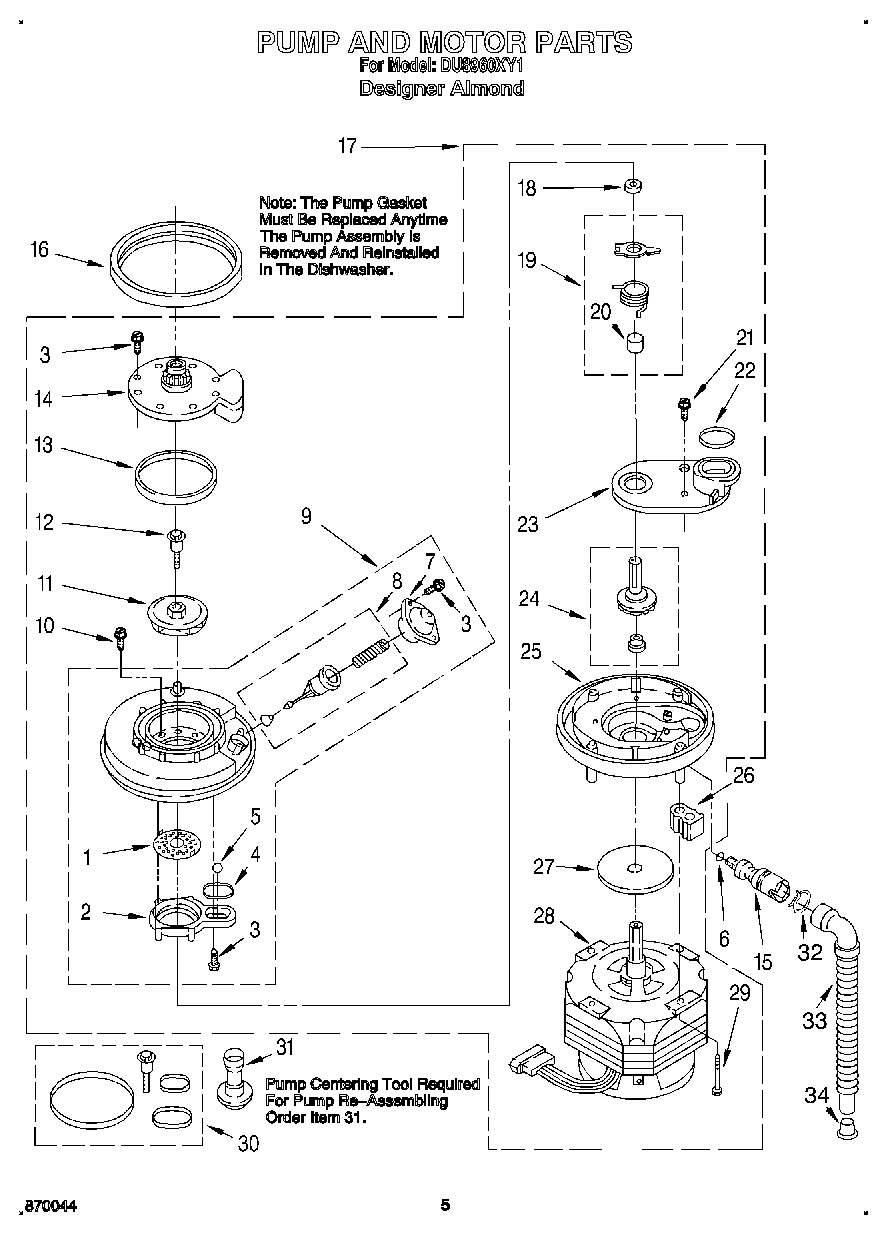

Pump & Motor Assembly (Includes Item 16)
Pump & Motor Assembly (Includes Item 16) WPL 3369475 Contact Us For Availability
View on Model
18
Spacer, Corrugated
Spacer, Corrugated WPL 3368979 Contact Us For Availability
View on Model
18
Bushing, Grind
Bushing, Grind WPL 302707 Contact Us For Availability
View on Model
19
Trim, Basket
Trim, Basket WPL 717528 Contact Us For Availability
View on Model
20
Handle, Basket
Handle, Basket WPL 300086 Contact Us For Availability
View on Model
20
Retainer, Panel
Retainer, Panel WPL 3374012 Contact Us For Availability
View on Model
20
Sleeve, Drain Impeller
Sleeve, Drain Impeller WPL 302705 Contact Us For Availability
View on Model
21
Basket, Utensil
Basket, Utensil WPL 3369494 Contact Us For Availability
View on Model
21
Light Assembly
Light Assembly WPL 3370279 Contact Us For Availability
View on Model
22
Trim, Console
Trim, Console WPL 3369324 Contact Us For Availability
View on Model
22
Seal, Drain Cover
Seal, Drain Cover WPL 302704 Contact Us For Availability
View on Model
23
Cap, Nozzle
Cap, Nozzle WPL 3367910 Contact Us For Availability
View on Model
23
Trim (2)
Trim (2) WPL 3369592 Contact Us For Availability
View on Model
23
Cover, Drain (Also Order Item 30) See Note A.
Cover, Drain (Also Order Item 30) See Note A. WPL 302723 Contact Us For Availability
View on Model
24
Relay
Relay WPL 3369447 Contact Us For Availability
View on Model
25
Stop, Track (2)
Stop, Track (2) WPL 3369046 Contact Us For Availability
View on Model
25
Base, Pump (Includes Item 24) (Also Order Ite
Base, Pump (Includes Item 24) (Also Order Ite WPL 3367204 Contact Us For Availability
View on Model
26
Channel, Retainer (Also Order Item No.20)
Channel, Retainer (Also Order Item No.20) WPL 3374015 Contact Us For Availability
View on Model
27
DOOR SPRING KIT: (HEAVY DUTY)
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
View on Model
27
Leveler (Thinner)
Leveler (Thinner) WPL 350941 Contact Us For Availability
View on Model
27
Side Panel Kit (White)
Side Panel Kit (White) WPL 4317925 Contact Us For Availability
View on Model
27
Avocado
Avocado WPL 4317926 Contact Us For Availability
View on Model
27
Gold
Gold WPL 4317927 Contact Us For Availability
View on Model
27
Side Panel Kit: (Almond)
Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability
View on Model
27
Toast
Toast WPL 4317930 Contact Us For Availability
View on Model
27
Platinum
Platinum WPL 4317931 Contact Us For Availability
View on Model
27
Tine Tip Repair Kit (Blue - Enough For Two Co
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
View on Model
27
Pa
Pa WPL 72112 Contact Us For Availability
View on Model
27
WPL 799340
WPL 799340 WPL 799340 Contact Us For Availability
View on Model
27
WPL 978883
WPL 978883 WPL 978883 Contact Us For Availability
View on Model
28
Motor (Includes Item 27) (Also Order Item 30)
Motor (Includes Item 27) (Also Order Item 30) WPL 3369472 Contact Us For Availability
View on Model
29
Housing, Float Switch
Housing, Float Switch WPL 3369048 Contact Us For Availability
View on Model
29
Screw (4)
Screw (4) WPL 3369331 Contact Us For Availability
View on Model
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22)
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability
View on Model
31
Tool, Pump Centering
Tool, Pump Centering WPL 303918 Contact Us For Availability
View on Model
33
Nut
Nut WPL 717488 Contact Us For Availability
View on Model
47
Trim, Bottom
Trim, Bottom WPL 3369588 Contact Us For Availability
View on Model
49
Bracket, Thermostat
Bracket, Thermostat WPL 3370555 Contact Us For Availability
View on Model
50
Sound Shield
Sound Shield WPL 3370942 Contact Us For Availability
View on Model
52
Support, Heater
Support, Heater WPL 3368987 Contact Us For Availability
View on Model
55
Relief, Strain
Relief, Strain WPL 3370307 Contact Us For Availability
View on Model
56
Screw, 8-18
Screw, 8-18 WPL 3369138 Contact Us For Availability
View on Model
