Model Whirlpool DU8900XY2 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

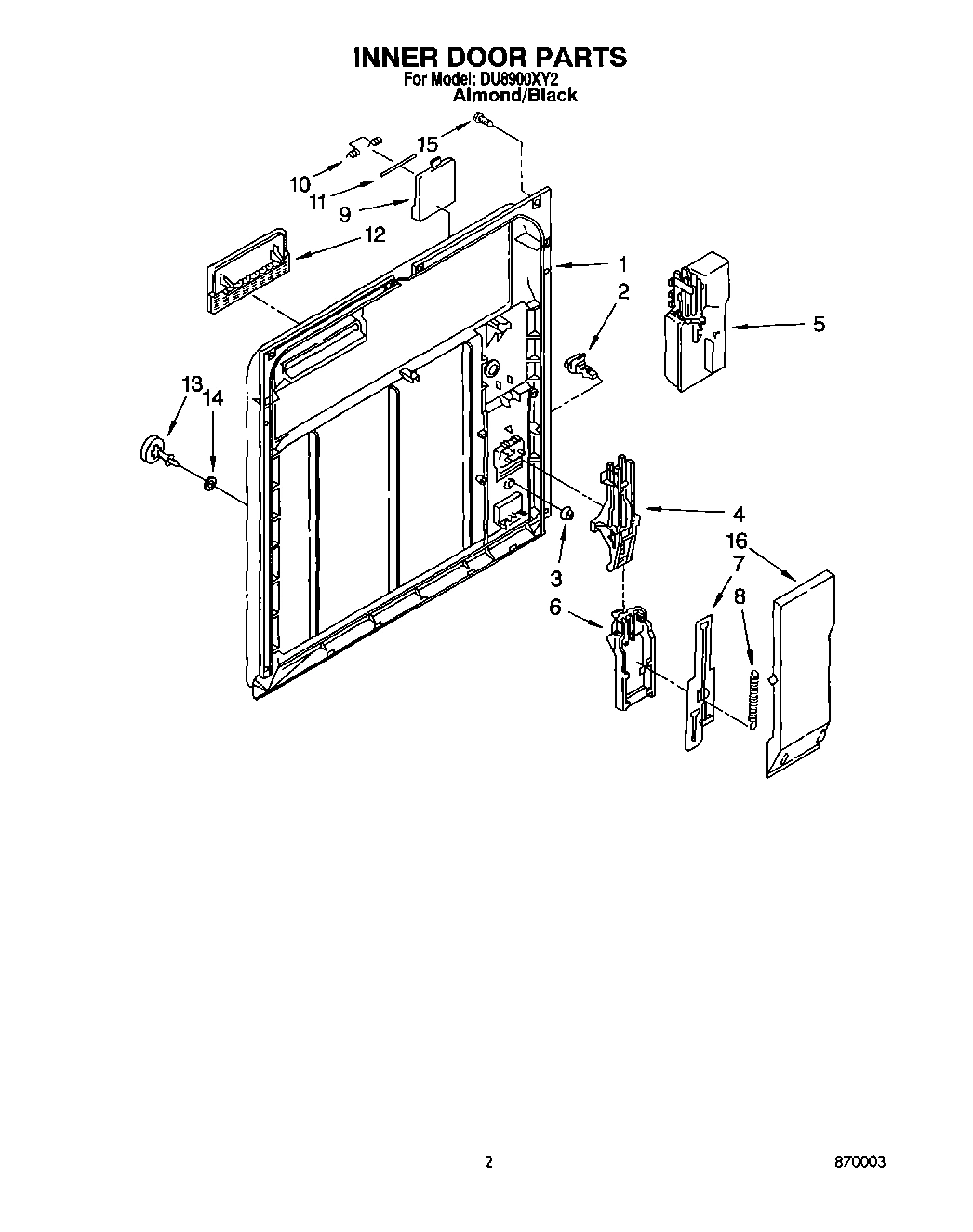

02 - INNER DOOR

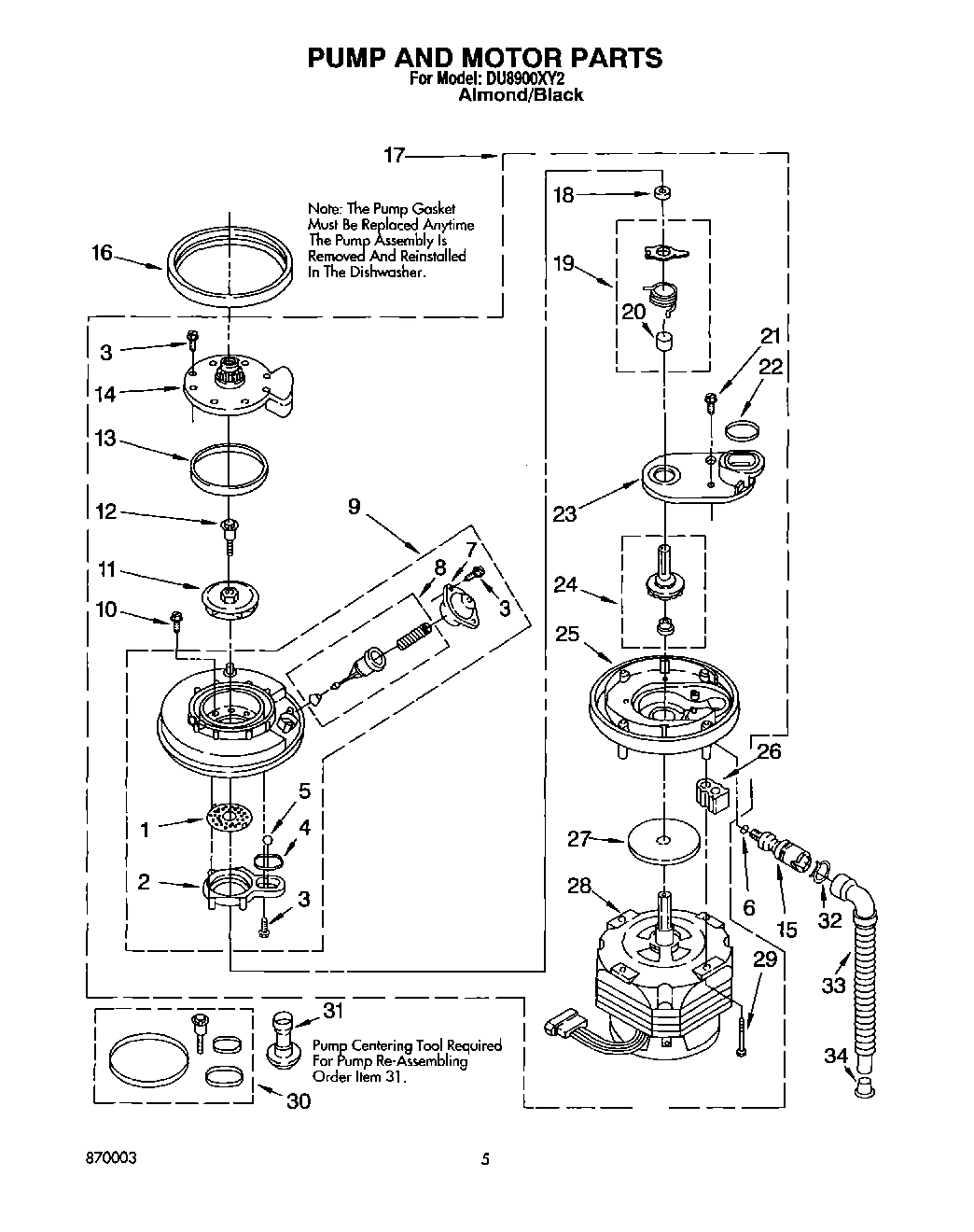

04 - PUMP AND MOTOR

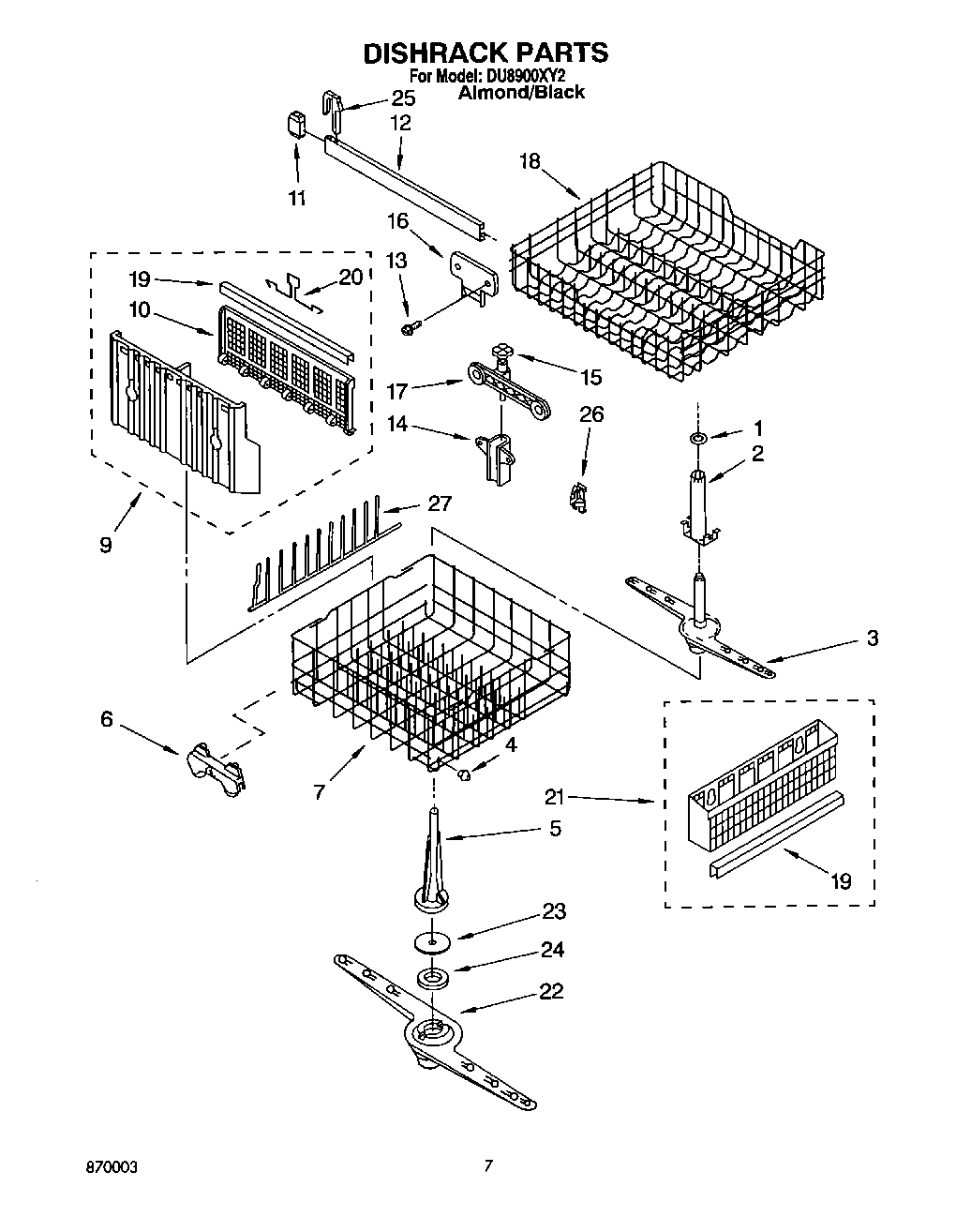

05 - DISHRACK, LIT\OPTIONAL

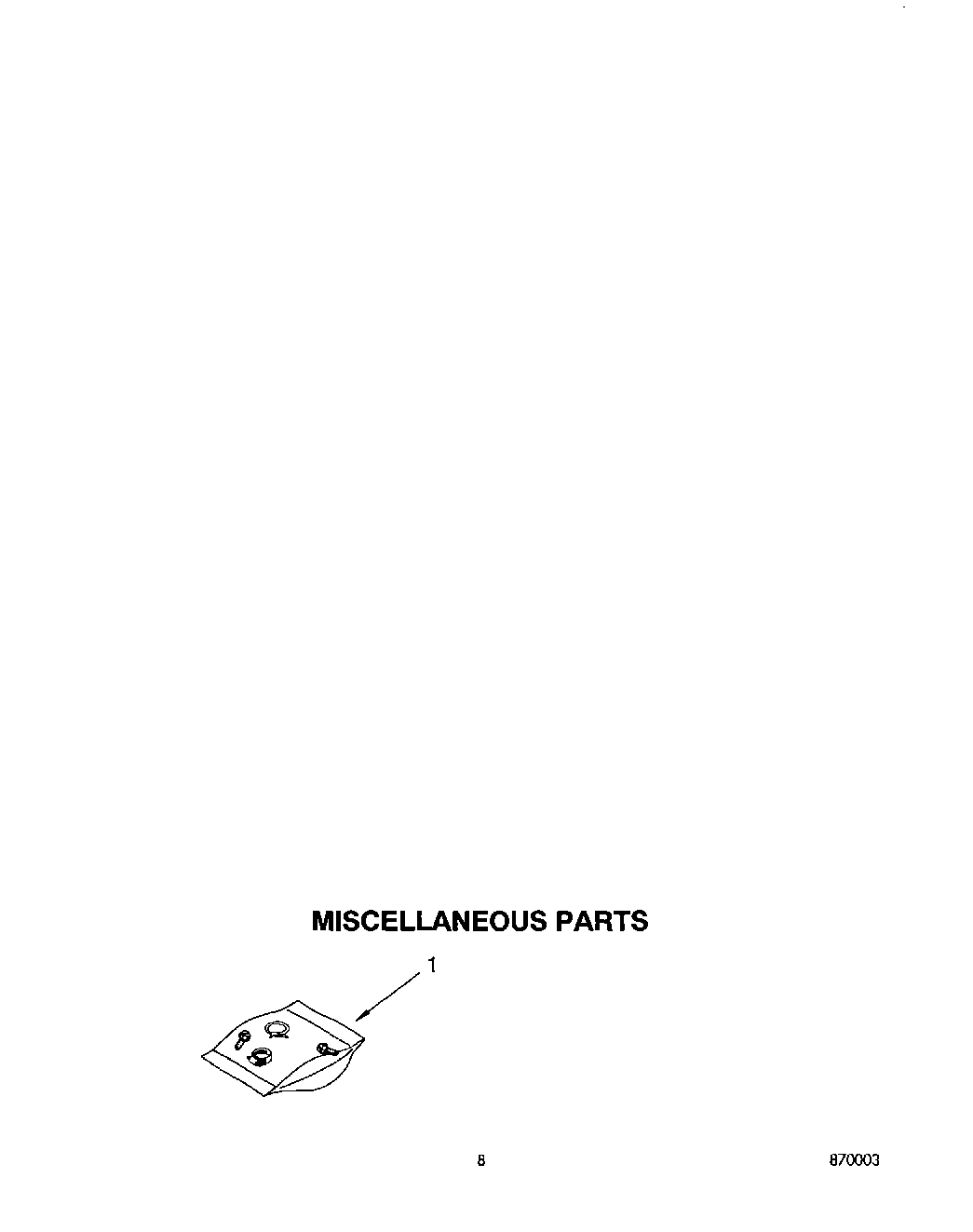

06 - SECTION

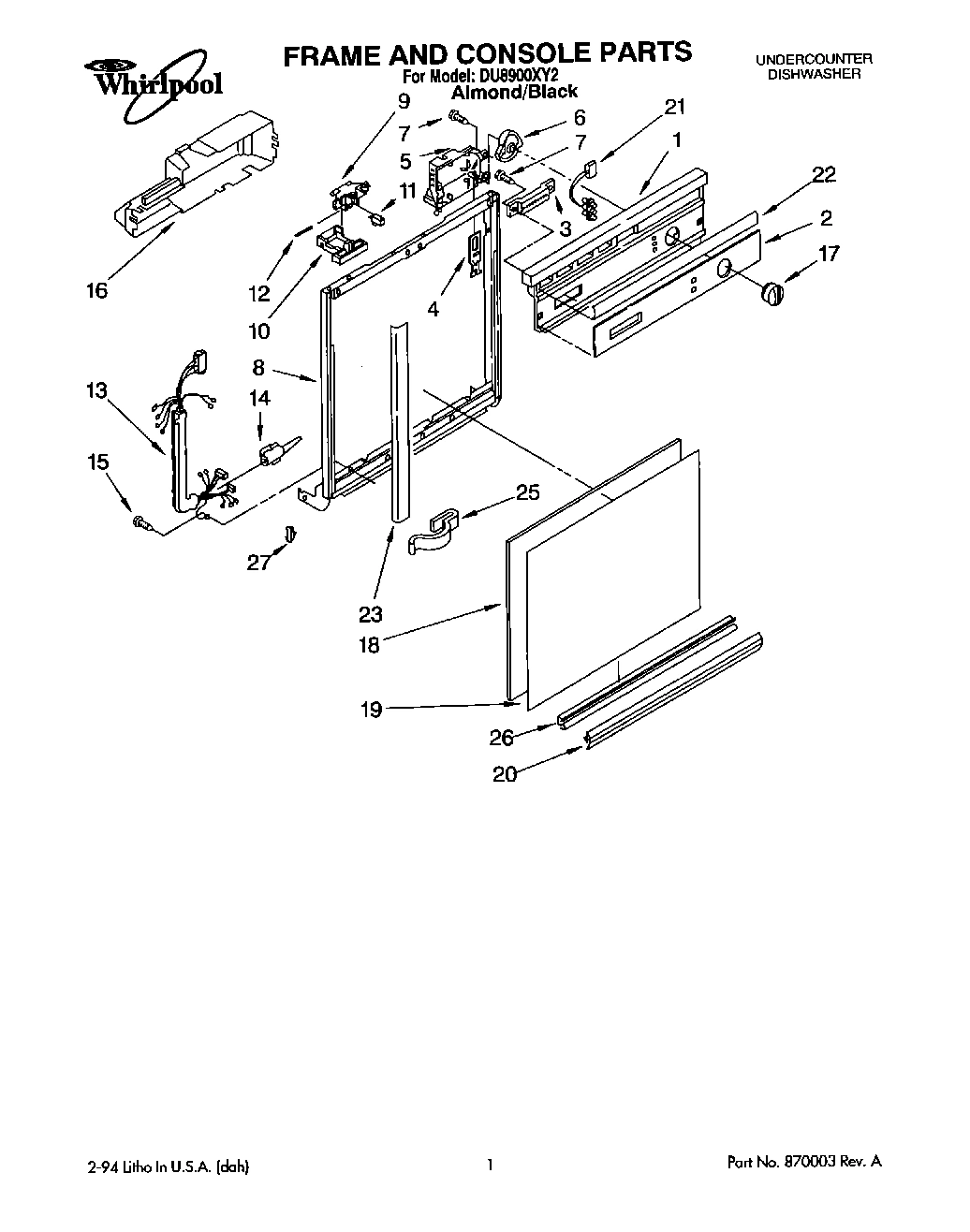

01 - FRAME AND CONSOLE

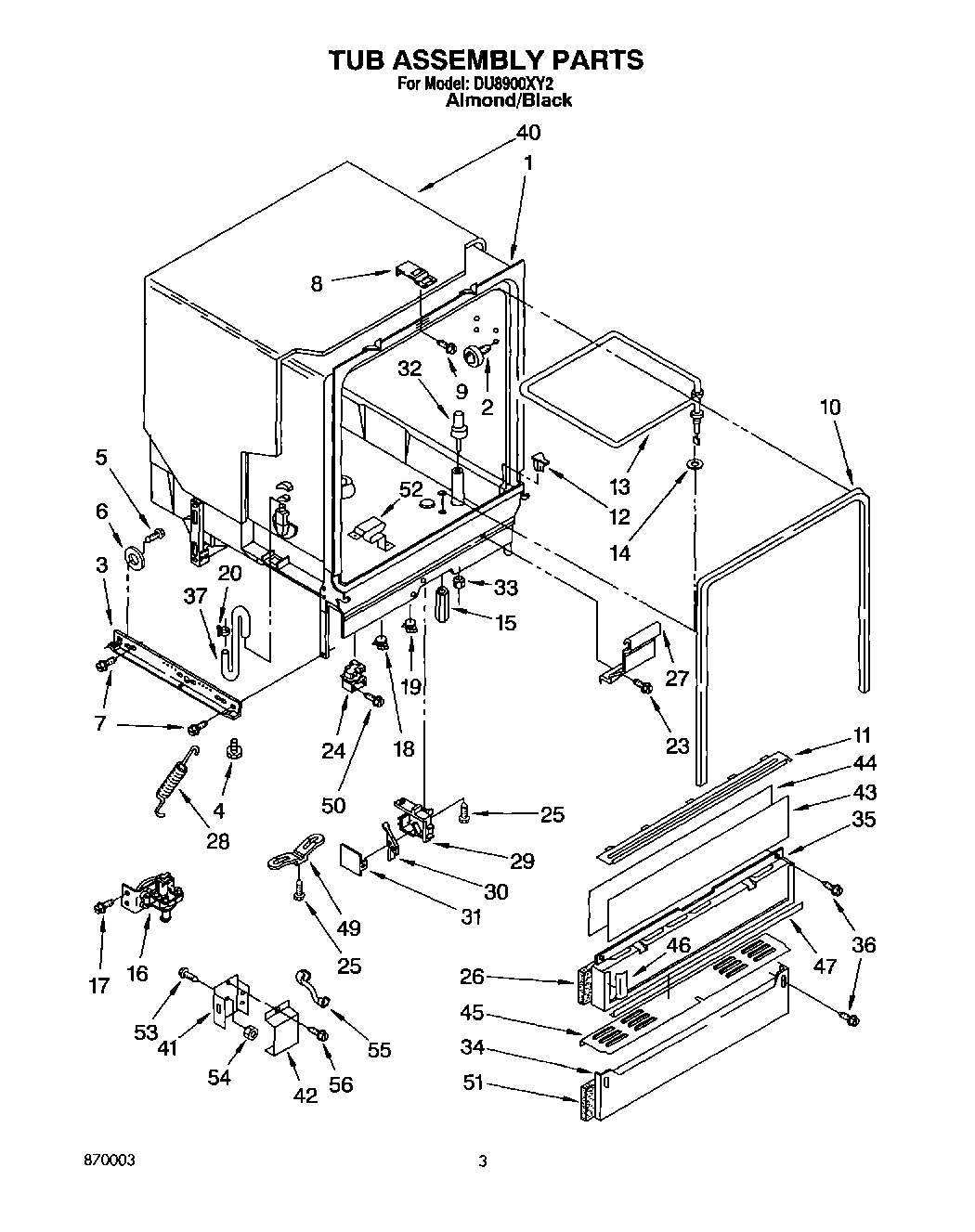

03 - TUB ASSEMBLY
Common parts from model Whirlpool DU8900XY2 UNDERCOUNTER DISHWASHER
1
Clip WPL 303722 Contact Us For Availability
1
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability
1
Console (Includes Item 2) WPL 3371835 Contact Us For Availability
1
Tub Assembly WPL 3370851 Contact Us For Availability
2
Support, Arm WPL 3368290 Contact Us For Availability
2
Insert, Console WPL 3372126 Contact Us For Availability
2
Tub, Wheel Assembly (8) WPL 3369078 Contact Us For Availability
3
Switch, 9-Pushbutton WPL 3369563 Contact Us For Availability
3
Runner (2) WPL 3368932 Contact Us For Availability
4
Follower, Cam WPL 3368997 Contact Us For Availability
5
Timer WPL 3369203 Contact Us For Availability
5
Screw, Shoulder (2) WPL 3370389 Contact Us For Availability
6
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
6
Wheel (2) WPL 302819 Contact Us For Availability
8
Plate, Latch WPL 3372030 Contact Us For Availability
9
Screw WPL 3372029 Contact Us For Availability
11
End Cap (Front or Rear) WPL 300845 Contact Us For Availability
11
Switch, (2) WPL 3369325 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
13
Harness and Protector WPL 3372253 Contact Us For Availability
13
Heater WPL 3369416 Contact Us For Availability
15
Worm (2) WPL 3369981 Contact Us For Availability
15
Nut (2) (Heater Terminal) WPL 3369073 Contact Us For Availability
16
Gasket, Pump WPL 717000 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
16
Cover Timer WPL 3373367 Contact Us For Availability
16
Water Valve WPL 3371817 Contact Us For Availability
17
Knob, Timer WPL 3368998 Contact Us For Availability
18
Spacer, Corrugated WPL 3368979 Contact Us For Availability
19
Trim, Basket WPL 717528 Contact Us For Availability
19
Thermostat WPL 3373359 Contact Us For Availability
20
Retainer, Panel WPL 3374010 Contact Us For Availability
20
Handle, Basket WPL 300086 Contact Us For Availability
21
Basket, Utensil WPL 3369494 Contact Us For Availability
21
Light Assembly WPL 3370279 Contact Us For Availability
22
Sprayarm, Lower WPL 3369347 Contact Us For Availability
22
Trim, Console WPL 3369324 Contact Us For Availability
23
Cap, Nozzle WPL 3367910 Contact Us For Availability
23
Trim (2) WPL 3369592 Contact Us For Availability
24
Bearing, Nozzle WPL 719576 Contact Us For Availability
24
Relay WPL 3369447 Contact Us For Availability
25
Stop, Track (2) WPL 3369046 Contact Us For Availability
26
Retainer, Flexrow WPL 3368629 Contact Us For Availability
26
Channel, Retainer (Also Order Item No.20) WPL 3374015 Contact Us For Availability
26
Sound Shield WPL 3369617 Contact Us For Availability
27
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
27
Leveler (Thinner) WPL 350941 Contact Us For Availability
27
Side Panel Kit (White) WPL 4317925 Contact Us For Availability
27
Avocado WPL 4317926 Contact Us For Availability
27
Gold WPL 4317927 Contact Us For Availability
27
Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability
27
Toast WPL 4317930 Contact Us For Availability
27
Platinum WPL 4317931 Contact Us For Availability
27
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
27
WPL 799340 WPL 799340 Contact Us For Availability
27
WPL 978883 WPL 978883 Contact Us For Availability
27
Shield, Harness WPL 3368983 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
30
Switch, Float WPL 3369067 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
31
Cover, Switch Housing WPL 3369049 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
37
Hose, Inlet WPL 3369414 Contact Us For Availability
40
Sound Shield WPL 3369771 Contact Us For Availability
41
Box, Terminal WPL 3370292 Contact Us For Availability
42
COVER ASSEMBLY TERMINAL BOX WPL 300068 Contact Us For Availability
43
Access Panel (Almond/Black) WPL 3369527 Contact Us For Availability
44
Spacer, Corrugated WPL 3369526 Contact Us For Availability
45
Extension WPL 3369531 Contact Us For Availability
46
Trim, Side (2) WPL 3369593 Contact Us For Availability
47
Trim, Bottom WPL 3369588 Contact Us For Availability
49
Bracket, Thermostat WPL 3370555 Contact Us For Availability
51
Sound Shield WPL 3370942 Contact Us For Availability
52
Support, Heater WPL 3368987 Contact Us For Availability
55
Relief, Strain WPL 3370307 Contact Us For Availability
56
Screw, 8-18 WPL 3369138 Contact Us For Availability
× ![]()
