Model Whirlpool DU8900XY1 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

675679 Whirlpool Dishwasher White Tip Tines In Stock WPL 675679 $11.01

676458 Whirlpool Dishwasher Tine Tip Backorder WPL 676458 $15.56

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $15.23

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $15.77

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $15.43

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

Clip WPL 303722 Contact Us For Availability

1

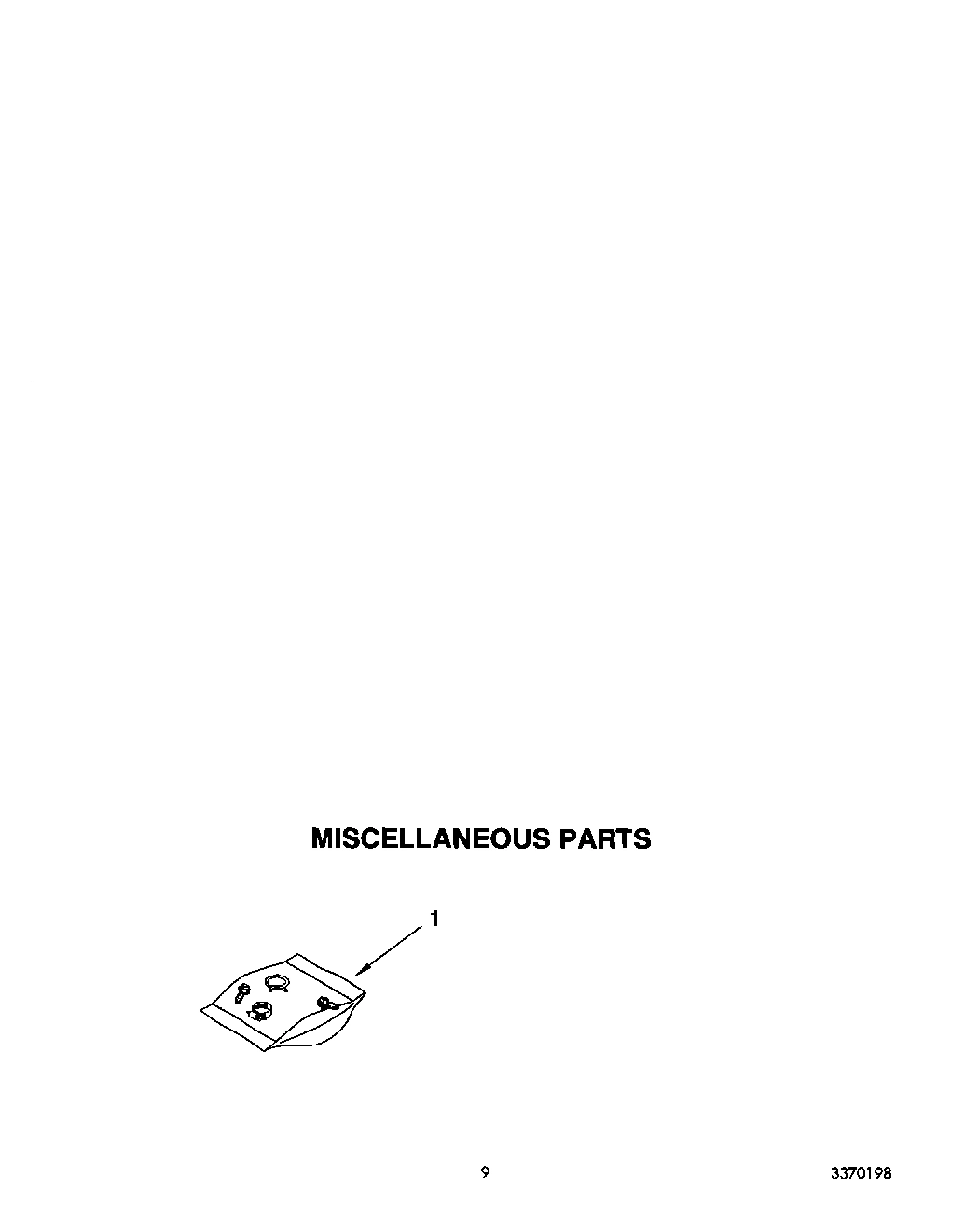

Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability

1

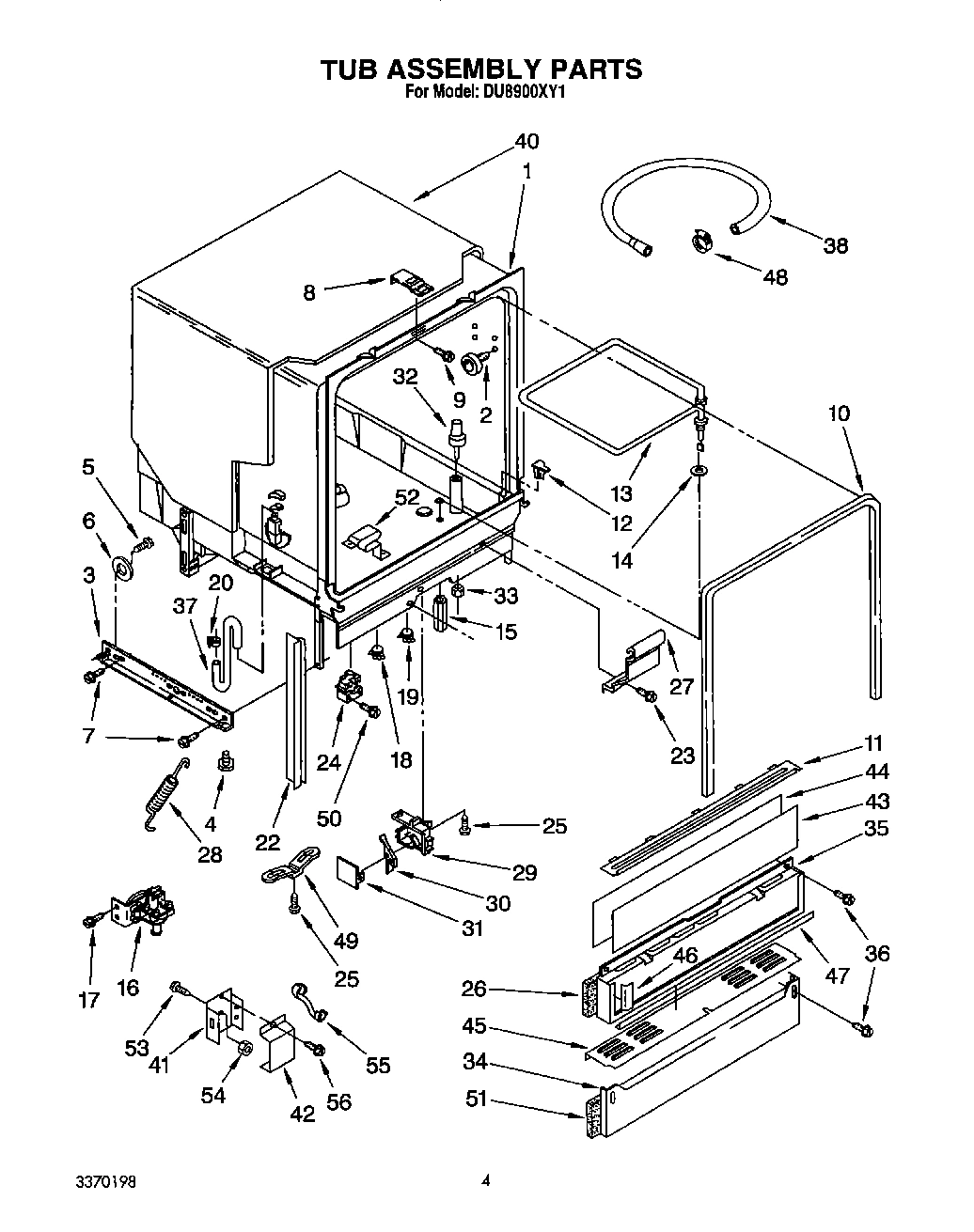

Tub Assembly WPL 3370851 Contact Us For Availability

1

Plate, Perforated (Includes Item 5) (Also Ord WPL 302720 Contact Us For Availability

1

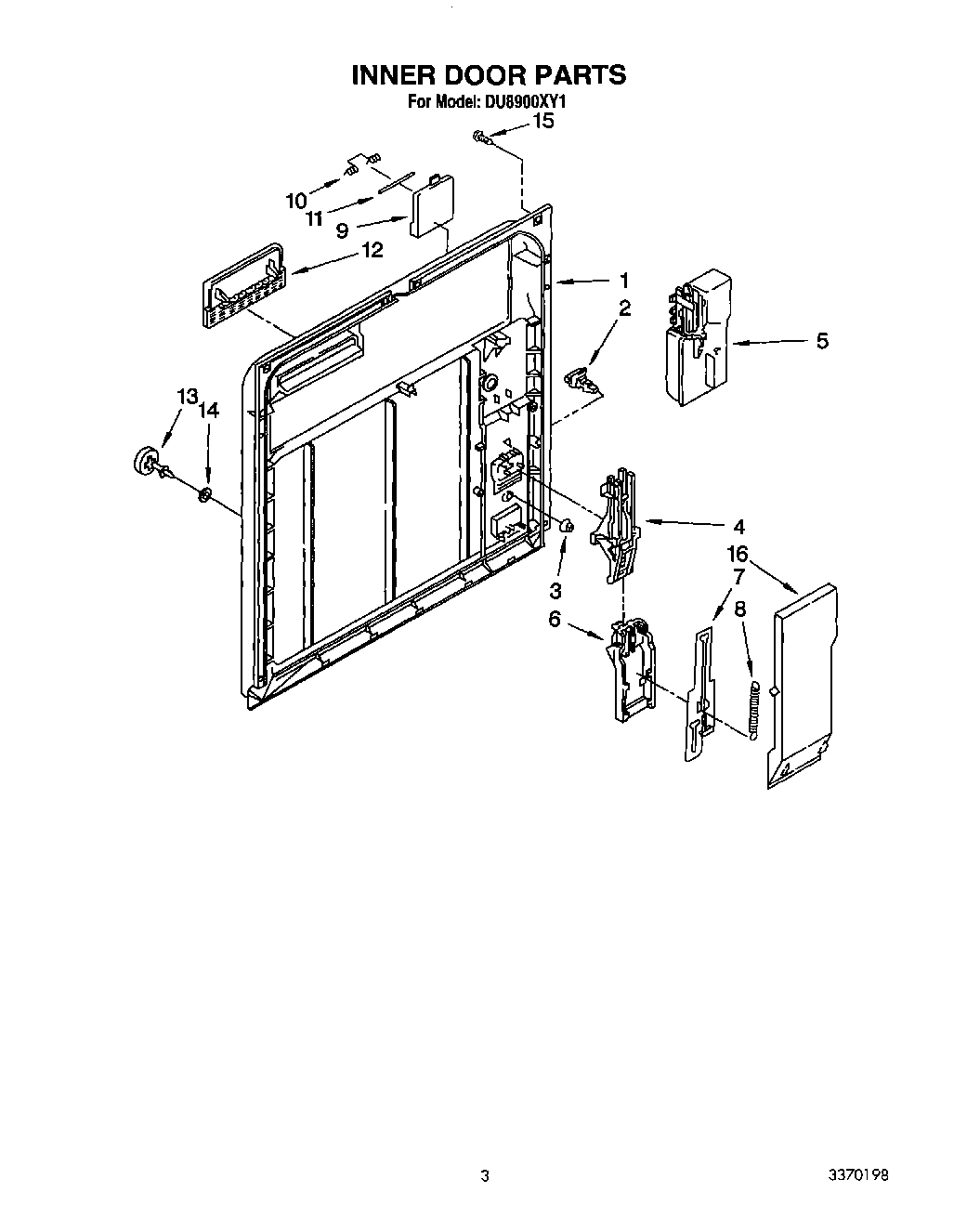

Inner Door (Also Order Latch Door Kit 676413) WPL 3371480 Contact Us For Availability

2

Support, Arm WPL 3368290 Contact Us For Availability

2

Tub, Wheel Assembly (8) WPL 3369078 Contact Us For Availability

2

Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability

3

676413 Whirlpool Dishwasher Detergent Dispens In Stock WPL 676413 $3.70

3

Runner (2) WPL 3368932 Contact Us For Availability

4

8193646 Whirlpool Dishwasher Lower Detergent In Stock WPL 8193646 $30.80

4

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $27.61

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

WP3385142 Whirlpool Dishwasher Bumper Backorder WPL WP3385142 $33.07

4

Follower, Cam WPL 3368997 Contact Us For Availability

5

WP8052027 Whirlpool Dishwasher Dispenser Backorder WPL WP8052027 $45.91

5

Tower, Pressure WPL 300848 Contact Us For Availability

5

Screw, Shoulder (2) WPL 3370389 Contact Us For Availability

5

Ball, Check WPL 302709 Contact Us For Availability

6

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

6

WP3376961 Whirlpool Dishwasher Wheel Backorder WPL WP3376961 $30.03

6

Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability

6

``O`` Ring WPL 95080 Contact Us For Availability

7

W10311986 Whirlpool Dishwasher Lower Rack Backorder WPL W10311986 $170.17

7

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

7

Cover, Valve WPL 302721 Contact Us For Availability

8

WP3368999 Whirlpool Dishwasher Spring In Stock WPL WP3368999 $2.51

8

Plate, Latch WPL 3372030 Contact Us For Availability

8

Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability

9

Silverware Basket Assembly WPL 3369488 Contact Us For Availability

9

Screw WPL 3372029 Contact Us For Availability

9

Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability

WP3368954 Whirlpool Dishwasher Lever Backorder WPL WP3368954 $2.51

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.51

WPW10509257 Whirlpool Door Gasket In Stock WPL WPW10509257 $34.31

Cover, Basket WPL 3369485 Contact Us For Availability

Screw, 8-18 x 1-5/8 (4) WPL 302717 Contact Us For Availability

11

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $15.98

11

WP3372412 Whirlpool Dishwasher Retainer Backorder WPL WP3372412 $31.68

11

End Cap (Front or Rear) WPL 300845 Contact Us For Availability

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $3.70

WP3371710 Whirlpool Dishwasher Screen Backorder WPL WP3371710 $3.70

WP8528862 Whirlpool Dishwasher Water Deflecto In Stock WPL WP8528862 $30.38

Pin, Switch (2) WPL 3368955 Contact Us For Availability

Track WPL 3369071 Contact Us For Availability

13

WP302711 Whirlpool Dishwasher Ring Seal Backorder WPL WP302711 $11.66

13

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

13

Heater WPL 3369416 Contact Us For Availability

WP3369980 Whirlpool Dishwasher Housing Backorder WPL WP3369980 $26.75

WP3378134 Whirlpool Dishwasher Cap In Stock WPL WP3378134 $3.70

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

Outlet, Pump (Includes Item 13) WPL 3369478 Contact Us For Availability

675238 Whirlpool Check Valve Backorder WPL 675238 $28.04

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

Worm (2) WPL 3369981 Contact Us For Availability

Nut (2) (Heater Terminal) WPL 3369073 Contact Us For Availability

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

WP3369979 Whirlpool Dishwasher Plate Backorder WPL WP3369979 $3.51

Cover, Drip WPL 3371569 Contact Us For Availability

Water Valve WPL 3371817 Contact Us For Availability

675791 Whirlpool Dishwasher ARM Assembly Backorder WPL 675791 $40.64

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Knob, Timer WPL 3368998 Contact Us For Availability

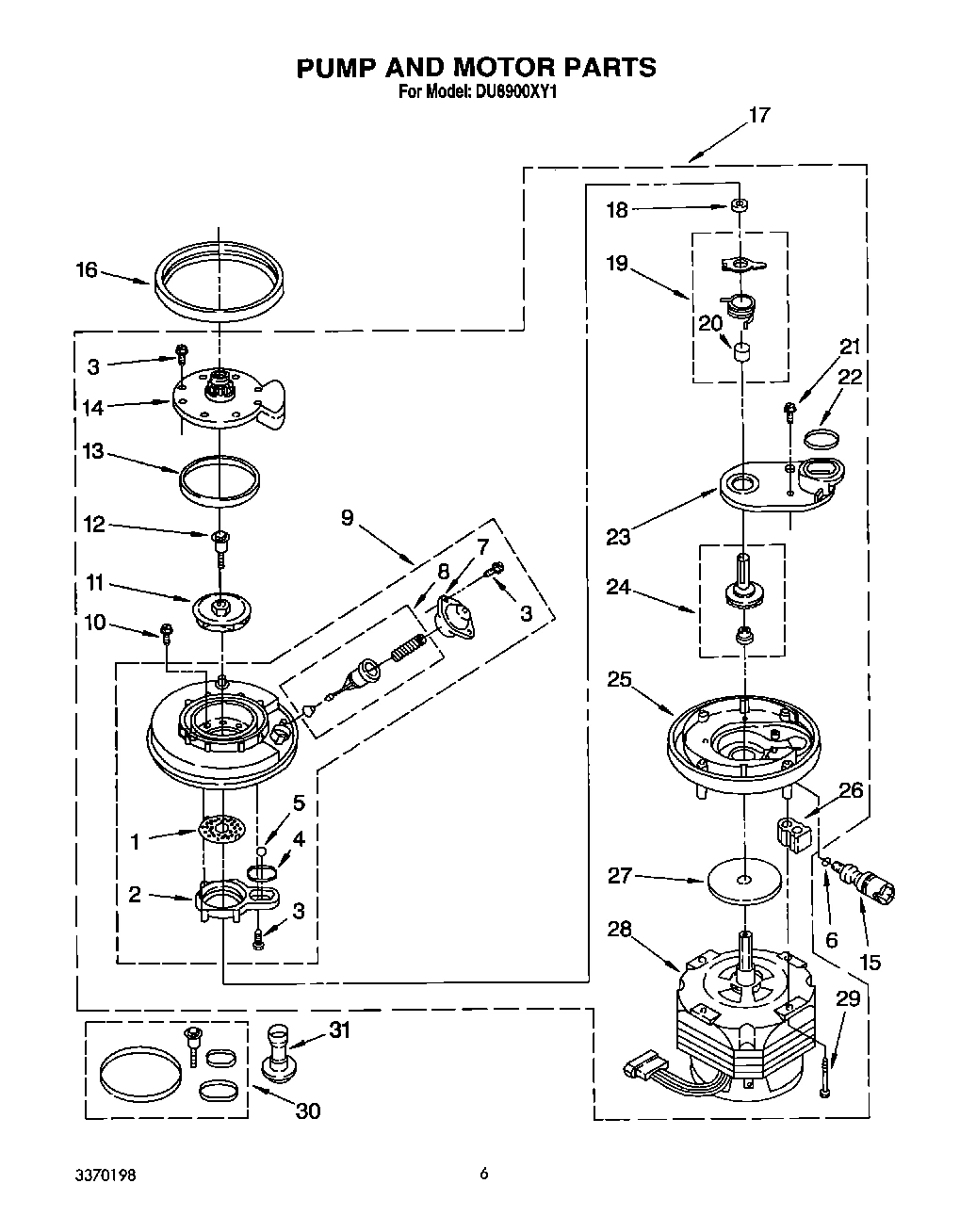

Pump & Motor Assembly (Includes Item 16) WPL 3369475 Contact Us For Availability

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $135.33

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

Spacer, Corrugated WPL 3368979 Contact Us For Availability

Bushing, Grind WPL 302707 Contact Us For Availability

19

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $85.12

19

Trim, Basket WPL 717528 Contact Us For Availability

19

Thermostat WPL 3370782 Contact Us For Availability

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

Retainer, Panel WPL 3370441 Contact Us For Availability

Handle, Basket WPL 300086 Contact Us For Availability

Sleeve, Drain Impeller WPL 302705 Contact Us For Availability

21

Basket, Utensil WPL 3369494 Contact Us For Availability

22

WP3376848 Whirlpool Dishwasher Spray Arm Backorder WPL WP3376848 $39.84

22

Retainer, Shield WPL 3369775 Contact Us For Availability

22

Seal, Drain Cover WPL 302704 Contact Us For Availability

23

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

23

Cap, Nozzle WPL 3367910 Contact Us For Availability

23

Cover, Drain (Also Order Item 30) See Note A. WPL 302723 Contact Us For Availability

24

WP719576 Whirlpool Dishwasher Bearing Backorder WPL WP719576 $4.26

24

Relay WPL 3369447 Contact Us For Availability

25

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $2.51

25

Stop, Track (2) WPL 3369046 Contact Us For Availability

25

Base, Pump (Includes Item 24) (Also Order Ite WPL 3367204 Contact Us For Availability

26

WP3367197 Whirlpool Dishwasher Support Backorder WPL WP3367197 $3.51

26

WP3368629 Whirlpool Dishwasher Retainer Backorder WPL WP3368629 $3.70

26

Sound Shield WPL 3369617 Contact Us For Availability

27

W10728160 Whirlpool Tine Assembly In Stock WPL W10728160 $27.32

27

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

27

Shield, Harness WPL 3368983 Contact Us For Availability

28

Spring & Bearing Assembly (2) WPL 3370939 Contact Us For Availability

28

Motor (Includes Item 27) (Also Order Item 30) WPL 3369472 Contact Us For Availability

29

Housing, Float Switch WPL 3369048 Contact Us For Availability

29

Screw (4) WPL 3369331 Contact Us For Availability

30

Switch, Float WPL 3369067 Contact Us For Availability

30

Pump Seal Kit (Includes Items 4, 12 WPL 675505 Contact Us For Availability

31

WPL 303918 WPL 303918 Contact Us For Availability

31

Cover, Switch Housing WPL 3369049 Contact Us For Availability

32

WP3376397 Whirlpool Dishwasher Float Assembly In Stock WPL WP3376397 $51.33

33

Nut WPL 717488 Contact Us For Availability

34

WP3379920 Whirlpool Dishwasher Toe Panel Backorder WPL WP3379920 $78.93

35

WP3369193 Whirlpool Dishwasher Panel Backorder WPL WP3369193 $56.87

36

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

37

Hose, Inlet WPL 3369414 Contact Us For Availability

38

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $47.73

40

Sound Shield WPL 3369771 Contact Us For Availability

41

Box, Terminal WPL 3370292 Contact Us For Availability

42

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

43

Access Panel (Almond/Black) WPL 3369527 Contact Us For Availability

44

Spacer, Corrugated WPL 3369526 Contact Us For Availability

45

Extension WPL 3369531 Contact Us For Availability

46

Trim, Side (2) WPL 3369593 Contact Us For Availability

47

Trim, Bottom WPL 3369588 Contact Us For Availability

48

WP3367052 Whirlpool Hose Clamp Backorder WPL WP3367052 $3.70

49

Bracket, Thermostat WPL 3370555 Contact Us For Availability

50

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

51

Sound Shield WPL 3370942 Contact Us For Availability

52

Support, Heater WPL 3368987 Contact Us For Availability

53

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

54

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

55

Relief, Strain WPL 3370307 Contact Us For Availability

56

Screw, 8-18 WPL 3369138 Contact Us For Availability
