Model Whirlpool DU8500XX3 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
06 - DISHRACK, LIT/OPTIONAL
04 - TUB ASSEMBLY

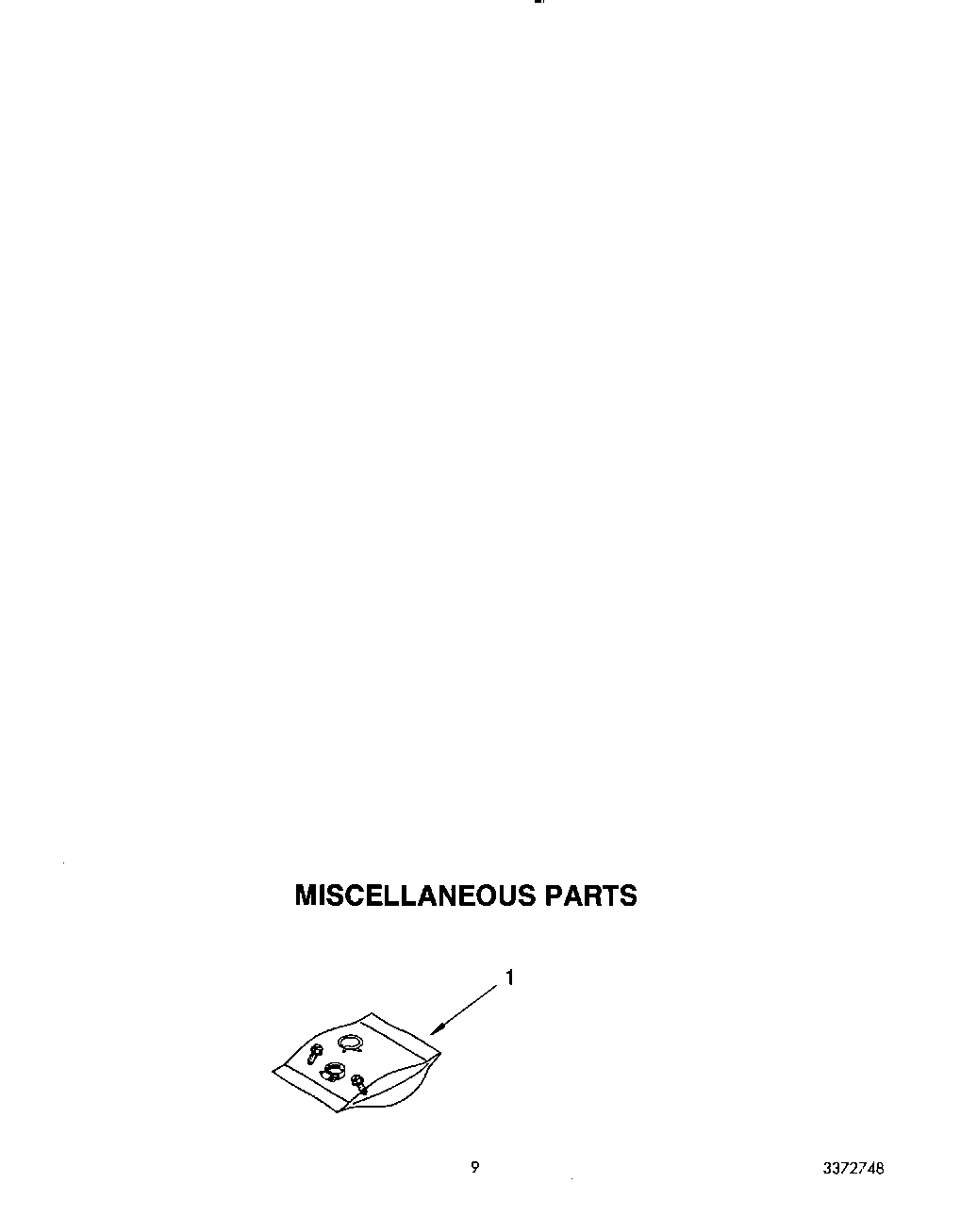

07 - MISCELLANEOUS

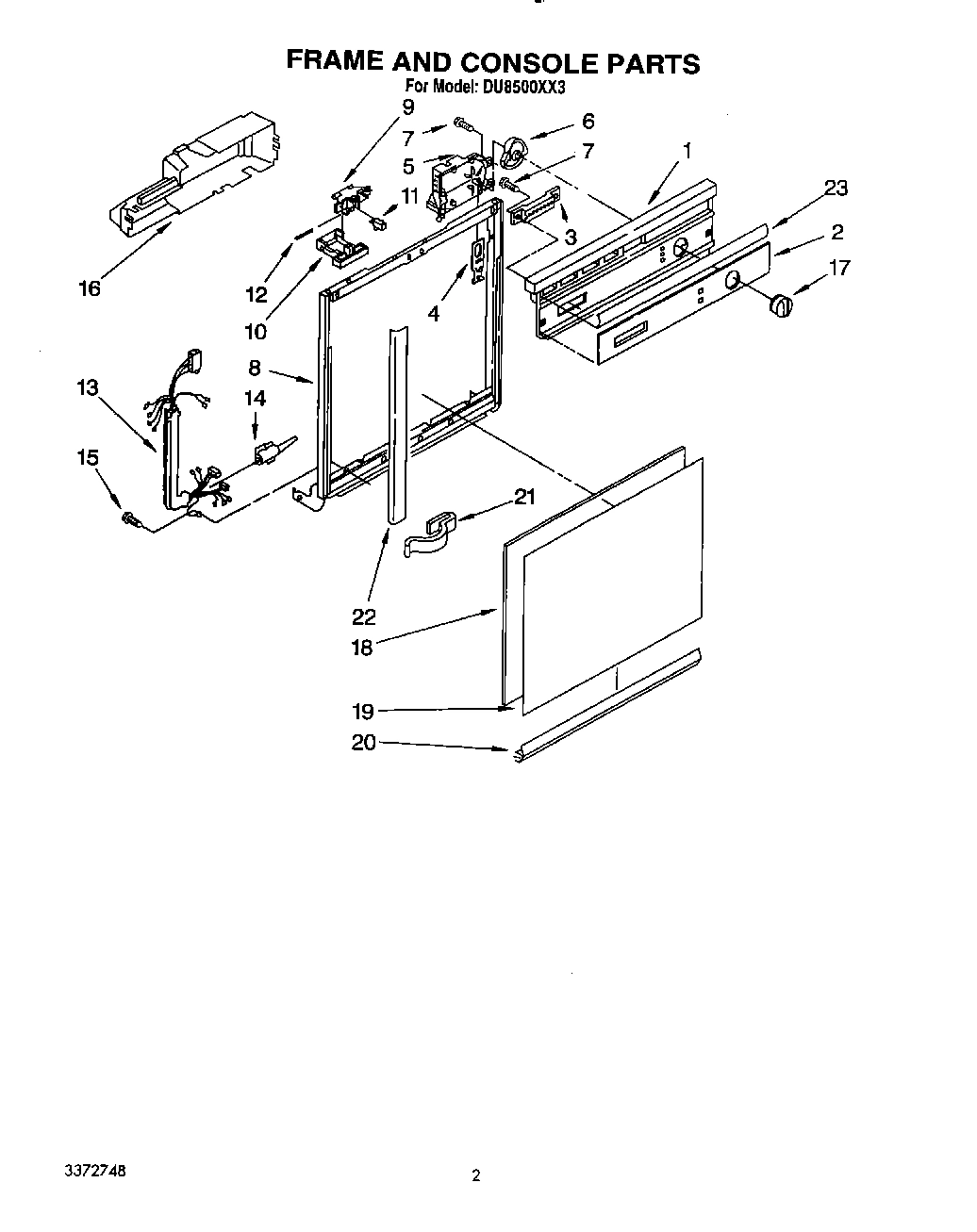

02 - FRAME AND CONSOLE

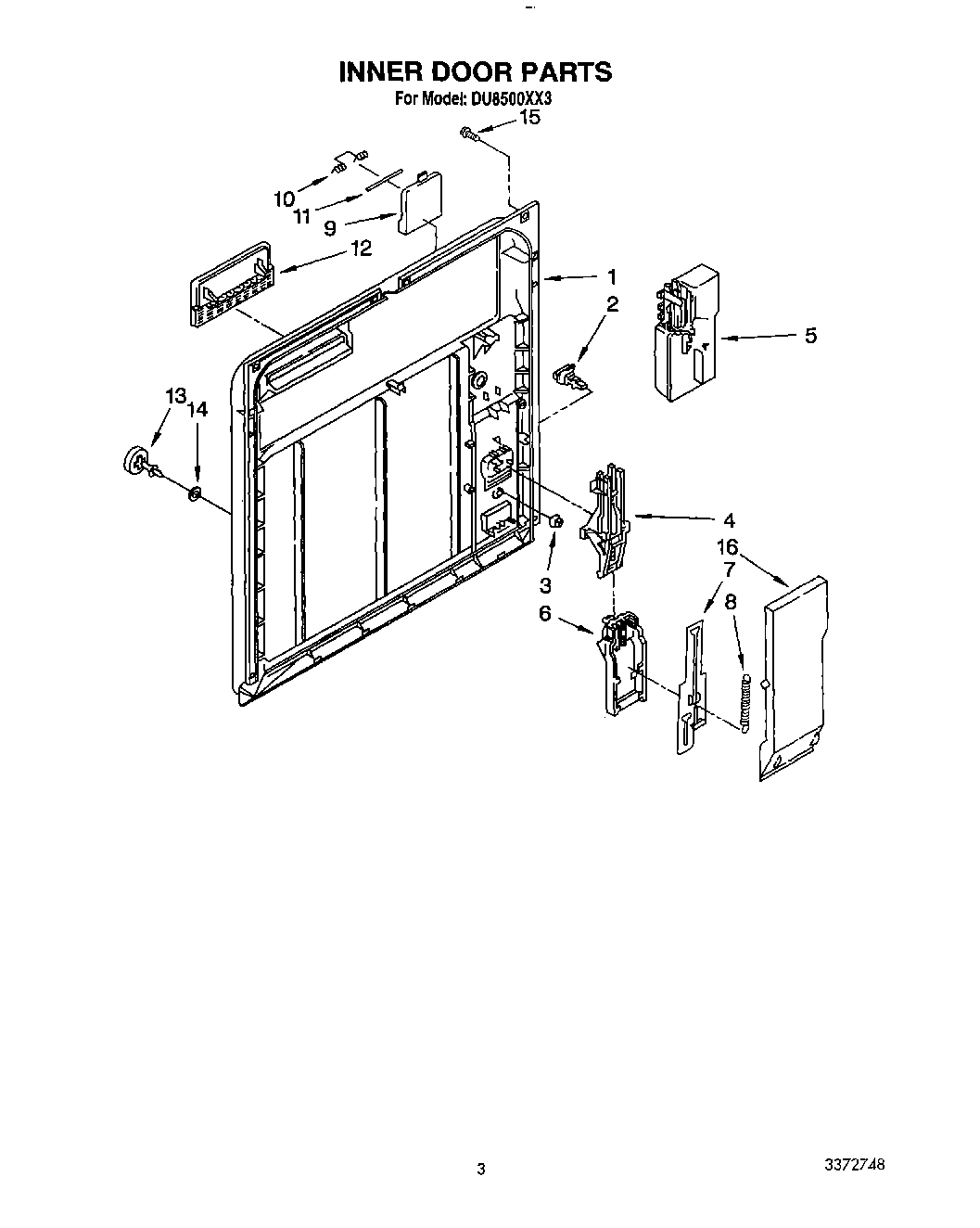

03 - INNER DOOR

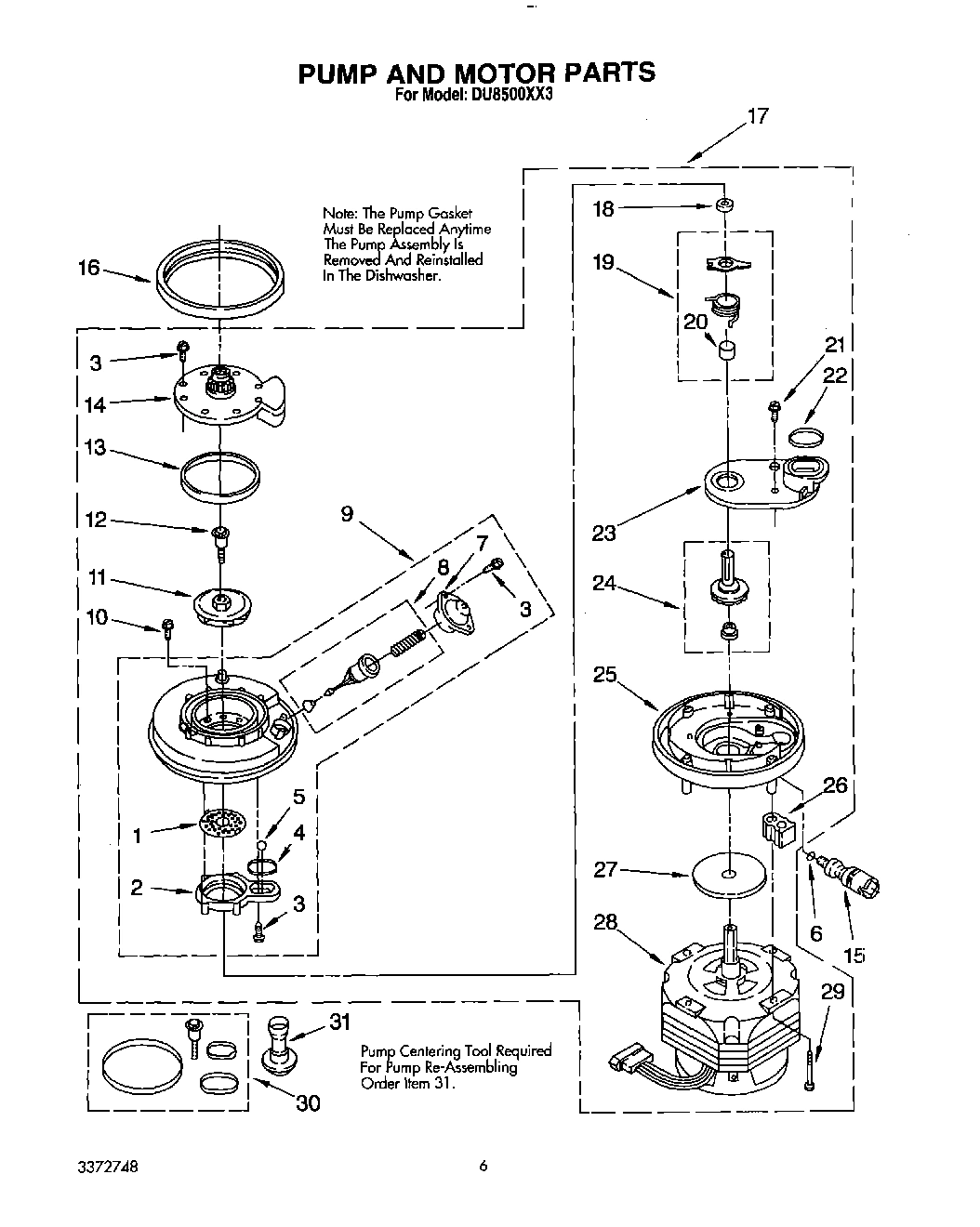

05 - PUMP AND MOTOR
Common parts from model Whirlpool DU8500XX3 UNDERCOUNTER DISHWASHER
1
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability
1
Console (Includes Item 2) WPL 3370310 Contact Us For Availability
1
Inner Door (Also Order Latch Door Kit 676413) WPL 3371480 Contact Us For Availability
1
Plate, Perforated (Includes Item 5) (Also Ord WPL 302720 Contact Us For Availability
2
Clip WPL 303722 Contact Us For Availability
2
Insert, Console WPL 3370309 Contact Us For Availability
2
Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability
3
Switch WPL 3369565 Contact Us For Availability
4
Follower, Cam WPL 3368997 Contact Us For Availability
5
Tower, Pressure WPL 304170 Contact Us For Availability
5
Timer WPL 3370249 Contact Us For Availability
5
Ball, Check WPL 302709 Contact Us For Availability
6
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
6
``O`` Ring WPL 95080 Contact Us For Availability
7
Cover, Valve WPL 302721 Contact Us For Availability
8
Door Frame WPL 3368900 Contact Us For Availability
8
Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability
9
Screw WPL 3372029 Contact Us For Availability
9
Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability
10
Screw, 8-18 x 1-5/8 (4) WPL 302717 Contact Us For Availability
11
End Cap (Front or Rear) WPL 300845 Contact Us For Availability
11
Switch, (2) WPL 3369325 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
13
Heater WPL 3369416 Contact Us For Availability
13
Harness and Protector (Includes Item 14) WPL 3372251 Contact Us For Availability
14
Outlet, Pump (Includes Item 13) WPL 3369478 Contact Us For Availability
15
Nut (2) (Heater Terminal) WPL 3369073 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
16
Water Valve WPL 3371817 Contact Us For Availability
16
Cover, Timer WPL 3369192 Contact Us For Availability
17
Knob, Timer WPL 3368998 Contact Us For Availability
17
Pump & Motor Assembly (Includes Item 16) WPL 3369475 Contact Us For Availability
18
Spacer, Corrugated WPL 3368979 Contact Us For Availability
18
Bushing, Grind WPL 302707 Contact Us For Availability
19
Thermostat WPL 3370782 Contact Us For Availability
20
Retainer, Panel WPL 3370441 Contact Us For Availability
20
Sleeve, Drain Impeller WPL 302705 Contact Us For Availability
22
Bracket, Thermostat WPL 3370555 Contact Us For Availability
22
Trim (2) WPL 3369586 Contact Us For Availability
22
Seal, Drain Cover WPL 302704 Contact Us For Availability
23
Cap, Nozzle WPL 3367910 Contact Us For Availability
23
Trim, Console WPL 3369598 Contact Us For Availability
23
Cover, Drain (Also Order Item 30) See Note A. WPL 302723 Contact Us For Availability
24
Relay WPL 3369447 Contact Us For Availability
24
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
25
Base, Pump (Includes Item 24) (Also Order Ite WPL 3367204 Contact Us For Availability
27
Shield, Harness WPL 3368983 Contact Us For Availability
28
Spring & Bearing Assembly (2) WPL 3370939 Contact Us For Availability
28
Motor (Includes Item 27) (Also Order Item 30) WPL 3369472 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
29
Screw (4) WPL 3369331 Contact Us For Availability
30
Switch, Float WPL 3369067 Contact Us For Availability
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
31
Cover, Switch Housing WPL 3369049 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
37
Hose, Inlet WPL 3369414 Contact Us For Availability
39
Support, Heater WPL 3368987 Contact Us For Availability
41
Box, Terminal WPL 3370292 Contact Us For Availability
43
Access Panel (Almond/Black) WPL 3369527 Contact Us For Availability
44
Spacer, Corrugated WPL 3369526 Contact Us For Availability
45
Extension WPL 3369531 Contact Us For Availability
46
Trim, Side (2) WPL 3369587 Contact Us For Availability
47
Trim, Bottom WPL 3369588 Contact Us For Availability
49
Relief, Strain WPL 3370307 Contact Us For Availability
52
Screw, 8-18 WPL 3369138 Contact Us For Availability
× ![]()
